batgrbproduct analysis for trigger=1159327

batgrbproduct Analysis for Trigger=1159327

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Mar 11 14:22:17 EST 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1159327/GCN5_download_cron
======================================================================

  Trigger: 01159327      Segment: 000

  BAT Trigger Time: 700174866.432   [s; MET]
      Trigger Stop: 700174866.464   [s; MET]
               UTC: 2023-03-10T21:00:35.531760    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 272.154353442046   Dec: -20.4159979539366  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    22.11
     Image Trigger?:     NO
     Rate S/N Ratio:     255.998046867549  [ if not an image trigger ]
     Image S/N Ratio:    22.11

  Flight Position:   [ source = BAT ]
    RA: 272.154353442046   Dec: -20.4159979539366  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 272.155209366981   Dec: -20.4194043954696  [deg; J2000]
        { 18h 08m 37.3s , -20d 25' 09.9" }
         +/- 0.543585166118221 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.169501666761723 [arcmin] (formal 1-sigma fit error)
    SNR: 72.6620301055977

  Angular difference between Flight and Ground position is 0.209977 arcmin

  Partial Coding Fraction: 0.71875    [ including projection effects ]

  Duration
     T90: 0.447999954223633 +/- 0.00800001621246338
        Measured from: -0.0199999809265137
                   to: 0.427999973297119     [s; relative to TRIGTIME]
     T50: 0.228000044822693 +/- 0.00565686571406321
        Measured from: 0.0720000267028809
                   to: 0.300000071525574     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.28600001335144
                   to: 0.71399998664856     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0720000267028809
                   to: 0.495999932289124     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     7.003393   6.824287   1.317510   0.036450
           0.057742   0.056429   0.025620   0.006116 [error]
 Peak      7.015124   6.819689   1.319570   0.035160
           0.058186   0.056802   0.026156   0.007311 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.95e-06 2.38e-06 9.16e-07 4.72e-07 7.49e-06 7.72e-06   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Power-law 1.30e+02 4.57e+01 9.17e+00 2.18e+00 1.86e+02 1.87e+02   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence   Cutoff-PL 2.43e-06 3.04e-06 1.04e-06 5.92e-08 6.57e-06 6.57e-06   erg/cm2
              Error 1.34e-07 6.74e-08 3.40e-08 9.74e-09 1.70e-07 1.71e-07   erg/cm2
Peak flux Cutoff-PL 7.84e+01 5.62e+01 1.04e+01 3.26e-01 1.45e+02 1.45e+02   ph/cm2/s
              Error 4.58e+00 1.26e+00 3.25e-01 5.41e-02 5.10e+00 5.11e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.377    0.000    -      -           9.02e-01 0.00e+00  969.110 57
CPL   0.332    0.234      25.2    1.6      3.70e+01 1.07e+01   48.100 56

The chi2 of BB fit is 201.91 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.317    0.000    -      -           5.32e-01 0.00e+00  847.560 57
CPL   0.341    0.240      25.2    1.6      2.07e+01 6.23e+00   46.850 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.448000 sec.
T50 in the 50-300 keV band: 0.192000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.568   -0.072    0.496
T90     0.448   -0.020    0.428
T50     0.228    0.072    0.300
Peak    1.000   -0.286    0.714

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  272.1552 -20.4194 0.0026   30.5 -154.0      15.6800    72.7  TRIG_01159327
------------------------------------------

Foreground time interval of the image:
 -0.072   0.496 (delta_t =   0.568 [sec])
Background time interval of the image:
-218.231  -0.072 (delta_t = 218.159 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

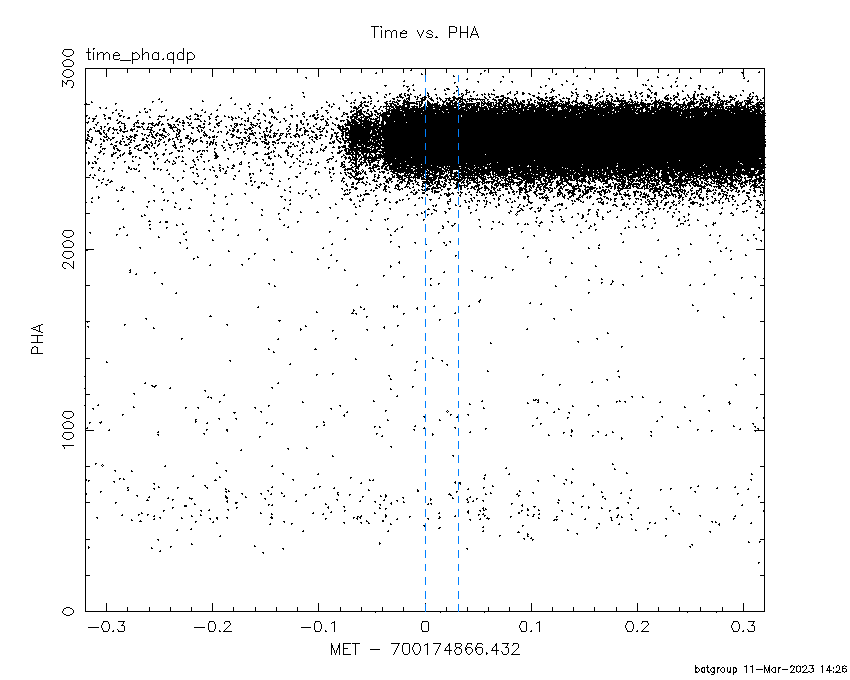

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -0.072 sec. to    0.496 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.37684     (     )
Norm@50keV  : 0.901915    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         969.11 using 59 PHA bins.
# Reduced chi-squared =         17.002 for     57 degrees of freedom
# Null hypothesis probability =  4.710922e-166

Photon flux (15-150 keV)    in 0.568 sec: 330.491 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.49112e-06 ( 0  0 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.072 sec. to    0.496 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.331974     ( -0.238754   0.228358 )
Epeak [keV] : 25.2081      ( -1.67934 1.50871 )
Norm@50keV  : 37.0102    ( -8.96074   12.5033 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.10 using 59 PHA bins.
# Reduced chi-squared =         0.8589 for     56 degrees of freedom
# Null hypothesis probability =   7.645901e-01

Photon flux (15-150 keV)    in 0.568 sec: 255.692 ( -8.869  8.978 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.56801e-06 ( 0  0 ) ergs/cm2

Band function

Time interval is from   -0.072 sec. to    0.496 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.276359   ( -0.303184   0.364037 )
beta        : -5.93410    ( -1.54098   0.531238 )
Epeak [keV] : 25.3665      ( -1.72526 1.56531 )
Norm@50keV   : 40.3197    ( -19.1649   25.0783 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.28 using 59 PHA bins.
# Reduced chi-squared =         0.8233 for     55 degrees of freedom
# Null hypothesis probability =   8.220041e-01

Photon flux (15-150 keV)    in 0.568 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.39504  (  )
R^2/D10^2   : 222.391  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         201.91 using 59 PHA bins.
# Reduced chi-squared =         3.5422 for     57 degrees of freedom
# Null hypothesis probability =   4.438634e-18

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.665e-06   5.907e-08
25- 50  3.162e-06   6.589e-08
50-150  9.707e-07   3.294e-08
15-150  5.798e-06   1.272e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 23.6688       (      )
Norm        : 2946.25       (     )
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.954e-06   9.145e-08
25- 50  2.921e-06   5.907e-08
50-150  1.145e-06   3.607e-08
15-150  7.020e-06   1.505e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.24309        (-0.530867      0.480812)
R1^2/D10^2  : 594.650        (-122.857      192.994)
kT2 [keV]   : 11.6812        (-0.895984      1.17084)
R2^2/D10^2  : 21.9234    (-11.0435   17.5255)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.206e-06   1.673e-07
25- 50  3.099e-06   1.548e-07
50-150  1.096e-06   1.380e-07
15-150  6.401e-06   3.948e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.286 sec. to    0.714 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.31669     (     )
Norm@50keV  : 0.531823    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         847.56 using 59 PHA bins.
# Reduced chi-squared =         14.869 for     57 degrees of freedom
# Null hypothesis probability =  2.963120e-141

Photon flux (15-150 keV)    in 1 sec: 185.836 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.51459e-06 ( 0  0 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.286 sec. to    0.714 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.341120     ( -0.245592   0.234914 )
Epeak [keV] : 25.1766      ( -1.72216 1.53851 )
Norm@50keV  : 20.7370    ( -5.17249   7.28609 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.85 using 59 PHA bins.
# Reduced chi-squared =         0.8365 for     56 degrees of freedom
# Null hypothesis probability =   8.032477e-01

Photon flux (15-150 keV)    in 1 sec: 145.278 ( -5.072  5.135 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.57102e-06 ( 0  0 ) ergs/cm2

Band function

Time interval is from   -0.286 sec. to    0.714 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.303186   ( -0.320288   0.417825 )
beta        : -5.66854    ( -1.07391   0.510911 )
Epeak [keV] : 25.2138      ( -1.7351 1.51579 )
Norm@50keV   : 22.1348    ( -12.0319   15.9867 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.40 using 59 PHA bins.
# Reduced chi-squared =         0.7890 for     55 degrees of freedom
# Null hypothesis probability =   8.709044e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.37680  (  )
R^2/D10^2   : 127.628  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.672e-06   6.350e-08
25- 50  3.165e-06   6.750e-08
50-150  9.648e-07   3.390e-08
15-150  5.802e-06   1.165e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 23.8665       (-0.551446      0.565617)
Norm        : 1653.66       (-70.9787     74.0575)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.936e-06   9.250e-08
25- 50  2.919e-06   6.100e-08
50-150  1.159e-06   4.000e-08
15-150  7.014e-06   1.365e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.24469        (-0.548604      0.492943)
R1^2/D10^2  : 338.891        (-71.149      113.212)
kT2 [keV]   : 11.7488        (-0.95963      1.29023)
R2^2/D10^2  : 12.0878    (-6.39359   10.409)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.208e-06   1.505e-07
25- 50  3.097e-06   1.850e-07
50-150  1.101e-06   1.403e-07
15-150  6.406e-06   4.470e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.37684     (     )
Norm@50keV  : 0.901915    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         969.11 using 59 PHA bins.
# Reduced chi-squared =         17.002 for     57 degrees of freedom
# Null hypothesis probability =  4.710922e-166

Photon flux (15-150 keV)    in 0.568 sec: 330.491 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.49112e-06 ( 0  0 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.331974     ( -0.238754   0.228358 )
Epeak [keV] : 25.2081      ( -1.67934 1.50871 )
Norm@50keV  : 37.0102    ( -8.96074   12.5033 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.10 using 59 PHA bins.
# Reduced chi-squared =         0.8589 for     56 degrees of freedom
# Null hypothesis probability =   7.645901e-01

Photon flux (15-150 keV)    in 0.568 sec: 255.692 ( -8.869  8.978 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.56801e-06 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.276359   ( -0.303184   0.364037 )
beta        : -5.93410    ( -1.54098   0.531238 )
Epeak [keV] : 25.3665      ( -1.72526 1.56189 )
Norm@50keV   : 40.3197    ( -19.1649   25.0783 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.28 using 59 PHA bins.
# Reduced chi-squared =         0.8233 for     55 degrees of freedom
# Null hypothesis probability =   8.220041e-01

Photon flux (15-150 keV)    in 0.568 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.38e-06
S(50-100 keV) = 9.16e-07

T90 vs. Hardness ratio plot

T90                                   = 0.447999954223633 sec.
Hardness ratio (energy fluence ratio) = 0.384874

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.974426
Count Ratio (50-100 keV) / (15-25 keV) = 0.188125

Mask shadow pattern

IMX = -5.302697819416252E-01, IMY = 2.589647467369287E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-218.231400 -0.072000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1186 -60.6063    8.2  47.5   27.2   1.0107   1.4    5.9	Cen X-3
186.6793 -62.9037    5.3  39.3   26.7   1.1791   2.2    8.0	GX 301-2
244.9664 -15.6487    0.8  30.9  153.2   6.3025  13.6    0.9	Sco X-1
255.9798 -37.8487    0.5   8.7 -171.3   7.5386  21.4    0.4	4U 1700-377
256.6225 -36.4220   26.6  10.2 -171.3   0.1455   0.4    9.0	GX 349+2
263.0123 -24.7674  100.7  23.1 -167.1   0.0421   0.1    1.3	GX 1+4
264.5405 -44.3796    5.1   9.2 -109.5   0.8320   2.3    9.7	4U 1735-44
268.4403  -1.3598    9.4  47.0 -170.9   0.9164   1.2    7.1	SW J1753.5-0127
270.3272 -25.0192    3.3  25.7 -152.3   1.2894   3.5    4.3	GX 5-1
270.1497 -25.5828    0.0  25.1 -151.9   0.4566   1.3   12.7	GRS 1758-258
273.8825 -14.1569   10.1  36.9 -156.5   0.5708   1.1   10.2	GX 17+2
275.8980 -30.5100   19.7  24.3 -135.1   0.2373   0.6    8.7	H1820-303
284.8914 -24.7857   17.2  33.9 -131.2  -0.3775  -0.7   11.3	HT1900.1-2455
263.0644 -33.8065   18.1  14.9 -154.7  -0.2443  -0.6    4.1	GX 354-0
254.1045 -19.5802    2.8  26.5  171.0   1.6066   4.1 ------	UNKNOWN
248.4901 -47.3661    2.2   2.6   42.9   1.8775   5.3 ------	UNKNOWN
194.4147 -84.4063    2.7  41.2   -6.9   2.2276   4.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.072000 0.496000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.5659 -60.7053    8.1  47.2   27.2   0.6198   1.4    8.9	Cen X-3
186.5157 -62.7601   29.6  39.4   26.9   0.1201   0.4    3.9	GX 301-2
245.0198 -15.7838    4.1  30.7  153.3  -0.6639  -2.8    8.9	Sco X-1
255.8640 -37.6719   35.0   8.9 -172.3   0.0590   0.3   11.9	4U 1700-377
256.3677 -36.5430   26.5  10.1 -172.2  -0.0804  -0.4    7.9	GX 349+2
262.9717 -24.7043   48.1  23.1 -167.2   0.0411   0.2    3.2	GX 1+4
264.5508 -44.2890    0.0   9.2 -110.0   0.0977   0.5   12.7	4U 1735-44
268.3152  -1.4783    4.3  46.8 -171.0  -0.8586  -2.7    3.5	SW J1753.5-0127
270.1665 -25.1864    6.3  25.5 -152.4   0.3413   1.8    9.1	GX 5-1
270.2860 -25.8819    5.0  25.0 -151.3   0.4338   2.3    8.4	GRS 1758-258
274.1377 -14.0898    9.7  37.0 -156.2  -0.3019  -1.2    8.3	GX 17+2
275.9390 -30.5109    5.2  24.3 -135.0  -0.4709  -2.2    8.7	H1820-303
285.0028 -25.0570    7.6  33.8 -130.8   0.4288   1.5    8.4	HT1900.1-2455
262.9871 -33.8315   27.9  14.9 -154.8  -0.0695  -0.4    0.2	GX 354-0
238.0537 -20.5053    2.9  27.8  137.7   0.9352   3.9 ------	UNKNOWN
158.9627 -66.8564    2.6  49.6   17.0   1.8916   4.4 ------	UNKNOWN
145.0273 -71.6117    2.2  51.7    8.6   2.6111   5.3 ------	UNKNOWN
215.9415 -80.3806    2.8  36.6   -4.6   0.9783   4.2 ------	UNKNOWN
272.1552 -20.4194    0.2  30.5 -154.0  15.6804  72.7 ------	UNKNOWN
326.3966 -60.3260    2.5  44.3  -57.1   3.2867   4.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
960.568590 962.663700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4365  35.3055   24.5  33.6  103.0  -0.0163  -0.5    2.4	Her X-1
263.0668 -24.8913    8.9  50.9    8.0  -0.0651  -1.3    9.3	GX 1+4
268.5344  -1.3591    0.0  28.6   23.0   0.0397   1.7   11.4	SW J1753.5-0127
270.3757 -25.1350    9.2  48.1    0.1  -0.0508  -1.3    6.0	GX 5-1
270.3963 -25.7331   32.3  48.6   -0.3  -0.0147  -0.4    5.1	GRS 1758-258
274.0736 -14.2030    7.6  36.6    1.6   0.0411   1.5   10.7	GX 17+2
275.8134 -30.3595    3.3  51.5   -8.1   0.1615   3.5    5.8	H1820-303
285.0875 -24.8768    5.7  44.7  -17.8  -0.0696  -2.0    3.8	HT1900.1-2455
288.8621  11.0817    5.3   8.6  -25.9  -0.0423  -2.2    9.0	GRS 1915+105
299.7293  35.1105    2.2  18.5 -170.9   0.1001   5.1    8.7	Cyg X-1
308.0784  40.9612    3.0  27.2 -167.7   0.0855   3.8    1.5	Cyg X-3
326.1352  38.2850    9.2  37.6 -149.7   0.0373   1.2    2.8	Cyg X-2
312.8799  50.7689    2.7  36.7 -175.7   0.1142   4.3 ------	UNKNOWN

Plot creation:
Sat Mar 11 14:26:10 EST 2023
