batgrbproduct analysis for trigger=1159435

batgrbproduct Analysis for Trigger=1159435

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Mar 12 20:58:31 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1159435/GCN5_download_cron
======================================================================

  Trigger: 01159435      Segment: 000

  BAT Trigger Time: 700255928   [s; MET]
      Trigger Stop: 700255992   [s; MET]
               UTC: 2023-03-11T19:31:37.094240    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 245.044303078593   Dec: -15.9129605387498  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    23.72
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    23.72

  Flight Position:   [ source = BAT ]
    RA: 245.044303078593   Dec: -15.9129605387498  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.906965508808   Dec: -16.0148930236469  [deg; J2000]
        { 16h 19m 37.7s , -16d 00' 53.6" }
         +/- 4.03257363055443 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.73467662908641 [arcmin] (formal 1-sigma fit error)
    SNR: 4.14954807140606

  Angular difference between Flight and Ground position is 10.008513 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 405.427999854088 +/- 29.7030402516368
        Measured from: 54.700000166893
                   to: 460.128000020981     [s; relative to TRIGTIME]
     T50: 148.439999938011 +/- 15.3673763935014
        Measured from: 116.604000091553
                   to: 265.044000029564     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 158.715999960899
                   to: 159.715999960899     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -205.047999978065
                   to: 559.031999945641     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    60.263206   4.792170  -0.118269  -0.155846
           0.253334   0.202674   0.164620   0.137469 [error]
 Peak      0.134867   0.018545   0.010053   0.008181
           0.010557   0.007647   0.006301   0.005203 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.97e-05 1.84e-06 6.87e-08 2.66e-09 2.16e-05 2.16e-05   erg/cm2
              Error 1.39e-06 1.18e-07 1.27e-08 8.58e-10 1.37e-06 1.37e-06   erg/cm2
Peak flux Power-law 1.33e+00 1.80e-01 1.08e-02 6.86e-04 1.53e+00 1.53e+00   ph/cm2/s
              Error 2.14e-01 7.03e-02 1.02e-02 1.30e-03 2.37e-01 2.37e-01   ph/cm2/s

Fluence   Cutoff-PL 1.79e-05 1.58e-06 2.27e-09 3.34e-15 1.95e-05 1.95e-05   erg/cm2
              Error 1.69e-06 1.35e-07 3.32e-09 1.24e-13 1.70e-06 1.70e-06   erg/cm2
Peak flux Cutoff-PL 1.33e+00 1.80e-01 1.08e-02 6.63e-04 1.52e+00 1.53e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- 2.43e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.744    0.190    -      -           1.23e-04 1.84e-05  101.400 57
CPL   1.000    0.000      50.0    0.0      1.70e-03 0.00e+00 1224.530 56

The chi2 of BB fit is 69.35 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.060    0.758    -      -           9.34e-04 7.11e-04   45.930 57
CPL   1.000    0.000      50.0    0.0      1.55e-02 0.00e+00  118.170 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  764.080 -205.048  559.032
T90   405.428   54.700  460.128
T50   148.440  116.604  265.044
Peak    1.000  158.716  159.716

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.9070 -16.0149 0.0465    0.2   45.2       6.9949     4.1  TRIG_01159435
------------------------------------------

Foreground time interval of the image:
-205.048 -205.000 (delta_t =   0.048 [sec])
-204.000 -160.760 (delta_t =  43.240 [sec])
-160.000 -84.610 (delta_t =  75.390 [sec])
-77.000 -70.550 (delta_t =   6.450 [sec])
-64.000 -55.160 (delta_t =   8.840 [sec])
-36.000 -29.820 (delta_t =   6.180 [sec])
-24.000 -23.950 (delta_t =   0.050 [sec])
-23.000 123.320 (delta_t = 146.320 [sec])
127.000 128.550 (delta_t =   1.550 [sec])
130.000 143.100 (delta_t =  13.100 [sec])
144.000 215.500 (delta_t =  71.500 [sec])
217.000 337.010 (delta_t = 120.010 [sec])
346.000 346.503 (delta_t =   0.503 [sec])
349.000 398.134 (delta_t =  49.133 [sec])
409.000 409.666 (delta_t =   0.666 [sec])
411.000 558.020 (delta_t = 147.020 [sec])
559.000 559.032 (delta_t =   0.032 [sec])
Background time interval of the image:
-239.000 -205.048 (delta_t =  33.952 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-205.048000 -205.000000
-204.000000 -160.760000
-160.000000 -84.610000
-77.000000 -70.550000
-64.000000 -55.160000
-36.000000 -29.820000
-24.000000 -23.950000
-23.000000 123.320000
127.000000 128.550000
130.000000 143.100000
144.000000 215.500000
217.000000 337.010000
346.000000 346.502700
349.000000 398.133500
409.000000 409.666300
411.000000 558.020000
559.000000 559.032000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.74379     ( -0.191571   0.188617 )
Norm@50keV  : 1.22572E-04    ( -1.723e-05   1.96107e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         101.40 using 59 PHA bins.
# Reduced chi-squared =         1.7789 for     57 degrees of freedom
# Null hypothesis probability =   2.701179e-04

Photon flux (15-150 keV)    in 690 sec: 1.07518 ( -0.0733581  0.0744446 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.15848e-05 ( -1.3632e-06  1.38139e-06 ) ergs/cm2

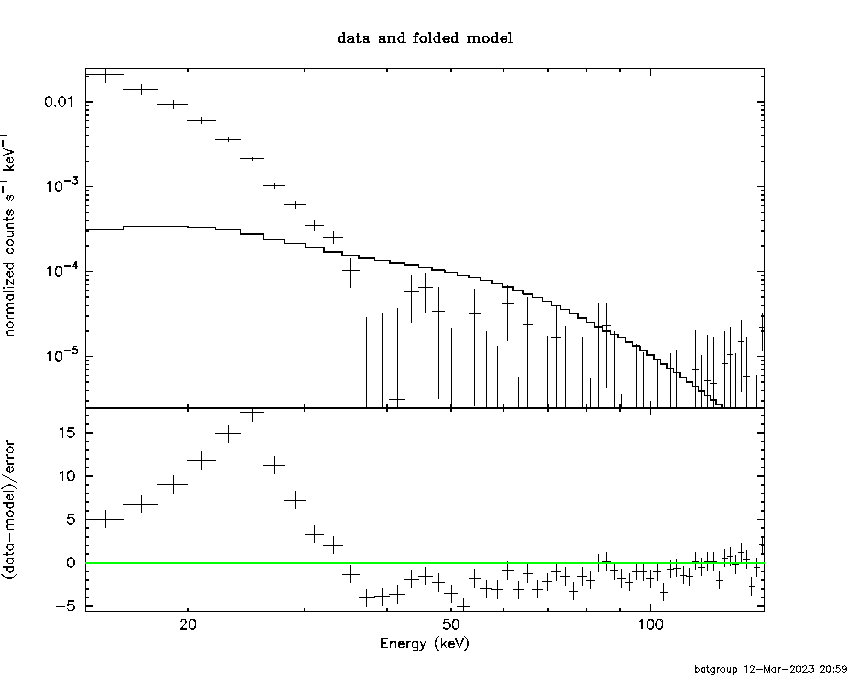

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-205.048000 -205.000000
-204.000000 -160.760000
-160.000000 -84.610000
-77.000000 -70.550000
-64.000000 -55.160000
-36.000000 -29.820000
-24.000000 -23.950000
-23.000000 123.320000
127.000000 128.550000
130.000000 143.100000
144.000000 215.500000
217.000000 337.010000
346.000000 346.502700
349.000000 398.133500
409.000000 409.666300
411.000000 558.020000
559.000000 559.032000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.69970E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1224.53 using 59 PHA bins.
# Reduced chi-squared =        21.8666 for     56 degrees of freedom
# Null hypothesis probability =  2.123307e-219

Photon flux (15-150 keV)    in 690 sec: 0.960155 ( -0.092411  0.090925 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.95095e-05 ( -1.70996e-06  1.68056e-06 ) ergs/cm2

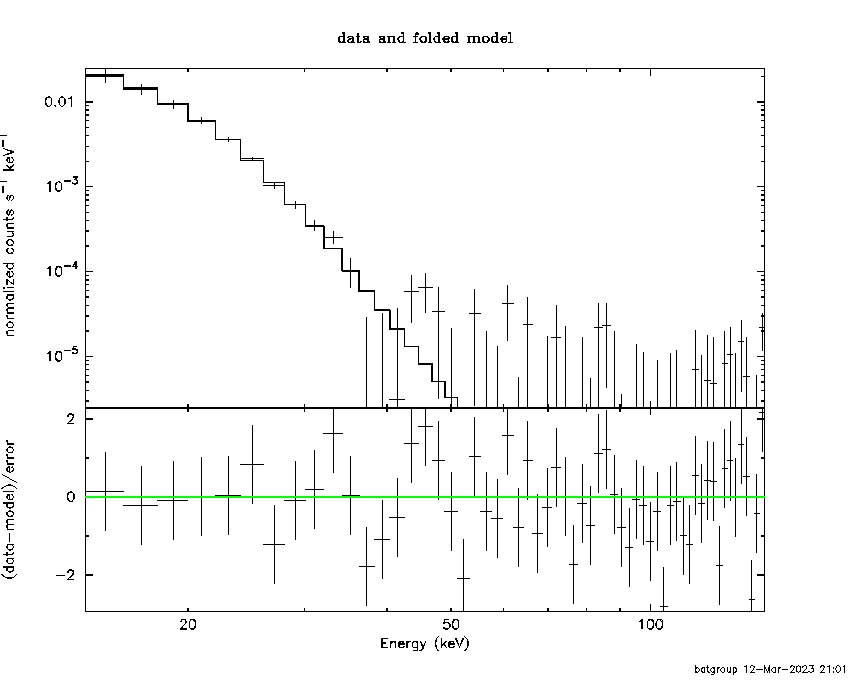

Band function

Multiple GTIs in the spectrum
tstart tstop
-205.048000 -205.000000
-204.000000 -160.760000
-160.000000 -84.610000
-77.000000 -70.550000
-64.000000 -55.160000
-36.000000 -29.820000
-24.000000 -23.950000
-23.000000 123.320000
127.000000 128.550000
130.000000 143.100000
144.000000 215.500000
217.000000 337.010000
346.000000 346.502700
349.000000 398.133500
409.000000 409.666300
411.000000 558.020000
559.000000 559.032000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.668562   ( -1.56285   0.839933 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 5.01069      ( -0.396848 0.232698 )
Norm@50keV   : 7.04095    ( -7.04194   916.905 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.54 using 59 PHA bins.
# Reduced chi-squared =          1.210 for     55 degrees of freedom
# Null hypothesis probability =   1.368611e-01

Photon flux (15-150 keV)    in 690 sec: 1.11828 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

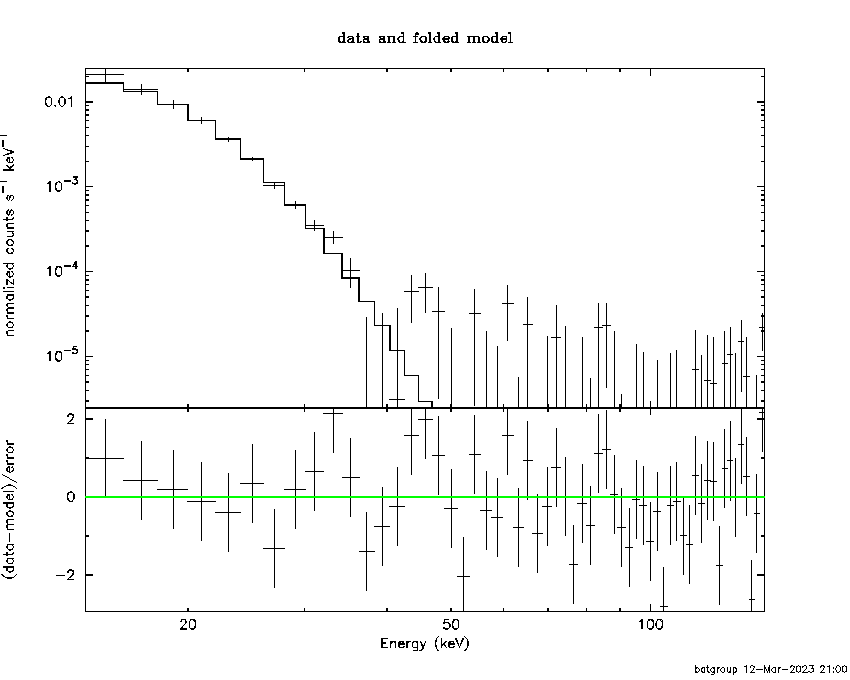

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.62347  (-0.0893433  0.0961494)
R^2/D10^2   : 319.220  (-89.2462   121.096)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.35 using 59 PHA bins.
# Reduced chi-squared =          1.217 for     57 degrees of freedom
# Null hypothesis probability =   1.263064e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.703e-05   1.604e-06
25- 50  1.515e-06   1.194e-07
50-150  7.590e-10   2.690e-10
15-150  1.854e-05   1.553e-06

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.30072       (-0.200841      0.221531)
Norm        : 406.689       (-96.781     124.158)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.833e-05   1.563e-06
25- 50  1.614e-06   1.301e-07
50-150  3.691e-09   1.159e-09
15-150  1.995e-05   1.594e-06

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.16665        (-2.16566      27.5544)
R1^2/D10^2  : 880.398        (-883.265      -883.265)
kT2 [keV]   : 3.10968        (-3.10565      77.2337)
R2^2/D10^2  : 43.2272    (-44.2695   292.671)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.768e-05   6.010e-06
25- 50  1.592e-06   7.555e-07
50-150  1.124e-08   6.235e-09
15-150  1.928e-05   6.362e-06

Peak spectrum fit

Power-law model

Time interval is from  158.716 sec. to  159.716 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.05959     ( -0.706098   0.809407 )
Norm@50keV  : 9.34068E-04    ( -0.000531826   0.000890461 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.93 using 59 PHA bins.
# Reduced chi-squared =         0.8057 for     57 degrees of freedom
# Null hypothesis probability =   8.530227e-01

Photon flux (15-150 keV)    in 1 sec: 1.52582 ( -0.236663  0.236708 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.86111e-08 ( -8.18368e-09  8.3793e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from  158.716 sec. to  159.716 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.55252E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         118.17 using 59 PHA bins.
# Reduced chi-squared =         2.1101 for     56 degrees of freedom
# Null hypothesis probability =   2.444334e-06

Photon flux (15-150 keV)    in 1 sec: 1.52308 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.85259e-08 ( -8.437e-09  8.3437e-09 ) ergs/cm2

Band function

Time interval is from  158.716 sec. to  159.716 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.87557   ( 3.6124   7.87557 )
beta        : -5.15132    ( -0.739319   0.785895 )
Epeak [keV] : 398.589      ( -398.589 -398.589 )
Norm@50keV   : 0.115555    ( -0.0647477   0.129493 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.97 using 59 PHA bins.
# Reduced chi-squared =         0.8358 for     55 degrees of freedom
# Null hypothesis probability =   8.020024e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

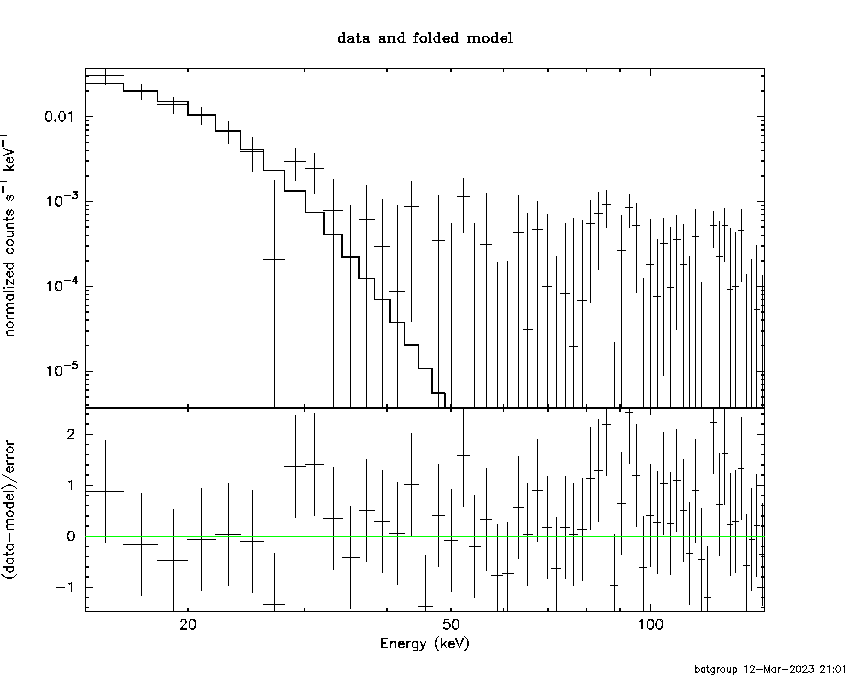

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.85025  (-0.430083  0.513187)
R^2/D10^2   : 297.148  (-196.727   645.618)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.013e-08   2.238e-08
25- 50  4.874e-09   2.499e-09
50-150  5.123e-12   5.165e-12
15-150  4.501e-08   2.284e-08

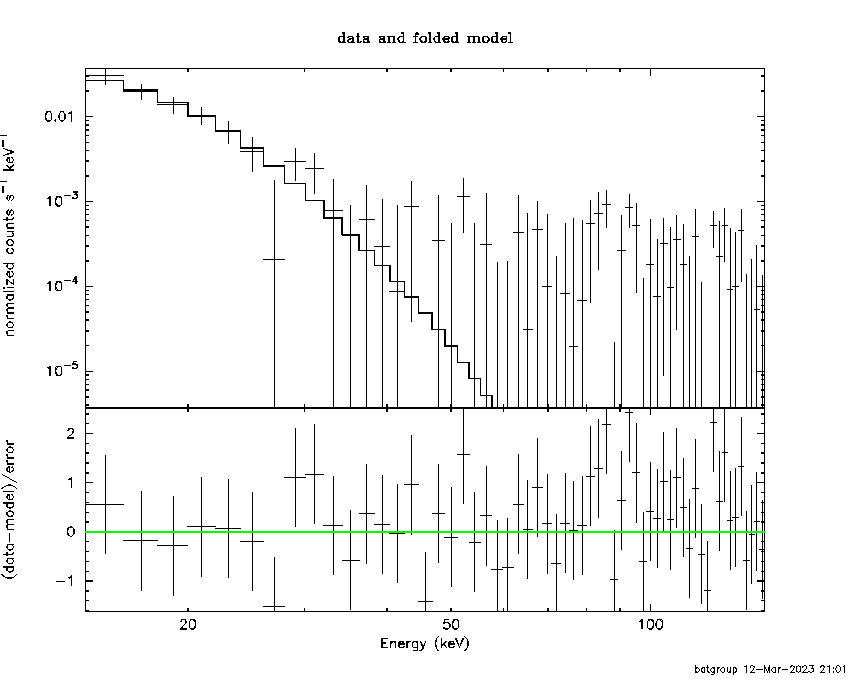

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 5.63819       (-1.26875      1.78501)
Norm        : 230.559       (-130.631     348.289)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.963e-08   1.536e-08
25- 50  6.497e-09   3.322e-09
50-150  5.969e-11   5.846e-11
15-150  4.618e-08   1.783e-08

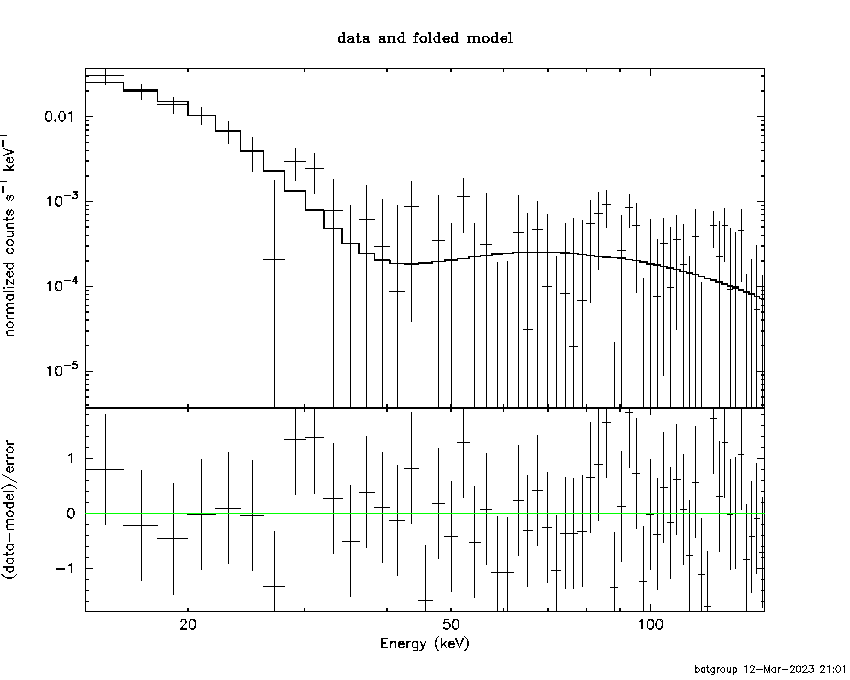

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.79287        (-0.416626      0.507915)
R1^2/D10^2  : 337.887        (-225.534      665.927)
kT2 [keV]   : 100.060        (-74.9829      -99.9983)
R2^2/D10^2  : 2.45023E-04    (-0.000208283   0.00527486)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.704e-08   1.874e-08
25- 50  8.545e-09   4.031e-09
50-150  2.215e-08   1.688e-08
15-150  6.774e-08   3.409e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

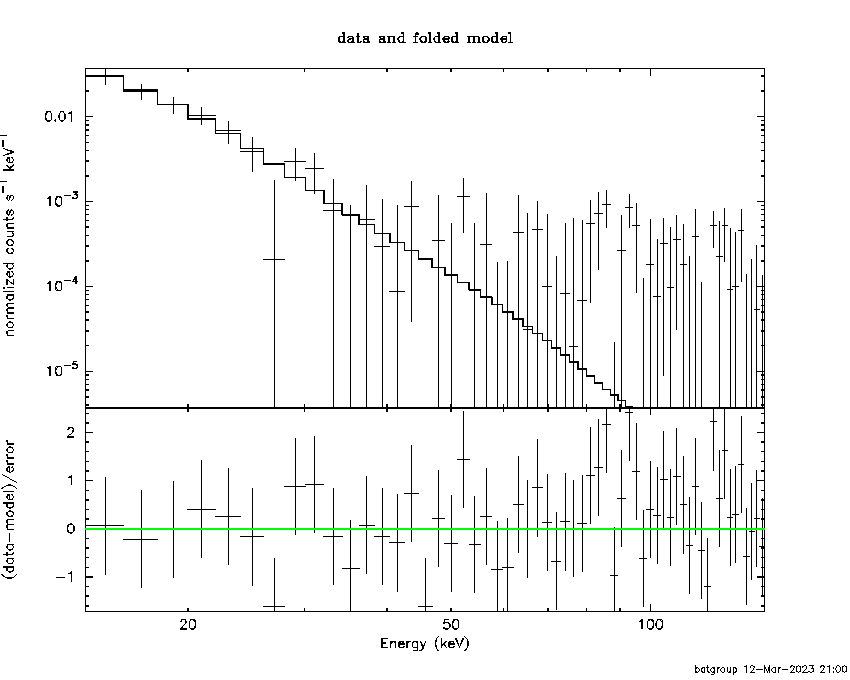

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.74379     ( -0.191571   0.188617 )
Norm@50keV  : 1.22572E-04    ( -1.723e-05   1.96107e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         101.40 using 59 PHA bins.
# Reduced chi-squared =         1.7789 for     57 degrees of freedom
# Null hypothesis probability =   2.701179e-04

Photon flux (15-150 keV)    in 690 sec: 1.07518 ( -0.0733581  0.0744446 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.15848e-05 ( -1.3632e-06  1.38139e-06 ) ergs/cm2

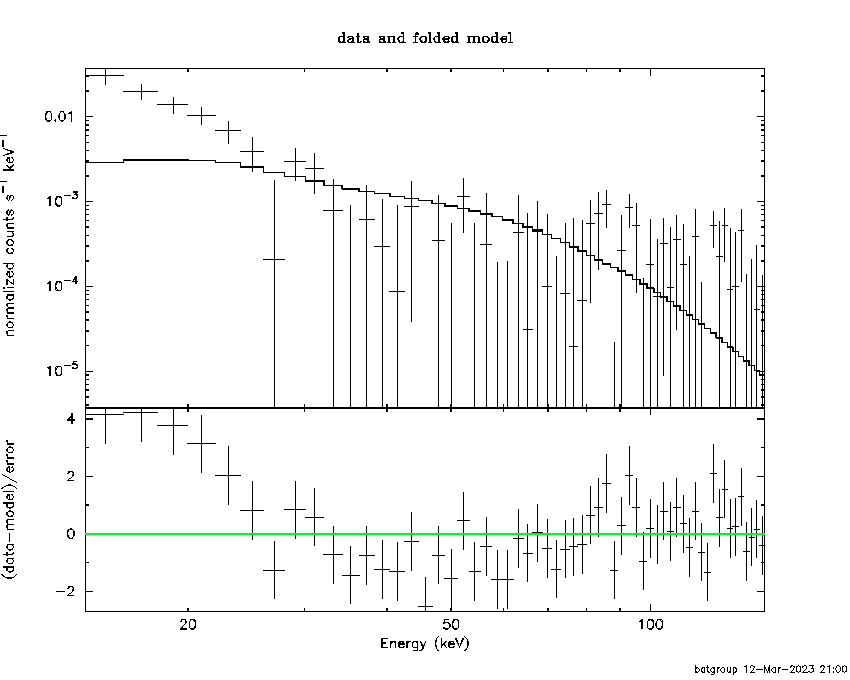

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.69970E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1224.53 using 59 PHA bins.
# Reduced chi-squared =        21.8666 for     56 degrees of freedom
# Null hypothesis probability =  2.123307e-219

Photon flux (15-150 keV)    in 690 sec: 0.960155 ( -0.092411  0.090925 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.95095e-05 ( -1.70996e-06  1.68056e-06 ) ergs/cm2

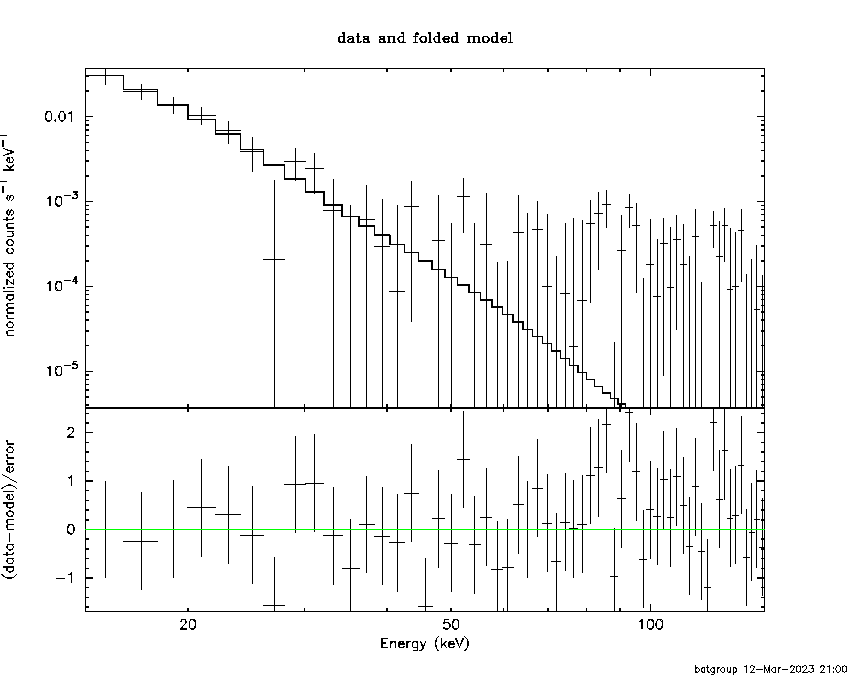

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.436375   ( -1.91755   1.12413 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 5.67024      ( -0.383358 4.68544 )
Norm@50keV   : 10.6607    ( -10.6607   908.508 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.52 using 59 PHA bins.
# Reduced chi-squared =          1.209 for     55 degrees of freedom
# Null hypothesis probability =   1.373234e-01

Photon flux (15-150 keV)    in 690 sec: 1.11828 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.84e-06
S(50-100 keV) = 6.87e-08

T90 vs. Hardness ratio plot

T90                                   = 405.427999854088 sec.
Hardness ratio (energy fluence ratio) = 0.037337

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0795207
Count Ratio (50-100 keV) / (15-25 keV) = -0.00196254

Mask shadow pattern

IMX = 2.238342884135365E-03, IMY = -2.252782074163814E-03

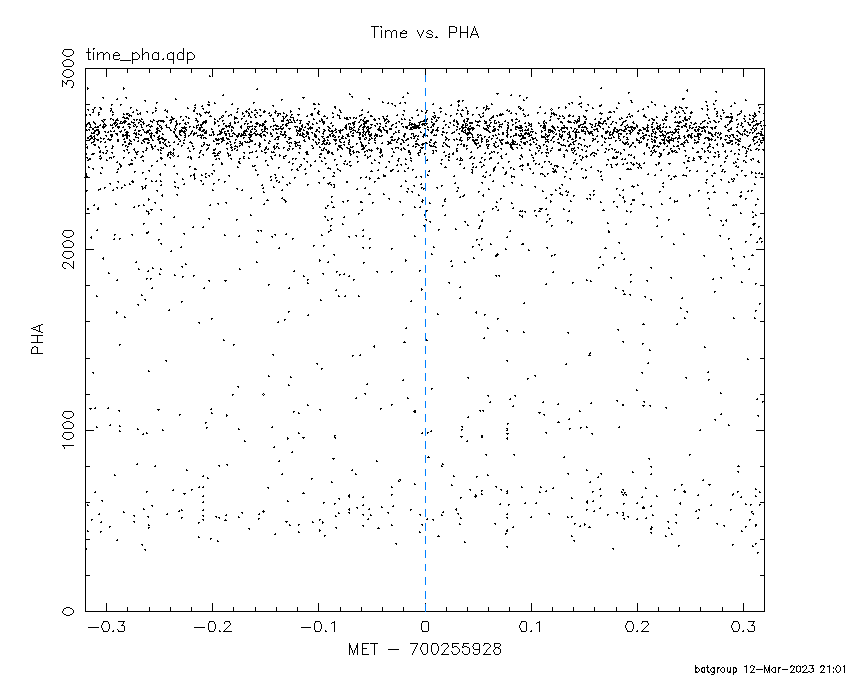

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -205.048000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0741 -15.8046    0.5   0.1 -179.8   2.3892  25.3   11.3	Sco X-1
254.5760  35.3626    5.0  52.1 -178.2   0.7240   2.3    5.9	Her X-1
255.9894 -37.6973    5.8  23.8  -29.8   0.2275   2.0    8.8	4U 1700-377
256.2967 -36.2745    7.4  22.7  -32.1  -0.1729  -1.6   11.2	GX 349+2
262.9786 -24.7025    5.6  18.9  -67.5  -0.2443  -2.1    3.1	GX 1+4
264.7975 -44.3017    5.2  32.9  -34.4  -0.3073  -2.2    9.2	4U 1735-44
268.3618  -1.4297   30.1  27.1 -128.0   0.0496   0.4    1.4	SW J1753.5-0127
270.3783 -25.0197    4.6  25.4  -72.9  -0.3580  -2.5    6.2	GX 5-1
270.3279 -25.7073    5.4  25.5  -71.3   0.3061   2.2    2.5	GRS 1758-258
274.0362 -13.9043    7.8  28.1  -98.2  -0.2446  -1.5    8.1	GX 17+2
276.0974 -30.4786    0.0  31.9  -65.3   0.3585   2.0   11.2	H1820-303
285.1270 -24.8301    6.6  38.5  -78.0  -0.4890  -1.8    7.3	HT1900.1-2455
263.1714 -33.6938   10.7  24.1  -47.3   0.1293   1.1   12.4	GX 354-0
207.2478   0.5817    2.7  40.8  102.2   1.7730   4.3 ------	UNKNOWN
220.2927 -20.5278    2.3  23.9   67.1   0.5632   5.0 ------	UNKNOWN
252.5575  39.2693    2.2  55.6  179.0   3.2452   5.2 ------	UNKNOWN
285.4583 -12.6966    2.4  39.2  -97.3   2.1380   4.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-205.048000 -205.000000
-204.000000 -160.760000
-160.000000 -84.610000
-77.000000 -70.550000
-64.000000 -55.160000
-36.000000 -29.820000
-24.000000 -23.950000
-23.000000 123.320000
127.000000 128.550000
130.000000 143.100000
144.000000 215.500000
217.000000 337.010000
346.000000 346.502700
349.000000 398.133500
409.000000 409.666300
411.000000 558.020000
559.000000 559.032000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9672 -15.7900    3.5   0.1  134.8   5.5656   3.3    9.0	Sco X-1
254.5777  35.3714    8.0  52.1 -178.2  -7.7083  -1.4    6.1	Her X-1
255.9958 -37.6973    6.7  23.8  -29.9  -3.5460  -1.7    8.8	4U 1700-377
256.2753 -36.2742    0.0  22.7  -32.0   2.5393   1.2   11.8	GX 349+2
263.1773 -24.6675    5.6  19.1  -67.8   4.4857   2.1   10.3	GX 1+4
264.7914 -44.3022    5.7  32.9  -34.4   4.9376   2.0    9.1	4U 1735-44
268.3039  -1.3126    4.7  27.2 -128.2  -5.9217  -2.4    9.2	SW J1753.5-0127
270.3968 -25.0552    3.7  25.4  -72.8   7.9496   3.1    6.3	GX 5-1
270.3721 -25.6819    5.4  25.5  -71.4  -5.6406  -2.2    5.3	GRS 1758-258
274.1231 -13.9065   12.5  28.1  -98.2   2.9664   0.9   10.4	GX 17+2
276.0773 -30.4811   23.4  31.9  -65.3  -1.5180  -0.5   10.4	H1820-303
285.0777 -24.8148    9.4  38.4  -78.0   6.3379   1.2    6.7	HT1900.1-2455
263.1717 -33.6872   15.5  24.1  -47.3  -1.6192  -0.7   12.7	GX 354-0
229.6784 -14.5926    2.3  14.9   85.0   9.1839   5.0 ------	UNKNOWN
240.8030  33.8847    2.3  50.0  167.3  28.8219   4.9 ------	UNKNOWN
278.2180 -38.3176    2.5  36.7  -53.9  15.7001   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
-222.000000 -215.500100
-204.000000 -160.760000
-152.000000 -151.870000
-150.000000 -116.903000
-60.000000 -55.160000
-10.000000 63.061200
301.000000 337.010000
346.000000 346.502700
349.000000 398.133500
409.000000 409.666300
411.000000 558.020000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0594 -15.8026    0.3   0.1  172.3  26.8134  44.5   10.8	Sco X-1
254.3465  35.3615    4.0  52.0 -178.4  -6.7037  -2.9    5.6	Her X-1
255.9926 -37.9911    6.8  24.1  -29.5   1.1997   1.7    8.8	4U 1700-377
256.3239 -36.2749   14.2  22.7  -32.1  -0.5850  -0.8   10.4	GX 349+2
262.8811 -24.7435    3.8  18.9  -67.3  -2.2991  -3.1    7.0	GX 1+4
264.6013 -44.3181   15.0  32.9  -34.2  -0.6425  -0.8   10.0	4U 1735-44
268.3085  -1.5859   10.8  27.0 -127.7  -0.8657  -1.1    8.8	SW J1753.5-0127
270.1890 -25.2203    5.8  25.2  -72.3   1.7141   2.0    9.9	GX 5-1
270.2343 -25.8834    6.8  25.5  -70.8   1.4055   1.7    9.2	GRS 1758-258
273.9860 -14.1688   11.0  28.0  -97.7   1.0789   1.0    8.0	GX 17+2
275.7553 -30.3689    8.9  31.6  -65.3  -1.3443  -1.3    8.8	H1820-303
285.1997 -24.9107   21.5  38.5  -77.8  -0.9469  -0.5    8.9	HT1900.1-2455
263.0734 -33.6887    8.0  24.1  -47.1   1.1406   1.5    9.7	GX 354-0
252.4542  39.2857    3.0  55.6  178.9  14.0015   3.8 ------	UNKNOWN
226.7419 -73.0983    2.8  58.2   -1.9  13.3891   4.1 ------	UNKNOWN
248.4195 -47.6499    1.2  31.9  -12.3   6.9444   9.6 ------	UNKNOWN
278.4081 -64.6617    2.6  53.7  -25.0  13.1008   4.5 ------	UNKNOWN
277.0037  33.3558    2.9  57.9 -156.6  14.2324   3.9 ------	UNKNOWN
285.4215 -47.6680    2.6  45.9  -45.4   7.9898   4.5 ------	UNKNOWN

Plot creation:
Sun Mar 12 21:01:55 EDT 2023
