batgrbproduct analysis for trigger=1185685

batgrbproduct Analysis for Trigger=1185685

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Aug 17 18:50:12 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1185685/GCN5_download_cron
======================================================================

  Trigger: 01185685      Segment: 000

  BAT Trigger Time: 713905880   [s; MET]
      Trigger Stop: 713905944   [s; MET]
               UTC: 2023-08-16T19:10:48.162020    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 299.776724433327   Dec: 35.3408655906575  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    14.25
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    14.25

  Flight Position:   [ source = BAT ]
    RA: 299.776724433327   Dec: 35.3408655906575  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 299.679102598584   Dec: 35.3186434396602  [deg; J2000]
        { 19h 58m 43.0s , +35d 19' 07.1" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 1.87185979707344 [arcmin] (formal 1-sigma fit error)
    SNR: -3.99269212852311

  Angular difference between Flight and Ground position is 4.961139 arcmin

  Partial Coding Fraction: 0.90625    [ including projection effects ]

  Duration
     T90: 4.05199992656708 +/- 0.441714887612796
        Measured from: 26.2880001068115
                   to: 30.3400000333786     [s; relative to TRIGTIME]
     T50: 2.5919998884201 +/- 0.537207490157854
        Measured from: 27.0240001678467
                   to: 29.6160000562668     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 26.9079999923706
                   to: 27.9079999923706     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 26.1759999990463
                   to: 30.7840000391006     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.035833   0.049492   0.011709  -0.011034
           0.010739   0.010876   0.009382   0.007990 [error]
 Peak      0.016991   0.027463   0.000918  -0.002149
           0.006199   0.006302   0.005523   0.004718 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.21e-08 1.57e-08 1.49e-08 2.50e-08 5.10e-08 6.76e-08   erg/cm2
              Error 4.44e-09 4.87e-09 7.86e-09 2.94e-08 1.89e-08 3.60e-08   erg/cm2
Peak flux Power-law 1.91e-01 1.29e-01 5.71e-02 3.49e-02 3.95e-01 4.13e-01   ph/cm2/s
              Error 8.16e-02 4.96e-02 3.61e-02 4.49e-02 1.44e-01 1.55e-01   ph/cm2/s

Fluence   Cutoff-PL 1.06e-08 2.05e-08 1.12e-08 1.01e-09 4.33e-08 4.34e-08   erg/cm2
              Error 5.35e-09 7.70e-09 1.12e-08 1.72e-08 1.78e-08 2.66e-08   erg/cm2
Peak flux Cutoff-PL 1.61e-01 2.12e-01 1.94e-02 1.71e-05 3.92e-01 3.92e-01   ph/cm2/s
              Error 9.65e-02 7.91e-02 3.36e-02 2.54e-03 1.34e-01 1.34e-01   ph/cm2/s

Fluence        Band 1.04e-08 2.06e-08 1.09e-08 3.34e-09 4.42e-08 4.58e-08   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 1.26e-01 1.15e-01 6.71e-02 4.35e-02 3.32e-01 3.53e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.075    0.541    -      -           1.38e-03 5.51e-04   59.590 57
CPL  -0.144    4.493      36.8    0.0      3.11e-02 2.16e+02   57.260 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.170    0.633    -      -           2.43e-03 1.21e-03   67.780 57
CPL  -4.382    0.330      31.9    7.0      5.04e+01 2.11e+05   61.670 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    4.608   26.176   30.784
T90     4.052   26.288   30.340
T50     2.592   27.024   29.616
Peak    1.000   26.908   27.908

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  299.6791 +35.3186 0.0481   23.2  167.7      -0.0860    -4.0  TRIG_01185685
------------------------------------------

Foreground time interval of the image:
 26.176  28.390 (delta_t =   2.214 [sec])
 29.000  30.784 (delta_t =   1.784 [sec])
Background time interval of the image:
-58.000 -57.506 (delta_t =   0.494 [sec])
-55.000 -53.920 (delta_t =   1.080 [sec])
-51.000 -50.669 (delta_t =   0.331 [sec])
-49.000 -48.440 (delta_t =   0.560 [sec])
-46.000 -44.870 (delta_t =   1.130 [sec])
-40.000 -37.190 (delta_t =   2.810 [sec])
-36.000 -35.960 (delta_t =   0.040 [sec])
-13.000  26.176 (delta_t =  39.176 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

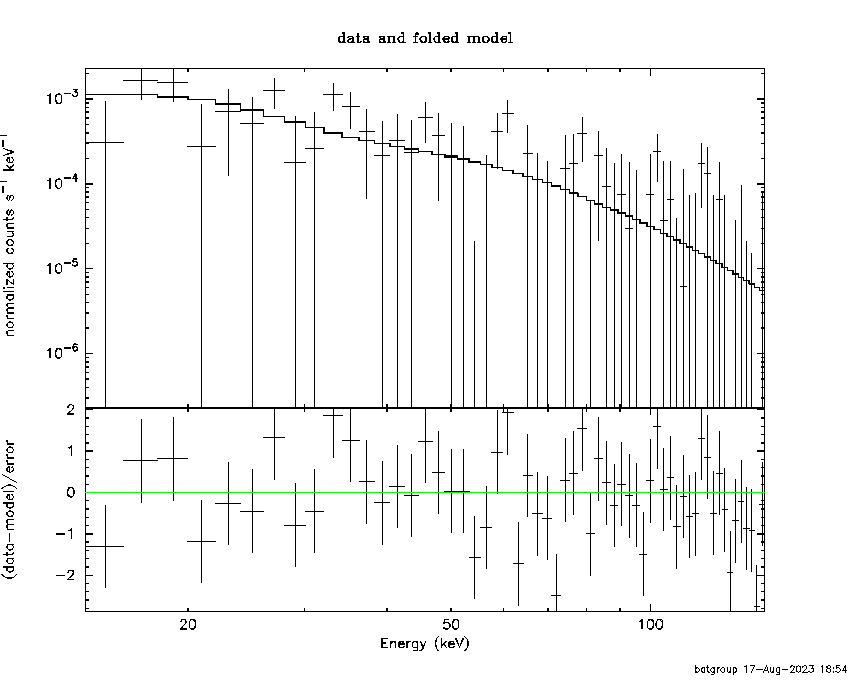

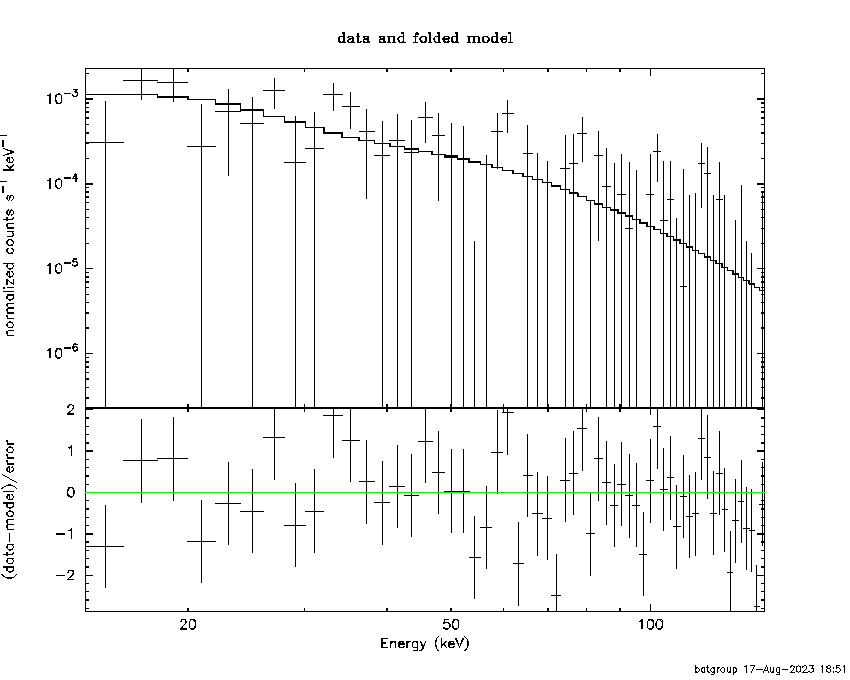

Power-law model

Multiple GTIs in the spectrum
tstart tstop
26.176000 28.390000
29.000000 30.784000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.07548     ( -0.489803   0.592827 )
Norm@50keV  : 1.37548E-03    ( -0.000558577   0.000542507 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.59 using 59 PHA bins.
# Reduced chi-squared =          1.045 for     57 degrees of freedom
# Null hypothesis probability =   3.815792e-01

Photon flux (15-150 keV)    in 3.998 sec: 0.213813 ( -0.0634292  0.0634937 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.09661e-08 ( -1.8184e-08  1.96197e-08 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
26.176000 28.390000
29.000000 30.784000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.143574     ( -6.65547   2.33036 )
Epeak [keV] : 36.8023      ( -36.7085 -36.7085 )
Norm@50keV  : 3.11362E-02    ( -0.0420533   431.259 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.26 using 59 PHA bins.
# Reduced chi-squared =          1.023 for     56 degrees of freedom
# Null hypothesis probability =   4.279764e-01

Photon flux (15-150 keV)    in 3.998 sec: 0.205241 ( -0.062518  0.063792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.33127e-08 ( -1.5115e-08  2.04402e-08 ) ergs/cm2

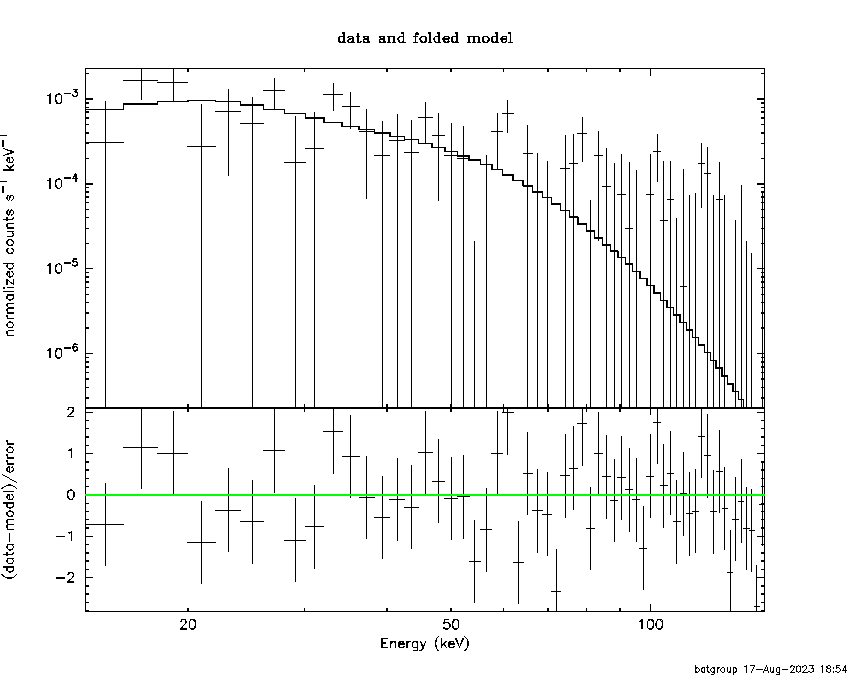

Band function

Multiple GTIs in the spectrum
tstart tstop
26.176000 28.390000
29.000000 30.784000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.420488   ( -2.99495   -0.569019 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 36.6161      ( -11.8044 292.159 )
Norm@50keV   : 4.63800E-02    ( -0.0463795   15.7451 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.25 using 59 PHA bins.
# Reduced chi-squared =          1.041 for     55 degrees of freedom
# Null hypothesis probability =   3.915765e-01

Photon flux (15-150 keV)    in 3.998 sec: 0.209455 ( 6.79054  -0.0962 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.41763e-08 ( 0  0 ) ergs/cm2

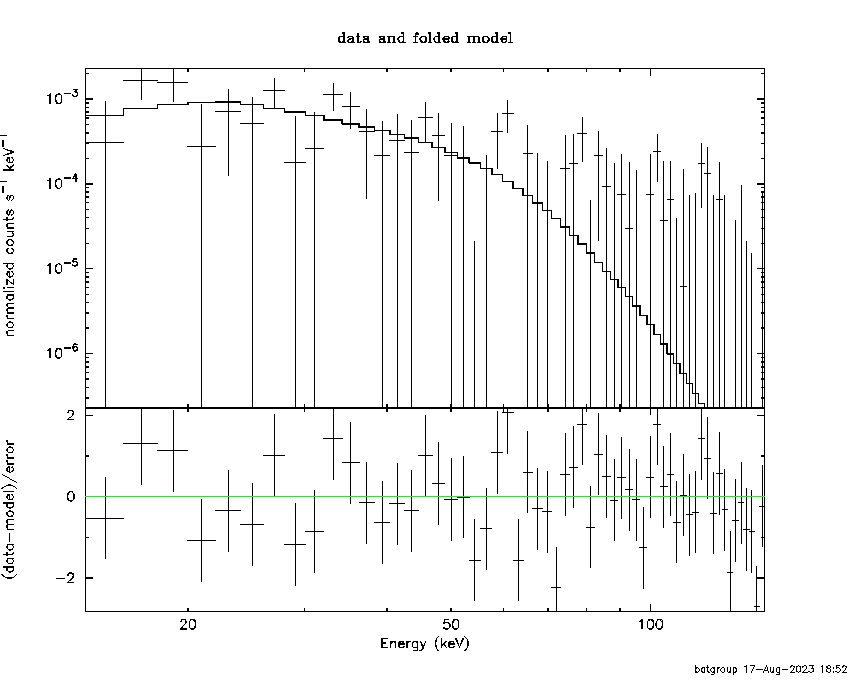

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.27077  (-2.33146  3.13713)
R^2/D10^2   : 0.144278  (-0.144278   0.290599)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.42 using 59 PHA bins.
# Reduced chi-squared =          1.007 for     57 degrees of freedom
# Null hypothesis probability =   4.595330e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.794e-09   6.017e-09
25- 50  2.179e-08   1.288e-08
50-150  9.095e-09   6.825e-09
15-150  4.068e-08   2.505e-08

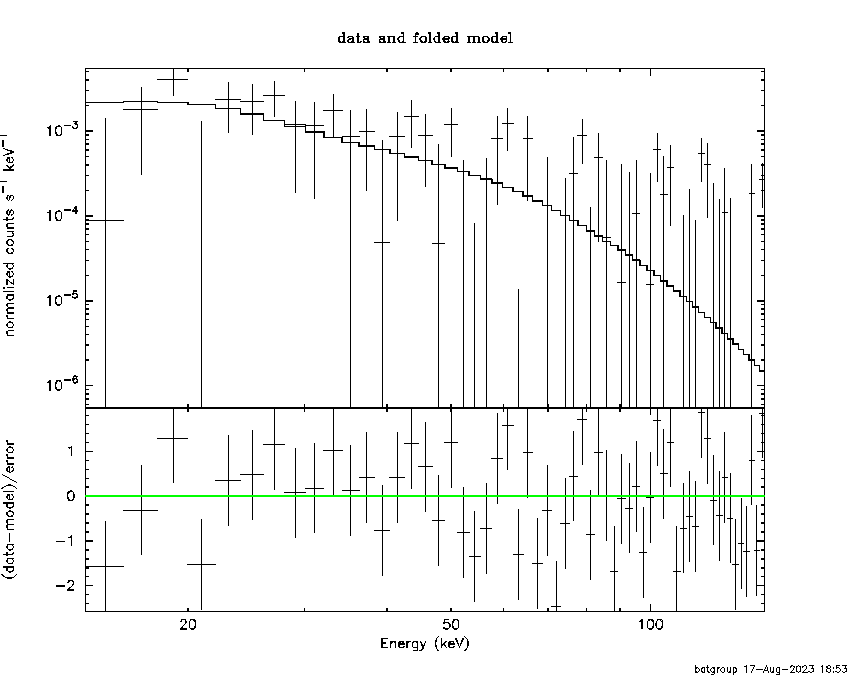

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 53.0162       (-27.0137      91.0241)
Norm        : 1.21045       (-0.458572     0.781651)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.198e-08   6.226e-09
25- 50  1.757e-08   1.068e-08
50-150  1.800e-08   1.379e-08
15-150  4.756e-08   2.641e-08

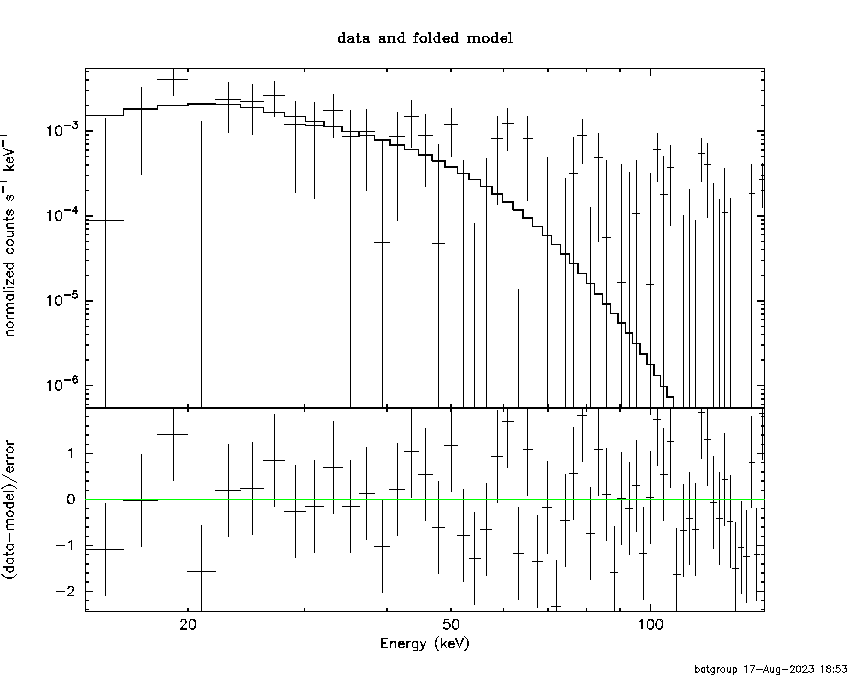

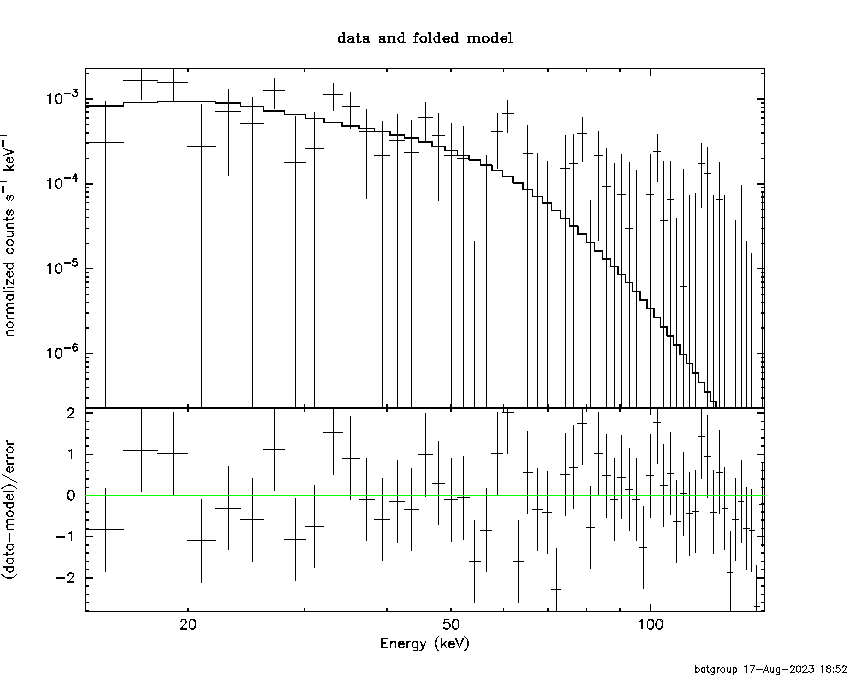

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.20288        (-3.14714      145.247)
R1^2/D10^2  : 2.11064        (-2.54095      -2.54095)
kT2 [keV]   : 9.99271        (-4.18893      -9.9844)
R2^2/D10^2  : 0.100961    (-0.101817   0.309371)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.055e-08   5.593e-09
25- 50  2.081e-08   1.335e-08
50-150  1.062e-08   7.706e-09
15-150  4.198e-08   2.455e-08

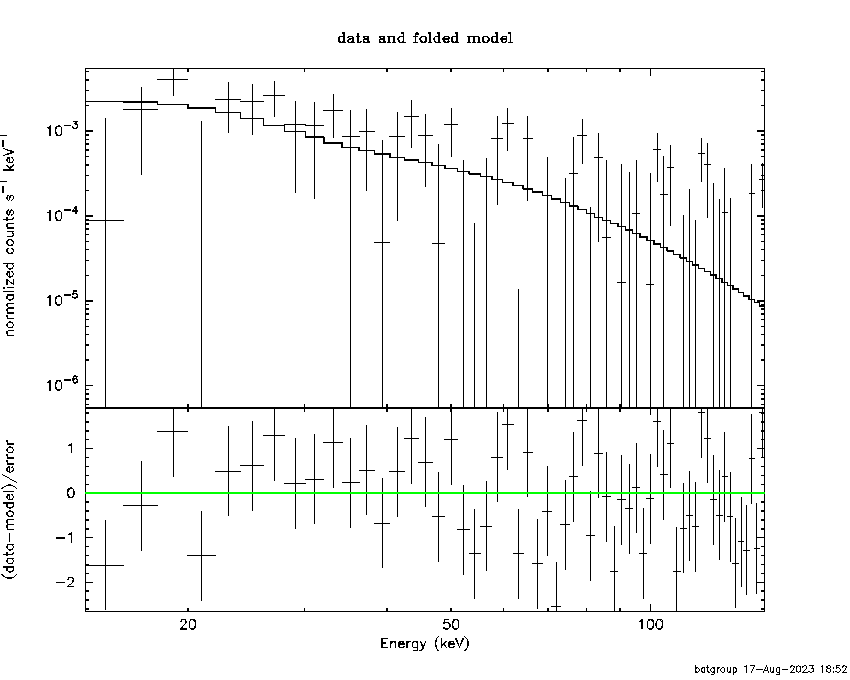

Peak spectrum fit

Power-law model

Time interval is from   26.908 sec. to   27.908 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.17049     ( -0.571114   0.695083 )
Norm@50keV  : 2.42526E-03    ( -0.00120277   0.00121994 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.78 using 59 PHA bins.
# Reduced chi-squared =          1.189 for     57 degrees of freedom
# Null hypothesis probability =   1.553851e-01

Photon flux (15-150 keV)    in 1 sec: 0.395135 ( -0.14381  0.144894 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.26604e-08 ( -9.69149e-09  1.08386e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   26.908 sec. to   27.908 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.38178     ( 5.46998   6.12926 )
Epeak [keV] : 31.9150      ( -6.40656 7.67063 )
Norm@50keV  : 50.4260    ( -44.5963   421482 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.67 using 59 PHA bins.
# Reduced chi-squared =          1.101 for     56 degrees of freedom
# Null hypothesis probability =   2.804267e-01

Photon flux (15-150 keV)    in 1 sec: 0.392315 ( -0.133302  0.13524 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.84943e-08 ( -6.5021e-09  7.4065e-09 ) ergs/cm2

Band function

Time interval is from   26.908 sec. to   27.908 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.29837   ( -4.87657   -4.29837 )
beta        : -9.35306    ( 9.35316   19.3173 )
Epeak [keV] : 31.9913      ( -6.9378 7.52331 )
Norm@50keV   : 43.8889    ( -43.8889   257.698 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.67 using 59 PHA bins.
# Reduced chi-squared =          1.121 for     55 degrees of freedom
# Null hypothesis probability =   2.497818e-01

Photon flux (15-150 keV)    in 1 sec: 0.331509 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.85504e-08 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.24043  (-2.00811  2.63303)
R^2/D10^2   : 0.459383  (-0.459386   0.903864)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.761e-09   3.589e-09
25- 50  1.061e-08   6.720e-09
50-150  3.068e-09   2.588e-09
15-150  1.944e-08   1.221e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 39.6668       (-20.225      66.0579)
Norm        : 2.70923       (-1.22498     2.17621)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.204e-09   3.781e-09
25- 50  8.132e-09   4.970e-09
50-150  6.234e-09   5.350e-09
15-150  2.057e-08   1.360e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.21858        (-8.2294      -8.2294)
R1^2/D10^2  : 0.146335        (-0.146194      -0.146194)
kT2 [keV]   : 8.24911        (-8.24216      -8.24216)
R2^2/D10^2  : 0.313305    (-0.31317   -0.31317)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.762e-09   1.381e-01
25- 50  1.061e-08   1.315e+00
50-150  3.067e-09   2.893e+01
15-150  1.944e-08   3.517e+01

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.07548     ( -0.489803   0.592827 )
Norm@50keV  : 1.37548E-03    ( -0.000558577   0.000542507 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.59 using 59 PHA bins.
# Reduced chi-squared =          1.045 for     57 degrees of freedom
# Null hypothesis probability =   3.815792e-01

Photon flux (15-150 keV)    in 3.998 sec: 0.213813 ( -0.0634292  0.0634937 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.09661e-08 ( -1.8184e-08  1.96197e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.143574     ( -6.65547   2.33036 )
Epeak [keV] : 36.8023      ( -36.7085 -36.7085 )
Norm@50keV  : 3.11362E-02    ( -0.0420533   431.259 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.26 using 59 PHA bins.
# Reduced chi-squared =          1.023 for     56 degrees of freedom
# Null hypothesis probability =   4.279764e-01

Photon flux (15-150 keV)    in 3.998 sec: 0.205241 ( -0.062518  0.063792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.33127e-08 ( -1.5115e-08  2.04402e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.420488   ( -2.99495   -0.569019 )
beta        : -10.0000    ( 10   8.88178e-15 )
Epeak [keV] : 36.6161      ( -11.8044 292.62 )
Norm@50keV   : 4.63800E-02    ( -0.0463795   15.7451 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.25 using 59 PHA bins.
# Reduced chi-squared =          1.041 for     55 degrees of freedom
# Null hypothesis probability =   3.915765e-01

Photon flux (15-150 keV)    in 3.998 sec: 0.209455 ( 6.79054  -0.0962 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.41763e-08 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.57e-08
S(50-100 keV) = 1.49e-08

T90 vs. Hardness ratio plot

T90                                   = 4.05199992656708 sec.
Hardness ratio (energy fluence ratio) = 0.949045

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.38118
Count Ratio (50-100 keV) / (15-25 keV) = 0.326766

Mask shadow pattern

IMX = -4.180211711067969E-01, IMY = -9.098411408893728E-02

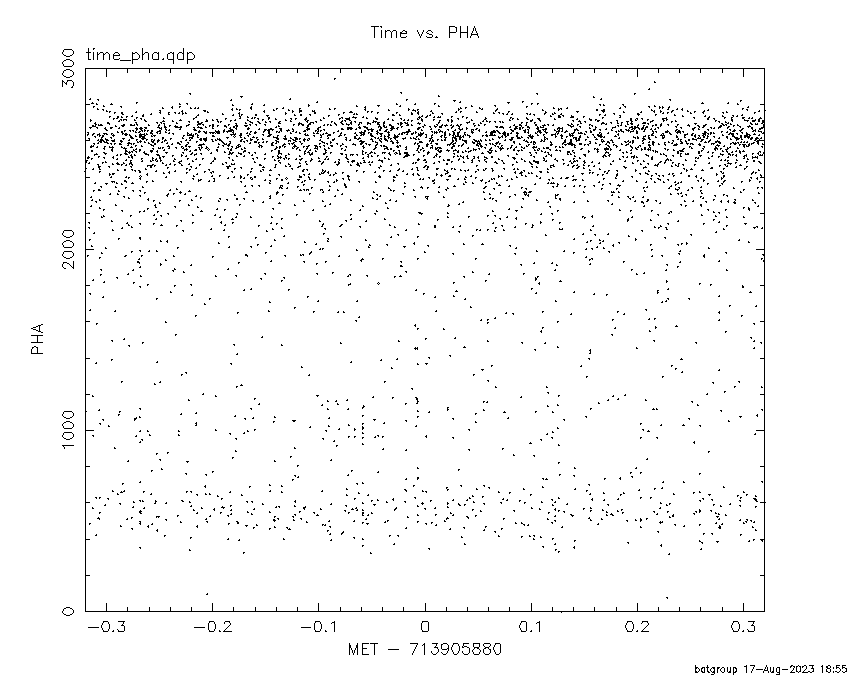

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-58.000000 -57.505900
-55.000000 -53.920000
-51.000000 -50.668600
-49.000000 -48.440000
-46.000000 -44.870000
-40.000000 -37.190000
-36.000000 -35.960000
-13.000000 26.176000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4578  35.3420   83.5  57.8 -172.7   0.0626   0.1    0.0	Her X-1
288.8392  10.8119    8.9  44.6  138.4  -0.3805  -1.3    8.4	GRS 1915+105
299.7378  35.3075    0.6  23.1  167.7   1.8288  19.6    9.6	Cyg X-1
308.3157  41.0921    0.0  15.9 -176.8   0.3991   4.1   12.5	Cyg X-3
326.3138  38.3756    8.7   1.8 -177.1   0.1164   1.3    7.4	Cyg X-2

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
26.176000 28.390000
29.000000 30.784000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4512  35.2735    7.5  57.9 -172.8  -0.1792  -1.6    4.1	Her X-1
288.6795  10.8550    5.4  44.6  138.6   0.1439   2.1    8.9	GRS 1915+105
299.6791  35.3187    2.9  23.2  167.7  -0.0860  -4.0    8.3	Cyg X-1
307.9088  40.8868    4.7  16.1 -177.6   0.0474   2.4   10.0	Cyg X-3
326.2142  38.4204    9.6   1.9 -176.5   0.0228   1.2    6.3	Cyg X-2
346.6509   3.2213    2.1  38.4   45.1   0.2278   5.6 ------	UNKNOWN
337.8353  32.7102    2.3   9.2   16.3   0.0893   5.0 ------	UNKNOWN
 37.8018  36.0383    2.3  54.1  -35.8   0.5649   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
148.200600 243.084500

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6612  35.3838   20.3  36.5 -134.6  -0.1453  -0.6   10.3	Her X-1
268.2780  -1.4923    3.4  47.1  167.3  -1.3682  -3.4    5.9	SW J1753.5-0127
288.6567  10.8858    6.7  26.5  147.0  -0.3070  -1.7    9.1	GRS 1915+105
299.7231  35.3112    0.5   0.1  179.2   3.6619  22.4    9.2	Cyg X-1
307.8439  41.0178    0.0   8.5  -12.4  -0.2924  -1.9   12.7	Cyg X-3
326.0540  38.4405   16.1  21.2   15.6   0.1117   0.7    9.0	Cyg X-2
354.9958  32.9809    4.1  45.1   18.2   0.8630   2.8 ------	UNKNOWN
256.6549   5.6996    2.5  49.5 -174.7   1.6434   4.7 ------	UNKNOWN
 13.7927  57.3159    2.3  52.5  -17.3   2.2256   4.9 ------	UNKNOWN
242.2120  10.8032    3.3  57.4 -158.5   2.4638   3.5 ------	UNKNOWN
239.7485  35.8568    2.8  48.0 -129.0   2.9377   4.1 ------	UNKNOWN

Plot creation:
Thu Aug 17 18:55:41 EDT 2023
