batgrbproduct analysis for trigger=1186294

batgrbproduct Analysis for Trigger=1186294

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Aug 21 20:29:37 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1186294/GCN5_download_cron
======================================================================

  Trigger: 01186294      Segment: 000

  BAT Trigger Time: 714252544   [s; MET]
      Trigger Stop: 714252608   [s; MET]
               UTC: 2023-08-20T19:28:32.138340    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 132.885552495404   Dec: -42.1417435704111  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.21
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    10.21

  Flight Position:   [ source = BAT ]
    RA: 132.885552495404   Dec: -42.1417435704111  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 132.927753171068   Dec: -42.1328926504587  [deg; J2000]
        { 08h 51m 42.7s , -42d 07' 58.4" }
         +/- 2.35305983575583 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.14381793806426 [arcmin] (formal 1-sigma fit error)
    SNR: 8.95806348173135

  Angular difference between Flight and Ground position is 1.951263 arcmin

  Partial Coding Fraction: 0.9453125    [ including projection effects ]

  Duration
     T90: 98.1519998311996 +/- 37.2326534999948
        Measured from: -26.4119998216629
                   to: 71.7400000095367     [s; relative to TRIGTIME]
     T50: 45.1559998989105 +/- 23.9208949736548
        Measured from: 4.57200014591217
                   to: 49.7280000448227     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 10.432000041008
                   to: 11.432000041008     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -30.3040000200272
                   to: 106.164000034332     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.955490   0.651926   0.017145  -0.048747
           0.068659   0.069632   0.058776   0.051832 [error]
 Peak      0.019751   0.023239   0.006322   0.003898
           0.005867   0.006144   0.005136   0.004352 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.99e-07 2.21e-07 1.08e-07 7.55e-08 6.64e-07 7.04e-07   erg/cm2
              Error 3.75e-08 3.45e-08 3.53e-08 4.39e-08 9.36e-08 1.15e-07   erg/cm2
Peak flux Power-law 2.09e-01 1.39e-01 6.01e-02 3.57e-02 4.26e-01 4.44e-01   ph/cm2/s
              Error 8.10e-02 4.77e-02 3.86e-02 4.80e-02 1.33e-01 1.44e-01   ph/cm2/s

Fluence   Cutoff-PL 2.83e-07 2.65e-07 2.96e-08 1.14e-10 5.78e-07 5.78e-07   erg/cm2
              Error 4.32e-08 4.68e-08 2.67e-08 1.26e-09 7.28e-08 7.29e-08   erg/cm2
Peak flux Cutoff-PL 2.08e-01 1.44e-01 5.80e-02 2.19e-02 4.23e-01 4.33e-01   ph/cm2/s
              Error 8.61e-02 6.71e-02 5.05e-02 4.74e-02 1.37e-01 1.51e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.028    0.287    -      -           4.09e-04 1.00e-04   79.360 57
CPL  -0.528    2.401      21.1    6.2      1.21e-01 9.24e+00   66.200 56

The chi2 of BB fit is 66.06 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.209    0.692    -      -           2.56e-03 1.90e-03   50.730 57
CPL   1.888    0.000      12.6    0.0      4.11e-03 0.00e+00   50.710 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  136.468  -30.304  106.164
T90    98.152  -26.412   71.740
T50    45.156    4.572   49.728
Peak    1.000   10.432   11.432

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  132.9278 -42.1329 0.0215   14.4 -128.4       1.3330     9.0  TRIG_01186294
------------------------------------------

Foreground time interval of the image:
-20.599 -16.630 (delta_t =   3.969 [sec])
-16.000  15.750 (delta_t =  31.750 [sec])
 17.000  43.370 (delta_t =  26.370 [sec])
 44.000  72.301 (delta_t =  28.301 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

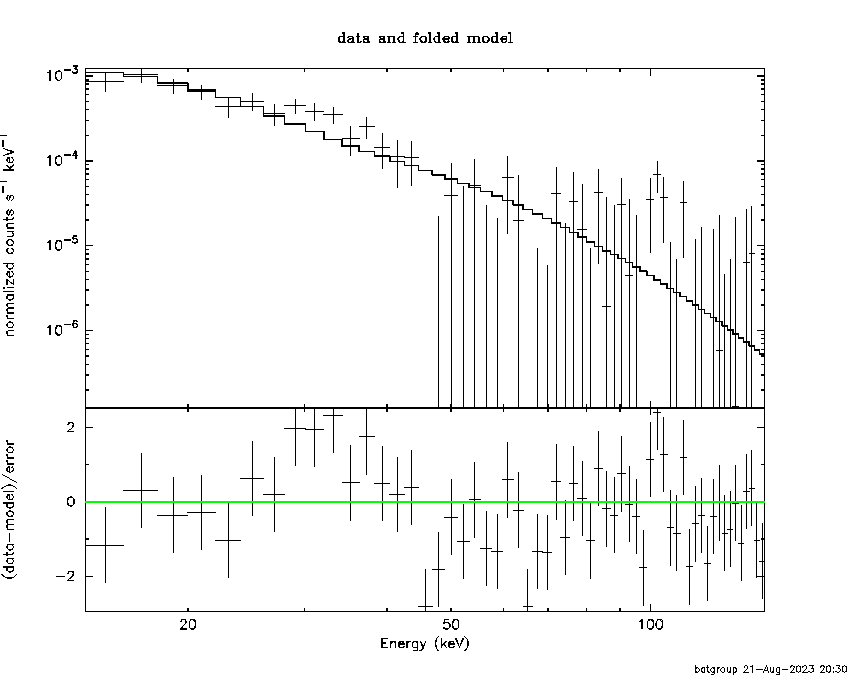

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-30.304000 -16.630000
-16.000000 15.750000
17.000000 43.370000
44.000000 82.430000
83.000000 106.164000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.02834     ( -0.271664   0.302685 )
Norm@50keV  : 4.09037E-04    ( -9.768e-05   0.000103225 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.36 using 59 PHA bins.
# Reduced chi-squared =          1.392 for     57 degrees of freedom
# Null hypothesis probability =   2.676190e-02

Photon flux (15-150 keV)    in 133.4 sec: 0.114837 ( -0.0128667  0.0128754 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.64341e-07 ( -9.13511e-08  9.5819e-08 ) ergs/cm2

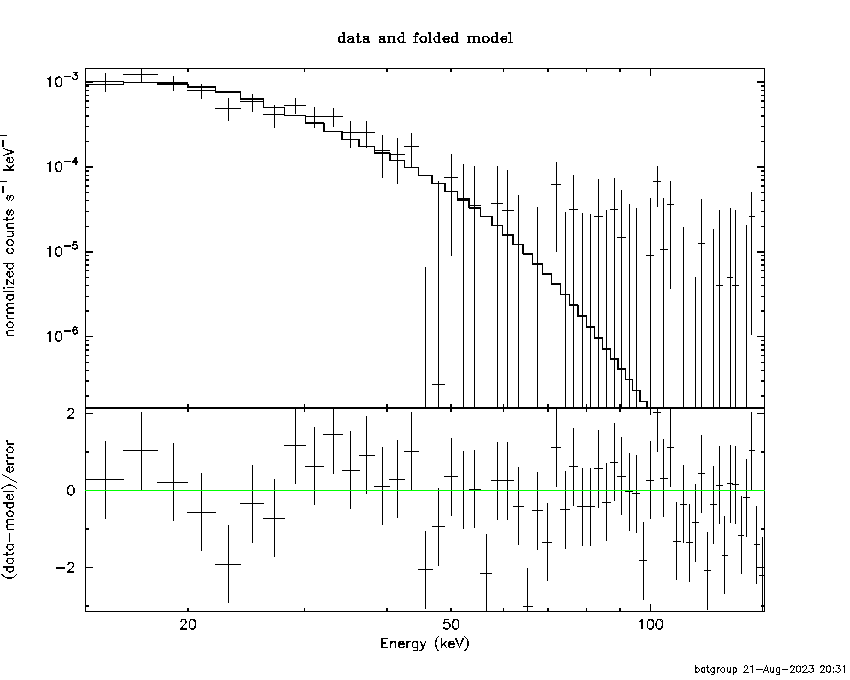

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-30.304000 -16.630000
-16.000000 15.750000
17.000000 43.370000
44.000000 82.430000
83.000000 106.164000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.528488     ( -3.13648   1.66518 )
Epeak [keV] : 21.1033      ( -7.67008 4.64625 )
Norm@50keV  : 0.120575    ( -0.130765   18.341 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.20 using 59 PHA bins.
# Reduced chi-squared =          1.182 for     56 degrees of freedom
# Null hypothesis probability =   1.652518e-01

Photon flux (15-150 keV)    in 133.4 sec: 0.109166 ( -0.0127328  0.012731 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.78013e-07 ( -7.06753e-08  7.49108e-08 ) ergs/cm2

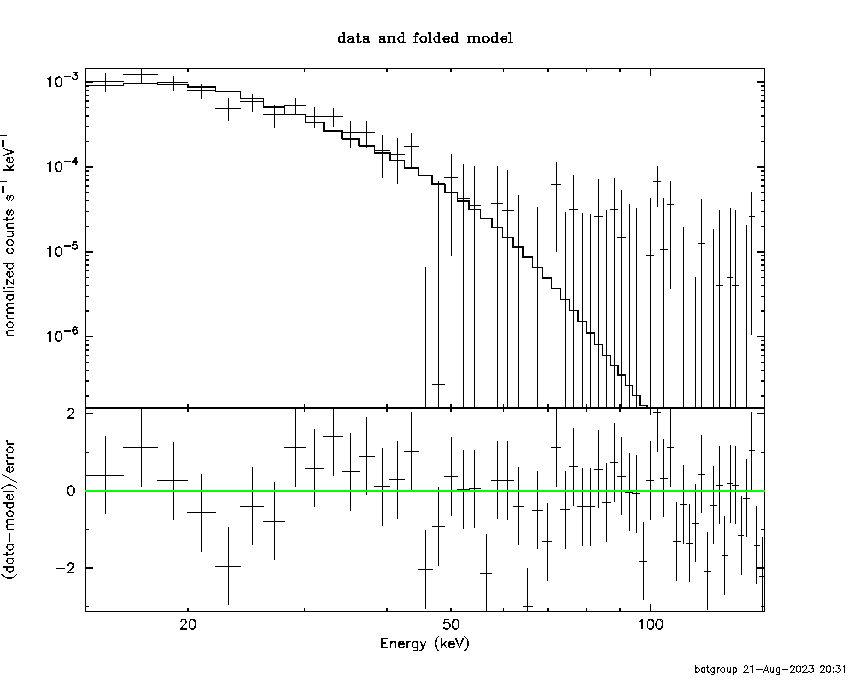

Band function

Multiple GTIs in the spectrum
tstart tstop
-30.304000 -16.630000
-16.000000 15.750000
17.000000 43.370000
44.000000 82.430000
83.000000 106.164000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.49657   ( -3.11157   1.89489 )
beta        : -9.62231    ( 9.98495   19.9595 )
Epeak [keV] : 22.7226      ( -2.332 2.52464 )
Norm@50keV   : 0.574112    ( -0.0621891   17.8986 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.19 using 59 PHA bins.
# Reduced chi-squared =          1.203 for     55 degrees of freedom
# Null hypothesis probability =   1.435863e-01

Photon flux (15-150 keV)    in 133.4 sec: 0.128974 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

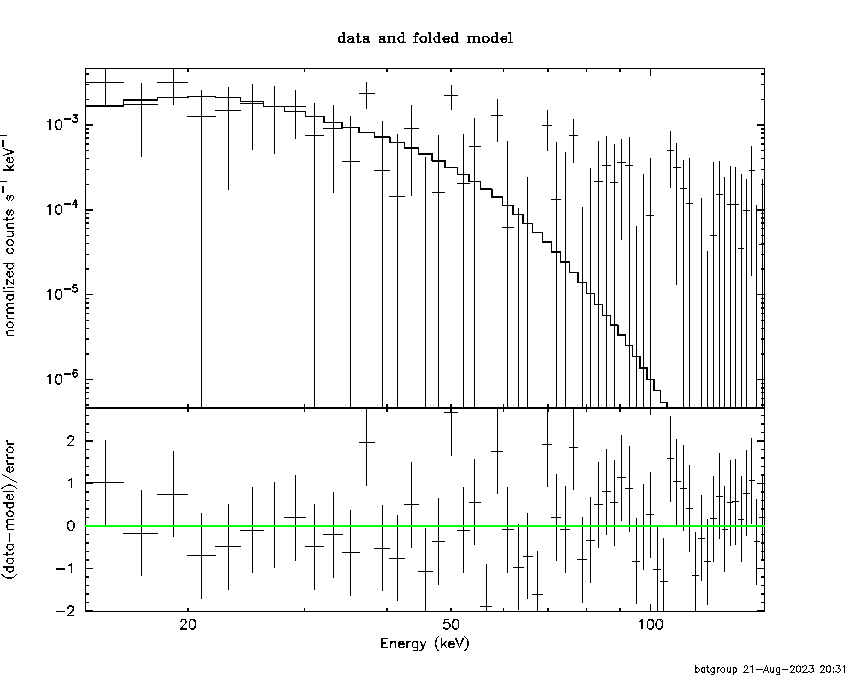

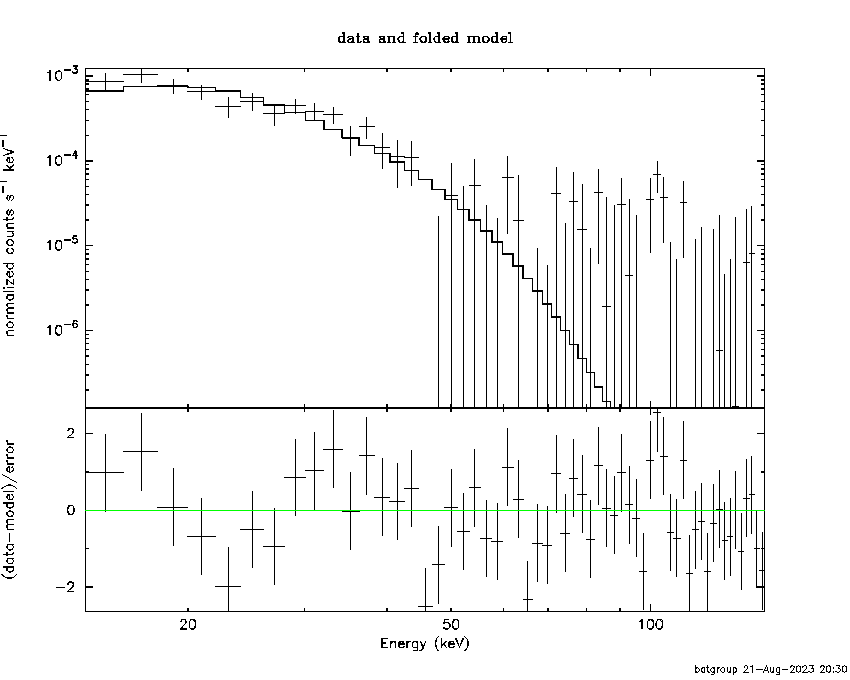

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.93597  (-0.592013  0.63194)
R^2/D10^2   : 0.450163  (-0.164069   0.27293)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.06 using 59 PHA bins.
# Reduced chi-squared =          1.159 for     57 degrees of freedom
# Null hypothesis probability =   1.924427e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.768e-07   4.649e-08
25- 50  2.696e-07   5.403e-08
50-150  2.363e-08   1.078e-08
15-150  5.701e-07   9.318e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 18.2822       (-3.52504      4.59601)
Norm        : 1.56786       (-0.388633     0.55235)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.994e-07   4.102e-08
25- 50  2.440e-07   4.622e-08
50-150  6.257e-08   3.158e-08
15-150  6.059e-07   1.017e-07

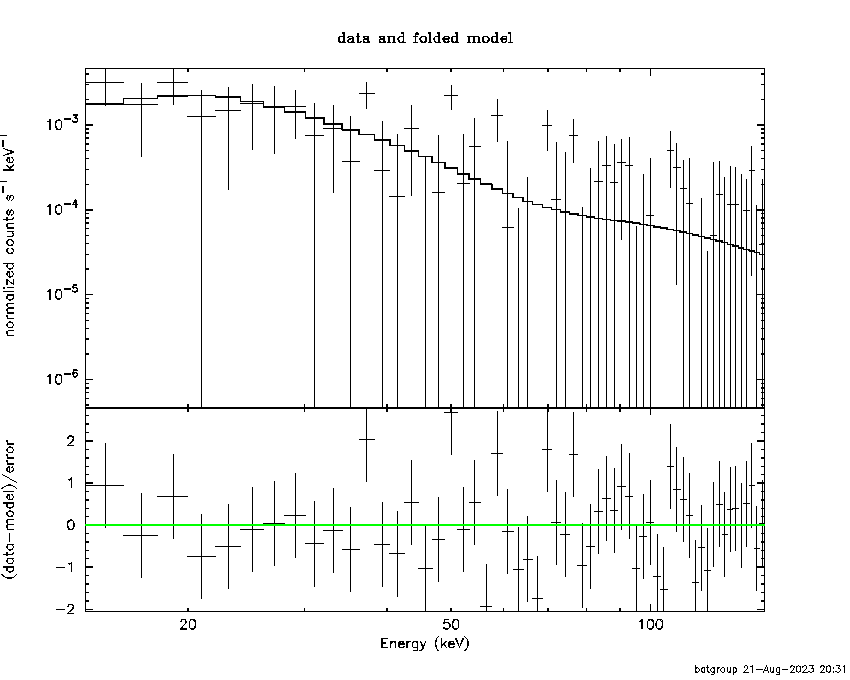

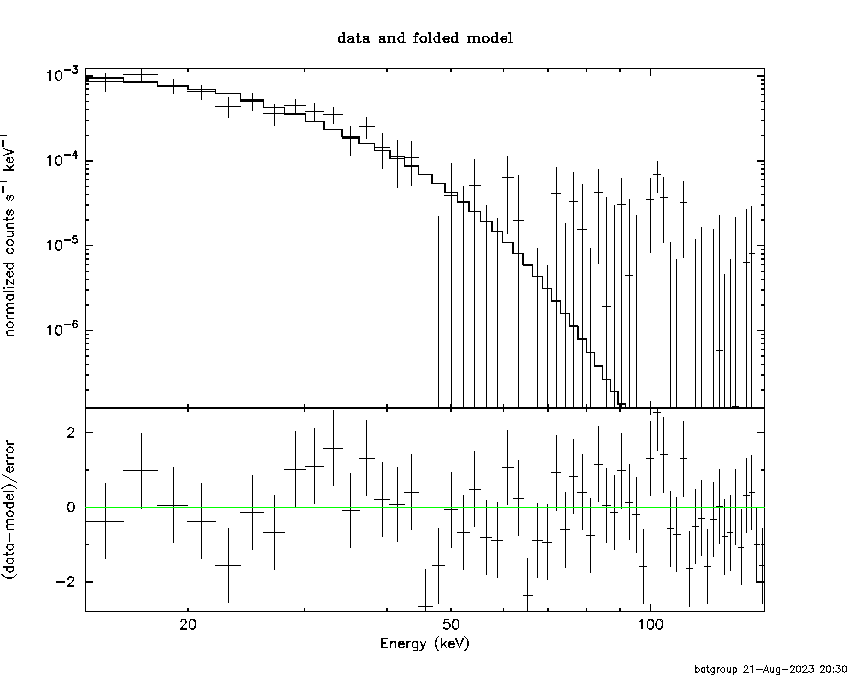

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.80826        (-1.27195      1.99051)
R1^2/D10^2  : 93.3766        (-104.445      -104.795)
kT2 [keV]   : 6.37044        (-0.766647      0.859867)
R2^2/D10^2  : 0.306023    (-0.150116   0.223213)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.841e-07   1.343e-07
25- 50  2.712e-07   1.503e-07
50-150  3.147e-08   2.207e-08
15-150  5.868e-07   2.436e-07

Peak spectrum fit

Power-law model

Time interval is from   10.432 sec. to   11.432 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.20942     ( -0.595024   0.788951 )
Norm@50keV  : 2.56228E-03    ( -0.00256228   0.00123291 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.73 using 59 PHA bins.
# Reduced chi-squared =         0.8899 for     57 degrees of freedom
# Null hypothesis probability =   7.079786e-01

Photon flux (15-150 keV)    in 1 sec: 0.426305 ( -0.133142  0.13341 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.41231e-08 ( -9.72755e-09  1.07964e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   10.432 sec. to   11.432 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.88849     (     )
Epeak [keV] : 12.5620      (   )
Norm@50keV  : 4.11170E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.71 using 59 PHA bins.
# Reduced chi-squared =         0.9054 for     56 degrees of freedom
# Null hypothesis probability =   6.748909e-01

Photon flux (15-150 keV)    in 1 sec: 0.422964 ( -0.137281  0.136017 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.31722e-08 ( -1.05206e-08  1.16079e-08 ) ergs/cm2

Band function

Time interval is from   10.432 sec. to   11.432 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.33615   ( 1.29102   1.29102 )
beta        : -2.58548    ( 2.57354   0.94359 )
Epeak [keV] : 24.9919      ( -25.4633 86.9533 )
Norm@50keV   : 9.71463E-03    ( -0.011496   1.5483e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.58 using 59 PHA bins.
# Reduced chi-squared =         0.9197 for     55 degrees of freedom
# Null hypothesis probability =   6.438790e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.80119  (-2.33377  3.18011)
R^2/D10^2   : 0.531787  (-0.531627   1.63713)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.740e-09   3.460e-09
25- 50  9.613e-09   5.795e-09
50-150  2.322e-09   1.972e-09
15-150  1.768e-08   1.100e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 42.3232       (-24.1827      105.461)
Norm        : 2.67666       (-1.19388     2.73091)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.259e-09   3.308e-09
25- 50  8.433e-09   5.086e-09
50-150  6.932e-09   5.375e-09
15-150  2.163e-08   1.382e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 198.061        (-198.068      -198.068)
R1^2/D10^2  : 3.15343E-05        (-3.15102e-05      1.418)
kT2 [keV]   : 7.25478        (-7.25596      2.98701)
R2^2/D10^2  : 0.678203    (-0.677696   22.1623)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.065e-09   3.026e-09
25- 50  8.950e-09   5.690e-09
50-150  3.957e-09   2.696e-09
15-150  1.897e-08   1.128e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.06911     ( -0.278993   0.312857 )
Norm@50keV  : 4.68744E-04    ( -0.000116767   0.000124096 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.22 using 59 PHA bins.
# Reduced chi-squared =          1.390 for     57 degrees of freedom
# Null hypothesis probability =   2.741985e-02

Photon flux (15-150 keV)    in 90.39 sec: 0.135612 ( -0.0157456  0.0157632 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.25991e-07 ( -7.4767e-08  7.84603e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.135316     ( -2.81527   1.56063 )
Epeak [keV] : 20.0379      ( -9.57239 5.25898 )
Norm@50keV  : 7.69787E-02    ( -0.083288   7.12941 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.64 using 59 PHA bins.
# Reduced chi-squared =          1.190 for     56 degrees of freedom
# Null hypothesis probability =   1.561564e-01

Photon flux (15-150 keV)    in 90.39 sec: 0.130803 ( -0.015462  0.015447 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.69255e-07 ( -5.93076e-08  6.30398e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.178949   ( -1.82916   2.56381 )
beta        : -9.37167    ( 9.37167   19.3618 )
Epeak [keV] : 20.2268      ( -8.68817 4.38621 )
Norm@50keV   : 8.03895E-02    ( -0.127203   6.05235 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.70 using 59 PHA bins.
# Reduced chi-squared =          1.213 for     55 degrees of freedom
# Null hypothesis probability =   1.340311e-01

Photon flux (15-150 keV)    in 90.39 sec: 0.131055 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.21e-07
S(50-100 keV) = 1.08e-07

T90 vs. Hardness ratio plot

T90                                   = 98.1519998311996 sec.
Hardness ratio (energy fluence ratio) = 0.488688

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.682295
Count Ratio (50-100 keV) / (15-25 keV) = 0.0179437

Mask shadow pattern

IMX = -1.597169841992169E-01, IMY = 2.012981870144378E-01

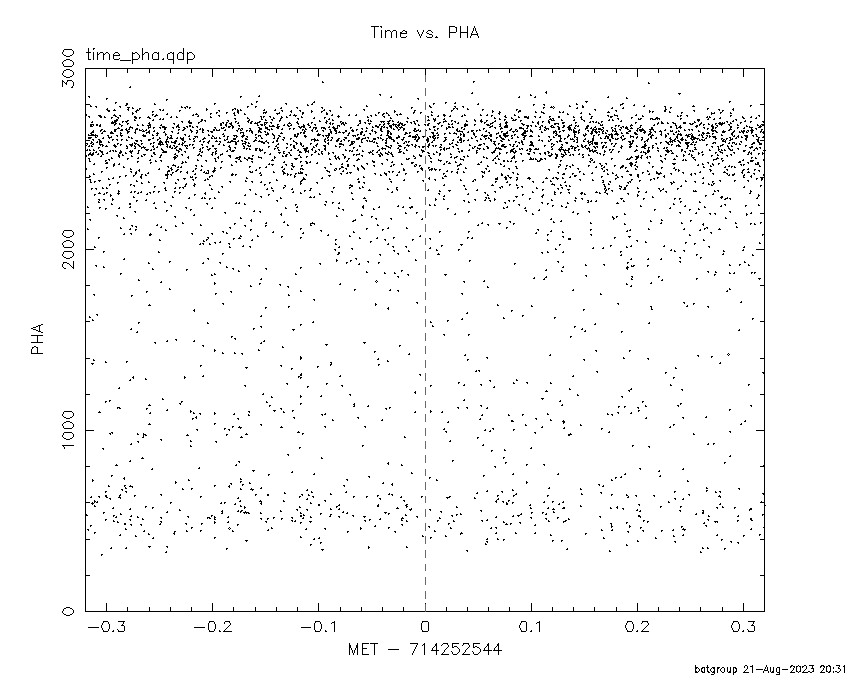

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-20.599410 -16.630000
-16.000000 15.750000
17.000000 43.370000
44.000000 72.300590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4582 -40.5007    3.2  14.8 -118.6  -0.5519  -3.7    4.6	Vela X-1
170.0357 -60.5298    9.5  14.6   48.6   0.1946   1.2   10.0	Cen X-3
186.5547 -62.6479    3.9  22.7   49.1   0.5216   2.9    7.9	GX 301-2
132.9277 -42.1329    1.3  14.4 -128.4   1.3338   9.0 ------	UNKNOWN
 97.8315 -13.6693    2.7  55.2 -145.3   3.2928   4.3 ------	UNKNOWN
164.5581  -9.3594    2.6  45.9  -57.3   2.8466   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
129.300600 243.060000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.3279 -40.6630   17.4   2.3  -57.9  -0.1186  -0.7   11.2	Vela X-1
170.6263 -60.6743   11.1  29.3   32.6  -0.2539  -1.0    9.6	Cen X-3
186.6087 -62.9342   10.0  37.1   33.0   0.3750   1.2    9.9	GX 301-2
106.1906   5.8036    3.2  53.8 -143.3   2.8712   3.6 ------	UNKNOWN

Plot creation:
Mon Aug 21 20:31:36 EDT 2023
