batgrbproduct analysis for trigger=1186296

batgrbproduct Analysis for Trigger=1186296

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Aug 21 20:24:33 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1186296/GCN5_download_cron
======================================================================

  Trigger: 01186296      Segment: 000

  BAT Trigger Time: 714253448   [s; MET]
      Trigger Stop: 714253512   [s; MET]
               UTC: 2023-08-20T19:43:36.138280    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 245.305852343659   Dec: -17.4342370704185  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    22.48
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    22.48

  Flight Position:   [ source = BAT ]
    RA: 245.305852343659   Dec: -17.4342370704185  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 245.34261409949   Dec: -17.3511736800558  [deg; J2000]
        { 16h 21m 22.2s , -17d 21' 04.2" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 1.54835045459453 [arcmin] (formal 1-sigma fit error)
    SNR: -6.48846746218191

  Angular difference between Flight and Ground position is 5.410057 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 80 +/- 97.3242004847715
        Measured from: 41.0000001192093
                   to: 121.000000119209     [s; relative to TRIGTIME]
     T50: 48 +/- 22.6274169979695
        Measured from: 57.0000001192093
                   to: 105.000000119209     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 96.5
                   to: 97.5     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -39
                   to: 121     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    11.131565   0.922246   0.033183  -0.025731
           0.092130   0.076123   0.063022   0.054332 [error]
 Peak      0.079787   0.010331  -0.004821  -0.004662
           0.007276   0.006081   0.004989   0.004484 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.42e-06 3.69e-07 1.65e-08 7.71e-10 3.81e-06 3.81e-06   erg/cm2
              Error 2.79e-07 3.74e-08 4.52e-09 3.65e-10 2.73e-07 2.73e-07   erg/cm2
Peak flux Power-law 7.85e-01 8.24e-02 3.57e-03 1.61e-04 8.71e-01 8.71e-01   ph/cm2/s
              Error 1.39e-01 4.25e-02 4.93e-03 4.08e-04 1.61e-01 1.61e-01   ph/cm2/s

Fluence   Cutoff-PL 3.29e-06 2.92e-07 5.24e-10 1.53e-15 3.58e-06 3.58e-06   erg/cm2
              Error 3.19e-07 4.66e-08 1.32e-09 3.54e-13 3.20e-07 3.20e-07   erg/cm2
Peak flux Cutoff-PL 8.16e-01 5.98e-02 2.43e-04 1.61e-08 8.75e-01 8.74e-01   ph/cm2/s
              Error 1.56e-01 6.17e-02 4.37e-03 1.07e-04 1.58e-01 1.59e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 7.58e-01 4.43e-02 2.87e-04 1.80e-06 8.02e-01 8.02e-01   ph/cm2/s
              Error 7.91e-02 -------- 5.24e-04 1.38e-05 7.93e-02 7.93e-02   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.481    0.262    -      -           1.26e-04 2.81e-05   80.440 57
CPL   1.000    0.000      50.0    0.0      2.30e-03 0.00e+00  712.270 56

The chi2 of BB fit is 67.78 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.530    0.921    -      -           3.38e-04 3.96e-04   36.460 57
CPL   1.000    0.000      50.0    0.0      7.74e-03 0.00e+00  106.330 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.

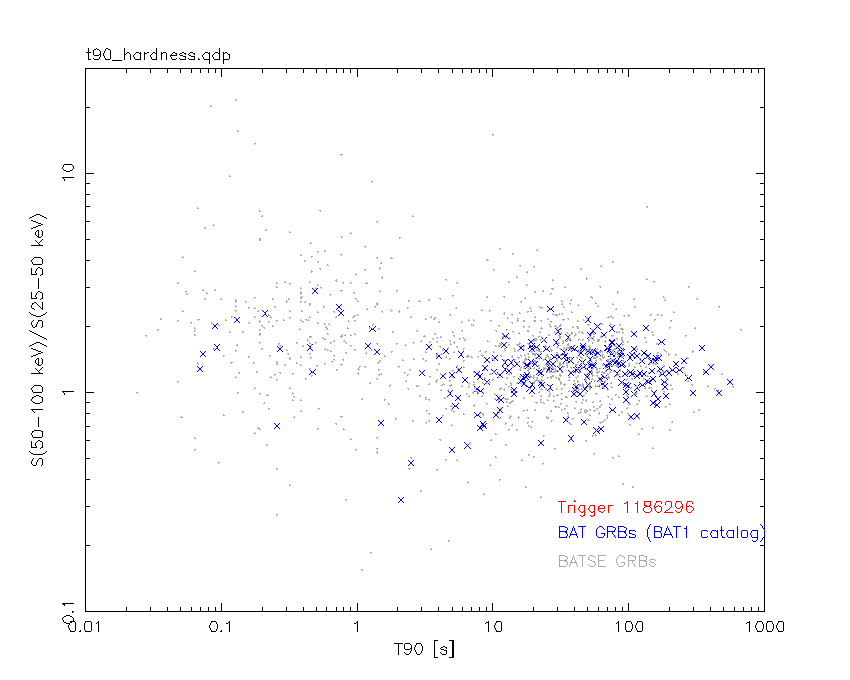

=== Table of the duration information ==

        Value   tstart    tstop
T100  160.000  -39.000  121.000
T90    80.000   41.000  121.000
T50    48.000   57.000  105.000
Peak    1.000   96.500   97.500

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  245.3426 -17.3512 0.0295    0.1   39.3      -1.5873    -6.5  TRIG_01186296
------------------------------------------

Foreground time interval of the image:
-39.000 -34.640 (delta_t =   4.360 [sec])
-29.000 -15.740 (delta_t =  13.260 [sec])
-15.000 121.000 (delta_t = 136.000 [sec])
Background time interval of the image:
-119.000 -39.000 (delta_t =  80.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

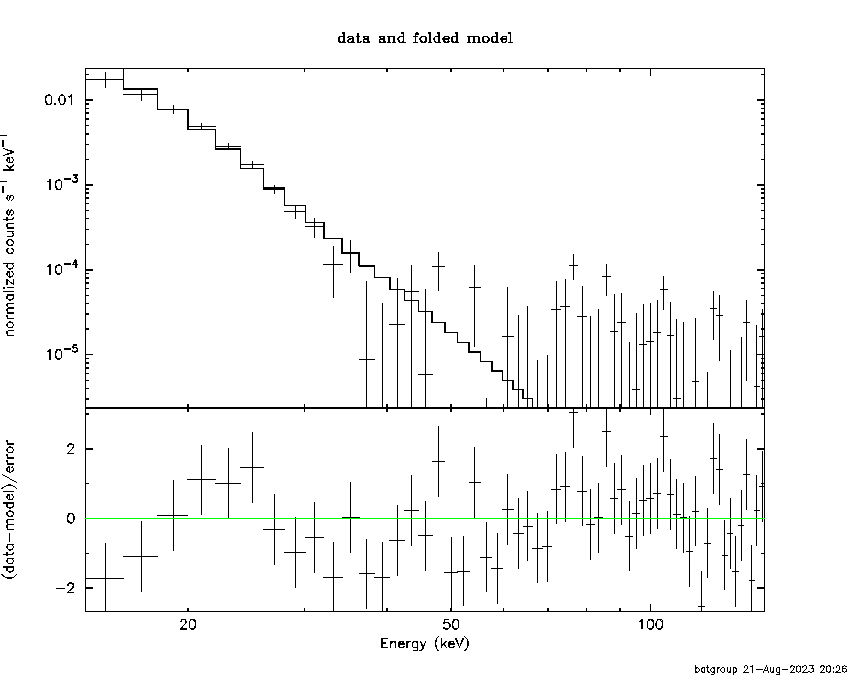

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-39.000000 -34.640000
-29.000000 -15.740000
-15.000000 121.000000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.48110     ( -0.262707   0.261284 )
Norm@50keV  : 1.25966E-04    ( -2.55248e-05   3.07712e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.44 using 59 PHA bins.
# Reduced chi-squared =          1.411 for     57 degrees of freedom
# Null hypothesis probability =   2.213014e-02

Photon flux (15-150 keV)    in 153.6 sec: 0.843952 ( -0.065664  0.0665147 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.8102e-06 ( -2.71341e-07  2.74204e-07 ) ergs/cm2

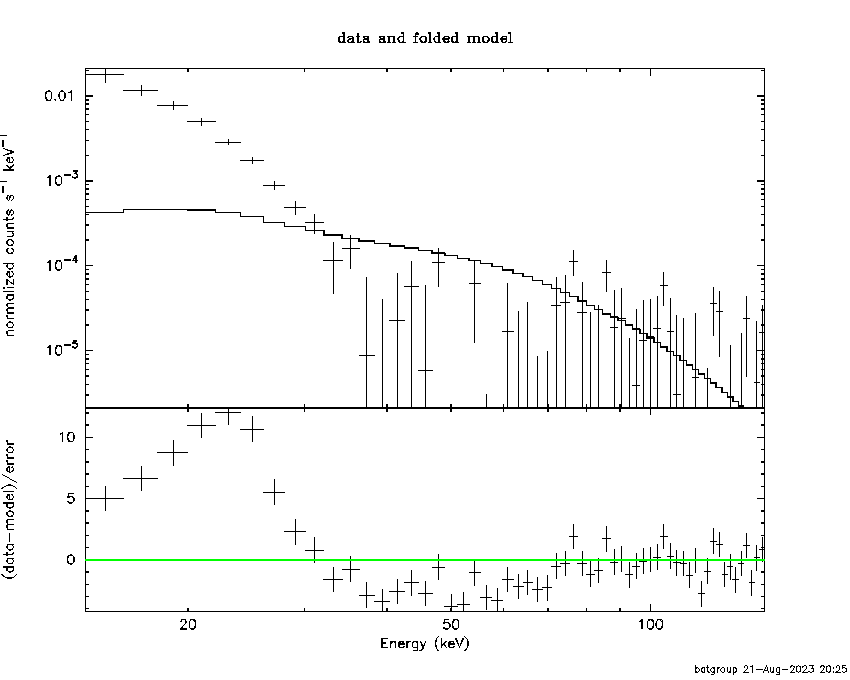

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-39.000000 -34.640000
-29.000000 -15.740000
-15.000000 121.000000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.29829E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         712.27 using 59 PHA bins.
# Reduced chi-squared =         12.719 for     56 degrees of freedom
# Null hypothesis probability =  1.675248e-114

Photon flux (15-150 keV)    in 153.6 sec: 0.791882 ( -0.07855  0.076798 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.5802e-06 ( -3.24142e-07  3.16646e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-39.000000 -34.640000
-29.000000 -15.740000
-15.000000 121.000000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.60859   (     )
beta        : -9.02363    (     )
Epeak [keV] : 3.88690      (   )
Norm@50keV   : 4.35784E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         244.60 using 59 PHA bins.
# Reduced chi-squared =         4.4473 for     55 degrees of freedom
# Null hypothesis probability =   9.725115e-26

Photon flux (15-150 keV)    in 153.6 sec: 0.802350 ( 6.19765  -0.08017 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

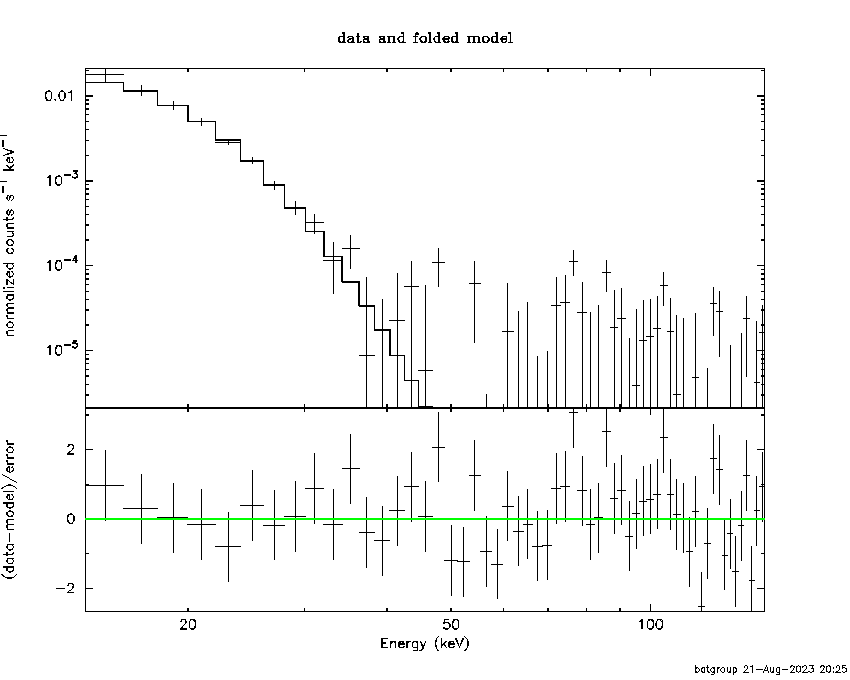

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.58699  (-0.119567  0.130732)
R^2/D10^2   : 295.425  (-102.636   153.41)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.78 using 59 PHA bins.
# Reduced chi-squared =          1.189 for     57 degrees of freedom
# Null hypothesis probability =   1.554410e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.180e-06   3.971e-07
25- 50  2.679e-07   3.226e-08
50-150  1.177e-10   5.850e-11
15-150  3.448e-06   3.817e-07

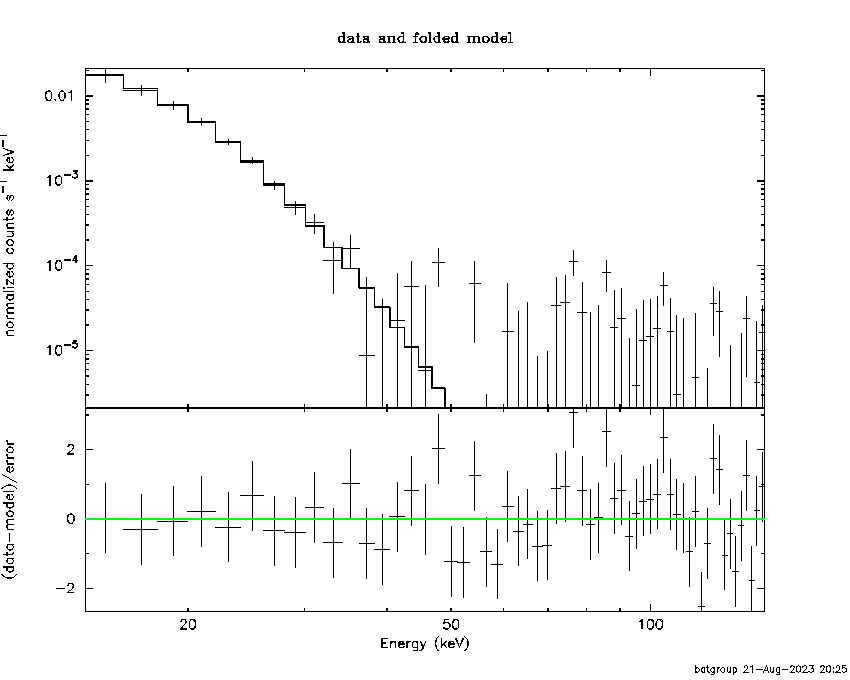

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.34409       (-0.282344      0.32024)
Norm        : 317.122       (-94.5753     132.387)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.314e-06   3.924e-07
25- 50  2.993e-07   3.556e-08
50-150  7.256e-10   3.318e-10
15-150  3.614e-06   3.878e-07

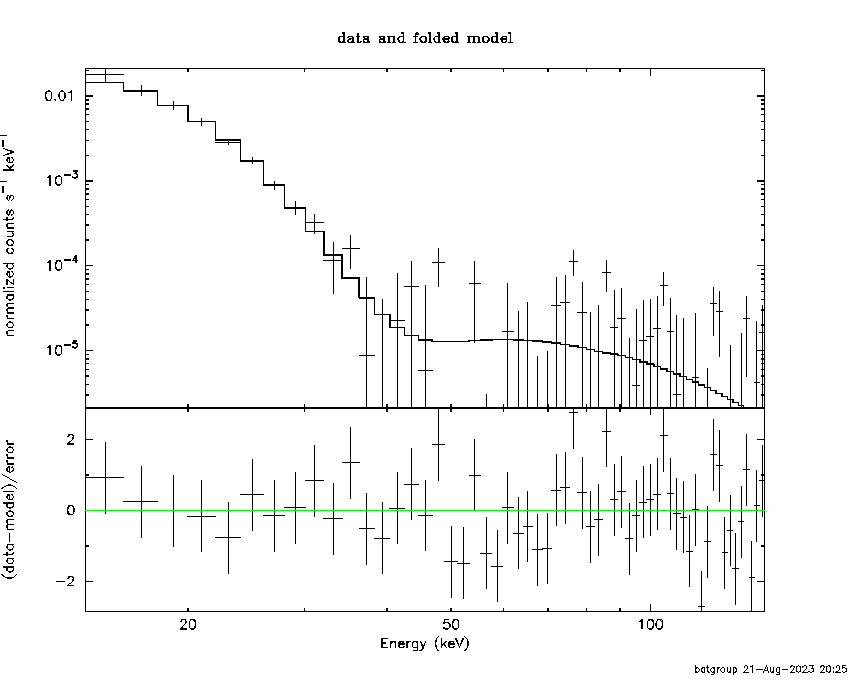

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.57716        (-0.123655      0.127895)
R1^2/D10^2  : 304.136        (-105.839      188.466)
kT2 [keV]   : 48.5012        (-45.0725      -45.0726)
R2^2/D10^2  : 4.16153E-05    (-5.41074e-05   -5.41797e-05)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.188e-06   3.786e-07
25- 50  2.765e-07   3.464e-08
50-150  1.431e-07   9.136e-08
15-150  3.608e-06   4.815e-07

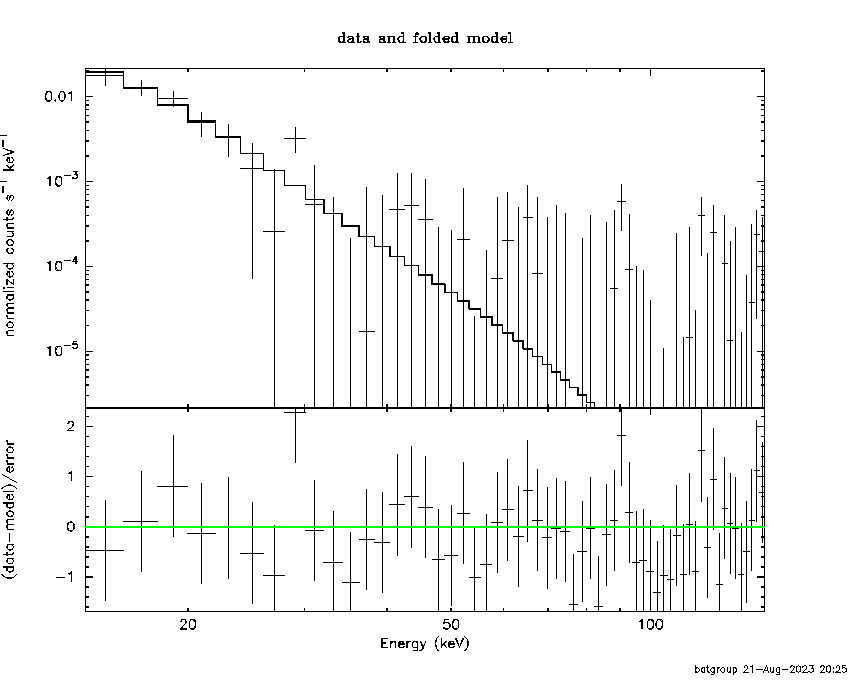

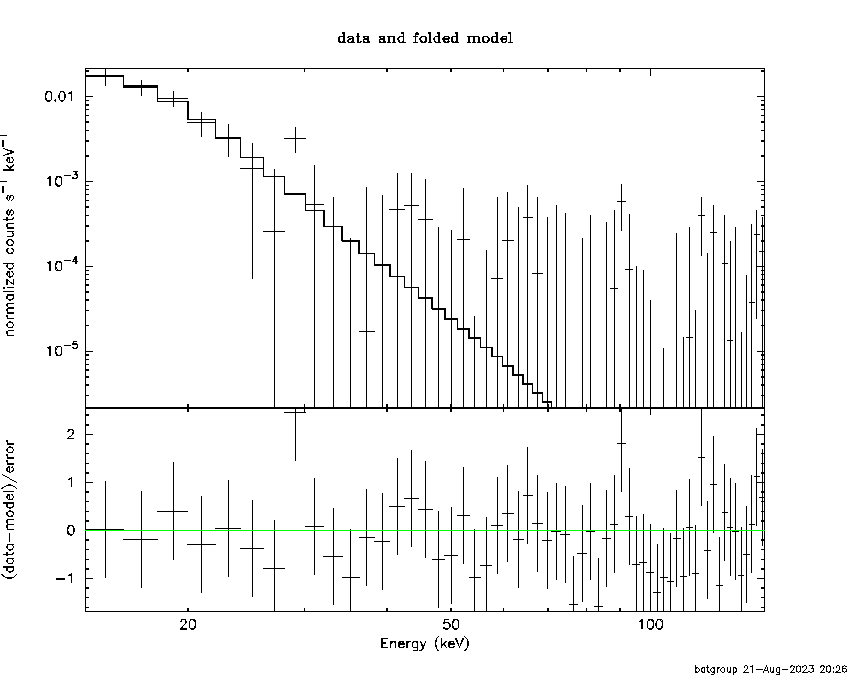

Peak spectrum fit

Power-law model

Time interval is from   96.500 sec. to   97.500 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.52971     ( -0.840558   1.00152 )
Norm@50keV  : 3.37965E-04    ( -0.000337965   0.000453862 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.46 using 59 PHA bins.
# Reduced chi-squared =         0.6396 for     57 degrees of freedom
# Null hypothesis probability =   9.844622e-01

Photon flux (15-150 keV)    in 1 sec: 0.871444 ( -0.160766  0.161024 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.6866e-08 ( -5.48011e-09  5.69194e-09 ) ergs/cm2

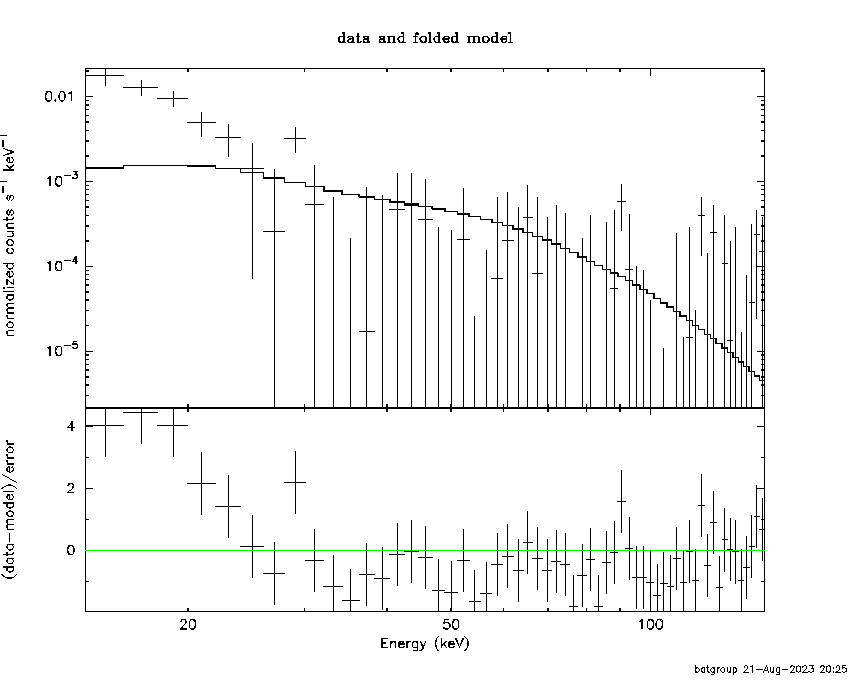

Cutoff power-law model

Time interval is from   96.500 sec. to   97.500 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 7.74154E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         106.33 using 59 PHA bins.
# Reduced chi-squared =         1.8988 for     56 degrees of freedom
# Null hypothesis probability =   5.733635e-05

Photon flux (15-150 keV)    in 1 sec: 0.874942 ( -0.157837  0.157458 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.61463e-08 ( -5.048e-09  5.6211e-09 ) ergs/cm2

Band function

Time interval is from   96.500 sec. to   97.500 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.28029   ( 1.25982   1.25982 )
beta        : -6.39066    ( 8.82927   18.6929 )
Epeak [keV] : 11.5344      ( -3.38592 6.03919 )
Norm@50keV   : 1.56159E+05    ( -156206   1.21924e+08 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.66 using 59 PHA bins.
# Reduced chi-squared =         0.6483 for     55 degrees of freedom
# Null hypothesis probability =   9.800197e-01

Photon flux (15-150 keV)    in 1 sec: 0.802350 ( 6.19765  -0.08017 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

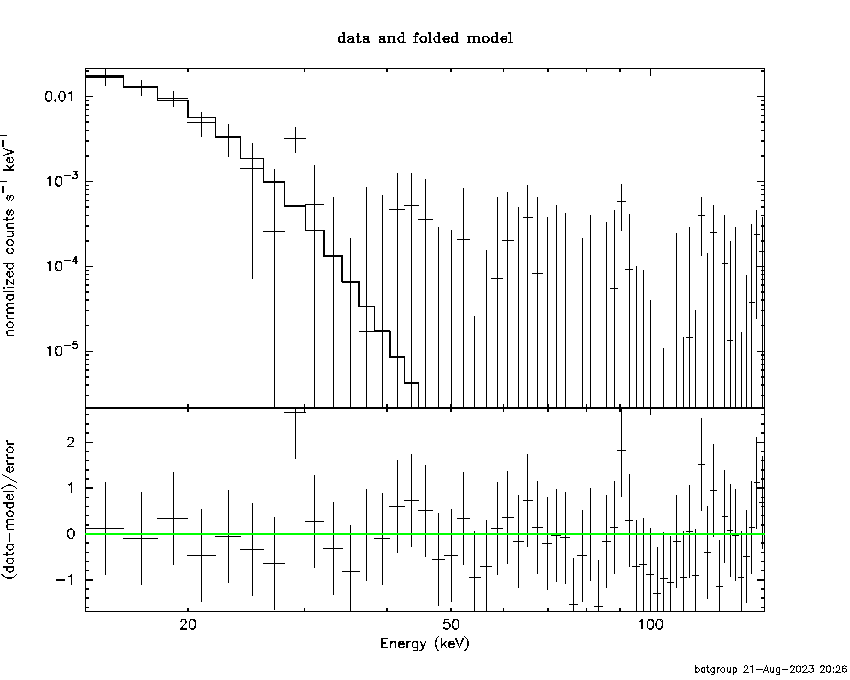

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.53613  (-0.412724  0.499875)
R^2/D10^2   : 393.426  (-393.426   1097.53)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.394e-08   1.314e-08
25- 50  1.864e-09   1.132e-09
50-150  6.772e-13   7.650e-13
15-150  2.580e-08   1.453e-08

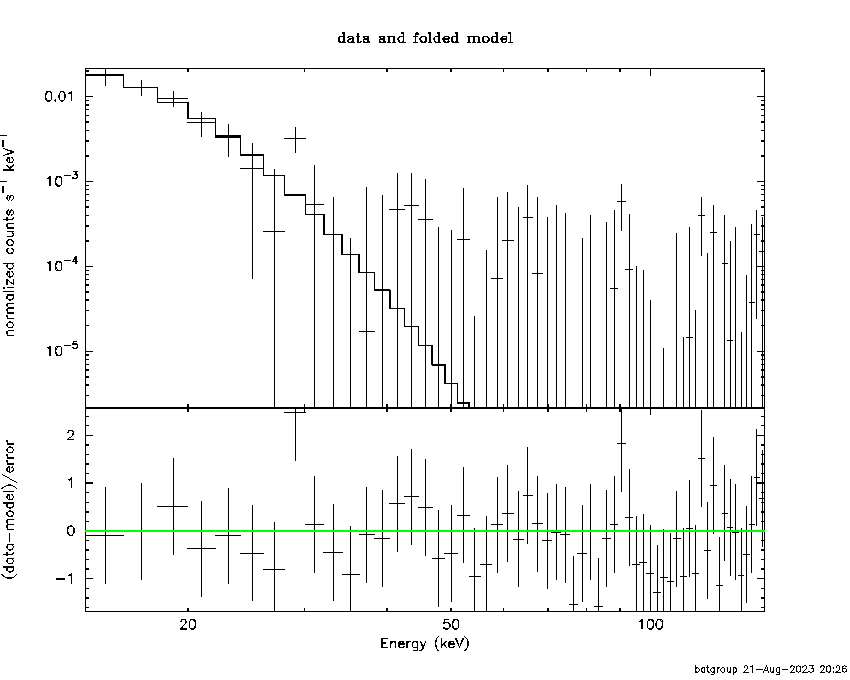

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.74193       (-1.13668      1.6221)
Norm        : 246.315       (-154.966     506.122)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.350e-08   1.169e-08
25- 50  2.627e-09   1.635e-09
50-150  1.035e-11   1.129e-11
15-150  2.613e-08   1.310e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.37584E-04        (0.000221041      -0.000137584)
R1^2/D10^2  : 3.41360E+05        (-341360      -341360)
kT2 [keV]   : 2.53612        (-0.412719      0.499882)
R2^2/D10^2  : 393.433    (-393.433   1097.53)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.212e-08   1.777e-03
25- 50  4.713e-09   1.278e-02
50-150  1.811e-11   3.247e-01
15-150  2.685e-08   3.469e-01

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.48110     ( -0.262707   0.261284 )
Norm@50keV  : 1.25966E-04    ( -2.55248e-05   3.07712e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          80.44 using 59 PHA bins.
# Reduced chi-squared =          1.411 for     57 degrees of freedom
# Null hypothesis probability =   2.213014e-02

Photon flux (15-150 keV)    in 153.6 sec: 0.843952 ( -0.065664  0.0665147 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.8102e-06 ( -2.71341e-07  2.74204e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.29829E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         712.27 using 59 PHA bins.
# Reduced chi-squared =         12.719 for     56 degrees of freedom
# Null hypothesis probability =  1.675248e-114

Photon flux (15-150 keV)    in 153.6 sec: 0.791882 ( -0.07855  0.076798 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.5802e-06 ( -3.24142e-07  3.16646e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.60859   (     )
beta        : -9.02363    (     )
Epeak [keV] : 3.88690      (   )
Norm@50keV   : 4.35784E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         244.60 using 59 PHA bins.
# Reduced chi-squared =         4.4473 for     55 degrees of freedom
# Null hypothesis probability =   9.725115e-26

Photon flux (15-150 keV)    in 153.6 sec: 0.802350 ( 6.19765  -0.08017 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.69e-07
S(50-100 keV) = 1.65e-08

T90 vs. Hardness ratio plot

T90                                   = 80 sec.
Hardness ratio (energy fluence ratio) = 0.0447154

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0828496
Count Ratio (50-100 keV) / (15-25 keV) = 0.00298098

Mask shadow pattern

IMX = 1.108772430368263E-03, IMY = -9.073002042644287E-04

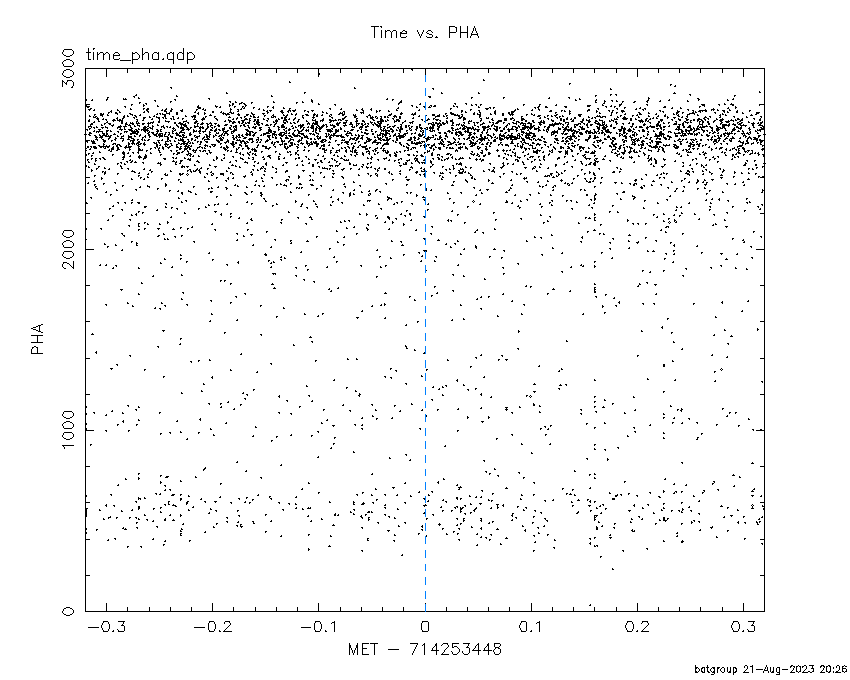

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-119.000000 -39.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8529 -15.7613    6.6   1.7  -24.0  -0.3188  -1.7   10.3	Sco X-1
254.3845  35.4822    9.4  53.6   -0.8  -0.6401  -1.2    9.1	Her X-1
255.8051 -37.9837    8.1  22.6  147.9  -0.2710  -1.4   12.0	4U 1700-377
256.2981 -36.5641   15.7  21.5  145.2   0.1430   0.7   10.7	GX 349+2
263.0746 -24.8917    4.9  18.2  107.3  -0.4957  -2.3    9.5	GX 1+4
264.5922 -44.6016    4.3  31.7  143.3   0.6938   2.7   11.1	4U 1735-44
268.2248  -1.4670    4.7  27.6   47.2  -0.5806  -2.4    8.6	SW J1753.5-0127
270.2680 -25.2164    5.7  24.5  102.8  -0.5091  -2.1    8.3	GX 5-1
270.3648 -25.6053    8.3  24.7  103.7   0.3474   1.4    8.9	GRS 1758-258
273.8538 -14.1460   34.7  27.7   77.3  -0.0908  -0.3   11.0	GX 17+2
275.7949 -30.4810   15.4  30.7  110.9   0.2210   0.7    9.6	H1820-303
284.9408 -24.8107   17.0  37.6   98.2  -0.3155  -0.7    8.4	HT1900.1-2455
262.8860 -33.7679    9.8  22.7  129.4   0.2508   1.2    6.5	GX 354-0
251.9614 -51.4369    2.4  34.4  162.6   1.2603   4.9 ------	UNKNOWN
245.3065 -17.4161    0.3   0.0  102.1   6.9647  40.4 ------	UNKNOWN
212.9302 -59.3285    2.5  48.0 -168.5   1.5887   4.6 ------	UNKNOWN
216.3558 -52.6594    2.1  41.9 -164.0   1.4180   5.4 ------	UNKNOWN
225.4659 -31.1291    3.1  22.6 -141.1   0.7078   3.8 ------	UNKNOWN
218.1691  16.2842    2.7  43.0  -49.9   1.7576   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-39.000000 -34.640000
-29.000000 -15.740000
-15.000000 121.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0026 -15.7965   24.4   1.6  -19.4   0.1195   0.5    9.5	Sco X-1
254.4736  35.3997    4.4  53.5   -0.7  -2.3366  -2.7    3.5	Her X-1
255.8222 -37.7380    5.8  22.3  147.6  -0.5445  -2.0   10.1	4U 1700-377
256.6084 -36.3164    4.7  21.4  144.3   0.6711   2.5   10.5	GX 349+2
262.8562 -24.6035    5.6  17.9  106.7  -0.6075  -2.1   11.9	GX 1+4
264.9246 -44.5459    7.5  31.8  142.9  -0.5890  -1.5    9.7	4U 1735-44
268.5160  -1.3350    0.0  27.9   47.3  -0.8263  -2.3   11.3	SW J1753.5-0127
270.1768 -25.0145    7.8  24.4  102.4  -0.5094  -1.5    7.0	GX 5-1
270.3193 -25.6757    5.7  24.7  103.9  -0.7151  -2.0    4.1	GRS 1758-258
274.1601 -13.9873   23.6  28.0   77.1   0.1901   0.5    9.5	GX 17+2
275.7539 -30.4948    5.2  30.6  110.9  -0.9307  -2.2   11.7	H1820-303
285.1925 -24.7828    0.0  37.8   98.2   0.9921   1.3   11.9	HT1900.1-2455
262.9448 -33.6916    5.6  22.7  129.1  -0.6150  -2.1    8.9	GX 354-0

Post-slew image of 15-350 keV band

Time interval of the image:
-60.000000 -34.640000
-29.000000 -15.740000
-10.000000 63.091400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0413 -15.6466   17.5   1.8  -17.4  -0.1488  -0.7    3.6	Sco X-1
254.5120  35.3341    4.6  53.5   -0.7  -1.5179  -2.5    2.7	Her X-1
255.7903 -37.9390   10.2  22.5  147.9  -0.2643  -1.1   10.9	4U 1700-377
256.2371 -36.5586  124.9  21.5  145.3  -0.0220  -0.1   12.6	GX 349+2
263.0378 -24.7470    5.4  18.1  106.9  -0.5661  -2.1    1.6	GX 1+4
264.6316 -44.5993    3.3  31.7  143.3   1.1150   3.5   10.1	4U 1735-44
268.3397  -1.5907   13.8  27.6   47.6   0.2578   0.8    8.5	SW J1753.5-0127
270.1146 -25.1988    6.0  24.4  102.9  -0.5468  -1.9   11.7	GX 5-1
270.2350 -25.8809   11.2  24.6  104.4  -0.2913  -1.0    9.0	GRS 1758-258
274.1595 -14.0461   10.7  28.0   77.2   0.3614   1.1    9.0	GX 17+2
276.0765 -30.2262   68.1  30.8  110.3   0.0647   0.2   11.5	H1820-303
285.1925 -24.7828    0.0  37.8   98.2   1.1130   2.1   11.9	HT1900.1-2455
262.7997 -33.9780    0.0  22.8  129.9   0.2695   1.0   12.8	GX 354-0
245.3064 -17.4237    0.3   0.0  114.6   9.0791  41.4 ------	UNKNOWN
205.5132 -69.0174    2.3  57.2 -174.2   4.4720   5.0 ------	UNKNOWN
209.3013 -23.3582    2.3  34.2 -116.2   1.7978   5.1 ------	UNKNOWN
217.8114  24.9179    3.2  50.1  -43.1   3.4939   3.6 ------	UNKNOWN
203.1184 -12.2323    3.9  41.0  -98.8   2.8340   3.0 ------	UNKNOWN

Plot creation:
Mon Aug 21 20:26:44 EDT 2023
