TDRSS scaled map for 1186304
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 20 Aug 23 20:20:34 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1186304, Seg_Num: 0
GRB_RA: 297.277d {+19h 49m 06s} (J2000),
297.495d {+19h 49m 59s} (current),
296.817d {+19h 47m 16s} (1950)
GRB_DEC: +36.059d {+36d 03' 33"} (J2000),
+36.120d {+36d 07' 11"} (current),
+35.933d {+35d 55' 58"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=3890 [image_cnts]
TRIGGER_DUR: 320.000 [sec] (=5.3 [min])
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 20176 TJD; 232 DOY; 23/08/20
GRB_TIME: 72896.13 SOD {20:14:56.13} UT
GRB_PHI: -159.29 [deg]
GRB_THETA: 51.74 [deg]
SOLN_STATUS: 0x413
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 9.16 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 +0 +0 +1 +53 +0
SUN_POSTN: 149.75d {+09h 59m 01s} +12.32d {+12d 19' 02"}
SUN_DIST: 122.79 [deg] Sun_angle= -9.8 [hr] (East of Sun)
MOON_POSTN: 195.40d {+13h 01m 36s} -5.62d {-05d 37' 18"}
MOON_DIST: 103.07 [deg]
MOON_ILLUM: 17 [%]
GAL_COORDS: 71.11, 5.12 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 311.07, 55.68 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 100.49,-10.48 [deg].
COMMENTS:
COMMENTS: This trigger occured while the StarTracker had lost lock, so it is possibly bogus.
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 20 Aug 23 20:27:02 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1186304, Seg_Num: 0
POINT_RA: 345.819d {+23h 03m 17s} (J2000)
POINT_DEC: +8.839d {+08d 50' 19"} (J2000)
MAP_DATE: 20176 TJD; 232 DOY; 23/08/20
MAP_TIME: 72896.13 SOD {20:14:56.13} UT
TRIGGER_DUR: 320.000 [sec] (=5.3 [min])
SOLN_STATUS: 0x413
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 9.16 [sigma]
MAP_URL: sw01186304000msbsm.fits
SUN_POSTN: 149.76d {+09h 59m 02s} +12.32d {+12d 18' 56"}
MOON_POSTN: 195.45d {+13h 01m 47s} -5.65d {-05d 38' 49"}
MOON_ILLUM: 17 [%]
GAL_COORDS: 83.07,-45.50 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 350.46, 13.73 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

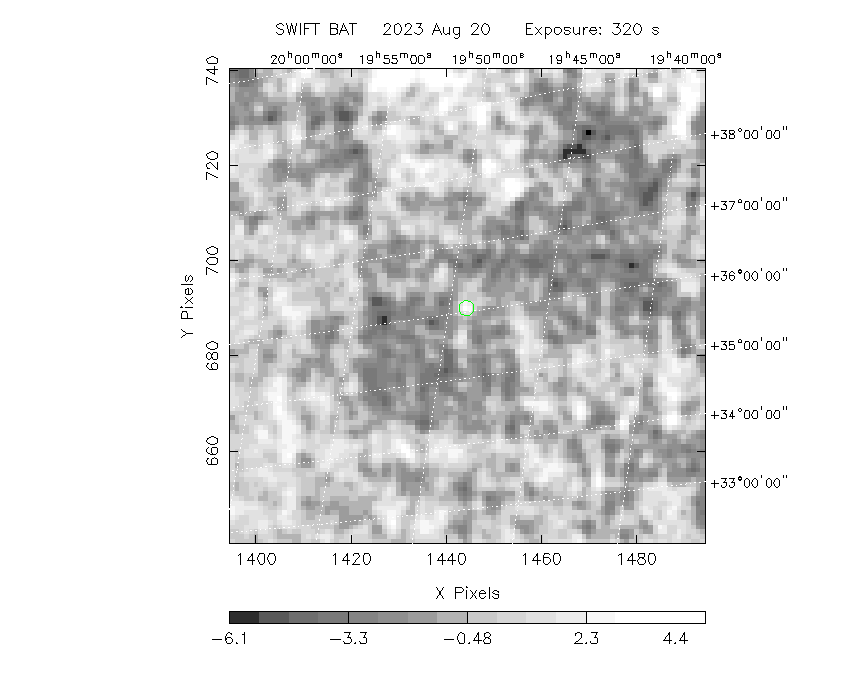

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (297.277, +36.059).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 297.277 +36.059 1.0
4U1943+36 ( 296.250 , 36.500 ) delta= 0.938
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
287.4138 9.8291 0.0 57.6 167.3 1.1542 0.2 0.0 4U 1907+09
287.7208 7.6667 0.0 57.5 164.7 -10.3457 -1.8 0.0 4U 1909+07
288.5083 9.8883 0.0 56.5 167.3 -0.6023 -0.2 0.0 IGR J19140+0951
288.7983 10.9455 0.0 56.1 168.5 5.1199 1.4 0.0 GRS 1915+105
297.3771 30.2067 0.0 49.9 -166.5 -0.0316 -0.0 0.0 KS 1947+300
298.9292 32.1000 0.0 49.2 -163.6 -1.3254 -1.1 0.0 4U 1954+31
299.5903 35.2016 0.0 49.7 -159.5 2.6531 1.9 0.0 Cyg X-1
299.8682 40.7339 0.0 51.6 -152.8 -0.5535 -0.3 0.0 Cyg A
308.0633 37.6375 0.0 44.6 -152.5 1.1595 1.1 0.0 EXO 2030+375
308.1103 40.9526 0.0 46.3 -148.5 -1.2523 -0.9 0.0 Cyg X-3
314.6979 41.7770 0.0 42.9 -143.3 -0.0767 -0.1 0.0 GRO J2058+42
321.1638 50.9739 0.0 46.8 -129.9 -0.8572 -0.4 0.0 IGR J21247+5058
322.4929 12.1674 0.0 23.2 171.5 -0.4902 -0.8 0.0 4U 2129+12
323.4320 51.1236 0.0 46.1 -128.2 -0.1287 -0.1 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 34.4 -136.7 -0.2293 -0.3 0.0 Cyg X-2
343.4906 16.1482 0.0 7.7 -125.9 0.1381 0.3 0.0 3C 454.3
350.9671 42.1830 0.0 33.7 -101.9 0.2618 0.2 0.0 1ES 2321+419
301.6335 2.7270 3.6 44.4 156.0 3.7812 3.2 ------ UNKNOWN
31.7562 -17.2687 3.0 52.4 11.2 5.6889 3.9 ------ UNKNOWN
19.7057 19.9815 4.0 34.6 -41.4 1.9429 2.9 ------ UNKNOWN
19.0869 20.9187 3.8 34.2 -43.2 2.0297 3.0 ------ UNKNOWN
288.3108 42.9634 2.1 60.5 -154.0 32.3509 5.4 ------ UNKNOWN
21.7636 39.1836 2.8 44.2 -68.0 12.4482 4.1 ------ UNKNOWN
306.9185 51.7553 2.3 53.4 -137.8 19.7533 5.0 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
288.7983 10.9455 0.0 56.1 168.5 5.1197 1.4 0.0 GRS 1915+105
299.5903 35.2016 0.0 49.7 -159.5 2.6531 1.9 0.0 Cyg X-1
308.1103 40.9526 0.0 46.3 -148.5 -1.2523 -0.9 0.0 Cyg X-3
326.1717 38.3217 0.0 34.4 -136.7 -0.2293 -0.3 0.0 Cyg X-2
301.6335 2.7270 3.6 44.4 156.0 3.7812 3.2 ------ UNKNOWN
31.7562 -17.2687 3.0 52.4 11.2 5.6889 3.9 ------ UNKNOWN
19.7057 19.9815 4.0 34.6 -41.4 1.9429 2.9 ------ UNKNOWN
19.0869 20.9187 3.8 34.2 -43.2 2.0297 3.0 ------ UNKNOWN
288.3108 42.9634 2.1 60.5 -154.0 32.3509 5.4 ------ UNKNOWN
21.7636 39.1836 2.8 44.2 -68.0 12.4482 4.1 ------ UNKNOWN
306.9185 51.7553 2.3 53.4 -137.8 19.7533 5.0 ------ UNKNOWN
Search for UNKNOWN source R.A. = 19.0869 Dec. = +20.9187 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 19.7057 Dec. = +19.9815 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 21.7636 Dec. = +39.1836 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 31.7562 Dec. = -17.2687 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 288.3107 Dec. = +42.9634 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 301.6335 Dec. = +2.7270 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 306.9184 Dec. = +51.7553 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map

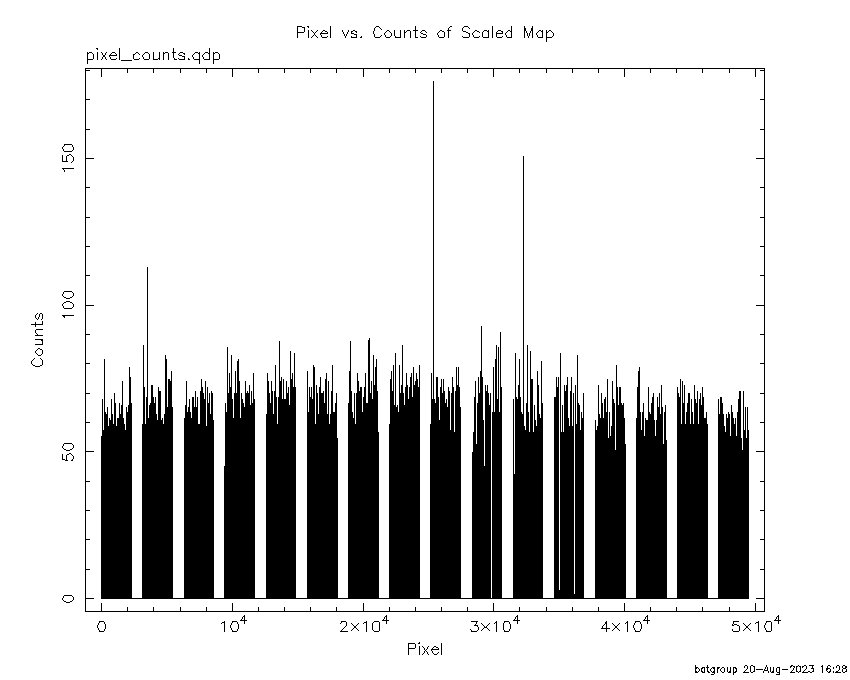

Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1186304/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sun Aug 20 16:28:10 EDT 2023
