batgrbproduct analysis for trigger=1187142

batgrbproduct Analysis for Trigger=1187142

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Aug 26 12:38:14 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1187142/GCN5_download_cron
======================================================================

  Trigger: 01187142      Segment: 000

  BAT Trigger Time: 714647048   [s; MET]
      Trigger Stop: 714647192   [s; MET]
               UTC: 2023-08-25T09:03:36.111400    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 261.941681607958   Dec: -16.2138321706453  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    26.75
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    26.75

  Flight Position:   [ source = BAT ]
    RA: 261.941681607958   Dec: -16.2138321706453  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 261.938106076473   Dec: -16.2021871339662  [deg; J2000]
        { 17h 27m 45.1s , -16d 12' 07.9" }
         +/- 0.585136457692903 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.15486371306429 [arcmin] (formal 1-sigma fit error)
    SNR: 65.4045789119765

  Angular difference between Flight and Ground position is 0.728439 arcmin

  Partial Coding Fraction: 0.828125    [ including projection effects ]

  Duration
     T90: 215.303999900818 +/- 11.5261407314971
        Measured from: -66.0559998750687
                   to: 149.248000025749     [s; relative to TRIGTIME]
     T50: 109.527999997139 +/- 2.76751725258623
        Measured from: -30.8959999084473
                   to: 78.6320000886917     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -22.3279999494553
                   to: -21.3279999494553     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -75.4759999513626
                   to: 175.276000022888     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    24.468587  21.020438   6.549616   0.609578
           0.154282   0.146644   0.116235   0.101612 [error]
 Peak      0.154071   0.127189   0.035364   0.010756
           0.010206   0.009436   0.006952   0.006298 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.65e-06 8.65e-06 5.35e-06 5.02e-06 2.58e-05 2.87e-05   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Power-law 1.64e+00 8.98e-01 3.09e-01 1.38e-01 2.92e+00 2.98e+00   ph/cm2/s
              Error 1.87e-01 8.27e-02 5.45e-02 4.41e-02 2.56e-01 2.60e-01   ph/cm2/s

Fluence   Cutoff-PL 8.21e-06 8.99e-06 5.28e-06 1.95e-06 2.38e-05 2.44e-05   erg/cm2
              Error 4.38e-07 1.87e-07 1.56e-07 3.72e-07 6.24e-07 7.73e-07   erg/cm2
Peak flux Cutoff-PL 1.55e+00 1.01e+00 2.48e-01 2.11e-02 2.83e+00 2.83e+00   ph/cm2/s
              Error 2.04e-01 1.15e-01 7.67e-02 3.86e-02 2.62e-01 2.63e-01   ph/cm2/s

Fluence        Band 7.96e-06 9.02e-06 5.18e-06 3.09e-06 2.38e-05 2.53e-05   erg/cm2
              Error 5.97e-07 2.38e-07 1.51e-07 -------- 6.15e-07 --------   erg/cm2
Peak flux      Band 1.60e+00 9.22e-01 2.57e-01 8.81e-02 2.83e+00 2.87e+00   ph/cm2/s
              Error 2.16e-01 -------- 6.56e-02 -------- 2.63e-01 2.82e-01   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.695    0.000    -      -           9.68e-03 0.00e+00  116.140 57
CPL   1.874    0.154       7.1    0.0      2.55e-02 0.00e+00   53.160 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.540    0.180    -      -           1.45e-02 1.95e-03   58.000 57
CPL   1.280    0.877      19.7    0.0      9.43e-02 0.00e+00   52.040 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  250.752  -75.476  175.276
T90   215.304  -66.056  149.248
T50   109.528  -30.896   78.632
Peak    1.000  -22.328  -21.328

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  261.9381 -16.2022 0.0030   21.8 -136.4      40.6460    65.4  TRIG_01187142
------------------------------------------

Foreground time interval of the image:
-15.699 175.276 (delta_t = 190.975 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

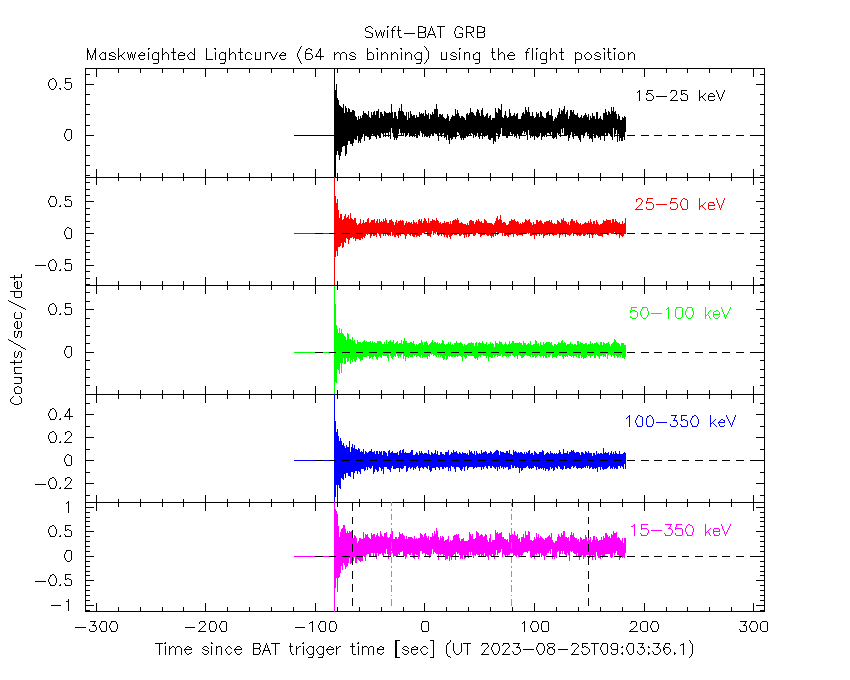

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 144.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 144.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 144.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  -75.476 sec. to  175.276 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.69475     (     )
Norm@50keV  : 9.67522E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         116.14 using 59 PHA bins.
# Reduced chi-squared =         2.0376 for     57 degrees of freedom
# Null hypothesis probability =   6.276532e-06

Photon flux (15-150 keV)    in 250.8 sec: 2.15190 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.57669e-05 ( 0  0 ) ergs/cm2

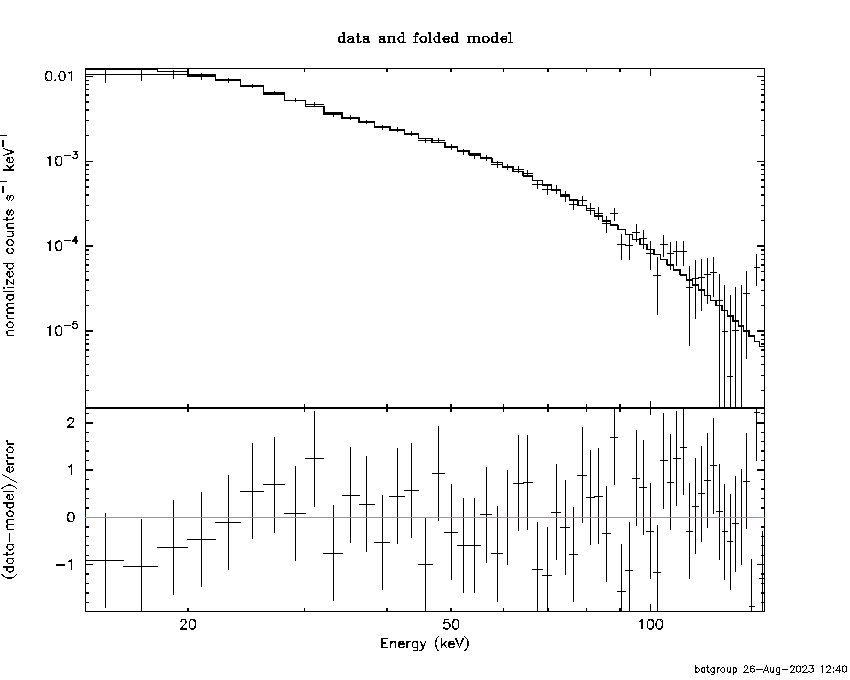

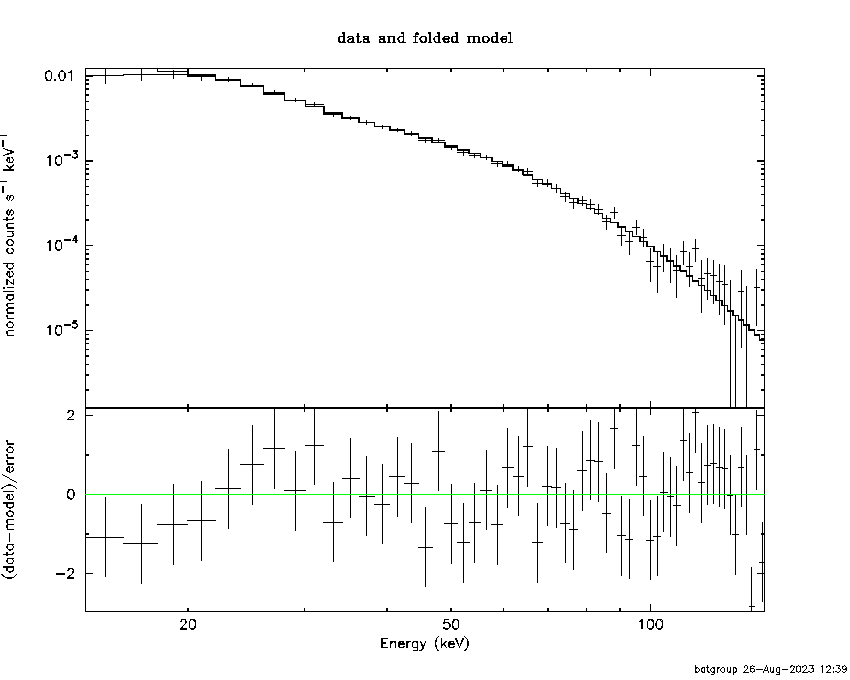

Cutoff power-law model

Time interval is from  -75.476 sec. to  175.276 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.87363     ( -0.191172   0.117003 )
Epeak [keV] : 7.11752      (   )
Norm@50keV  : 2.54681E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.16 using 59 PHA bins.
# Reduced chi-squared =         0.9492 for     56 degrees of freedom
# Null hypothesis probability =   5.831382e-01

Photon flux (15-150 keV)    in 250.8 sec: 1.95510 ( -0.06644  0.06731 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.38243e-05 ( -6.21934e-07  6.26022e-07 ) ergs/cm2

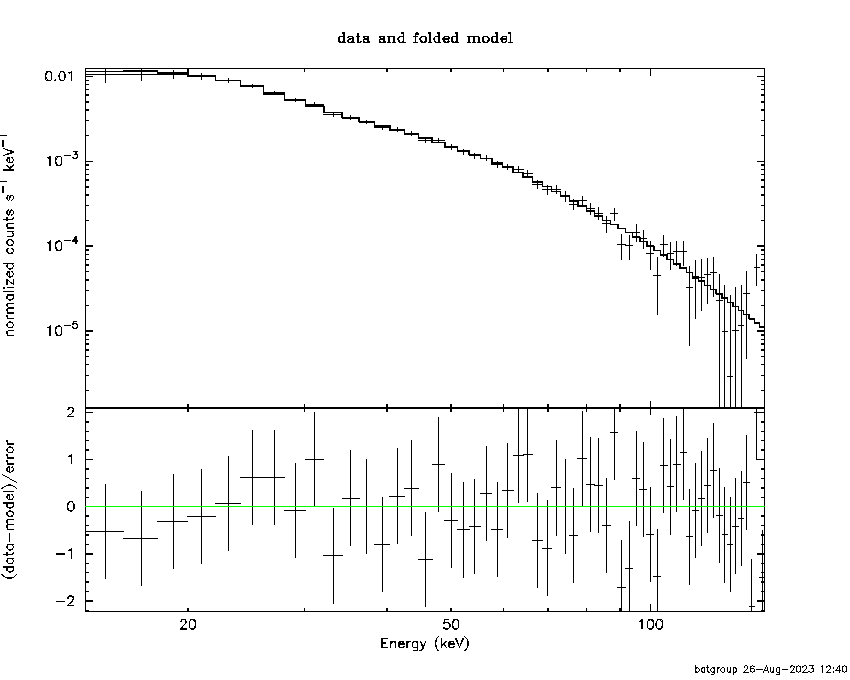

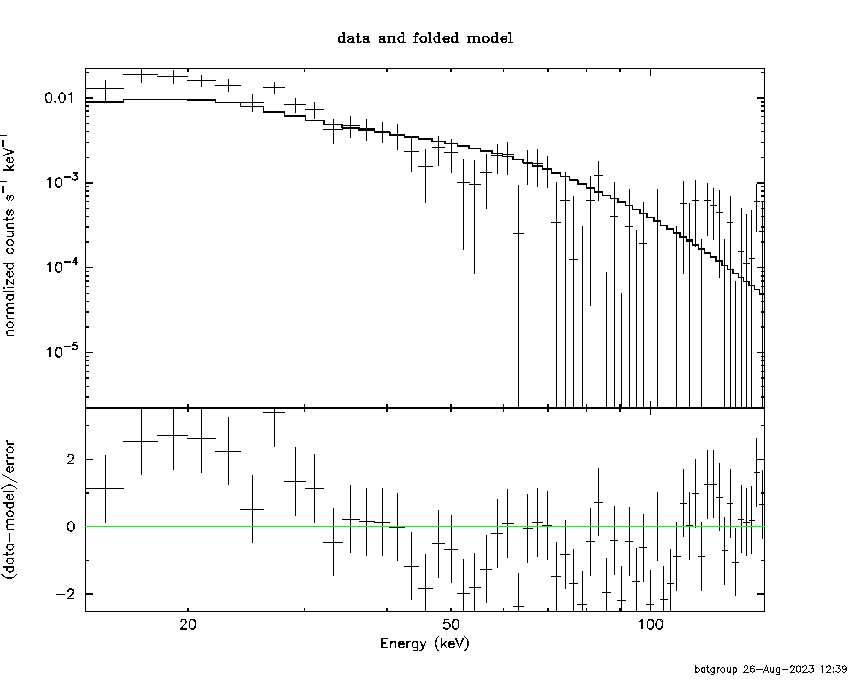

Band function

Time interval is from  -75.476 sec. to  175.276 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.68873   ( -0.307435   0.962302 )
beta        : -3.21162    ( 3.21404   0.298125 )
Epeak [keV] : 13.6763      ( -8.75029 10.8261 )
Norm@50keV   : 3.27550E-02    ( -0.0106384   0.104943 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.05 using 59 PHA bins.
# Reduced chi-squared =         0.9463 for     55 degrees of freedom
# Null hypothesis probability =   5.882343e-01

Photon flux (15-150 keV)    in 250.8 sec: 1.65880 ( 5.3412  -0.06567 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.37768e-05 ( -2.3775e-05  -6.12755e-07 ) ergs/cm2

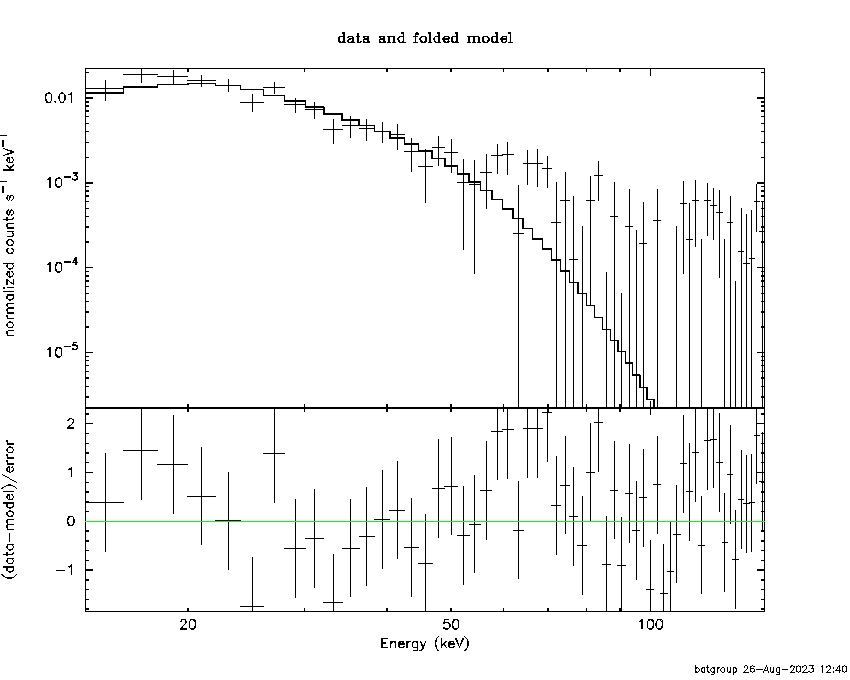

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.72493  (  )
R^2/D10^2   : 0.815350  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         533.94 using 59 PHA bins.
# Reduced chi-squared =         9.3673 for     57 degrees of freedom
# Null hypothesis probability =   1.182411e-78

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.899e-06   1.480e-07
25- 50  9.314e-06   2.107e-07
50-150  4.482e-06   1.718e-07
15-150  1.769e-05   3.662e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 35.9332       (-1.3361      1.41368)
Norm        : 13.1228       (-0.601809     0.630257)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.267e-06   2.245e-07
25- 50  9.108e-06   1.806e-07
50-150  6.240e-06   2.132e-07
15-150  2.261e-05   4.239e-07

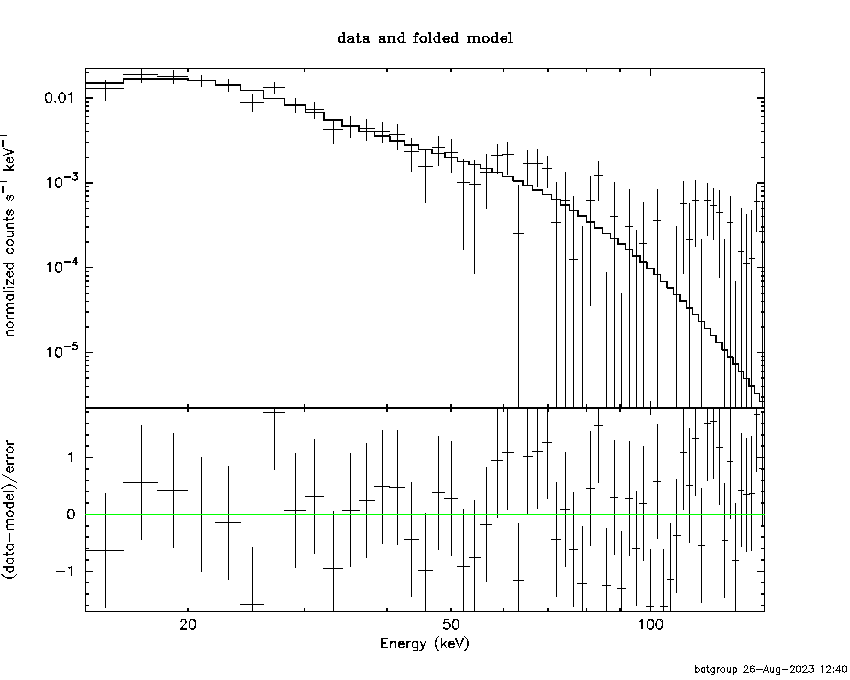

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.72281        (-0.353668      0.360804)
R1^2/D10^2  : 6.16714        (-1.38525      1.93327)
kT2 [keV]   : 15.7685        (-0.981444      1.15858)
R2^2/D10^2  : 6.50161E-02    (-0.0193495   0.0248936)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.109e-06   4.866e-07
25- 50  9.124e-06   3.436e-07
50-150  6.462e-06   3.361e-07
15-150  2.270e-05   8.765e-07

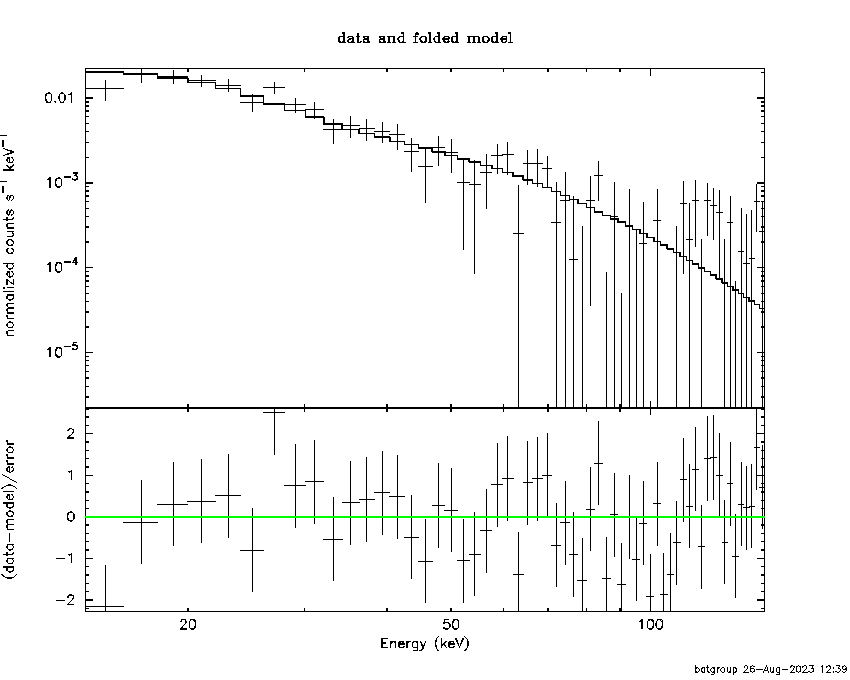

Peak spectrum fit

Power-law model

Time interval is from  -22.328 sec. to  -21.328 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.53975     ( -0.175419   0.185231 )
Norm@50keV  : 1.45022E-02    ( -0.00195303   0.00194125 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.00 using 59 PHA bins.
# Reduced chi-squared =          1.018 for     57 degrees of freedom
# Null hypothesis probability =   4.381751e-01

Photon flux (15-150 keV)    in 1 sec: 2.91971 ( -0.256399  0.256495 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.46622e-07 ( -1.46861e-08  1.49432e-08 ) ergs/cm2

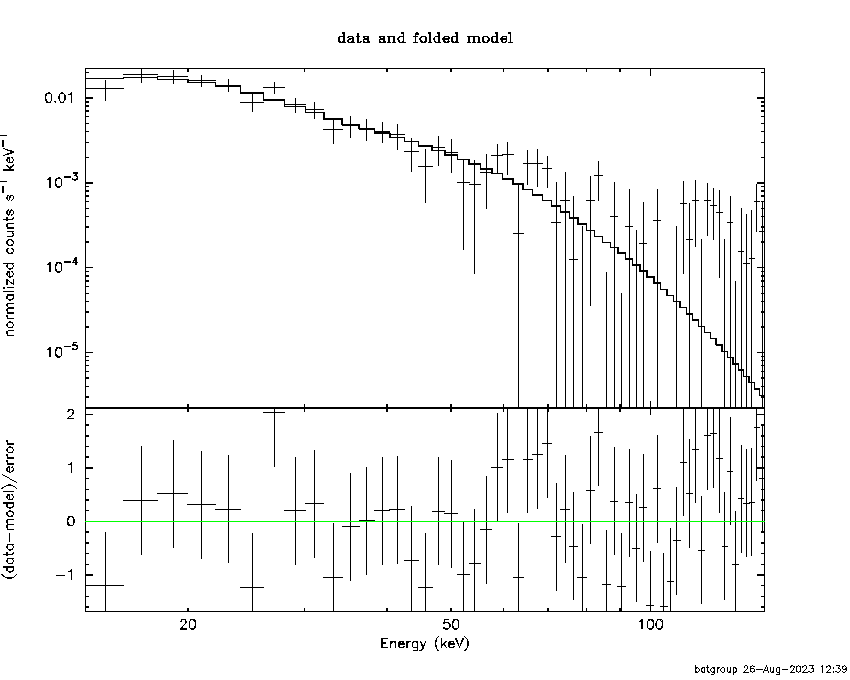

Cutoff power-law model

Time interval is from  -22.328 sec. to  -21.328 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.28042     ( -1.12536   0.628327 )
Epeak [keV] : 19.6674      (   )
Norm@50keV  : 9.42827E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.04 using 59 PHA bins.
# Reduced chi-squared =         0.9294 for     56 degrees of freedom
# Null hypothesis probability =   6.253398e-01

Photon flux (15-150 keV)    in 1 sec: 2.82842 ( -0.26123  0.26204 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.31766e-07 ( -1.4787e-08  1.6604e-08 ) ergs/cm2

Band function

Time interval is from  -22.328 sec. to  -21.328 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.17367   (     )
beta        : -8.31700    (     )
Epeak [keV] : 61.0169      (   )
Norm@50keV   : 3.81663E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         110.52 using 59 PHA bins.
# Reduced chi-squared =         2.0095 for     55 degrees of freedom
# Null hypothesis probability =   1.338423e-05

Photon flux (15-150 keV)    in 1 sec: 2.82761 ( 4.17239  -0.26705 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.38337e-07 ( -1.3833e-07  -1.5554e-08 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.11904  (-0.650387  0.714868)
R^2/D10^2   : 5.11560  (-1.7293   2.63038)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.237e-08   5.660e-09
25- 50  5.994e-08   7.175e-09
50-150  1.055e-08   3.324e-09
15-150  1.129e-07   1.171e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 30.0395       (-5.28343      6.82513)
Norm        : 23.4633       (-4.1795     5.2379)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.779e-08   5.635e-09
25- 50  5.464e-08   5.720e-09
50-150  2.998e-08   8.575e-09
15-150  1.324e-07   1.520e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.15079        (-1.17049      1.10804)
R1^2/D10^2  : 15.3766        (-7.80631      23.9471)
kT2 [keV]   : 14.0607        (-4.10319      9.90053)
R2^2/D10^2  : 0.150525    (-0.135996   0.686962)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.834e-08   2.092e-08
25- 50  5.300e-08   2.280e-08
50-150  3.201e-08   1.770e-08
15-150  1.334e-07   5.679e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.71625     (     )
Norm@50keV  : 9.65582E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         116.64 using 59 PHA bins.
# Reduced chi-squared =         2.0464 for     57 degrees of freedom
# Null hypothesis probability =   5.479603e-06

Photon flux (15-150 keV)    in 191 sec: 2.17844 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.97324e-05 ( 0  0 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.79134     ( -0.214421   0.196269 )
Epeak [keV] : 10.2877      ( -9.25512 6.76091 )
Norm@50keV  : 2.90759E-02    ( -0.00563093   0.00835848 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.67 using 59 PHA bins.
# Reduced chi-squared =         0.7799 for     56 degrees of freedom
# Null hypothesis probability =   8.847428e-01

Photon flux (15-150 keV)    in 191 sec: 1.96037 ( -0.06804  0.06895 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.80814e-05 ( -4.86401e-07  4.89991e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.51327   ( -0.190364   0.627841 )
beta        : -3.25336    ( -0.598743   0.230627 )
Epeak [keV] : 17.4716      ( -9.78408 6.74219 )
Norm@50keV   : 4.24935E-02    ( -0.0152766   0.0626156 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.26 using 59 PHA bins.
# Reduced chi-squared =         0.7321 for     55 degrees of freedom
# Null hypothesis probability =   9.318233e-01

Photon flux (15-150 keV)    in 191 sec: 1.65880 ( 5.3412  -0.06567 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.80322e-05 ( -1.80308e-05  -4.78932e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.65e-06
S(50-100 keV) = 5.35e-06

T90 vs. Hardness ratio plot

T90                                   = 215.303999900818 sec.
Hardness ratio (energy fluence ratio) = 0.618497

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.859079
Count Ratio (50-100 keV) / (15-25 keV) = 0.267674

Mask shadow pattern

IMX = -2.898683398350924E-01, IMY = 2.761847285970451E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 144.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 144.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 144.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-119.000000 78.840000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1280 -15.6615    6.7  34.9 -117.9   1.3455   1.7    8.7	Sco X-1
254.4371  35.4795    5.6  45.3  -33.6  -1.9929  -2.1    8.3	Her X-1
256.0871 -37.7823    6.3  39.7 -157.5   1.2206   1.8    6.0	4U 1700-377
256.4690 -36.3211  423.0  38.4 -156.5  -0.0172  -0.0    6.3	GX 349+2
263.1391 -24.9208    0.0  25.8 -152.1   1.4096   2.9   12.7	GX 1+4
264.5626 -44.5527    4.1  42.6 -170.9   2.0049   2.8    9.9	4U 1735-44
268.5012  -1.4316    7.8  10.3  -82.7   0.6867   1.5    8.1	SW J1753.5-0127
270.2946 -25.0447    5.1  22.7 -166.0  -1.0502  -2.3    2.1	GX 5-1
270.4024 -25.9005   92.5  23.4 -167.0  -0.0569  -0.1   10.9	GRS 1758-258
273.8502 -14.0622    3.9  11.3 -161.7  -1.3293  -2.9    9.2	GX 17+2
275.9526 -30.4496   26.7  26.8  179.3  -0.2149  -0.4    5.2	H1820-303
284.9950 -24.7700    5.1  21.9  158.4  -1.0639  -2.2    9.3	HT1900.1-2455
288.6659  11.1123    0.0  18.0   28.3   0.3911   0.9   12.7	GRS 1915+105
299.4871  35.3798   10.5  43.8   19.2   1.0052   1.1   11.8	Cyg X-1
308.1503  41.0644    4.8  52.4   22.4  -5.1141  -2.4    6.9	Cyg X-3
262.9790 -33.6805    4.9  33.2 -161.6   1.2961   2.3    9.3	GX 354-0
290.9478  14.5128    3.1  22.1   28.0   1.9627   3.7 ------	UNKNOWN
261.3380 -17.6569    0.3  21.8 -136.4  19.8513  38.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-15.699380 175.276000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9849 -15.6413    1.8  36.1 -119.4   6.8748   6.3    0.3	Sco X-1
254.5797  35.3673   10.0  44.0  -34.6   1.3317   1.1    6.2	Her X-1
256.0254 -37.8009   29.2  41.3 -157.8   0.3364   0.4    3.2	4U 1700-377
256.4768 -36.2811    4.3  39.9 -156.8  -2.3383  -2.7    8.7	GX 349+2
262.9899 -24.7414   52.1  27.3 -152.5   0.1439   0.2    1.1	GX 1+4
264.9098 -44.3373   35.7  43.9 -171.1  -0.2877  -0.3    9.8	4U 1735-44
268.5021  -1.6148    0.0  10.5  -92.3   1.0817   1.8   12.6	SW J1753.5-0127
270.4326 -25.1147    5.2  24.3 -166.5  -1.2925  -2.2    8.3	GX 5-1
270.4341 -25.9128    0.0  25.1 -167.2   1.1978   2.0   12.4	GRS 1758-258
274.1640 -13.9777    4.7  12.7 -163.8   1.4258   2.4    9.9	GX 17+2
275.8816 -30.4798   17.7  28.4 -180.0   0.4243   0.7    7.1	H1820-303
285.2058 -24.7787    0.0  23.3  160.0  -1.2934  -2.0   12.6	HT1900.1-2455
288.6374  10.8163    0.0  16.2   30.6  -0.9389  -1.7   12.3	GRS 1915+105
299.5995  35.1930    1.3  42.1   19.8   9.8609   9.0    0.7	Cyg X-1
307.9973  40.9630    3.7  50.6   22.7   6.8593   3.1    5.2	Cyg X-3
262.8633 -33.6568    0.0  34.8 -161.7   1.9344   2.7   12.4	GX 354-0
299.3543  49.0844    3.1  54.3   10.7   9.2668   3.8 ------	UNKNOWN
261.9381 -16.2022    0.2  21.8 -136.4  40.6411  65.4 ------	UNKNOWN
247.6029 -18.2359    2.6  34.7 -125.2   3.9597   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Sat Aug 26 12:40:29 EDT 2023
