batgrbproduct Analysis for Trigger=1187203

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Aug 26 16:07:18 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1187203/GCN5_download_cron
======================================================================

  Trigger: 01187203      Segment: 000

  BAT Trigger Time: 714687664   [s; MET]
      Trigger Stop: 714687728   [s; MET]
               UTC: 2023-08-25T20:20:32.108640    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 261.928347705924   Dec: -16.2056204636928  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    18.92
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    18.92

  Flight Position:   [ source = BAT ]
    RA: 261.928347705924   Dec: -16.2056204636928  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 261.892397814828   Dec: -16.1515165868521  [deg; J2000]
        { 17h 27m 34.2s , -16d 09' 05.5" }
         +/- 4.61601092138474 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.48976083102336 [arcmin] (formal 1-sigma fit error)
    SNR: 3.42110000045617

  Angular difference between Flight and Ground position is 3.850901 arcmin

  Partial Coding Fraction: 0.1855469    [ including projection effects ]

  Duration
     T90: 186 +/- 50.3587132480567
        Measured from: 50.0000001192093
                   to: 236.000000119209     [s; relative to TRIGTIME]
     T50: 65 +/- 16.1245154965971
        Measured from: 124.000000119209
                   to: 189.000000119209     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 238
                   to: 239     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 33
                   to: 239     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    22.647643  18.976015   5.105711   0.543043
           0.197092   0.189899   0.145874   0.116218 [error]
 Peak      0.178739   0.138800   0.032801   0.008424
           0.011069   0.010427   0.007458   0.005619 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.15e-05 8.73e-06 4.45e-06 3.26e-06 2.62e-05 2.79e-05   erg/cm2
              Error 4.44e-07 1.91e-07 1.59e-07 2.41e-07 5.95e-07 6.01e-07   erg/cm2
Peak flux Power-law 2.49e+00 1.14e+00 3.14e-01 1.08e-01 4.01e+00 4.06e+00   ph/cm2/s
              Error 2.96e-01 1.06e-01 6.05e-02 3.77e-02 3.60e-01 3.60e-01   ph/cm2/s

Fluence   Cutoff-PL 9.34e-06 9.29e-06 4.24e-06 8.78e-07 2.36e-05 2.38e-05   erg/cm2
              Error 5.82e-07 2.26e-07 1.90e-07 2.27e-07 7.58e-07 8.16e-07   erg/cm2
Peak flux Cutoff-PL 2.43e+00 1.18e+00 2.99e-01 5.87e-02 3.96e+00 3.97e+00   ph/cm2/s
              Error 3.25e-01 1.40e-01 7.52e-02 7.13e-02 3.77e-01 3.90e-01   ph/cm2/s

Fluence        Band 6.13e-06 6.90e-06 2.72e-06 9.60e-07 1.64e-05 1.68e-05   erg/cm2
              Error 8.56e-07 8.34e-07 -------- 1.71e-06 -------- 2.86e-06   erg/cm2
Peak flux      Band 1.25e+00 9.57e-01 2.98e-01 3.40e-02 2.54e+00 2.54e+00   ph/cm2/s
              Error -------- 2.31e-01 -------- -------- 5.25e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.973    0.048    -      -           1.08e-02 2.76e-04  113.800 57
CPL   1.807    0.241       7.2    0.0      4.53e-02 0.00e+00   41.040 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.860    0.201    -      -           1.61e-02 2.36e-03   59.540 57
CPL   1.000    0.000      50.0    0.0      6.27e-02 0.00e+00  132.990 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  206.000   33.000  239.000
T90   186.000   50.000  236.000
T50    65.000  124.000  189.000
Peak    1.000  238.000  239.000

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  261.8924 -16.1515 0.0559   49.2  169.4       0.8215     3.4  TRIG_01187203
------------------------------------------

Foreground time interval of the image:
 33.000  69.901 (delta_t =  36.901 [sec])
Background time interval of the image:
-60.000 -52.778 (delta_t =   7.222 [sec])
-52.000   3.170 (delta_t =  55.170 [sec])
  4.000  15.785 (delta_t =  11.785 [sec])
 17.000  33.000 (delta_t =  16.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

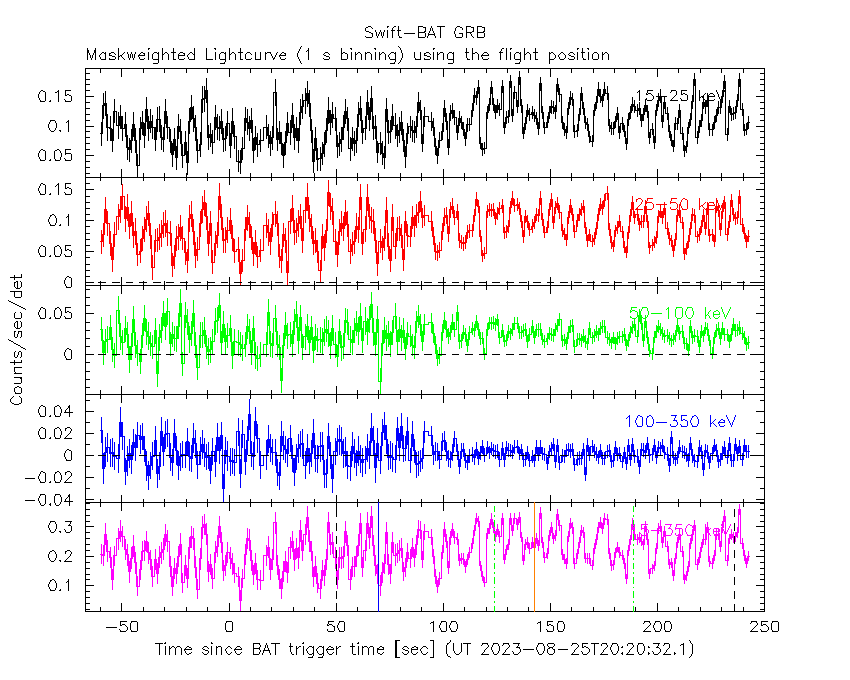

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

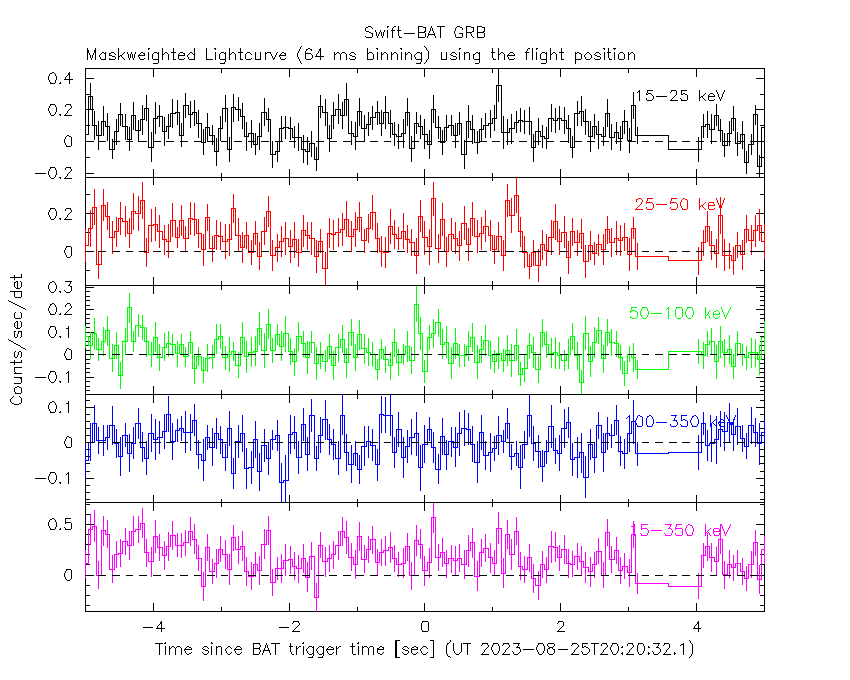

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
33.000000 92.350000
94.000000 239.000000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.97275     ( -0.0474073   0.0478754 )
Norm@50keV  : 1.07824E-02    ( -0.000276382   0.000275352 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         113.80 using 59 PHA bins.
# Reduced chi-squared =         1.9965 for     57 degrees of freedom
# Null hypothesis probability =   1.175608e-05

Photon flux (15-150 keV)    in 204.4 sec: 2.90724 ( -0.0857183  0.0866083 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.61538e-05 ( -5.93825e-07  5.95321e-07 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
33.000000 92.350000
94.000000 239.000000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.80670     ( -0.287417   0.194663 )
Epeak [keV] : 7.24366      (   )
Norm@50keV  : 4.52847E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.04 using 59 PHA bins.
# Reduced chi-squared =         0.7328 for     56 degrees of freedom
# Null hypothesis probability =   9.330815e-01

Photon flux (15-150 keV)    in 204.4 sec: 2.55806 ( -0.10445  0.1064 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.35775e-05 ( -7.5444e-07  7.61799e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
33.000000 92.350000
94.000000 239.000000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.57586   ( -0.207148   0.557554 )
beta        : -3.75103    ( -0.91836   0.32566 )
Epeak [keV] : 12.8444      ( -8.12952 7.44231 )
Norm@50keV   : 6.21027E-02    ( -0.0213842   0.0728831 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.72 using 59 PHA bins.
# Reduced chi-squared =         0.6857 for     55 degrees of freedom
# Null hypothesis probability =   9.637526e-01

Photon flux (15-150 keV)    in 204.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.63719e-05 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.49013  (  )
R^2/D10^2   : 1.84981  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         292.76 using 59 PHA bins.
# Reduced chi-squared =         5.1361 for     57 degrees of freedom
# Null hypothesis probability =   2.040123e-33

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.133e-06   2.146e-07
25- 50  9.934e-06   2.310e-07
50-150  3.160e-06   1.625e-07
15-150  1.823e-05   4.303e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 27.9033       (-1.10387      1.16452)
Norm        : 21.4765       (-1.21228     1.28814)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.593e-06   3.168e-07
25- 50  9.422e-06   2.330e-07
50-150  4.682e-06   2.340e-07
15-150  2.270e-05   5.212e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.30092        (-0.554917      0.553252)
R1^2/D10^2  : 11.1119        (-3.61294      6.65204)
kT2 [keV]   : 13.0555        (-1.17441      1.57182)
R2^2/D10^2  : 0.162244    (-0.0756964   0.113935)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.138e-06   6.807e-07
25- 50  9.368e-06   5.161e-07
50-150  4.760e-06   5.366e-07
15-150  2.227e-05   1.355e-06

Peak spectrum fit

Power-law model

Time interval is from  238.000 sec. to  239.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.86025     ( -0.193564   0.209395 )
Norm@50keV  : 1.61145E-02    ( -0.00237174   0.00234217 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.54 using 59 PHA bins.
# Reduced chi-squared =          1.045 for     57 degrees of freedom
# Null hypothesis probability =   3.831904e-01

Photon flux (15-150 keV)    in 1 sec: 4.01114 ( -0.360066  0.360896 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82191e-07 ( -1.70517e-08  1.7202e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  238.000 sec. to  239.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 6.26882E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         132.99 using 59 PHA bins.
# Reduced chi-squared =         2.3748 for     56 degrees of freedom
# Null hypothesis probability =   3.306692e-08

Photon flux (15-150 keV)    in 1 sec: 3.95560 ( -0.37786  0.3769 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.77072e-07 ( -1.9672e-08  2.0019e-08 ) ergs/cm2

Band function

Time interval is from  238.000 sec. to  239.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.89436   ( 0.84445   0.84445 )
beta        : -3.16695    ( 3.15966   0.428924 )
Epeak [keV] : 3.49477      ( -3.50368 6.37453 )
Norm@50keV   : 7.04980E-02    ( -0.0224645   26001 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.18 using 59 PHA bins.
# Reduced chi-squared =          1.058 for     55 degrees of freedom
# Null hypothesis probability =   3.591299e-01

Photon flux (15-150 keV)    in 1 sec: 2.53604 ( 4.46396  -0.52406 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.55127  (-0.63553  0.689567)
R^2/D10^2   : 9.36898  (-3.40179   5.55299)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.999e-08   9.065e-09
25- 50  7.200e-08   8.405e-09
50-150  9.331e-09   3.331e-09
15-150  1.413e-07   1.530e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 24.0302       (-4.26754      5.35926)
Norm        : 38.4546       (-8.0556     10.8324)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.860e-08   7.990e-09
25- 50  6.852e-08   6.670e-09
50-150  2.747e-08   8.025e-09
15-150  1.646e-07   1.570e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.05566        (-1.77211      1.00128)
R1^2/D10^2  : 25.8031        (-13.6198      129.588)
kT2 [keV]   : 16.9651        (-7.79918      13.4862)
R2^2/D10^2  : 7.32667E-02    (-0.0653273   0.248317)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.988e-08   2.160e-08
25- 50  6.299e-08   1.639e-08
50-150  4.087e-08   2.392e-08
15-150  1.737e-07   5.257e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.69447     ( -0.106915   0.110713 )
Norm@50keV  : 1.09516E-02    ( -0.000782475   0.000774907 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.21 using 59 PHA bins.
# Reduced chi-squared =          1.144 for     57 degrees of freedom
# Null hypothesis probability =   2.129421e-01

Photon flux (15-150 keV)    in 36.9 sec: 2.43530 ( -0.130395  0.131016 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.29077e-06 ( -2.19536e-07  2.20185e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.95434     ( -0.558947   0.0380555 )
Epeak [keV] : 2.40739      ( -1.82162 15.9122 )
Norm@50keV  : 2.99793E-02    ( -0.00431683   0.0344302 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.75 using 59 PHA bins.
# Reduced chi-squared =          1.031 for     56 degrees of freedom
# Null hypothesis probability =   4.104877e-01

Photon flux (15-150 keV)    in 36.9 sec: 2.33555 ( -0.14388  0.14434 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.04162e-06 ( -2.59481e-07  2.64942e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.64384   ( -0.286138   6.23921 )
beta        : -3.15546    ( 3.15394   0.425831 )
Epeak [keV] : 12.2578      ( -7.59894 10.3183 )
Norm@50keV   : 4.83880E-02    ( -0.0212287   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.76 using 59 PHA bins.
# Reduced chi-squared =          1.032 for     55 degrees of freedom
# Null hypothesis probability =   4.091254e-01

Photon flux (15-150 keV)    in 36.9 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.95559e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.73e-06
S(50-100 keV) = 4.45e-06

T90 vs. Hardness ratio plot

T90                                   = 186 sec.
Hardness ratio (energy fluence ratio) = 0.509737

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.83788
Count Ratio (50-100 keV) / (15-25 keV) = 0.225441

Mask shadow pattern

IMX = -1.137316820376665E+00, IMY = -2.121550937404745E-01

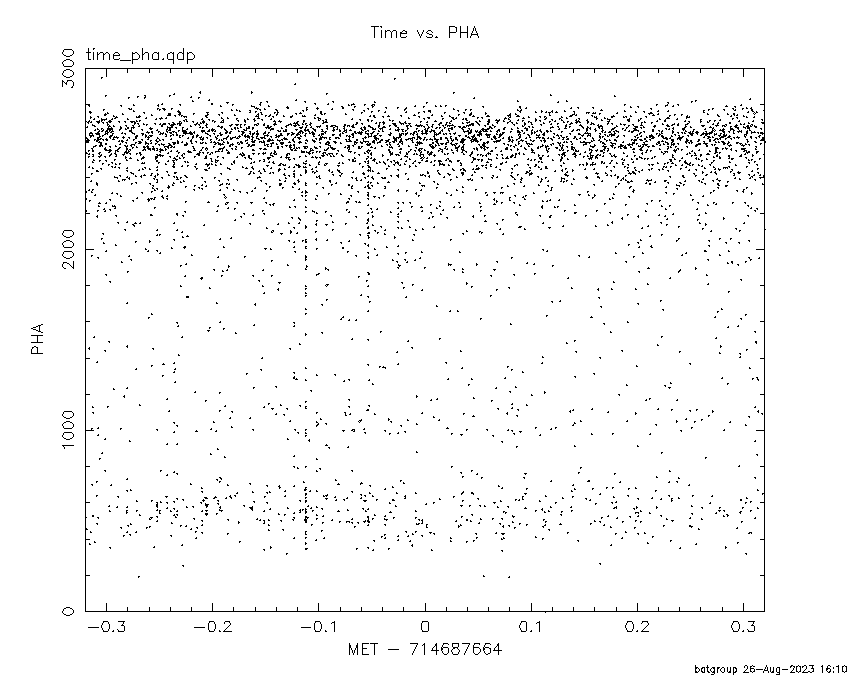

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

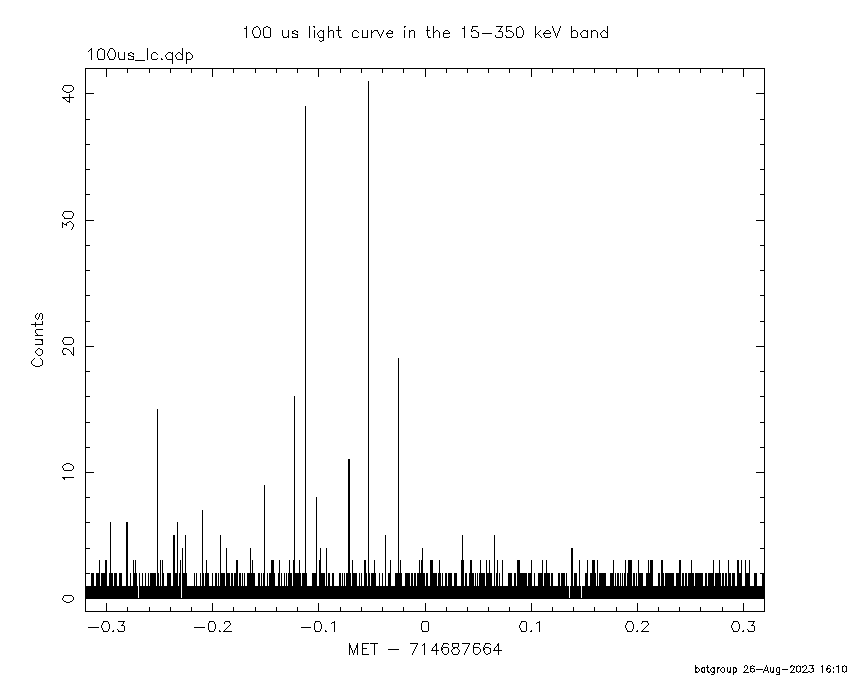

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-60.000000 -52.778300
-52.000000 3.170200
4.000000 15.785400
17.000000 33.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9011 -15.6365    3.8  54.7 -171.0   2.4539   3.1    4.5	Sco X-1
254.5408  35.2453    8.0  16.1  -97.6   0.3242   1.5    7.1	Her X-1
268.3830  -1.2993    6.0  33.4  163.9   0.5998   1.9    9.2	SW J1753.5-0127
274.0368 -14.1958    0.0  46.0  153.9  -1.3468  -1.9    9.7	GX 17+2
288.7385  11.1246   74.9  25.0  116.9   0.0437   0.2   11.3	GRS 1915+105
299.6167  35.2046    0.7  22.1   48.7   3.7597  16.5    1.3	Cyg X-1
308.0616  40.9472    4.1  29.2   36.6   0.7813   2.8    2.2	Cyg X-3
326.2267  38.2010   83.9  43.2   41.0   0.0689   0.1    7.7	Cyg X-2
261.9262 -16.2129    0.4  49.2  169.4  18.5966  27.4 ------	UNKNOWN
342.7731  68.8503    2.4  53.2   -0.3   2.3487   4.8 ------	UNKNOWN
233.9621  12.9040    2.9  40.7 -133.7   1.3600   3.9 ------	UNKNOWN
233.0862  17.6231    2.4  39.0 -126.7   1.6278   4.9 ------	UNKNOWN
225.9151  11.4674    2.6  48.1 -129.2   3.9813   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
33.000000 69.900600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0651 -15.5622    8.4  54.6 -171.1   0.3925   1.4    6.8	Sco X-1
254.3846  35.3567    5.7  16.2  -97.2   0.2037   2.0    3.7	Her X-1
268.2963  -1.5839    6.2  33.7  164.0  -0.2021  -1.9    9.0	SW J1753.5-0127
273.8968 -14.0361    6.9  45.8  154.1  -0.4079  -1.7    6.3	GX 17+2
288.9681  11.0127   10.1  25.2  116.6  -0.1294  -1.2   10.8	GRS 1915+105
299.6362  35.1679  179.6  22.1   48.8   0.0062   0.1    3.0	Cyg X-1
308.2995  40.9045    5.0  29.4   36.7   0.2700   2.3    9.1	Cyg X-3
326.3727  38.2981    5.4  43.3   40.8  -0.5186  -2.1    9.6	Cyg X-2
244.6405  14.1148    3.6  31.6 -142.5   0.3442   3.2 ------	UNKNOWN
235.5682 -11.4676    2.8  56.4 -159.0   1.4788   4.2 ------	UNKNOWN
236.0004  24.5492    2.5  33.6 -118.0   0.6197   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
142.400600 243.091200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1276 -15.5651    0.0  43.9 -130.3   0.2343   0.3    9.7	Sco X-1
254.4856  35.3522    9.8  40.6  -49.6   0.6938   1.2    1.5	Her X-1
255.9842 -37.8417   17.1  50.5 -162.4  -0.5819  -0.7    0.2	4U 1700-377
256.5731 -36.3995   10.4  49.1 -161.7  -0.7822  -1.1    6.8	GX 349+2
263.1346 -24.8186   80.2  36.4 -158.1   0.0595   0.1    8.1	GX 1+4
264.6304 -44.5569  376.2  52.9 -173.9   0.0286   0.0    8.0	4U 1735-44
268.4999  -1.4870   17.2  17.0 -124.5   0.2200   0.7    8.2	SW J1753.5-0127
270.3016 -25.0449    7.1  33.2 -168.0   0.6085   1.6    2.3	GX 5-1
270.1821 -25.8675   39.3  34.0 -168.5   0.1123   0.3    9.9	GRS 1758-258
274.1244 -14.1800    5.3  21.9 -164.4   0.7304   2.2   11.0	GX 17+2
275.9612 -30.2202    7.5  36.4 -179.3  -0.6491  -1.5    9.0	H1820-303
285.0971 -24.8947    5.9  30.3  167.0   0.7275   2.0    3.7	HT1900.1-2455
288.8200  10.9923    6.6   7.3   27.9  -0.5552  -1.7    3.1	GRS 1915+105
299.5919  35.1963    1.0  33.1   12.3   4.8367  11.9    0.3	Cyg X-1
308.1309  41.0484   27.6  41.7   16.2   0.2431   0.4    5.8	Cyg X-3
326.1566  38.5063   17.9  50.4   31.5   1.2376   0.6   11.1	Cyg X-2
263.0302 -33.6938   13.1  43.9 -165.7  -0.4587  -0.9    8.7	GX 354-0
321.6376  -5.1678    3.0  38.9   93.8   3.6080   3.8 ------	UNKNOWN
319.8477  49.9319    2.9  53.7   16.5   5.5664   4.0 ------	UNKNOWN
314.9344  53.4059    2.9  54.2   10.8   6.0091   4.0 ------	UNKNOWN
261.9340 -16.2137    0.2  30.8 -146.1  24.0508  59.1 ------	UNKNOWN
	UNKNOWN
	UNKNOWN

Plot creation:
Sat Aug 26 16:11:01 EDT 2023
