batgrbproduct Analysis for Trigger=1192480

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Sep 19 01:33:11 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1192480/GCN5_download_cron
======================================================================

  Trigger: 01192480      Segment: 000

  BAT Trigger Time: 716696184   [s; MET]
      Trigger Stop: 716696248   [s; MET]
               UTC: 2023-09-18T02:15:51.971460    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.766429685532   Dec: -15.6106560556307  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.38
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.38

  Flight Position:   [ source = BAT ]
    RA: 244.766429685532   Dec: -15.6106560556307  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.810247734987   Dec: -15.6466314440022  [deg; J2000]
        { 16h 19m 14.5s , -15d 38' 47.9" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 67.7733731600543 [arcmin] (formal 1-sigma fit error)
    SNR: -0.194297323090118

  Angular difference between Flight and Ground position is 3.327107 arcmin

  Partial Coding Fraction: 0.359375    [ including projection effects ]

  Duration
     T90: 31.5519999265671 +/- 11.5336011926379
        Measured from: 61.8040001392365
                   to: 93.3560000658035     [s; relative to TRIGTIME]
     T50: 24.4800000190735 +/- 19.1344190945877
        Measured from: 61.1680001020432
                   to: 85.6480001211166     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 65.4119999408722
                   to: 66.4119999408722     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 48.2120000123978
                   to: 94.067999958992     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.571325   0.076784  -0.013284   0.016123
           0.098617   0.086778   0.069379   0.059402 [error]
 Peak      0.069944   0.011714   0.015018   0.011470
           0.015175   0.013191   0.010564   0.008896 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.58e-07 8.95e-08 6.69e-09 5.35e-10 6.54e-07 6.54e-07   erg/cm2
              Error 7.82e-08 3.41e-08 5.84e-09 9.20e-10 9.81e-08 9.82e-08   erg/cm2
Peak flux Power-law 8.13e-01 1.62e-01 1.59e-02 1.71e-03 9.92e-01 9.92e-01   ph/cm2/s
              Error 2.75e-01 1.37e-01 3.83e-02 1.19e-02 3.64e-01 3.65e-01   ph/cm2/s

Fluence   Cutoff-PL 6.07e-07 3.88e-08 1.50e-12 3.06e-23 6.46e-07 6.46e-07   erg/cm2
              Error 8.52e-08 2.94e-08 2.08e-10 0.00e+00 8.87e-08 8.89e-08   erg/cm2
Peak flux Cutoff-PL 8.12e-01 1.53e-01 1.38e-02 1.38e-03 9.81e-01 9.85e-01   ph/cm2/s
              Error 2.74e-01 -------- 3.83e-02 1.19e-02 3.63e-01 3.65e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.743    0.666    -      -           1.47e-04 1.04e-04   51.990 57
CPL   1.000    0.000      50.0    0.0      3.20e-03 0.00e+00  166.800 56

The chi2 of BB fit is 45.44 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.345    1.665    -      -           1.18e-03 2.05e-03   49.010 57
CPL   1.000    0.000      50.0    0.0      1.53e-02 0.00e+00   60.950 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   45.856   48.212   94.068
T90    31.552   61.804   93.356
T50    24.480   61.168   85.648
Peak    1.000   65.412   66.412

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.8102 -15.6466 0.9922   36.2 -122.8      -0.0256    -0.2  TRIG_01192480
------------------------------------------

Foreground time interval of the image:
 48.212  71.301 (delta_t =  23.089 [sec])
Background time interval of the image:
-17.799  48.212 (delta_t =  66.011 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

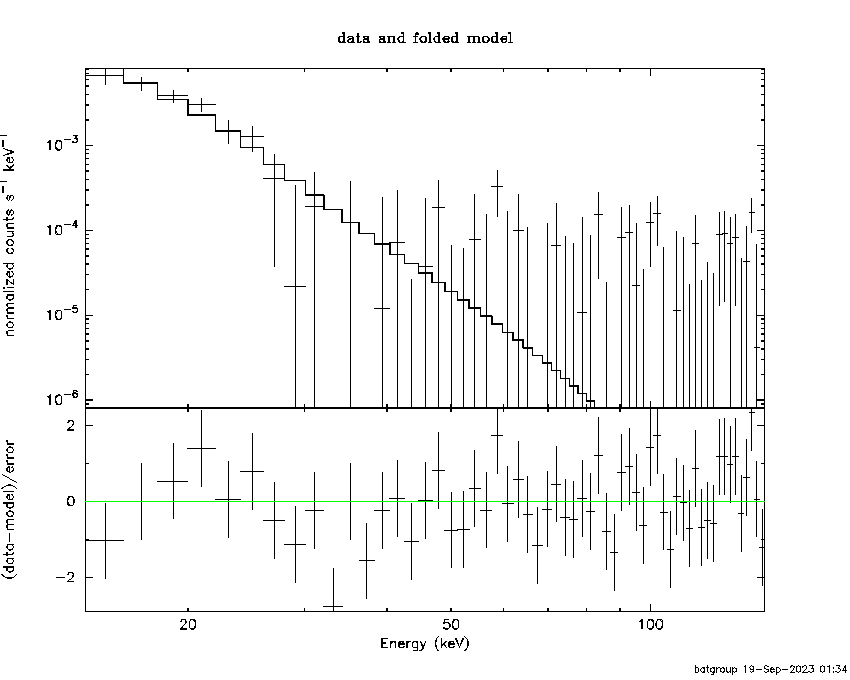

Power-law model

Time interval is from   48.212 sec. to   94.068 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.74281     ( -0.631139   0.701387 )
Norm@50keV  : 1.47175E-04    ( -7.79502e-05   0.000130145 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.99 using 59 PHA bins.
# Reduced chi-squared =         0.9122 for     57 degrees of freedom
# Null hypothesis probability =   6.628762e-01

Photon flux (15-150 keV)    in 45.86 sec: 0.468460 ( -0.06611  0.0661441 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.54064e-07 ( -9.75043e-08  9.87737e-08 ) ergs/cm2

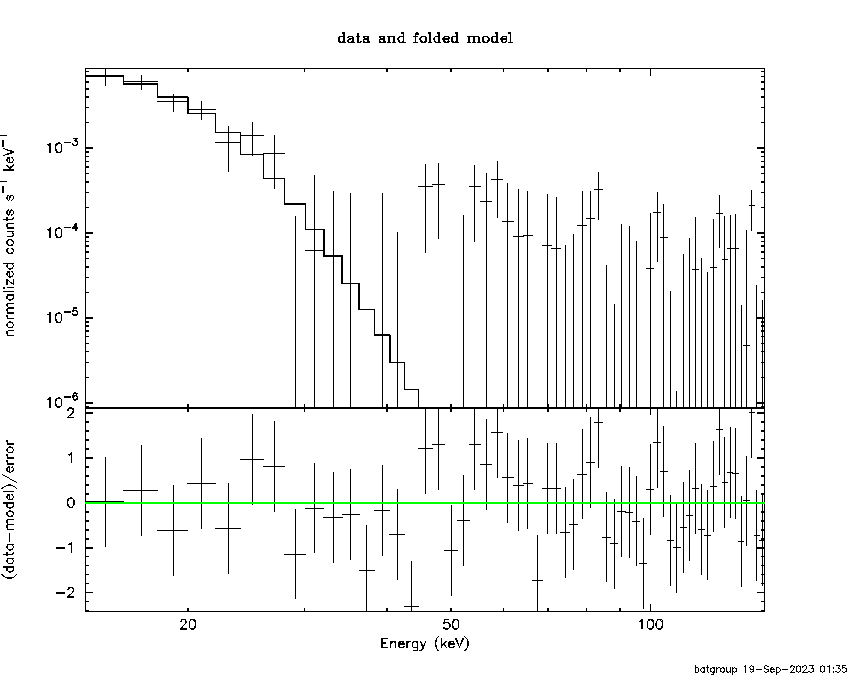

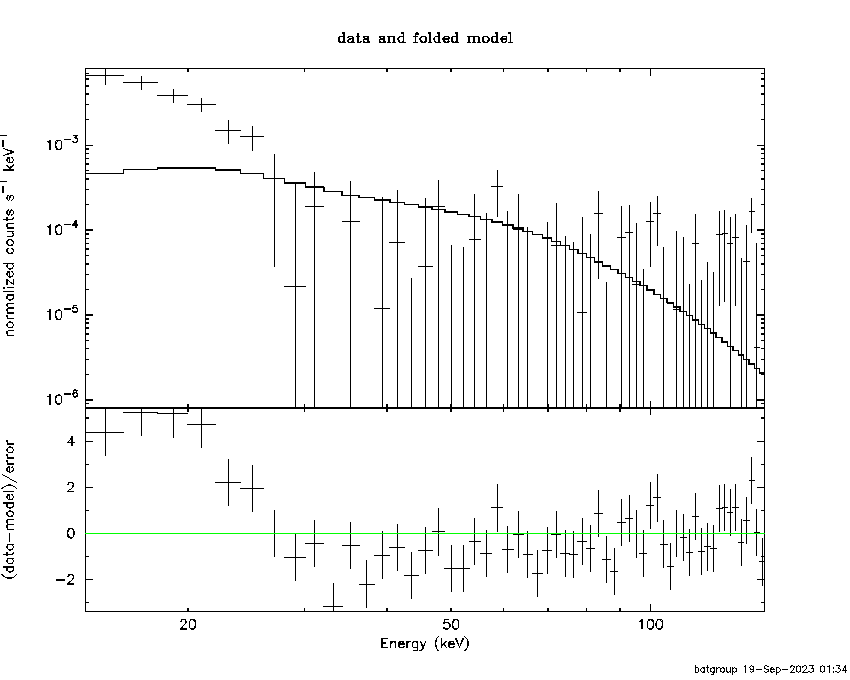

Cutoff power-law model

Time interval is from   48.212 sec. to   94.068 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.19724E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         166.80 using 59 PHA bins.
# Reduced chi-squared =         2.9785 for     56 degrees of freedom
# Null hypothesis probability =   6.041159e-13

Photon flux (15-150 keV)    in 45.86 sec: 0.479035 ( -0.066339  0.066233 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.46126e-07 ( -8.8973e-08  8.84273e-08 ) ergs/cm2

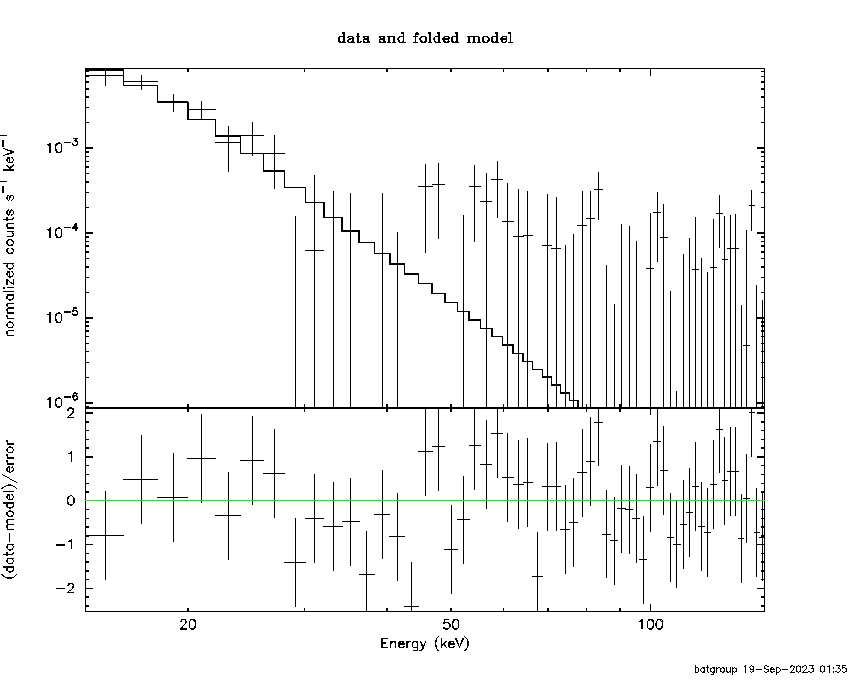

Band function

Time interval is from   48.212 sec. to   94.068 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.29138   ( 8.29138   8.29138 )
beta        : -5.75990    ( -0.687773   0.644725 )
Epeak [keV] : 4.41363      ( -4.41363 -4.41363 )
Norm@50keV   : 1.96416E-02    ( -0.0103506   0.0179333 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.00 using 59 PHA bins.
# Reduced chi-squared =         0.9454 for     55 degrees of freedom
# Null hypothesis probability =   5.901244e-01

Photon flux (15-150 keV)    in 45.86 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

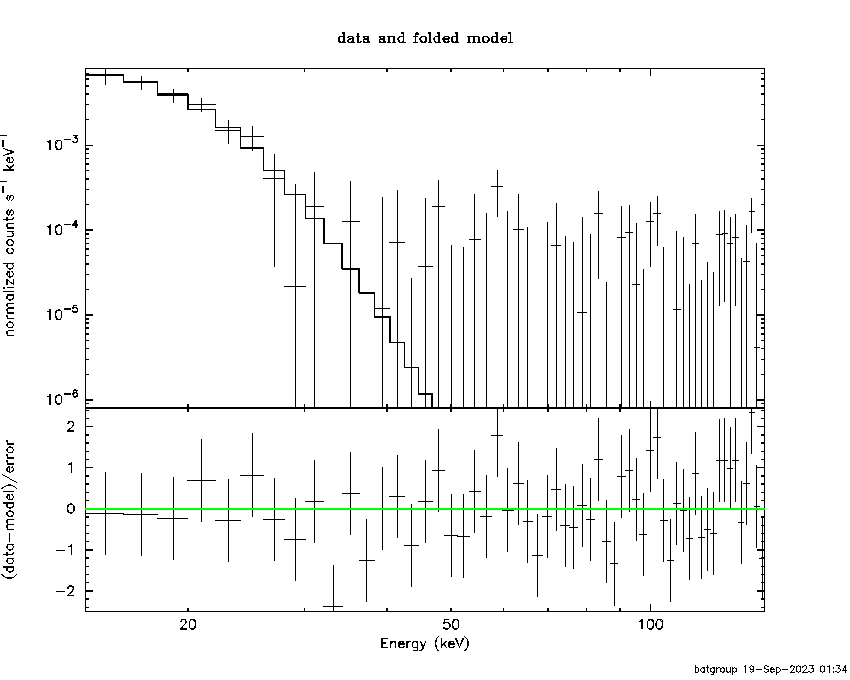

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.58007  (-0.290606  0.328172)
R^2/D10^2   : 190.221  (-109.324   276.582)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.44 using 59 PHA bins.
# Reduced chi-squared =         0.7971 for     57 degrees of freedom
# Null hypothesis probability =   8.649290e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.998e-07   2.597e-07
25- 50  5.001e-08   2.441e-08
50-150  2.141e-11   2.133e-11
15-150  6.499e-07   2.875e-07

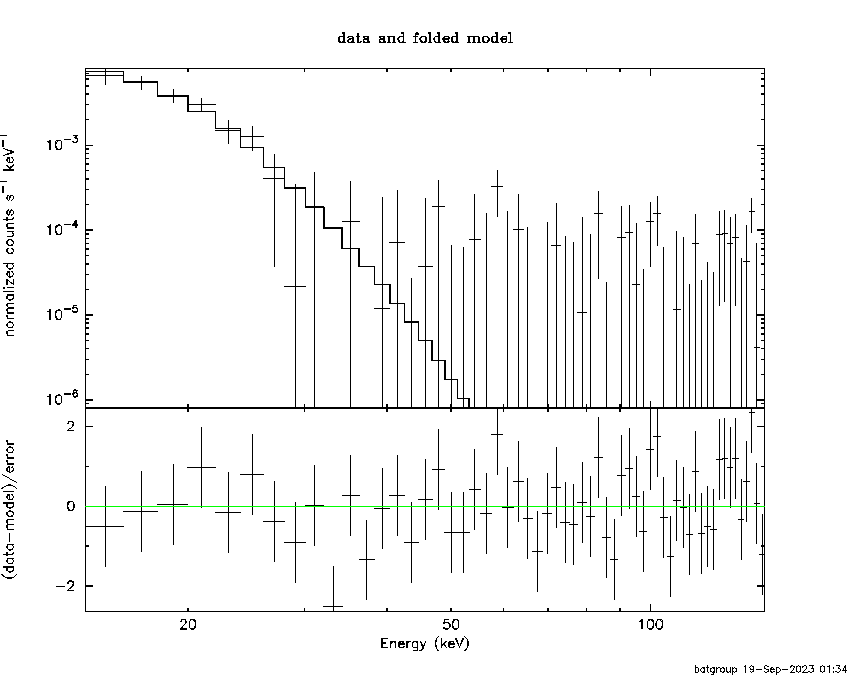

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.63615       (-0.774254      0.9727)
Norm        : 146.179       (-73.8737     166.273)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.878e-07   2.058e-07
25- 50  6.230e-08   2.996e-08
50-150  2.175e-10   2.289e-10
15-150  6.504e-07   2.105e-07

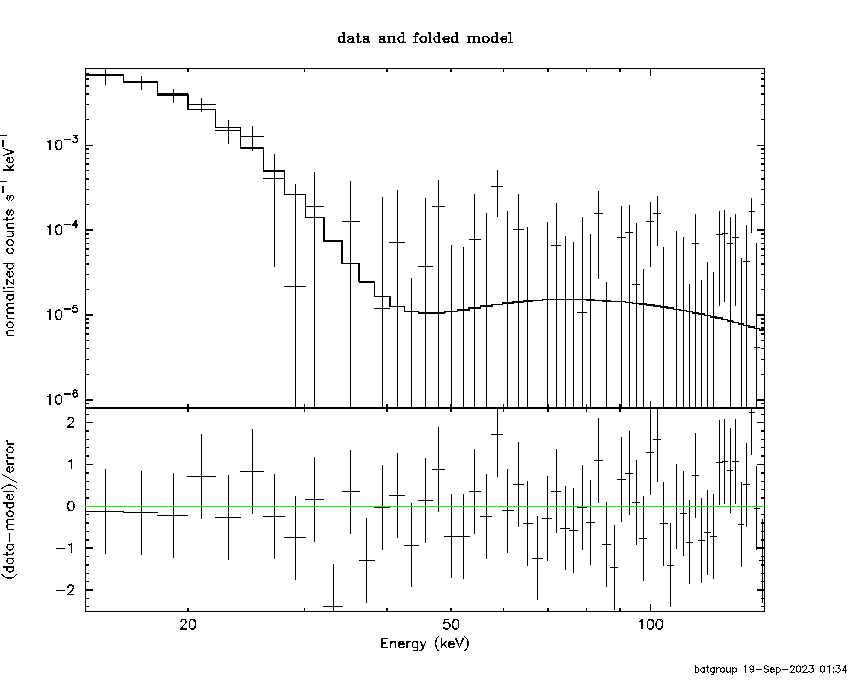

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.57021        (-0.318288      0.349528)
R1^2/D10^2  : 195.310        (-113.444      278.83)
kT2 [keV]   : 200.000        (-200      -200)
R2^2/D10^2  : 5.83470E-06    (-5.98872e-06   -5.98872e-06)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.989e-07   2.952e-07
25- 50  5.067e-08   2.838e-08
50-150  1.431e-08   2.246e-11
15-150  6.639e-07   3.003e-07

Peak spectrum fit

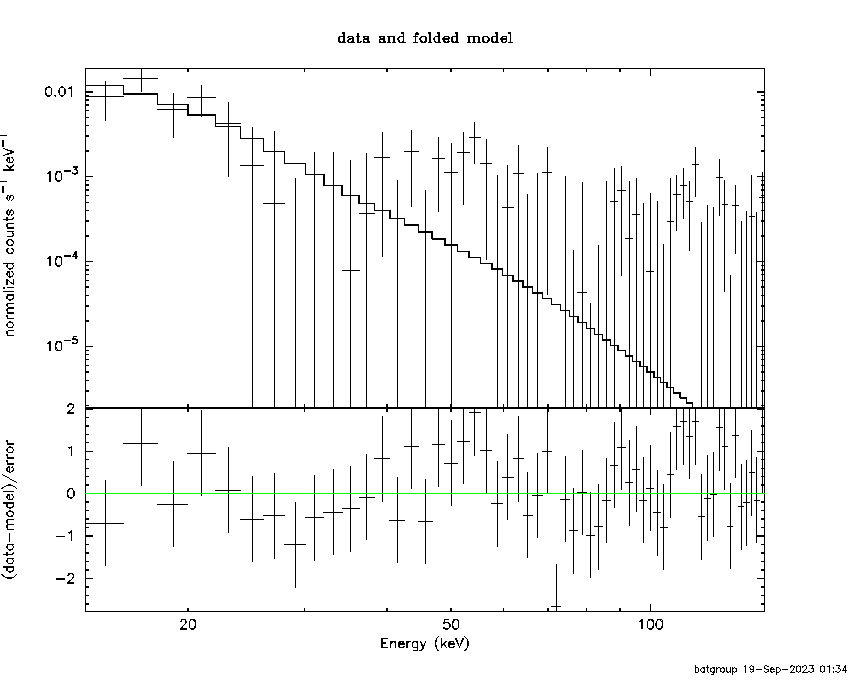

Power-law model

Time interval is from   65.412 sec. to   66.412 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.34549     ( -1.39272   1.93754 )
Norm@50keV  : 1.18271E-03    ( -0.00118258   0.00291638 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.01 using 59 PHA bins.
# Reduced chi-squared =         0.8598 for     57 degrees of freedom
# Null hypothesis probability =   7.652488e-01

Photon flux (15-150 keV)    in 1 sec: 0.991922 ( -0.362796  0.365995 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.38611e-08 ( -1.44379e-08  1.8361e-08 ) ergs/cm2

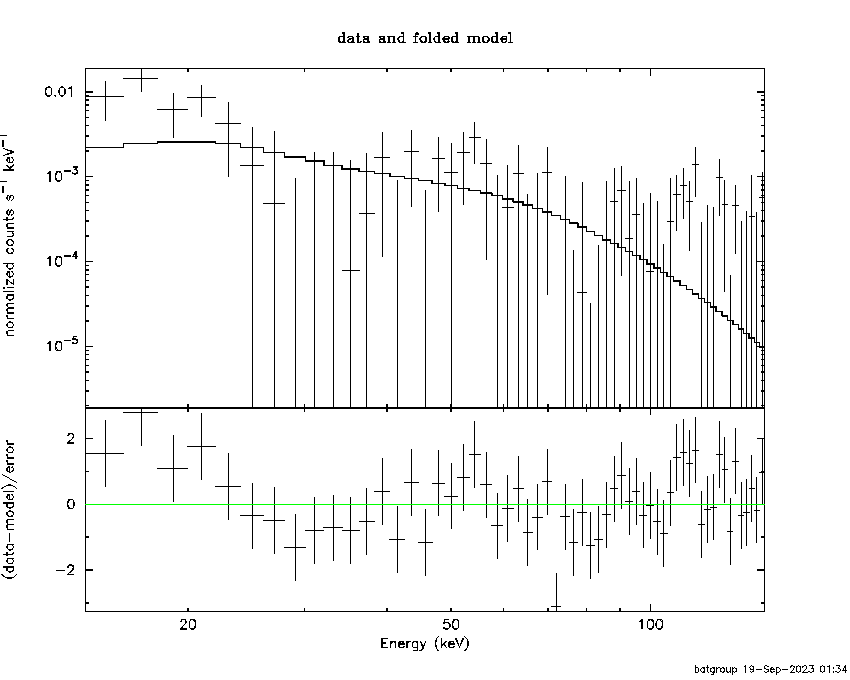

Cutoff power-law model

Time interval is from   65.412 sec. to   66.412 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.52549E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.95 using 59 PHA bins.
# Reduced chi-squared =          1.088 for     56 degrees of freedom
# Null hypothesis probability =   3.026533e-01

Photon flux (15-150 keV)    in 1 sec: 0.981126 ( -0.353029  0.372944 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.39199e-08 ( -1.67571e-08  1.82744e-08 ) ergs/cm2

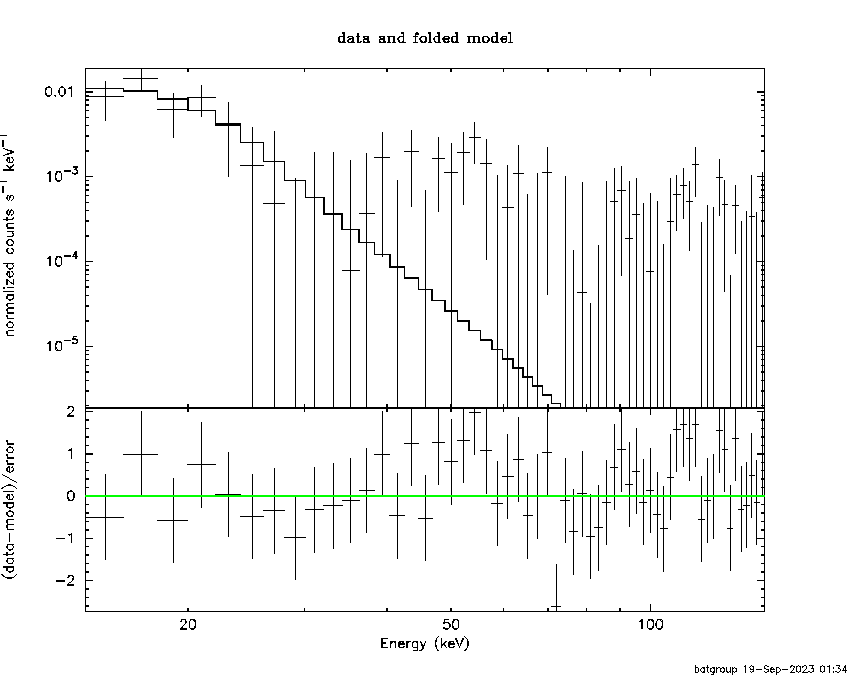

Band function

Time interval is from   65.412 sec. to   66.412 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.48134   ( 1.67771   1.67771 )
beta        : -6.78328    ( 4.85312   1.83763 )
Epeak [keV] : 13.3640      ( -6.01147 10.6179 )
Norm@50keV   : 6687.32    ( -6687.25   198322 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.28 using 59 PHA bins.
# Reduced chi-squared =         0.8779 for     55 degrees of freedom
# Null hypothesis probability =   7.271820e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.86120  (-0.76793  1.062)
R^2/D10^2   : 185.999  (-186.012   1393.09)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.575e-08   1.498e-08
25- 50  3.172e-09   2.076e-09
50-150  3.445e-12   4.445e-12
15-150  2.893e-08   1.705e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 5.92201       (-2.44812      6.58368)
Norm        : 124.180       (-124.18     702.04)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.478e-08   1.489e-08
25- 50  4.491e-09   3.273e-09
50-150  5.119e-11   6.475e-11
15-150  2.933e-08   1.744e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.84103        (-0.760812      0.972321)
R1^2/D10^2  : 193.025        (-163.396      1449.13)
kT2 [keV]   : 199.135        (-199.259      -199.259)
R2^2/D10^2  : 8.85212E-05    (-8.05818e-05   0.0249384)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.564e-08   1.479e-08
25- 50  4.025e-09   2.076e-09
50-150  2.341e-08   6.145e-09
15-150  5.307e-08   1.841e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.85700     ( -0.842923   0.988076 )
Norm@50keV  : 1.30490E-04    ( -0.000130455   0.000179402 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.90 using 59 PHA bins.
# Reduced chi-squared =         0.9105 for     57 degrees of freedom
# Null hypothesis probability =   6.664511e-01

Photon flux (15-150 keV)    in 23.09 sec: 0.465349 ( -0.0845395  0.0847078 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.25096e-07 ( -6.41179e-08  6.60226e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.33874     (     )
Epeak [keV] : 10.3196      (   )
Norm@50keV  : 1269.36    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.17 using 59 PHA bins.
# Reduced chi-squared =         0.8780 for     56 degrees of freedom
# Null hypothesis probability =   7.290864e-01

Photon flux (15-150 keV)    in 23.09 sec: 0.478638 ( -0.083166  0.083046 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.23405e-07 ( -5.80298e-08  5.85585e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.31180   ( 6.08959   8.3118 )
beta        : -5.99395    ( -0.879232   0.968407 )
Epeak [keV] : 447.100      ( -447.1 -447.1 )
Norm@50keV   : 1.52600E-02    ( -0.00999099   0.0264937 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.96 using 59 PHA bins.
# Reduced chi-squared =         0.9447 for     55 degrees of freedom
# Null hypothesis probability =   5.915660e-01

Photon flux (15-150 keV)    in 23.09 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.2118e-07 ( -3.21018e-07  -5.69307e-08 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.95e-08
S(50-100 keV) = 6.69e-09

T90 vs. Hardness ratio plot

T90                                   = 31.5519999265671 sec.
Hardness ratio (energy fluence ratio) = 0.0747486

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0488658
Count Ratio (50-100 keV) / (15-25 keV) = -0.00845401

Mask shadow pattern

IMX = -3.966449687910796E-01, IMY = 6.164970427871760E-01

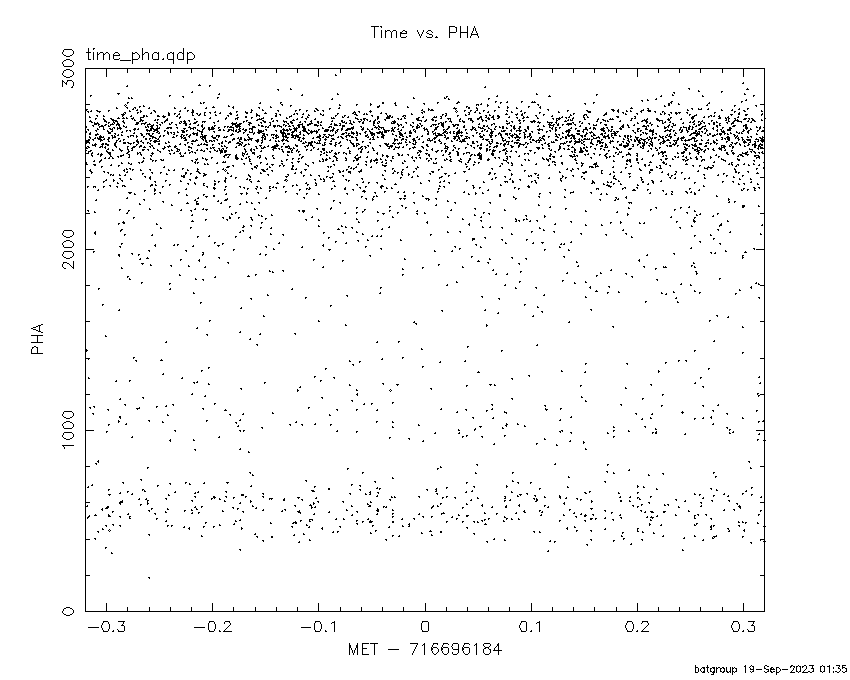

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-17.799410 48.212000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8311 -15.6331    1.0  36.2 -122.7   3.4906  11.3    8.6	Sco X-1
254.4969  35.3879   14.0  44.1  -38.1  -0.3133  -0.8    3.3	Her X-1
256.0407 -37.7771   16.9  41.3 -161.2  -0.1800  -0.7    4.8	4U 1700-377
256.3066 -36.3340    7.6  40.0 -160.1   0.3910   1.5    8.2	GX 349+2
263.0222 -24.9017  106.2  27.4 -156.1  -0.0215  -0.1    9.4	GX 1+4
264.6144 -44.3655    8.8  44.0 -174.2  -0.3733  -1.3    7.5	4U 1735-44
268.2012  -1.5426    5.3  10.8  -95.3   0.4053   2.2   11.4	SW J1753.5-0127
270.1256 -25.1030    4.3  24.4 -169.2   0.4669   2.7    8.7	GX 5-1
270.4229 -25.9104   12.1  25.0 -170.5  -0.1679  -1.0   12.0	GRS 1758-258
273.8955 -13.9688   10.8  12.7 -165.9   0.1900   1.1    7.6	GX 17+2
275.7584 -30.4178   19.6  28.3  176.9  -0.1191  -0.6    9.1	H1820-303
285.0727 -24.8115    6.4  23.3  156.9  -0.3414  -1.8    6.8	HT1900.1-2455
288.6447  10.9204  175.2  16.3   26.7   0.0117   0.1    9.2	GRS 1915+105
299.4605  35.2604    2.2  42.1   16.1   1.9574   5.3    7.3	Cyg X-1
308.1233  41.0635    4.4  50.8   19.2   1.6239   2.6    6.7	Cyg X-3
263.1298 -33.8864    7.4  34.9 -165.7   0.3397   1.6    7.7	GX 354-0
308.4185  37.4573    2.7  48.2   22.5   2.1556   4.3 ------	UNKNOWN
275.2256 -58.6367    2.8  56.4  173.3   3.4237   4.1 ------	UNKNOWN
293.6455  44.0950    2.1  48.2    5.0   2.1105   5.5 ------	UNKNOWN
261.7529 -16.1644    0.4  21.9 -139.3   6.4023  31.7 ------	UNKNOWN
251.6307 -30.0246    2.8  38.0 -148.7   1.0105   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
48.212000 71.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8488 -15.6579    3.3  36.2 -122.8  -0.4645  -3.5    7.6	Sco X-1
254.4907  35.4823    6.5  44.2  -38.1   0.2904   1.8    8.5	Her X-1
255.8296 -37.8649   12.0  41.4 -161.0  -0.1087  -1.0    7.5	4U 1700-377
256.5113 -36.3965    7.3  39.9 -160.4   0.1712   1.6    4.0	GX 349+2
262.8672 -24.8631    7.6  27.4 -155.8  -0.1281  -1.5   10.5	GX 1+4
264.7577 -44.3726    5.3  43.9 -174.4   0.2587   2.2    4.7	4U 1735-44
268.2106  -1.4851    4.6  10.8  -95.0  -0.1889  -2.5    9.6	SW J1753.5-0127
270.4438 -25.0504    4.8  24.2 -169.8  -0.1822  -2.4    8.8	GX 5-1
270.4778 -25.6364    8.0  24.8 -170.4   0.1149   1.5   11.4	GRS 1758-258
273.8628 -13.9780    3.7  12.8 -165.8  -0.2331  -3.1    9.0	GX 17+2
276.1047 -30.2417 1255.0  28.1  176.3   0.0008   0.0   12.0	H1820-303
284.9328 -24.8998    4.7  23.3  157.3   0.1941   2.4    5.8	HT1900.1-2455
288.8571  11.0510    3.7  16.5   27.0   0.2434   3.1    7.2	GRS 1915+105
299.7351  35.2122    8.3  42.2   16.4   0.2112   1.4    7.1	Cyg X-1
308.0695  41.0430    4.1  50.8   19.2  -0.9681  -2.8    5.7	Cyg X-3
262.8461 -33.7915    9.7  34.9 -165.2  -0.1099  -1.2    7.6	GX 354-0

Post-slew image of 15-350 keV band

Time interval of the image:
149.100590 238.410000
240.000000 243.100100

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8282 -15.5976    0.7   0.1   80.9   4.4201  16.4    9.1	Sco X-1
254.4243  35.4455   15.0  51.9    2.4   0.5650   0.8    6.4	Her X-1
255.8223 -37.7172    4.3  24.2  150.6   0.7924   2.7   10.9	4U 1700-377
256.2699 -36.3180   15.8  23.1  148.2   0.2105   0.7   10.2	GX 349+2
262.8504 -24.6362   27.3  19.2  113.3  -0.1351  -0.4   10.9	GX 1+4
264.5628 -44.3225    0.0  33.3  146.1  -0.2217  -0.5   10.9	4U 1735-44
268.5125  -1.4387    8.0  27.4   53.5  -0.5380  -1.4    8.7	SW J1753.5-0127
270.3560 -25.0238    9.2  25.7  108.0  -0.4679  -1.2    5.1	GX 5-1
270.4070 -25.8740    8.6  26.0  109.8   0.4892   1.4    9.7	GRS 1758-258
273.9732 -14.1682    7.6  28.3   83.4  -0.6906  -1.5    8.1	GX 17+2
276.0897 -30.2121    0.0  32.2  114.9   0.5359   1.1   12.6	H1820-303
285.0259 -25.0430   28.4  38.8  103.1   0.3077   0.4    7.4	HT1900.1-2455
262.9494 -33.6931    3.7  24.4  133.4   0.9877   3.2    8.7	GX 354-0
261.6922 -16.1575    0.4  16.3   86.7   8.6905  30.1 ------	UNKNOWN
251.2801 -26.1910    2.5  12.2  143.5   1.1439   4.6 ------	UNKNOWN
215.2595  25.3590    3.1  50.0  -43.1   4.1915   3.7 ------	UNKNOWN
211.2348  17.9928    2.9  47.1  -53.4   4.7555   3.9 ------	UNKNOWN
198.7605 -24.0053    4.3  43.9 -116.2   3.2646   2.7 ------	UNKNOWN

Plot creation:
Tue Sep 19 01:35:41 EDT 2023
