batgrbproduct analysis for trigger=1192737

batgrbproduct Analysis for Trigger=1192737

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Wed Sep 27 12:42:41 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1192737/GCN5_download_cron
======================================================================

  Trigger: 01192737      Segment: 000

  BAT Trigger Time: 717459144   [s; MET]
      Trigger Stop: 717459248   [s; MET]
               UTC: 2023-09-26T22:11:51.919180    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 83.7707708572143   Dec: 22.5020949358446  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    17.53
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    17.53

  Flight Position:   [ source = BAT ]
    RA: 83.7707708572143   Dec: 22.5020949358446  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 83.770556616042   Dec: 22.4967315019795  [deg; J2000]
        { 05h 35m 04.9s , +22d 29' 48.2" }
         +/- 1.31233201527931 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.396908909180007 [arcmin] (formal 1-sigma fit error)
    SNR: 20.6292998632755

  Angular difference between Flight and Ground position is 0.322025 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 146.987999916077 +/- 80.7769325469858
        Measured from: 777.820000171661
                   to: 924.808000087738     [s; relative to TRIGTIME]
     T50: 75.2079999446869 +/- 59.9537401978635
        Measured from: 798.696000099182
                   to: 873.904000043869     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 872.759999990463
                   to: 873.759999990463     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 775.151999950409
                   to: 929.552000045776     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.779239   1.621147   0.745865   0.077330
           0.085335   0.086963   0.074470   0.065626 [error]
 Peak      0.046243   0.025934  -0.000935   0.003215
           0.007149   0.006218   0.005529   0.004986 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.99e-07 6.24e-07 5.67e-07 8.97e-07 2.00e-06 2.59e-06   erg/cm2
              Error 4.24e-08 3.39e-08 5.64e-08 1.81e-07 1.25e-07 2.37e-07   erg/cm2
Peak flux Power-law 1.57e-01 1.09e-01 4.94e-02 3.12e-02 3.30e-01 3.46e-01   ph/cm2/s
              Error 1.36e-02 5.90e-03 4.72e-03 5.86e-03 1.85e-02 1.88e-02   ph/cm2/s

Fluence   Cutoff-PL 4.95e-07 6.29e-07 5.65e-07 7.77e-07 1.98e-06 2.47e-06   erg/cm2
              Error 4.68e-08 4.06e-08 5.83e-08 3.39e-07 1.47e-07 3.59e-07   erg/cm2
Peak flux Cutoff-PL 1.55e-01 1.09e-01 4.93e-02 2.79e-02 3.28e-01 3.42e-01   ph/cm2/s
              Error 1.53e-02 6.93e-03 4.81e-03 9.99e-03 2.00e-02 2.41e-02   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   0.000    0.000       0.0    0.0      0.00e+00 0.00e+00    0.000  0

The chi2 of BB fit is 128.74 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   0.000    0.000       0.0    0.0      0.00e+00 0.00e+00    0.000  0

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  154.400  775.152  929.552
T90   146.988  777.820  924.808
T50    75.208  798.696  873.904
Peak    1.000  872.760  873.760

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   83.7706 +22.4967 0.0094    0.3 -169.0       4.0514    20.6  TRIG_01192737
------------------------------------------

Foreground time interval of the image:
  0.000 104.000 (delta_t = 104.000 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
775.152000 908.770000
910.000000 929.552000
Usage: bat_spec_fit_sys_xspec12.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

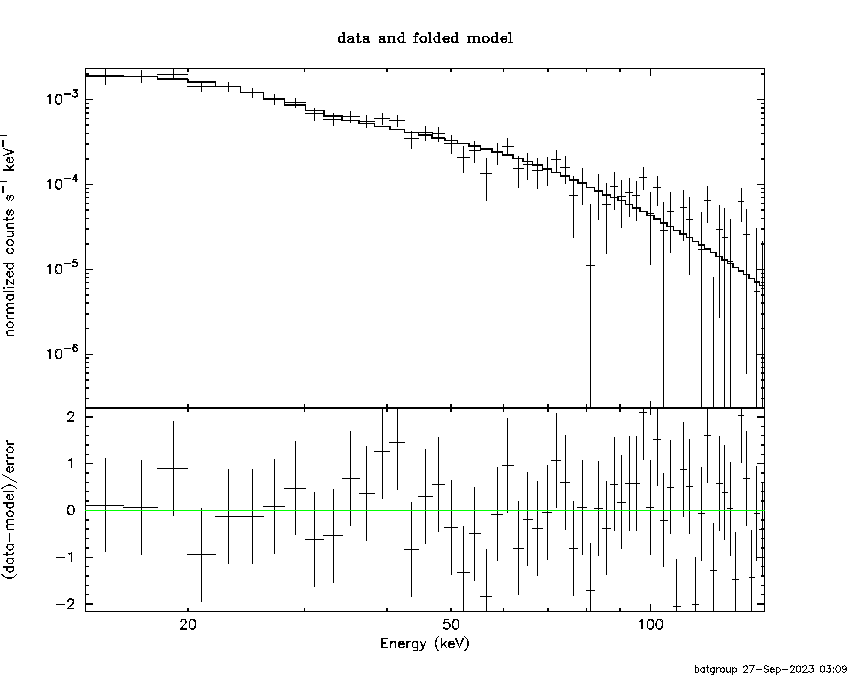

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
775.152000 908.770000
910.000000 929.552000
Usage: bat_spec_fit_cutoff_sys_xspec12.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/bat2/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

Band function

Multiple GTIs in the spectrum
tstart tstop
775.152000 908.770000
910.000000 929.552000
Usage: bat_spec_fit_band_sys.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/bat2/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

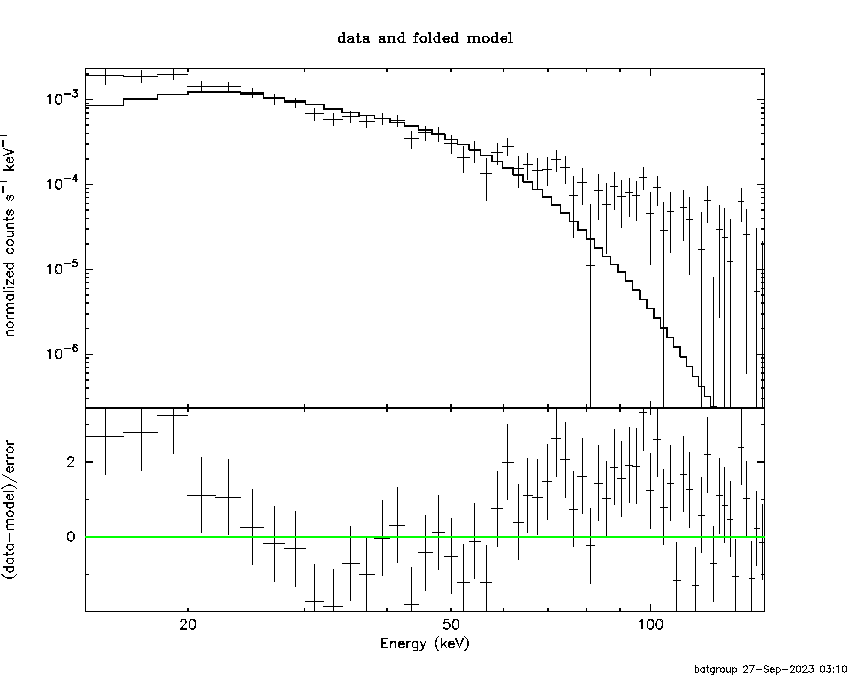

Single BB

Usage: bat_spec_fit_bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

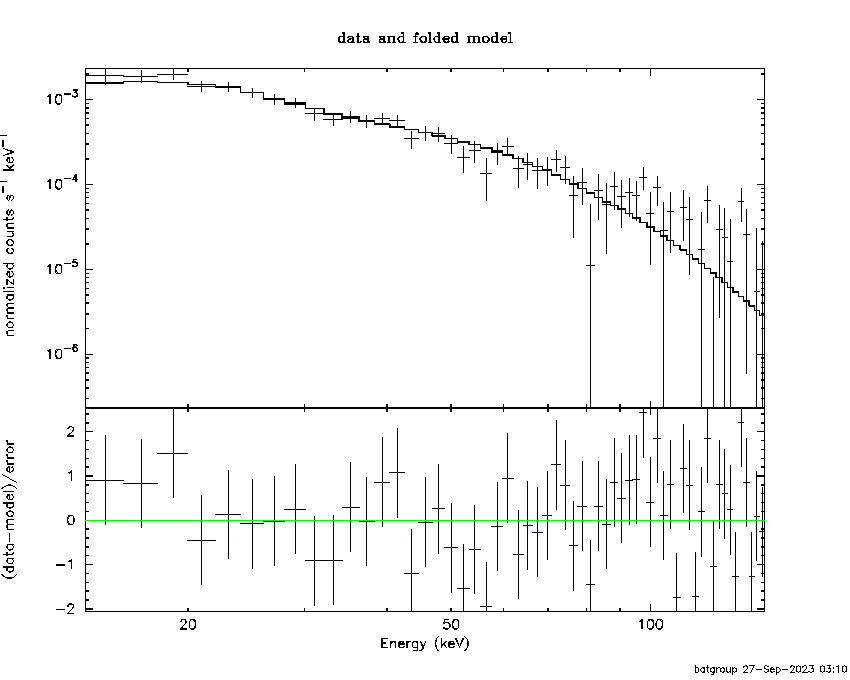

Thermal bremsstrahlung (OTTB)

Usage: bat_spec_fit_brems_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

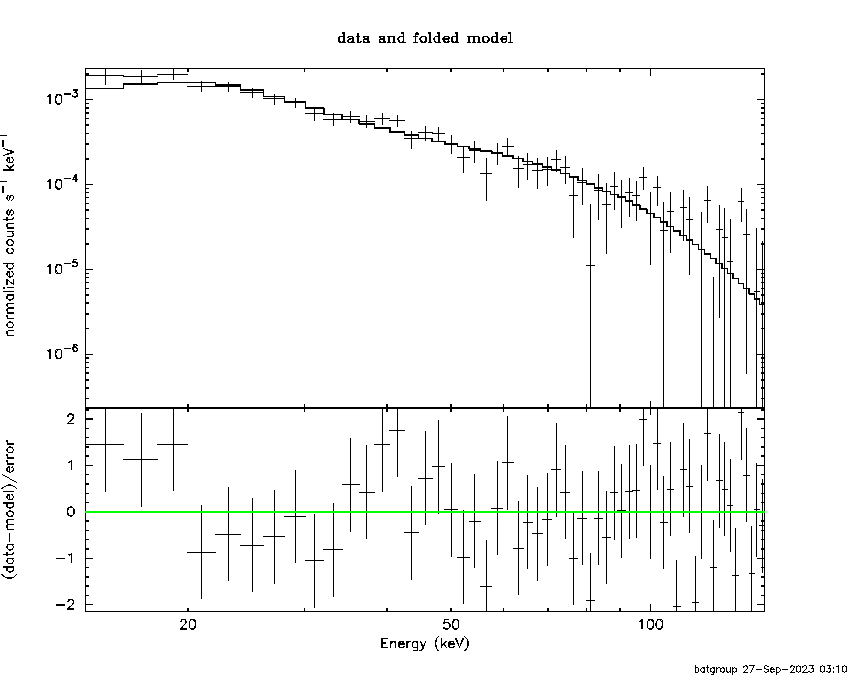

Double BB

Usage: bat_spec_fit_2bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Peak spectrum fit

Power-law model

Time interval is from  872.760 sec. to  873.760 sec.
Usage: bat_spec_fit_sys_xspec12.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

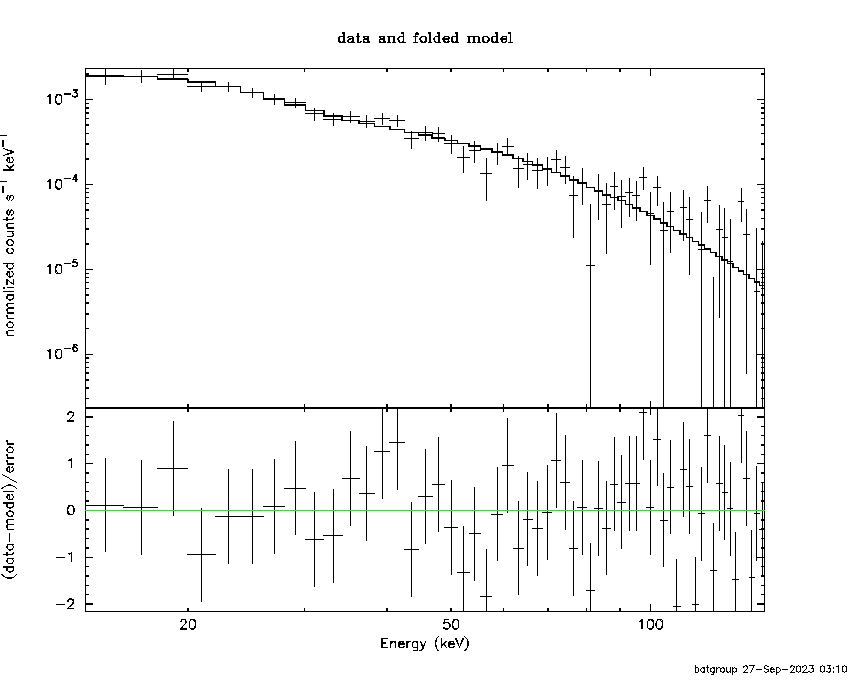

Cutoff power-law model

Time interval is from  872.760 sec. to  873.760 sec.
Usage: bat_spec_fit_cutoff_sys_xspec12.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/bat2/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

Band function

Time interval is from  872.760 sec. to  873.760 sec.
Usage: bat_spec_fit_band_sys.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/bat2/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

Single BB

Usage: bat_spec_fit_bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Thermal bremsstrahlung (OTTB)

Usage: bat_spec_fit_brems_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Double BB

Usage: bat_spec_fit_2bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model

Cutoff power-law model

Band function

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.24e-07
S(50-100 keV) = 5.67e-07

T90 vs. Hardness ratio plot

T90                                   = 146.987999916077 sec.
Hardness ratio (energy fluence ratio) = 0.908654

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.911146
Count Ratio (50-100 keV) / (15-25 keV) = 0.419205

Mask shadow pattern

IMX = -4.284272899298588E-03, IMY = 8.337165077925922E-04

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-179.000000 -80.940000
-63.000000 111.100600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.7878  22.1709    0.0   0.1  -31.8   1.4374   3.0   12.7	Crab
 79.8763  10.1625    3.0  12.6   20.1   1.6010   3.8 ------	UNKNOWN
128.0626  23.3468    2.8  40.7  -97.9   7.5736   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 104.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.5514  21.8610   23.8   0.4   25.7  -0.1014  -0.5   10.3	Crab
 54.5156 -12.7066    2.4  45.2   44.7   3.1071   4.9 ------	UNKNOWN
128.0505  23.3246    2.4  40.7  -97.9   3.6668   4.8 ------	UNKNOWN
135.2574  43.7401    3.4  47.3 -127.2   2.8848   3.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
117.800600 159.590000
161.000000 186.183700
193.000000 211.846600
213.000000 550.700000
552.000000 687.240000
688.000000 866.900590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.7877  22.1710    0.0   0.3    0.0   3.4657   2.6   12.7	Crab
 46.9803  49.4391    2.7  39.5  144.8  13.7011   4.3 ------	UNKNOWN
 45.5421  55.2907    2.6  43.3  151.6  14.5476   4.4 ------	UNKNOWN
 78.0755  17.3531    3.3   7.4   49.7   3.8001   3.5 ------	UNKNOWN
 71.6918  66.8475    2.2  45.0  175.9  12.3620   5.4 ------	UNKNOWN
 83.8333  22.5974    0.6   0.1 -148.8  26.7637  20.6 ------	UNKNOWN
101.9709  -5.3342    2.6  33.0  -32.2   6.3662   4.5 ------	UNKNOWN

Plot creation:
Wed Sep 27 12:44:28 EDT 2023
