TDRSS scaled map for 1195733
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 10 Nov 23 21:27:44 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1195733, Seg_Num: 0
GRB_RA: 356.296d {+23h 45m 11s} (J2000),
356.537d {+23h 46m 09s} (current),
355.801d {+23h 43m 12s} (1950)
GRB_DEC: +82.621d {+82d 37' 16"} (J2000),
+82.754d {+82d 45' 13"} (current),
+82.343d {+82d 20' 36"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 5116 [cnts] Image_Peak=278 [image_cnts]
TRIGGER_DUR: 2.048 [sec]
TRIGGER_INDEX: 271 E_range: 50-350 keV
BKG_INTEN: 32567 [cnts]
BKG_TIME: 76743.65 SOD {21:19:03.65} UT
BKG_DUR: 24 [sec]
GRB_DATE: 20258 TJD; 314 DOY; 23/11/10
GRB_TIME: 76774.82 SOD {21:19:34.82} UT
GRB_PHI: 149.65 [deg]
GRB_THETA: 38.80 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 38.05 [sigma]
IMAGE_SIGNIF: 12.31 [sigma]
MERIT_PARAMS: +1 +0 +0 +1 +3 +2 +0 +0 +37 +0
SUN_POSTN: 225.76d {+15h 03m 02s} -17.25d {-17d 15' 08"}
SUN_DIST: 111.89 [deg] Sun_angle= -8.7 [hr] (East of Sun)
MOON_POSTN: 197.77d {+13h 11m 06s} -6.85d {-06d 51' 00"}
MOON_DIST: 103.59 [deg]
MOON_ILLUM: 6 [%]
GAL_COORDS: 120.70, 20.04 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 71.67, 65.95 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This Notice was delayed by more than 60 sec past the end of the trigger integration interval;
COMMENTS: probably due to it occurring during a Malindi downlink session.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 75.25,13.84 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 10 Nov 23 21:30:57 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1195733, Seg_Num: 0
POINT_RA: 172.129d {+11h 28m 31s} (J2000)
POINT_DEC: +58.572d {+58d 34' 18"} (J2000)
MAP_DATE: 20258 TJD; 314 DOY; 23/11/10
MAP_TIME: 76774.82 SOD {21:19:34.82} UT
TRIGGER_DUR: 2.048 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 38.05 [sigma]
IMAGE_SIGNIF: 12.31 [sigma]
MAP_URL: sw01195733000msbsm.fits
SUN_POSTN: 225.76d {+15h 03m 03s} -17.25d {-17d 15' 10"}
MOON_POSTN: 197.80d {+13h 11m 12s} -6.86d {-06d 51' 46"}
MOON_ILLUM: 6 [%]
GAL_COORDS: 141.90, 55.40 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 141.90, 48.98 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

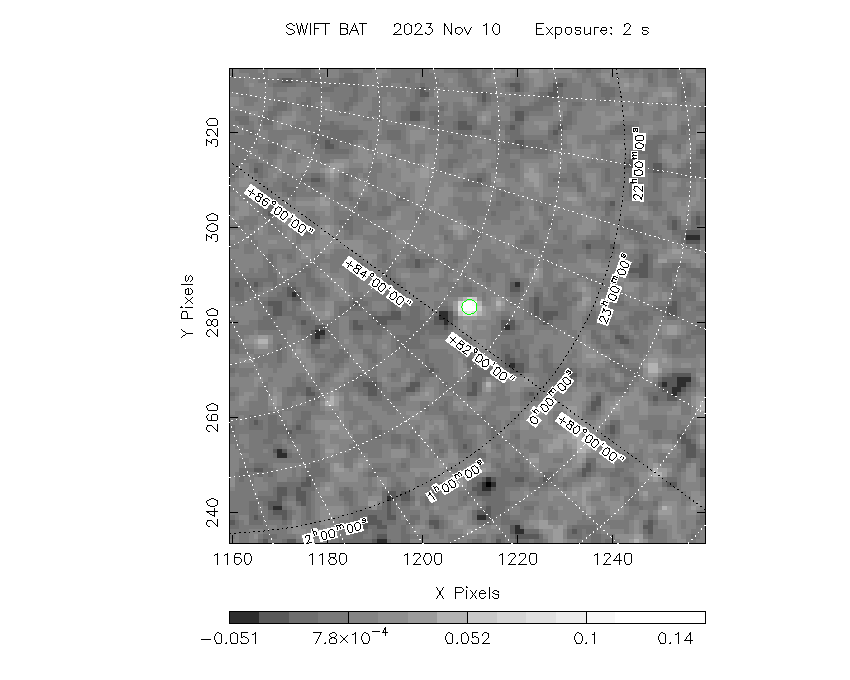

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (356.296, +82.621).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 356.296 +82.621 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
93.9015 71.0375 0.0 32.7 114.4 -0.0087 -0.7 0.0 Mkn 3
133.6934 39.5386 0.0 30.9 39.6 0.0097 1.1 0.0 NGC 2691
166.6979 72.5686 0.0 14.2 143.9 0.0054 0.8 0.0 NGC 3516
169.5454 48.0369 0.0 10.6 -20.1 -0.0021 -0.4 0.0 XTE J1118+480
182.6357 39.4057 0.0 20.3 -53.5 0.0076 1.1 0.0 NGC 4151
186.4448 12.6621 0.0 47.1 -48.7 0.0190 0.8 0.0 NGC 4388
122.2261 67.7741 2.8 23.5 104.0 0.0347 4.1 ------ UNKNOWN
356.3741 82.6167 0.8 38.8 149.6 0.1684 13.7 ------ UNKNOWN
159.2336 21.3527 2.6 38.4 -9.9 0.0365 4.5 ------ UNKNOWN
165.9888 7.7896 2.3 51.0 -21.7 0.0801 5.0 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
122.2261 67.7741 2.8 23.5 104.0 0.0347 4.1 ------ UNKNOWN
356.3741 82.6167 0.8 38.8 149.6 0.1684 13.7 ------ UNKNOWN
159.2336 21.3527 2.6 38.4 -9.9 0.0365 4.5 ------ UNKNOWN
165.9888 7.7896 2.3 51.0 -21.7 0.0801 5.0 ------ UNKNOWN
Search for UNKNOWN source R.A. = 122.2261 Dec. = +67.7741 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 159.2336 Dec. = +21.3527 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 165.9888 Dec. = +7.7896 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 356.3741 Dec. = +82.6167 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1195733/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Fri Nov 10 16:32:11 EST 2023
