batgrbproduct Analysis for Trigger=1197507

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Nov 21 03:58:08 EST 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1197507/GCN5_download_cron
======================================================================

  Trigger: 01197507      Segment: 000

  BAT Trigger Time: 722132712   [s; MET]
      Trigger Stop: 722132776   [s; MET]
               UTC: 2023-11-20T00:24:39.599060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 299.87026948837   Dec: 35.0640746037254  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    17.79
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    17.79

  Flight Position:   [ source = BAT ]
    RA: 299.87026948837   Dec: 35.0640746037254  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 299.825374591025   Dec: 35.0695650265056  [deg; J2000]
        { 19h 59m 18.1s , +35d 04' 10.4" }
         +/- 1.27381175177284 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.393106224290419 [arcmin] (formal 1-sigma fit error)
    SNR: 21.5262322228204

  Angular difference between Flight and Ground position is 2.229216 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 28.0119999647141 +/- 5.84216574372584
        Measured from: -88.5519999265671
                   to: -60.539999961853     [s; relative to TRIGTIME]
     T50: 13.8559999465942 +/- 8.5195773730765
        Measured from: -81.5119998455048
                   to: -67.6559998989105     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -85.1679999828339
                   to: -84.1679999828339     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -89.7519999742508
                   to: -59.4240000247955     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.326349   0.456211   0.213860  -0.023744
           0.051745   0.053521   0.045014   0.038163 [error]
 Peak      0.030667   0.035786   0.012240   0.003873
           0.010365   0.011400   0.009675   0.008307 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 7.17e-07 1.02e-06 1.07e-06 2.08e-06 3.46e-06 4.89e-06   erg/cm2
              Error 4.96e-08 4.40e-08 7.19e-08 2.88e-07 1.66e-07 3.54e-07   erg/cm2
Peak flux Power-law 1.78e-01 2.11e-01 1.82e-01 2.66e-01 6.65e-01 8.36e-01   ph/cm2/s
              Error 8.29e-02 6.04e-02 4.90e-02 1.57e-01 1.64e-01 2.06e-01   ph/cm2/s

Fluence   Cutoff-PL 6.42e-07 1.10e-06 1.06e-06 6.55e-07 3.20e-06 3.45e-06   erg/cm2
              Error 5.96e-08 5.77e-08 8.15e-08 3.29e-07 1.97e-07 3.85e-07   erg/cm2
Peak flux Cutoff-PL 1.77e-01 2.11e-01 1.82e-01 2.64e-01 6.64e-01 8.34e-01   ph/cm2/s
              Error 1.32e-01 6.24e-02 5.56e-02 2.25e-01 1.67e-01 2.51e-01   ph/cm2/s

Fluence        Band 6.28e-07 1.10e-06 1.03e-06 1.13e-06 3.23e-06 3.91e-06   erg/cm2
              Error 6.09e-08 6.05e-08 8.70e-08 -------- 1.96e-07 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   0.000    0.000       0.0    0.0      0.00e+00 0.00e+00    0.000  0

The chi2 of BB fit is 115.21 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   0.000    0.000       0.0    0.0      0.00e+00 0.00e+00    0.000  0

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.768000 sec.
T50 in the 50-300 keV band: 0.448000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   30.328  -89.752  -59.424
T90    28.012  -88.552  -60.540
T50    13.856  -81.512  -67.656
Peak    1.000  -85.168  -84.168

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  299.8254 +35.0696 0.0090    0.0 -147.6       4.7172    21.5  TRIG_01197507
------------------------------------------

Foreground time interval of the image:
-13.000  -1.120 (delta_t =  11.880 [sec])
 -1.000  59.140 (delta_t =  60.140 [sec])
 61.000  61.928 (delta_t =   0.928 [sec])
 64.000  70.200 (delta_t =   6.200 [sec])
 72.000  75.900 (delta_t =   3.900 [sec])
 78.000  80.470 (delta_t =   2.470 [sec])
 83.000  86.400 (delta_t =   3.400 [sec])
 88.000  91.090 (delta_t =   3.090 [sec])
 94.000  96.810 (delta_t =   2.810 [sec])
 98.000  98.310 (delta_t =   0.310 [sec])
 99.000 100.036 (delta_t =   1.036 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

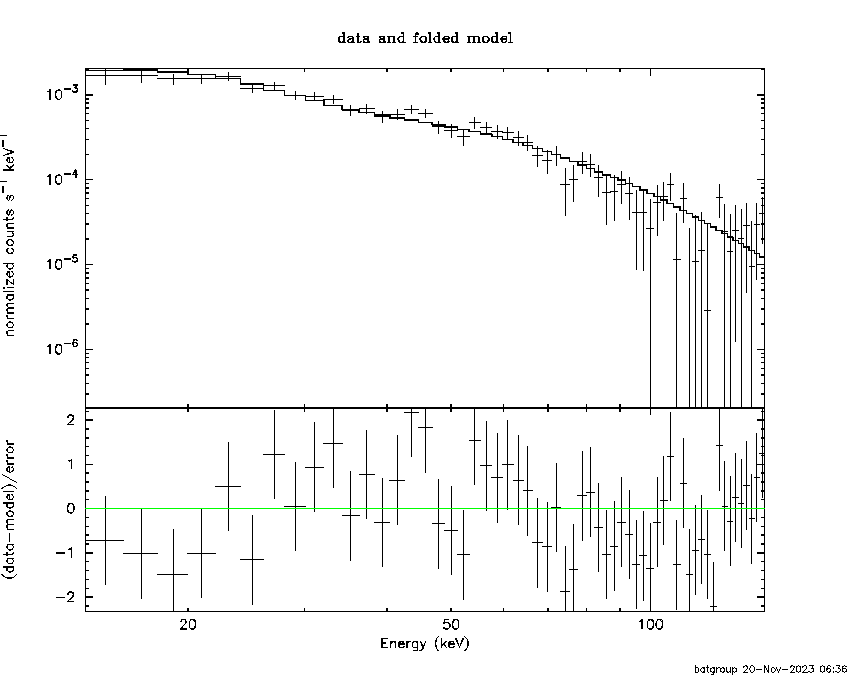

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-89.752000 -61.770000
-61.000000 -60.400000
-60.000000 -59.424000
Usage: bat_spec_fit_sys_xspec12.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-89.752000 -61.770000
-61.000000 -60.400000
-60.000000 -59.424000
Usage: bat_spec_fit_cutoff_sys_xspec12.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/bat2/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

Band function

Multiple GTIs in the spectrum
tstart tstop
-89.752000 -61.770000
-61.000000 -60.400000
-60.000000 -59.424000
Usage: bat_spec_fit_band_sys.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/bat2/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

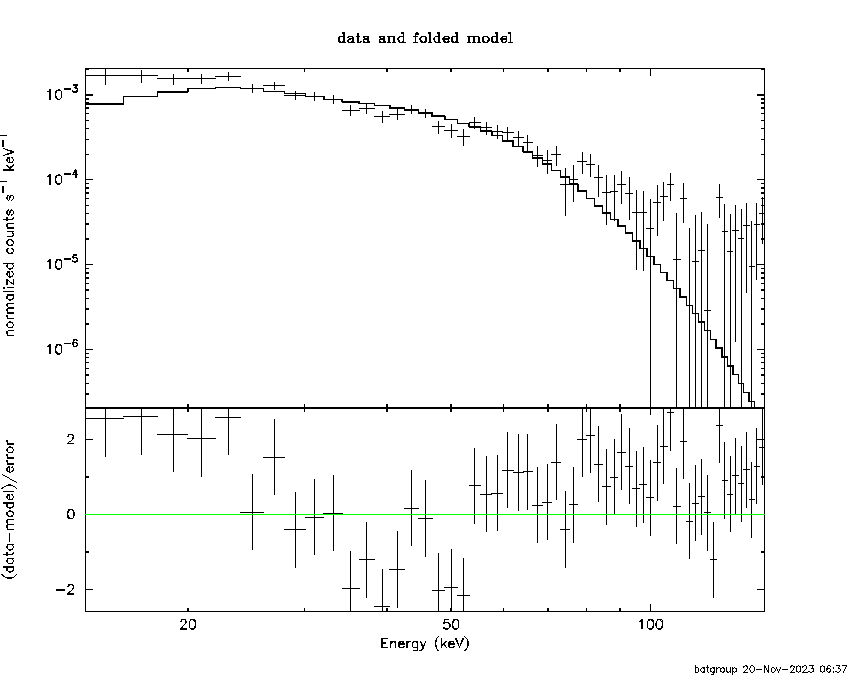

Single BB

Usage: bat_spec_fit_bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Thermal bremsstrahlung (OTTB)

Usage: bat_spec_fit_brems_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

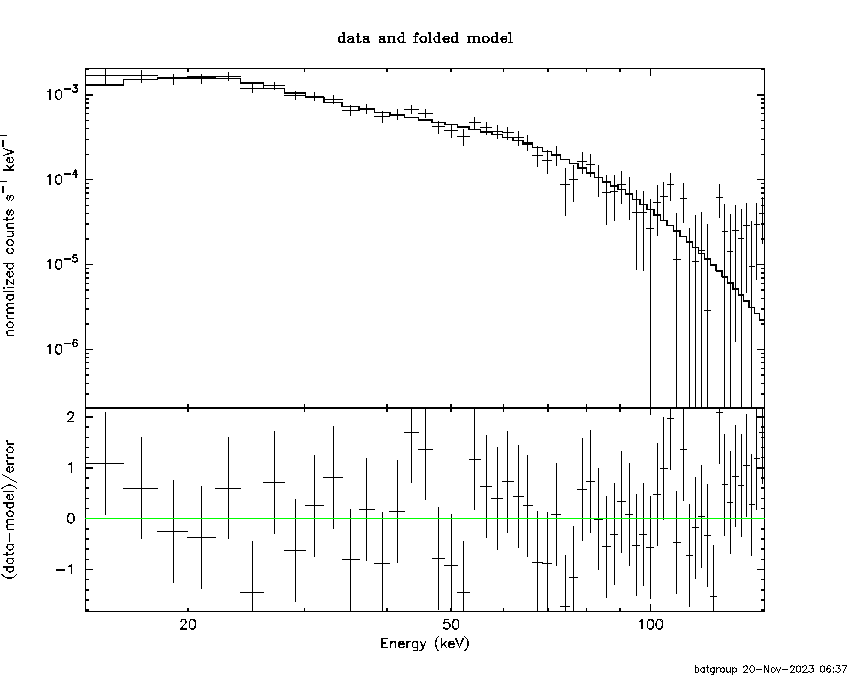

Double BB

Usage: bat_spec_fit_2bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Peak spectrum fit

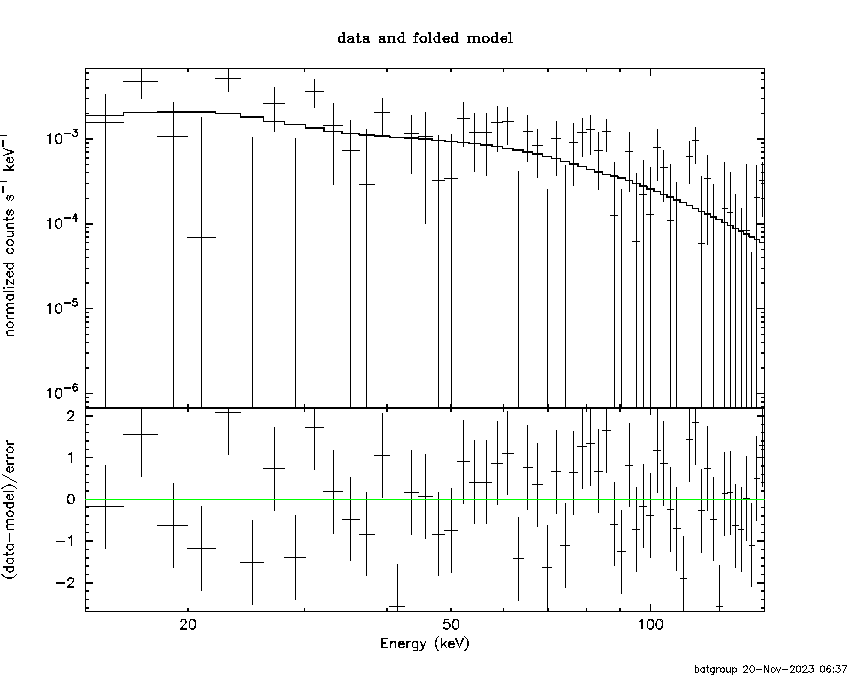

Power-law model

Time interval is from  -85.168 sec. to  -84.168 sec.
Usage: bat_spec_fit_sys_xspec12.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

Cutoff power-law model

Time interval is from  -85.168 sec. to  -84.168 sec.
Usage: bat_spec_fit_cutoff_sys_xspec12.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/bat2/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

Band function

Time interval is from  -85.168 sec. to  -84.168 sec.
Usage: bat_spec_fit_band_sys.sh (pha file) (response file) (script folder) (folder of taka's xspec lmodel)
       This script tries to add the systematic column to the PHA
       file before doing the fitting
script folder: /local/data/bat2/BATtools/battools/bin/GRB_spec_fit_v2
folder of taka's xspec lmodel: /local/data/bat1/prebascript/xspec_taka_lmodel

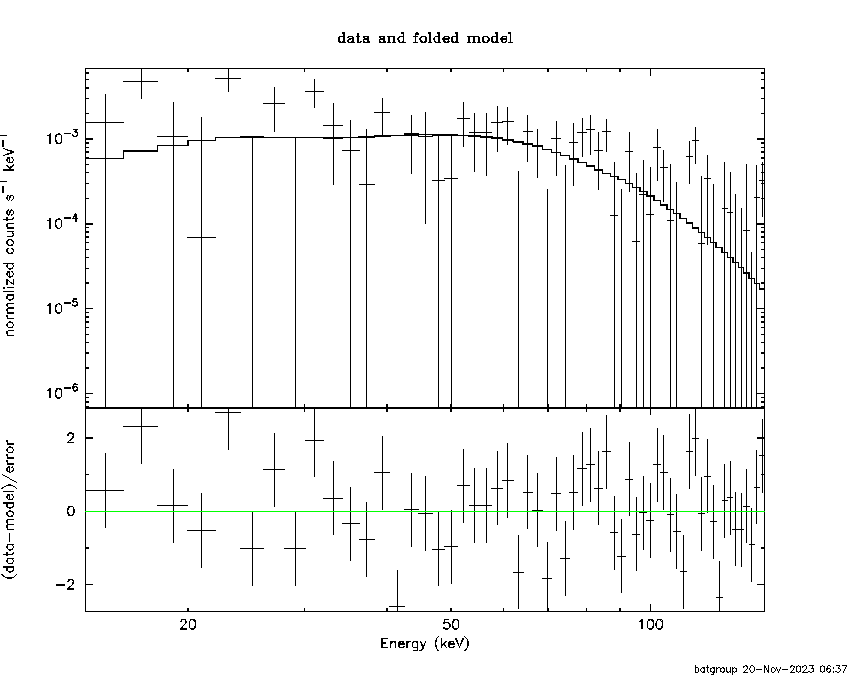

Single BB

Usage: bat_spec_fit_bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

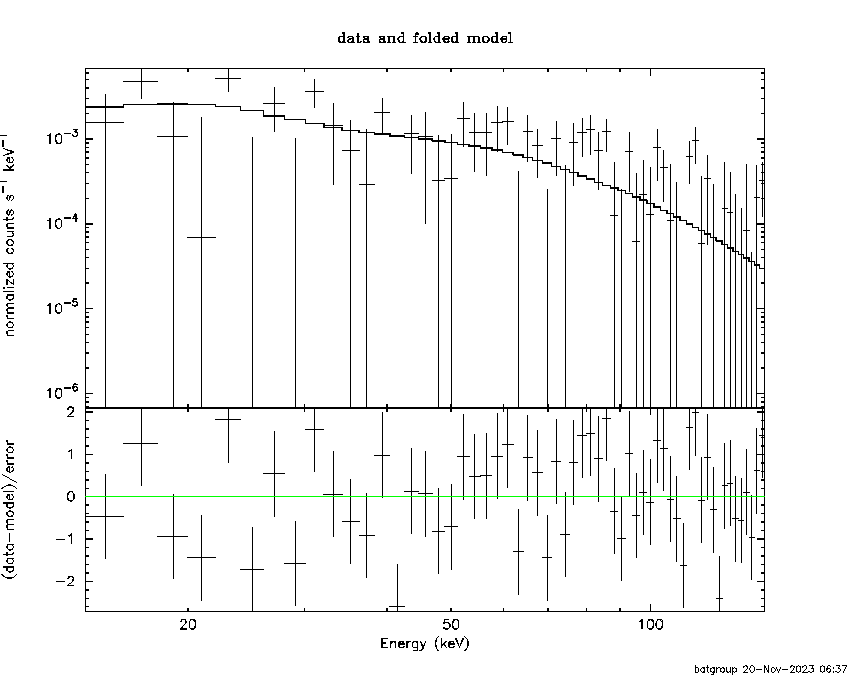

Thermal bremsstrahlung (OTTB)

Usage: bat_spec_fit_brems_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

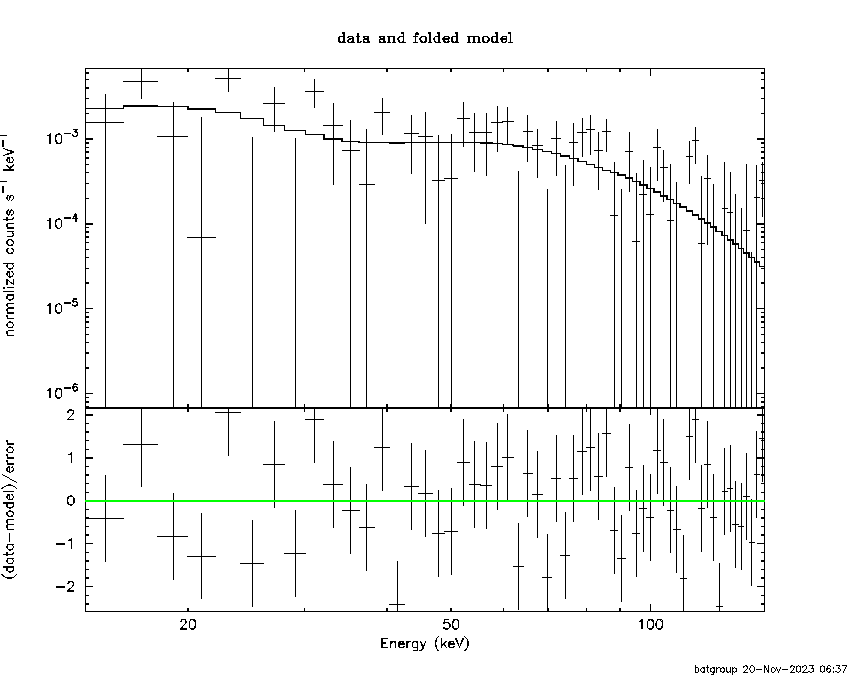

Double BB

Usage: bat_spec_fit_2bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

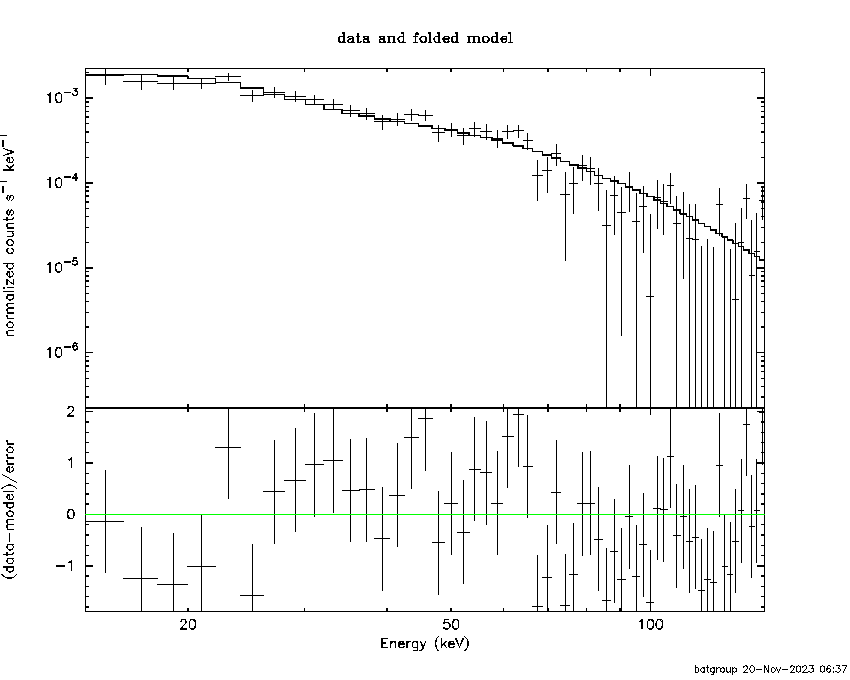

Power-law model

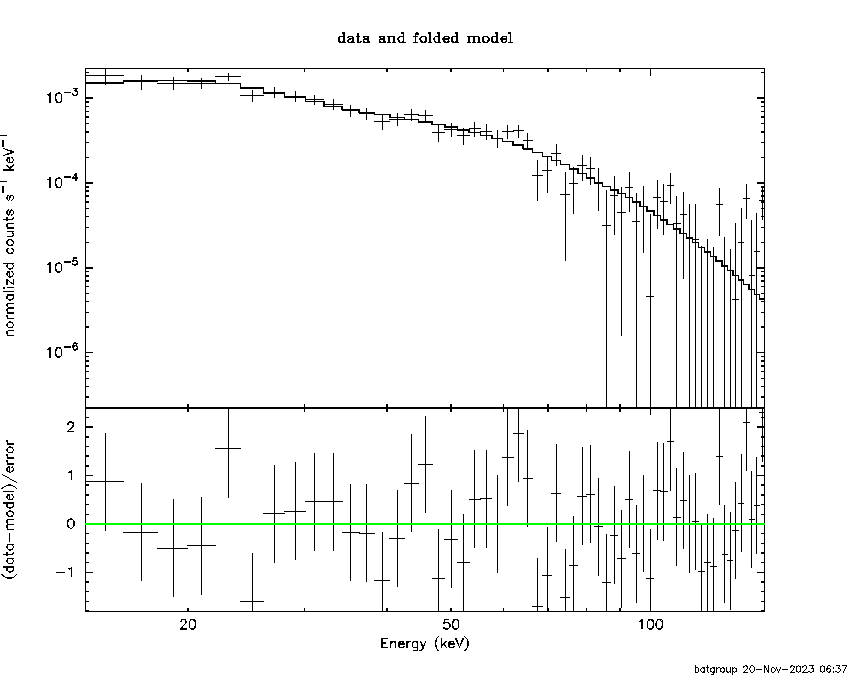

Cutoff power-law model

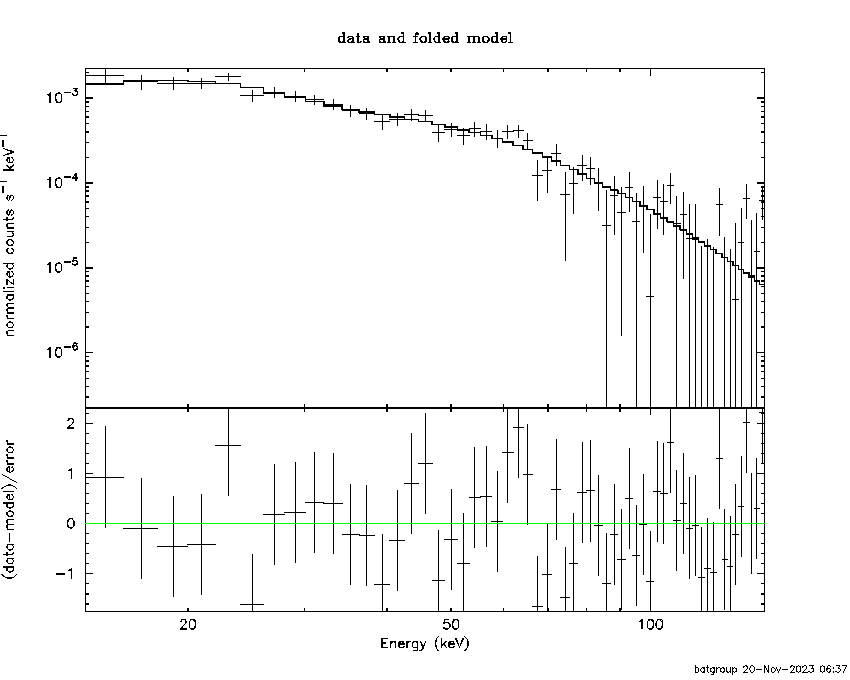

Band function

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.02e-06
S(50-100 keV) = 1.07e-06

T90 vs. Hardness ratio plot

T90                                   = 28.0119999647141 sec.
Hardness ratio (energy fluence ratio) = 1.04902

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.39792
Count Ratio (50-100 keV) / (15-25 keV) = 0.655311

Mask shadow pattern

IMX = -6.035991141621187E-04, IMY = 3.836754845310265E-04

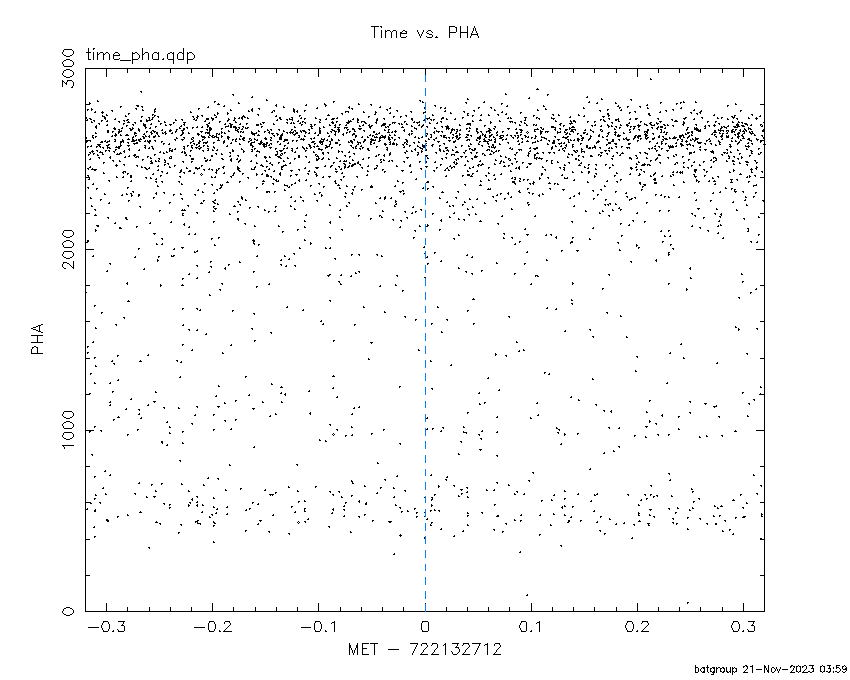

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-13.000000 -1.120000
-1.000000 59.140000
61.000000 61.928300
64.000000 70.200000
72.000000 75.900000
78.000000 80.470000
83.000000 86.400000
88.000000 91.090000
94.000000 96.810000
98.000000 98.310000
99.000000 100.036000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3975  35.5542    0.0  36.7  -44.8   0.3569   0.9   13.0	Her X-1
288.7837  10.9507  193.3  26.2 -123.9   0.0160   0.1    0.9	GRS 1915+105
299.7874  35.1234    0.6   0.0  -37.3   4.4796  20.2   10.7	Cyg X-1
308.3621  40.8793    3.3   8.9   77.7   0.7323   3.5   12.2	Cyg X-3
325.9597  38.4201   36.2  21.1  104.2   0.0910   0.3   11.6	Cyg X-2
322.1747  62.4023    3.3  30.7   51.1   1.2217   3.5 ------	UNKNOWN
259.3058  74.8671    2.9  44.1   16.8   1.5972   4.0 ------	UNKNOWN
277.7202  50.7090    2.5  22.3   -8.0   1.0370   4.6 ------	UNKNOWN
302.2121 -11.2555    2.5  46.4 -152.3   2.5156   4.5 ------	UNKNOWN
308.9327 -24.2729    2.4  60.0 -158.7   9.5196   4.9 ------	UNKNOWN
296.4616 -19.9479    2.5  55.2 -145.3   7.2077   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
-119.000000 -106.830000
-104.999600 -96.128100
-95.000000 -86.791900
-84.000000 -79.890000
-78.000000 -75.350000
-71.000000 -62.980000
-61.000000 -60.400000
-60.000000 -43.630000
-40.000000 -37.037500
-36.000000 -32.660000
-31.000000 -16.466100
-13.000000 -6.030000
-6.000000 -1.120000
-1.000000 3.057600
7.000000 7.810000
10.000000 12.780000
15.000000 33.084700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4671  35.3923   36.7  26.0  -49.7  -0.0957  -0.3    3.0	Her X-1
289.0168  10.9383    0.0  31.3 -139.4  -0.5792  -1.6   12.9	GRS 1915+105
299.6682  35.0622    9.4  12.2  165.8   0.3067   1.2    9.2	Cyg X-1
307.8684  40.9765   10.8  15.6  131.7   0.2563   1.1   11.1	Cyg X-3
326.2991  38.3793    4.2  30.0  128.3  -0.9835  -2.7    6.9	Cyg X-2
286.9669  42.0817    1.6   0.1 -139.3   1.6950   7.4 ------	UNKNOWN
231.1481  28.8629    2.1  46.5  -43.3   3.4990   5.4 ------	UNKNOWN

Plot creation:
Tue Nov 21 03:59:08 EST 2023
