TDRSS scaled map for 1201696
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 10 Dec 23 21:29:35 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1201696, Seg_Num: 0
GRB_RA: 95.772d {+06h 23m 05s} (J2000),
95.930d {+06h 23m 43s} (current),
95.443d {+06h 21m 46s} (1950)
GRB_DEC: -48.359d {-48d 21' 32"} (J2000),
-48.373d {-48d 22' 21"} (current),
-48.332d {-48d 19' 54"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 12818 [cnts] Image_Peak=271 [image_cnts]
TRIGGER_DUR: 2.048 [sec]
TRIGGER_INDEX: 263 E_range: 25-100 keV
BKG_INTEN: 160067 [cnts]
BKG_TIME: 77311.47 SOD {21:28:31.47} UT
BKG_DUR: 24 [sec]
GRB_DATE: 20288 TJD; 344 DOY; 23/12/10
GRB_TIME: 77344.49 SOD {21:29:04.49} UT
GRB_PHI: 130.89 [deg]
GRB_THETA: 40.32 [deg]
SOLN_STATUS: 0x203
RATE_SIGNIF: 14.52 [sigma]
IMAGE_SIGNIF: 7.31 [sigma]
MERIT_PARAMS: +1 +0 +0 +1 +2 -3 +0 +0 +28 +0
SUN_POSTN: 257.56d {+17h 10m 15s} -22.94d {-22d 56' 33"}
SUN_DIST: 106.81 [deg] Sun_angle= 10.8 [hr] (West of Sun)
MOON_POSTN: 229.33d {+15h 17m 20s} -20.69d {-20d 41' 20"}
MOON_DIST: 99.38 [deg]
MOON_ILLUM: 5 [%]
GAL_COORDS: 256.52,-24.44 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 102.19,-71.55 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: Since the foreground interval count rate is less than the bkg interval (SAA exit), this is a questionable detection.
COMMENTS: This trigger occurred at longitude,latitude = 347.09,-18.40 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 10 Dec 23 21:45:34 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1201696, Seg_Num: 0
POINT_RA: 19.440d {+01h 17m 46s} (J2000)
POINT_DEC: -74.984d {-74d 59' 01"} (J2000)
MAP_DATE: 20288 TJD; 344 DOY; 23/12/10
MAP_TIME: 77344.49 SOD {21:29:04.49} UT
TRIGGER_DUR: 2.048 [sec]
SOLN_STATUS: 0x203
RATE_SIGNIF: 14.52 [sigma]
IMAGE_SIGNIF: 7.31 [sigma]
MAP_URL: sw01201696000msbsm.fits
SUN_POSTN: 257.57d {+17h 10m 18s} -22.94d {-22d 56' 36"}
MOON_POSTN: 229.48d {+15h 17m 55s} -20.74d {-20d 44' 16"}
MOON_ILLUM: 5 [%]
GAL_COORDS: 300.64,-42.03 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 308.69,-66.99 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

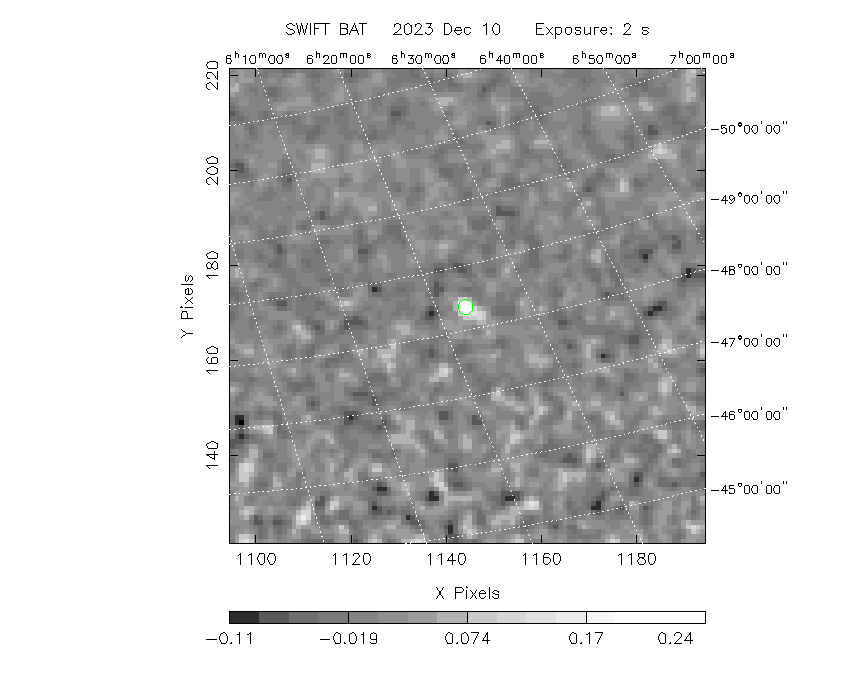

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (95.772, -48.359).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 95.772 -48.359 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
19.2729 -73.4422 0.0 1.5 35.6 0.0026 0.2 0.0 SMC X-1
83.1921 -66.3675 0.0 21.5 137.6 0.0028 0.2 0.0 LMC X-4
128.8361 -45.1764 0.0 51.4 158.8 0.0672 1.7 0.0 PSR B0833-45
135.5285 -40.5547 0.0 57.2 162.9 0.1565 1.3 0.0 Vela X-1
141.1092 -55.2067 0.0 44.3 173.1 -0.0403 -1.5 0.0 4U 0919-54
152.4417 -58.2933 0.0 43.2 -177.0 0.0143 0.6 0.0 GRO J1008-57
170.3158 -60.6230 0.0 43.1 -163.3 0.0195 0.9 0.0 Cen X-3
172.6417 -62.9308 0.0 41.0 -161.1 -0.0195 -0.9 0.0 IGR J11305-6256
176.8692 -61.9539 0.0 42.3 -158.4 0.0026 0.1 0.0 1E 1145.1-6141
177.0001 -62.2069 0.0 42.0 -158.3 0.0343 1.6 0.0 4U 1145-61
177.1387 -67.7500 0.0 36.6 -156.8 -0.0013 -0.1 0.0 EXO 0748-676
186.6567 -62.7703 0.0 42.0 -151.5 0.0149 0.6 0.0 GX 301-2
195.6985 -63.8358 0.0 41.2 -145.4 -0.0348 -1.4 0.0 PSR B1259-63
196.3645 -49.4682 0.0 55.5 -145.3 -0.0401 -0.5 0.0 NGC 4945
201.6504 -62.1361 0.0 42.9 -141.3 0.0123 0.5 0.0 4U 1323-619
213.2913 -65.3390 0.0 39.4 -133.8 0.0030 0.1 0.0 Cir Galaxy
228.4837 -59.1356 0.0 44.5 -122.0 0.0066 0.2 0.0 PSR B1509-58
231.2913 -65.3390 0.0 38.2 -122.0 0.0580 2.7 0.0 Circinus AGN
248.0700 -67.4619 0.0 34.3 -112.1 0.0169 0.7 0.0 4U 1626-67
279.5847 -65.4276 0.0 30.7 -89.5 -0.0077 -0.3 0.0 ESO 103-035
95.7666 -48.3372 1.3 40.3 130.9 0.2547 8.6 ------ UNKNOWN
109.7287 -53.0388 2.7 39.6 146.4 0.1060 4.2 ------ UNKNOWN
31.7591 -61.8002 2.8 13.9 62.1 0.0617 4.2 ------ UNKNOWN
356.3092 -33.1196 2.5 43.3 8.5 0.1358 4.7 ------ UNKNOWN
15.3711 -59.5229 2.6 15.5 29.5 0.0639 4.4 ------ UNKNOWN
25.9405 -65.8752 2.9 9.3 53.8 0.0580 4.1 ------ UNKNOWN
20.3107 -63.4914 2.9 11.5 39.1 0.0573 4.0 ------ UNKNOWN
8.3493 -59.9678 2.2 15.5 16.1 0.0727 5.2 ------ UNKNOWN
351.1244 -29.7617 2.7 47.3 3.1 0.1321 4.3 ------ UNKNOWN
356.2441 -57.2452 2.6 19.7 -1.9 0.0636 4.3 ------ UNKNOWN
24.3821 -77.9832 3.0 3.2 -161.6 0.0571 3.8 ------ UNKNOWN
347.2355 -34.7542 2.3 43.0 -2.7 0.1278 5.1 ------ UNKNOWN
349.4883 -51.1092 2.9 26.8 -6.9 0.0612 4.0 ------ UNKNOWN
351.3701 -74.9698 2.9 7.2 -66.4 0.0592 4.0 ------ UNKNOWN
343.2444 -30.7377 3.4 47.7 -6.2 0.1038 3.4 ------ UNKNOWN
341.6541 -29.6761 3.0 49.0 -7.7 0.1173 3.8 ------ UNKNOWN
340.4182 -30.4521 2.9 48.5 -9.3 0.1224 4.0 ------ UNKNOWN
340.0003 -29.4057 3.0 49.6 -9.5 0.1103 3.8 ------ UNKNOWN
339.6600 -31.1100 2.5 48.0 -10.4 0.1428 4.6 ------ UNKNOWN
299.3191 -79.1071 2.9 16.9 -103.0 0.0599 4.0 ------ UNKNOWN
236.5807 -82.5979 2.6 21.4 -130.5 0.0700 4.5 ------ UNKNOWN
330.0205 -37.5597 2.8 43.7 -23.4 0.1075 4.1 ------ UNKNOWN
328.6300 -37.4209 2.5 44.2 -24.8 0.1204 4.6 ------ UNKNOWN
179.4062 -56.7621 2.1 47.6 -157.6 0.1385 5.6 ------ UNKNOWN
322.9288 -39.5655 2.7 43.5 -31.9 0.1175 4.3 ------ UNKNOWN
286.0082 -52.5059 2.4 40.8 -74.5 0.1723 4.8 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.5285 -40.5547 0.0 57.2 162.9 0.1565 1.3 0.0 Vela X-1
170.3158 -60.6230 0.0 43.1 -163.3 0.0195 0.9 0.0 Cen X-3
186.6567 -62.7703 0.0 42.0 -151.5 0.0149 0.6 0.0 GX 301-2
95.7666 -48.3372 1.3 40.3 130.9 0.2547 8.6 ------ UNKNOWN
109.7287 -53.0388 2.7 39.6 146.4 0.1060 4.2 ------ UNKNOWN
31.7591 -61.8002 2.8 13.9 62.1 0.0617 4.2 ------ UNKNOWN
356.3092 -33.1196 2.5 43.3 8.5 0.1358 4.7 ------ UNKNOWN
15.3711 -59.5229 2.6 15.5 29.5 0.0639 4.4 ------ UNKNOWN
25.9405 -65.8752 2.9 9.3 53.8 0.0580 4.1 ------ UNKNOWN
20.3107 -63.4914 2.9 11.5 39.1 0.0573 4.0 ------ UNKNOWN
8.3493 -59.9678 2.2 15.5 16.1 0.0727 5.2 ------ UNKNOWN
351.1244 -29.7617 2.7 47.3 3.1 0.1321 4.3 ------ UNKNOWN
356.2441 -57.2452 2.6 19.7 -1.9 0.0636 4.3 ------ UNKNOWN
24.3821 -77.9832 3.0 3.2 -161.6 0.0571 3.8 ------ UNKNOWN
347.2355 -34.7542 2.3 43.0 -2.7 0.1278 5.1 ------ UNKNOWN
349.4883 -51.1092 2.9 26.8 -6.9 0.0612 4.0 ------ UNKNOWN
351.3701 -74.9698 2.9 7.2 -66.4 0.0592 4.0 ------ UNKNOWN
343.2444 -30.7377 3.4 47.7 -6.2 0.1038 3.4 ------ UNKNOWN
341.6541 -29.6761 3.0 49.0 -7.7 0.1173 3.8 ------ UNKNOWN
340.4182 -30.4521 2.9 48.5 -9.3 0.1224 4.0 ------ UNKNOWN
340.0003 -29.4057 3.0 49.6 -9.5 0.1103 3.8 ------ UNKNOWN
339.6600 -31.1100 2.5 48.0 -10.4 0.1428 4.6 ------ UNKNOWN
299.3191 -79.1071 2.9 16.9 -103.0 0.0599 4.0 ------ UNKNOWN
236.5807 -82.5979 2.6 21.4 -130.5 0.0700 4.5 ------ UNKNOWN
330.0205 -37.5597 2.8 43.7 -23.4 0.1075 4.1 ------ UNKNOWN
328.6300 -37.4209 2.5 44.2 -24.8 0.1204 4.6 ------ UNKNOWN
179.4062 -56.7621 2.1 47.6 -157.6 0.1385 5.6 ------ UNKNOWN
322.9288 -39.5655 2.7 43.5 -31.9 0.1175 4.3 ------ UNKNOWN
286.0082 -52.5059 2.4 40.8 -74.5 0.1723 4.8 ------ UNKNOWN
Search for UNKNOWN source R.A. = 8.3493 Dec. = -59.9678 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 15.3711 Dec. = -59.5229 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 20.3107 Dec. = -63.4914 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 24.3821 Dec. = -77.9832 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 25.9405 Dec. = -65.8752 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 31.7591 Dec. = -61.8002 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 95.7666 Dec. = -48.3372 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 109.7287 Dec. = -53.0388 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 179.4062 Dec. = -56.7621 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 236.5807 Dec. = -82.5979 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 286.0082 Dec. = -52.5059 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 299.3191 Dec. = -79.1071 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 322.9288 Dec. = -39.5655 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 328.6300 Dec. = -37.4209 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 330.0205 Dec. = -37.5597 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 339.6600 Dec. = -31.1100 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 340.0003 Dec. = -29.4057 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 340.4182 Dec. = -30.4521 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 341.6541 Dec. = -29.6761 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 343.2444 Dec. = -30.7377 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 347.2355 Dec. = -34.7542 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 349.4883 Dec. = -51.1092 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 351.1244 Dec. = -29.7617 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 351.3701 Dec. = -74.9698 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 356.2441 Dec. = -57.2452 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 356.3092 Dec. = -33.1196 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1201696/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sun Dec 10 16:47:11 EST 2023
