TDRSS scaled map for 1205744
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 01 Jan 24 20:26:54 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1205744, Seg_Num: 0
GRB_RA: 352.052d {+23h 28m 12s} (J2000),
352.336d {+23h 29m 21s} (current),
351.461d {+23h 25m 51s} (1950)
GRB_DEC: +51.645d {+51d 38' 43"} (J2000),
+51.778d {+51d 46' 39"} (current),
+51.370d {+51d 22' 11"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 38011 [cnts] Image_Peak=634 [image_cnts]
TRIGGER_DUR: 16.384 [sec]
TRIGGER_INDEX: 458 E_range: 15-50 keV
BKG_INTEN: 137787 [cnts]
BKG_TIME: 73439.34 SOD {20:23:59.34} UT
BKG_DUR: 64 [sec]
GRB_DATE: 20310 TJD; 1 DOY; 24/01/01
GRB_TIME: 73539.37 SOD {20:25:39.37} UT
GRB_PHI: -73.74 [deg]
GRB_THETA: 2.92 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 12.00 [sigma]
IMAGE_SIGNIF: 7.41 [sigma]
MERIT_PARAMS: +1 +0 +0 +4 +1 -2 +0 +1 +11 +0
SUN_POSTN: 281.87d {+18h 47m 28s} -22.99d {-22d 59' 13"}
SUN_DIST: 96.68 [deg] Sun_angle= -4.7 [hr] (East of Sun)
MOON_POSTN: 168.30d {+11h 13m 12s} +8.12d {+08d 07' 27"}
MOON_DIST: 120.00 [deg]
MOON_ILLUM: 71 [%]
GAL_COORDS: 110.03, -9.13 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 20.78, 48.90 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 287.32,13.51 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 01 Jan 24 20:36:12 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1205744, Seg_Num: 0
POINT_RA: 356.774d {+23h 47m 06s} (J2000)
POINT_DEC: +51.717d {+51d 43' 01"} (J2000)
MAP_DATE: 20310 TJD; 1 DOY; 24/01/01
MAP_TIME: 73539.37 SOD {20:25:39.37} UT
TRIGGER_DUR: 16.384 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 12.00 [sigma]
IMAGE_SIGNIF: 7.41 [sigma]
MAP_URL: sw01205744000msbsm.fits
SUN_POSTN: 281.87d {+18h 47m 29s} -22.99d {-22d 59' 11"}
MOON_POSTN: 168.37d {+11h 13m 28s} +8.09d {+08d 05' 22"}
MOON_ILLUM: 71 [%]
GAL_COORDS: 112.90, -9.90 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 24.37, 47.23 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

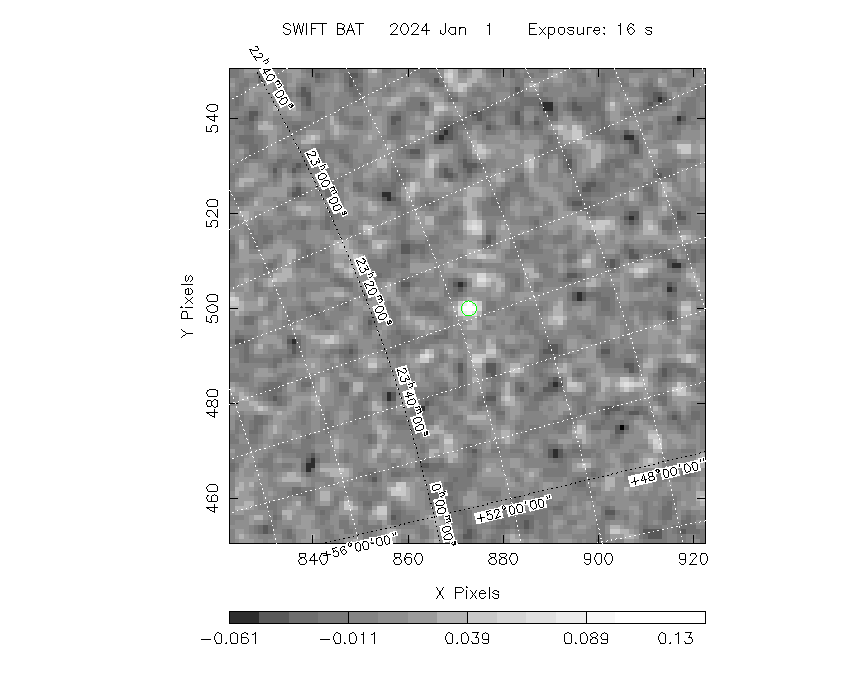

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (352.052, +51.645).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 352.052 +51.645 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 9.6 49.8 -0.0331 -1.9 0.0 V709 Cas
19.5112 65.2916 0.0 17.8 47.9 0.0173 0.9 0.0 4U 0114+65
52.8001 43.9046 0.0 37.5 95.3 -0.0955 -1.7 0.0 GK Per
53.7495 53.1732 0.0 33.8 80.6 0.0241 0.6 0.0 V0332+53
93.9015 71.0375 0.0 44.2 43.6 0.0568 0.9 0.0 Mkn 3
166.6979 72.5686 0.0 55.5 19.7 -0.0157 -0.1 0.0 NGC 3516
299.5903 35.2016 0.0 43.4 -73.2 -0.0477 -0.3 0.0 Cyg X-1
299.8682 40.7339 0.0 39.8 -66.9 -0.0399 -0.7 0.0 Cyg A
308.0633 37.6375 0.0 36.6 -77.1 -0.0002 -0.0 0.0 EXO 2030+375
308.1103 40.9526 0.0 34.6 -72.5 -0.0257 -0.7 0.0 Cyg X-3
314.6979 41.7770 0.0 30.0 -76.5 0.0445 1.5 0.0 GRO J2058+42
321.1638 50.9739 0.0 22.0 -61.8 -0.0169 -0.8 0.0 IGR J21247+5058
323.4320 51.1236 0.0 20.6 -62.4 -0.0163 -0.8 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 25.2 -94.1 0.0216 0.8 0.0 Cyg X-2
331.9808 54.5197 0.0 15.1 -53.5 0.0080 0.4 0.0 4U 2206+54
343.4906 16.1482 0.0 37.1 -142.5 0.0128 0.5 0.0 3C 454.3
350.9671 42.1830 0.0 10.3 -139.3 0.0388 2.2 0.0 1ES 2321+419
43.7814 24.4617 2.0 44.8 125.1 0.6037 5.7 ------ UNKNOWN
39.5381 31.6567 3.2 37.0 122.0 0.1469 3.6 ------ UNKNOWN
35.9081 33.1310 2.2 33.8 124.0 0.1751 5.4 ------ UNKNOWN
164.2046 71.8485 2.2 56.1 20.7 0.8783 5.2 ------ UNKNOWN
352.0675 51.6476 1.6 2.9 -73.7 0.1344 7.3 ------ UNKNOWN
298.1119 35.9182 2.5 43.8 -71.3 0.6500 4.6 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
299.5903 35.2016 0.0 43.4 -73.2 -0.0477 -0.3 0.0 Cyg X-1
308.1103 40.9526 0.0 34.6 -72.5 -0.0257 -0.7 0.0 Cyg X-3
326.1717 38.3217 0.0 25.2 -94.1 0.0216 0.8 0.0 Cyg X-2
43.7814 24.4617 2.0 44.8 125.1 0.6037 5.7 ------ UNKNOWN
39.5381 31.6567 3.2 37.0 122.0 0.1469 3.6 ------ UNKNOWN
35.9081 33.1310 2.2 33.8 124.0 0.1751 5.4 ------ UNKNOWN
164.2047 71.8485 2.2 56.1 20.7 0.8784 5.3 ------ UNKNOWN
352.0675 51.6476 1.6 2.9 -73.7 0.1344 7.3 ------ UNKNOWN
298.1119 35.9182 2.5 43.8 -71.3 0.6500 4.6 ------ UNKNOWN
Search for UNKNOWN source R.A. = 35.9081 Dec. = +33.1310 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 39.5381 Dec. = +31.6567 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 43.7814 Dec. = +24.4617 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 164.2047 Dec. = +71.8485 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 298.1119 Dec. = +35.9182 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 352.0675 Dec. = +51.6476 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1205744/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Mon Jan 1 15:37:09 EST 2024
