batgrbproduct Analysis for Trigger=1209631

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri Jan 19 23:53:13 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1209631/GCN5_download_cron
======================================================================

  Trigger: 01209631      Segment: 000

  BAT Trigger Time: 727358232   [s; MET]
      Trigger Stop: 727358296   [s; MET]
               UTC: 2024-01-19T11:56:39.241040    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 245.23769397303   Dec: -15.6167015289401  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    16.62
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    16.62

  Flight Position:   [ source = BAT ]
    RA: 245.23769397303   Dec: -15.6167015289401  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 245.214278356324   Dec: -15.6255170341351  [deg; J2000]
        { 16h 20m 51.4s , -15d 37' 31.9" }
         +/- 1.28913354531966 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.521834795628935 [arcmin] (formal 1-sigma fit error)
    SNR: 21.1616700049859

  Angular difference between Flight and Ground position is 1.452754 arcmin

  Partial Coding Fraction: 0.9453125    [ including projection effects ]

  Duration
     T90: 308.996000051498 +/- 33.8381350291135
        Measured from: -52.8479999303818
                   to: 256.148000121117     [s; relative to TRIGTIME]
     T50: 163.284000039101 +/- 15.1710134036391
        Measured from: -7.34799993038177
                   to: 155.936000108719     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -33.7799999713898
                   to: -32.7799999713898     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -66.960000038147
                   to: 317.287999987602     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    14.741437   1.175764   0.033731  -0.076643
           0.148765   0.130651   0.106702   0.090848 [error]
 Peak      0.051078   0.024614   0.009620  -0.000310
           0.007584   0.006800   0.005818   0.004853 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.88e-06 5.78e-07 2.93e-08 1.56e-09 5.48e-06 5.48e-06   erg/cm2
              Error 4.02e-07 6.49e-08 8.60e-09 7.86e-10 3.97e-07 3.96e-07   erg/cm2
Peak flux Power-law 5.06e-01 2.07e-01 4.99e-02 1.46e-02 7.72e-01 7.78e-01   ph/cm2/s
              Error 1.32e-01 6.97e-02 3.72e-02 2.20e-02 1.71e-01 1.74e-01   ph/cm2/s

Fluence   Cutoff-PL 4.68e-06 4.31e-07 3.91e-10 1.06e-16 5.11e-06 5.11e-06   erg/cm2
              Error 4.65e-07 7.75e-08 1.20e-09 5.71e-14 4.69e-07 4.69e-07   erg/cm2
Peak flux Cutoff-PL 5.10e-01 2.02e-01 4.67e-02 1.30e-02 7.71e-01 7.76e-01   ph/cm2/s
              Error 1.31e-01 7.18e-02 3.66e-02 2.19e-02 1.71e-01 1.71e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 5.07e-01 2.07e-01 4.94e-02 1.43e-02 7.72e-01 7.77e-01   ph/cm2/s
              Error -------- -------- 3.72e-02 -------- 1.71e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.301    0.274    -      -           9.57e-05 2.29e-05   49.270 57
CPL   1.000    0.000      50.0    0.0      1.60e-03 0.00e+00  606.850 56

The chi2 of BB fit is 30.32 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.054    0.730    -      -           2.70e-03 1.54e-03   66.980 57
CPL   1.971    0.610       0.9   10.5      1.30e-02 0.00e+00   68.300 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  384.248  -66.960  317.288
T90   308.996  -52.848  256.148
T50   163.284   -7.348  155.936
Peak    1.000  -33.780  -32.780

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  245.2143 -15.6255 0.0090   19.7  167.5       4.0578    21.2  TRIG_01209631
------------------------------------------

Foreground time interval of the image:
-13.899  73.801 (delta_t =  87.700 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-66.960000 75.680000
97.000000 184.130000
185.000000 185.340000
187.000000 194.755500
198.000000 205.770000
207.000000 221.190000
226.000000 239.740000
241.000000 248.850000
251.000000 315.100000
316.000000 317.288000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.30137     ( -0.274165   0.274598 )
Norm@50keV  : 9.57165E-05    ( -2.06748e-05   2.51048e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.27 using 59 PHA bins.
# Reduced chi-squared =         0.8644 for     57 degrees of freedom
# Null hypothesis probability =   7.568435e-01

Photon flux (15-150 keV)    in 346.8 sec: 0.534030 ( -0.041994  0.0424238 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.48468e-06 ( -3.9479e-07  3.983e-07 ) ergs/cm2

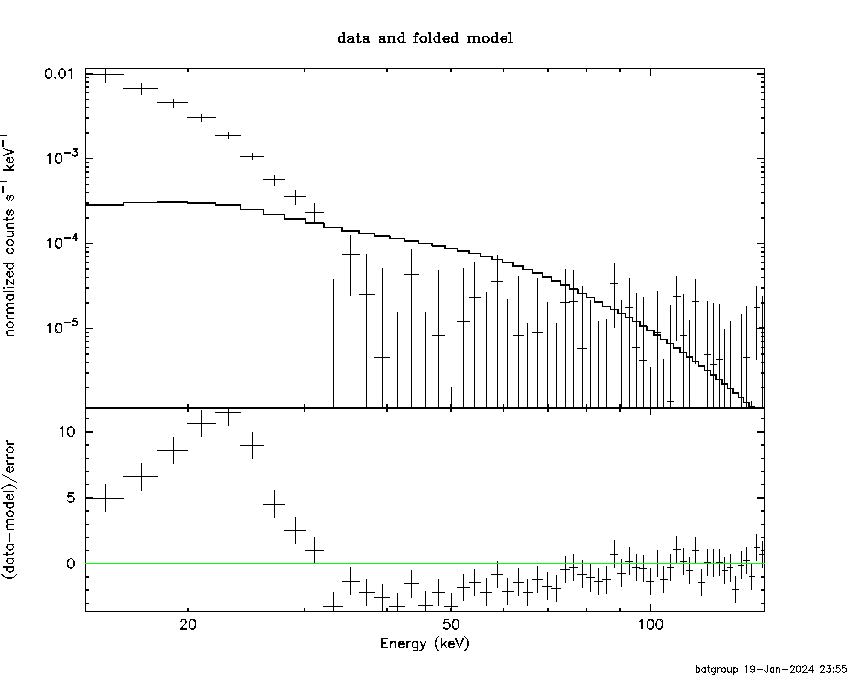

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-66.960000 75.680000
97.000000 184.130000
185.000000 185.340000
187.000000 194.755500
198.000000 205.770000
207.000000 221.190000
226.000000 239.740000
241.000000 248.850000
251.000000 315.100000
316.000000 317.288000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.59547E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         606.85 using 59 PHA bins.
# Reduced chi-squared =         10.837 for     56 degrees of freedom
# Null hypothesis probability =   1.746534e-93

Photon flux (15-150 keV)    in 346.8 sec: 0.497302 ( -0.050765  0.049585 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.1101e-06 ( -4.74353e-07  4.63151e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-66.960000 75.680000
97.000000 184.130000
185.000000 185.340000
187.000000 194.755500
198.000000 205.770000
207.000000 221.190000
226.000000 239.740000
241.000000 248.850000
251.000000 315.100000
316.000000 317.288000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.60226   (     )
beta        : -8.57405    (     )
Epeak [keV] : 4.03045      (   )
Norm@50keV   : 2.89392E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         189.28 using 59 PHA bins.
# Reduced chi-squared =         3.4414 for     55 degrees of freedom
# Null hypothesis probability =   1.217476e-16

Photon flux (15-150 keV)    in 346.8 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.63158  (-0.127685  0.13977)
R^2/D10^2   : 168.928  (-59.5069   89.8951)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          30.32 using 59 PHA bins.
# Reduced chi-squared =         0.5318 for     57 degrees of freedom
# Null hypothesis probability =   9.985823e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.627e-06   6.052e-07
25- 50  4.167e-07   6.341e-08
50-150  2.148e-10   1.088e-10
15-150  5.044e-06   6.260e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.48447       (-0.311043      0.353792)
Norm        : 178.821       (-54.0688     76.5398)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.787e-06   5.271e-07
25- 50  4.679e-07   5.688e-08
50-150  1.360e-09   6.535e-10
15-150  5.256e-06   5.531e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.901993        (-2.00189      8.00743)
R1^2/D10^2  : 1.09297E+06        (-1.27803e+06      3.6667e+07)
kT2 [keV]   : 2.67817        (-0.158085      39.4278)
R2^2/D10^2  : 144.132    (-144.706   100.443)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.619e-06   6.913e-05
25- 50  4.329e-07   2.457e-05
50-150  3.526e-10   8.455e-06
15-150  5.052e-06   2.688e-04

Peak spectrum fit

Power-law model

Time interval is from  -33.780 sec. to  -32.780 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.05405     ( -0.611174   0.849771 )
Norm@50keV  : 2.69906E-03    ( -0.00147536   0.00161199 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.98 using 59 PHA bins.
# Reduced chi-squared =          1.175 for     57 degrees of freedom
# Null hypothesis probability =   1.718291e-01

Photon flux (15-150 keV)    in 1 sec: 0.772216 ( -0.171234  0.171528 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.3262e-08 ( -9.63986e-09  1.07145e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -33.780 sec. to  -32.780 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97117     ( -1.19883   0.0207913 )
Epeak [keV] : 0.949869      ( -0.676995 20.3186 )
Norm@50keV  : 1.30427E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.30 using 59 PHA bins.
# Reduced chi-squared =          1.220 for     56 degrees of freedom
# Null hypothesis probability =   1.253364e-01

Photon flux (15-150 keV)    in 1 sec: 0.771265 ( -0.171215  0.170288 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.29286e-08 ( -9.4077e-09  1.10656e-08 ) ergs/cm2

Band function

Time interval is from  -33.780 sec. to  -32.780 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -10.00000   ( 10   10 )
beta        : -3.05410    ( -0.850089   0.610623 )
Epeak [keV] : 1.07206      ( -1.07206 -1.07206 )
Norm@50keV   : 0.366825    ( -0.200522   0.219093 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.98 using 59 PHA bins.
# Reduced chi-squared =          1.218 for     55 degrees of freedom
# Null hypothesis probability =   1.289813e-01

Photon flux (15-150 keV)    in 1 sec: 0.771669 ( 6.22833  -0.170903 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.64332  (-1.44882  2.35604)
R^2/D10^2   : 8.51925  (-8.67873   53.2548)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.526e-08   9.175e-09
25- 50  8.267e-09   5.225e-09
50-150  2.319e-10   2.261e-10
15-150  2.376e-08   1.413e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 19.4077       (-9.71177      19.0037)
Norm        : 9.44985       (-4.7464     16.532)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.428e-08   5.832e-09
25- 50  1.222e-08   6.222e-09
50-150  3.477e-09   2.718e-09
15-150  2.997e-08   1.225e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.65275        (-1.20685      1.45286)
R1^2/D10^2  : 141.897        (-131.293      16005.1)
kT2 [keV]   : 11.7598        (-4.62642      8.56469)
R2^2/D10^2  : 0.110455    (-0.0998572   0.49735)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.507e-08   8.025e-09
25- 50  1.101e-08   6.630e-09
50-150  8.126e-09   5.470e-09
15-150  3.421e-08   1.794e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.98281     ( -0.374005   0.384446 )
Norm@50keV  : 1.22783E-04    ( -3.79221e-05   5.01468e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.53 using 59 PHA bins.
# Reduced chi-squared =         0.7811 for     57 degrees of freedom
# Null hypothesis probability =   8.854638e-01

Photon flux (15-150 keV)    in 87.7 sec: 0.496642 ( -0.0449711  0.0451481 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.30929e-06 ( -1.11625e-07  1.11821e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.37697E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         346.90 using 59 PHA bins.
# Reduced chi-squared =         6.1947 for     56 degrees of freedom
# Null hypothesis probability =   1.460267e-43

Photon flux (15-150 keV)    in 87.7 sec: 0.477743 ( -0.051743  0.050347 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.24289e-06 ( -1.23587e-07  1.21298e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.96431   ( -4.10186   -4.10186 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 11.6217      ( -0.80416 0.722638 )
Norm@50keV   : 2696.26    ( -2696.25   67274.5 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          31.46 using 59 PHA bins.
# Reduced chi-squared =         0.5719 for     55 degrees of freedom
# Null hypothesis probability =   9.955329e-01

Photon flux (15-150 keV)    in 87.7 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.78e-07
S(50-100 keV) = 2.93e-08

T90 vs. Hardness ratio plot

T90                                   = 308.996000051498 sec.
Hardness ratio (energy fluence ratio) = 0.050692

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0797591
Count Ratio (50-100 keV) / (15-25 keV) = 0.00228818

Mask shadow pattern

IMX = -3.496920189401482E-01, IMY = -7.749834014070296E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-13.899400 71.984000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.8614 -62.6520    6.9  46.4   31.0   1.0203   1.7    9.1	GX 301-2
245.1285 -15.6257    0.7  19.7  167.3   3.2777  17.5    8.7	Sco X-1
256.1746 -37.8307    1.3   6.7  -66.7   1.7026   8.8    8.9	4U 1700-377
256.2514 -36.4968   31.7   6.4  -78.1   0.0681   0.4    9.9	GX 349+2
262.8612 -24.8953    9.8  16.0 -128.6  -0.2264  -1.2   12.1	GX 1+4
264.5152 -44.3259    0.0  15.3  -51.1   0.2080   1.1   12.3	4U 1735-44
268.3185  -1.5936    4.8  38.2 -149.8   0.6279   2.4    9.0	SW J1753.5-0127
270.4533 -25.0956   11.9  21.4 -114.9   0.1891   1.0    9.2	GX 5-1
270.3847 -25.6512    5.3  21.0 -113.7   0.4499   2.4    7.1	GRS 1758-258
273.9969 -13.8992   14.2  31.2 -129.3   0.2077   0.8    8.3	GX 17+2
275.9546 -30.2212    4.6  23.5  -97.1   0.5360   2.5    8.9	H1820-303
284.9192 -24.8160   14.8  32.9 -101.1  -0.2199  -0.8    8.9	HT1900.1-2455
263.1858 -33.9671    0.0  12.1  -94.1   0.0213   0.1   12.6	GX 354-0
255.9117 -48.7387    1.6  14.7  -22.4   1.2850   7.4 ------	UNKNOWN
271.7862  15.5885    2.5  55.3 -155.4   3.2109   4.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-13.899400 73.800600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.8635 -62.6537    7.6  46.4   31.0   0.9447   1.5    9.0	GX 301-2
245.1289 -15.6221    0.7  19.7  167.3   3.3828  17.6    8.7	Sco X-1
256.1626 -37.8356    1.8   6.7  -66.6   1.2323   6.2    8.4	4U 1700-377
256.6270 -36.5636   27.3   6.7  -78.0  -0.0816  -0.4   12.5	GX 349+2
263.1872 -24.8829    0.0  16.2 -127.9   0.2152   1.1   12.7	GX 1+4
264.5152 -44.3259    0.0  15.3  -51.1   0.2065   1.1   12.3	4U 1735-44
268.2758  -1.5921    6.9  38.2 -149.9   0.4479   1.7   10.0	SW J1753.5-0127
270.4520 -25.0886    4.0  21.4 -114.9   0.5892   2.9    9.1	GX 5-1
270.2945 -25.6064    5.1  21.0 -113.9   0.5044   2.5    8.2	GRS 1758-258
274.0133 -13.9469   26.5  31.2 -129.2   0.1141   0.4    5.4	GX 17+2
275.9437 -30.2231    4.3  23.5  -97.1   0.5924   2.7    8.7	H1820-303
284.9020 -24.8197    5.5  32.9 -101.1  -0.6150  -2.1    9.5	HT1900.1-2455
262.9811 -33.8220  475.4  12.0  -94.9  -0.0051  -0.0    0.9	GX 354-0
209.1977 -33.9833    2.9  32.2   77.5   1.8279   4.0 ------	UNKNOWN
255.9043 -48.7348    1.6  14.7  -22.4   1.2829   7.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
131.600590 184.130000
185.000000 185.340000
187.000000 194.755500
198.000000 205.770000
207.000000 221.190000
226.000000 239.740000
241.000000 248.850000
251.000000 315.100000
316.000000 363.097800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1449 -15.6206    0.6   0.1   81.0   8.6101  19.7    9.6	Sco X-1
254.5923  35.3779    6.2  51.8  175.9   2.6367   1.9    6.9	Her X-1
256.1679 -37.8487    1.5  24.2  -35.2   3.4279   7.5    8.6	4U 1700-377
256.5771 -36.5826    0.0  23.3  -37.4   0.2477   0.5   11.8	GX 349+2
262.8847 -24.6877    2.9  18.9  -72.3  -1.8399  -3.9    7.6	GX 1+4
264.5620 -44.5308   36.4  33.2  -39.3  -0.1679  -0.3    9.1	4U 1735-44
268.2834  -1.3842    6.8  26.8 -133.7  -0.8094  -1.7    6.5	SW J1753.5-0127
270.1033 -25.2052    0.0  25.1  -77.4  -0.6140  -1.1   12.4	GX 5-1
270.2093 -25.6376    7.8  25.4  -76.5   0.9794   1.8    8.1	GRS 1758-258
274.1638 -13.9933    4.6  28.0 -103.3   1.3375   2.5    9.6	GX 17+2
275.7417 -30.5017    0.0  31.6  -70.4   0.5725   0.9   12.5	H1820-303
285.0512 -25.0382   14.1  38.3  -83.0   0.8561   0.8    7.1	HT1900.1-2455
262.9674 -33.8098  597.5  24.2  -51.9   0.0092   0.0    1.8	GX 354-0
212.1670 -12.4866    2.8  32.2   77.5   4.5458   4.2 ------	UNKNOWN
266.1143 -10.8852    3.0  20.9 -114.4   1.6451   3.8 ------	UNKNOWN
284.3191  16.7521    2.4  50.3 -142.2   5.3572   4.8 ------	UNKNOWN

Plot creation:
Fri Jan 19 23:57:13 EST 2024
