batgrbproduct Analysis for Trigger=1209635

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Jan 20 00:47:22 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1209635/GCN5_download_cron
======================================================================

  Trigger: 01209635      Segment: 000

  BAT Trigger Time: 727359656   [s; MET]
      Trigger Stop: 727359720   [s; MET]
               UTC: 2024-01-19T12:20:23.240940    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 256.3628982705   Dec: -37.846711347039  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    17.27
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    17.27

  Flight Position:   [ source = BAT ]
    RA: 256.3628982705   Dec: -37.846711347039  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 256.46679644547   Dec: -37.8773341700641  [deg; J2000]
        { 17h 05m 52.0s , -37d 52' 38.4" }
         +/- 2.84983376035844 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.34348678169965 [arcmin] (formal 1-sigma fit error)
    SNR: 6.81359316460082

  Angular difference between Flight and Ground position is 5.253387 arcmin

  Partial Coding Fraction: 0.859375    [ including projection effects ]

  Duration
     T90: 526.68799996376 +/- 47.9654261468966
        Measured from: -50.0479998588562
                   to: 476.640000104904     [s; relative to TRIGTIME]
     T50: 256.079999923706 +/- 27.581099133443
        Measured from: 43.1400001049042
                   to: 299.22000002861     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 6.74000000953674
                   to: 7.74000000953674     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -83.7799999713898
                   to: 531.184000015259     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     9.442026   8.865522   2.427213   0.309445
           0.218034   0.190065   0.150899   0.124351 [error]
 Peak      0.049921   0.042543   0.013901   0.002636
           0.008677   0.007502   0.006050   0.004619 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.62e-06 3.48e-06 2.33e-06 2.44e-06 1.04e-05 1.19e-05   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Power-law 5.25e-01 2.85e-01 9.70e-02 4.29e-02 9.31e-01 9.51e-01   ph/cm2/s
              Error 1.36e-01 6.61e-02 4.41e-02 3.59e-02 1.93e-01 1.98e-01   ph/cm2/s

Fluence   Cutoff-PL 3.07e-06 3.87e-06 1.94e-06 3.11e-07 9.14e-06 9.18e-06   erg/cm2
              Error 2.39e-07 1.58e-07 2.08e-07 1.74e-07 4.46e-07 4.84e-07   erg/cm2
Peak flux Cutoff-PL 5.12e-01 3.15e-01 7.34e-02 6.10e-03 9.06e-01 9.07e-01   ph/cm2/s
              Error 1.45e-01 9.15e-02 6.91e-02 4.29e-02 1.98e-01 2.06e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.578    0.000    -      -           1.66e-03 0.00e+00  124.670 57
CPL   1.067    0.475      24.1    5.2      1.26e-02 9.03e-03   82.720 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.557    0.458    -      -           4.58e-03 1.59e-03   44.990 57
CPL   1.504    0.000      15.3    0.0      2.31e-02 0.00e+00   44.360 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  614.964  -83.780  531.184
T90   526.688  -50.048  476.640
T50   256.080   43.140  299.220
Peak    1.000    6.740    7.740

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  256.4668 -37.8773 0.0281   24.4  -35.7       5.0853     6.8  TRIG_01209635
------------------------------------------

Foreground time interval of the image:
-83.780 460.401 (delta_t = 544.181 [sec])
Background time interval of the image:
-239.000 -83.780 (delta_t = 155.220 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  -83.780 sec. to  531.184 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.57804     (     )
Norm@50keV  : 1.65563E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         124.67 using 59 PHA bins.
# Reduced chi-squared =         2.1872 for     57 degrees of freedom
# Null hypothesis probability =   5.865889e-07

Photon flux (15-150 keV)    in 615 sec: 0.341439 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.04106e-05 ( 0  0 ) ergs/cm2

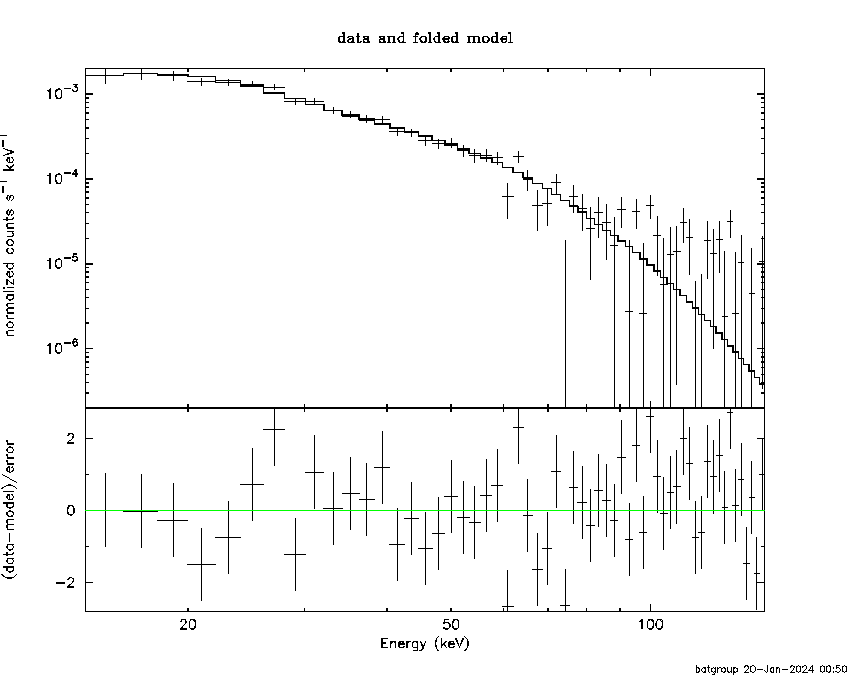

Cutoff power-law model

Time interval is from  -83.780 sec. to  531.184 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.06679     ( -0.500128   0.450609 )
Epeak [keV] : 24.0599      ( -6.45719 3.91226 )
Norm@50keV  : 1.26205E-02    ( -0.0057491   0.0123023 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          82.72 using 59 PHA bins.
# Reduced chi-squared =          1.477 for     56 degrees of freedom
# Null hypothesis probability =   1.164286e-02

Photon flux (15-150 keV)    in 615 sec: 0.309617 ( -0.01501  0.015143 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.13982e-06 ( -4.38495e-07  4.54116e-07 ) ergs/cm2

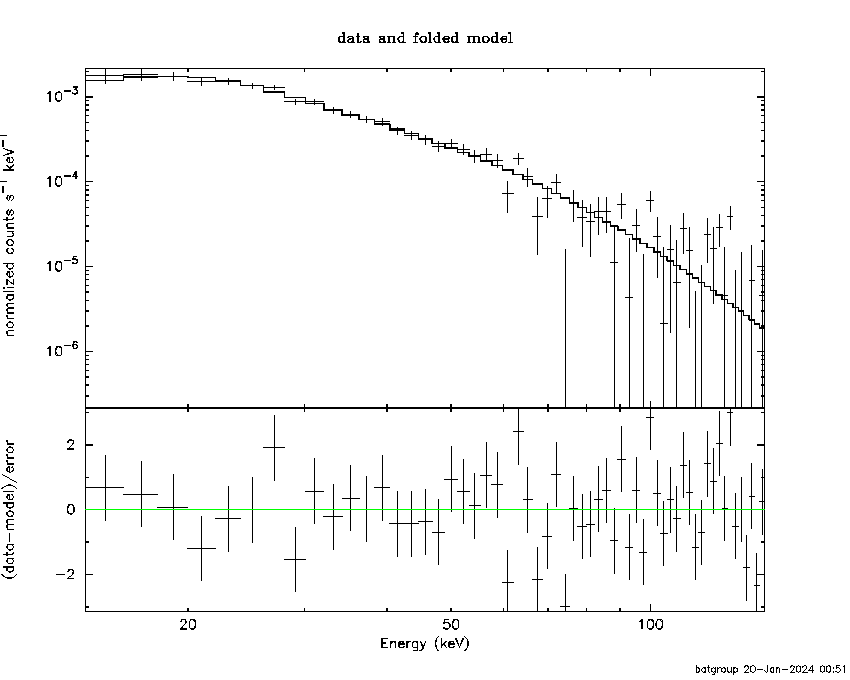

Band function

Time interval is from  -83.780 sec. to  531.184 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.253834   ( -0.833459   1.34054 )
beta        : -3.23665    ( -0.287448   0.265537 )
Epeak [keV] : 26.7704      ( -3.92129 2.32061 )
Norm@50keV   : 4.37098E-02    ( -0.0469722   0.318691 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.79 using 59 PHA bins.
# Reduced chi-squared =          1.360 for     55 degrees of freedom
# Null hypothesis probability =   3.913990e-02

Photon flux (15-150 keV)    in 615 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

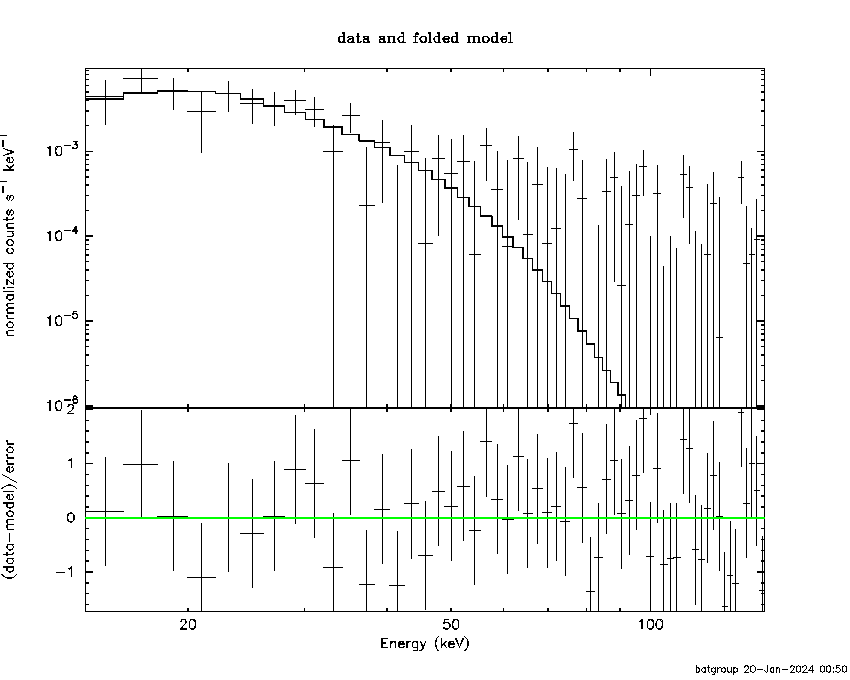

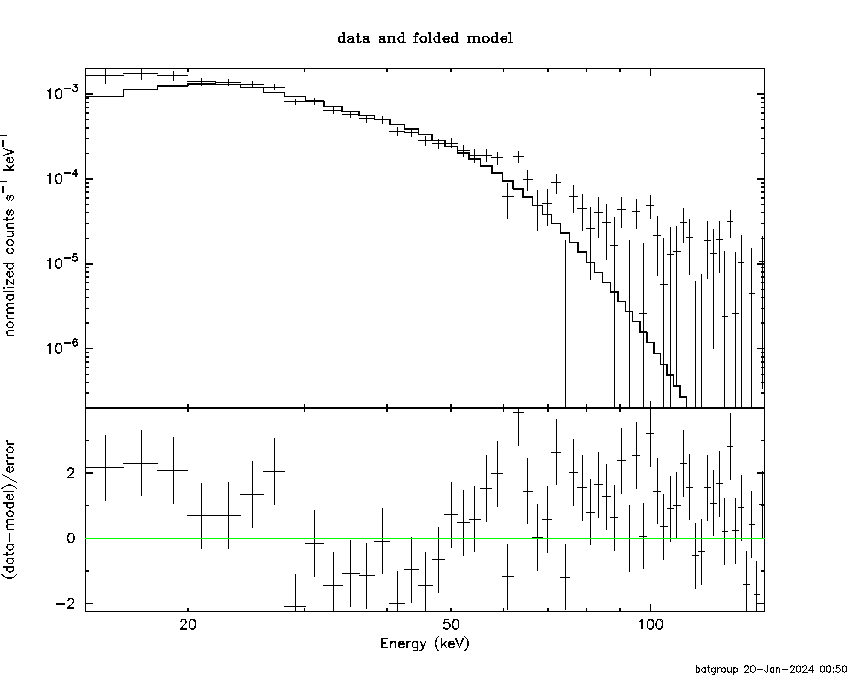

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.28887  (  )
R^2/D10^2   : 0.289714  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         139.62 using 59 PHA bins.
# Reduced chi-squared =         2.4494 for     57 degrees of freedom
# Null hypothesis probability =   6.959216e-09

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.270e-06   1.436e-07
25- 50  4.221e-06   1.550e-07
50-150  1.244e-06   1.341e-07
15-150  7.735e-06   2.829e-07

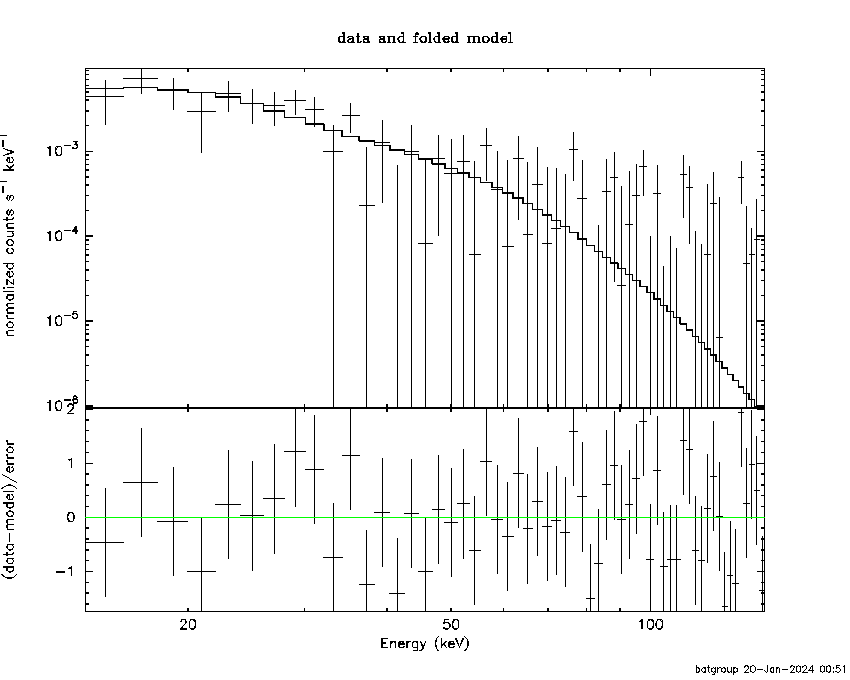

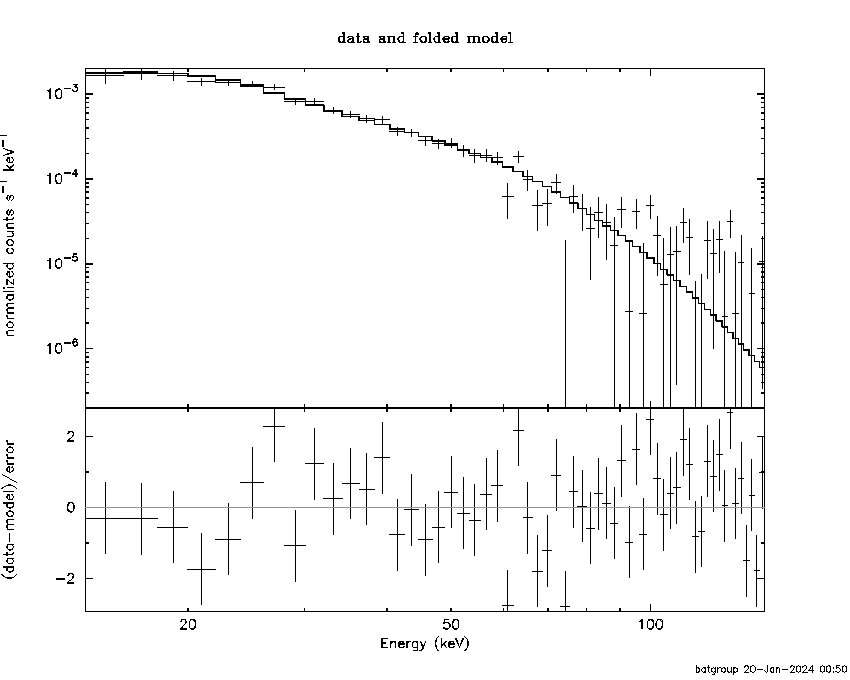

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 33.0153       (-2.39642      2.66202)
Norm        : 2.41859       (-0.188618     0.206162)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.169e-06   1.633e-07
25- 50  3.810e-06   1.261e-07
50-150  2.357e-06   2.257e-07
15-150  9.336e-06   3.383e-07

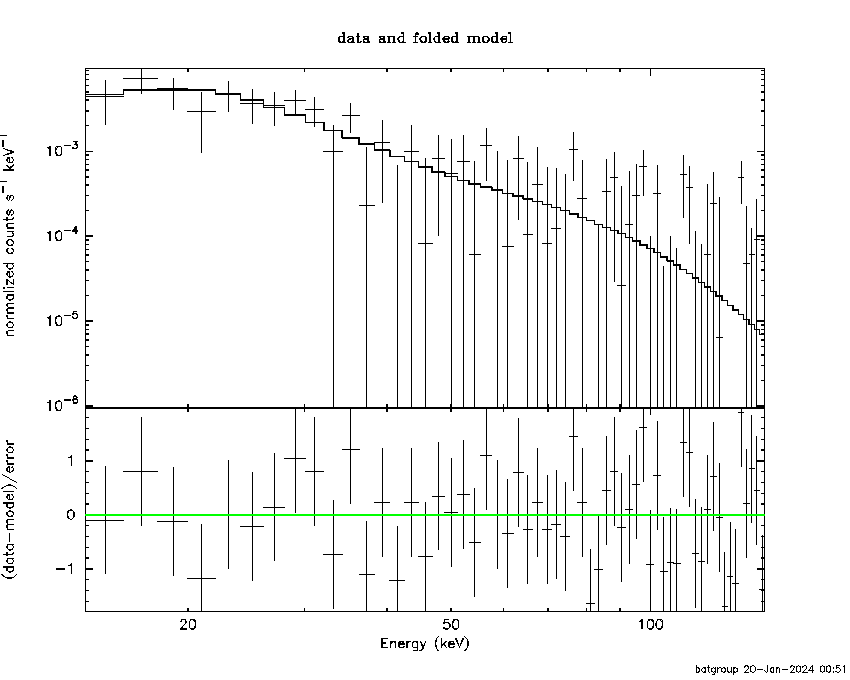

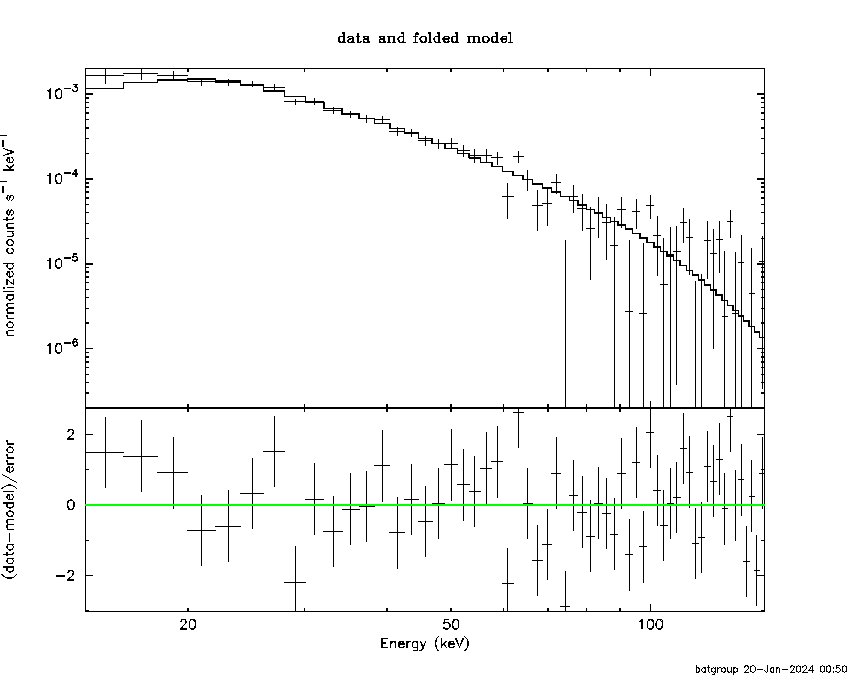

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.63886        (-0.961717      0.669141)
R1^2/D10^2  : 0.618664        (-0.153343      0.204028)
kT2 [keV]   : 18.4966        (-6.32354      11.9579)
R2^2/D10^2  : 4.04796E-03    (-0.00220288   0.00873484)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.710e-06   2.955e-07
25- 50  3.931e-06   3.890e-07
50-150  2.421e-06   9.917e-07
15-150  9.062e-06   1.516e-06

Peak spectrum fit

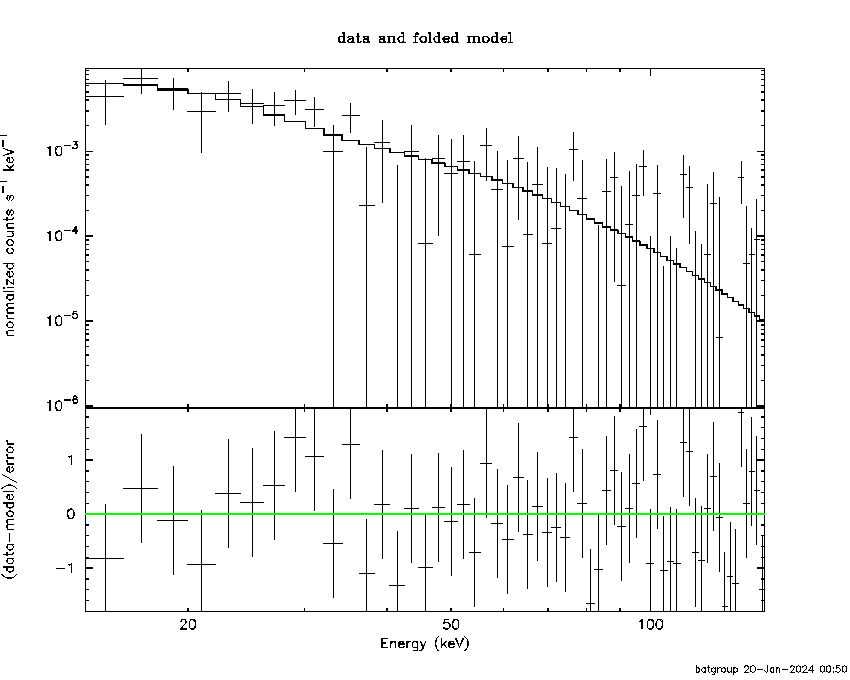

Power-law model

Time interval is from    6.740 sec. to    7.740 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.55666     ( -0.420773   0.495854 )
Norm@50keV  : 4.57595E-03    ( -0.00159264   0.00159227 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.99 using 59 PHA bins.
# Reduced chi-squared =         0.7892 for     57 degrees of freedom
# Null hypothesis probability =   8.753231e-01

Photon flux (15-150 keV)    in 1 sec: 0.931063 ( -0.193282  0.193285 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.64912e-08 ( -1.16033e-08  1.22859e-08 ) ergs/cm2

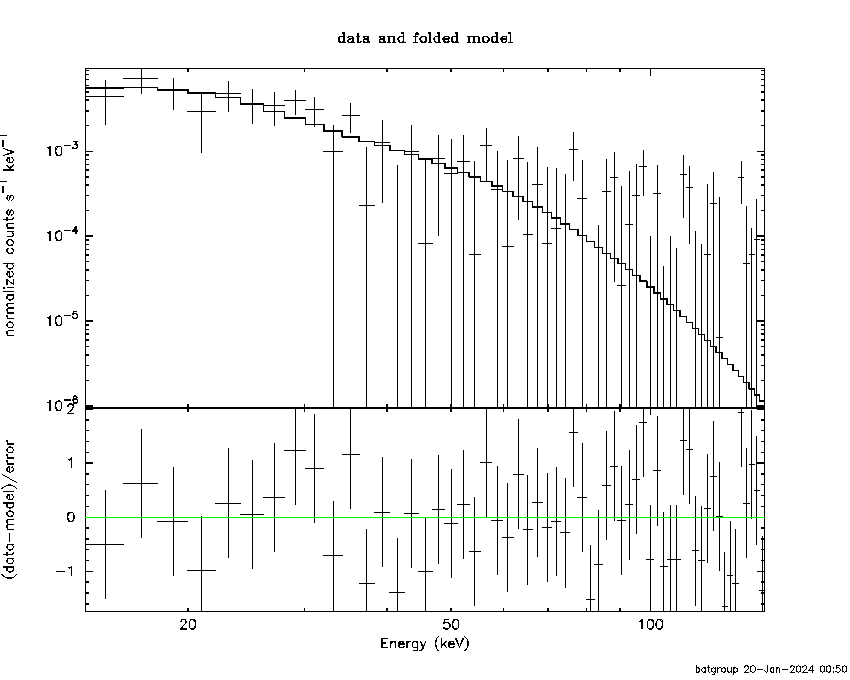

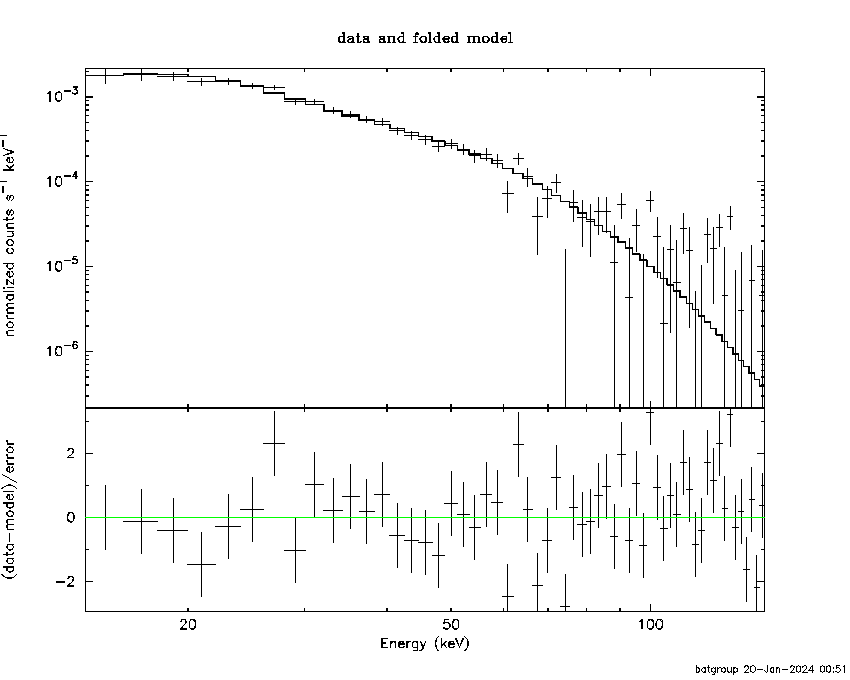

Cutoff power-law model

Time interval is from    6.740 sec. to    7.740 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50436     (     )
Epeak [keV] : 15.2921      (   )
Norm@50keV  : 2.31415E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.36 using 59 PHA bins.
# Reduced chi-squared =         0.7921 for     56 degrees of freedom
# Null hypothesis probability =   8.693296e-01

Photon flux (15-150 keV)    in 1 sec: 0.906244 ( -0.196513  0.199946 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.13767e-08 ( -1.19741e-08  1.58232e-08 ) ergs/cm2

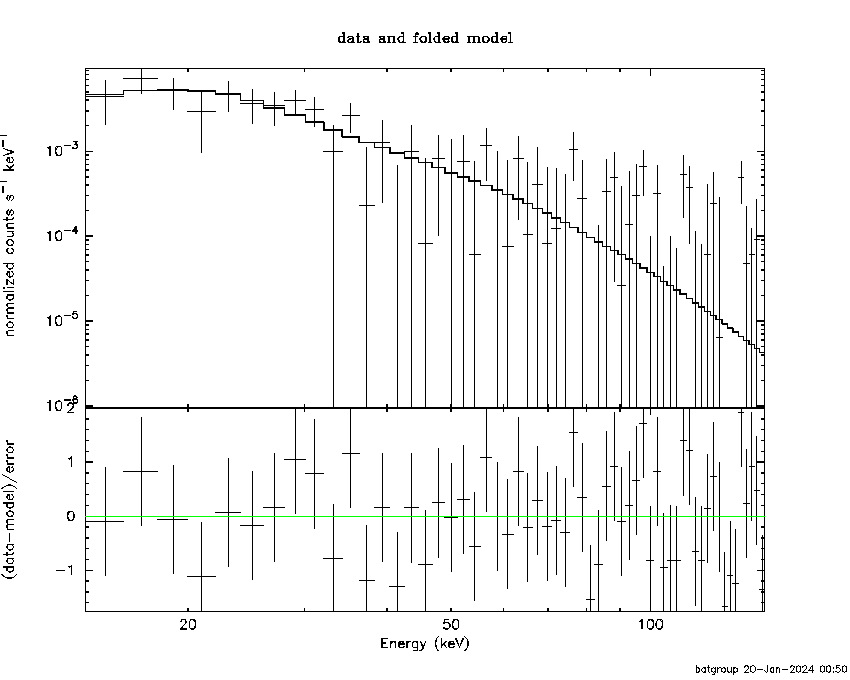

Band function

Time interval is from    6.740 sec. to    7.740 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.897059   ( 0.336304   0.336304 )
beta        : -3.22428    ( 3.11679   0.852844 )
Epeak [keV] : 23.2592      ( -21.4942 8.96456 )
Norm@50keV   : 1.36381    ( -1.27286   1018.38 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.44 using 59 PHA bins.
# Reduced chi-squared =         0.7899 for     55 degrees of freedom
# Null hypothesis probability =   8.698148e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.45499  (-1.24683  1.60506)
R^2/D10^2   : 2.49118  (-1.53618   3.90816)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.521e-08   6.053e-09
25- 50  1.771e-08   8.085e-09
50-150  2.168e-09   1.545e-09
15-150  3.508e-08   1.533e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 27.6967       (-10.5354      20.6263)
Norm        : 8.04227       (-3.1026     5.66467)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.568e-08   4.833e-09
25- 50  1.711e-08   5.577e-09
50-150  8.418e-09   5.440e-09
15-150  4.121e-08   1.364e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.55631        (-5.649      1.78603)
R1^2/D10^2  : 4.20779        (-3.98274      -3.98274)
kT2 [keV]   : 21.1663        (-23.045      -23.045)
R2^2/D10^2  : 7.28900E-03    (-0.0058721   3.26178)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.594e-08   9.885e-09
25- 50  1.604e-08   9.080e-09
50-150  1.146e-08   8.595e-09
15-150  4.345e-08   2.382e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.59587     (     )
Norm@50keV  : 1.75480E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         137.85 using 59 PHA bins.
# Reduced chi-squared =         2.4185 for     57 degrees of freedom
# Null hypothesis probability =   1.194314e-08

Photon flux (15-150 keV)    in 544.2 sec: 0.366006 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.8171e-06 ( 0  0 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.07284     ( -0.489444   0.441883 )
Epeak [keV] : 23.7046      ( -6.34369 3.89587 )
Norm@50keV  : 1.35907E-02    ( -0.00610317   0.0128613 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          93.30 using 59 PHA bins.
# Reduced chi-squared =          1.666 for     56 degrees of freedom
# Null hypothesis probability =   1.296656e-03

Photon flux (15-150 keV)    in 544.2 sec: 0.331436 ( -0.015866  0.016014 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.6192e-06 ( -4.04395e-07  4.18e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.47708E-02   ( -0.955092   1.30424 )
beta        : -3.22579    ( -0.574977   0.243402 )
Epeak [keV] : 26.7560      ( -3.8913 2.14277 )
Norm@50keV   : 6.10389E-02    ( -0.0616352   0.418866 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.40 using 59 PHA bins.
# Reduced chi-squared =          1.553 for     55 degrees of freedom
# Null hypothesis probability =   5.366270e-03

Photon flux (15-150 keV)    in 544.2 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.48e-06
S(50-100 keV) = 2.33e-06

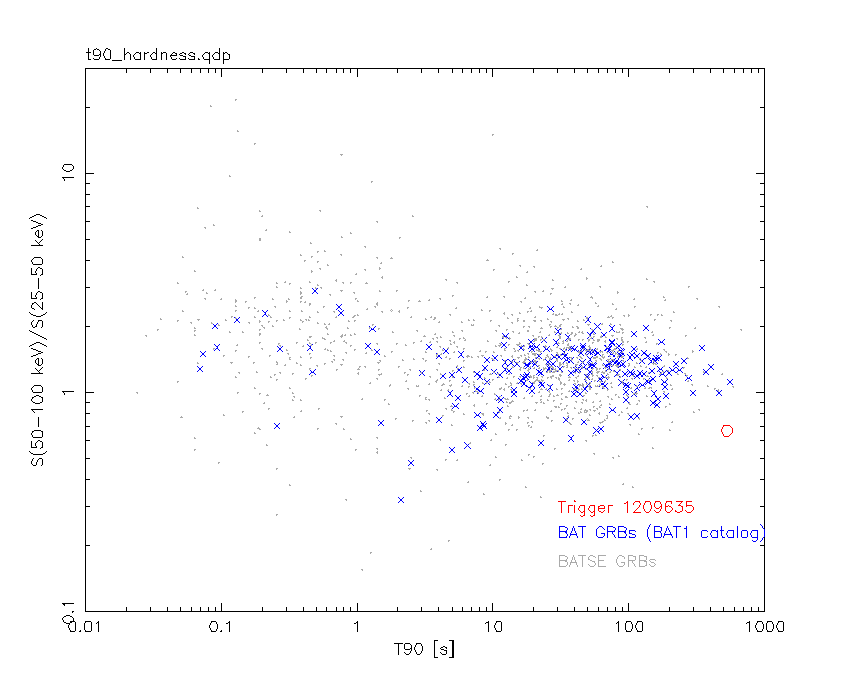

T90 vs. Hardness ratio plot

T90                                   = 526.68799996376 sec.
Hardness ratio (energy fluence ratio) = 0.66954

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.938943
Count Ratio (50-100 keV) / (15-25 keV) = 0.257065

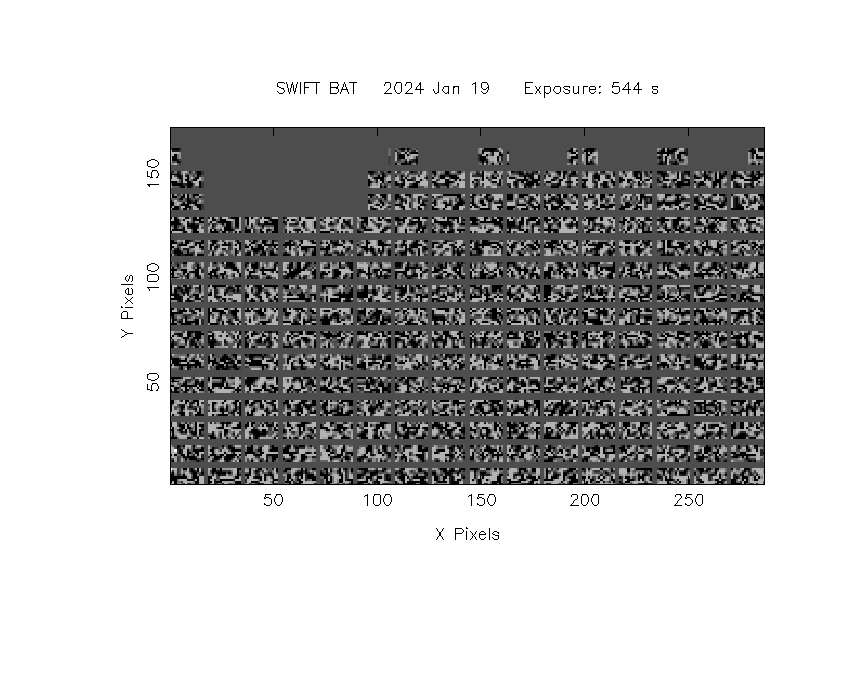

Mask shadow pattern

IMX = 3.676563418217733E-01, IMY = 2.641401115414274E-01

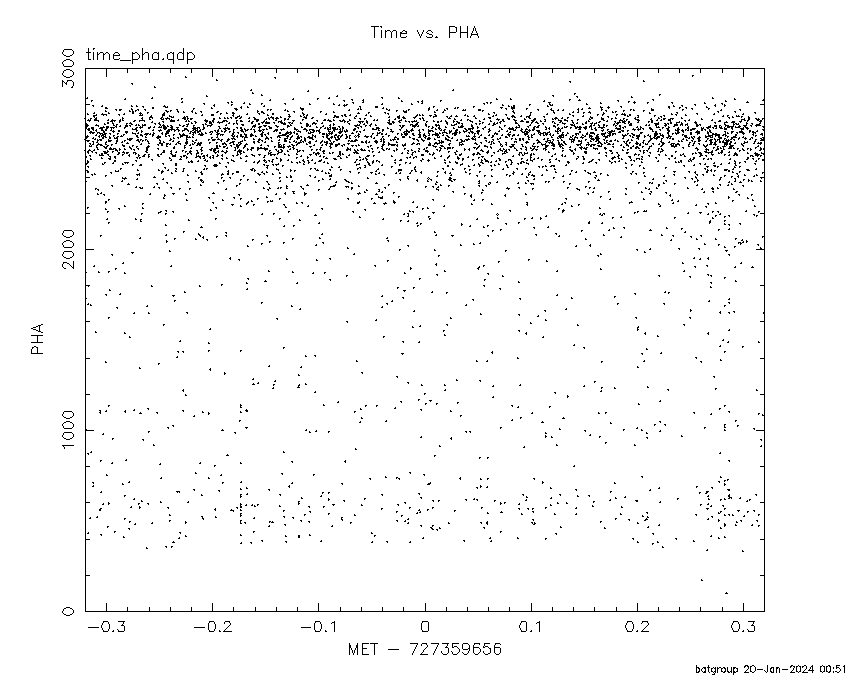

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -83.780000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1447 -15.6216    0.9   0.1   80.4   4.3745  13.1    9.6	Sco X-1
254.5170  35.4848   30.1  51.9  175.8  -0.3911  -0.4    9.0	Her X-1
256.1741 -37.8245    1.4  24.2  -35.3   2.6985   8.2    9.0	4U 1700-377
256.3904 -36.2722    4.1  22.9  -37.4  -0.8946  -2.8    9.3	GX 349+2
263.1734 -24.7565    4.2  19.1  -72.4   0.9827   2.7    9.0	GX 1+4
264.5801 -44.3117    0.0  33.0  -39.6  -0.3226  -0.8   10.8	4U 1735-44
268.4533  -1.6189    5.6  26.8 -133.0   0.7833   2.1   11.2	SW J1753.5-0127
270.1033 -25.2052    0.0  25.1  -77.4  -0.6281  -1.6   12.4	GX 5-1
270.3068 -25.7196    6.5  25.5  -76.4   0.7444   1.9    1.4	GRS 1758-258
274.1531 -14.1177   14.1  28.0 -103.1   0.3249   0.8    9.9	GX 17+2
275.7471 -30.4386    8.0  31.6  -70.5   0.6933   1.5   10.2	H1820-303
285.1992 -25.0324    0.0  38.5  -83.1   1.8648   2.4   11.1	HT1900.1-2455
263.0740 -33.9620    6.3  24.4  -51.8  -0.6762  -1.8    8.7	GX 354-0
212.1161 -12.5151    2.8  32.2   77.4   3.2158   4.1 ------	UNKNOWN
253.2239 -68.0705    2.4  52.7  -17.6   3.7699   4.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-83.780000 460.400600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1267 -15.6919    2.1   0.1   45.7  -3.3549  -5.4    9.1	Sco X-1
254.5881  35.3703    5.0  51.8  175.9   4.9072   2.3    6.6	Her X-1
255.8571 -37.6857    3.3  24.0  -34.8  -2.5749  -3.5   11.3	4U 1700-377
256.5771 -36.5826    0.0  23.3  -37.4   0.8008   1.1   11.8	GX 349+2
263.0608 -24.7359    8.0  19.0  -72.4  -1.0340  -1.4    2.9	GX 1+4
264.8057 -44.3085    8.1  33.1  -39.8   1.1670   1.4    8.9	4U 1735-44
268.4195  -1.6051    5.5  26.8 -133.1  -1.6080  -2.1    9.7	SW J1753.5-0127
270.4357 -24.9621  103.9  25.4  -78.2  -0.0863  -0.1   10.8	GX 5-1
270.2930 -25.8666    9.5  25.5  -76.1  -0.9293  -1.2    7.4	GRS 1758-258
273.9078 -14.1451    9.1  27.7 -103.1  -1.1032  -1.3    8.7	GX 17+2
275.7486 -30.4215   22.3  31.6  -70.5  -0.4917  -0.5    9.7	H1820-303
284.8690 -25.0257    4.0  38.2  -83.0   5.0020   2.9   11.1	HT1900.1-2455
263.1470 -33.9366    6.0  24.4  -51.9   1.3853   1.9   10.0	GX 354-0
218.9060 -22.9804    2.0  25.9   55.6   4.8723   5.8 ------	UNKNOWN
244.5947 -34.2946    2.5  18.7  -12.2   2.7989   4.6 ------	UNKNOWN
242.8365 -43.9482    2.1  28.4  -10.2   3.8069   5.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
610.700600 623.700600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4075  35.1459    3.4  39.8   18.0  -0.2430  -3.4   12.0	Her X-1
268.2833  -1.4153   38.6  51.4  -35.1  -0.0413  -0.3    5.6	SW J1753.5-0127
288.6781  10.8613  363.0  30.3  -52.3   0.0017   0.0    8.7	GRS 1915+105
299.7853  35.1519    4.2   4.5  -27.3   0.1172   2.8   10.0	Cyg X-1
308.3205  40.8122    0.0   4.4  139.2  -0.0412  -1.0   12.7	Cyg X-3
325.9590  38.2002   20.8  17.0  177.6  -0.0236  -0.6   12.4	Cyg X-2
303.9463  56.9552    2.7  19.3   95.3   0.2404   4.2 ------	UNKNOWN

Plot creation:
Sat Jan 20 00:51:30 EST 2024
