batgrbproduct Analysis for Trigger=1209644

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Jan 20 00:42:14 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1209644/GCN5_download_cron
======================================================================

  Trigger: 01209644      Segment: 000

  BAT Trigger Time: 727363176   [s; MET]
      Trigger Stop: 727363256   [s; MET]
               UTC: 2024-01-19T13:19:03.240700    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 84.1299834550994   Dec: 22.1064347523534  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    17.29
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    17.29

  Flight Position:   [ source = BAT ]
    RA: 84.1299834550994   Dec: 22.1064347523534  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 84.1178334919076   Dec: 22.1359615169238  [deg; J2000]
        { 05h 36m 28.3s , +22d 08' 09.5" }
         +/- 1.40687829946548 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.505077285047703 [arcmin] (formal 1-sigma fit error)
    SNR: 18.6776974356694

  Angular difference between Flight and Ground position is 1.895960 arcmin

  Partial Coding Fraction: 0.7265625    [ including projection effects ]

  Duration
     T90: 688.463999986649 +/- 20.4989756666153
        Measured from: -45.7759999036789
                   to: 642.68800008297     [s; relative to TRIGTIME]
     T50: 423.807999968529 +/- 15.3773139109558
        Measured from: 107.176000118256
                   to: 530.984000086784     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -124.751999974251
                   to: -123.751999974251     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -135.575999975204
                   to: 692.320000052452     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     9.902428   9.226802   4.316376   0.811131
           0.180601   0.184273   0.155434   0.129422 [error]
 Peak      0.033489   0.027861   0.028112   0.013598
           0.010561   0.010715   0.009382   0.007751 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.32e-06 4.07e-06 3.61e-06 5.53e-06 1.29e-05 1.65e-05   erg/cm2
              Error 1.78e-07 1.21e-07 1.68e-07 5.59e-07 3.84e-07 6.84e-07   erg/cm2
Peak flux Power-law 2.34e-01 1.81e-01 9.44e-02 7.11e-02 5.42e-01 5.81e-01   ph/cm2/s
              Error 1.40e-01 8.38e-02 5.54e-02 8.14e-02 2.52e-01 2.67e-01   ph/cm2/s

Fluence   Cutoff-PL 3.33e-06 4.07e-06 3.61e-06 5.46e-06 1.29e-05 1.65e-05   erg/cm2
              Error 1.90e-07 1.20e-07 1.69e-07 1.03e-06 3.94e-07 1.14e-06   erg/cm2
Peak flux Cutoff-PL 2.00e-01 2.53e-01 9.35e-02 6.35e-03 5.53e-01 5.53e-01   ph/cm2/s
              Error 1.52e-01 1.29e-01 9.07e-02 3.07e-02 2.49e-01 2.50e-01   ph/cm2/s

Fluence        Band 3.16e-06 4.27e-06 3.43e-06 3.96e-06 1.24e-05 1.49e-05   erg/cm2
              Error -------- -------- 3.38e-07 -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.172    0.063    -      -           2.13e-03 6.93e-05   54.740 57
CPL   1.995   -0.939       1.5    0.7      2.59e-03 1.24e-04   56.910 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.939    0.670    -      -           3.71e-03 1.85e-03   59.320 57
CPL  -0.395    5.591      42.2  -12.2      8.98e-02 0.00e+00   57.430 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.320000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  827.896 -135.576  692.320
T90   688.464  -45.776  642.688
T50   423.808  107.176  530.984
Peak    1.000 -124.752 -123.752

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   84.1178 +22.1360 0.0103   30.4 -143.3       3.1244    18.7  TRIG_01209644
------------------------------------------

Foreground time interval of the image:
-14.699  32.000 (delta_t =  46.699 [sec])
 42.000  60.950 (delta_t =  18.950 [sec])
 61.000  72.230 (delta_t =  11.230 [sec])
 73.000  73.838 (delta_t =   0.838 [sec])
 82.000  88.201 (delta_t =   6.201 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

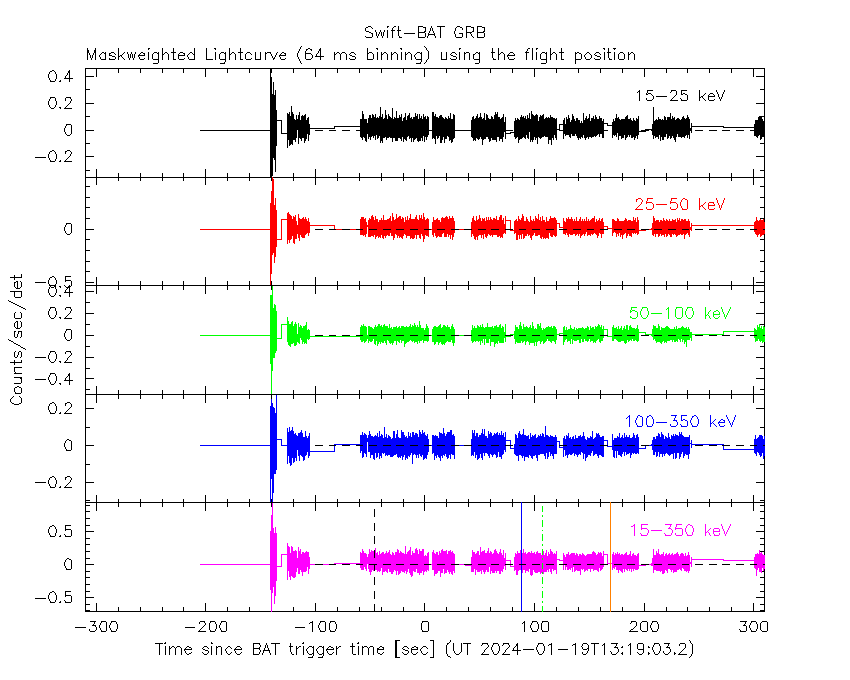

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 80.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 80.000000

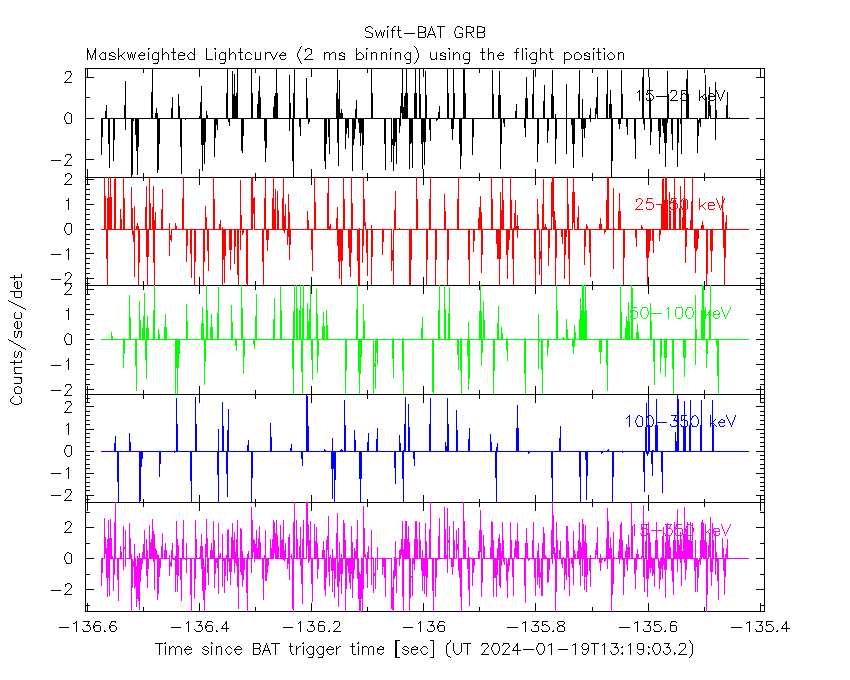

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 80.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

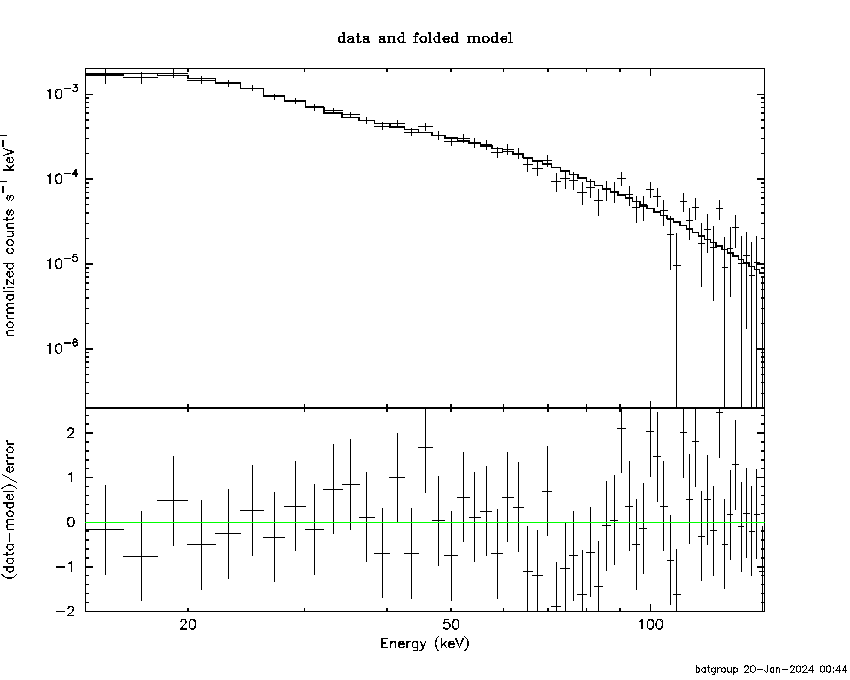

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-135.576000 -135.420000
-126.000000 -116.827700
-116.000000 -113.940000
-113.000000 -107.870000
-107.000000 -105.670000
-59.000000 -53.113500
-52.000000 32.000000
42.000000 60.950000
61.000300 72.230000
73.000000 73.838300
82.000000 120.390000
126.000000 127.278100
128.000000 162.860000
171.000000 173.150000
174.000000 195.140000
207.000000 241.710000
243.000000 243.126200
301.000000 316.360000
326.000000 344.840000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.17204     ( -0.0628551   0.0635793 )
Norm@50keV  : 2.12536E-03    ( -6.95243e-05   6.91246e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.74 using 59 PHA bins.
# Reduced chi-squared =         0.9604 for     57 degrees of freedom
# Null hypothesis probability =   5.601898e-01

Photon flux (15-150 keV)    in 649.1 sec: 0.346770 ( -0.0116892  0.0117688 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.29222e-05 ( -3.84e-07  3.84837e-07 ) ergs/cm2

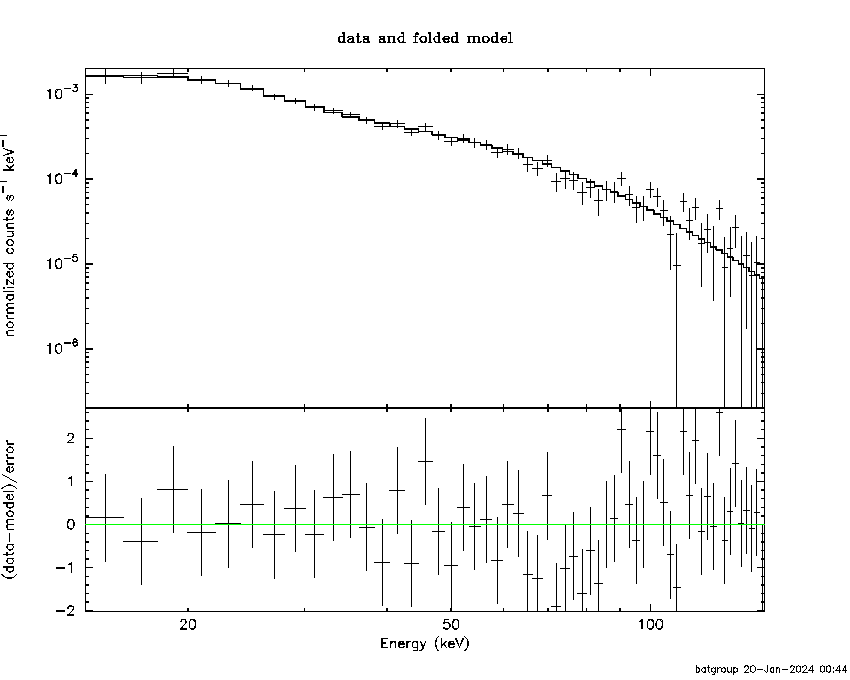

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-135.576000 -135.420000
-126.000000 -116.827700
-116.000000 -113.940000
-113.000000 -107.870000
-107.000000 -105.670000
-59.000000 -53.113500
-52.000000 32.000000
42.000000 60.950000
61.000300 72.230000
73.000000 73.838300
82.000000 120.390000
126.000000 127.278100
128.000000 162.860000
171.000000 173.150000
174.000000 195.140000
207.000000 241.710000
243.000000 243.126200
301.000000 316.360000
326.000000 344.840000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99470     ( -0.117608   -1.9947 )
Epeak [keV] : 1.52680      ( -0.438054 0.952199 )
Norm@50keV  : 2.58667E-03    ( -8.17015e-05   0.000165795 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.91 using 59 PHA bins.
# Reduced chi-squared =          1.016 for     56 degrees of freedom
# Null hypothesis probability =   4.410672e-01

Photon flux (15-150 keV)    in 649.1 sec: 0.346893 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.29203e-05 ( -4.12373e-07  3.76153e-07 ) ergs/cm2

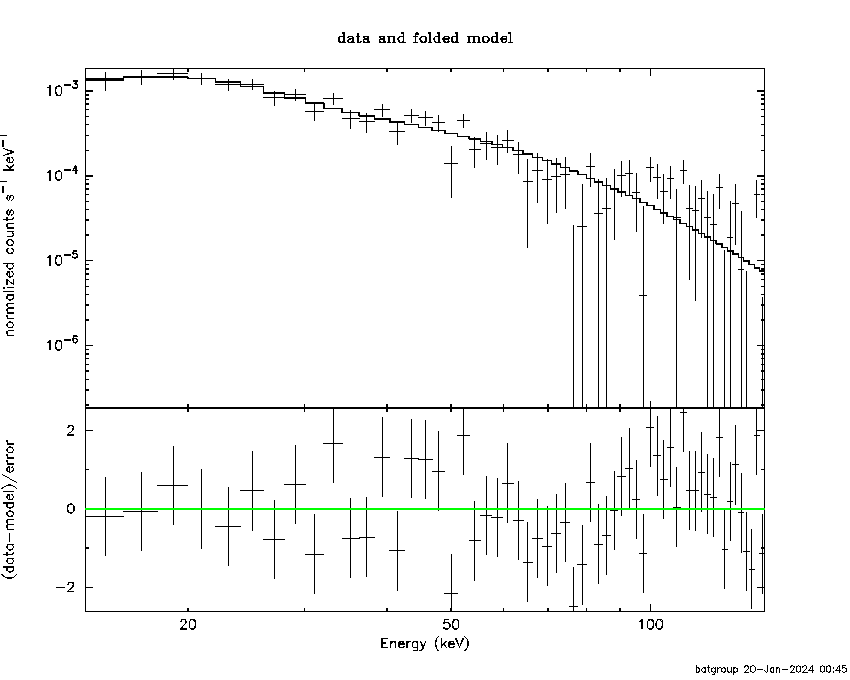

Band function

Multiple GTIs in the spectrum
tstart tstop
-135.576000 -135.420000
-126.000000 -116.827700
-116.000000 -113.940000
-113.000000 -107.870000
-107.000000 -105.670000
-59.000000 -53.113500
-52.000000 32.000000
42.000000 60.950000
61.000300 72.230000
73.000000 73.838300
82.000000 120.390000
126.000000 127.278100
128.000000 162.860000
171.000000 173.150000
174.000000 195.140000
207.000000 241.710000
243.000000 243.126200
301.000000 316.360000
326.000000 344.840000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.75728   ( 1.58961   1.58961 )
beta        : -2.20619    ( -0.200931   0.0856434 )
Epeak [keV] : 19.2968      ( -21.2736 8.79693 )
Norm@50keV   : 3.88963E-03    ( -0.0010456   1316.71 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.11 using 59 PHA bins.
# Reduced chi-squared =         0.9838 for     55 degrees of freedom
# Null hypothesis probability =   5.085663e-01

Photon flux (15-150 keV)    in 649.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.24382e-05 ( 0  0 ) ergs/cm2

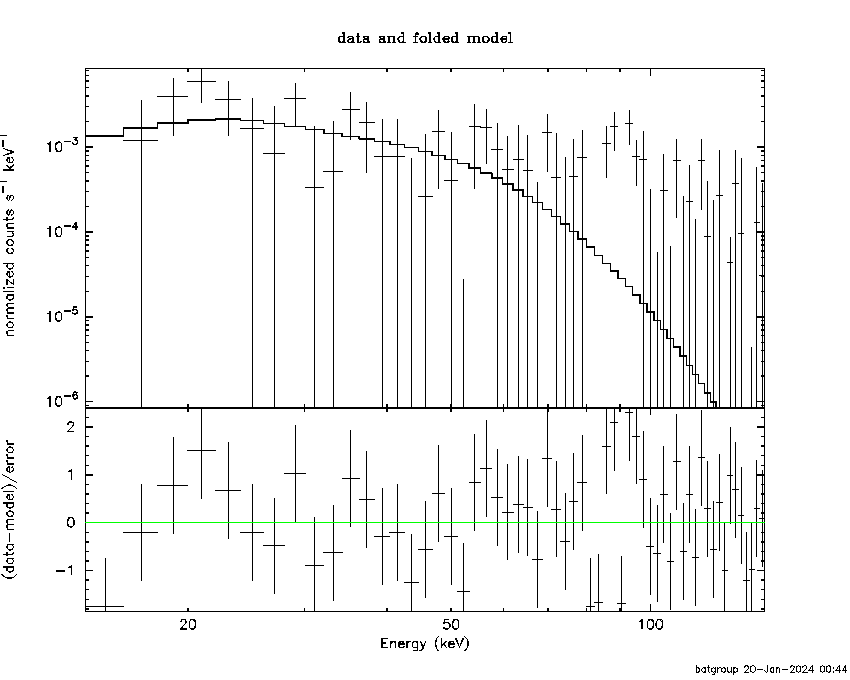

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.6437  (  )
R^2/D10^2   : 0.110771  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         332.38 using 59 PHA bins.
# Reduced chi-squared =         5.8312 for     57 degrees of freedom
# Null hypothesis probability =   1.623122e-40

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.690e-06   9.996e-08
25- 50  4.576e-06   1.516e-07
50-150  2.853e-06   1.928e-07
15-150  9.119e-06   2.726e-07

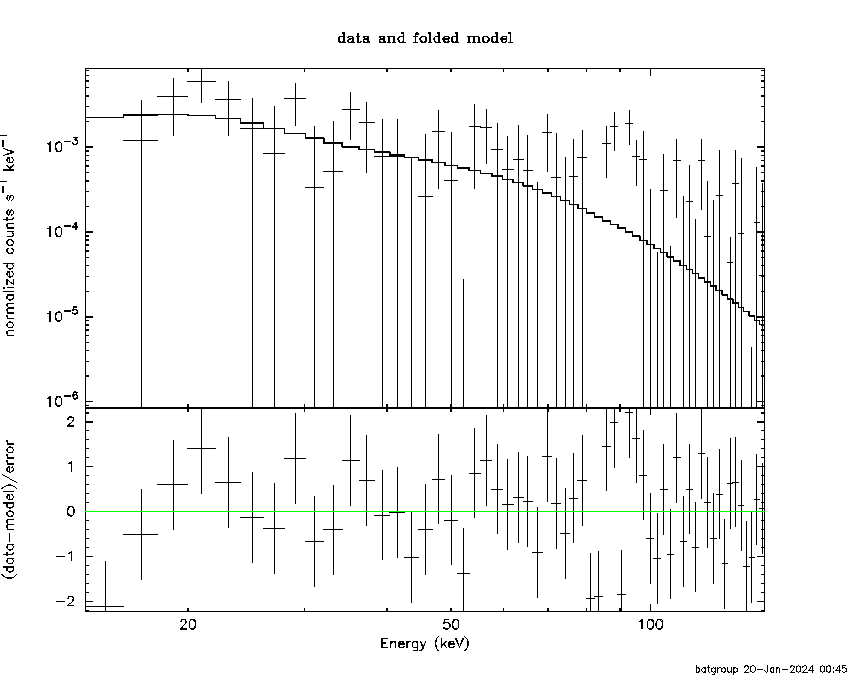

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 60.7886       (-5.36071      6.17158)
Norm        : 1.69823       (-0.102852     0.111179)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.776e-06   1.405e-07
25- 50  4.242e-06   1.314e-07
50-150  4.879e-06   3.184e-07
15-150  1.190e-05   3.473e-07

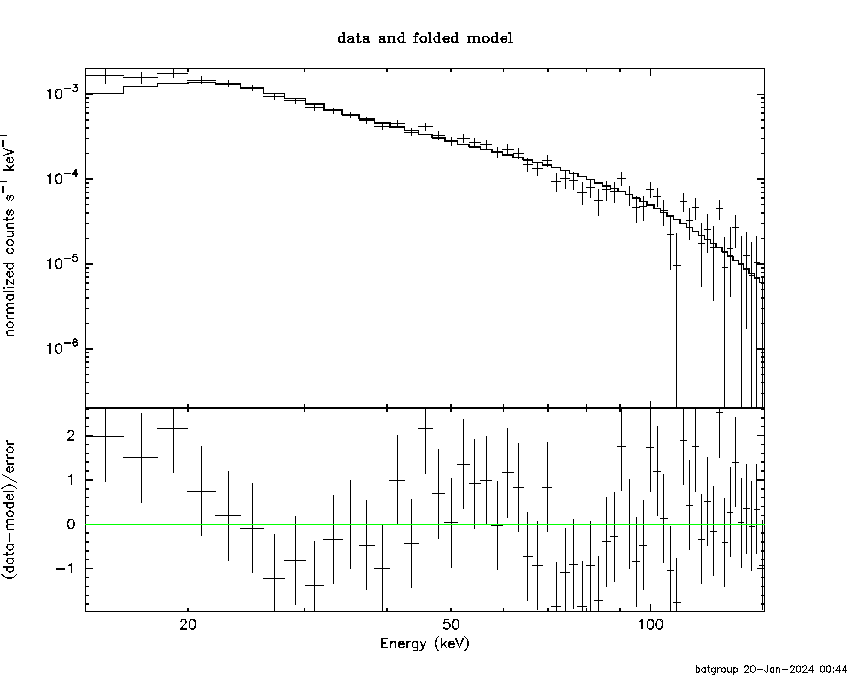

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.74372        (-0.609211      0.607737)
R1^2/D10^2  : 0.548718        (-0.149934      0.23988)
kT2 [keV]   : 25.5150        (-3.78821      5.25463)
R2^2/D10^2  : 2.53909E-03    (-0.00122226   0.00216199)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.684e-06   2.210e-07
25- 50  4.237e-06   2.295e-07
50-150  5.545e-06   7.585e-07
15-150  1.247e-05   8.828e-07

Peak spectrum fit

Power-law model

Time interval is from -124.752 sec. to -123.752 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.93896     ( -0.618215   0.721227 )
Norm@50keV  : 3.71353E-03    ( -0.00188072   0.0018265 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.32 using 59 PHA bins.
# Reduced chi-squared =          1.041 for     57 degrees of freedom
# Null hypothesis probability =   3.911286e-01

Photon flux (15-150 keV)    in 1 sec: 0.542143 ( -0.25177  0.252868 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.41433e-08 ( -1.6466e-08  1.68726e-08 ) ergs/cm2

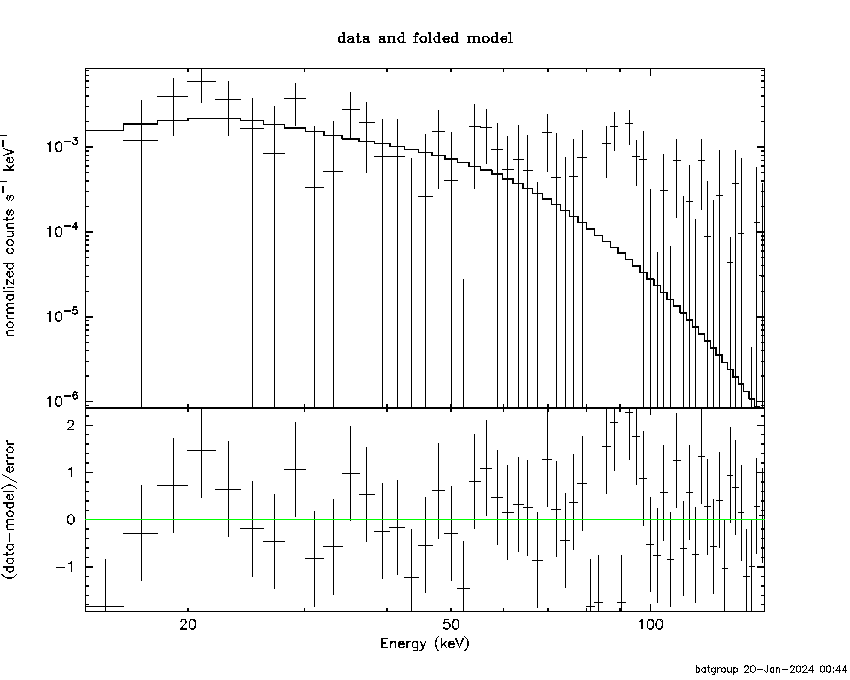

Cutoff power-law model

Time interval is from -124.752 sec. to -123.752 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.395021     ( -8.52549   2.65712 )
Epeak [keV] : 42.1764      ( -17.2366 -41.7193 )
Norm@50keV  : 8.97820E-02    ( -0.112486   -0.112486 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.43 using 59 PHA bins.
# Reduced chi-squared =          1.026 for     56 degrees of freedom
# Null hypothesis probability =   4.219570e-01

Photon flux (15-150 keV)    in 1 sec: 0.552770 ( -0.246488  0.252314 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.14444e-08 ( -1.6765e-08  1.84754e-08 ) ergs/cm2

Band function

Time interval is from -124.752 sec. to -123.752 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -6.90448   -5 )
beta        : -2.59244    ( 2.593   0.920072 )
Epeak [keV] : 28.0563      ( -13.973 13.3071 )
Norm@50keV   : 350.131    ( -145.514   9284.49 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.40 using 59 PHA bins.
# Reduced chi-squared =          1.026 for     55 degrees of freedom
# Null hypothesis probability =   4.221823e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.41833e-08 ( -3.41763e-08  -1.66738e-08 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.2108  (-3.89137  6.26409)
R^2/D10^2   : 0.274729  (-0.274729   1.40896)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.873e-09   3.869e-09
25- 50  1.503e-08   9.625e-09
50-150  8.333e-09   6.460e-09
15-150  2.924e-08   1.859e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 69.7030       (-44.0719      -69.703)
Norm        : 2.86994       (-1.46366     2.58444)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.360e-09   4.902e-09
25- 50  1.170e-08   7.655e-09
50-150  1.498e-08   1.347e-08
15-150  3.403e-08   2.427e-08

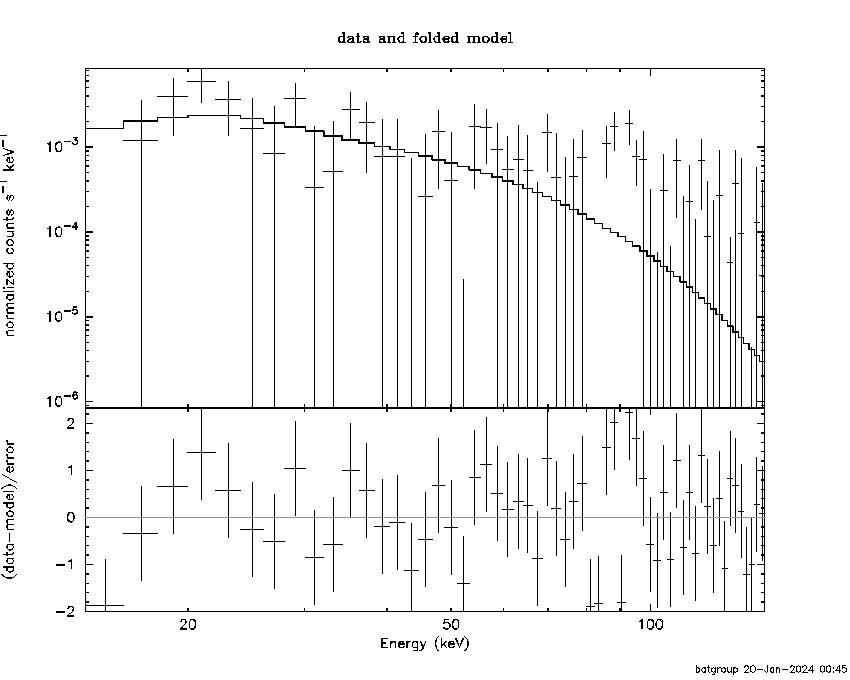

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.49558        (-7.49443      -7.49443)
R1^2/D10^2  : 0.615270        (-0.615745      -0.615745)
kT2 [keV]   : 18.0589        (-18.0558      -18.0558)
R2^2/D10^2  : 1.50555E-02    (-0.0150731   1.40962)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.912e-09   5.110e-09
25- 50  1.379e-08   1.290e-08
50-150  1.273e-08   9.810e-09
15-150  3.344e-08   2.635e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.05846     ( -0.127618   0.131527 )
Norm@50keV  : 2.15643E-03    ( -0.000176059   0.000173295 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.80 using 59 PHA bins.
# Reduced chi-squared =          1.277 for     57 degrees of freedom
# Null hypothesis probability =   7.743072e-02

Photon flux (15-150 keV)    in 83.92 sec: 0.332474 ( -0.0221894  0.0222154 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.67527e-06 ( -1.25637e-07  1.26967e-07 ) ergs/cm2

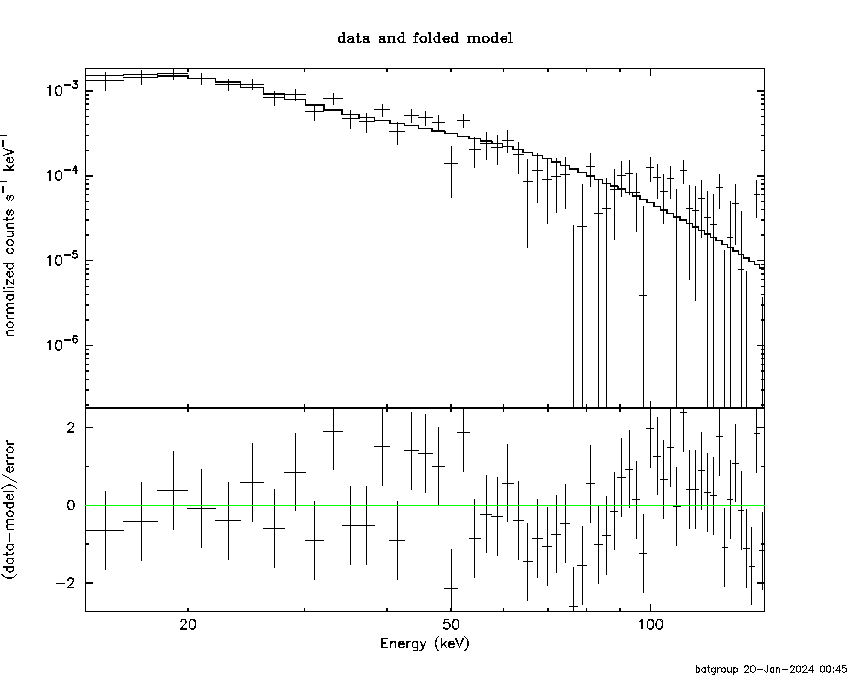

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.96584     ( -0.536988   0.262461 )
Epeak [keV] : 16.0000      ( -12.7491 -13.7046 )
Norm@50keV  : 2.43161E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.76 using 59 PHA bins.
# Reduced chi-squared =          1.299 for     56 degrees of freedom
# Null hypothesis probability =   6.546567e-02

Photon flux (15-150 keV)    in 83.92 sec: 0.331448 ( -0.023619  0.023099 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.66477e-06 ( -1.57535e-07  1.35514e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.38877   ( 1.3886   1.3886 )
beta        : -2.23983    ( 2.24288   0.269553 )
Epeak [keV] : 32.4757      ( -32.5337 17.0533 )
Norm@50keV   : 5.62837E-03    ( -0.00277728   693.523 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.22 using 59 PHA bins.
# Reduced chi-squared =          1.295 for     55 degrees of freedom
# Null hypothesis probability =   6.968263e-02

Photon flux (15-150 keV)    in 83.92 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.07e-06
S(50-100 keV) = 3.61e-06

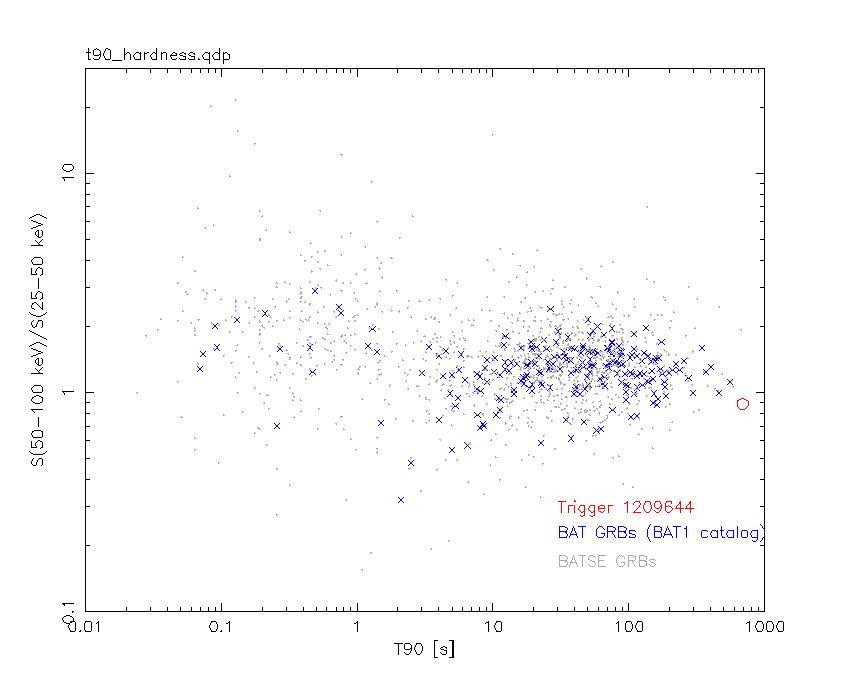

T90 vs. Hardness ratio plot

T90                                   = 688.463999986649 sec.
Hardness ratio (energy fluence ratio) = 0.886978

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.931772
Count Ratio (50-100 keV) / (15-25 keV) = 0.435891

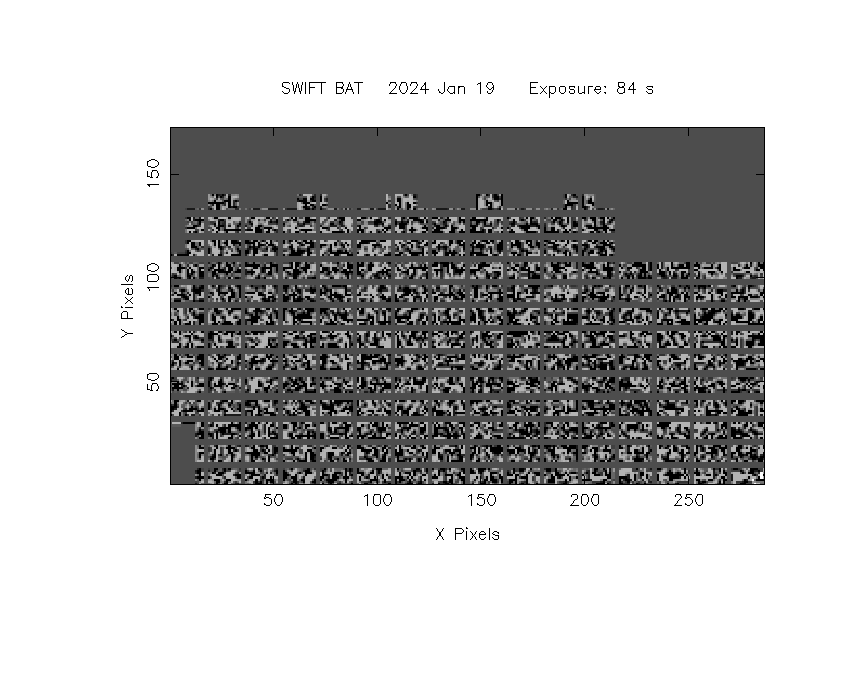

Mask shadow pattern

IMX = -4.706624475460036E-01, IMY = 3.502518848078882E-01

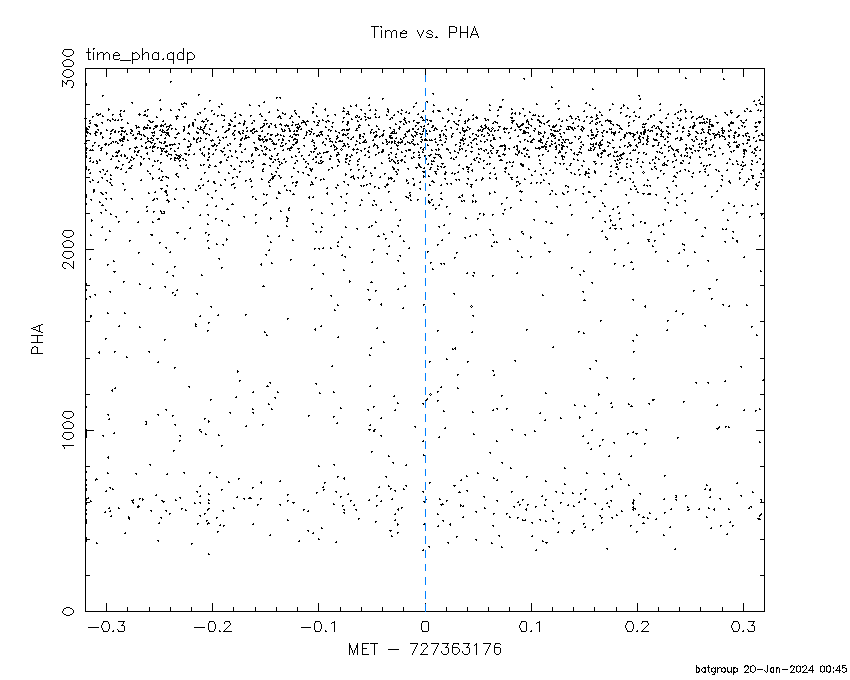

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 80.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 80.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 80.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-14.699400 0.724000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6387  21.9457    5.1  30.9 -143.2  -0.1310  -2.3    4.1	Crab
138.6773  29.0903    2.2  20.0   60.9   0.2953   5.2 ------	UNKNOWN
195.0772  67.7788    2.7  54.5  -10.9   0.7013   4.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-14.699400 32.000000
42.000000 60.950000
61.000300 72.230000
73.000000 73.838300
82.000000 88.200600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.4514  21.9390    0.0  31.0 -143.1   0.1707   1.0   11.1	Crab
138.7295  29.0892    2.5  20.1   60.9   0.7872   4.6 ------	UNKNOWN
 84.1177  22.1359    0.6  30.4 -143.3   3.1352  18.8 ------	UNKNOWN
 75.3213  -4.4658    2.6  54.5 -165.2   2.0261   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
171.000000 173.150000
174.000000 195.140000
207.000000 241.710000
243.000000 243.126200
301.000000 316.360000
326.000000 344.840000
348.000000 350.150000
351.000000 447.200600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.7906  22.0726    2.6   0.3  -93.2   1.3982   4.5    9.4	Crab
 95.5742 -23.7826    3.5  47.2  170.0   2.9295   3.3 ------	UNKNOWN
 40.2396  19.6307    2.4  40.9  -80.8   5.2392   4.8 ------	UNKNOWN
 50.5076 -12.8028    2.6  48.0 -129.1   6.3088   4.5 ------	UNKNOWN

Plot creation:
Sat Jan 20 00:45:30 EST 2024
