batgrbproduct Analysis for Trigger=1215857

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Feb 18 18:41:04 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1215857/GCN5_download_cron
======================================================================

  Trigger: 01215857      Segment: 000

  BAT Trigger Time: 729885600   [s; MET]
      Trigger Stop: 729885728   [s; MET]
               UTC: 2024-02-17T17:59:27.068020    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 83.3800711888627   Dec: 21.8556273697893  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.75
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.75

  Flight Position:   [ source = BAT ]
    RA: 83.3800711888627   Dec: 21.8556273697893  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 83.3707076714146   Dec: 21.8470552804559  [deg; J2000]
        { 05h 33m 29.0s , +21d 50' 49.4" }
         +/- 1.9718618673176 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.895784234133547 [arcmin] (formal 1-sigma fit error)
    SNR: 11.5309809203586

  Angular difference between Flight and Ground position is 0.732419 arcmin

  Partial Coding Fraction: 0.171875    [ including projection effects ]

  Duration
     T90: 387.699999928474 +/- 39.7749589624995
        Measured from: -68.9079998731613
                   to: 318.792000055313     [s; relative to TRIGTIME]
     T50: 212.539999961853 +/- 46.9119667033133
        Measured from: 8.64000010490417
                   to: 221.180000066757     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 335.212000012398
                   to: 336.212000012398     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -85.8240000009537
                   to: 336.167999982834     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     5.618286   5.654377   3.675932   0.574779
           0.353815   0.362762   0.306255   0.255129 [error]
 Peak      0.190744   0.021610  -0.004723   0.020858
           0.025012   0.018920   0.014775   0.013408 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.30e-06 2.90e-06 2.66e-06 4.28e-06 9.31e-06 1.21e-05   erg/cm2
              Error 2.51e-07 2.03e-07 3.06e-07 9.96e-07 7.11e-07 1.30e-06   erg/cm2
Peak flux Power-law 2.50e+00 2.70e-01 1.21e-02 5.65e-04 2.79e+00 2.79e+00   ph/cm2/s
              Error 6.10e-01 1.65e-01 1.95e-02 1.84e-03 7.00e-01 7.00e-01   ph/cm2/s

Fluence   Cutoff-PL 2.21e-06 2.98e-06 2.69e-06 2.92e-06 9.17e-06 1.08e-05   erg/cm2
              Error 2.99e-07 2.52e-07 3.22e-07 1.83e-06 7.64e-07 2.06e-06   erg/cm2
Peak flux Cutoff-PL 3.00e+00 8.21e-02 1.02e-07 3.58e-22 3.08e+00 3.08e+00   ph/cm2/s
              Error 6.91e-01 8.27e-02 7.27e-05 0.00e+00 7.10e-01 7.10e-01   ph/cm2/s

Fluence        Band 2.16e-06 2.99e-06 2.70e-06 2.66e-06 9.11e-06 1.05e-05   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 1.07e-01 1.60e-01 1.48e-01 1.24e-01 4.77e-01 5.32e-01   ph/cm2/s
              Error 1.89e-01 -------- 1.59e-01 -------- 4.11e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.122    0.136    -      -           2.37e-03 1.97e-04   66.120 57
CPL   1.860    0.433      25.5    0.0      3.26e-03 0.00e+00   65.290 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.480    1.089    -      -           1.13e-03 1.50e-03   63.220 57
CPL   1.000    0.000      50.0    0.0      1.94e-02 0.00e+00  100.800 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  421.992  -85.824  336.168
T90   387.700  -68.908  318.792
T50   212.540    8.640  221.180
Peak    1.000  335.212  336.212

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   83.3707 +21.8471 0.0167   51.5   -1.4      13.2256    11.5  TRIG_01215857
------------------------------------------

Foreground time interval of the image:
-13.799  73.330 (delta_t =  87.129 [sec])
 74.000 336.168 (delta_t = 262.168 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

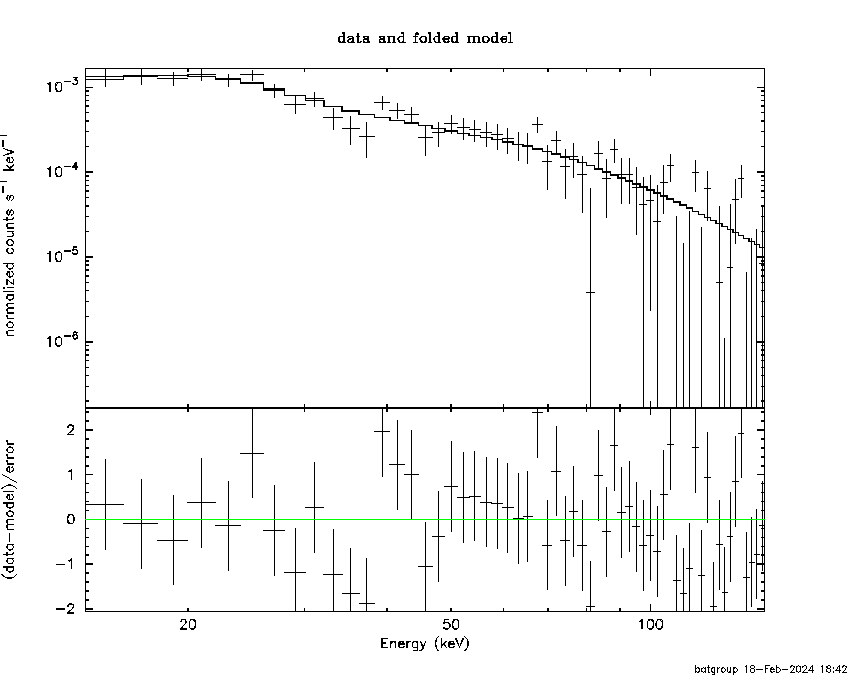

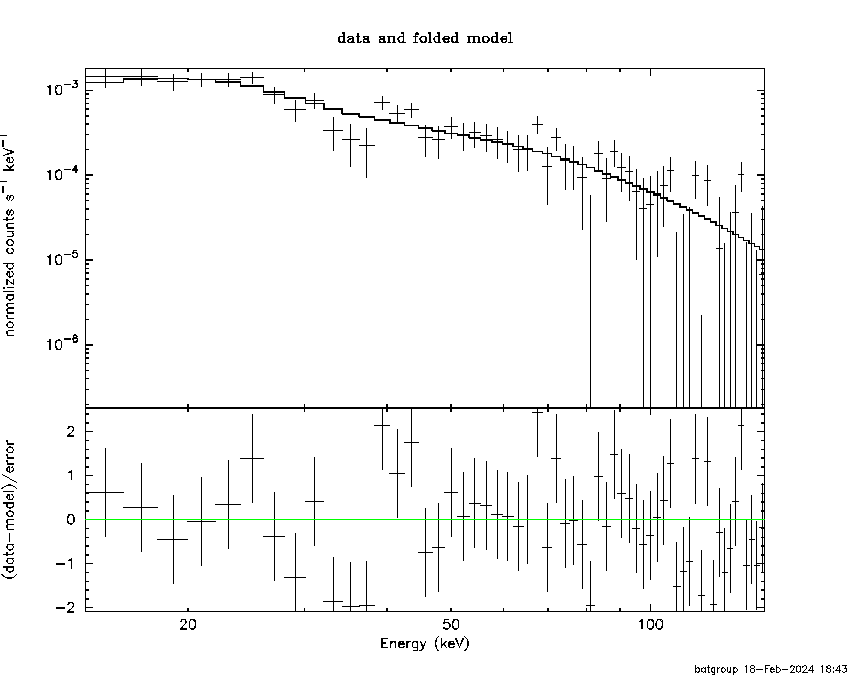

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-85.824000 73.330000
74.000000 336.168000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.12167     ( -0.133152   0.138639 )
Norm@50keV  : 2.37389E-03    ( -0.00019912   0.000195701 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.12 using 59 PHA bins.
# Reduced chi-squared =          1.160 for     57 degrees of freedom
# Null hypothesis probability =   1.910623e-01

Photon flux (15-150 keV)    in 421.3 sec: 0.377519 ( -0.0278065  0.0279304 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.31267e-06 ( -7.08652e-07  7.12481e-07 ) ergs/cm2

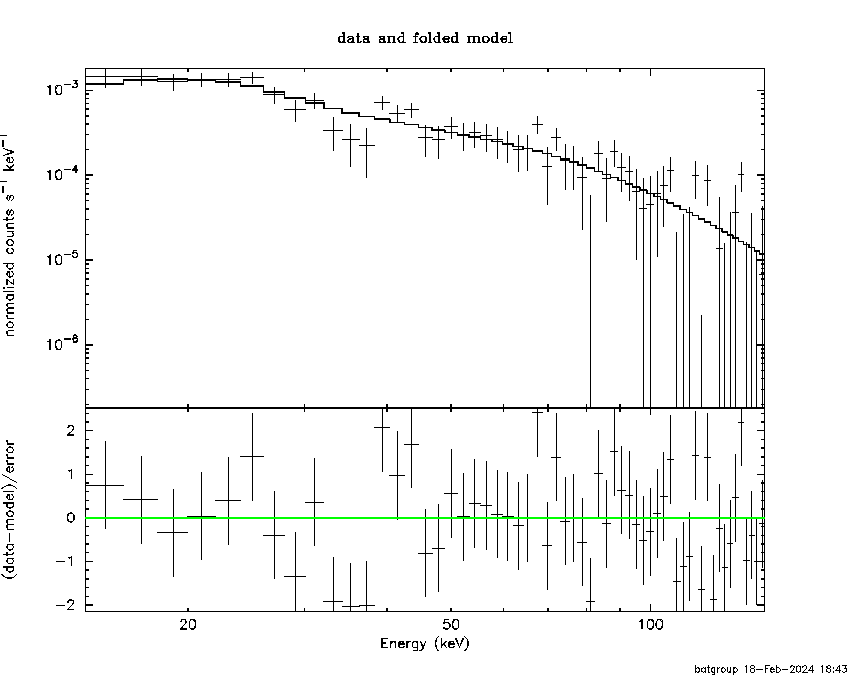

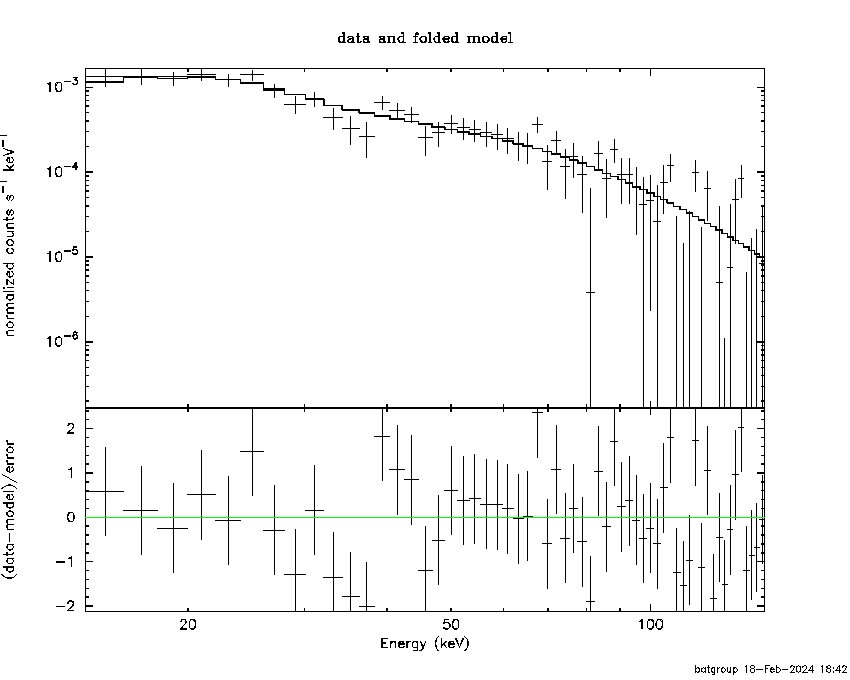

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-85.824000 73.330000
74.000000 336.168000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.85956     ( -0.536389   0.330252 )
Epeak [keV] : 25.4515      (   )
Norm@50keV  : 3.26090E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.29 using 59 PHA bins.
# Reduced chi-squared =          1.166 for     56 degrees of freedom
# Null hypothesis probability =   1.850883e-01

Photon flux (15-150 keV)    in 421.3 sec: 0.372033 ( -0.029478  0.029532 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.16517e-06 ( -7.62764e-07  7.64617e-07 ) ergs/cm2

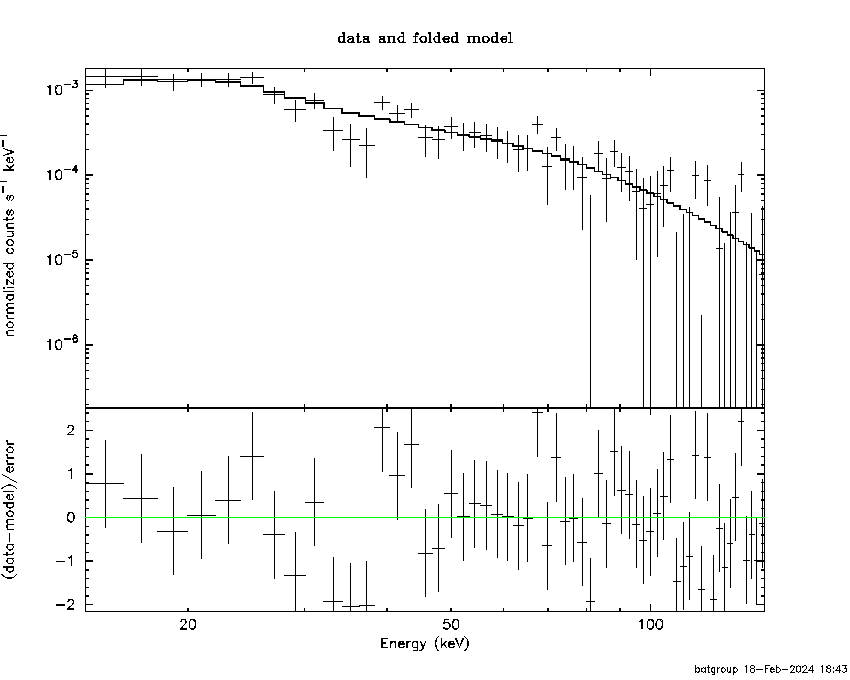

Band function

Multiple GTIs in the spectrum
tstart tstop
-85.824000 73.330000
74.000000 336.168000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.85897   ( 1.83755   0.529119 )
beta        : -10.0000    ( 10   5.32907e-15 )
Epeak [keV] : 25.4882      ( -13.6429 26.4116 )
Norm@50keV   : 3.26263E-03    ( -0.000847457   0.00289049 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.29 using 59 PHA bins.
# Reduced chi-squared =          1.187 for     55 degrees of freedom
# Null hypothesis probability =   1.613439e-01

Photon flux (15-150 keV)    in 421.3 sec: 0.372934 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.11263e-06 ( 0  0 ) ergs/cm2

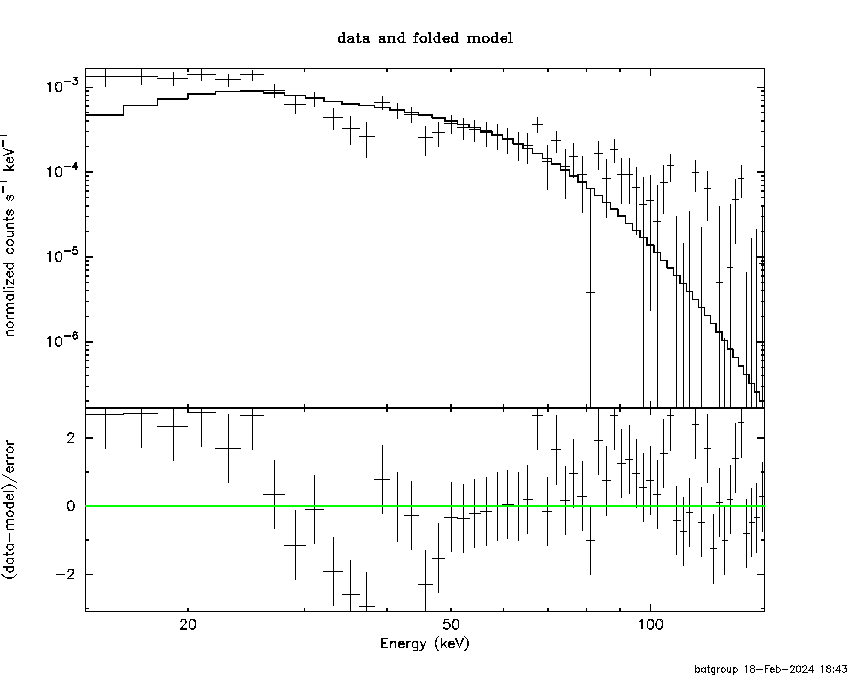

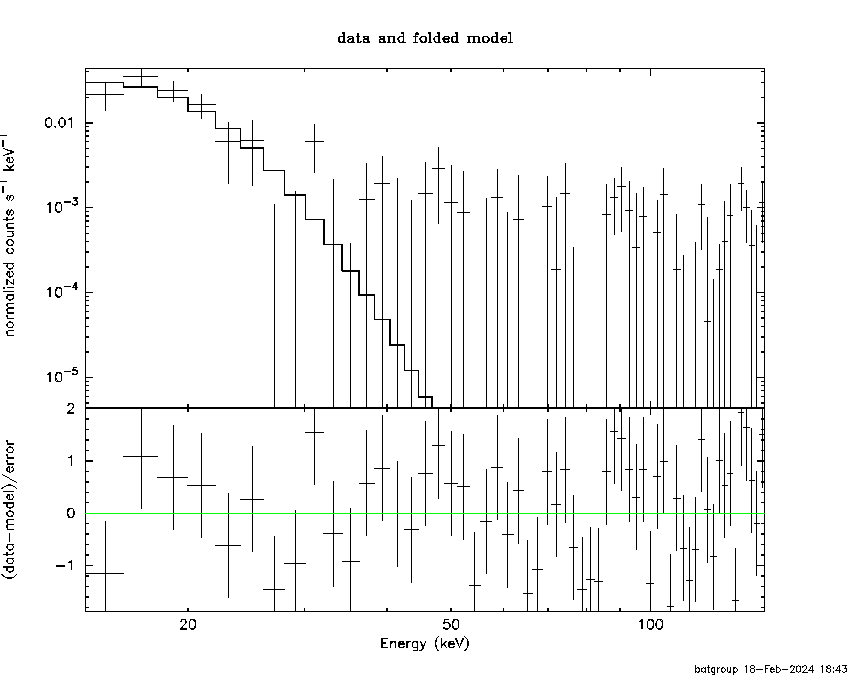

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.3511  (  )
R^2/D10^2   : 0.101231  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         125.65 using 59 PHA bins.
# Reduced chi-squared =         2.2043 for     57 degrees of freedom
# Null hypothesis probability =   4.440355e-07

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.155e-06   1.567e-07
25- 50  3.397e-06   3.101e-07
50-150  2.532e-06   3.865e-07
15-150  7.083e-06   6.025e-07

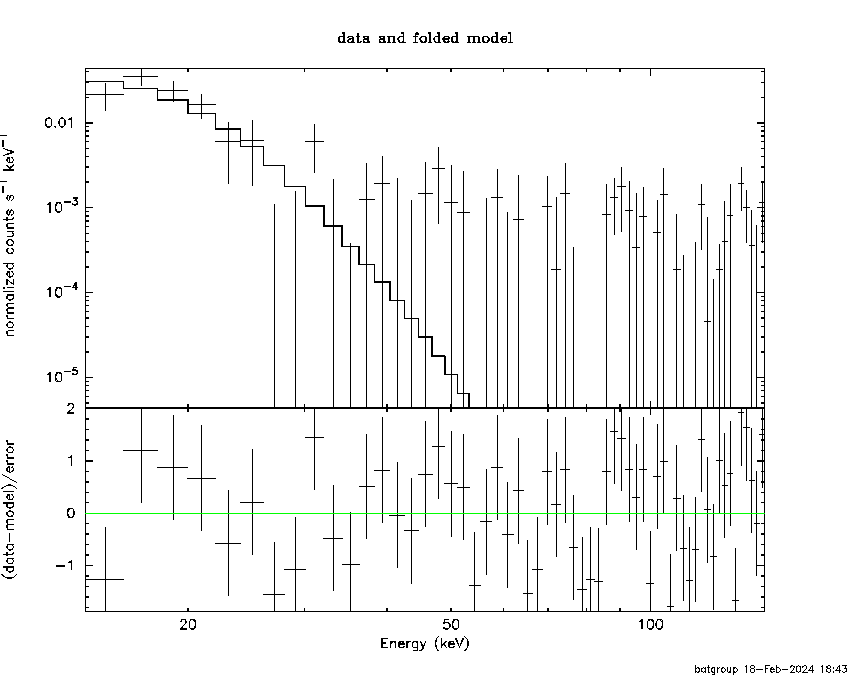

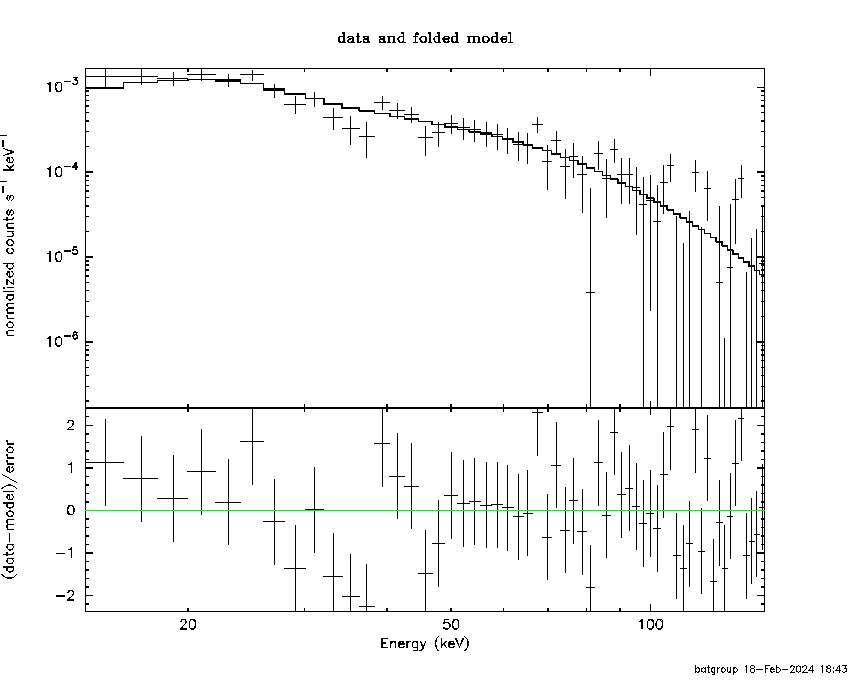

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 65.1653       (-12.1452      16.1771)
Norm        : 1.85760       (-0.220501     0.255651)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.991e-06   1.974e-07
25- 50  3.105e-06   2.393e-07
50-150  3.776e-06   5.793e-07
15-150  8.873e-06   7.689e-07

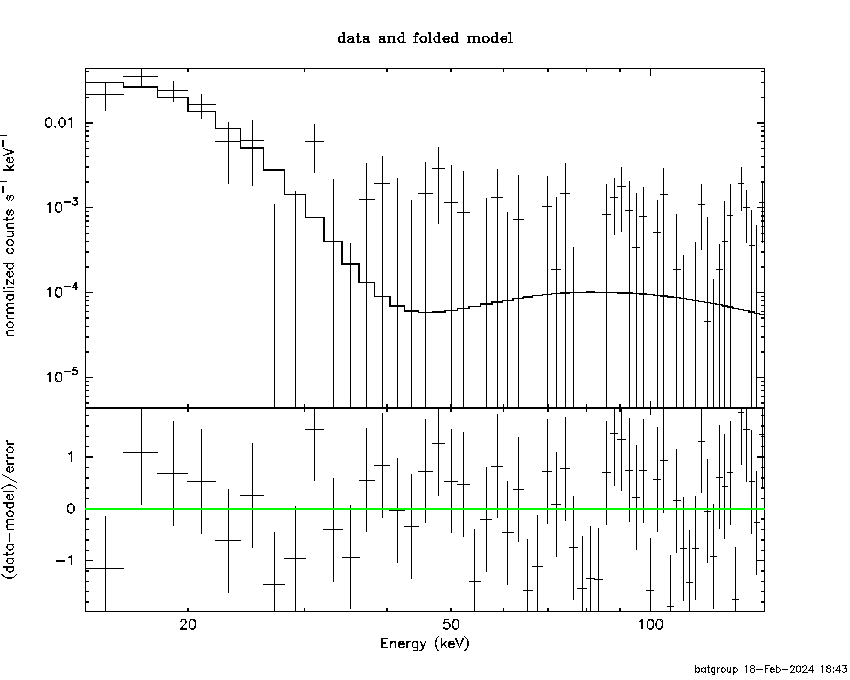

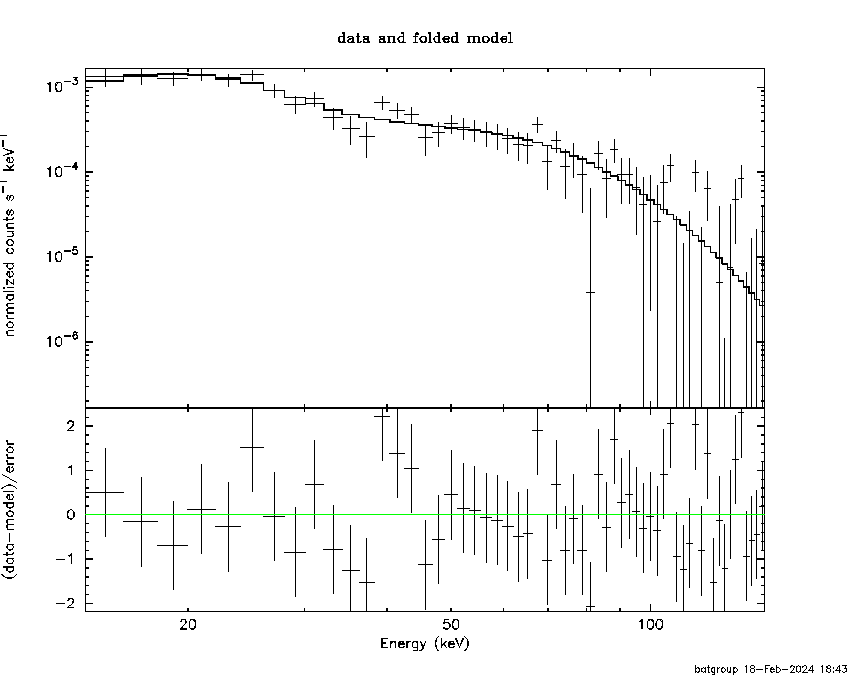

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.26227        (-0.751179      0.917036)
R1^2/D10^2  : 3.71739        (-2.18416      6.05798)
kT2 [keV]   : 16.8935        (-2.08786      2.72249)
R2^2/D10^2  : 1.76300E-02    (-0.00817205   0.0128442)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.354e-06   8.894e-07
25- 50  2.732e-06   5.441e-07
50-150  3.886e-06   7.838e-07
15-150  8.972e-06   1.742e-06

Peak spectrum fit

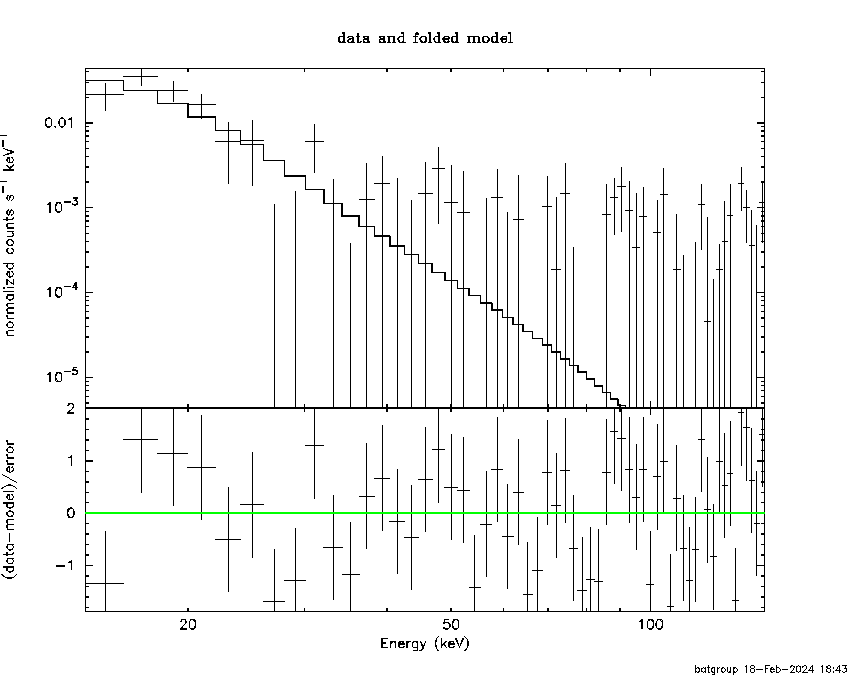

Power-law model

Time interval is from  335.212 sec. to  336.212 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.48040     ( -0.981232   1.19764 )
Norm@50keV  : 1.13388E-03    ( -0.00113409   0.00187201 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.22 using 59 PHA bins.
# Reduced chi-squared =          1.109 for     57 degrees of freedom
# Null hypothesis probability =   2.661811e-01

Photon flux (15-150 keV)    in 1 sec: 2.78555 ( -0.69925  0.70039 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.6143e-08 ( -2.33079e-08  2.4119e-08 ) ergs/cm2

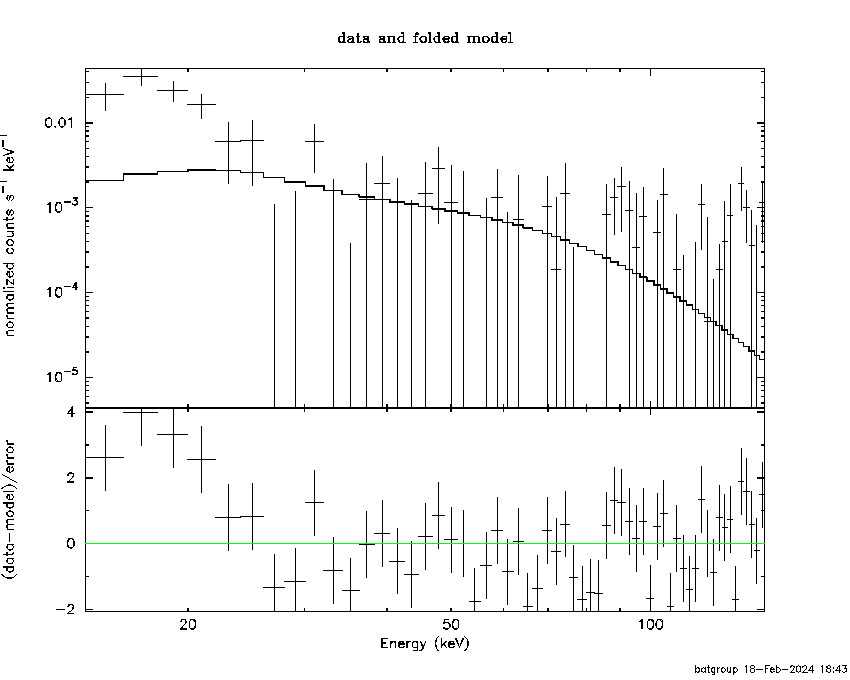

Cutoff power-law model

Time interval is from  335.212 sec. to  336.212 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.93783E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         100.80 using 59 PHA bins.
# Reduced chi-squared =         1.8000 for     56 degrees of freedom
# Null hypothesis probability =   2.265430e-04

Photon flux (15-150 keV)    in 1 sec: 3.07798 3.08605 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.02929e-15 ( 0  0 ) ergs/cm2

Band function

Time interval is from  335.212 sec. to  336.212 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.28646   ( 8.28646   8.28646 )
beta        : -5.50153    ( -1.17861   1.00029 )
Epeak [keV] : 2.66314      ( -2.66314 -2.66314 )
Norm@50keV   : 0.150588    ( -0.151837   0.256773 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.22 using 59 PHA bins.
# Reduced chi-squared =          1.149 for     55 degrees of freedom
# Null hypothesis probability =   2.088007e-01

Photon flux (15-150 keV)    in 1 sec: 0.477241 0.378899 0.388960 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.53841  (-0.425421  0.514129)
R^2/D10^2   : 1315.31  (-1316.2   3817.79)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.054e-08   4.787e-08
25- 50  6.295e-09   3.967e-09
50-150  2.307e-12   2.803e-12
15-150  8.684e-08   4.936e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.67593       (-1.19605      1.77312)
Norm        : 852.590       (-852.577     2013.33)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.720e-08   4.325e-08
25- 50  8.351e-09   5.500e-09
50-150  3.053e-11   3.436e-11
15-150  8.558e-08   4.872e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.53868        (-0.452445      0.546134)
R1^2/D10^2  : 1312.66        (-946.137      2089.56)
kT2 [keV]   : 199.363        (-199.363      -199.363)
R2^2/D10^2  : 3.78379E-05    (-3.79514e-05   -3.79514e-05)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.045e-08   4.567e-08
25- 50  6.351e-09   4.039e-09
50-150  1.697e-09   2.925e-12
15-150  8.850e-08   5.010e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.10316     ( -0.15155   0.158854 )
Norm@50keV  : 2.41036E-03    ( -0.000230492   0.000225678 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.73 using 59 PHA bins.
# Reduced chi-squared =          1.206 for     57 degrees of freedom
# Null hypothesis probability =   1.373366e-01

Photon flux (15-150 keV)    in 349.3 sec: 0.379804 ( -0.0316099  0.0317464 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.82491e-06 ( -6.80346e-07  6.84551e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.96645     ( -0.57732   0.0491342 )
Epeak [keV] : 11.8550      ( -9.3337 -11.8171 )
Norm@50keV  : 2.84029E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.58 using 59 PHA bins.
# Reduced chi-squared =          1.225 for     56 degrees of freedom
# Null hypothesis probability =   1.207254e-01

Photon flux (15-150 keV)    in 349.3 sec: 0.377192 ( -0.033378  0.033289 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.76979e-06 ( -7.26195e-07  7.20571e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.94910   ( 1.94909   0.220173 )
beta        : -9.37160    ( 9.37167   19.3717 )
Epeak [keV] : 16.4796      ( -16.4579 -16.4579 )
Norm@50keV   : 2.88652E-03    ( -0.000460052   0.000810616 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.58 using 59 PHA bins.
# Reduced chi-squared =          1.247 for     55 degrees of freedom
# Null hypothesis probability =   1.031061e-01

Photon flux (15-150 keV)    in 349.3 sec: 0.340096 ( 6.6599  -0.021595 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.90e-06
S(50-100 keV) = 2.66e-06

T90 vs. Hardness ratio plot

T90                                   = 387.699999928474 sec.
Hardness ratio (energy fluence ratio) = 0.917241

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.00642
Count Ratio (50-100 keV) / (15-25 keV) = 0.65428

Mask shadow pattern

IMX = 1.256687739375743E+00, IMY = 3.006687871299524E-02

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-13.799400 73.330000
74.000000 336.168000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.4836  21.9793    6.5  51.5   -1.2   2.1908   1.9    8.6	Crab
135.5168 -40.6020    2.7  37.0 -131.9   3.3548   4.3    2.9	Vela X-1
183.8855 -16.5254    2.7  55.4  163.7   7.7514   4.3 ------	UNKNOWN
 83.3602  21.8325    1.0  51.5   -1.4  13.7175  12.0 ------	UNKNOWN
130.1252 -14.0828    2.8  10.1 -130.4   1.8900   4.1 ------	UNKNOWN
129.4323 -20.3551    2.6  16.3 -125.4   2.1333   4.5 ------	UNKNOWN
124.0374 -23.6456    2.4  20.2 -110.6   2.3142   4.7 ------	UNKNOWN
 89.2867 -24.3205    1.8  43.2  -65.5  11.7518   6.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
-60.000000 73.330000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6445  22.0357  218.6  51.3   -1.0  -0.0253  -0.1    1.4	Crab
135.5915 -40.5906    7.0  37.0 -132.0   0.5206   1.6    3.6	Vela X-1
130.9306 -28.5901    2.7  24.6 -127.9   0.9402   4.3 ------	UNKNOWN
153.7028 -39.3699    2.5  41.9 -152.7   1.4761   4.6 ------	UNKNOWN

Plot creation:
Sun Feb 18 18:43:55 EST 2024
