batgrbproduct Analysis for Trigger=1215859

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Feb 18 18:36:23 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1215859/GCN5_download_cron
======================================================================

  Trigger: 01215859      Segment: 000

  BAT Trigger Time: 729886840   [s; MET]
      Trigger Stop: 729886904   [s; MET]
               UTC: 2024-02-17T18:20:07.067940    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.734683797965   Dec: -15.4837954792463  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    16.19
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    16.19

  Flight Position:   [ source = BAT ]
    RA: 244.734683797965   Dec: -15.4837954792463  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.762894160129   Dec: -15.5146960311423  [deg; J2000]
        { 16h 19m 03.1s , -15d 30' 52.9" }
         +/- 1.38387440222528 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.508608604240244 [arcmin] (formal 1-sigma fit error)
    SNR: 19.1228095477549

  Angular difference between Flight and Ground position is 2.469377 arcmin

  Partial Coding Fraction: 0.7578125    [ including projection effects ]

  Duration
     T90: 651.740000009537 +/- 41.8977707220766
        Measured from: -27.7479999065399
                   to: 623.992000102997     [s; relative to TRIGTIME]
     T50: 320.535999894142 +/- 19.4526189724796
        Measured from: 60.3120001554489
                   to: 380.848000049591     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -49.3159999847412
                   to: -48.3159999847412     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -49.972000002861
                   to: 728.06400001049     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    21.956079   1.215316  -0.322245   0.214929
           0.211931   0.186993   0.154369   0.133850 [error]
 Peak      0.052162   0.024011   0.008260   0.010431
           0.011093   0.010491   0.008862   0.007436 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 7.22e-06 7.40e-07 3.10e-08 1.36e-09 7.99e-06 7.99e-06   erg/cm2
              Error 5.89e-07 8.49e-08 9.13e-09 6.79e-10 5.87e-07 5.87e-07   erg/cm2
Peak flux Power-law 5.72e-01 1.86e-01 3.38e-02 7.16e-03 7.97e-01 7.99e-01   ph/cm2/s
              Error 1.73e-01 9.65e-02 4.23e-02 1.72e-02 2.42e-01 2.45e-01   ph/cm2/s

Fluence   Cutoff-PL 6.96e-06 5.41e-07 2.59e-10 1.40e-17 7.50e-06 7.50e-06   erg/cm2
              Error 6.89e-07 1.01e-07 8.05e-10 7.95e-15 6.89e-07 6.89e-07   erg/cm2
Peak flux Cutoff-PL 6.09e-01 1.67e-01 1.95e-03 1.07e-07 7.78e-01 7.78e-01   ph/cm2/s
              Error 1.87e-01 1.16e-01 3.76e-02 1.38e-02 2.27e-01 2.27e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.575    0.273    -      -           4.97e-05 1.21e-05  105.690 57
CPL   1.000    0.000      50.0    0.0      7.68e-04 0.00e+00  689.790 56

The chi2 of BB fit is 78.70 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.461    1.010    -      -           2.03e-03 1.78e-03   61.160 57
CPL   1.000    0.000      50.0    0.0      1.37e-02 0.00e+00   74.970 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  778.036  -49.972  728.064
T90   651.740  -27.748  623.992
T50   320.536   60.312  380.848
Peak    1.000  -49.316  -48.316

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.7629 -15.5147 0.0100   18.6  -76.5       3.5991    19.1  TRIG_01215859
------------------------------------------

Foreground time interval of the image:
-13.599  71.001 (delta_t =  84.600 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

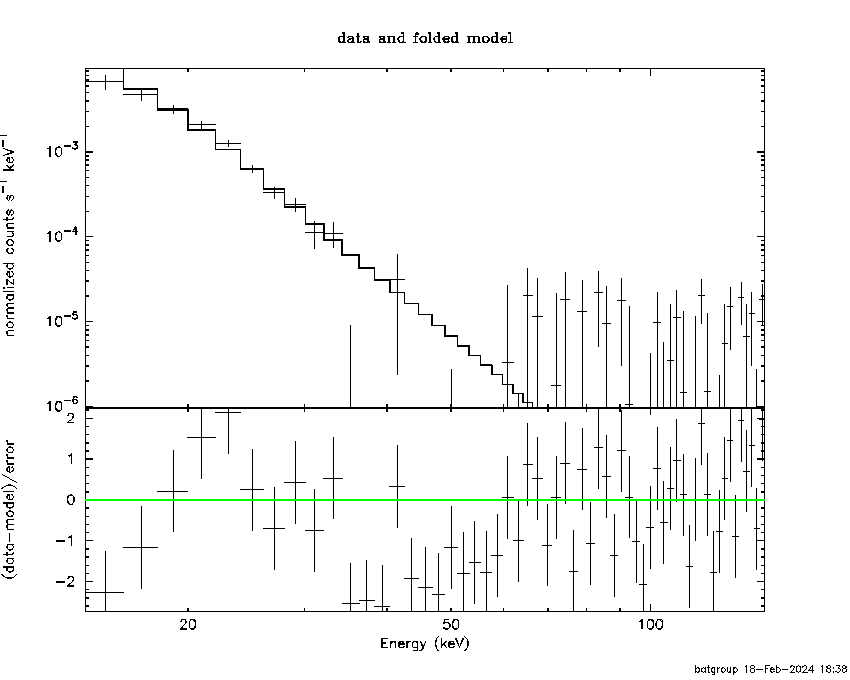

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-49.972000 -36.080000
-35.000000 83.900000
86.000000 86.020000
90.000000 90.300000
112.000000 419.670000
421.000000 431.670000
433.000000 566.760000
568.000100 638.850000
640.000000 728.064000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.57526     ( -0.27222   0.272854 )
Norm@50keV  : 4.97186E-05    ( -1.08717e-05   1.32639e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         105.69 using 59 PHA bins.
# Reduced chi-squared =         1.8542 for     57 degrees of freedom
# Null hypothesis probability =   9.479564e-05

Photon flux (15-150 keV)    in 744.1 sec: 0.366790 ( -0.0288946  0.0291468 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.99163e-06 ( -5.84518e-07  5.88891e-07 ) ergs/cm2

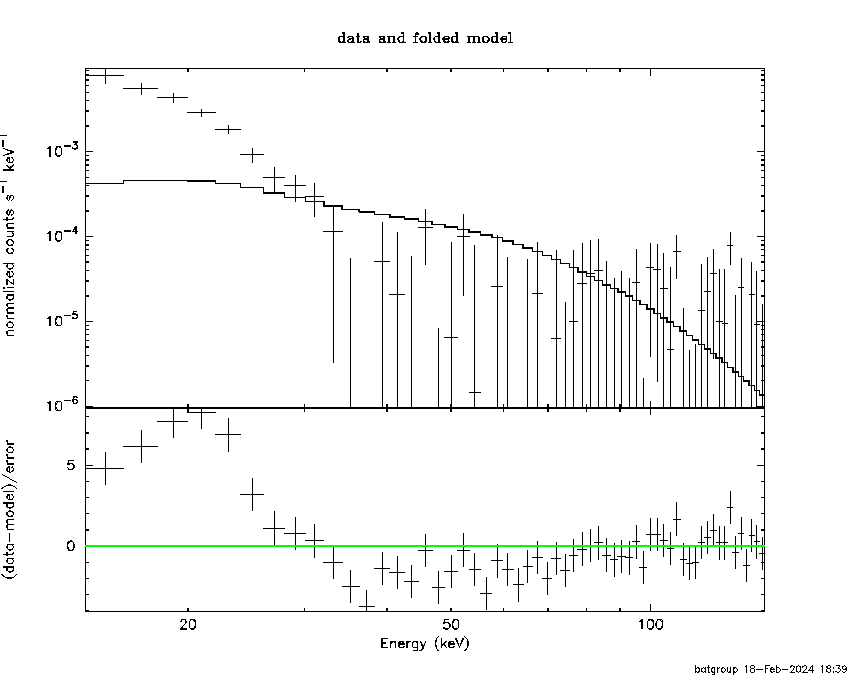

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-49.972000 -36.080000
-35.000000 83.900000
86.000000 86.020000
90.000000 90.300000
112.000000 419.670000
421.000000 431.670000
433.000000 566.760000
568.000100 638.850000
640.000000 728.064000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 7.67840E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         689.79 using 59 PHA bins.
# Reduced chi-squared =         12.318 for     56 degrees of freedom
# Null hypothesis probability =  5.369299e-110

Photon flux (15-150 keV)    in 744.1 sec: 0.342989 ( -0.034811  0.034165 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.49844e-06 ( -6.95294e-07  6.82191e-07 ) ergs/cm2

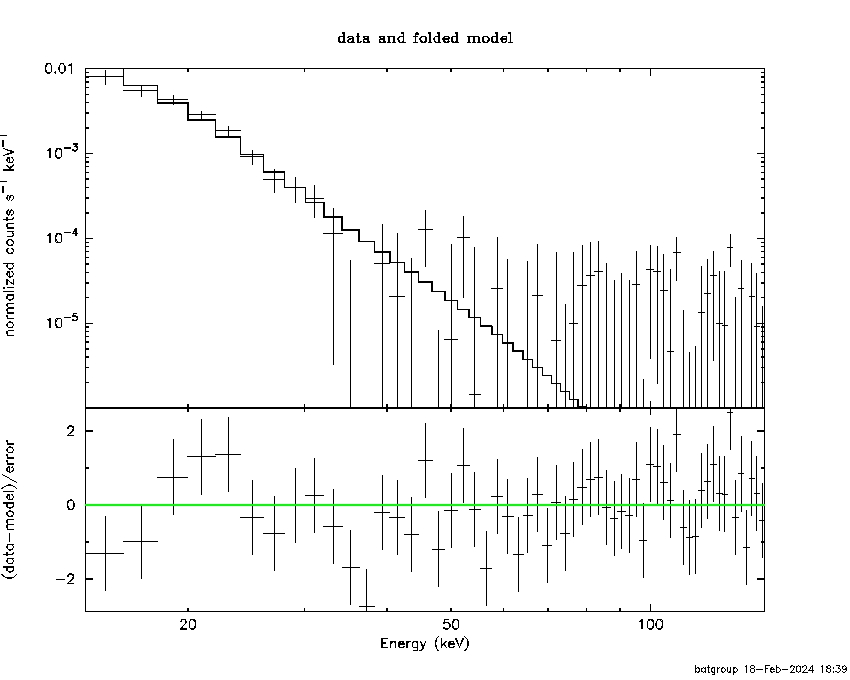

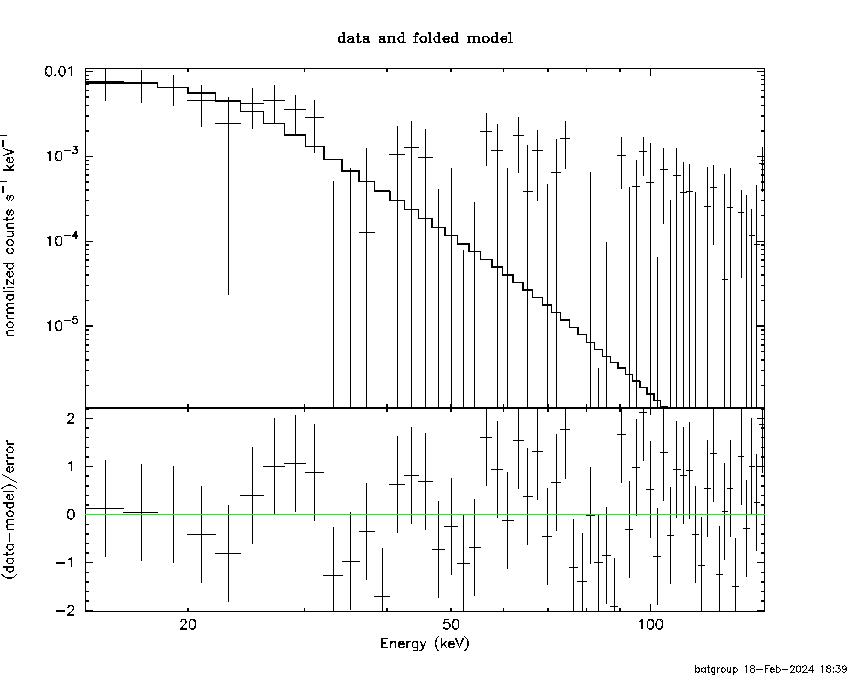

Band function

Multiple GTIs in the spectrum
tstart tstop
-49.972000 -36.080000
-35.000000 83.900000
86.000000 86.020000
90.000000 90.300000
112.000000 419.670000
421.000000 431.670000
433.000000 566.760000
568.000100 638.850000
640.000000 728.064000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.49217   ( 4.55186   7.49217 )
beta        : -6.59830    ( -0.256879   0.289637 )
Epeak [keV] : 548.552      ( -548.552 -548.552 )
Norm@50keV   : 6.61424E-03    ( -0.00140502   0.00187845 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         105.71 using 59 PHA bins.
# Reduced chi-squared =         1.9220 for     55 degrees of freedom
# Null hypothesis probability =   4.737113e-05

Photon flux (15-150 keV)    in 744.1 sec: 0.416044 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

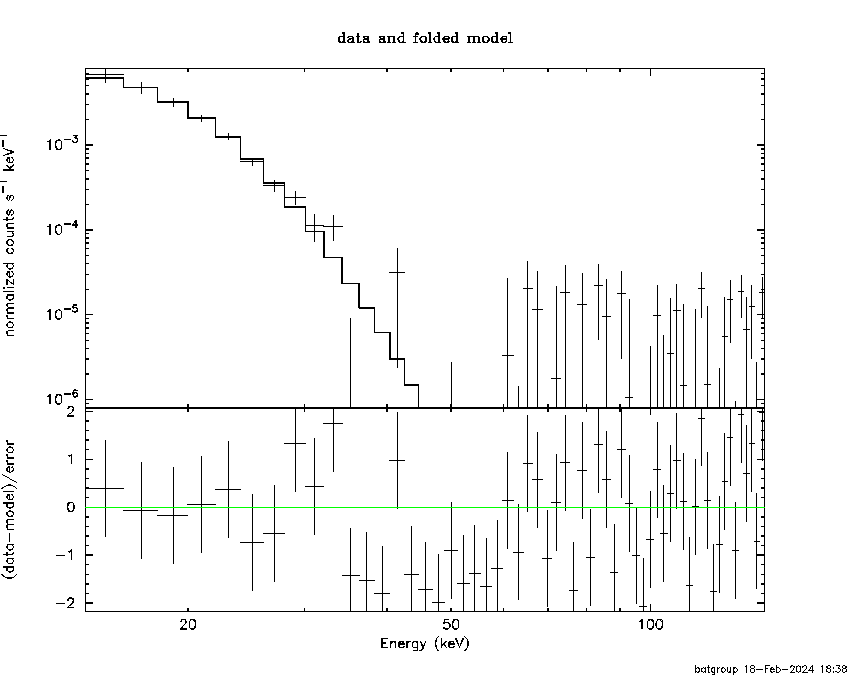

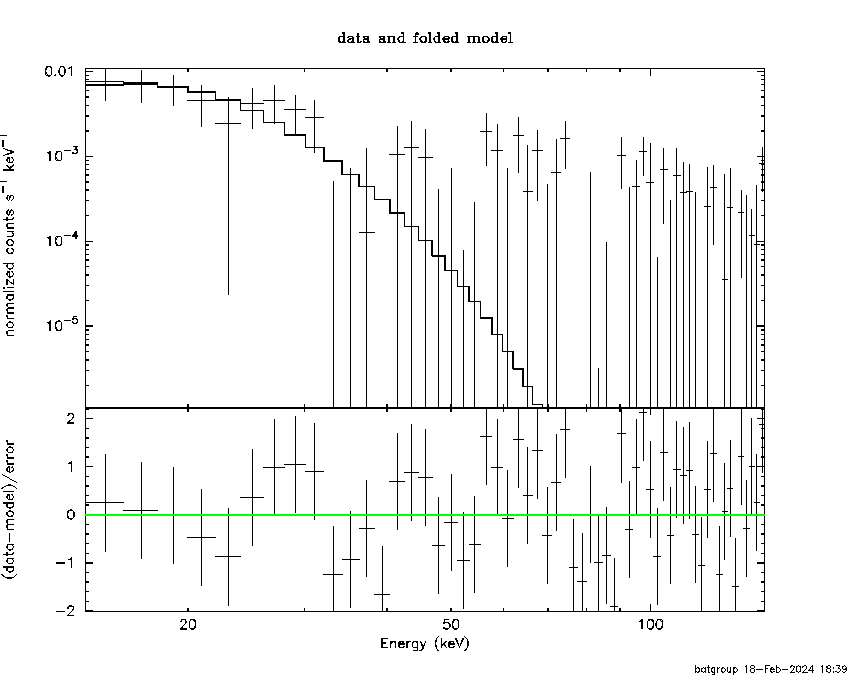

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.52740  (-0.120862  0.132638)
R^2/D10^2   : 156.820  (-56.0887   85.0142)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          78.70 using 59 PHA bins.
# Reduced chi-squared =          1.381 for     57 degrees of freedom
# Null hypothesis probability =   2.998209e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.926e-06   8.263e-07
25- 50  5.319e-07   7.586e-08
50-150  1.869e-10   9.655e-11
15-150  7.458e-06   8.226e-07

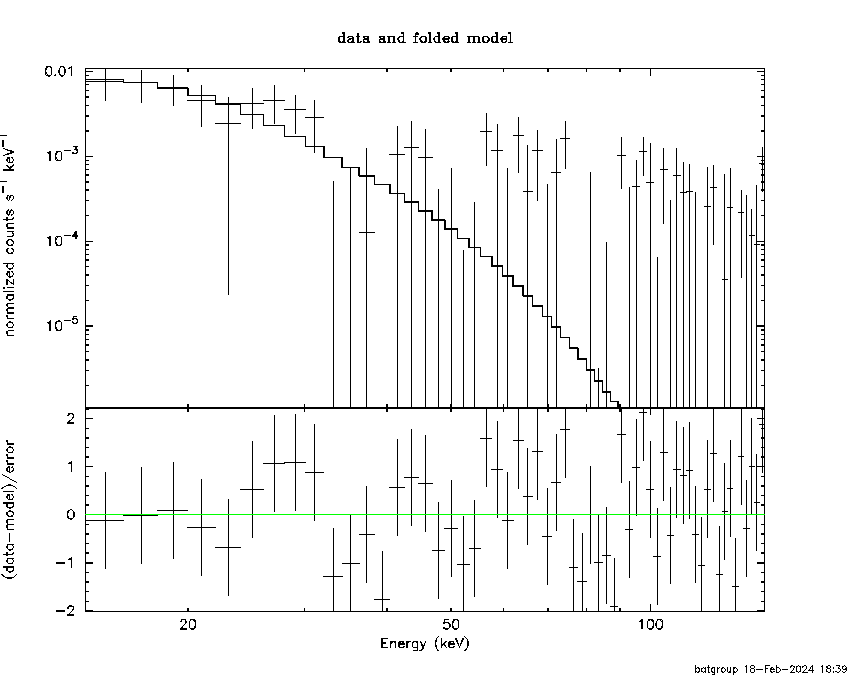

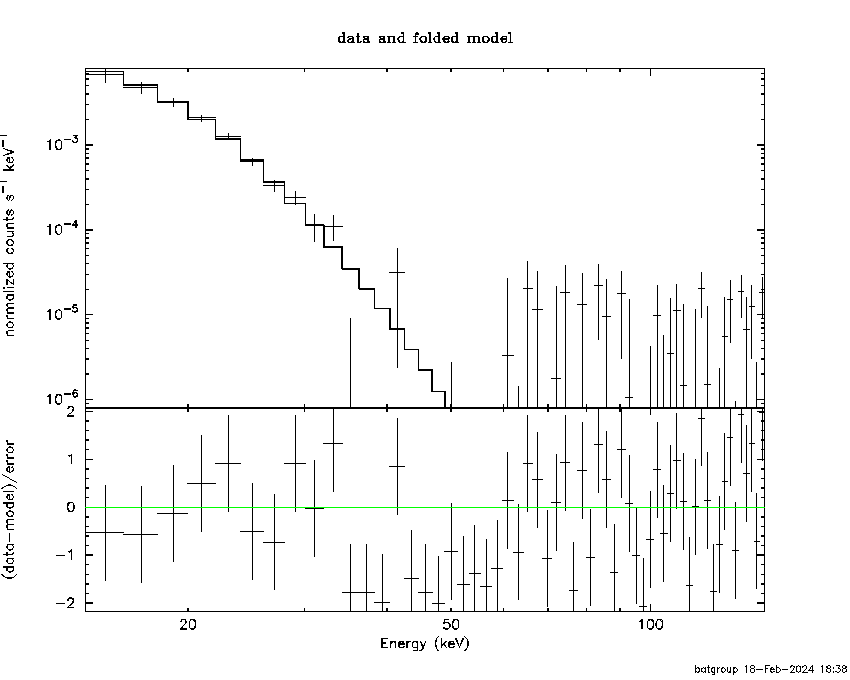

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.22385       (-0.283669      0.319827)
Norm        : 157.843       (-48.2726     68.7601)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.126e-06   8.170e-07
25- 50  5.991e-07   9.152e-08
50-150  1.232e-09   6.260e-10
15-150  7.727e-06   8.237e-07

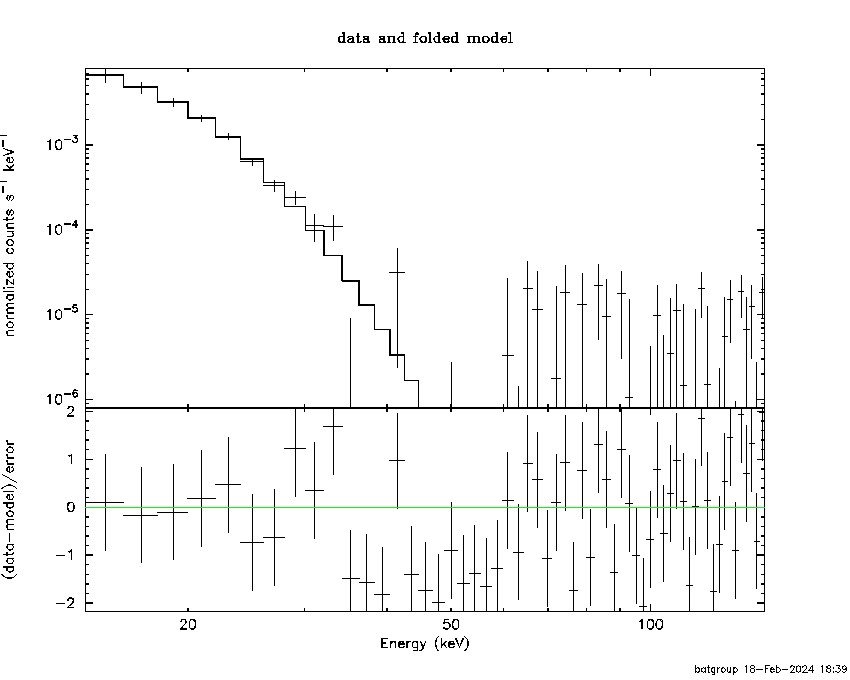

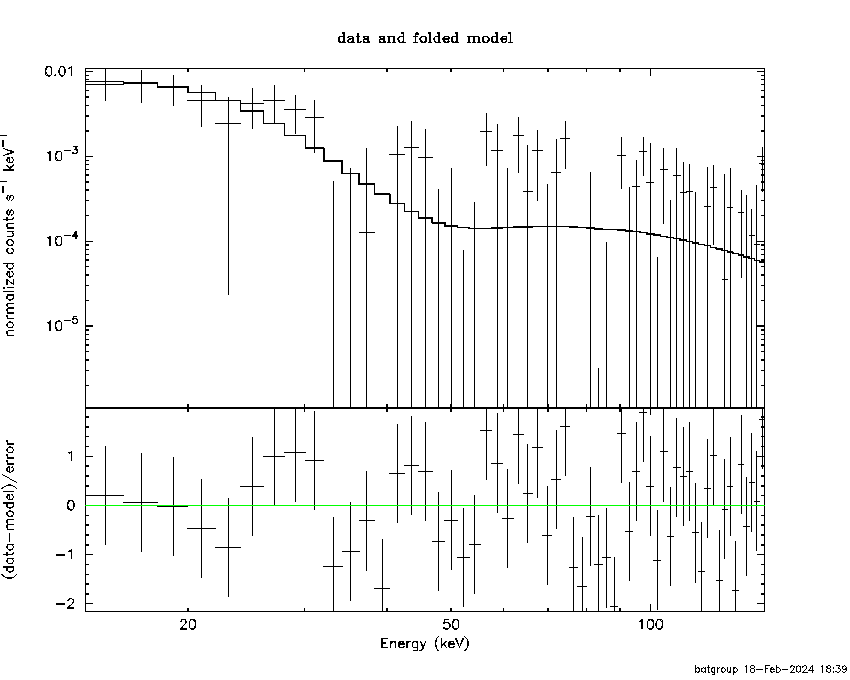

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.36341        (-2.68102      -2.68102)
R1^2/D10^2  : 2659.36        (-2896.87      104467)
kT2 [keV]   : 2.57146        (-0.161219      3.26054)
R2^2/D10^2  : 132.320    (-132.881   106.009)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.984e-06   9.067e-04
25- 50  5.496e-07   1.655e-03
50-150  3.593e-10   2.137e-04
15-150  7.534e-06   2.425e-03

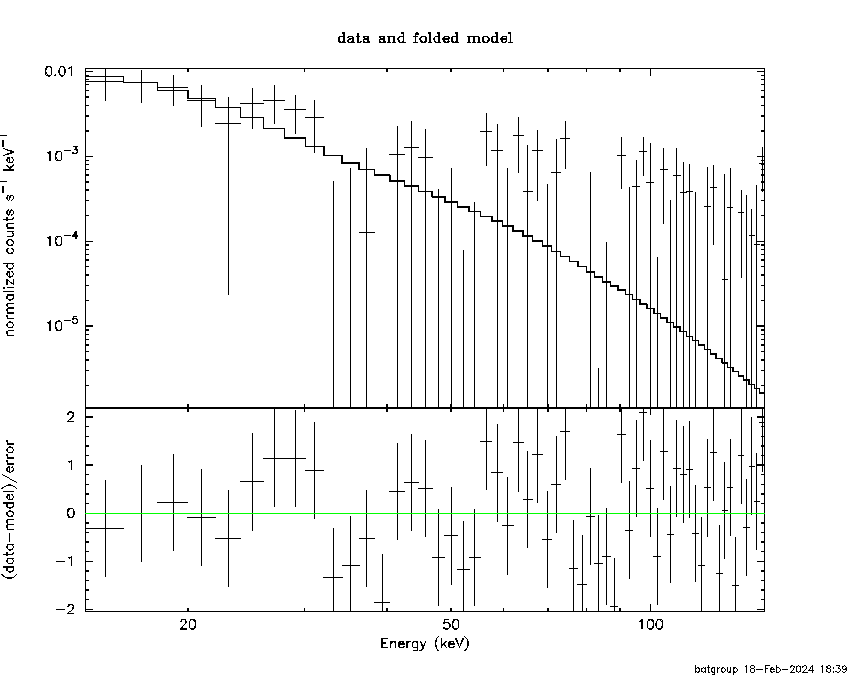

Peak spectrum fit

Power-law model

Time interval is from  -49.316 sec. to  -48.316 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.46078     ( -0.836302   1.18371 )
Norm@50keV  : 2.03386E-03    ( -0.00144749   0.00211615 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.16 using 59 PHA bins.
# Reduced chi-squared =          1.073 for     57 degrees of freedom
# Null hypothesis probability =   3.289306e-01

Photon flux (15-150 keV)    in 1 sec: 0.796897 ( -0.24121  0.243463 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.12495e-08 ( -1.1684e-08  1.40506e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -49.316 sec. to  -48.316 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.37036E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.97 using 59 PHA bins.
# Reduced chi-squared =          1.339 for     56 degrees of freedom
# Null hypothesis probability =   4.607828e-02

Photon flux (15-150 keV)    in 1 sec: 0.777698 ( -0.225266  0.229312 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.68013e-08 ( -8.5553e-09  1.6071e-08 ) ergs/cm2

Band function

Time interval is from  -49.316 sec. to  -48.316 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.723541   ( 1.74617   1.74617 )
beta        : -5.38133    ( 5.87605   14.7507 )
Epeak [keV] : 15.2035      ( -15.1878 6.05831 )
Norm@50keV   : 3.92182    ( -3.91961   13742 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.31 using 59 PHA bins.
# Reduced chi-squared =          1.097 for     55 degrees of freedom
# Null hypothesis probability =   2.896639e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.29345  (-1.1281  1.38834)
R^2/D10^2   : 14.5619  (-14.5619   57.1256)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.847e-08   1.094e-08
25- 50  8.125e-09   5.380e-09
50-150  1.492e-10   1.511e-10
15-150  2.674e-08   1.592e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 11.3155       (-4.85161      10.0539)
Norm        : 21.6911       (-13.048     48.207)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.789e-08   1.065e-08
25- 50  9.019e-09   5.925e-09
50-150  8.526e-10   8.505e-10
15-150  2.776e-08   1.708e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.20469        (-1.0713      1.26303)
R1^2/D10^2  : 15.9342        (-10.0975      23.5654)
kT2 [keV]   : 199.363        (-199.363      -199.363)
R2^2/D10^2  : 4.75812E-05    (-5.8633e-05   29.7262)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.842e-08   1.062e-08
25- 50  8.144e-09   5.030e-09
50-150  1.272e-08   2.159e-10
15-150  3.929e-08   1.606e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.78310     ( -0.377652   0.391138 )
Norm@50keV  : 1.38069E-04    ( -4.33698e-05   5.71932e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.15 using 59 PHA bins.
# Reduced chi-squared =         0.9149 for     57 degrees of freedom
# Null hypothesis probability =   6.571990e-01

Photon flux (15-150 keV)    in 84.6 sec: 0.457448 ( -0.0419619  0.0421027 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17559e-06 ( -1.02278e-07  1.0236e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.37078E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         337.84 using 59 PHA bins.
# Reduced chi-squared =         6.0329 for     56 degrees of freedom
# Null hypothesis probability =   6.665875e-42

Photon flux (15-150 keV)    in 84.6 sec: 0.444373 ( -0.046431  0.045627 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12162e-06 ( -1.09244e-07  1.07653e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.51852   ( 5.91212   8.51852 )
beta        : -5.82196    ( -0.362473   0.409537 )
Epeak [keV] : 406.941      ( -406.941 -406.941 )
Norm@50keV   : 1.80668E-02    ( -0.00549484   0.00820569 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.18 using 59 PHA bins.
# Reduced chi-squared =         0.9487 for     55 degrees of freedom
# Null hypothesis probability =   5.830644e-01

Photon flux (15-150 keV)    in 84.6 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.40e-07
S(50-100 keV) = 3.10e-08

T90 vs. Hardness ratio plot

T90                                   = 651.740000009537 sec.
Hardness ratio (energy fluence ratio) = 0.0418919

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0553521
Count Ratio (50-100 keV) / (15-25 keV) = -0.0146768

Mask shadow pattern

IMX = 7.842049052310354E-02, IMY = 3.269074868949230E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-13.599400 71.000600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8431 -15.5234    0.7  18.7  -76.6   3.1452  16.8   10.5	Sco X-1
254.5863  35.3485    5.4  50.1 -163.9   0.9162   2.1    6.3	Her X-1
255.8852 -37.7244   69.6  39.5  -49.1   0.0529   0.2    8.6	4U 1700-377
256.3666 -36.5420    6.2  39.0  -50.9  -0.5920  -1.9    7.9	GX 349+2
263.1584 -24.8625    0.0  38.1  -71.8   0.9490   2.3   10.7	GX 1+4
264.9058 -44.2850    7.3  48.9  -48.0   1.2842   1.6   12.1	4U 1735-44
268.3481  -1.5407    6.2  41.1 -109.4   1.3327   1.8    5.4	SW J1753.5-0127
263.0290 -33.8768    5.3  41.9  -59.1   1.0116   2.2    3.2	GX 354-0
185.3233 -34.3260    2.5  47.0   36.5   2.5600   4.5 ------	UNKNOWN
270.3094  27.0322    2.3  54.1 -144.5   4.6424   5.0 ------	UNKNOWN
269.9841  21.7204    2.1  51.0 -139.0   3.9459   5.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
125.600600 419.670000
421.000000 431.670000
433.000000 566.760000
568.000100 638.850000
640.000000 843.082400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9131 -15.5161    0.5   0.2  -94.3  31.7675  25.2    8.4	Sco X-1
254.3552  35.3128    4.1  51.6  179.7 -10.0874  -2.8    5.3	Her X-1
256.0254 -37.6992    1.8  24.3  -32.4   9.2300   6.3    8.9	4U 1700-377
256.4835 -36.2787    3.3  23.3  -34.9   4.9919   3.5    9.0	GX 349+2
262.9854 -24.6018    5.8  19.4  -69.4   3.1029   2.0    8.7	GX 1+4
264.8194 -44.4277   15.1  33.6  -36.7   1.3037   0.8    3.5	4U 1735-44
268.3698  -1.4612   40.8  27.2 -129.1   0.4676   0.3    0.5	SW J1753.5-0127
270.2710 -24.9430    3.0  25.7  -74.7   6.4106   3.8    8.2	GX 5-1
270.1294 -25.8810    0.0  25.9  -72.5  -3.3276  -2.0   12.5	GRS 1758-258
274.0108 -14.1036    5.0  28.3  -99.3   4.2598   2.3    4.0	GX 17+2
276.0808 -30.2900    5.8  32.3  -67.6  -3.9862  -2.0    9.3	H1820-303
285.2014 -24.9455    3.8  39.0  -79.7  11.3402   3.0    9.1	HT1900.1-2455
263.0153 -33.9770   13.5  24.8  -48.8  -1.3394  -0.9    8.6	GX 354-0
232.8076  32.6681    2.6  49.5  156.4  16.2247   4.5 ------	UNKNOWN
220.1674 -54.1953    3.2  43.2   10.5   8.3644   3.5 ------	UNKNOWN
282.1081  18.9254    2.7  50.4 -142.2  16.6287   4.3 ------	UNKNOWN

Plot creation:
Sun Feb 18 18:40:05 EST 2024
