batgrbproduct Analysis for Trigger=1216748

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Feb 22 19:18:39 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1216748/GCN5_download_cron
======================================================================

  Trigger: 01216748      Segment: 000

  BAT Trigger Time: 730248168   [s; MET]
      Trigger Stop: 730248232   [s; MET]
               UTC: 2024-02-21T22:42:15.043180    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 300.532091998661   Dec: 35.0377957874287  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    18.6
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    18.6

  Flight Position:   [ source = BAT ]
    RA: 300.532091998661   Dec: 35.0377957874287  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 300.511359018116   Dec: 35.0188663185319  [deg; J2000]
        { 20h 02m 02.7s , +35d 01' 07.9" }
         +/- 1.09131706766084 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.399387466011787 [arcmin] (formal 1-sigma fit error)
    SNR: 26.84743136793

  Angular difference between Flight and Ground position is 1.525656 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 528.051999926567 +/- 130.243933972929
        Measured from: -56.2519998550415
                   to: 471.800000071526     [s; relative to TRIGTIME]
     T50: 279.855999946594 +/- 10.6613683936817
        Measured from: 45.0240001678467
                   to: 324.880000114441     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 340.131999969482
                   to: 341.131999969482     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -86.472000002861
                   to: 784     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     9.511897  11.480498   6.436118   0.909894
           0.161253   0.163896   0.138402   0.116217 [error]
 Peak      0.034073   0.034480   0.020323   0.009183
           0.006483   0.006441   0.005691   0.004659 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.09e-06 4.49e-06 4.85e-06 9.79e-06 1.54e-05 2.22e-05   erg/cm2
              Error 1.33e-07 1.10e-07 1.49e-07 6.71e-07 3.55e-07 7.63e-07   erg/cm2
Peak flux Power-law 2.77e-01 2.49e-01 1.55e-01 1.47e-01 7.43e-01 8.28e-01   ph/cm2/s
              Error 8.77e-02 4.93e-02 4.76e-02 9.28e-02 1.46e-01 1.69e-01   ph/cm2/s

Fluence   Cutoff-PL 2.74e-06 4.64e-06 4.95e-06 4.75e-06 1.47e-05 1.71e-05   erg/cm2
              Error 1.71e-07 1.23e-07 1.61e-07 1.08e-06 4.29e-07 1.18e-06   erg/cm2
Peak flux Cutoff-PL 2.81e-01 2.50e-01 1.53e-01 1.40e-01 7.43e-01 8.24e-01   ph/cm2/s
              Error 8.73e-02 4.90e-02 3.67e-02 1.38e-01 1.46e-01 1.72e-01   ph/cm2/s

Fluence        Band 2.62e-06 4.70e-06 4.80e-06 7.56e-06 1.48e-05 1.97e-05   erg/cm2
              Error 2.47e-07 -------- -------- -------- 4.17e-07 --------   erg/cm2
Peak flux      Band 1.49e-01 1.43e-01 7.57e-02 2.83e-02 3.87e-01 3.97e-01   ph/cm2/s
              Error 1.57e-02 -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.888    0.045    -      -           2.67e-03 6.14e-05   76.620 57
CPL   1.320    0.199      60.5    6.4      5.03e-03 1.11e-03   49.940 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.686    0.391    -      -           5.62e-03 1.29e-03   56.830 57
CPL   2.218    0.846      81.7    0.0      2.92e-03 0.00e+00   55.870 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  870.472  -86.472  784.000
T90   528.052  -56.252  471.800
T50   279.856   45.024  324.880
Peak    1.000  340.132  341.132

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  300.5114 +35.0189 0.0072   11.5  164.5       4.8797    26.8  TRIG_01216748
------------------------------------------

Foreground time interval of the image:
-27.099  71.401 (delta_t =  98.500 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

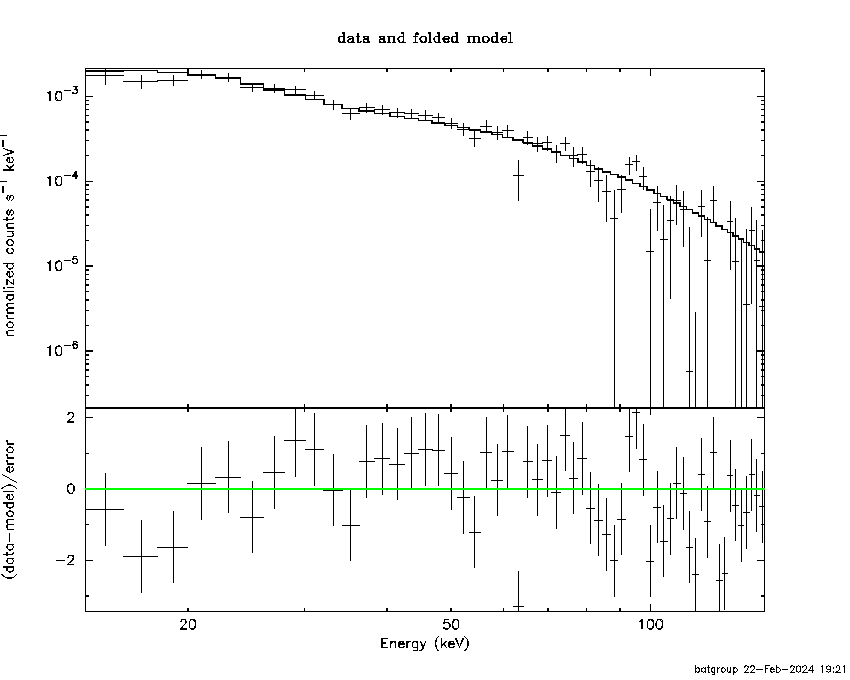

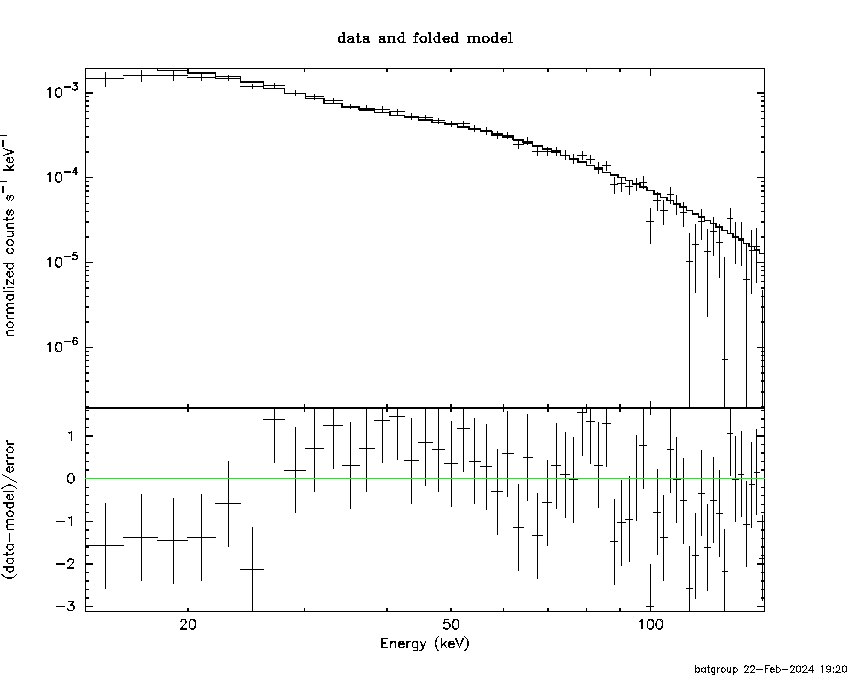

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-86.472000 424.640000
430.000000 483.050000
601.000000 663.134800
781.000000 784.000000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.88762     ( -0.044475   0.0446577 )
Norm@50keV  : 2.67034E-03    ( -6.14259e-05   6.13548e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.62 using 59 PHA bins.
# Reduced chi-squared =          1.344 for     57 degrees of freedom
# Null hypothesis probability =   4.256662e-02

Photon flux (15-150 keV)    in 629.3 sec: 0.381224 ( -0.00988983  0.00993623 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.54484e-05 ( -3.54483e-07  3.54808e-07 ) ergs/cm2

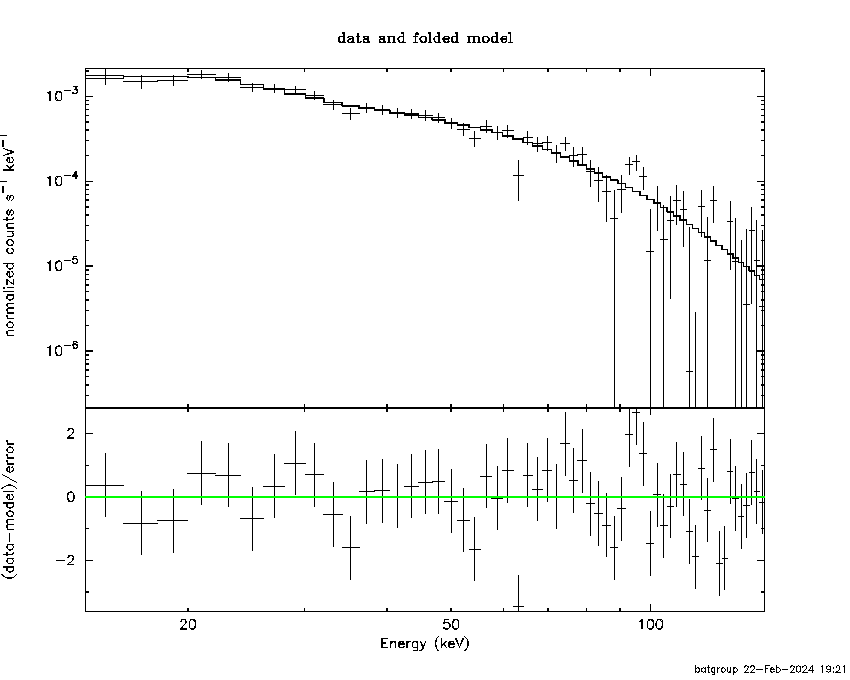

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-86.472000 424.640000
430.000000 483.050000
601.000000 663.134800
781.000000 784.000000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.32007     ( -0.203707   0.194935 )
Epeak [keV] : 60.5204      ( -5.08617 7.61433 )
Norm@50keV  : 5.03338E-03    ( -0.000964842   0.00126078 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.94 using 59 PHA bins.
# Reduced chi-squared =         0.8918 for     56 degrees of freedom
# Null hypothesis probability =   7.021916e-01

Photon flux (15-150 keV)    in 629.3 sec: 0.362198 ( -0.011438  0.011524 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.47062e-05 ( -4.28994e-07  4.29308e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-86.472000 424.640000
430.000000 483.050000
601.000000 663.134800
781.000000 784.000000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.32512   ( -0.183299   0.184106 )
beta        : -9.37048    ( 9.37139   19.3714 )
Epeak [keV] : 60.7220      ( -5.1424 7.32523 )
Norm@50keV   : 4.99918E-03    ( -0.000921061   0.00049656 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.95 using 59 PHA bins.
# Reduced chi-squared =         0.9081 for     55 degrees of freedom
# Null hypothesis probability =   6.675978e-01

Photon flux (15-150 keV)    in 629.3 sec: 0.362639 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.4758e-05 ( -1.47536e-05  -4.17037e-07 ) ergs/cm2

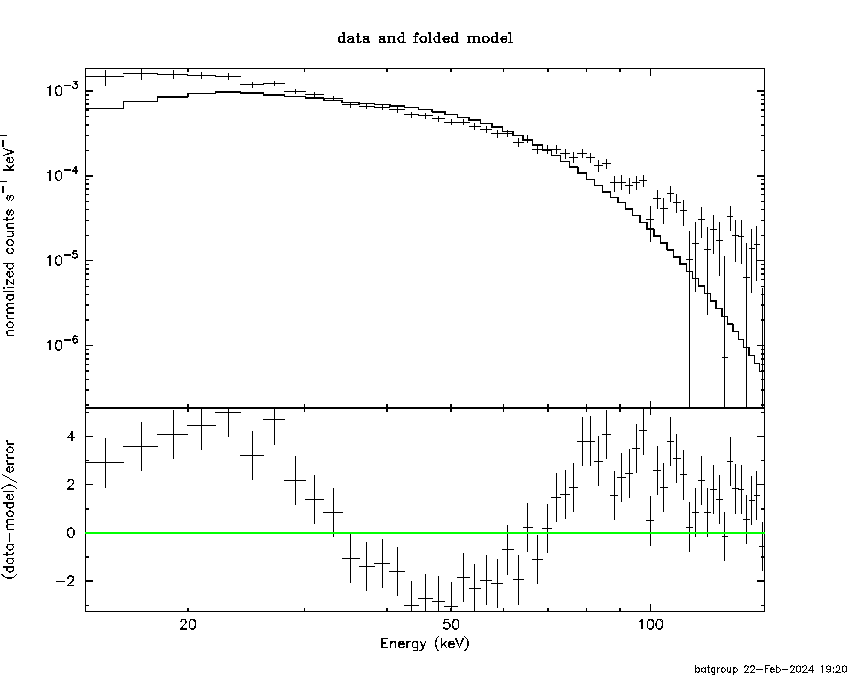

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.1638  (  )
R^2/D10^2   : 5.95356E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         365.12 using 59 PHA bins.
# Reduced chi-squared =         6.4057 for     57 degrees of freedom
# Null hypothesis probability =   1.639663e-46

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.377e-06   6.167e-08
25- 50  4.805e-06   1.347e-07
50-150  5.303e-06   2.432e-07
15-150  1.148e-05   2.675e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 95.1040       (-7.63878      8.77964)
Norm        : 1.65161       (-0.0321767     0.0661101)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.715e-06   1.378e-07
25- 50  4.647e-06   1.366e-07
50-150  7.316e-06   1.561e-06
15-150  1.468e-05   1.592e-06

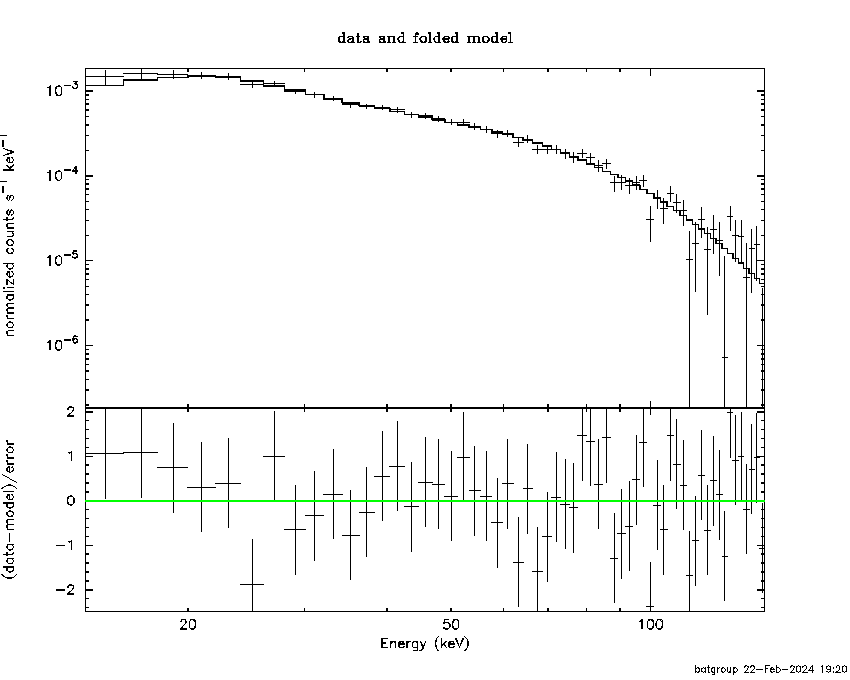

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.99463        (-0.587358      0.607834)
R1^2/D10^2  : 0.421195        (-0.105061      0.155335)
kT2 [keV]   : 22.0295        (-1.76396      2.20601)
R2^2/D10^2  : 6.26519E-03    (-0.00203616   0.0026321)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.436e-06   1.863e-07
25- 50  4.719e-06   2.052e-07
50-150  7.261e-06   5.192e-07
15-150  1.442e-05   7.898e-07

Peak spectrum fit

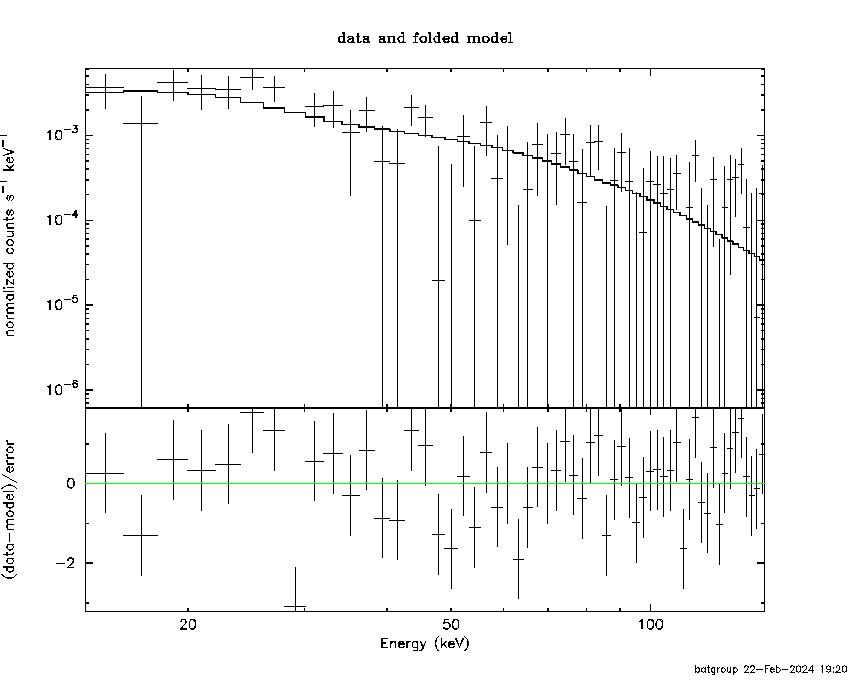

Power-law model

Time interval is from  340.132 sec. to  341.132 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.68554     ( -0.381308   0.400393 )
Norm@50keV  : 5.62134E-03    ( -0.00132227   0.00125492 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.83 using 59 PHA bins.
# Reduced chi-squared =         0.9970 for     57 degrees of freedom
# Null hypothesis probability =   4.814414e-01

Photon flux (15-150 keV)    in 1 sec: 0.742844 ( -0.145844  0.145887 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.21088e-08 ( -1.25452e-08  1.30188e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  340.132 sec. to  341.132 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.21840     ( -1.02172   0.670572 )
Epeak [keV] : 81.6756      (   )
Norm@50keV  : 2.92175E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.87 using 59 PHA bins.
# Reduced chi-squared =         0.9976 for     56 degrees of freedom
# Null hypothesis probability =   4.798524e-01

Photon flux (15-150 keV)    in 1 sec: 0.743087 ( -0.14573  0.145514 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.22199e-08 ( -1.26864e-08  1.27708e-08 ) ergs/cm2

Band function

Time interval is from  340.132 sec. to  341.132 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.92156   ( -4.92156   -4.92156 )
beta        : -1.80562    ( -0.639675   0.447161 )
Epeak [keV] : 22.8496      ( -22.8496 7.20369 )
Norm@50keV   : 1105.82    ( -216.243   5.78361e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.63 using 59 PHA bins.
# Reduced chi-squared =          1.030 for     55 degrees of freedom
# Null hypothesis probability =   4.137844e-01

Photon flux (15-150 keV)    in 1 sec: 0.387342 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.44959e-08 ( 0  0 ) ergs/cm2

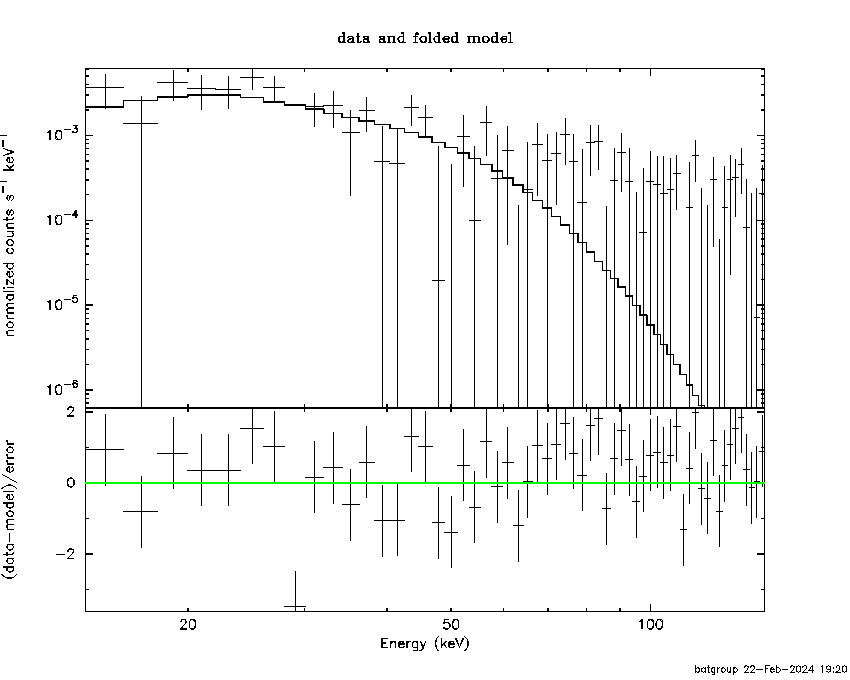

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.09755  (-2.18646  3.65883)
R^2/D10^2   : 0.473598  (-0.337371   0.88822)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.674e-09   2.862e-09
25- 50  1.659e-08   6.799e-09
50-150  6.539e-09   3.792e-09
15-150  3.080e-08   1.173e-08

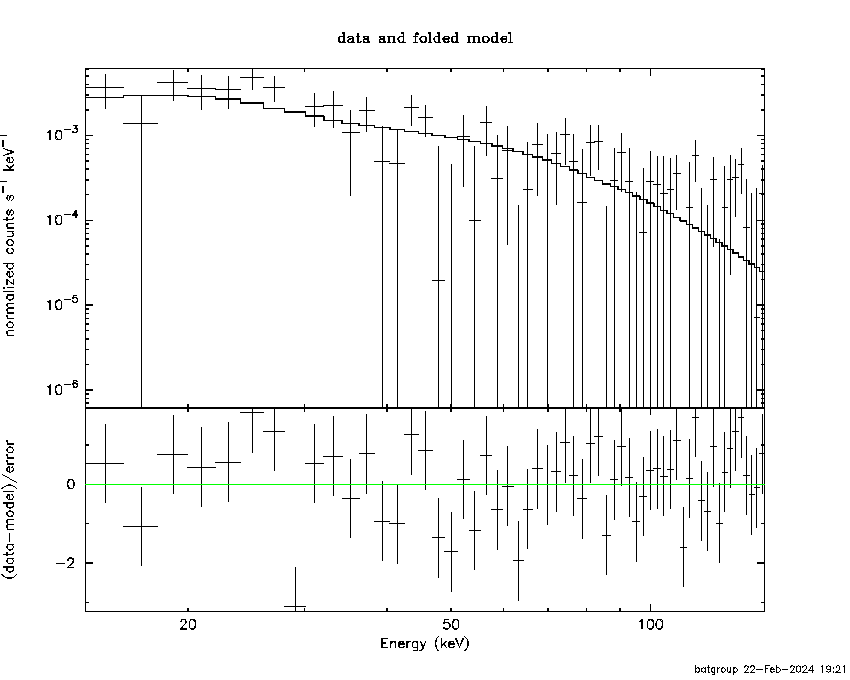

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 146.030       (-89.7558      -147.181)
Norm        : 3.05320       (-0.653842     1.03214)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.859e-09   4.511e-09
25- 50  1.451e-08   8.240e-09
50-150  2.832e-08   1.766e-08
15-150  5.069e-08   3.009e-08

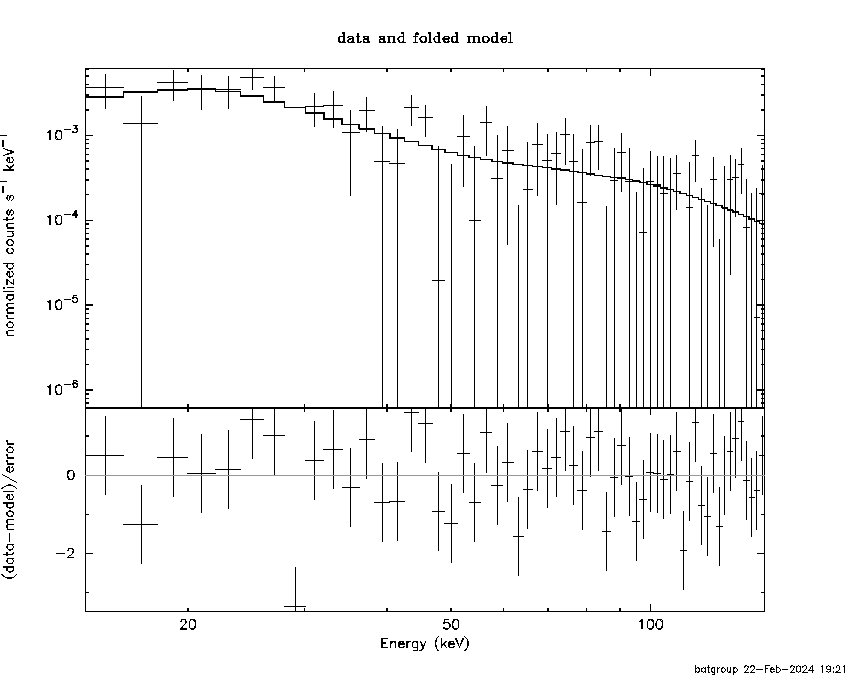

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.80734        (-1.80022      1.33237)
R1^2/D10^2  : 1.25461        (-0.838921      1.31996)
kT2 [keV]   : 74.7141        (-48.0392      -74.7141)
R2^2/D10^2  : 6.06306E-04    (-0.000528806   0.00750516)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.331e-09   5.235e-09
25- 50  1.382e-08   7.908e-09
50-150  3.648e-08   2.203e-08
15-150  5.963e-08   3.086e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.84272     ( -0.0771503   0.0780968 )
Norm@50keV  : 2.89025E-03    ( -0.000130727   0.00013002 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          83.22 using 59 PHA bins.
# Reduced chi-squared =          1.460 for     57 degrees of freedom
# Null hypothesis probability =   1.331528e-02

Photon flux (15-150 keV)    in 98.5 sec: 0.405060 ( -0.0173913  0.0174246 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.61795e-06 ( -1.19187e-07  1.19822e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12329     ( -0.359873   0.332669 )
Epeak [keV] : 56.7580      ( -6.71823 12.0009 )
Norm@50keV  : 6.89884E-03    ( -0.00224512   0.0037038 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.36 using 59 PHA bins.
# Reduced chi-squared =          1.221 for     56 degrees of freedom
# Null hypothesis probability =   1.244161e-01

Photon flux (15-150 keV)    in 98.5 sec: 0.387456 ( -0.018913  0.01896 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.45176e-06 ( -1.37644e-07  1.39259e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.12324   ( -0.256009   0.443054 )
beta        : -10.0000    ( 10   0 )
Epeak [keV] : 56.7468      ( -6.72547 12.0005 )
Norm@50keV   : 6.89860E-03    ( -0.00224694   0.00370692 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.36 using 59 PHA bins.
# Reduced chi-squared =          1.243 for     55 degrees of freedom
# Null hypothesis probability =   1.065166e-01

Photon flux (15-150 keV)    in 98.5 sec: 0.389369 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.45596e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.49e-06
S(50-100 keV) = 4.85e-06

T90 vs. Hardness ratio plot

T90                                   = 528.051999926567 sec.
Hardness ratio (energy fluence ratio) = 1.08018

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.20696
Count Ratio (50-100 keV) / (15-25 keV) = 0.676639

Mask shadow pattern

IMX = -1.959102390727347E-01, IMY = -5.438980963017170E-02

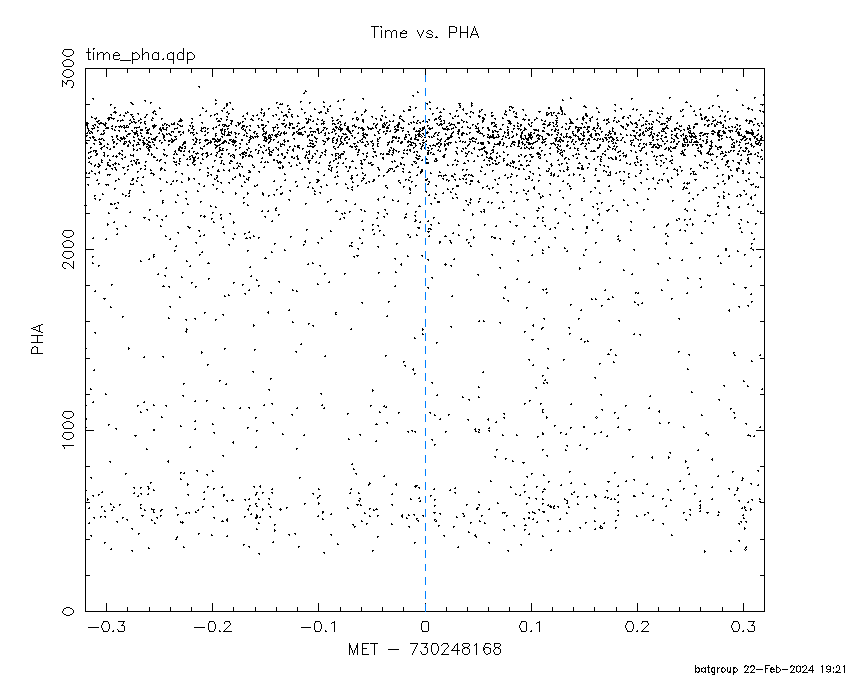

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-27.099400 71.400590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6598  35.3646    7.3  35.3   73.5   0.7258   1.6   10.0	Her X-1
262.9867 -24.6564    6.6  58.0   -9.5  -1.7856  -1.7    5.5	GX 1+4
268.3749  -1.5421    4.1  36.4    3.9   0.6964   2.8    5.4	SW J1753.5-0127
270.4590 -25.0761    3.3  55.0  -16.8   2.0877   3.5    9.5	GX 5-1
270.2702 -25.7969    6.2  55.7  -17.0  -1.1691  -1.8    3.7	GRS 1758-258
273.8857 -13.9938    5.3  43.6  -14.1  -0.6487  -2.2    7.4	GX 17+2
275.8255 -30.3061    3.8  58.0  -24.5  -3.0931  -3.0    6.3	H1820-303
285.1295 -24.9509   13.9  50.7  -32.6  -0.4765  -0.8    5.4	HT1900.1-2455
288.8887  11.0661    6.8  14.7  -22.8   0.3117   1.7    9.0	GRS 1915+105
299.5581  35.3806   50.6  11.4  160.2   0.0418   0.2   10.9	Cyg X-1
307.8352  40.9678    0.0  19.7  169.2   0.1882   1.0   12.5	Cyg X-3
325.9516  38.3691    5.2  30.1 -167.3  -0.4531  -2.2   10.7	Cyg X-2
246.3334   6.5557    2.4  49.1   33.3   2.7652   4.8 ------	UNKNOWN
259.6787 -10.5371    2.6  48.8    4.5   1.5211   4.5 ------	UNKNOWN
300.5115  35.0188    0.4  11.5  164.5   4.8845  27.1 ------	UNKNOWN
288.0251  -7.5596    2.2  33.1  -32.1   1.2401   5.3 ------	UNKNOWN
355.2483  31.3377    2.5  53.7 -154.8   3.0961   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
114.600590 424.640000
430.000000 483.050000
601.000000 663.134800
781.000000 843.050000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6330  35.3310    8.0  37.2   56.3   2.5886   1.5    8.6	Her X-1
268.3182  -1.5487   18.4  47.4   -1.5   0.8361   0.6    6.5	SW J1753.5-0127
274.1391 -14.0549    7.9  55.1  -16.2   3.2764   1.5    7.8	GX 17+2
288.8403  10.8983    7.3  26.4  -21.3   1.2577   1.6    3.8	GRS 1915+105
299.4625  35.0938   10.4   0.9   46.9  -0.8311  -1.1    9.0	Cyg X-1
308.3875  40.9257    0.0   8.6  176.2   0.6274   0.9   12.7	Cyg X-3
326.4154  38.2628    0.0  21.0 -154.4   1.0418   1.4   12.0	Cyg X-2
263.1143  33.9315    2.6  30.7   51.0   4.8655   4.5 ------	UNKNOWN
300.4778  35.0647    0.4   0.1   88.3  21.3678  28.6 ------	UNKNOWN
 16.2272  43.2744    2.2  57.3 -170.9  16.8834   5.2 ------	UNKNOWN
 10.5502  42.0303    2.0  53.7 -167.8  13.3157   5.7 ------	UNKNOWN
358.0211  24.4329    2.7  50.4 -142.2  10.7870   4.3 ------	UNKNOWN

Plot creation:
Thu Feb 22 19:21:33 EST 2024
