batgrbproduct Analysis for Trigger=1216864

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri Feb 23 13:17:21 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1216864/GCN5_download_cron
======================================================================

  Trigger: 01216864      Segment: 000

  BAT Trigger Time: 730310568   [s; MET]
      Trigger Stop: 730310632   [s; MET]
               UTC: 2024-02-22T16:02:15.038920    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 299.785487996803   Dec: 35.6027679401431  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    17.5
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    17.5

  Flight Position:   [ source = BAT ]
    RA: 299.785487996803   Dec: 35.6027679401431  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 299.785273566771   Dec: 35.601685488249  [deg; J2000]
        { 19h 59m 08.5s , +35d 36' 06.1" }
         +/- 1.21792320804283 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.480044019133646 [arcmin] (formal 1-sigma fit error)
    SNR: 22.9511382092486

  Angular difference between Flight and Ground position is 0.065784 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 242.43599998951 +/- 11.5126276135161
        Measured from: -75.2479999065399
                   to: 167.18800008297     [s; relative to TRIGTIME]
     T50: 121.383999943733 +/- 11.605915741294
        Measured from: -29.1999999284744
                   to: 92.1840000152588     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -61.7920000553131
                   to: -60.7920000553131     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -86.7000000476837
                   to: 180.879999995232     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     3.645669   4.443535   2.644643   0.398194
           0.113648   0.114132   0.096073   0.081229 [error]
 Peak      0.035012   0.036817   0.012541   0.009365
           0.008019   0.008465   0.006861   0.005925 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.09e-06 1.74e-06 2.09e-06 4.90e-06 6.33e-06 9.82e-06   erg/cm2
              Error 6.66e-08 6.13e-08 9.75e-08 5.05e-07 2.28e-07 5.71e-07   erg/cm2
Peak flux Power-law 2.94e-01 2.29e-01 1.20e-01 9.10e-02 6.85e-01 7.34e-01   ph/cm2/s
              Error 1.09e-01 6.18e-02 5.41e-02 7.96e-02 1.83e-01 2.02e-01   ph/cm2/s

Fluence   Cutoff-PL 1.03e-06 1.78e-06 2.11e-06 3.09e-06 6.16e-06 8.01e-06   erg/cm2
              Error 8.31e-08 7.18e-08 1.03e-07 1.20e-06 2.72e-07 1.23e-06   erg/cm2
Peak flux Cutoff-PL 2.93e-01 2.31e-01 1.20e-01 7.73e-02 6.83e-01 7.20e-01   ph/cm2/s
              Error 1.15e-01 8.16e-02 6.33e-02 9.48e-02 1.84e-01 2.20e-01   ph/cm2/s

Fluence        Band 9.84e-07 1.81e-06 2.06e-06 4.07e-06 6.14e-06 8.96e-06   erg/cm2
              Error -------- 8.10e-08 1.05e-07 -------- 2.59e-07 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.735    0.065    -      -           2.59e-03 8.93e-05   54.830 57
CPL   1.425    0.271      91.6  106.7      3.70e-03 1.16e-03   50.710 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.933    0.515    -      -           4.70e-03 1.63e-03   56.750 57
CPL   1.813    0.000      58.5    0.0      5.57e-03 0.00e+00   56.750 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  267.580  -86.700  180.880
T90   242.436  -75.248  167.188
T50   121.384  -29.200   92.184
Peak    1.000  -61.792  -60.792

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

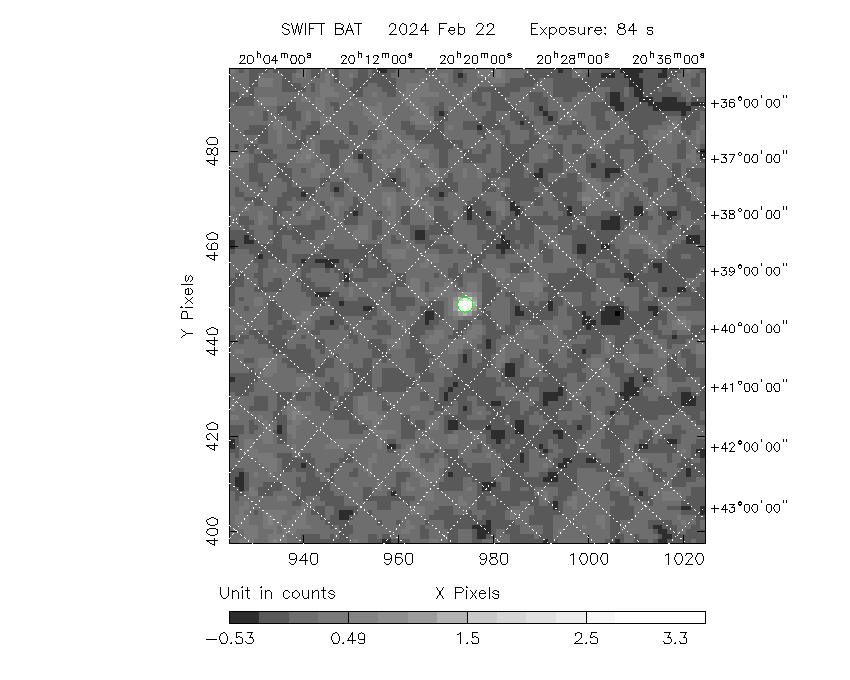

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  299.7853 +35.6017 0.0084   11.7  163.0       3.6286    23.0  TRIG_01216864
------------------------------------------

Foreground time interval of the image:
-13.699   7.260 (delta_t =  20.959 [sec])
  8.000  70.701 (delta_t =  62.701 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

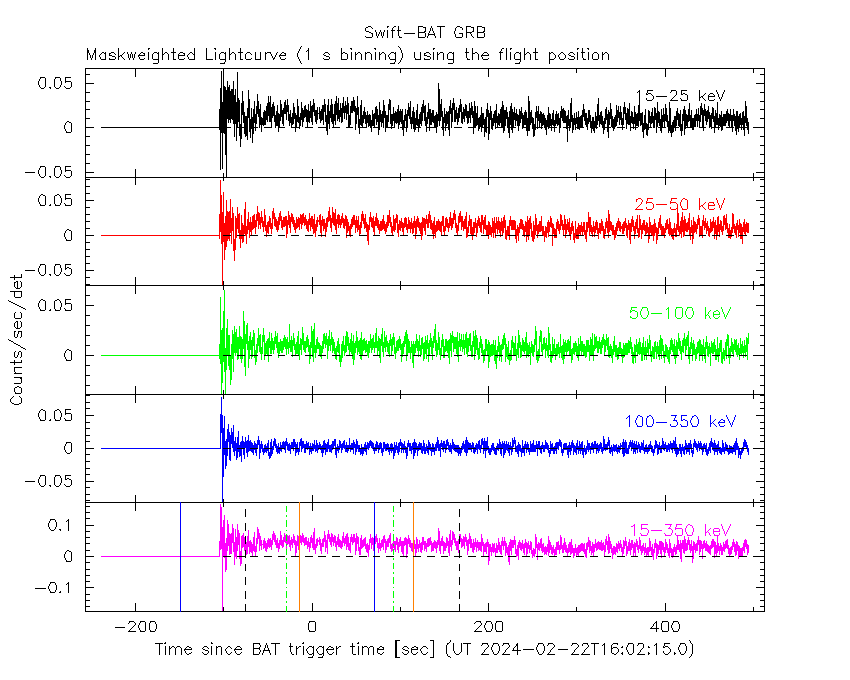

1 s binning

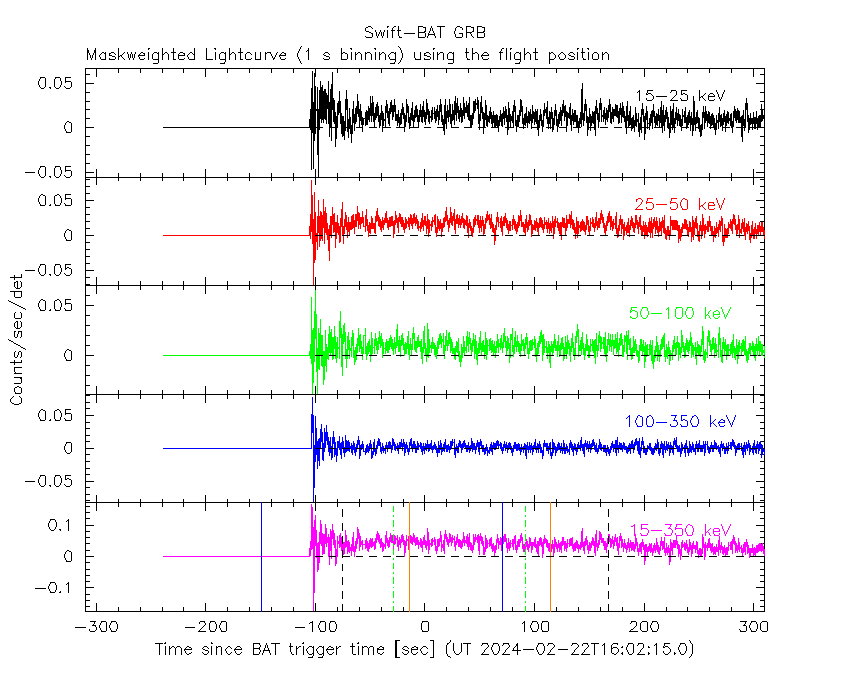

From T0-310 s to T0+310 s

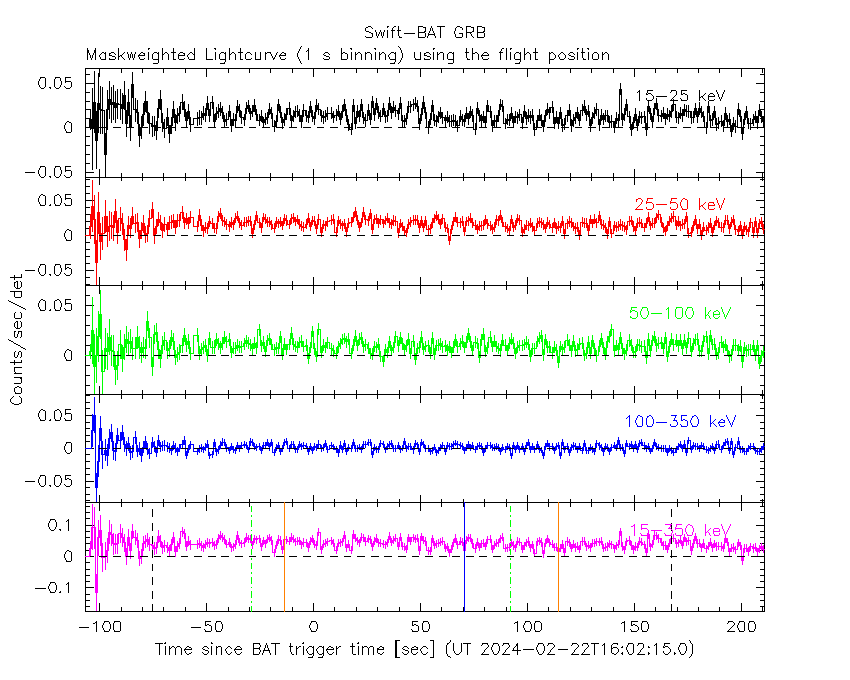

From T100_start - 20 s to T100_end + 30 s

Full time interval

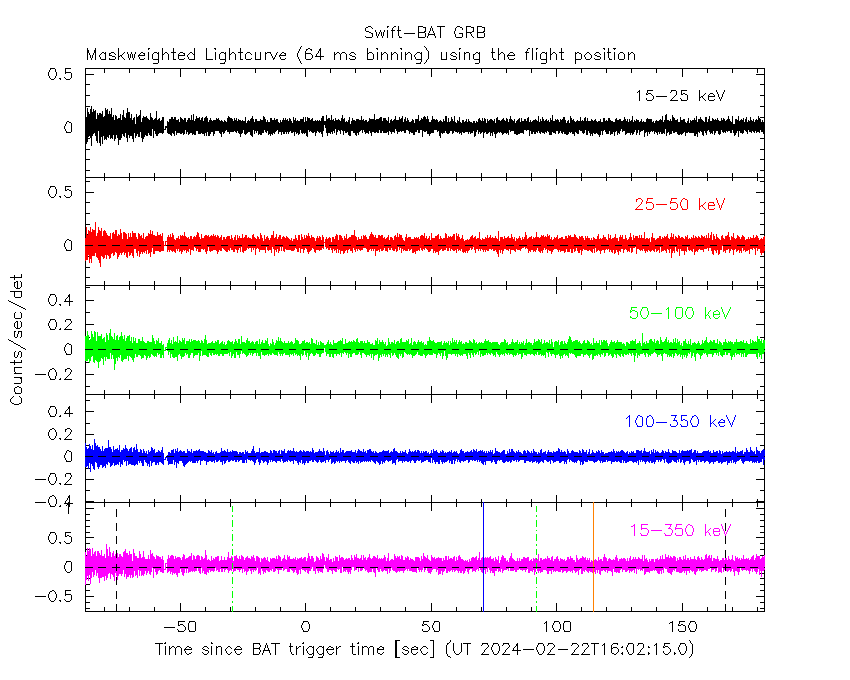

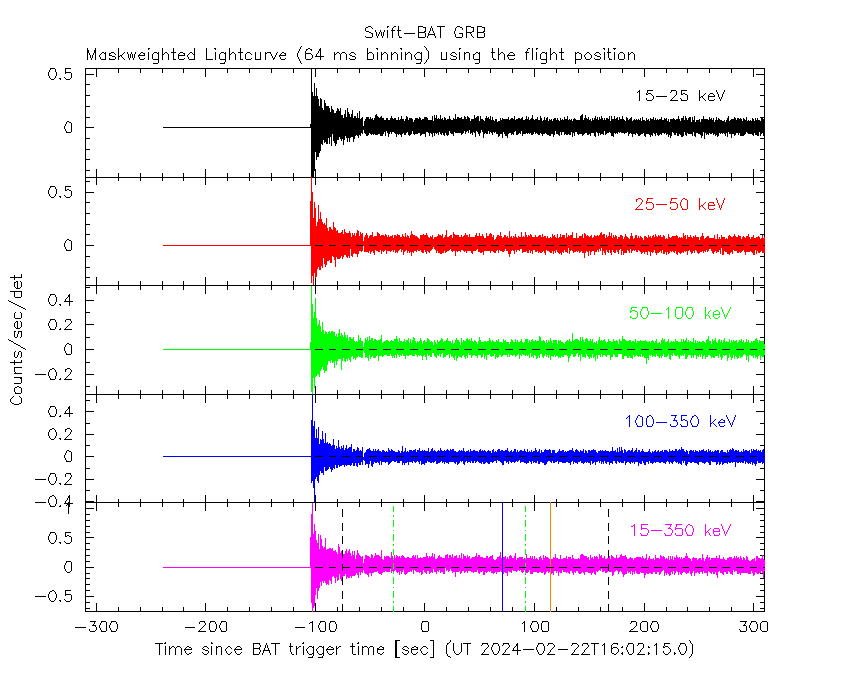

64 ms binning

Full time interval

From T100_start to T100_end

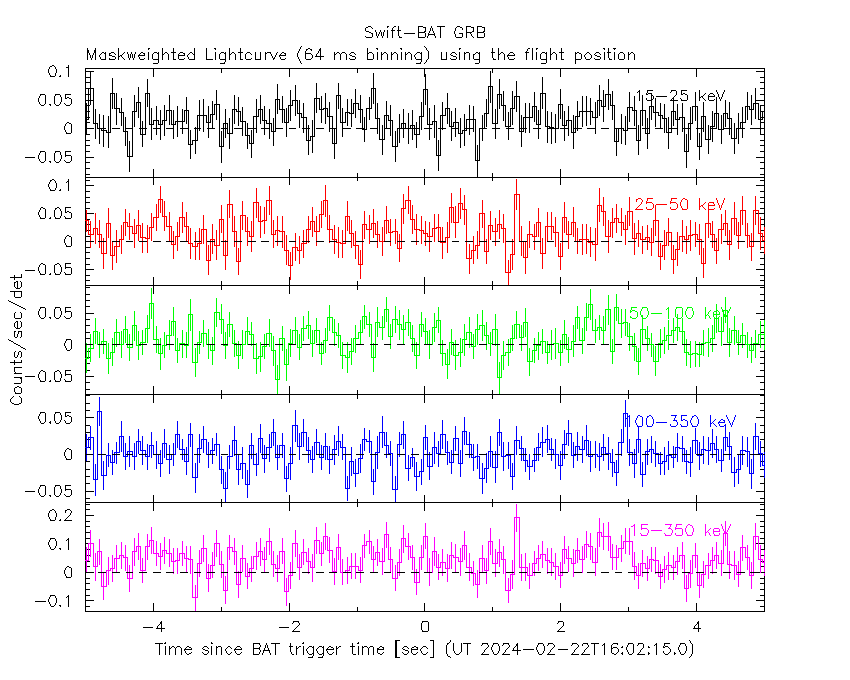

From T0-5 sec to T0+5 sec

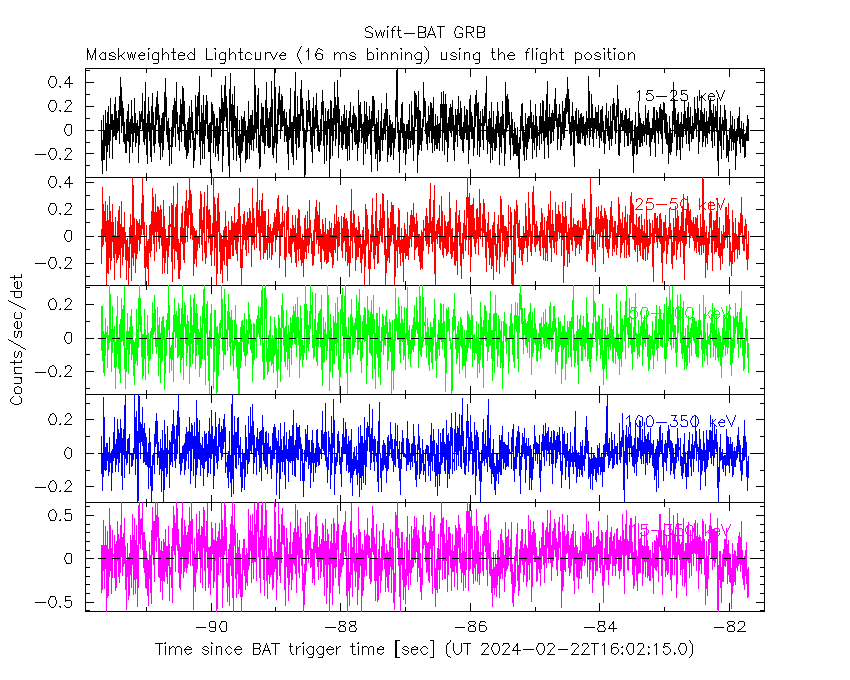

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

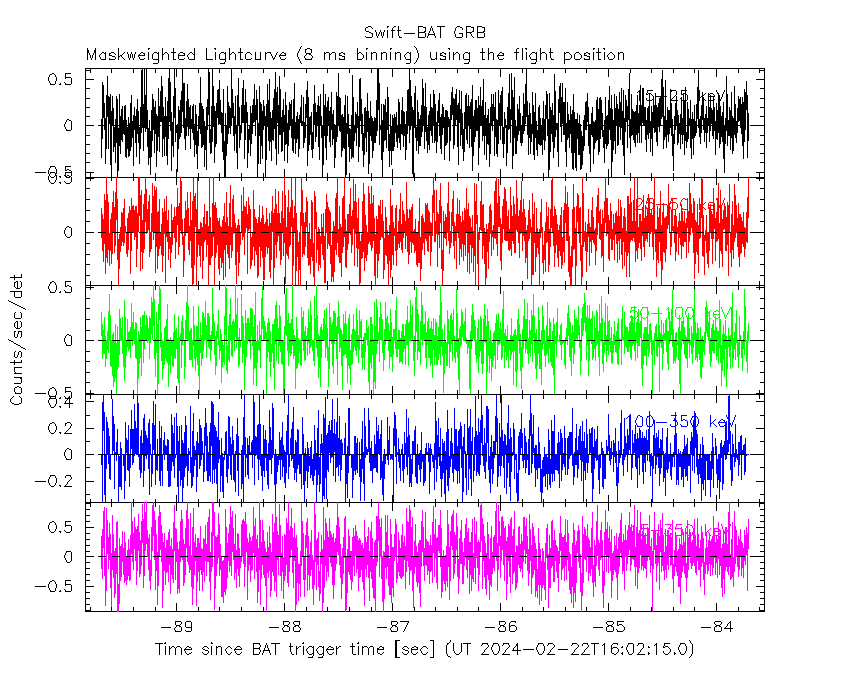

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

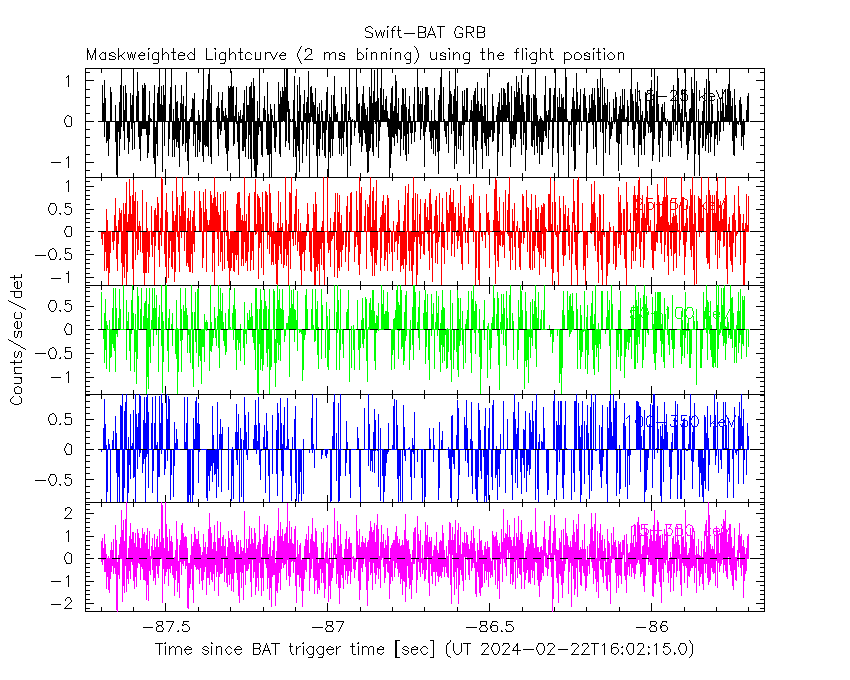

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

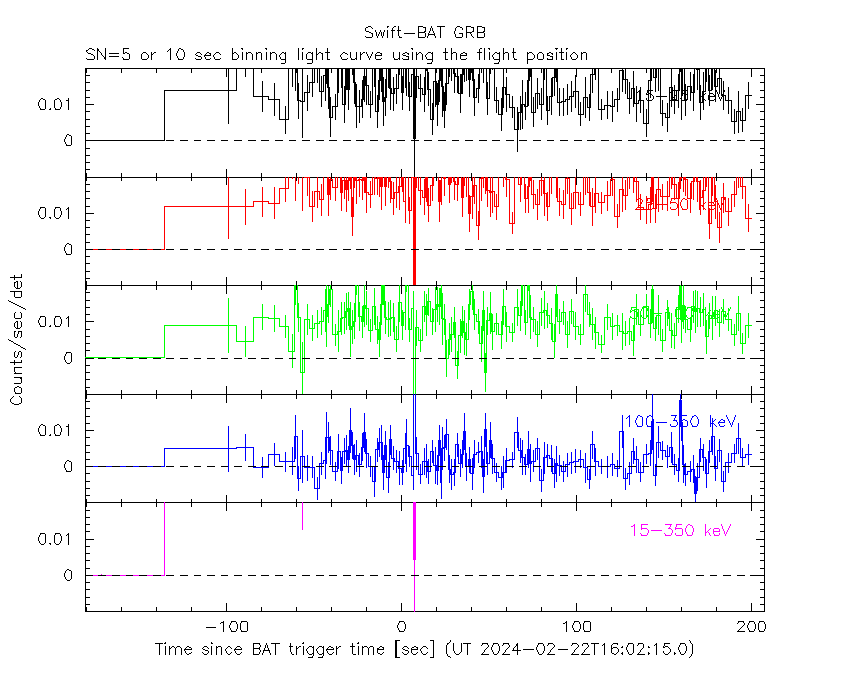

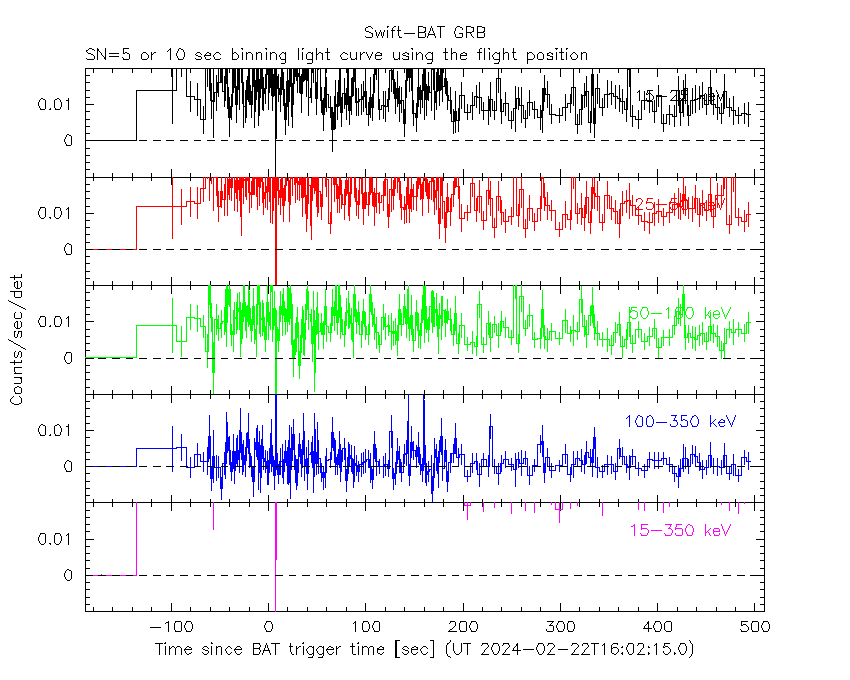

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

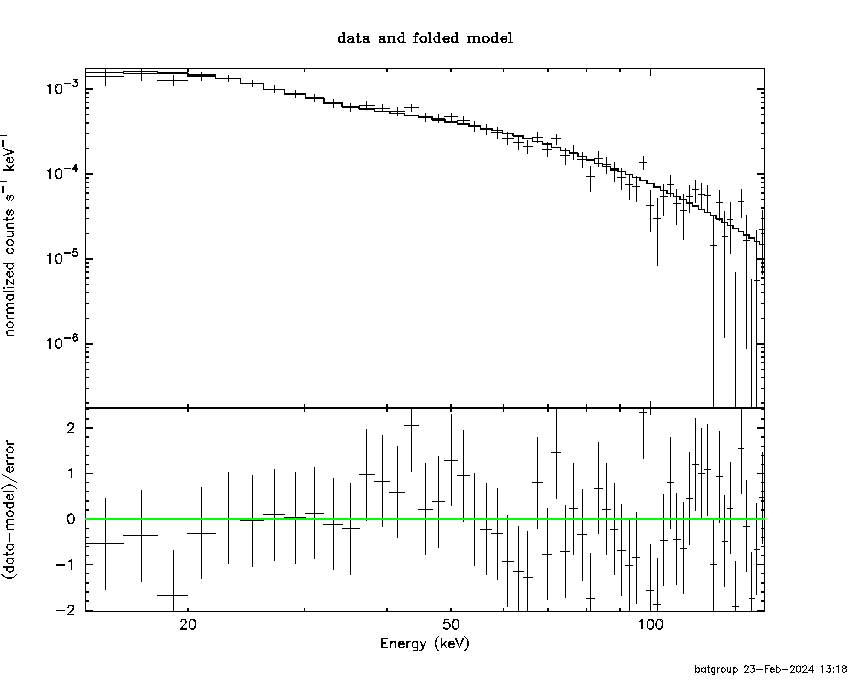

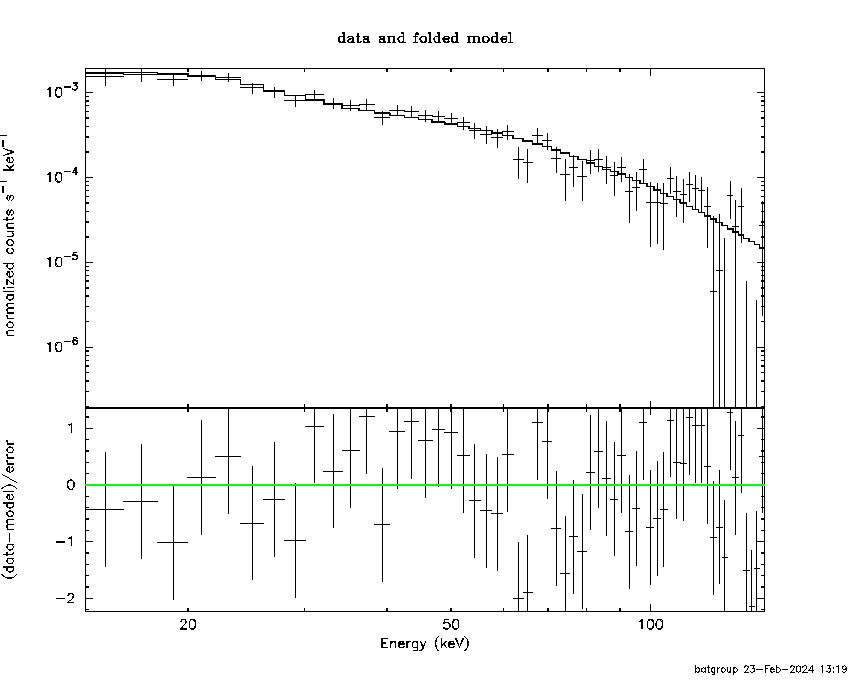

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-86.700000 -56.580500
-55.000000 7.260000
8.000000 180.880000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73530     ( -0.0645303   0.0649219 )
Norm@50keV  : 2.58522E-03    ( -8.94549e-05   8.92277e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.83 using 59 PHA bins.
# Reduced chi-squared =         0.9619 for     57 degrees of freedom
# Null hypothesis probability =   5.570293e-01

Photon flux (15-150 keV)    in 265.3 sec: 0.347691 ( -0.0124545  0.0124928 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.3343e-06 ( -2.27235e-07  2.27986e-07 ) ergs/cm2

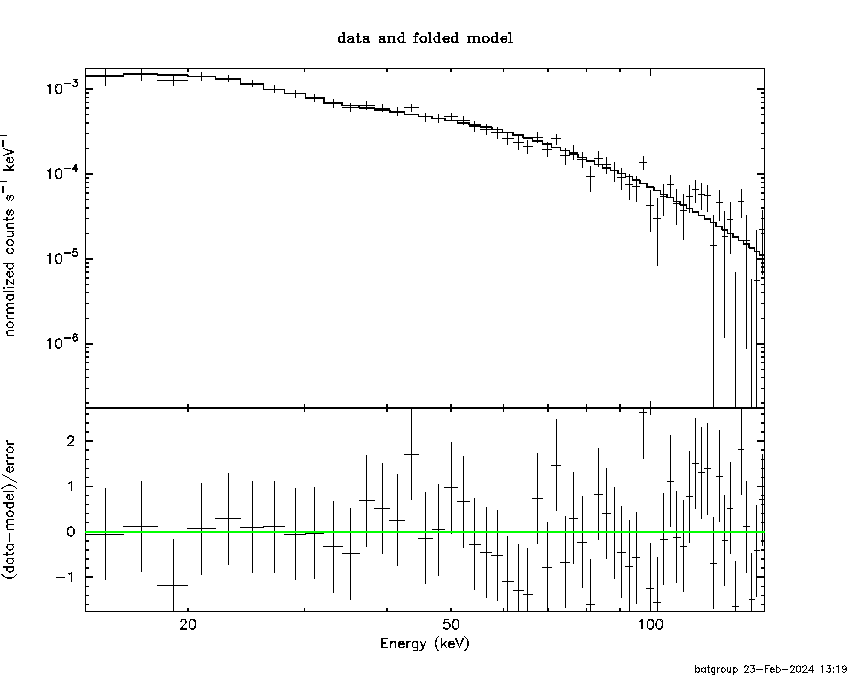

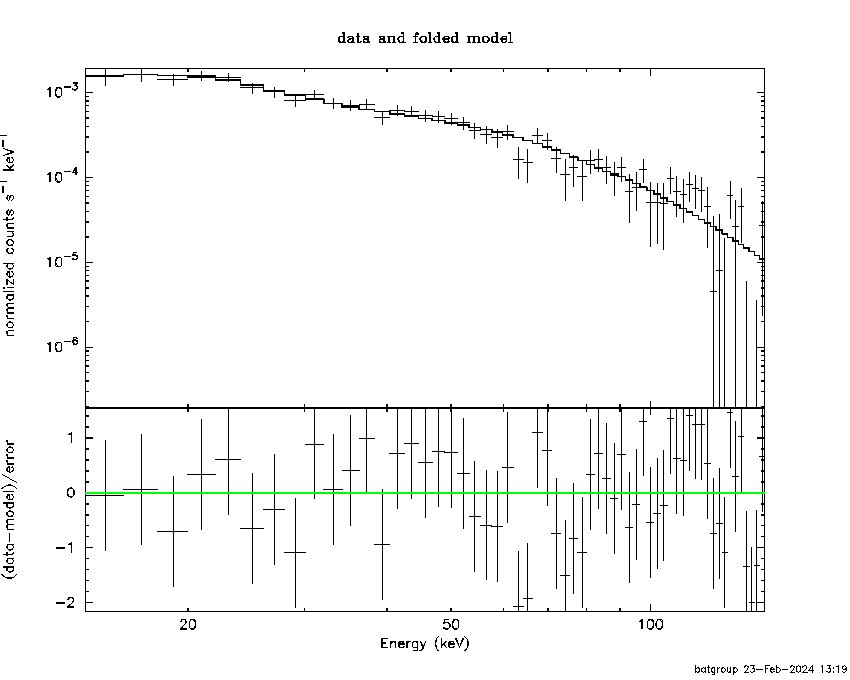

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-86.700000 -56.580500
-55.000000 7.260000
8.000000 180.880000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42510     ( -0.279398   0.261797 )
Epeak [keV] : 91.5711      ( -22.2224 191.24 )
Norm@50keV  : 3.69573E-03    ( -0.000941201   0.00137159 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.71 using 59 PHA bins.
# Reduced chi-squared =         0.9055 for     56 degrees of freedom
# Null hypothesis probability =   6.748091e-01

Photon flux (15-150 keV)    in 265.3 sec: 0.339809 ( -0.013969  0.014022 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.15745e-06 ( -2.72569e-07  2.71747e-07 ) ergs/cm2

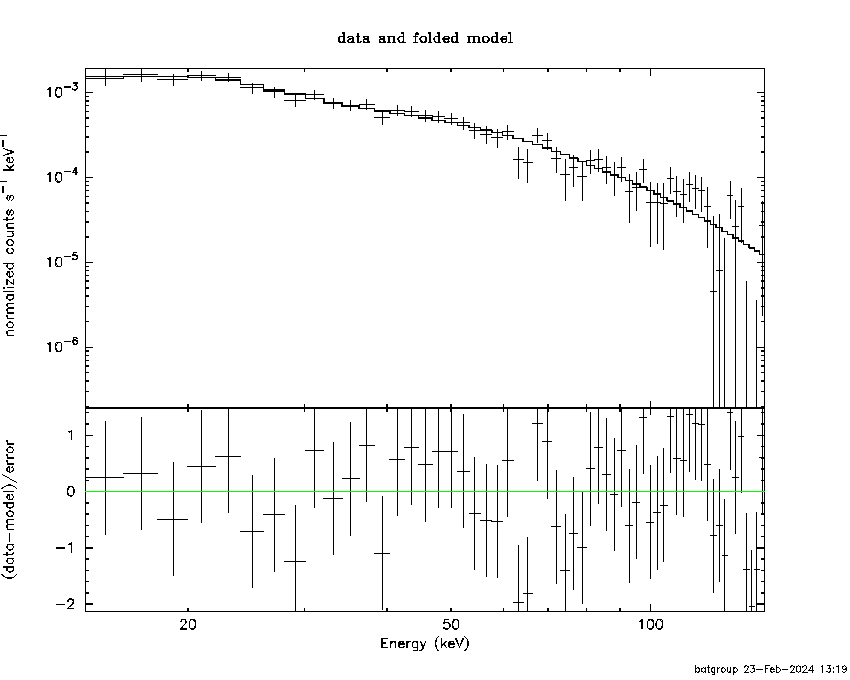

Band function

Multiple GTIs in the spectrum
tstart tstop
-86.700000 -56.580500
-55.000000 7.260000
8.000000 180.880000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.04568   ( -0.495949   1.31878 )
beta        : -1.91004    ( 1.91065   0.145357 )
Epeak [keV] : 57.3852      ( -24.7003 56.8466 )
Norm@50keV   : 6.24060E-03    ( -0.00299974   0.0514654 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.35 using 59 PHA bins.
# Reduced chi-squared =         0.8791 for     55 degrees of freedom
# Null hypothesis probability =   7.248089e-01

Photon flux (15-150 keV)    in 265.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.14368e-06 ( -6.14183e-06  -2.58614e-07 ) ergs/cm2

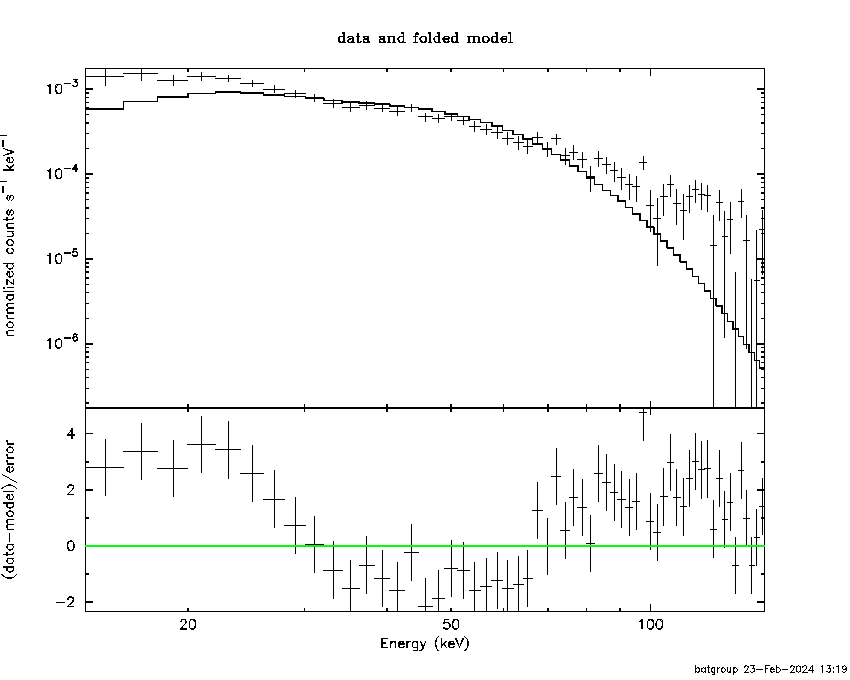

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.2932  (  )
R^2/D10^2   : 5.52985E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         216.72 using 59 PHA bins.
# Reduced chi-squared =         3.8022 for     57 degrees of freedom
# Null hypothesis probability =   1.840296e-20

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.495e-07   3.568e-08
25- 50  1.938e-06   7.508e-08
50-150  2.193e-06   1.584e-07
15-150  4.681e-06   1.844e-07

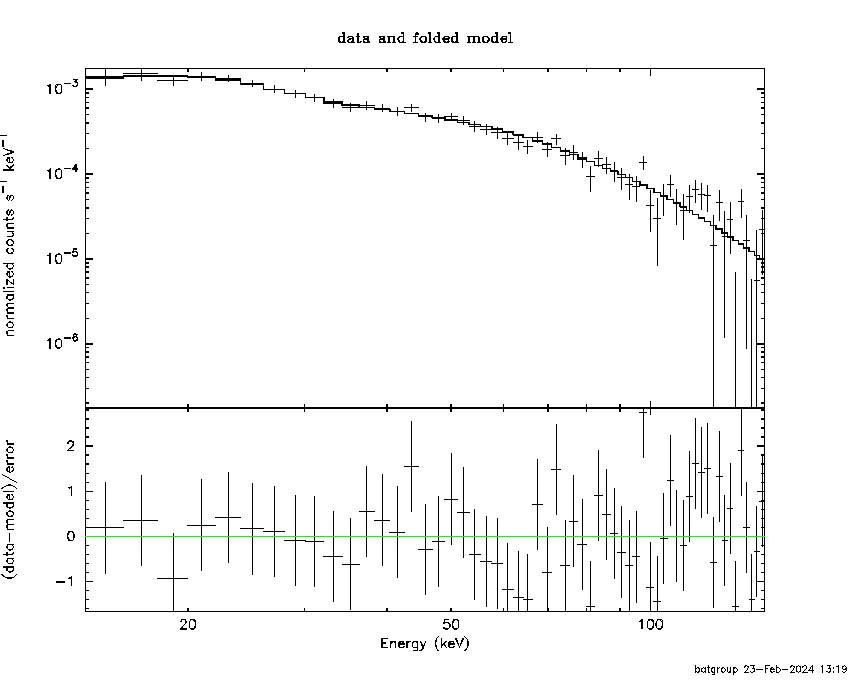

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 122.987       (-16.0515      25.8514)
Norm        : 1.46023       (-0.0732184     0.0683055)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.768e-07   6.566e-08
25- 50  1.776e-06   9.829e-08
50-150  3.317e-06   8.179e-07
15-150  6.070e-06   8.636e-07

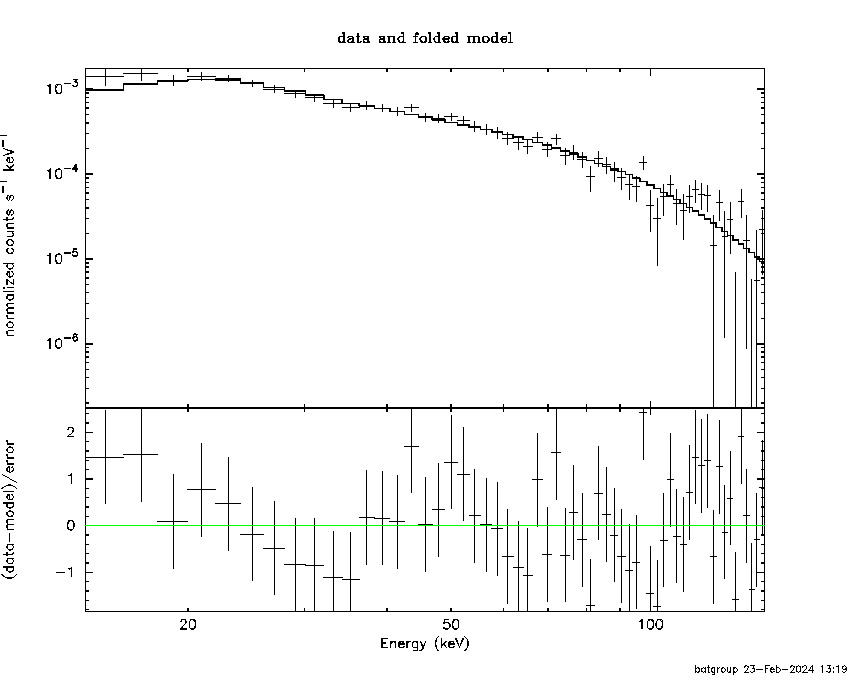

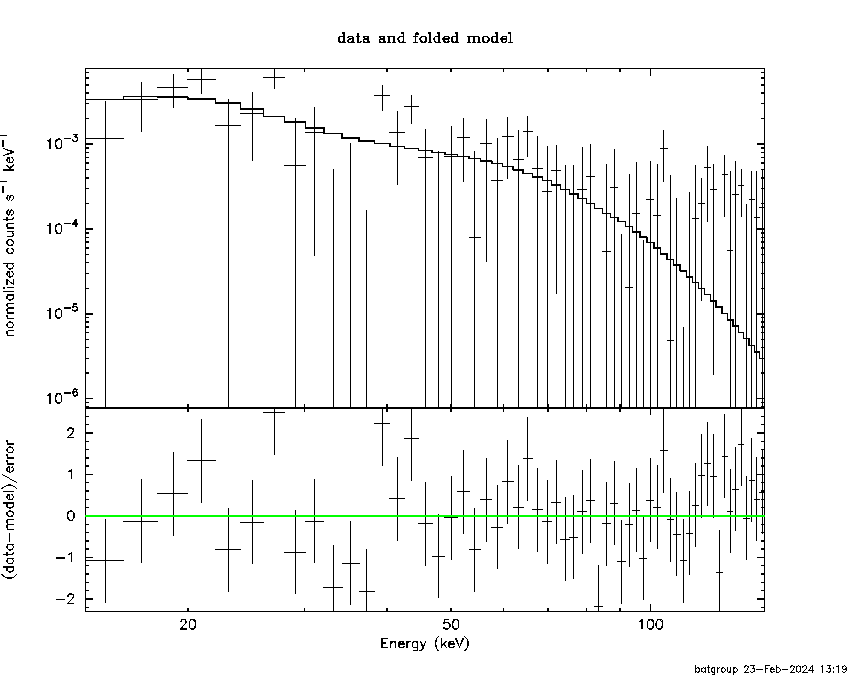

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.67138        (-0.96889      0.979725)
R1^2/D10^2  : 0.289059        (-0.0907439      0.161398)
kT2 [keV]   : 26.8542        (-4.27343      6.6911)
R2^2/D10^2  : 3.07626E-03    (-0.00165989   0.0028806)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.879e-07   8.954e-08
25- 50  1.861e-06   1.519e-07
50-150  3.340e-06   5.197e-07
15-150  6.089e-06   7.309e-07

Peak spectrum fit

Power-law model

Time interval is from  -61.792 sec. to  -60.792 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.93289     ( -0.480136   0.549122 )
Norm@50keV  : 4.70312E-03    ( -0.00167754   0.00157954 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.75 using 59 PHA bins.
# Reduced chi-squared =         0.9956 for     57 degrees of freedom
# Null hypothesis probability =   4.844778e-01

Photon flux (15-150 keV)    in 1 sec: 0.684568 ( -0.183489  0.183489 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.32614e-08 ( -1.41233e-08  1.49433e-08 ) ergs/cm2

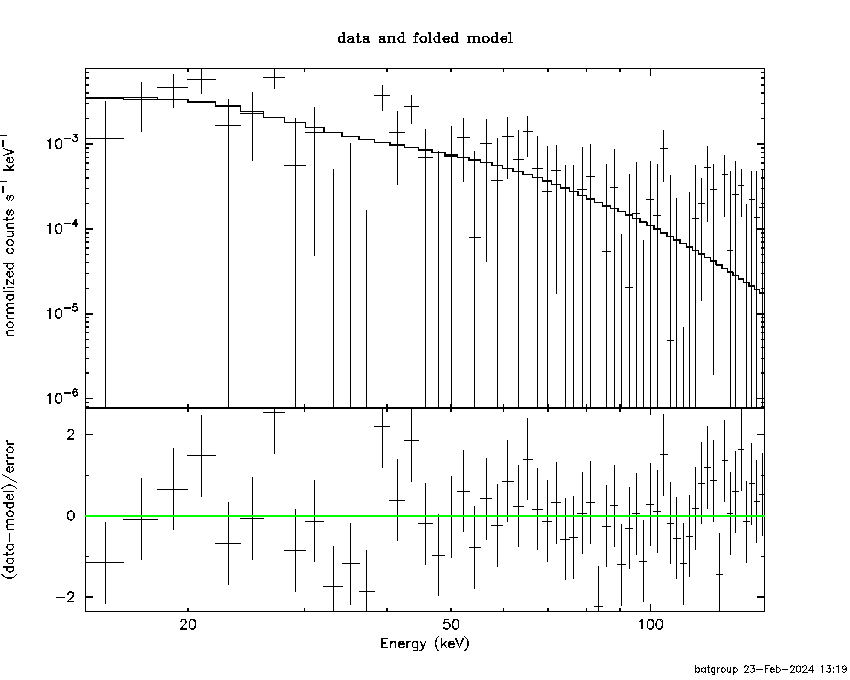

Cutoff power-law model

Time interval is from  -61.792 sec. to  -60.792 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.81310     (     )
Epeak [keV] : 58.4722      (   )
Norm@50keV  : 5.56760E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.75 using 59 PHA bins.
# Reduced chi-squared =          1.013 for     56 degrees of freedom
# Null hypothesis probability =   4.468135e-01

Photon flux (15-150 keV)    in 1 sec: 0.683251 ( -0.183469  0.184528 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.28048e-08 ( -1.68775e-08  1.52633e-08 ) ergs/cm2

Band function

Time interval is from  -61.792 sec. to  -60.792 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -2.15194    ( -1.05004   0.588403 )
Epeak [keV] : 22.4067      ( -22.4079 84.1337 )
Norm@50keV   : 1581.58    ( -417.01   7.60479e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.58 using 59 PHA bins.
# Reduced chi-squared =          1.011 for     55 degrees of freedom
# Null hypothesis probability =   4.526247e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.16262e-08 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.66350  (-3.23268  4.03381)
R^2/D10^2   : 0.368376  (-0.269371   1.34787)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.918e-09   3.903e-09
25- 50  1.637e-08   9.570e-09
50-150  7.733e-09   5.765e-09
15-150  3.103e-08   1.906e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 69.1749       (-38.9277      -69.1749)
Norm        : 3.40141       (-1.16572     2.07904)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.715e-09   3.913e-09
25- 50  1.382e-08   8.290e-09
50-150  1.760e-08   1.479e-08
15-150  4.013e-08   2.586e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.77024        (-2.25471      29.5702)
R1^2/D10^2  : 3.77346        (-3.29054      61.847)
kT2 [keV]   : 16.5568        (-6.99045      -16.4882)
R2^2/D10^2  : 3.44407E-02    (-0.0343926   0.307526)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.510e-09   5.345e-09
25- 50  1.278e-08   6.830e-09
50-150  1.641e-08   1.066e-08
15-150  3.870e-08   2.061e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.77007     ( -0.0912275   0.0923499 )
Norm@50keV  : 2.68135E-03    ( -0.000140279   0.000139357 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.79 using 59 PHA bins.
# Reduced chi-squared =         0.8911 for     57 degrees of freedom
# Null hypothesis probability =   7.057561e-01

Photon flux (15-150 keV)    in 83.66 sec: 0.365284 ( -0.0181956  0.0182299 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.06769e-06 ( -1.11357e-07  1.12112e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47966     ( -0.394653   0.328801 )
Epeak [keV] : 84.1368      ( -25.0513 -84.1376 )
Norm@50keV  : 3.81030E-03    ( -0.00120342   0.00228277 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.91 using 59 PHA bins.
# Reduced chi-squared =         0.8733 for     56 degrees of freedom
# Null hypothesis probability =   7.379497e-01

Photon flux (15-150 keV)    in 83.66 sec: 0.358834 ( -0.019789  0.019792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.00981e-06 ( -1.32902e-07  1.32785e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.13303   ( -0.592611   4.12496 )
beta        : -1.96558    ( 1.96488   0.20556 )
Epeak [keV] : 54.9515      ( -24.9 169.993 )
Norm@50keV   : 6.19993E-03    ( -0.00353839   12.9579 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.43 using 59 PHA bins.
# Reduced chi-squared =         0.8623 for     55 degrees of freedom
# Null hypothesis probability =   7.560511e-01

Photon flux (15-150 keV)    in 83.66 sec: 0.356026 ( 6.64397  -0.019908 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.00444e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.74e-06
S(50-100 keV) = 2.09e-06

T90 vs. Hardness ratio plot

T90                                   = 242.43599998951 sec.
Hardness ratio (energy fluence ratio) = 1.20115

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.21885
Count Ratio (50-100 keV) / (15-25 keV) = 0.72542

Mask shadow pattern

IMX = -1.983274966181967E-01, IMY = -6.060454469409742E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-13.699390 7.260000
8.000000 70.700590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5632  35.4405    6.6  35.4   76.1   0.6843   1.7    7.8	Her X-1
262.9089 -24.7203  529.4  58.1   -7.0  -0.0204  -0.0    5.7	GX 1+4
268.4898  -1.4886    4.2  36.2    6.3  -0.6165  -2.8    7.6	SW J1753.5-0127
270.1724 -25.0452    4.7  55.1  -14.0   1.2444   2.5    6.4	GX 5-1
270.2361 -25.7207   13.4  55.7  -14.5   0.4742   0.9    3.8	GRS 1758-258
273.9494 -13.9327   14.1  43.6  -11.6   0.2190   0.8    7.0	GX 17+2
275.8303 -30.3453   14.0  58.0  -22.0   0.7071   0.8    5.1	H1820-303
285.0708 -24.7784    4.1  50.5  -30.0  -1.3433  -2.8    8.7	HT1900.1-2455
288.8870  11.0671   10.3  14.7  -20.3   0.1707   1.1    9.0	GRS 1915+105
299.5852  35.4104    0.0  11.5  162.7   0.8270   5.2   12.5	Cyg X-1
308.2347  40.9398    6.3  19.9  172.4   0.2938   1.8    5.7	Cyg X-3
326.2229  38.1902   11.9  30.2 -164.3   0.1767   1.0    8.2	Cyg X-2
244.4729  12.5485    3.1  48.3   44.0   2.1901   3.7 ------	UNKNOWN
  2.3876  54.8281    2.1  57.5  178.8   4.5713   5.6 ------	UNKNOWN
279.2632 -12.2900    2.4  40.0  -17.7   1.1437   4.9 ------	UNKNOWN
331.3748  24.5958    2.2  33.8 -138.0   1.1943   5.3 ------	UNKNOWN
286.2054 -29.6763    2.4  55.2  -32.3   4.0604   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
114.700590 350.350000
351.000000 495.140000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5197  35.4624    8.4  36.5   56.9   1.9943   1.4    7.8	Her X-1
268.3917  -1.5895    6.3  47.3   -1.5   1.9742   1.8    8.3	SW J1753.5-0127
273.9739 -14.0468    6.1  55.3  -15.6  -3.4026  -1.9    2.0	GX 17+2
288.7418  11.0394    9.6  26.5  -21.7   0.7220   1.2    6.5	GRS 1915+105
299.6854  35.3376    1.5   0.3  -30.1   4.2298   7.6    9.4	Cyg X-1
308.0553  40.9224    8.7   8.4 -178.4   0.7371   1.3    3.1	Cyg X-3
326.2507  38.1934   50.5  21.3 -151.5  -0.1281  -0.2    8.5	Cyg X-2
 22.6008  67.1152    2.5  54.9  161.6  10.0008   4.6 ------	UNKNOWN
268.4217 -14.7671    2.4  58.5  -10.4  15.2653   4.7 ------	UNKNOWN
283.3684 -10.1321    2.9  48.3  -24.7   4.6787   4.1 ------	UNKNOWN
287.5003 -18.3516    2.1  55.2  -32.3  17.4658   5.4 ------	UNKNOWN

Plot creation:
Fri Feb 23 13:20:11 EST 2024
