batgrbproduct Analysis for Trigger=1218302

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Mar  3 04:58:46 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1218302/GCN5_download_cron
======================================================================

  Trigger: 01218302      Segment: 000

  BAT Trigger Time: 731052032   [s; MET]
      Trigger Stop: 731052096   [s; MET]
               UTC: 2024-03-02T05:59:58.988140    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 83.8861086101572   Dec: 21.8750747732497  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    16.86
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    16.86

  Flight Position:   [ source = BAT ]
    RA: 83.8861086101572   Dec: 21.8750747732497  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 84.1040198359278   Dec: 21.8352525627906  [deg; J2000]
        { 05h 36m 25.0s , +21d 50' 06.9" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 16.9748252688031 [arcmin] (formal 1-sigma fit error)
    SNR: -0.858394034750831

  Angular difference between Flight and Ground position is 12.367956 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 727.164000034332 +/- 159.682319355849
        Measured from: -7.0239999294281
                   to: 720.140000104904     [s; relative to TRIGTIME]
     T50: 388.507999897003 +/- 98.0190194770337
        Measured from: 132.28400015831
                   to: 520.792000055313     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 35.2680000066757
                   to: 36.2680000066757     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -149.968000054359
                   to: 766.348000049591     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    14.019830  12.817092   6.073799   1.016734
           0.193216   0.197123   0.167222   0.144554 [error]
 Peak      0.040628   0.032212   0.012254   0.008355
           0.006560   0.006594   0.005431   0.004549 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.15e-06 5.12e-06 4.59e-06 7.11e-06 1.63e-05 2.10e-05   erg/cm2
              Error 1.96e-07 1.31e-07 1.77e-07 6.09e-07 4.06e-07 7.26e-07   erg/cm2
Peak flux Power-law 3.32e-01 2.32e-01 1.07e-01 6.87e-02 7.04e-01 7.40e-01   ph/cm2/s
              Error 9.38e-02 5.04e-02 4.28e-02 5.23e-02 1.48e-01 1.59e-01   ph/cm2/s

Fluence   Cutoff-PL 4.12e-06 5.14e-06 4.59e-06 6.59e-06 1.62e-05 2.04e-05   erg/cm2
              Error 2.21e-07 1.42e-07 1.33e-07 1.27e-06 4.91e-07 1.45e-06   erg/cm2
Peak flux Cutoff-PL 3.36e-01 2.31e-01 1.04e-01 6.53e-02 7.04e-01 7.39e-01   ph/cm2/s
              Error 9.39e-02 5.67e-02 4.53e-02 6.62e-02 1.47e-01 1.19e-01   ph/cm2/s

Fluence        Band 4.42e-06 6.17e-06 5.79e-06 8.32e-06 1.94e-05 2.48e-05   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.159    0.054    -      -           1.92e-03 5.17e-05   41.570 57
CPL   1.992   -0.936       2.3   10.7      2.30e-03 1.29e-04   42.690 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.120    0.433    -      -           4.43e-03 1.34e-03   50.640 57
CPL   1.980    0.000       7.8    0.0      5.22e-03 0.00e+00   50.790 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  916.316 -149.968  766.348
T90   727.164   -7.024  720.140
T50   388.508  132.284  520.792
Peak    1.000   35.268   36.268

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   84.1040 +21.8353 0.2244    0.1 -169.0      -0.2778    -0.9  TRIG_01218302
------------------------------------------

Foreground time interval of the image:
-149.968   3.070 (delta_t = 153.038 [sec])
  5.000  72.501 (delta_t =  67.501 [sec])
Background time interval of the image:
-239.000 -183.920 (delta_t =  55.080 [sec])
-183.000 -150.640 (delta_t =  32.360 [sec])
-150.000 -149.968 (delta_t =   0.032 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

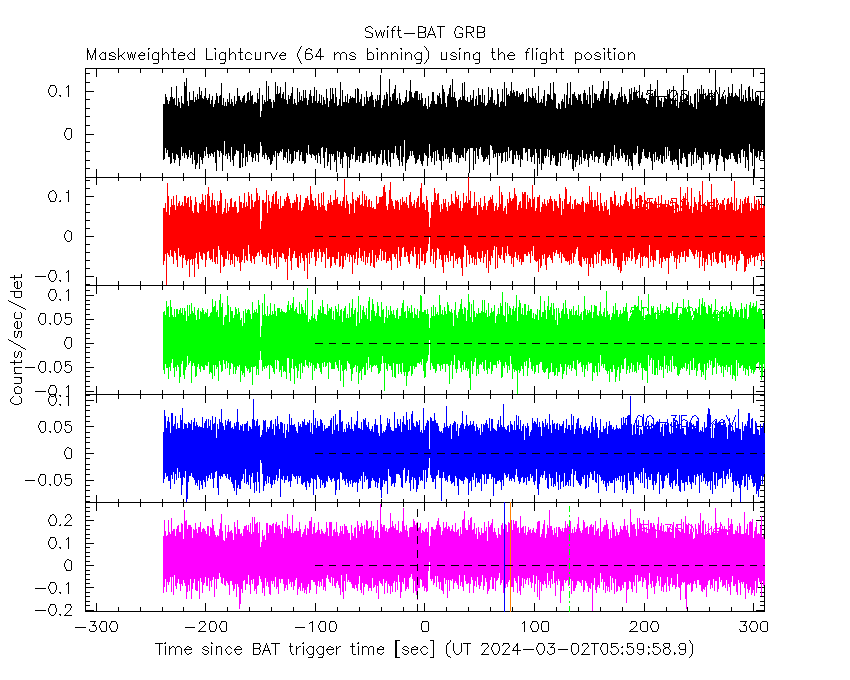

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

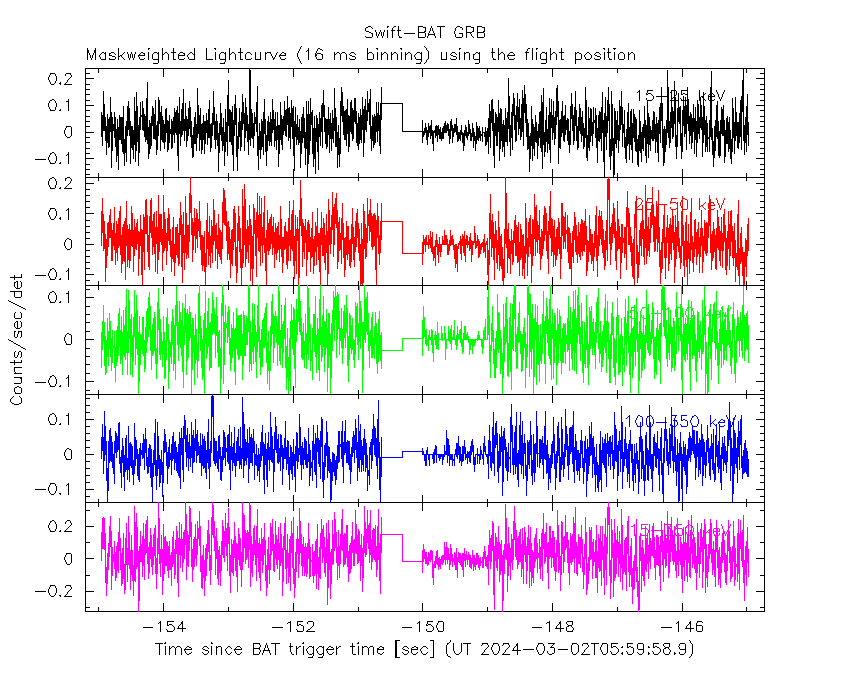

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

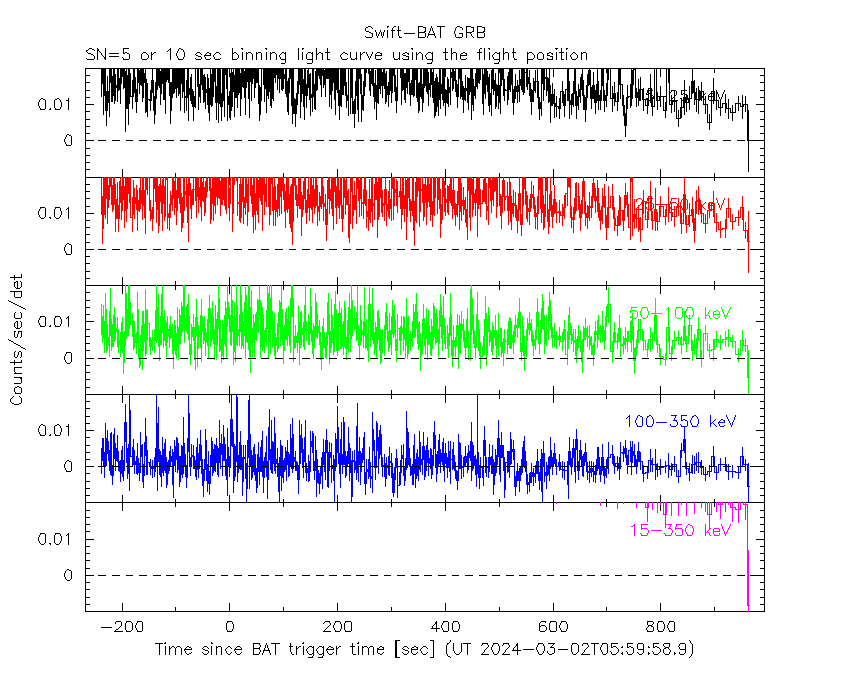

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

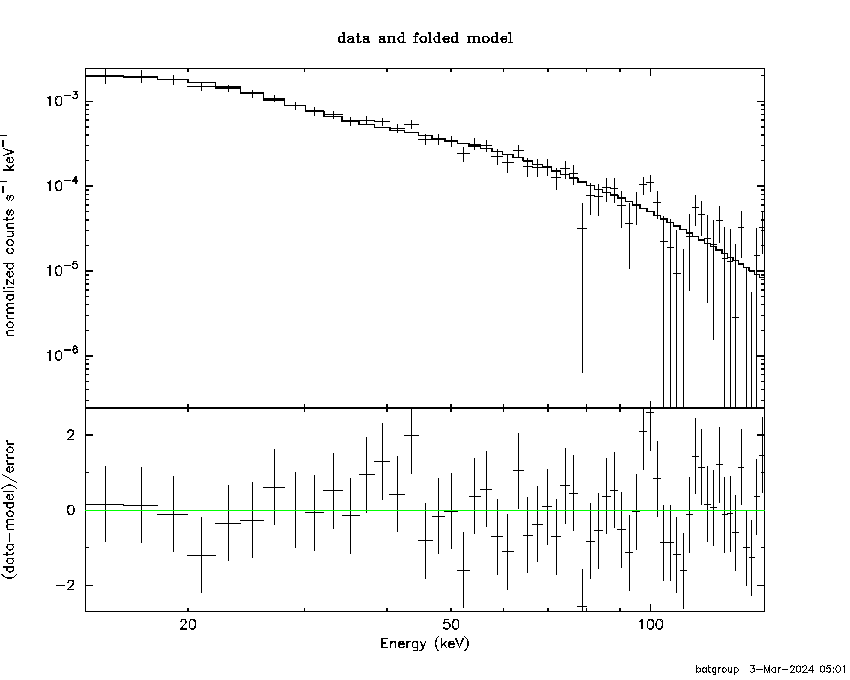

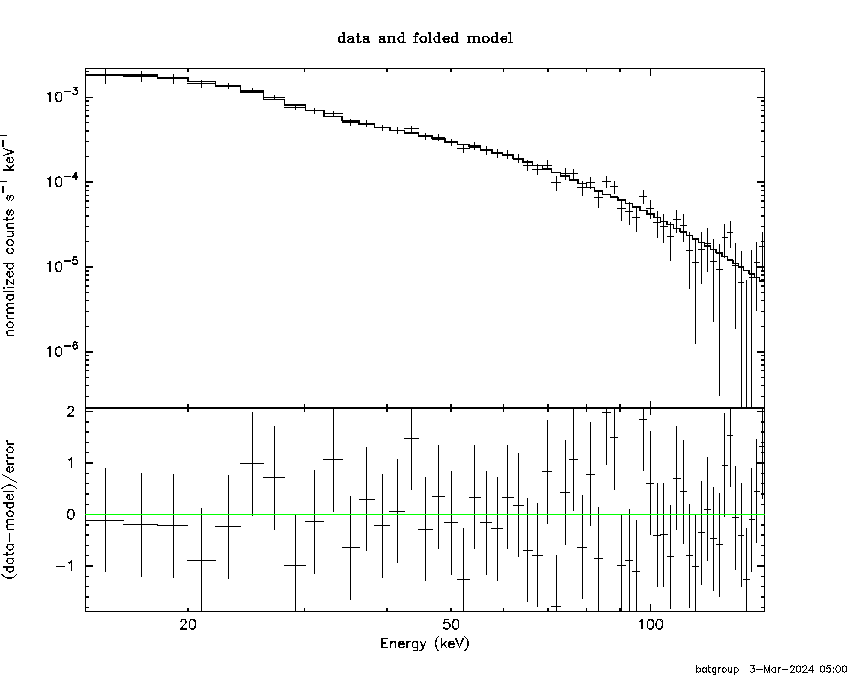

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-149.968000 3.070100
5.000000 314.670000
316.000000 384.205100
385.000000 706.920000
708.000000 766.348000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.15930     ( -0.0542141   0.0546862 )
Norm@50keV  : 1.91517E-03    ( -5.17929e-05   5.15777e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.57 using 59 PHA bins.
# Reduced chi-squared =         0.7294 for     57 degrees of freedom
# Null hypothesis probability =   9.377960e-01

Photon flux (15-150 keV)    in 911.2 sec: 0.310433 ( -0.00911668  0.00918518 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.63199e-05 ( -4.06152e-07  4.06706e-07 ) ergs/cm2

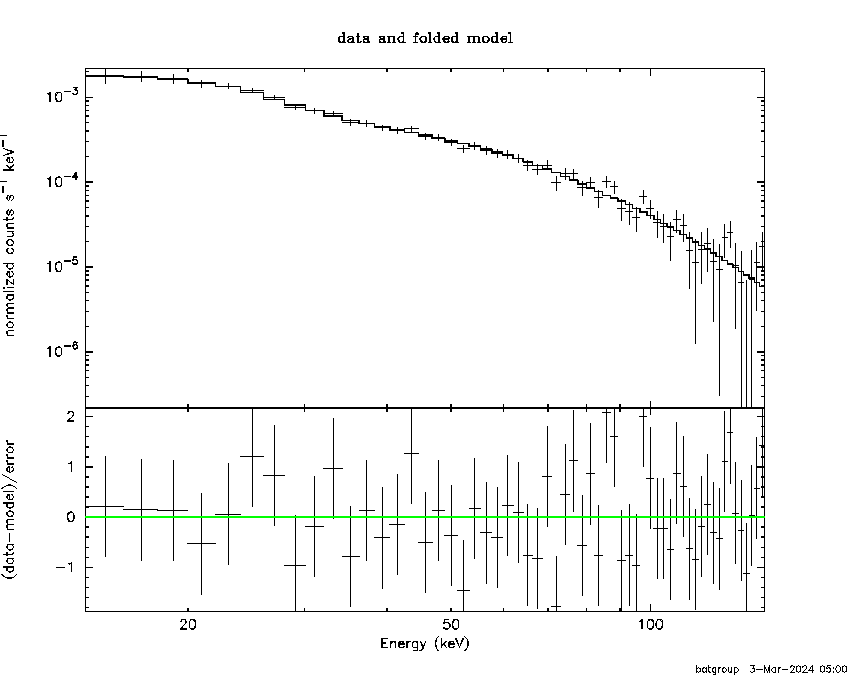

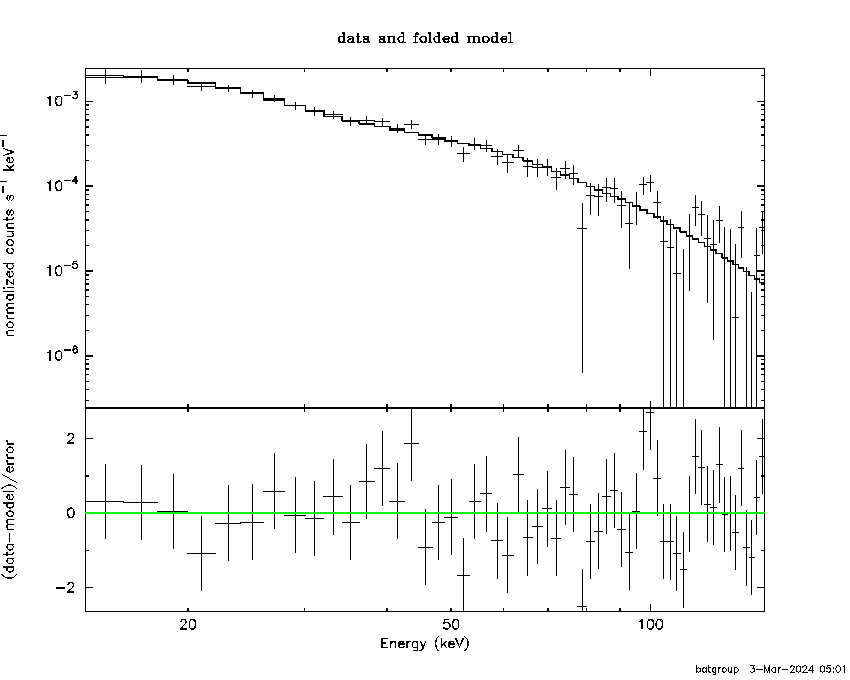

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-149.968000 3.070100
5.000000 314.670000
316.000000 384.205100
385.000000 706.920000
708.000000 766.348000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99242     ( -0.121037   -1.99242 )
Epeak [keV] : 2.30228      ( -0.602302 20.7217 )
Norm@50keV  : 2.30377E-03    ( -0.000128288   0.000130207 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.69 using 59 PHA bins.
# Reduced chi-squared =         0.7623 for     56 degrees of freedom
# Null hypothesis probability =   9.048055e-01

Photon flux (15-150 keV)    in 911.2 sec: 0.309946 ( -0.010245  0.00945 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.62472e-05 ( -5.05807e-07  4.76558e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-149.968000 3.070100
5.000000 314.670000
316.000000 384.205100
385.000000 706.920000
708.000000 766.348000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.59751   ( 1.59751   1.59751 )
beta        : -2.17177    ( 2.17175   0.0603715 )
Epeak [keV] : 19.5378      ( -19.5374 9.21195 )
Norm@50keV   : 4.76111E-03    ( -0.002194   1930.92 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.17 using 59 PHA bins.
# Reduced chi-squared =         0.7486 for     55 degrees of freedom
# Null hypothesis probability =   9.167861e-01

Photon flux (15-150 keV)    in 911.2 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.94199e-05 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.1492  (  )
R^2/D10^2   : 8.14531E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         426.07 using 59 PHA bins.
# Reduced chi-squared =         7.4749 for     57 degrees of freedom
# Null hypothesis probability =   6.518479e-58

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.933e-06   9.887e-08
25- 50  5.560e-06   1.640e-07
50-150  3.944e-06   2.232e-07
15-150  1.144e-05   3.144e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 63.2680       (-4.84042      5.47494)
Norm        : 1.48284       (-0.0764174     0.0816577)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.423e-06   1.499e-07
25- 50  5.294e-06   1.440e-07
50-150  6.290e-06   3.094e-07
15-150  1.501e-05   3.964e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.00600        (-0.480514      0.504246)
R1^2/D10^2  : 0.732394        (-0.200196      0.302889)
kT2 [keV]   : 21.0770        (-1.88224      2.33449)
R2^2/D10^2  : 4.99640E-03    (-0.00170089   0.00232467)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.585e-06   2.802e-07
25- 50  5.167e-06   2.588e-07
50-150  6.804e-06   5.763e-07
15-150  1.556e-05   7.609e-07

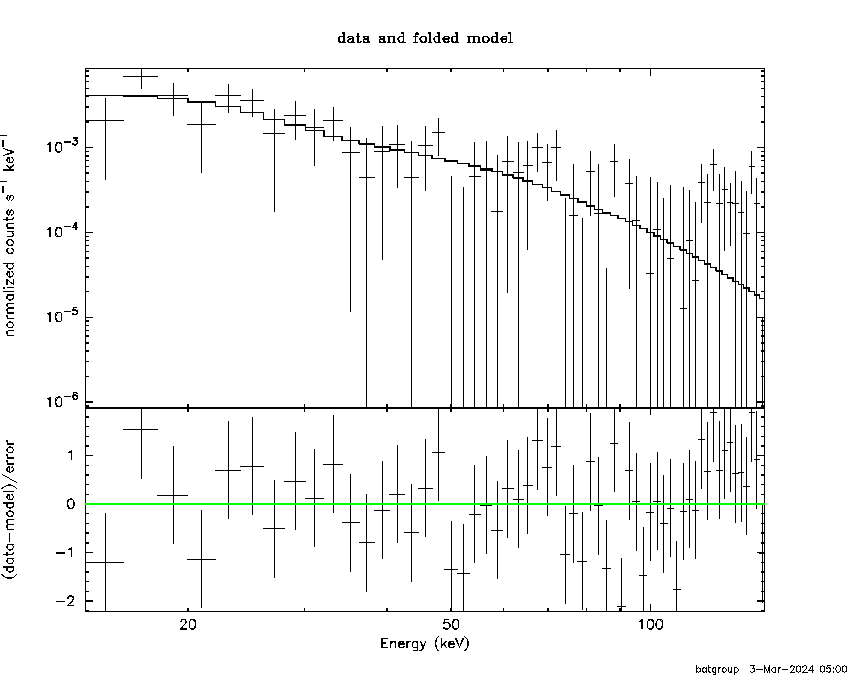

Peak spectrum fit

Power-law model

Time interval is from   35.268 sec. to   36.268 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.11972     ( -0.403048   0.463427 )
Norm@50keV  : 4.43344E-03    ( -0.00137861   0.00130899 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.64 using 59 PHA bins.
# Reduced chi-squared =         0.8885 for     57 degrees of freedom
# Null hypothesis probability =   7.109304e-01

Photon flux (15-150 keV)    in 1 sec: 0.704361 ( -0.147626  0.147636 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.12734e-08 ( -1.0917e-08  1.1514e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   35.268 sec. to   36.268 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97964     (     )
Epeak [keV] : 7.76164      (   )
Norm@50keV  : 5.21788E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.79 using 59 PHA bins.
# Reduced chi-squared =         0.9069 for     56 degrees of freedom
# Null hypothesis probability =   6.718512e-01

Photon flux (15-150 keV)    in 1 sec: 0.703663 ( -0.147371  0.147495 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.13186e-08 ( -1.76509e-08  8.6206e-09 ) ergs/cm2

Band function

Time interval is from   35.268 sec. to   36.268 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98344   ( -4.98344   -4.98344 )
beta        : -2.20949    ( -0.779549   0.44849 )
Epeak [keV] : 19.0934      ( -19.0934 7.33437 )
Norm@50keV   : 4787.43    ( -998.565   1.01378e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.14 using 59 PHA bins.
# Reduced chi-squared =         0.9117 for     55 degrees of freedom
# Null hypothesis probability =   6.603088e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.13124e-08 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.58138  (-1.83198  2.55118)
R^2/D10^2   : 0.937740  (-0.637453   1.92439)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.337e-09   3.941e-09
25- 50  1.485e-08   6.306e-09
50-150  3.258e-09   2.111e-09
15-150  2.745e-08   1.164e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 49.7238       (-23.4008      68.3583)
Norm        : 3.99127       (-1.31853     2.29799)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.747e-09   2.685e-09
25- 50  1.397e-08   5.283e-09
50-150  1.349e-08   8.754e-09
15-150  3.721e-08   1.544e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.58843        (-3.42023      2.40101)
R1^2/D10^2  : 1.55088        (-1.01785      3.08328)
kT2 [keV]   : 199.363        (-199.363      -199.363)
R2^2/D10^2  : 7.91571E-05    (-4.49709e-05   0.0625881)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.045e-08   6.370e-09
25- 50  1.167e-08   6.210e-09
50-150  1.476e-08   1.046e-08
15-150  3.688e-08   2.047e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.09881     ( -0.0794161   0.0807624 )
Norm@50keV  : 2.16449E-03    ( -9.63561e-05   9.55243e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.64 using 59 PHA bins.
# Reduced chi-squared =         0.9762 for     57 degrees of freedom
# Null hypothesis probability =   5.261565e-01

Photon flux (15-150 keV)    in 220.5 sec: 0.340330 ( -0.0137073  0.0137636 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.43384e-06 ( -1.79842e-07  1.80761e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.98355     ( -0.316993   0.00796664 )
Epeak [keV] : 6.48246      ( -3.97741 -5.93272 )
Norm@50keV  : 2.49278E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.36 using 59 PHA bins.
# Reduced chi-squared =         0.9885 for     56 degrees of freedom
# Null hypothesis probability =   4.991978e-01

Photon flux (15-150 keV)    in 220.5 sec: 0.337631 ( -0.015852  0.015506 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.38698e-06 ( -2.33862e-07  2.17038e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.66158   ( 1.66165   1.66165 )
beta        : -2.19142    ( 2.1936   0.151045 )
Epeak [keV] : 28.6448      ( -28.4804 10.2619 )
Norm@50keV   : 3.94804E-03    ( -0.00135625   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.30 using 59 PHA bins.
# Reduced chi-squared =         0.9873 for     55 degrees of freedom
# Null hypothesis probability =   5.012680e-01

Photon flux (15-150 keV)    in 220.5 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.69938e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.12e-06
S(50-100 keV) = 4.59e-06

T90 vs. Hardness ratio plot

T90                                   = 727.164000034332 sec.
Hardness ratio (energy fluence ratio) = 0.896484

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.914212
Count Ratio (50-100 keV) / (15-25 keV) = 0.433229

Mask shadow pattern

IMX = -1.026236651537779E-03, IMY = 1.990605978571469E-04

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

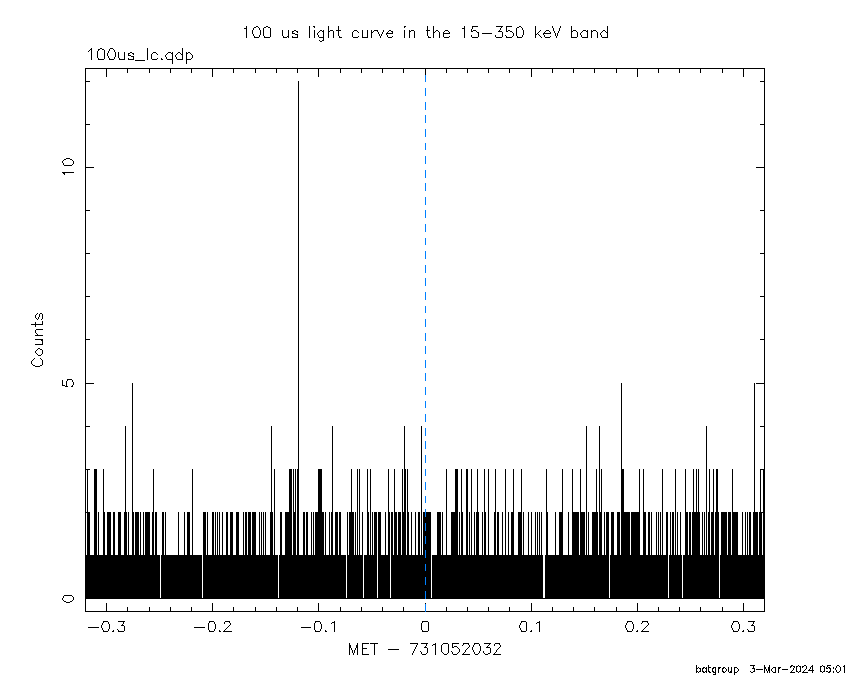

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -183.920000
-183.000000 -150.640000
-150.000000 -149.968000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.8031  21.8725    0.0   0.3  -91.5   2.7462  16.6   12.7	Crab
121.8703   0.8236    3.0  42.4  117.5   3.6491   3.9 ------	UNKNOWN
 89.9982 -20.6756    2.1  43.0  174.8   1.6983   5.4 ------	UNKNOWN
 55.9970 -20.3490    2.2  50.4 -142.2   3.0669   5.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-149.968000 3.070100
5.000000 72.500680

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6377  21.8646    2.9   0.4  -90.9   1.3168   4.0    9.0	Crab
 96.8603   2.9034    2.5  22.7  148.0   1.6287   4.7 ------	UNKNOWN
 50.5825  31.5127    2.0  31.3  -62.1   2.8444   5.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
77.900590 314.670000
316.000000 384.205100
385.000000 706.920000
708.000000 864.120000
865.000000 914.740000
916.000000 963.015300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.7774  21.8713    0.4   0.1  -95.8  32.5482  26.1   11.8	Crab
124.1789  50.3473    3.2  42.4   40.7  10.0984   3.6 ------	UNKNOWN
 69.0455  55.3175    3.2  35.2  -11.7   6.1722   3.7 ------	UNKNOWN
 55.8292 -20.3729    2.6  50.4 -142.1  19.0657   4.5 ------	UNKNOWN

Plot creation:
Sun Mar  3 05:01:52 EST 2024
