batgrbproduct analysis for trigger=1218452

batgrbproduct Analysis for Trigger=1218452

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Mar  4 11:08:04 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1218452/GCN5_download_cron
======================================================================

  Trigger: 01218452      Segment: 000

  BAT Trigger Time: 731140432   [s; MET]
      Trigger Stop: 731140496   [s; MET]
               UTC: 2024-03-03T06:33:18.982080    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 229.748049918717   Dec: -57.3754252077892  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.38
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    9.38

  Flight Position:   [ source = BAT ]
    RA: 229.748049918717   Dec: -57.3754252077892  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 229.7724590644   Dec: -57.3674946868072  [deg; J2000]
        { 15h 19m 05.4s , -57d 22' 03.0" }
         +/- 2.19619366990554 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.12902347815081 [arcmin] (formal 1-sigma fit error)
    SNR: 9.88592866188488

  Angular difference between Flight and Ground position is 0.921952 arcmin

  Partial Coding Fraction: 0.8671875    [ including projection effects ]

  Duration
     T90: 773.167999863625 +/- 43.2787931646774
        Measured from: -52.9279998540878
                   to: 720.240000009537     [s; relative to TRIGTIME]
     T50: 448.451999902725 +/- 48.0617557365289
        Measured from: 104.588000178337
                   to: 553.040000081062     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -80.6039999723434
                   to: -79.6039999723434     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -82.6920000314713
                   to: 750.728000044823     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     6.068686   5.004636   1.501704   0.258053
           0.211160   0.194282   0.158436   0.136499 [error]
 Peak      0.015030   0.027078   0.006640   0.017329
           0.007936   0.007483   0.006158   0.005458 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.94e-06 1.97e-06 1.41e-06 1.61e-06 5.95e-06 6.93e-06   erg/cm2
              Error 1.46e-07 1.02e-07 1.44e-07 3.22e-07 3.30e-07 4.95e-07   erg/cm2
Peak flux Power-law 1.91e-01 1.43e-01 7.10e-02 5.04e-02 4.29e-01 4.56e-01   ph/cm2/s
              Error 1.57e-01 5.95e-02 5.32e-02 9.23e-02 1.75e-01 1.88e-01   ph/cm2/s

Fluence   Cutoff-PL 1.81e-06 2.11e-06 1.26e-06 4.13e-07 5.47e-06 5.59e-06   erg/cm2
              Error 1.68e-07 1.35e-07 1.92e-07 -------- 4.13e-07 5.82e-07   erg/cm2
Peak flux Cutoff-PL 1.95e-01 1.43e-01 6.91e-02 4.71e-02 4.29e-01 4.54e-01   ph/cm2/s
              Error 1.19e-01 8.17e-02 5.88e-02 9.15e-02 1.74e-01 1.56e-01   ph/cm2/s

Fluence        Band 1.81e-06 2.03e-06 1.31e-06 1.31e-06 5.72e-06 6.48e-06   erg/cm2
              Error 1.80e-07 1.36e-07 1.85e-07 -------- 3.65e-07 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.482    0.112    -      -           7.37e-04 5.35e-05   77.200 57
CPL   1.680    0.508      15.1   11.0      2.24e-03 0.00e+00   69.780 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.007    1.042    -      -           2.85e-03 2.18e-03   87.960 57
CPL   2.130    5.329      51.5    0.0      2.01e-03 0.00e+00   87.450 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  833.420  -82.692  750.728
T90   773.168  -52.928  720.240
T50   448.452  104.588  553.040
Peak    1.000  -80.604  -79.604

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  229.7725 -57.3675 0.0194   17.6   47.0       1.9766     9.9  TRIG_01218452
------------------------------------------

Foreground time interval of the image:
-15.999  72.301 (delta_t =  88.300 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-82.692000 265.800000
285.000000 334.320000
335.000000 528.190000
529.000000 556.920000
558.000000 633.720000
635.000000 750.728000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.48196     ( -0.110653   0.113889 )
Norm@50keV  : 7.37141E-04    ( -5.36885e-05   5.32699e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.20 using 59 PHA bins.
# Reduced chi-squared =          1.354 for     57 degrees of freedom
# Null hypothesis probability =   3.865089e-02

Photon flux (15-150 keV)    in 810.4 sec: 0.143223 ( -0.00760629  0.00762929 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.94506e-06 ( -3.2848e-07  3.31243e-07 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-82.692000 265.800000
285.000000 334.320000
335.000000 528.190000
529.000000 556.920000
558.000000 633.720000
635.000000 750.728000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.68036     ( -0.60096   0.414989 )
Epeak [keV] : 15.1055      ( -11.7471 10.2982 )
Norm@50keV  : 2.23580E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.78 using 59 PHA bins.
# Reduced chi-squared =          1.246 for     56 degrees of freedom
# Null hypothesis probability =   1.019955e-01

Photon flux (15-150 keV)    in 810.4 sec: 0.137000 ( -0.008482  0.008507 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.47135e-06 ( -4.01091e-07  4.25663e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-82.692000 265.800000
285.000000 334.320000
335.000000 528.190000
529.000000 556.920000
558.000000 633.720000
635.000000 750.728000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.31655   ( -0.572302   1.31963 )
beta        : -2.92974    ( 2.9335   0.440939 )
Epeak [keV] : 20.4271      ( -11.6966 6.39831 )
Norm@50keV   : 3.96965E-03    ( -0.00228018   183.837 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.88 using 59 PHA bins.
# Reduced chi-squared =          1.252 for     55 degrees of freedom
# Null hypothesis probability =   9.883466e-02

Photon flux (15-150 keV)    in 810.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.71523e-06 ( -5.70956e-06  -3.66195e-07 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.06447  (  )
R^2/D10^2   : 0.139691  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         119.25 using 59 PHA bins.
# Reduced chi-squared =         2.0921 for     57 degrees of freedom
# Null hypothesis probability =   2.684221e-06

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.339e-06   1.240e-07
25- 50  2.377e-06   1.370e-07
50-150  6.407e-07   1.039e-07
15-150  4.357e-06   2.682e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 34.6960       (-4.12147      4.91257)
Norm        : 0.990809       (-0.112803     0.130024)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.748e-06   1.329e-07
25- 50  2.154e-06   1.191e-07
50-150  1.416e-06   2.241e-07
15-150  5.318e-06   3.420e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.72553        (-0.93244      1.05282)
R1^2/D10^2  : 0.915384        (-0.482213      0.922219)
kT2 [keV]   : 13.1314        (-2.2771      4.16897)
R2^2/D10^2  : 1.23093E-02    (-0.00895569   0.0106564)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.796e-06   5.231e-07
25- 50  2.081e-06   4.939e-07
50-150  1.417e-06   6.235e-07
15-150  5.295e-06   1.508e-06

Peak spectrum fit

Power-law model

Time interval is from  -80.604 sec. to  -79.604 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.00719     ( -0.940217   1.14432 )
Norm@50keV  : 2.84835E-03    ( -0.00284791   0.00150682 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          87.96 using 59 PHA bins.
# Reduced chi-squared =          1.543 for     57 degrees of freedom
# Null hypothesis probability =   5.293239e-03

Photon flux (15-150 keV)    in 1 sec: 0.428671 ( -0.174616  0.1746 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.62729e-08 ( -1.30823e-08  1.45416e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -80.604 sec. to  -79.604 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.12981     ( -9.63428   1.02283 )
Epeak [keV] : 51.5204      (   )
Norm@50keV  : 2.01008E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          87.45 using 59 PHA bins.
# Reduced chi-squared =          1.562 for     56 degrees of freedom
# Null hypothesis probability =   4.552169e-03

Photon flux (15-150 keV)    in 1 sec: 0.428769 ( -0.174535  0.174353 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.57107e-08 ( -1.25625e-08  1.48067e-08 ) ergs/cm2

Band function

Time interval is from  -80.604 sec. to  -79.604 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.51206   ( 1.51692   1.51692 )
beta        : -1.97961    ( 1.99113   0.92259 )
Epeak [keV] : 16.0928      ( -11.8386 -11.8386 )
Norm@50keV   : 7.95867E-03    ( -0.0086617   0.583339 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          87.96 using 59 PHA bins.
# Reduced chi-squared =          1.599 for     55 degrees of freedom
# Null hypothesis probability =   3.146965e-03

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.32758  (-2.77508  4.53545)
R^2/D10^2   : 0.400501  (-0.400498   1.59763)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.166e-09   3.308e-09
25- 50  9.682e-09   6.320e-09
50-150  2.896e-09   2.572e-09
15-150  1.775e-08   1.167e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 59.3430       (-59.7203      -59.7203)
Norm        : 2.20595       (-1.19986     4.14463)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.534e-09   3.635e-09
25- 50  8.394e-09   5.580e-09
50-150  9.464e-09   8.235e-09
15-150  2.339e-08   1.635e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.38082        (-2.93754      2.65577)
R1^2/D10^2  : 0.575372        (-0.358812      4.04457)
kT2 [keV]   : 199.119        (-199.267      -199.267)
R2^2/D10^2  : 7.09853E-05    (-5.51708e-05   0.00224292)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.757e-09   2.770e-09
25- 50  8.760e-09   5.700e-09
50-150  3.940e-09   3.179e-09
15-150  1.846e-08   1.136e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.25640     ( -0.223175   0.23846 )
Norm@50keV  : 1.00291E-03    ( -0.000163862   0.000160821 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.19 using 59 PHA bins.
# Reduced chi-squared =          1.284 for     57 degrees of freedom
# Null hypothesis probability =   7.295978e-02

Photon flux (15-150 keV)    in 88.3 sec: 0.171115 ( -0.0193757  0.0193813 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.39836e-07 ( -1.13604e-07  1.16927e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55408     ( -1.43956   0.448074 )
Epeak [keV] : 23.2387      (   )
Norm@50keV  : 2.75435E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.98 using 59 PHA bins.
# Reduced chi-squared =          1.285 for     56 degrees of freedom
# Null hypothesis probability =   7.379968e-02

Photon flux (15-150 keV)    in 88.3 sec: 0.166690 ( -0.020379  0.020468 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.71241e-07 ( -1.33055e-07  1.55494e-07 ) ergs/cm2

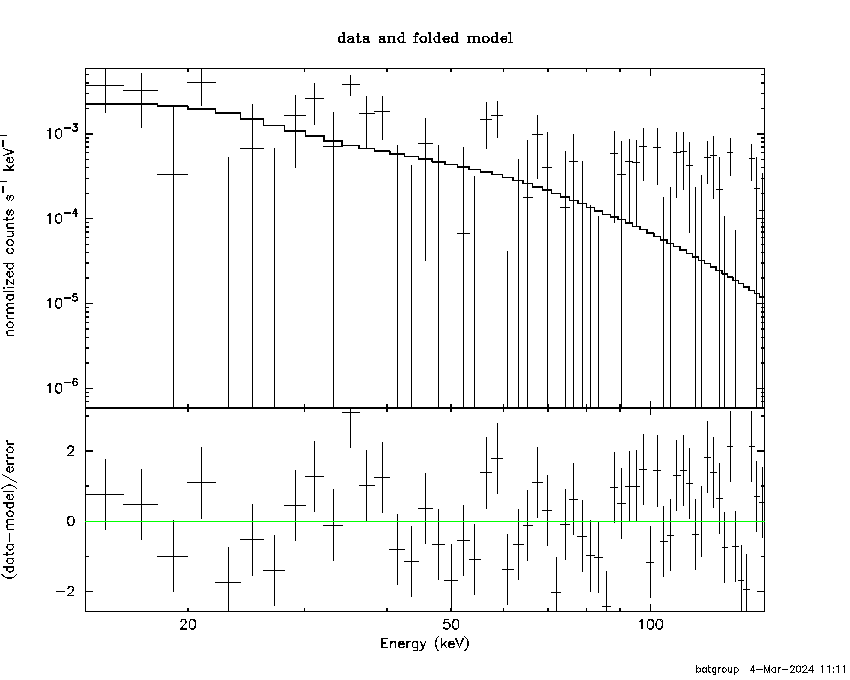

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.181326   ( 0.894951   0.894951 )
beta        : -2.61728    ( 2.6089   0.461314 )
Epeak [keV] : 26.1187      ( -25.6696 9.26071 )
Norm@50keV   : 2.68045E-02    ( -0.0259249   221.784 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.72 using 59 PHA bins.
# Reduced chi-squared =          1.286 for     55 degrees of freedom
# Null hypothesis probability =   7.514593e-02

Photon flux (15-150 keV)    in 88.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.97e-06
S(50-100 keV) = 1.41e-06

T90 vs. Hardness ratio plot

T90                                   = 773.167999863625 sec.
Hardness ratio (energy fluence ratio) = 0.715736

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.824666
Count Ratio (50-100 keV) / (15-25 keV) = 0.247451

Mask shadow pattern

IMX = 2.157289789782637E-01, IMY = -2.312716750201151E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

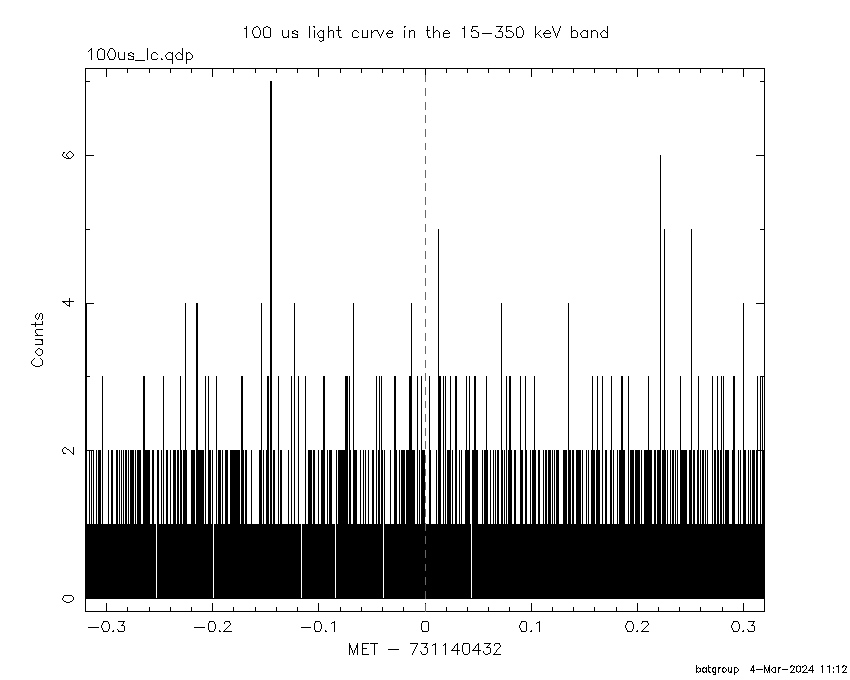

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-15.999410 72.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.5099 -60.6336    9.1  46.9   37.9   0.7039   1.3    5.7	Cen X-3
186.5865 -62.7534    2.6  39.0   38.7   1.6986   4.4    2.2	GX 301-2
244.9598 -15.6279    1.2  34.3  157.6   2.9773  10.0    1.4	Sco X-1
255.8477 -37.7916    6.2  11.0  177.1   0.3678   1.9    7.3	4U 1700-377
256.6158 -36.4510   16.9  12.4  179.9   0.1384   0.7    8.9	GX 349+2
263.0131 -24.7433  283.0  24.8 -167.8   0.0079   0.0    0.3	GX 1+4
264.7427 -44.4505  376.7   7.6 -125.3   0.0059   0.0    0.0	4U 1735-44
268.3716  -1.4462   19.3  48.6 -166.9  -0.2818  -0.6    0.4	SW J1753.5-0127
270.1422 -25.1585    6.5  26.2 -153.1   0.3723   1.8    9.1	GX 5-1
270.3980 -25.6283    4.4  25.9 -152.2   0.5778   2.8    8.6	GRS 1758-258
273.8662 -13.9981    5.2  37.9 -154.4   0.6219   2.2    8.4	GX 17+2
275.7405 -30.3044   11.1  24.0 -137.0   0.2146   1.0   10.3	H1820-303
285.0424 -24.9249   62.6  33.2 -129.4   0.0539   0.2    0.4	HT1900.1-2455
263.0065 -33.8711    2.6  15.9 -161.0   0.8756   4.5    2.3	GX 354-0
201.3777 -36.1803    2.1  40.9   83.0   4.4014   5.5 ------	UNKNOWN
208.9581 -43.5562    3.3  32.2   77.3   1.2260   3.5 ------	UNKNOWN
229.7724 -57.3674    1.2  17.6   47.0   1.9768   9.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
124.300600 265.800000
285.000000 334.320000
335.000000 528.190000
529.000000 556.920000
558.000000 633.720000
635.000000 641.700590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1035 -60.7912   15.8  29.8   33.7   0.8539   0.7   11.9	Cen X-3
186.6460 -62.7613    0.8  21.7   33.3  14.2355  14.6    0.6	GX 301-2
244.9798 -15.6369    1.5  43.3  177.3  12.6925   7.8    0.2	Sco X-1
255.8505 -37.8495    2.9  26.0 -151.8   3.6675   4.0    6.5	4U 1700-377
256.4347 -36.4794    4.1  27.4 -152.6   2.8059   2.8    3.4	GX 349+2
262.8579 -24.5840    0.0  40.5 -154.4   1.8364   1.3   12.7	GX 1+4
264.7033 -44.4683    4.1  25.1 -130.1   2.7740   2.8    2.0	4U 1735-44
270.4565 -25.2278    7.0  43.2 -144.9   2.9188   1.7   12.9	GX 5-1
270.2968 -25.7085    4.6  42.7 -144.7   4.0754   2.5    2.1	GRS 1758-258
273.8796 -14.0142   10.3  54.6 -148.4   4.1715   1.1    7.5	GX 17+2
275.9232 -30.3722  115.5  41.6 -134.7   0.1905   0.1    0.3	H1820-303
263.0491 -33.8329    4.8  32.5 -146.3   2.7613   2.4    3.0	GX 354-0
203.1662 -19.9582    3.0  42.2  116.9  18.1496   3.9 ------	UNKNOWN
186.1773 -40.8951    3.6  32.1   77.4   5.1232   3.2 ------	UNKNOWN
229.7771 -57.3655    1.4   0.0 -148.3   7.0780   8.4 ------	UNKNOWN
322.9962 -75.2470    2.3  36.2  -49.8   7.1885   5.0 ------	UNKNOWN
 33.0886 -66.8096    2.3  55.2  -32.3  23.8338   5.1 ------	UNKNOWN

Plot creation:
Mon Mar  4 11:12:26 EST 2024
