batgrbproduct analysis for trigger=1218501

batgrbproduct Analysis for Trigger=1218501

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Mar  4 19:52:12 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1218501/GCN5_download_cron
======================================================================

  Trigger: 01218501      Segment: 000

  BAT Trigger Time: 731176760   [s; MET]
      Trigger Stop: 731176824   [s; MET]
               UTC: 2024-03-03T16:38:46.979580    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 300.017684256528   Dec: 34.6088781947008  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    16.65
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    16.65

  Flight Position:   [ source = BAT ]
    RA: 300.017684256528   Dec: 34.6088781947008  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 300.109830537909   Dec: 34.4695023291511  [deg; J2000]
        { 20h 00m 26.4s , +34d 28' 10.2" }
         +/- 2.36778016425423 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.99939641846803 [arcmin] (formal 1-sigma fit error)
    SNR: 8.87861006477381

  Angular difference between Flight and Ground position is 9.522268 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 336.111999988556 +/- 18.5539067932496
        Measured from: -80.2399998903275
                   to: 255.872000098228     [s; relative to TRIGTIME]
     T50: 181.52799987793 +/- 16.2331592955547
        Measured from: 4.67200016975403
                   to: 186.200000047684     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 222.952000021935
                   to: 223.952000021935     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -179.404000043869
                   to: 270.911999940872     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     5.439571   6.529278   3.961493   0.623066
           0.132995   0.136207   0.115603   0.097818 [error]
 Peak      0.031185   0.036474   0.019388   0.002494
           0.006773   0.006904   0.005964   0.004767 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.67e-06 2.57e-06 2.98e-06 6.62e-06 9.18e-06 1.38e-05   erg/cm2
              Error 8.81e-08 7.79e-08 1.18e-07 5.81e-07 2.76e-07 6.59e-07   erg/cm2
Peak flux Power-law 2.85e-01 2.32e-01 1.28e-01 1.03e-01 6.92e-01 7.49e-01   ph/cm2/s
              Error 8.75e-02 5.15e-02 4.57e-02 7.04e-02 1.53e-01 1.71e-01   ph/cm2/s

Fluence   Cutoff-PL 1.59e-06 2.62e-06 3.01e-06 4.58e-06 8.98e-06 1.18e-05   erg/cm2
              Error 1.10e-07 8.87e-08 1.24e-07 1.46e-06 3.27e-07 1.15e-06   erg/cm2
Peak flux Cutoff-PL 2.68e-01 2.59e-01 1.24e-01 3.20e-02 6.75e-01 6.83e-01   ph/cm2/s
              Error 9.68e-02 7.54e-02 5.86e-02 8.65e-02 1.57e-01 1.87e-01   ph/cm2/s

Fluence        Band 1.50e-06 2.66e-06 2.94e-06 5.92e-06 8.96e-06 1.31e-05   erg/cm2
              Error -------- 1.01e-07 1.23e-07 7.63e-07 3.09e-07 8.46e-07   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.789    0.056    -      -           2.56e-03 7.52e-05   41.210 57
CPL   1.540    0.223      92.1  126.9      3.40e-03 8.60e-04   37.370 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.861    0.399    -      -           4.90e-03 1.35e-03   54.420 57
CPL   0.997    0.000      46.7    0.0      1.60e-02 0.00e+00   53.700 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  450.316 -179.404  270.912
T90   336.112  -80.240  255.872
T50   181.528    4.672  186.200
Peak    1.000  222.952  223.952

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

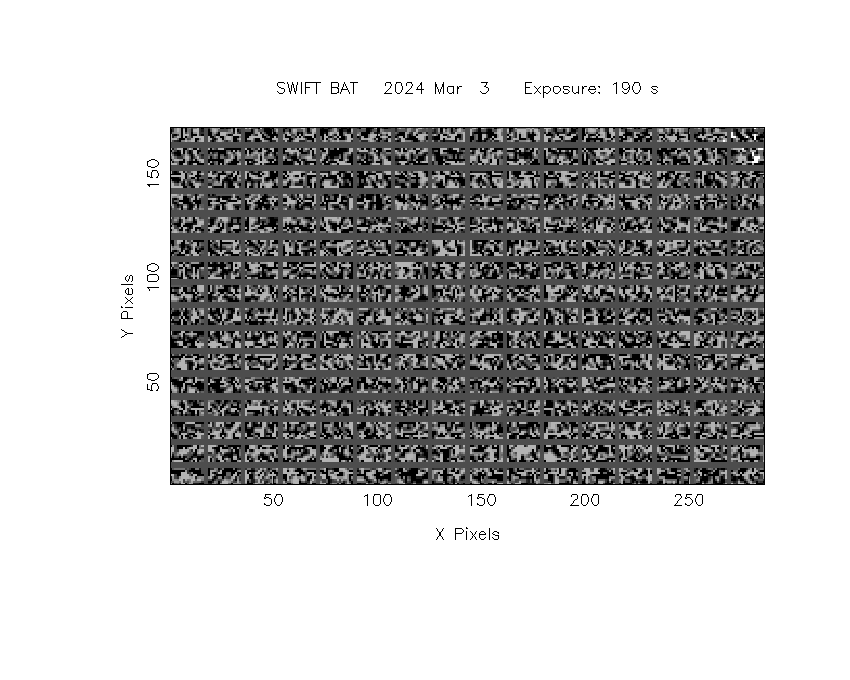

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  300.1098 +34.4695 0.0216    0.4  -76.5       3.4427     8.9  TRIG_01218501
------------------------------------------

Foreground time interval of the image:
-179.404 -176.886 (delta_t =   2.518 [sec])
-119.000 -56.160 (delta_t =  62.840 [sec])
-55.000 -44.060 (delta_t =  10.940 [sec])
-43.000  11.060 (delta_t =  54.060 [sec])
 12.000  71.901 (delta_t =  59.901 [sec])
Background time interval of the image:
-239.000 -211.865 (delta_t =  27.135 [sec])
-191.000 -179.404 (delta_t =  11.596 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

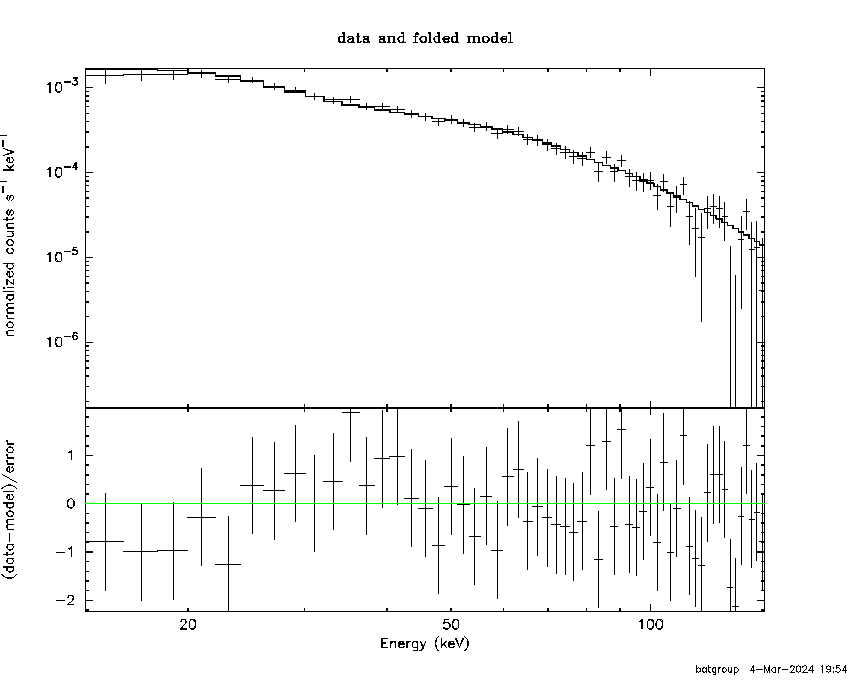

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-179.404000 -176.885700
-119.000000 -56.160000
-55.000000 -44.060000
-43.000000 11.060000
12.000000 270.912000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.78929     ( -0.0555674   0.055859 )
Norm@50keV  : 2.56055E-03    ( -7.52518e-05   7.50983e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.21 using 59 PHA bins.
# Reduced chi-squared =         0.7230 for     57 degrees of freedom
# Null hypothesis probability =   9.428080e-01

Photon flux (15-150 keV)    in 389.3 sec: 0.351385 ( -0.0109582  0.0109967 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.18051e-06 ( -2.7549e-07  2.76115e-07 ) ergs/cm2

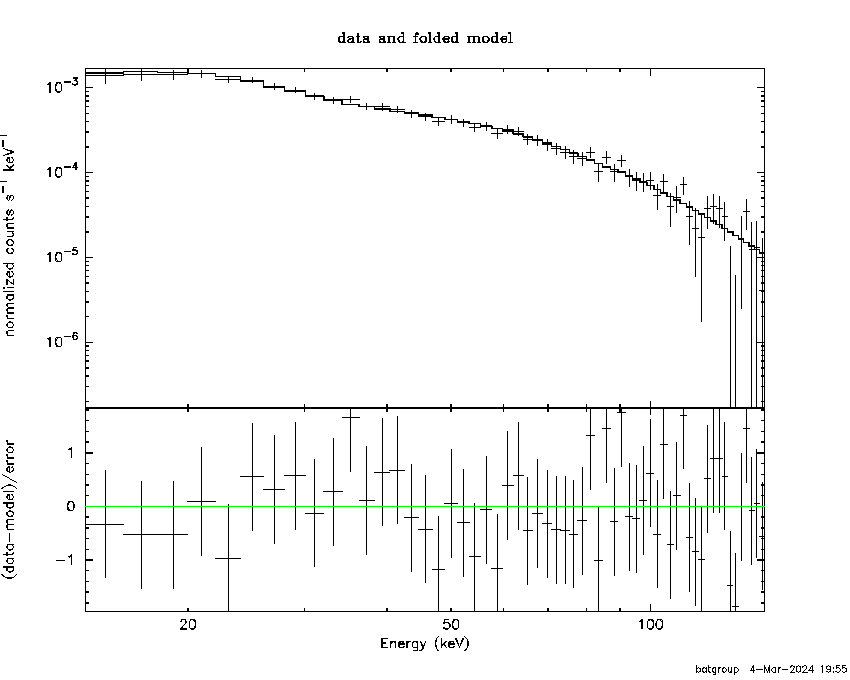

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-179.404000 -176.885700
-119.000000 -56.160000
-55.000000 -44.060000
-43.000000 11.060000
12.000000 270.912000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.54034     ( -0.228919   0.217481 )
Epeak [keV] : 92.0614      ( -22.4658 231.405 )
Norm@50keV  : 3.40142E-03    ( -0.000728744   0.000990729 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.37 using 59 PHA bins.
# Reduced chi-squared =         0.6673 for     56 degrees of freedom
# Null hypothesis probability =   9.738373e-01

Photon flux (15-150 keV)    in 389.3 sec: 0.344465 ( -0.012348  0.012398 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.97815e-06 ( -3.27868e-07  3.2709e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-179.404000 -176.885700
-119.000000 -56.160000
-55.000000 -44.060000
-43.000000 11.060000
12.000000 270.912000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.778337   ( -0.558385   2.83374 )
beta        : -1.88961    ( 1.88944   0.0953433 )
Epeak [keV] : 42.5014      ( -18.9469 46.176 )
Norm@50keV   : 1.05907E-02    ( -0.00699339   0.796918 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          34.58 using 59 PHA bins.
# Reduced chi-squared =         0.6288 for     55 degrees of freedom
# Null hypothesis probability =   9.858369e-01

Photon flux (15-150 keV)    in 389.3 sec: 0.339572 ( 6.66043  -0.013457 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.95705e-06 ( -8.95433e-06  -3.09805e-07 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.2238  (  )
R^2/D10^2   : 5.54762E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         302.06 using 59 PHA bins.
# Reduced chi-squared =         5.2993 for     57 degrees of freedom
# Null hypothesis probability =   4.575690e-35

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.007e-07   4.496e-08
25- 50  2.808e-06   9.869e-08
50-150  3.136e-06   1.970e-07
15-150  6.745e-06   2.277e-07

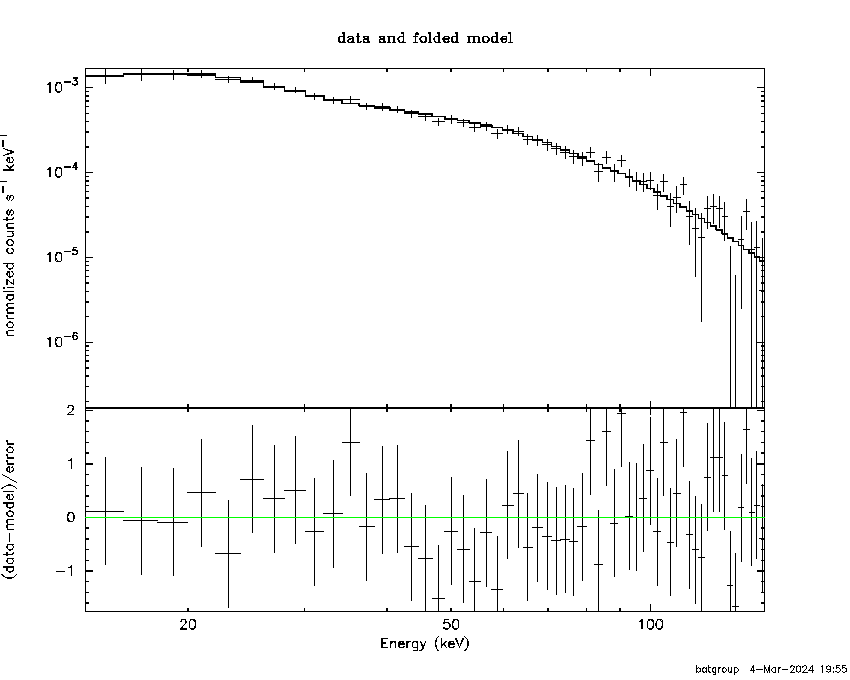

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 108.626       (-10.9367      22.7728)
Norm        : 1.51074       (-0.080474     0.0574067)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.536e-06   9.635e-08
25- 50  2.699e-06   1.187e-07
50-150  4.578e-06   1.053e-06
15-150  8.814e-06   1.111e-06

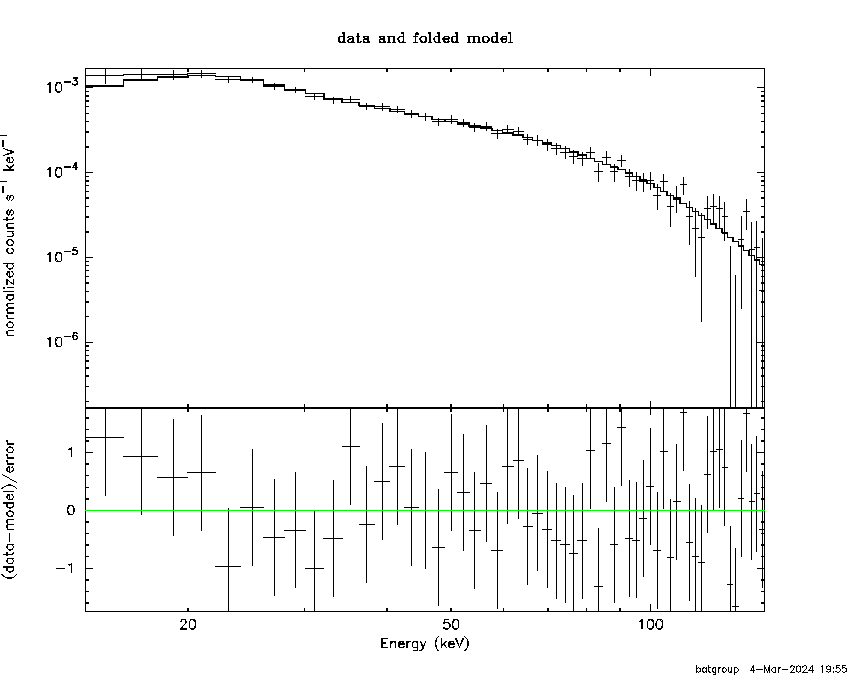

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.10331        (-0.631399      0.654861)
R1^2/D10^2  : 0.389203        (-0.102591      0.153931)
kT2 [keV]   : 25.3054        (-2.65158      3.48656)
R2^2/D10^2  : 3.82157E-03    (-0.00144774   0.00202787)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.411e-06   1.201e-07
25- 50  2.695e-06   1.553e-07
50-150  4.756e-06   5.022e-07
15-150  8.861e-06   7.105e-07

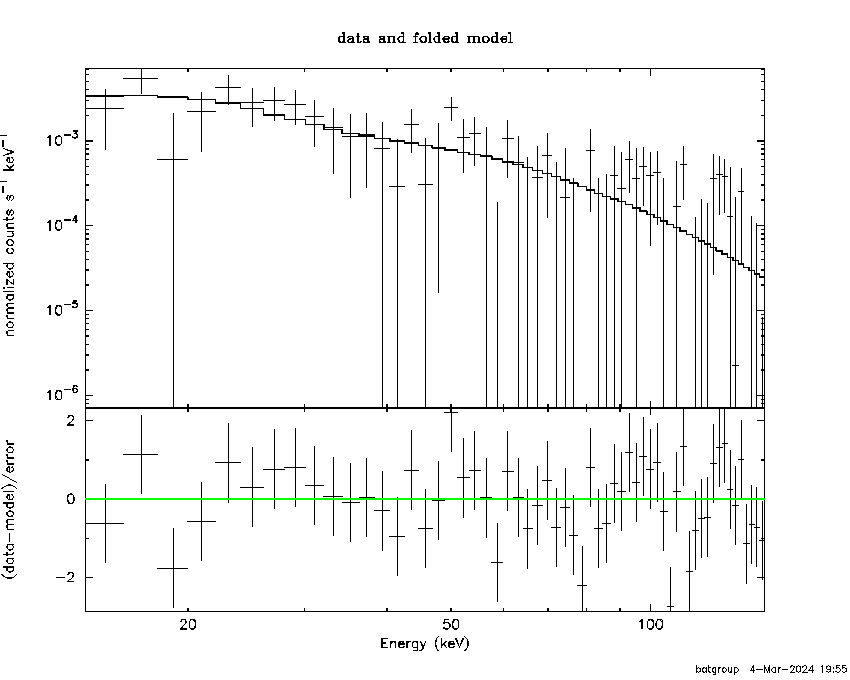

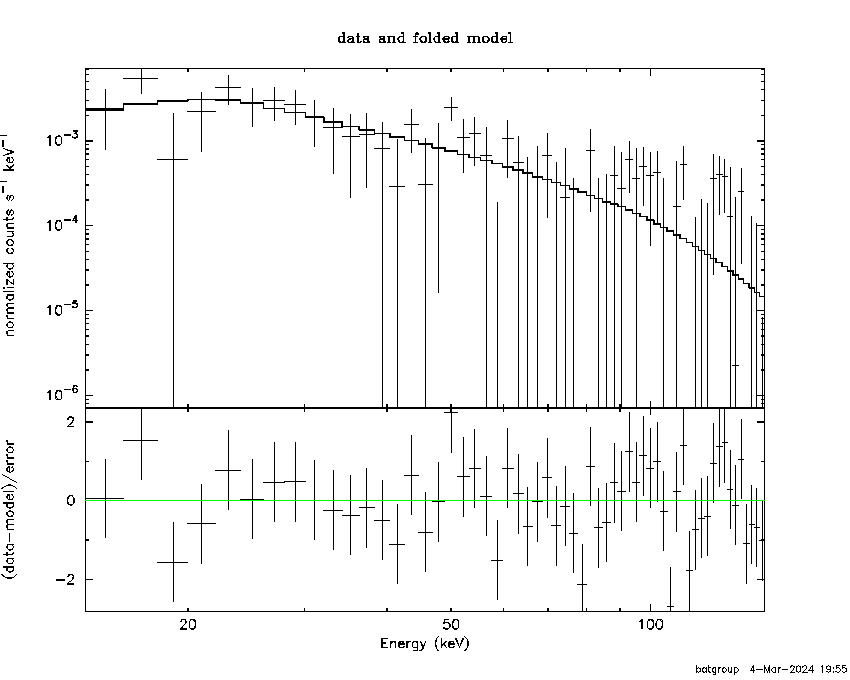

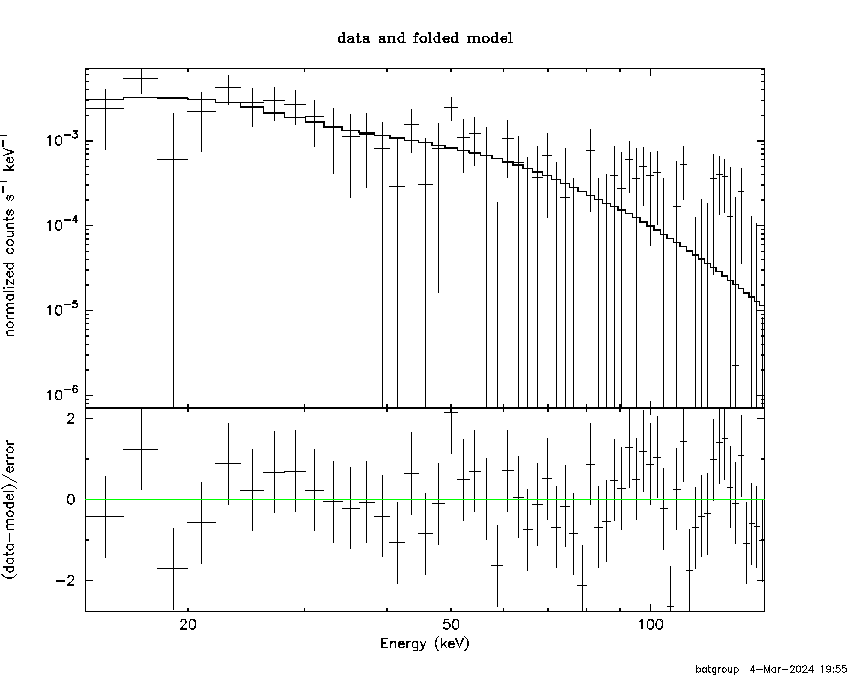

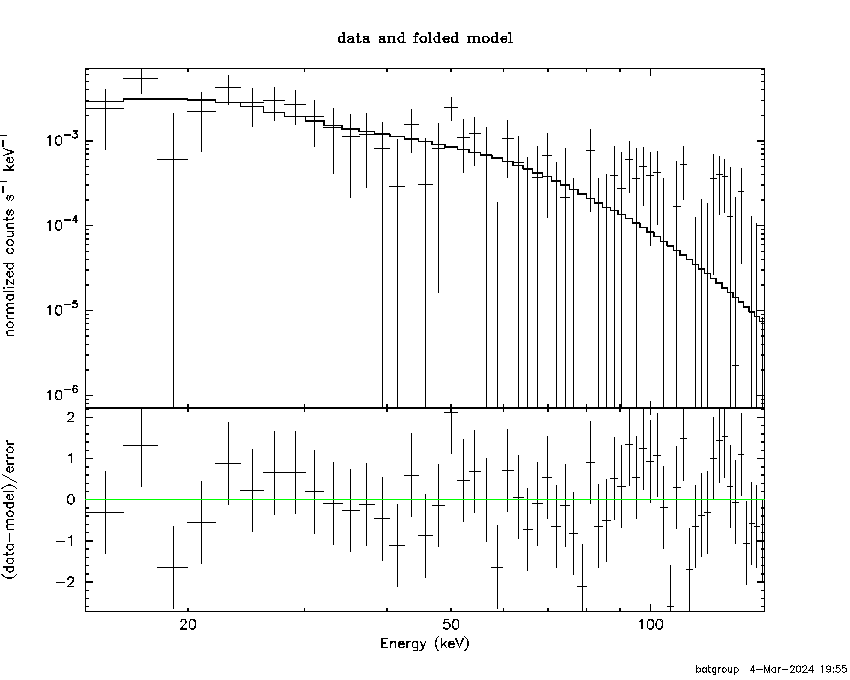

Peak spectrum fit

Power-law model

Time interval is from  222.952 sec. to  223.952 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.86078     ( -0.379142   0.419755 )
Norm@50keV  : 4.89984E-03    ( -0.00137524   0.00132071 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.42 using 59 PHA bins.
# Reduced chi-squared =         0.9548 for     57 degrees of freedom
# Null hypothesis probability =   5.723995e-01

Photon flux (15-150 keV)    in 1 sec: 0.691761 ( -0.153071  0.153072 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.50479e-08 ( -1.21108e-08  1.26993e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  222.952 sec. to  223.952 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.996981     (     )
Epeak [keV] : 46.6968      (   )
Norm@50keV  : 1.60233E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.70 using 59 PHA bins.
# Reduced chi-squared =         0.9589 for     56 degrees of freedom
# Null hypothesis probability =   5.624193e-01

Photon flux (15-150 keV)    in 1 sec: 0.674738 ( -0.156646  0.156855 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.09034e-08 ( -1.2815e-08  1.50016e-08 ) ergs/cm2

Band function

Time interval is from  222.952 sec. to  223.952 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.36607   ( -3.24044   -3.24044 )
beta        : -2.21031    ( 2.22843   0.667357 )
Epeak [keV] : 30.4653      ( -28.3285 72.1328 )
Norm@50keV   : 0.848144    ( -0.845908   199.912 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.31 using 59 PHA bins.
# Reduced chi-squared =         0.9693 for     55 degrees of freedom
# Null hypothesis probability =   5.394310e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.16137e-08 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.97080  (-2.21398  2.9082)
R^2/D10^2   : 0.338913  (-0.210629   0.530113)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.855e-09   3.163e-09
25- 50  1.697e-08   6.387e-09
50-150  8.784e-09   4.746e-09
15-150  3.261e-08   1.272e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 78.6265       (-39.1443      -78.6265)
Norm        : 3.30241       (-0.918399     1.35986)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.559e-09   2.736e-09
25- 50  1.403e-08   6.061e-09
50-150  1.958e-08   1.571e-08
15-150  4.217e-08   2.601e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.32504        (-7.45207      3.89656)
R1^2/D10^2  : 0.832245        (-0.77742      -0.77742)
kT2 [keV]   : 24.7558        (-26.9907      171.697)
R2^2/D10^2  : 6.27573E-03    (-0.00445883   0.404632)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.173e-09   5.095e-09
25- 50  1.499e-08   8.665e-09
50-150  1.943e-08   1.244e-08
15-150  4.260e-08   2.203e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.74341     ( -0.068289   0.0687699 )
Norm@50keV  : 2.63976E-03    ( -9.72327e-05   9.69303e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.78 using 59 PHA bins.
# Reduced chi-squared =         0.9085 for     57 degrees of freedom
# Null hypothesis probability =   6.705249e-01

Photon flux (15-150 keV)    in 190.3 sec: 0.356077 ( -0.0134307  0.0134692 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.63712e-06 ( -1.7687e-07  1.77492e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.60721     ( -0.273025   0.21898 )
Epeak [keV] : 143.046      (   )
Norm@50keV  : 3.08865E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.99 using 59 PHA bins.
# Reduced chi-squared =         0.9105 for     56 degrees of freedom
# Null hypothesis probability =   6.645981e-01

Photon flux (15-150 keV)    in 190.3 sec: 0.352528 ( -0.014893  0.007468 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.58201e-06 ( -2.07446e-07  2.0149e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.15291   ( 1.14778   1.14778 )
beta        : -1.79222    ( 1.7927   0.0986522 )
Epeak [keV] : 47.5431      ( -47.1484 -47.1484 )
Norm@50keV   : 6.24785E-03    ( -0.00380355   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.45 using 59 PHA bins.
# Reduced chi-squared =         0.9173 for     55 degrees of freedom
# Null hypothesis probability =   6.489390e-01

Photon flux (15-150 keV)    in 190.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.57e-06
S(50-100 keV) = 2.98e-06

T90 vs. Hardness ratio plot

T90                                   = 336.111999988556 sec.
Hardness ratio (energy fluence ratio) = 1.15953

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.20033
Count Ratio (50-100 keV) / (15-25 keV) = 0.728273

Mask shadow pattern

IMX = 1.452060198270648E-03, IMY = 6.056994435157240E-03

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -211.864800
-191.000000 -179.404000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6334  35.2919    9.5  36.7   69.4  -0.2785  -1.2    9.1	Her X-1
268.2814  -1.3838    6.1  46.7   11.2  -0.3281  -1.9    6.6	SW J1753.5-0127
274.0030 -14.1110    6.4  54.7   -3.6   0.5233   1.8    4.5	GX 17+2
288.9573  11.0242  131.3  25.7   -9.6   0.0084   0.1   10.5	GRS 1915+105
299.4901  35.3470   13.1   0.7  121.3  -0.0776  -0.9   10.0	Cyg X-1
308.2578  40.8678   11.5   9.0 -169.9   0.0901   1.0    8.4	Cyg X-3
326.2312  38.5017   21.9  21.5 -142.7  -0.0501  -0.5   11.2	Cyg X-2
270.9338   0.6880    2.7  43.4    9.8   0.6711   4.3 ------	UNKNOWN
299.9415  34.6766    0.7   0.1  -93.4   1.4495  16.4 ------	UNKNOWN
305.3912  32.5382    2.2   5.1 -101.0   0.4412   5.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-179.404000 -176.885700
-119.000000 -56.160000
-55.000000 -44.060000
-43.000000 11.060000
12.000000 71.900600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6326  35.2827    6.5  36.7   69.4   1.6707   1.8    9.3	Her X-1
268.3163  -1.3305   13.3  46.6   11.2   0.7255   0.9    8.0	SW J1753.5-0127
274.0152 -14.0380    5.6  54.6   -3.6  -2.9328  -2.1    0.6	GX 17+2
288.8651  11.0804    5.0  25.7   -9.3  -0.9711  -2.3    9.0	GRS 1915+105
299.6367  34.9929    0.0   0.3  114.6  -0.3711  -1.0   12.7	Cyg X-1
307.9528  40.9086   77.6   8.9 -171.1   0.0585   0.1    7.6	Cyg X-3
325.9488  38.3592   18.9  21.2 -142.3  -0.2502  -0.6   10.7	Cyg X-2
257.4871  -0.6303    2.6  53.0   22.6   9.4030   4.4 ------	UNKNOWN
301.9094  68.5314    3.0  33.8  146.6   2.2155   3.8 ------	UNKNOWN
319.4583  66.5713    2.3  33.8  159.1   2.7016   5.0 ------	UNKNOWN
300.1085  34.4793    1.7   0.3  -77.4   2.7746   7.2 ------	UNKNOWN
356.9609  41.7684    2.2  44.6 -151.6   4.1495   5.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
76.800620 171.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2786  35.3582    7.4  37.1   69.8  -0.7522  -1.6    8.8	Her X-1
268.2814  -1.5125    3.2  46.8   11.3  -1.1614  -3.6    6.3	SW J1753.5-0127
274.0957 -14.0619   27.1  54.5   -3.5   0.2098   0.4    5.4	GX 17+2
288.9730  10.9662    4.1  25.7   -9.2  -0.5150  -2.8   10.4	GRS 1915+105
299.6373  35.0972    7.3   0.6  113.6  -0.2767  -1.6    6.7	Cyg X-1
308.2375  40.8366    5.9   9.0 -171.2   0.3151   2.0    9.0	Cyg X-3
326.3766  38.3522    8.5  21.5 -142.7  -0.2454  -1.4    9.8	Cyg X-2
262.3167  22.9302    2.8  34.8   45.7   1.2552   4.2 ------	UNKNOWN
300.0223  34.6180    0.6   0.0  164.5   3.9746  23.5 ------	UNKNOWN
340.2649  56.8312    2.6  35.0 -176.9   0.9846   4.4 ------	UNKNOWN
305.6128  32.4632    2.2   5.1 -101.9   0.9502   5.2 ------	UNKNOWN

Plot creation:
Mon Mar  4 19:56:17 EST 2024
