batgrbproduct Analysis for Trigger=1219543

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Mar 12 06:33:25 EDT 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1219543/GCN5_download_cron
======================================================================

  Trigger: 01219543      Segment: 000

  BAT Trigger Time: 731846664   [s; MET]
      Trigger Stop: 731846728   [s; MET]
               UTC: 2024-03-11T10:43:50.933700    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.841530809985   Dec: -15.782639110081  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    21.02
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    21.02

  Flight Position:   [ source = BAT ]
    RA: 244.841530809985   Dec: -15.782639110081  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.723641152907   Dec: -15.7236357313178  [deg; J2000]
        { 16h 18m 53.7s , -15d 43' 25.1" }
         +/- 0.696612612872749 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.569267434296436 [arcmin] (formal 1-sigma fit error)
    SNR: 50.9819537838741

  Angular difference between Flight and Ground position is 7.673193 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 790.283999919891 +/- 15.4993587358901
        Measured from: 37.6040000915527
                   to: 827.888000011444     [s; relative to TRIGTIME]
     T50: 436.207999944687 +/- 11.6424784294109
        Measured from: 229.480000138283
                   to: 665.68800008297     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 400.463999986649
                   to: 401.463999986649     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -50.2159999608994
                   to: 914.983999967575     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    94.625017   7.077741  -0.439939  -0.475830
           0.265809   0.207538   0.167643   0.144139 [error]
 Peak      0.152505   0.023970   0.001644   0.000863
           0.009324   0.006903   0.005484   0.004774 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.37e-05 2.62e-06 7.69e-08 2.32e-09 3.64e-05 3.64e-05   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Power-law 1.49e+00 2.32e-01 1.67e-02 1.28e-03 1.74e+00 1.74e+00   ph/cm2/s
              Error 2.04e-01 6.38e-02 1.07e-02 1.66e-03 2.24e-01 2.24e-01   ph/cm2/s

Fluence   Cutoff-PL 2.78e-05 2.33e-06 5.25e-10 1.78e-18 3.02e-05 3.02e-05   erg/cm2
              Error 2.79e-06 1.40e-07 6.76e-10 5.25e-17 2.79e-06 2.79e-06   erg/cm2
Peak flux Cutoff-PL 1.53e+00 1.92e-01 1.35e-03 1.28e-07 1.72e+00 1.72e+00   ph/cm2/s
              Error 2.16e-01 8.29e-02 1.21e-02 1.17e-03 2.25e-01 2.25e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    7.092    0.000    -      -           1.08e-04 0.00e+00  184.850 57
CPL   1.000    0.000      50.0    0.0      1.08e-03 0.00e+00 1730.130 56

The chi2 of BB fit is 66.09 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.800    0.539    -      -           1.37e-03 7.13e-04   44.870 57
CPL   1.000    0.000      50.0    0.0      1.58e-02 0.00e+00  156.640 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  965.200  -50.216  914.984
T90   790.284   37.604  827.888
T50   436.208  229.480  665.688
Peak    1.000  400.464  401.464

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.7236 -15.7236 0.0038    0.2  111.8      57.0511    51.0  TRIG_01219543
------------------------------------------

Foreground time interval of the image:
-50.216 336.050 (delta_t = 386.266 [sec])
361.000 700.090 (delta_t = 339.090 [sec])
701.000 761.480 (delta_t =  60.480 [sec])
763.000 817.530 (delta_t =  54.530 [sec])
819.000 914.984 (delta_t =  95.984 [sec])
Background time interval of the image:
-239.000 -226.619 (delta_t =  12.381 [sec])
-225.000 -222.360 (delta_t =   2.640 [sec])
-220.000 -215.960 (delta_t =   4.040 [sec])
-214.000 -133.360 (delta_t =  80.640 [sec])
-132.000 -50.216 (delta_t =  81.784 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-50.216000 336.050000
361.000000 700.090000
701.000000 761.480000
763.000000 817.530000
819.000000 914.984000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 7.09229     (     )
Norm@50keV  : 1.07561E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         184.85 using 59 PHA bins.
# Reduced chi-squared =         3.2430 for     57 degrees of freedom
# Null hypothesis probability =   2.048295e-15

Photon flux (15-150 keV)    in 936.3 sec: 1.35326 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.64268e-05 ( 0  0 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-50.216000 336.050000
361.000000 700.090000
701.000000 761.480000
763.000000 817.530000
819.000000 914.984000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.08425E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1730.13 using 59 PHA bins.
# Reduced chi-squared =        30.8952 for     56 degrees of freedom
# Null hypothesis probability =   0.000000e+00

Photon flux (15-150 keV)    in 936.3 sec: 1.08613 ( -0.111636  0.11056 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.01628e-05 ( -2.80647e-06  2.77323e-06 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-50.216000 336.050000
361.000000 700.090000
701.000000 761.480000
763.000000 817.530000
819.000000 914.984000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.23041   (     )
beta        : -7.09429    (     )
Epeak [keV] : 470.308      (   )
Norm@50keV   : 1.45939E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         184.85 using 59 PHA bins.
# Reduced chi-squared =         3.3609 for     55 degrees of freedom
# Null hypothesis probability =   6.003058e-16

Photon flux (15-150 keV)    in 936.3 sec: 1.59897 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

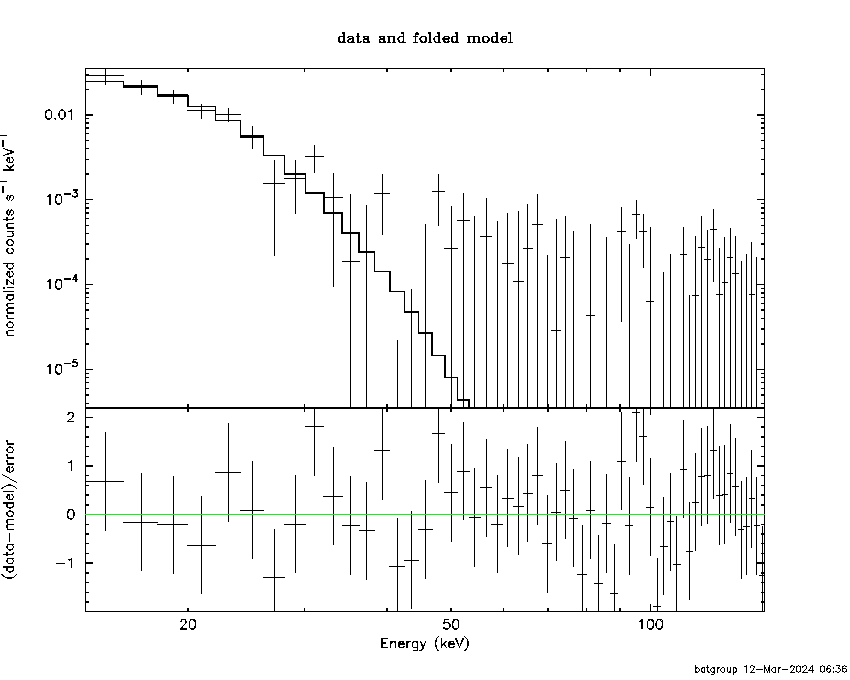

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.56659  (-0.0664569  0.0703671)
R^2/D10^2   : 466.685  (-106.559   135.083)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.09 using 59 PHA bins.
# Reduced chi-squared =          1.159 for     57 degrees of freedom
# Null hypothesis probability =   1.917479e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.895e-05   2.299e-06
25- 50  2.364e-06   1.493e-07
50-150  9.631e-10   2.745e-10
15-150  3.132e-05   2.617e-06

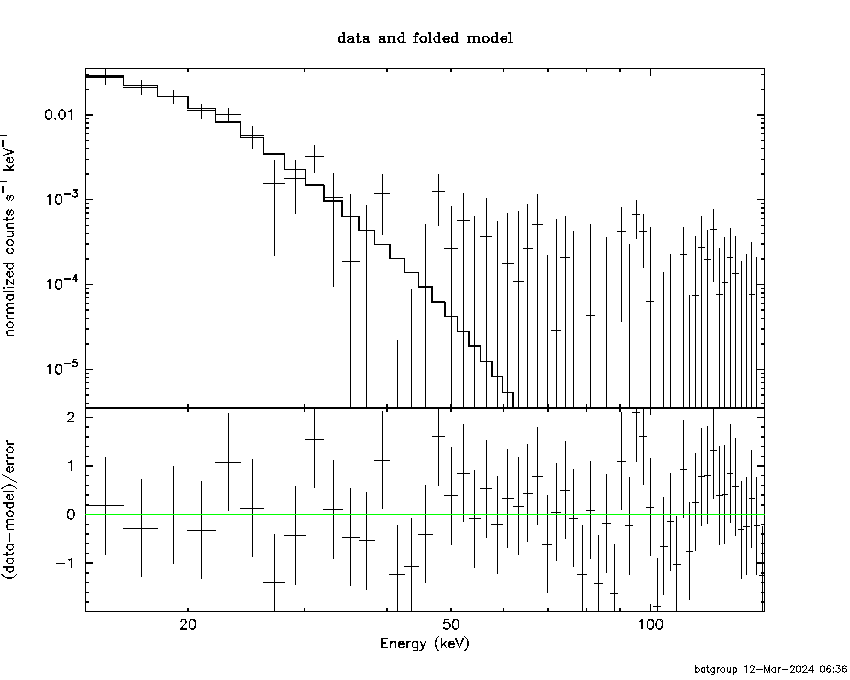

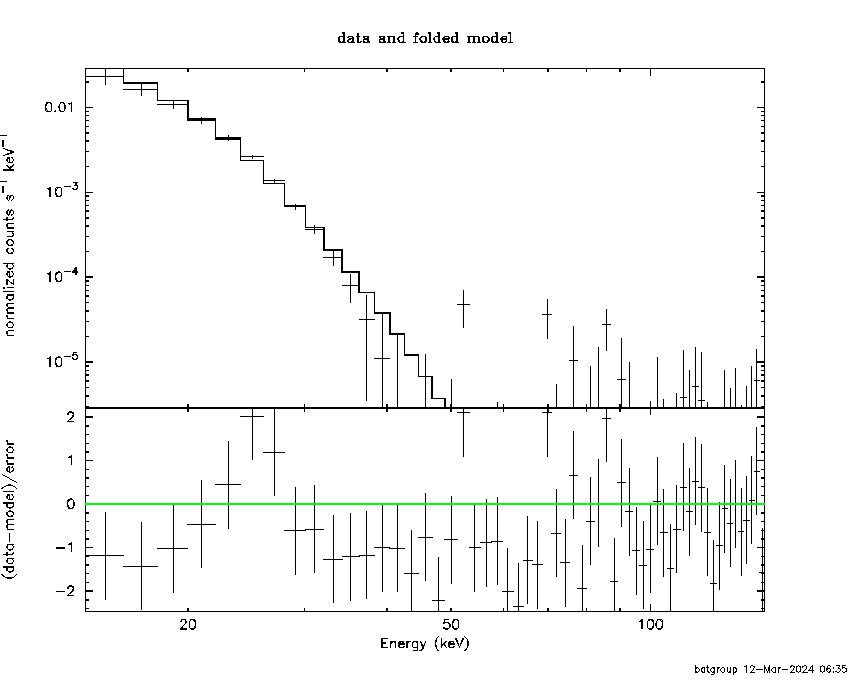

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.09206       (-0.142478      0.153654)
Norm        : 633.946       (-123.22     149.453)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.153e-05   2.280e-06
25- 50  2.440e-06   1.634e-07
50-150  4.142e-09   1.154e-09
15-150  3.397e-05   2.565e-06

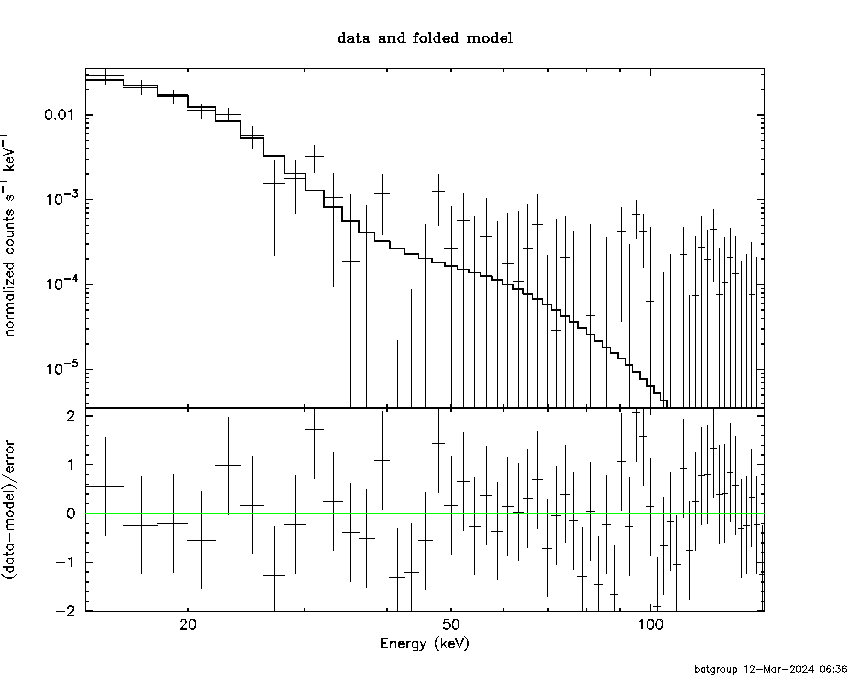

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.391706        (-2.54776      -2.54776)
R1^2/D10^2  : 5.73464E+13        (-6.78946e+13      3.1198e+18)
kT2 [keV]   : 2.57172        (-0.0698074      0.0741257)
R2^2/D10^2  : 457.391    (-108.999   139.948)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.895e-05   1.478e+03
25- 50  2.365e-06   1.207e+04
50-150  9.677e-10   3.171e+05
15-150  3.131e-05   3.527e+05

Peak spectrum fit

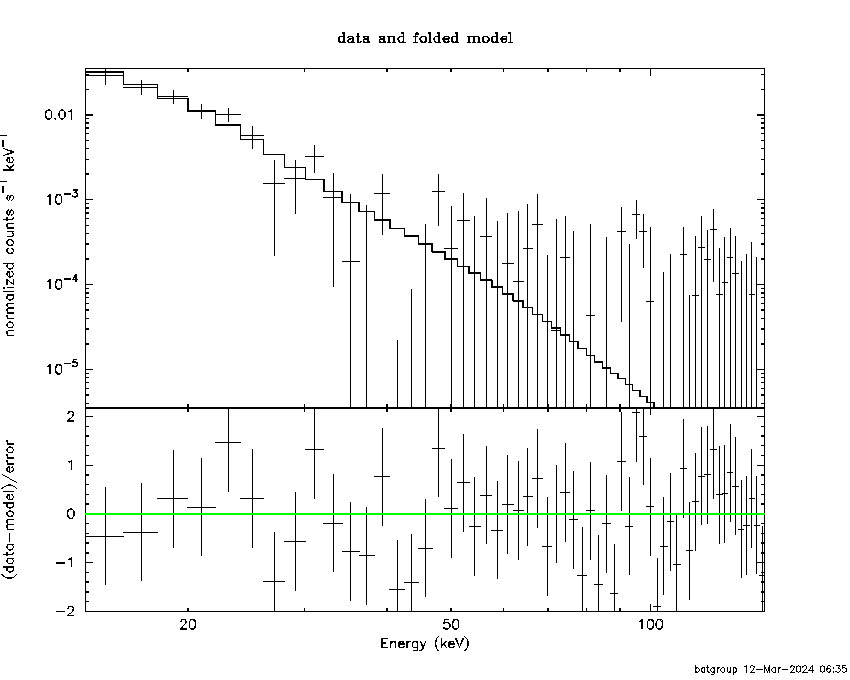

Power-law model

Time interval is from  400.464 sec. to  401.464 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.80044     ( -0.510595   0.5677 )
Norm@50keV  : 1.36526E-03    ( -0.000594866   0.00083029 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.87 using 59 PHA bins.
# Reduced chi-squared =         0.7872 for     57 degrees of freedom
# Null hypothesis probability =   8.778853e-01

Photon flux (15-150 keV)    in 1 sec: 1.74362 ( -0.224278  0.224279 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.67792e-08 ( -7.73427e-09  7.84649e-09 ) ergs/cm2

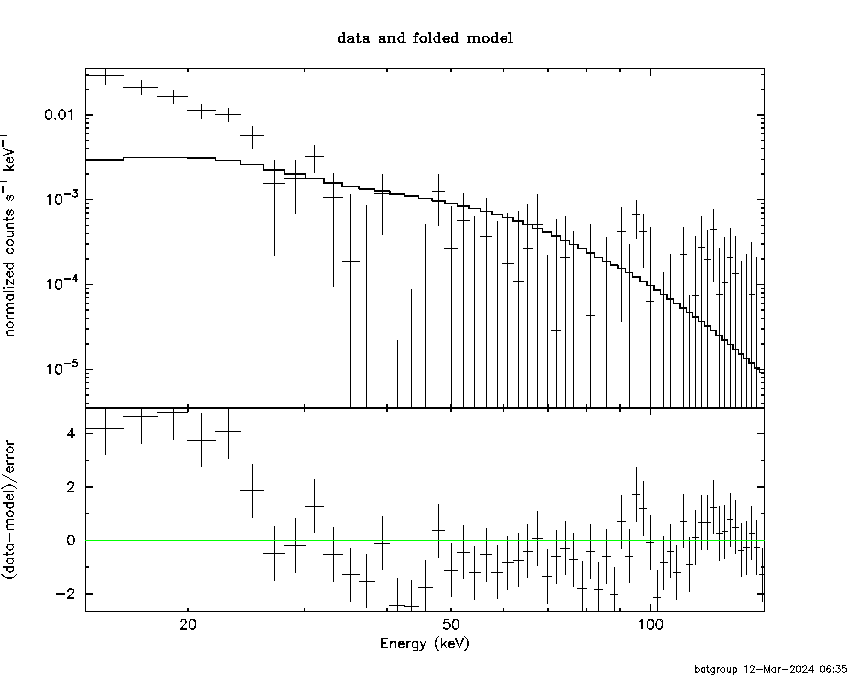

Cutoff power-law model

Time interval is from  400.464 sec. to  401.464 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.58077E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         156.64 using 59 PHA bins.
# Reduced chi-squared =         2.7971 for     56 degrees of freedom
# Null hypothesis probability =   1.835138e-11

Photon flux (15-150 keV)    in 1 sec: 1.72208 ( -0.225  0.22441 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.39326e-08 ( -7.1539e-09  7.8404e-09 ) ergs/cm2

Band function

Time interval is from  400.464 sec. to  401.464 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.02776   ( 1.02776   1.02776 )
beta        : -5.81140    ( 5.85771   1.36352 )
Epeak [keV] : 5.43914      ( -5.43919 3.1791 )
Norm@50keV   : 1.69874    ( -1.05267   99699 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.14 using 59 PHA bins.
# Reduced chi-squared =         0.7844 for     55 degrees of freedom
# Null hypothesis probability =   8.767277e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.11840  (-0.359068  0.411074)
R^2/D10^2   : 190.745  (-103.966   240.2)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.517e-08   1.484e-08
25- 50  7.521e-09   2.846e-09
50-150  1.649e-11   1.327e-11
15-150  5.271e-08   1.589e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 6.35303       (-1.13693      1.49338)
Norm        : 182.848       (-83.3311     164.848)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.466e-08   1.269e-08
25- 50  9.280e-09   3.550e-09
50-150  1.416e-10   1.187e-10
15-150  5.408e-08   1.242e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.01113        (-3.06493      0.451713)
R1^2/D10^2  : 232.234        (-142.026      -231.657)
kT2 [keV]   : 12.5851        (-12.7334      -12.7334)
R2^2/D10^2  : 2.11446E-02    (-0.0203003   377.439)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.516e-08   1.620e-08
25- 50  8.266e-09   3.422e-09
50-150  4.479e-09   5.459e-09
15-150  5.791e-08   2.135e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 7.09229     (     )
Norm@50keV  : 1.07561E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         184.85 using 59 PHA bins.
# Reduced chi-squared =         3.2430 for     57 degrees of freedom
# Null hypothesis probability =   2.048295e-15

Photon flux (15-150 keV)    in 936.3 sec: 1.35326 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.64268e-05 ( 0  0 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.08425E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1730.13 using 59 PHA bins.
# Reduced chi-squared =        30.8952 for     56 degrees of freedom
# Null hypothesis probability =   0.000000e+00

Photon flux (15-150 keV)    in 936.3 sec: 1.08613 ( -0.111636  0.11056 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.01628e-05 ( -2.80647e-06  2.77323e-06 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.23041   (     )
beta        : -7.09429    (     )
Epeak [keV] : 470.308      (   )
Norm@50keV   : 1.45939E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         184.85 using 59 PHA bins.
# Reduced chi-squared =         3.3609 for     55 degrees of freedom
# Null hypothesis probability =   6.003058e-16

Photon flux (15-150 keV)    in 936.3 sec: 1.59897 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.62e-06
S(50-100 keV) = 7.69e-08

T90 vs. Hardness ratio plot

T90                                   = 790.283999919891 sec.
Hardness ratio (energy fluence ratio) = 0.0293511

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0747978
Count Ratio (50-100 keV) / (15-25 keV) = -0.00464929

Mask shadow pattern

IMX = -1.163844934878000E-03, IMY = -2.907631542668104E-03

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -226.618600
-225.000000 -222.360000
-220.000000 -215.960000
-214.000000 -133.360000
-132.000000 -50.216000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9306 -15.7679    0.4   0.1 -144.3  12.8666  32.4    8.2	Sco X-1
254.4997  35.3969    5.3  52.0 -178.1   2.5825   2.2    3.9	Her X-1
255.8737 -37.6961    4.9  23.9  -29.8   1.0396   2.4   10.4	4U 1700-377
256.6067 -36.4724    5.5  23.1  -32.6  -0.8662  -2.1    8.8	GX 349+2
263.0725 -24.6032    8.5  19.2  -67.8   0.6558   1.3    9.2	GX 1+4
264.7680 -44.4311    8.1  33.2  -34.4   0.7346   1.4    1.6	4U 1735-44
268.3723  -1.5715    6.9  27.2 -127.3   0.8253   1.7    7.1	SW J1753.5-0127
270.2334 -25.0467    4.9  25.4  -72.6   1.1985   2.4    3.4	GX 5-1
270.4684 -25.6483    5.7  25.8  -71.4  -1.0372  -2.0   10.6	GRS 1758-258
274.1503 -13.9130    4.8  28.3  -98.0   1.4034   2.4   11.2	GX 17+2
276.0973 -30.4781    0.0  32.1  -65.3  -0.9314  -1.4   11.1	H1820-303
285.1374 -24.9889    7.5  38.7  -77.6  -1.8106  -1.5    6.9	HT1900.1-2455
263.0379 -33.7219    5.1  24.3  -47.1   1.0941   2.2    7.2	GX 354-0
222.4301 -55.3816    3.6  43.2   10.5   2.2367   3.2 ------	UNKNOWN
254.1218 -64.9020    2.2  49.5  -13.2   3.9575   5.2 ------	UNKNOWN
280.8896  19.9885    2.3  50.3 -142.2   6.1120   4.9 ------	UNKNOWN
289.2482 -61.1446    1.9  55.2  -32.3  13.1184   5.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-50.216000 336.050000
361.000000 700.090000
701.000000 761.480000
763.000000 817.530000
819.000000 914.984000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8085 -15.7333    0.3   0.1  129.1  49.9059  44.6   11.3	Sco X-1
254.5068  35.2375    7.1  51.9 -178.0  -5.3506  -1.6    6.7	Her X-1
256.1505 -37.9697    5.6  24.3  -30.0   2.6919   2.0   10.8	4U 1700-377
256.4533 -36.5699    3.8  23.2  -32.2  -3.9958  -3.0    8.9	GX 349+2
262.8912 -24.7215    5.5  19.1  -67.3  -2.7227  -2.1    6.6	GX 1+4
264.6798 -44.4605    3.6  33.2  -34.2  -5.0137  -3.3    2.8	4U 1735-44
268.3625  -1.5203    3.4  27.2 -127.4   4.9774   3.4    4.1	SW J1753.5-0127
270.1705 -24.9471   74.8  25.3  -72.8  -0.2493  -0.2   10.1	GX 5-1
270.3547 -25.6036  473.6  25.7  -71.5   0.0395   0.0    8.8	GRS 1758-258
273.9919 -13.9322   11.3  28.2  -98.0   1.9479   1.0    6.3	GX 17+2
275.9001 -30.5031    4.9  31.9  -65.1  -4.7537  -2.3    8.3	H1820-303
285.2069 -25.0071   10.1  38.7  -77.6   4.2408   1.1   10.7	HT1900.1-2455
262.8550 -33.7015  310.2  24.1  -46.9   0.0494   0.0   10.4	GX 354-0
213.6913   4.6548    2.3  37.0  113.0  14.0384   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Tue Mar 12 06:36:34 EDT 2024
