batgrbproduct Analysis for Trigger=1219905

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Mar 14 02:05:29 EDT 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1219905/GCN5_download_cron
======================================================================

  Trigger: 01219905      Segment: 000

  BAT Trigger Time: 731994368   [s; MET]
      Trigger Stop: 731994432   [s; MET]
               UTC: 2024-03-13T03:45:34.923580    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 245.142377347522   Dec: -16.3339297202514  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    15.21
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    15.21

  Flight Position:   [ source = BAT ]
    RA: 245.142377347522   Dec: -16.3339297202514  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 245.151010610327   Dec: -16.336260444452  [deg; J2000]
        { 16h 20m 36.2s , -16d 20' 10.5" }
         +/- 1.48671207840873 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.621102076934342 [arcmin] (formal 1-sigma fit error)
    SNR: 17.2615581098371

  Angular difference between Flight and Ground position is 0.516382 arcmin

  Partial Coding Fraction: 0.5859375    [ including projection effects ]

  Duration
     T90: 157.423999905586 +/- 14.3261491056767
        Measured from: -58.9479998350143
                   to: 98.4760000705719     [s; relative to TRIGTIME]
     T50: 86.2599999904633 +/- 18.6620104887773
        Measured from: -34.759999871254
                   to: 51.5000001192093     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -47.2480000257492
                   to: -46.2480000257492     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -63.7960000038147
                   to: 110.792000055313     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     7.873309   0.924202  -0.042340   0.042644
           0.142608   0.127578   0.103916   0.088865 [error]
 Peak      0.059318   0.019801   0.016286   0.003436
           0.011940   0.010705   0.008633   0.007904 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.85e-06 4.46e-07 3.23e-08 2.50e-09 3.33e-06 3.33e-06   erg/cm2
              Error 2.63e-07 6.68e-08 1.22e-08 1.63e-09 2.64e-07 2.63e-07   erg/cm2
Peak flux Power-law 6.86e-01 2.02e-01 3.25e-02 5.98e-03 9.25e-01 9.27e-01   ph/cm2/s
              Error 2.15e-01 1.60e-01 4.58e-02 1.79e-02 2.86e-01 2.88e-01   ph/cm2/s

Fluence   Cutoff-PL 2.85e-06 3.24e-07 7.82e-10 2.94e-15 3.18e-06 3.18e-06   erg/cm2
              Error 2.86e-07 9.10e-08 4.65e-09 1.25e-11 2.93e-07 2.93e-07   erg/cm2
Peak flux Cutoff-PL 6.91e-01 1.93e-01 2.91e-02 5.05e-03 9.17e-01 9.22e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.789    0.338    -      -           1.89e-04 5.74e-05   53.080 57
CPL   1.000    0.000      50.0    0.0      2.92e-03 0.00e+00  414.250 56

The chi2 of BB fit is 46.97 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.638    1.195    -      -           2.04e-03 2.28e-03   43.680 57
CPL   1.000    0.000      50.0    0.0      1.53e-02 0.00e+00   56.140 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  174.588  -63.796  110.792
T90   157.424  -58.948   98.476
T50    86.260  -34.760   51.500
Peak    1.000  -47.248  -46.248

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

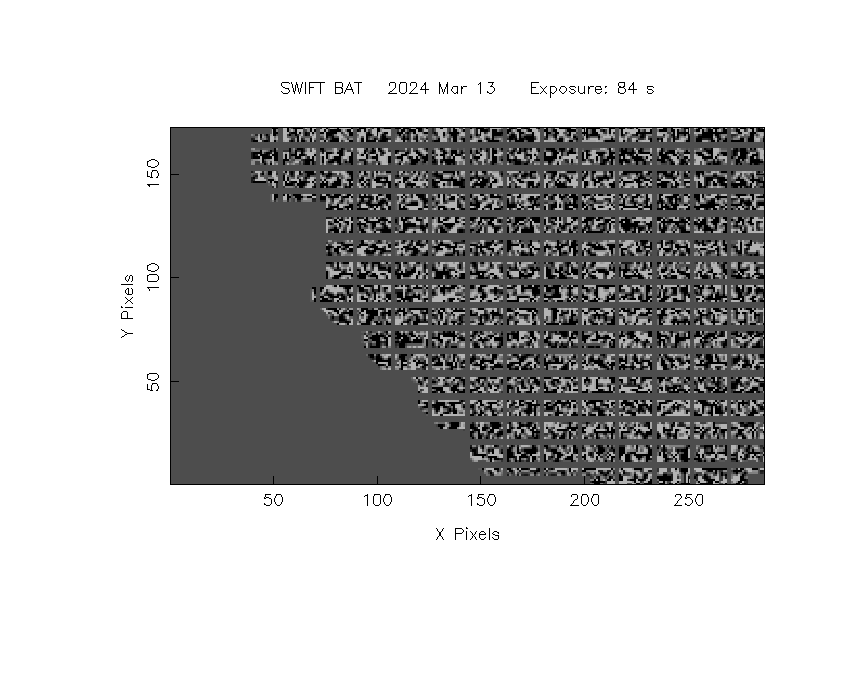

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  245.1510 -16.3363 0.0112   36.5  172.1       4.5278    17.3  TRIG_01219905
------------------------------------------

Foreground time interval of the image:
-12.699  71.401 (delta_t =  84.100 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

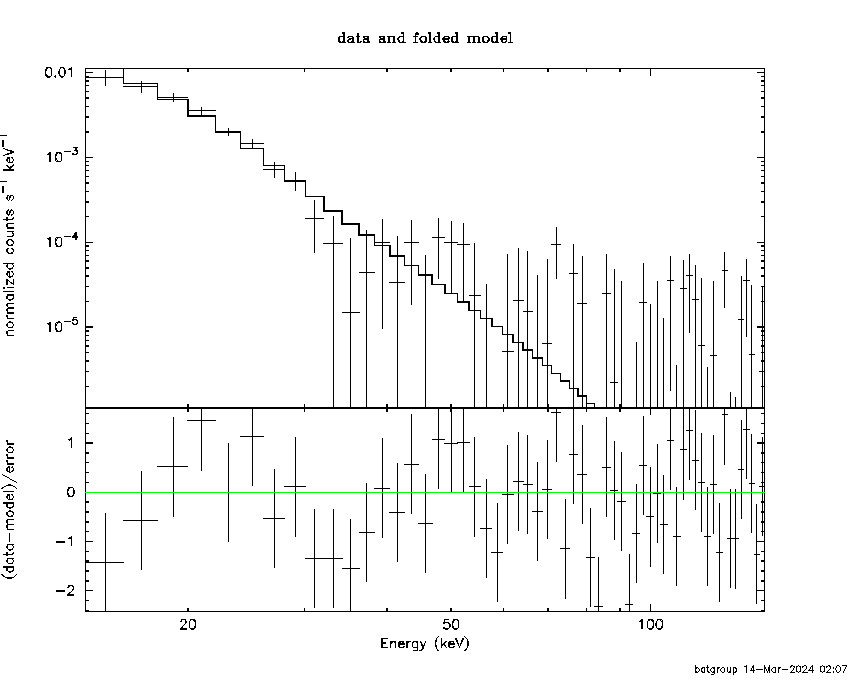

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  -63.796 sec. to  110.792 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.78904     ( -0.335741   0.340878 )
Norm@50keV  : 1.88678E-04    ( -5.0594e-05   6.42939e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.08 using 59 PHA bins.
# Reduced chi-squared =         0.9312 for     57 degrees of freedom
# Null hypothesis probability =   6.229107e-01

Photon flux (15-150 keV)    in 174.6 sec: 0.628830 ( -0.0542807  0.0546779 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.33413e-06 ( -2.62899e-07  2.64175e-07 ) ergs/cm2

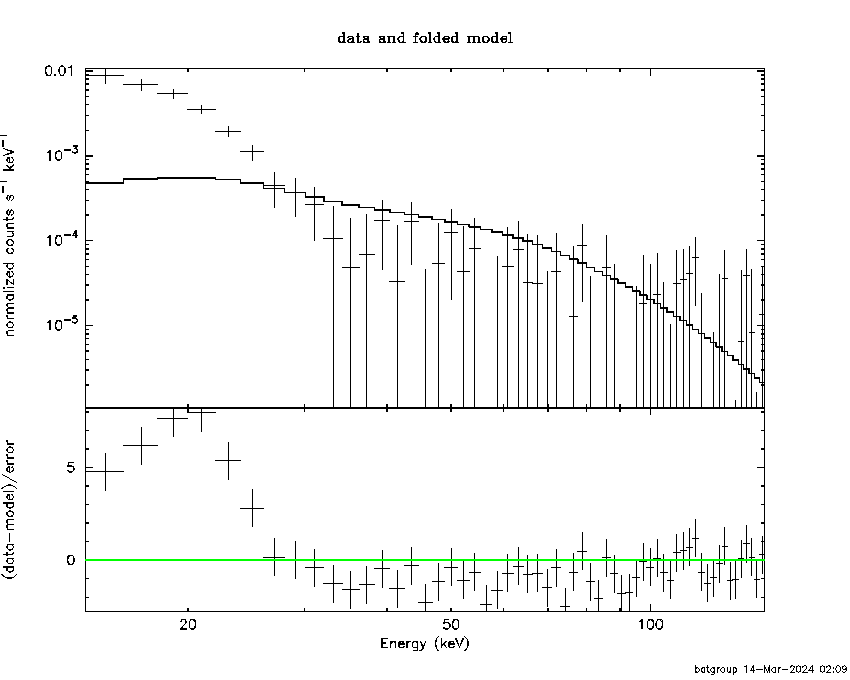

Cutoff power-law model

Time interval is from  -63.796 sec. to  110.792 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.92022E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         414.25 using 59 PHA bins.
# Reduced chi-squared =         7.3973 for     56 degrees of freedom
# Null hypothesis probability =   4.056422e-56

Photon flux (15-150 keV)    in 174.6 sec: 0.607639 ( -0.061231  0.059912 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.17611e-06 ( -2.95598e-07  2.89504e-07 ) ergs/cm2

Band function

Time interval is from  -63.796 sec. to  110.792 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.43299E-02   ( -3.98347   2.3135 )
beta        : -7.66410    ( 7.52361   1.50334 )
Epeak [keV] : 7.38580      ( -2.402 2.22597 )
Norm@50keV   : 10.3897    ( -6.08051   67587.3 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.70 using 59 PHA bins.
# Reduced chi-squared =         0.8309 for     55 degrees of freedom
# Null hypothesis probability =   8.098940e-01

Photon flux (15-150 keV)    in 174.6 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

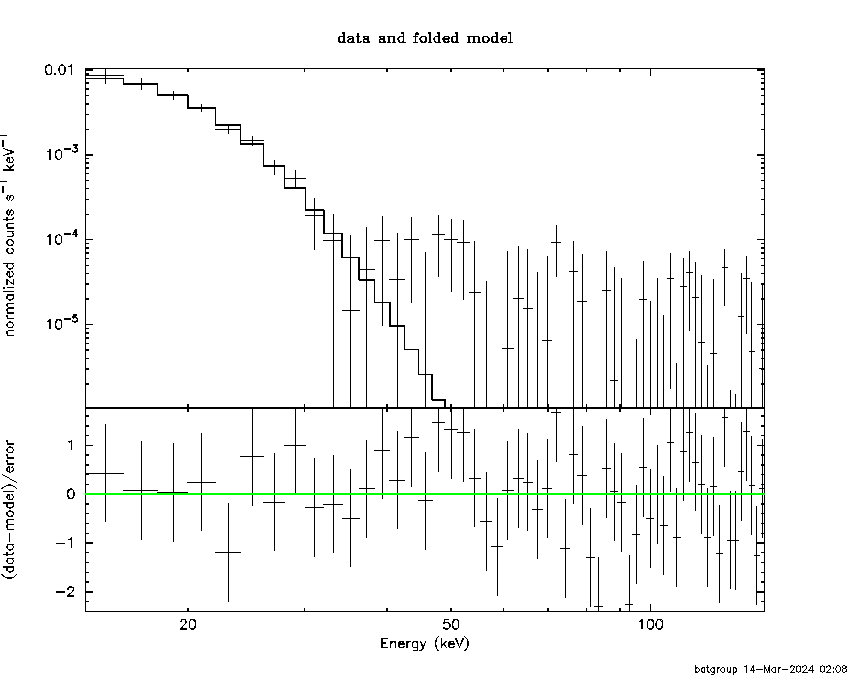

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.72715  (-0.168937  0.188883)
R^2/D10^2   : 160.597  (-65.2252   107.596)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.97 using 59 PHA bins.
# Reduced chi-squared =         0.8241 for     57 degrees of freedom
# Null hypothesis probability =   8.256656e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.828e-06   5.133e-07
25- 50  2.918e-07   5.736e-08
50-150  2.083e-10   1.226e-10
15-150  3.120e-06   4.417e-07

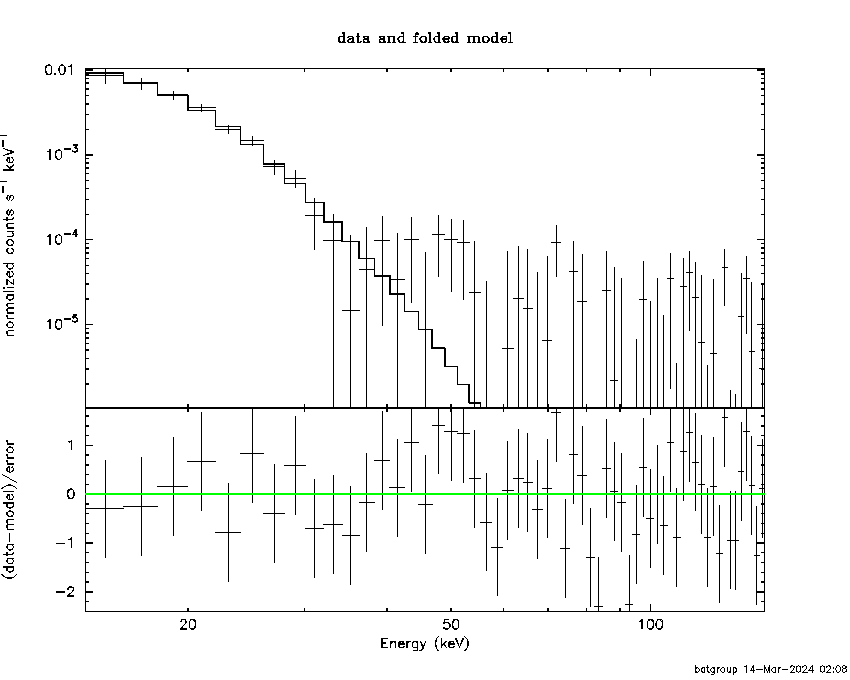

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.88759       (-0.448146      0.530116)
Norm        : 154.068       (-53.6907     81.6537)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.865e-06   3.920e-07
25- 50  3.438e-07   6.417e-08
50-150  1.587e-09   9.340e-10
15-150  3.210e-06   3.937e-07

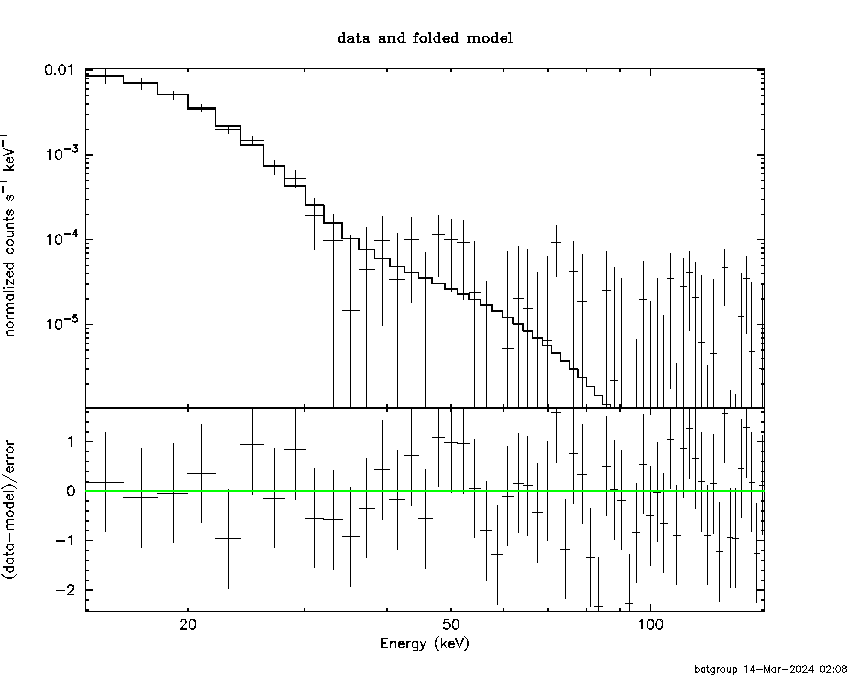

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.79090        (-9.15548      -9.15548)
R1^2/D10^2  : 1.99807E-02        (-0.0163755      197.047)
kT2 [keV]   : 2.59274        (-2.61963      0.112426)
R2^2/D10^2  : 227.075    (-96.7055   280.019)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.141e-06   1.000e-01
25- 50  4.668e-07   8.637e-01
50-150  1.888e-09   2.225e+01
15-150  2.610e-06   2.164e+01

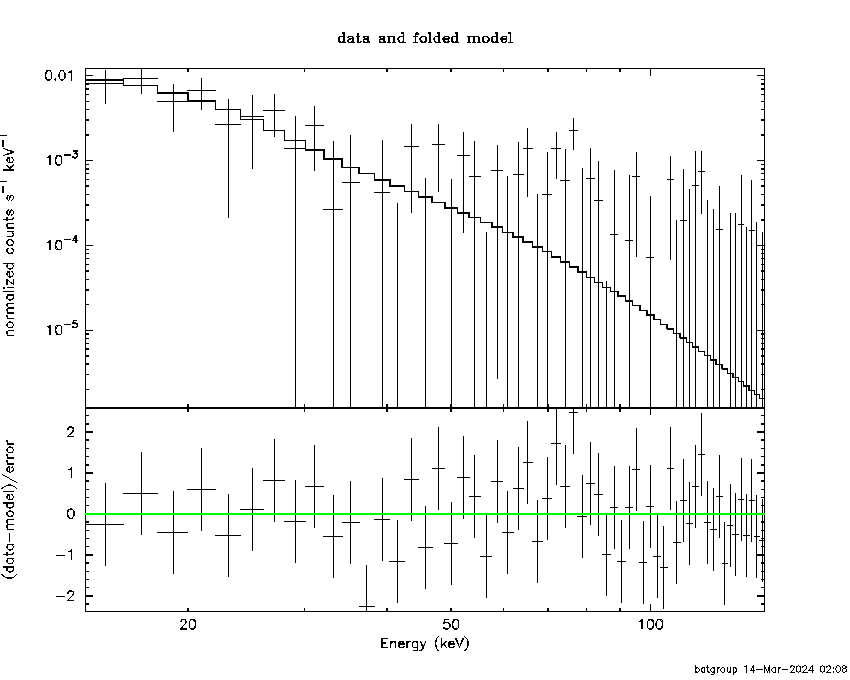

Peak spectrum fit

Power-law model

Time interval is from  -47.248 sec. to  -46.248 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.63837     ( -0.962571   1.42678 )
Norm@50keV  : 2.04124E-03    ( -0.00204122   0.00252519 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.68 using 59 PHA bins.
# Reduced chi-squared =         0.7663 for     57 degrees of freedom
# Null hypothesis probability =   9.026373e-01

Photon flux (15-150 keV)    in 1 sec: 0.924855 ( -0.28501  0.286086 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.50474e-08 ( -1.34107e-08  1.605e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -47.248 sec. to  -46.248 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.53204E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.14 using 59 PHA bins.
# Reduced chi-squared =          1.002 for     56 degrees of freedom
# Null hypothesis probability =   4.697655e-01

Photon flux (15-150 keV)    in 1 sec: 0.917334 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.5015e-08 ( -1.35147e-08  1.55394e-08 ) ergs/cm2

Band function

Time interval is from  -47.248 sec. to  -46.248 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -6.76790   ( 4.28481   6.7679 )
beta        : -3.63832    ( -1.42873   0.962723 )
Epeak [keV] : 90.3509      ( -90.3509 -90.3509 )
Norm@50keV   : 0.277446    ( -0.277431   0.343209 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.68 using 59 PHA bins.
# Reduced chi-squared =         0.7942 for     55 degrees of freedom
# Null hypothesis probability =   8.641020e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

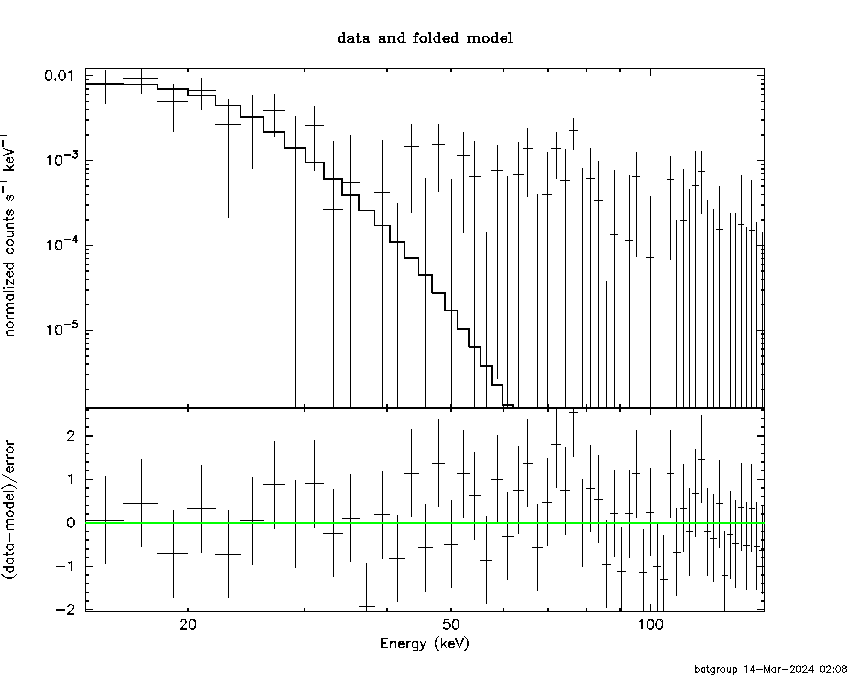

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.70325  (-1.02529  1.30905)
R^2/D10^2   : 35.8347  (-35.8347   199.271)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.215e-08   1.260e-08
25- 50  6.382e-09   4.142e-09
50-150  4.780e-11   5.105e-11
15-150  2.858e-08   1.739e-08

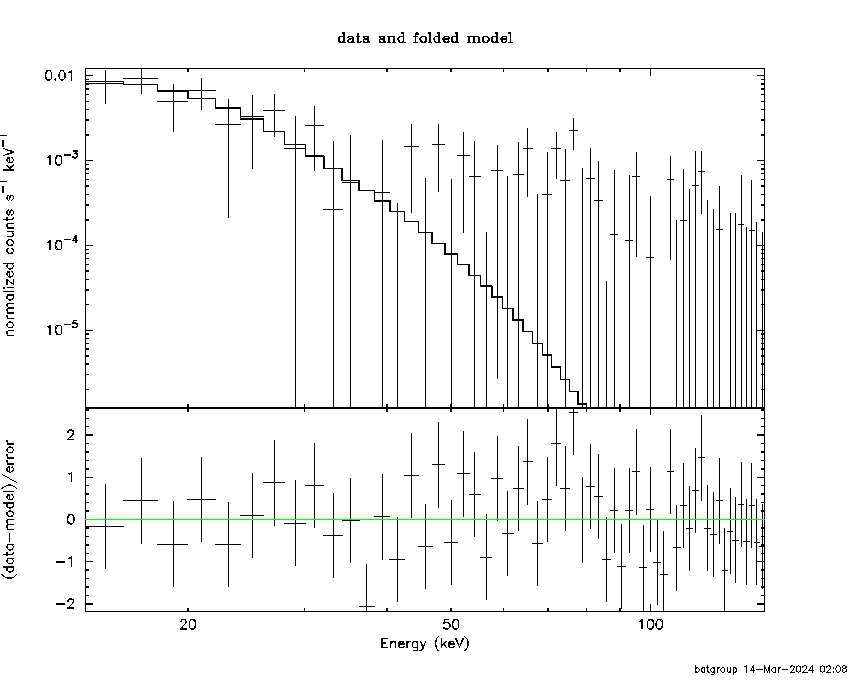

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 9.04688       (-3.96244      10.2762)
Norm        : 38.2469       (-38.2465     128.314)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.137e-08   1.229e-08
25- 50  8.000e-09   5.155e-09
50-150  4.130e-10   4.584e-10
15-150  2.978e-08   1.756e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.38295        (-1.06485      1.25467)
R1^2/D10^2  : 54.7534        (-54.7444      488.135)
kT2 [keV]   : 20.2373        (-20.5856      -20.5856)
R2^2/D10^2  : 1.06320E-02    (-0.0103809   52.8245)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.163e-08   1.201e-08
25- 50  8.721e-09   4.792e-09
50-150  1.277e-08   9.265e-09
15-150  4.312e-08   2.318e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.95557     ( -0.427526   0.438902 )
Norm@50keV  : 1.55538E-04    ( -5.41181e-05   7.5126e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.18 using 59 PHA bins.
# Reduced chi-squared =         0.6874 for     57 degrees of freedom
# Null hypothesis probability =   9.655762e-01

Photon flux (15-150 keV)    in 84.1 sec: 0.612177 ( -0.0601136  0.0602406 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.54976e-06 ( -1.44179e-07  1.44294e-07 ) ergs/cm2

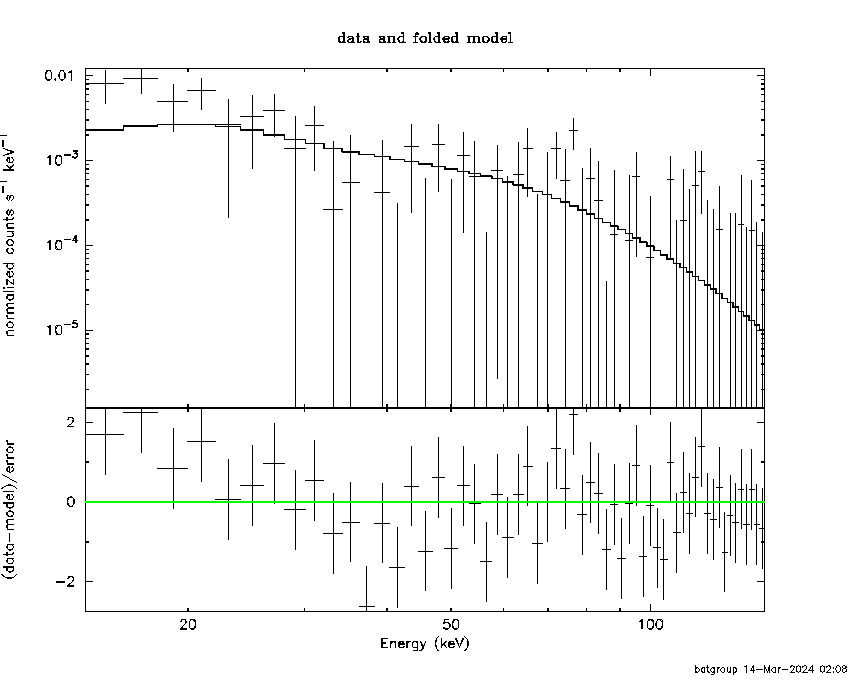

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.18908E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         282.24 using 59 PHA bins.
# Reduced chi-squared =         5.0400 for     56 degrees of freedom
# Null hypothesis probability =   6.387270e-32

Photon flux (15-150 keV)    in 84.1 sec: 0.609579 ( -0.065053  0.064523 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.50585e-06 ( -1.51615e-07  1.49706e-07 ) ergs/cm2

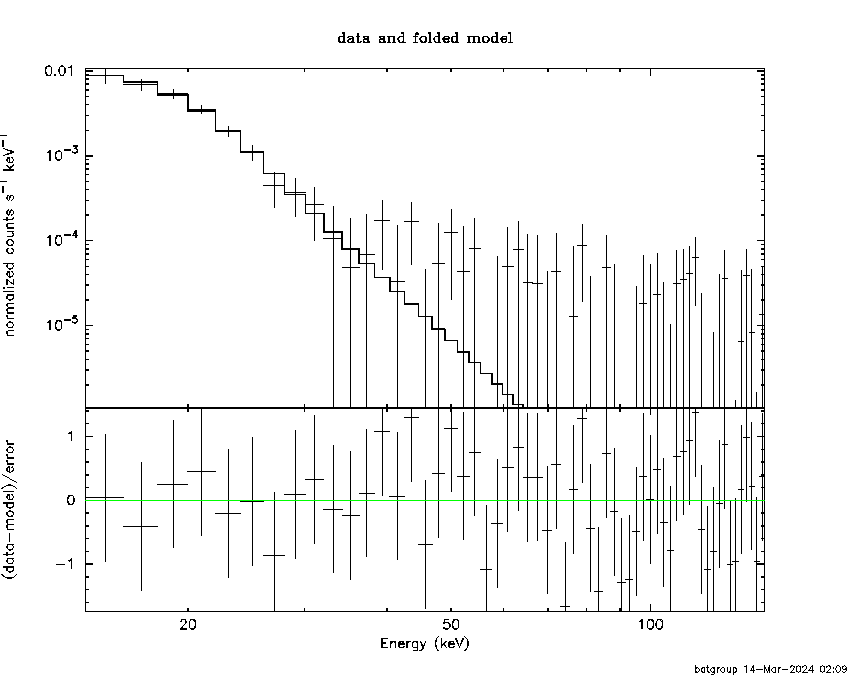

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.90209   ( -6.66554   4.16255 )
beta        : -7.45181    ( 7.21961   1.19263 )
Epeak [keV] : 11.7507      ( -0.928087 0.49258 )
Norm@50keV   : 3.53004E+04    ( -35292   359628 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          32.47 using 59 PHA bins.
# Reduced chi-squared =         0.5904 for     55 degrees of freedom
# Null hypothesis probability =   9.933223e-01

Photon flux (15-150 keV)    in 84.1 sec: 0.505886 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.46e-07
S(50-100 keV) = 3.23e-08

T90 vs. Hardness ratio plot

T90                                   = 157.423999905586 sec.
Hardness ratio (energy fluence ratio) = 0.0724215

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.117384
Count Ratio (50-100 keV) / (15-25 keV) = -0.00537766

Mask shadow pattern

IMX = -7.341650195063706E-01, IMY = -1.016367993997669E-01

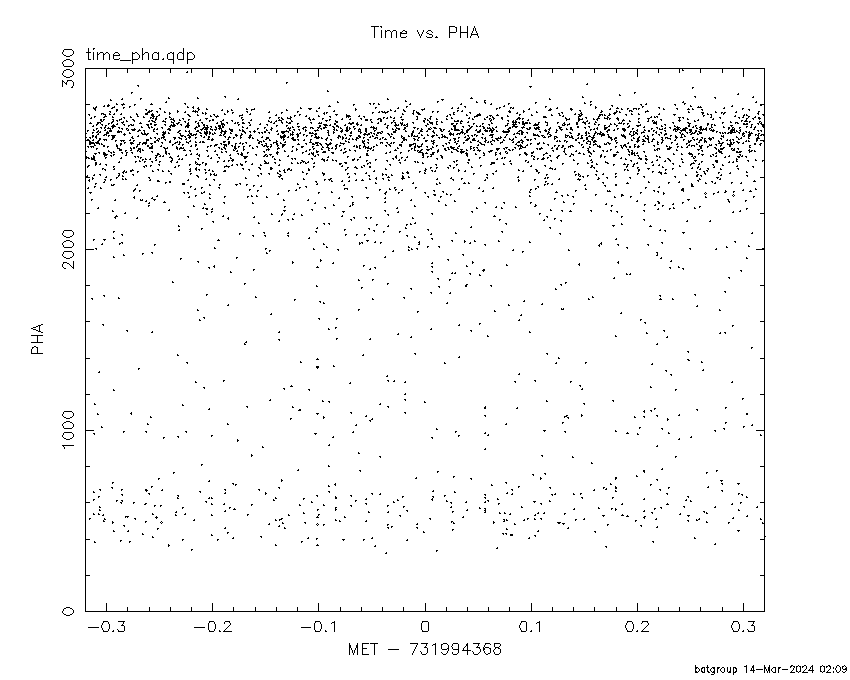

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-12.699380 71.400590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1039 -60.5993    8.8  33.1   11.3  -0.3046  -1.3    6.4	Cen X-3
186.8953 -62.6365  241.5  25.2    6.6   0.0089   0.0   10.4	GX 301-2
245.0679 -15.7340    3.8  37.1  171.7  -0.7597  -3.0    7.6	Sco X-1
255.9807 -37.6870   16.1  23.9 -147.4   0.1278   0.7    9.4	4U 1700-377
256.2691 -36.4655    8.3  24.9 -149.2  -0.2597  -1.4    8.4	GX 349+2
263.0071 -24.7502    9.7  37.4 -156.6   0.2998   1.2    0.3	GX 1+4
264.6100 -44.2849   11.1  25.8 -125.7   0.2100   1.0   11.4	4U 1735-44
270.2911 -25.1338   14.6  41.4 -148.2   0.2301   0.8    3.3	GX 5-1
270.1704 -25.5969    3.5  40.9 -147.9   0.9526   3.4   11.3	GRS 1758-258
274.0745 -14.0830    7.0  52.2 -154.0  -0.9436  -1.6    4.9	GX 17+2
276.0697 -30.2574    0.0  41.3 -137.2   0.4615   1.3   10.0	H1820-303
262.8588 -33.6510    0.0  30.7 -145.9   0.5418   2.6   12.8	GX 354-0
153.9240 -60.1605    2.8  40.9    9.0   1.1260   4.2 ------	UNKNOWN
245.1510 -16.3383    0.6  36.5  172.1   4.6349  18.2 ------	UNKNOWN
125.8349 -65.6462    2.4  49.9   -5.8   1.6994   4.9 ------	UNKNOWN
265.2062 -53.8307    2.7  23.5 -103.3   0.9095   4.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-12.699380 71.400590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.0942 -60.5931    5.7  33.1   11.4  -0.4962  -2.0    6.8	Cen X-3
186.3574 -62.8351   55.8  25.5    6.3  -0.0395  -0.2    9.1	GX 301-2
245.0813 -15.7113    3.9  37.1  171.7  -0.7704  -2.9    7.3	Sco X-1
255.9807 -37.6870   10.8  23.9 -147.4   0.1973   1.1    9.4	4U 1700-377
256.2518 -36.5064    7.4  24.8 -149.2  -0.3004  -1.6   10.2	GX 349+2
263.0080 -24.7501    9.2  37.4 -156.6   0.3168   1.3    0.3	GX 1+4
264.5729 -44.2789    9.0  25.8 -125.7   0.2675   1.3   12.6	4U 1735-44
270.3649 -25.2166   14.8  41.3 -148.1   0.2405   0.8    9.3	GX 5-1
270.1697 -25.6104    4.3  40.9 -147.9   0.8209   2.7   10.7	GRS 1758-258
274.0868 -14.0843    7.3  52.2 -154.0  -0.9352  -1.6    5.5	GX 17+2
276.0697 -30.2574    0.0  41.3 -137.2   0.3710   1.1   10.0	H1820-303
262.8588 -33.6510    0.0  30.7 -145.9   0.5430   2.5   12.8	GX 354-0
153.9127 -60.1512    2.8  40.9    9.0   1.1516   4.2 ------	UNKNOWN
245.1510 -16.3364    0.7  36.5  172.1   4.5279  17.2 ------	UNKNOWN
153.9482 -69.3782    3.9  38.6   -5.0   0.7102   2.9 ------	UNKNOWN
125.8499 -65.6471    2.5  49.9   -5.8   1.6643   4.7 ------	UNKNOWN
251.8232 -47.7886    2.5  16.3 -125.6   0.7953   4.6 ------	UNKNOWN
265.2201 -53.8237    3.0  23.5 -103.3   0.8145   3.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
154.500600 205.760000
207.000000 390.150000
391.000000 479.250100
480.000000 663.020000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0836 -15.8057   22.0   0.5  166.2  -0.4920  -0.5   11.6	Sco X-1
254.5469  35.4818    6.1  52.6 -178.3  -5.4836  -1.9    9.4	Her X-1
256.1241 -37.9925    7.5  23.7  -29.8   1.5700   1.5   11.0	4U 1700-377
256.5981 -36.5602    5.1  22.6  -32.4   2.3602   2.3   11.4	GX 349+2
262.8375 -24.8866    9.4  18.6  -67.7   1.4051   1.2   12.6	GX 1+4
264.9187 -44.3601    6.3  32.6  -34.6  -2.1712  -1.8    9.3	4U 1735-44
268.3684  -1.5940    8.1  27.2 -128.4   1.6898   1.4    8.5	SW J1753.5-0127
270.3179 -24.9991    8.3  25.0  -73.5  -1.7133  -1.4    5.1	GX 5-1
270.4681 -25.6563    8.4  25.4  -72.1   1.7101   1.4   10.4	GRS 1758-258
274.0045 -13.9034    5.1  27.9  -99.0  -2.9621  -2.3    8.0	GX 17+2
275.9187 -30.4282    7.8  31.4  -65.7   2.1362   1.5    3.7	H1820-303
284.9031 -24.8199   69.7  38.0  -78.3   0.3989   0.2    9.4	HT1900.1-2455
262.8281 -33.9835  131.3  23.7  -46.7  -0.0987  -0.1   12.0	GX 354-0
214.9536 -29.6803    3.0  30.7   50.9   5.2396   3.8 ------	UNKNOWN
245.1605 -16.3298    0.4   0.0 -126.4  31.3400  33.2 ------	UNKNOWN
236.4469 -70.8231    2.7  54.7   -4.4   8.8887   4.3 ------	UNKNOWN
256.2219 -38.5236    1.8  24.2  -29.4   6.7575   6.6 ------	UNKNOWN
290.2348 -61.4149    2.1  55.2  -32.3  27.6479   5.4 ------	UNKNOWN

Plot creation:
Thu Mar 14 02:09:40 EDT 2024
