batgrbproduct Analysis for Trigger=1219916

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Mar 14 01:58:23 EDT 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1219916/GCN5_download_cron
======================================================================

  Trigger: 01219916      Segment: 000

  BAT Trigger Time: 731999904   [s; MET]
      Trigger Stop: 731999968   [s; MET]
               UTC: 2024-03-13T05:17:50.923200    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 255.206562245367   Dec: -38.2120474961606  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.05
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    9.05

  Flight Position:   [ source = BAT ]
    RA: 255.206562245367   Dec: -38.2120474961606  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 255.225740917044   Dec: -38.1175147337868  [deg; J2000]
        { 17h 00m 54.2s , -38d 07' 03.1" }
         +/- 3.24320403832102 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.9320383419656 [arcmin] (formal 1-sigma fit error)
    SNR: 5.66441591208896

  Angular difference between Flight and Ground position is 5.743670 arcmin

  Partial Coding Fraction: 0.8046875    [ including projection effects ]

  Duration
     T90: 0.811999917030334 +/- 0.227437885465454
        Measured from: -131.571999907494
                   to: -130.759999990463     [s; relative to TRIGTIME]
     T50: 0.572000026702881 +/- 0.427607444904668
        Measured from: -131.451999902725
                   to: -130.879999876022     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -131.664000034332
                   to: -130.664000034332     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -131.583999991417
                   to: -130.743999958038     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.019831   0.017431   0.006742   0.009044
           0.006322   0.006374   0.005426   0.004727 [error]
 Peak      0.016706   0.013302   0.005104   0.006504
           0.007012   0.006910   0.005826   0.005167 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.88e-09 6.19e-09 7.45e-09 1.75e-08 2.26e-08 3.50e-08   erg/cm2
              Error 2.39e-09 2.70e-09 4.46e-09 2.33e-08 1.10e-08 2.61e-08   erg/cm2
Peak flux Power-law 9.57e-02 8.82e-02 5.62e-02 5.50e-02 2.63e-01 2.95e-01   ph/cm2/s
              Error 9.16e-02 7.08e-02 4.80e-02 1.30e-01 2.11e-01 1.82e-01   ph/cm2/s

Fluence   Cutoff-PL 3.73e-09 6.56e-09 7.67e-09 9.76e-09 2.22e-08 2.77e-08   erg/cm2
              Error 2.54e-09 3.45e-09 6.48e-09 2.17e-08 1.68e-08 3.22e-08   erg/cm2
Peak flux Cutoff-PL 9.69e-02 8.84e-02 5.56e-02 5.31e-02 2.63e-01 2.94e-01   ph/cm2/s
              Error 9.82e-02 5.58e-02 5.31e-02 1.29e-01 1.58e-01 2.37e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.733    0.750    -      -           2.91e-03 1.39e-03   41.140 57
CPL   1.334    3.267      79.3    0.0      4.79e-03 0.00e+00   41.030 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.650    1.528    -      -           2.01e-03 1.66e-03   47.450 57
CPL   3.030    1.074     298.6    0.0      4.27e-04 0.00e+00   47.300 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.840 -131.584 -130.744
T90     0.812 -131.572 -130.760
T50     0.572 -131.452 -130.880
Peak    1.000 -131.664 -130.664

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  255.2257 -38.1175 0.0339   18.8 -119.9       0.0696     5.7  TRIG_01219916
------------------------------------------

Foreground time interval of the image:
-131.584 -130.744 (delta_t =   0.840 [sec])
Background time interval of the image:
-239.000 -219.450 (delta_t =  19.550 [sec])
-218.000 -181.540 (delta_t =  36.460 [sec])
-180.000 -131.584 (delta_t =  48.416 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

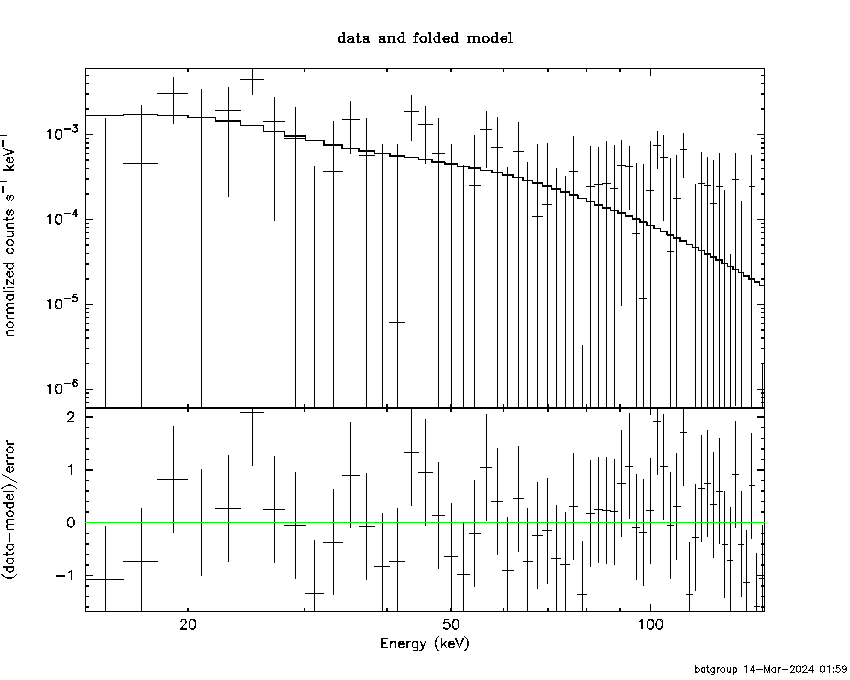

Power-law model

Time interval is from -131.584 sec. to -130.744 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73339     ( -0.690812   0.808666 )
Norm@50keV  : 2.90730E-03    ( -0.00143484   0.00135022 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.14 using 59 PHA bins.
# Reduced chi-squared =         0.7217 for     57 degrees of freedom
# Null hypothesis probability =   9.437629e-01

Photon flux (15-150 keV)    in 0.84 sec: 0.390740 ( -0.170485  0.170757 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.25568e-08 ( -1.07951e-08  1.11732e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from -131.584 sec. to -130.744 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33417     ( -5.61995   0.914266 )
Epeak [keV] : 79.2948      ( -79.8419 -79.8419 )
Norm@50keV  : 4.78904E-03    ( -0.0047292   -0.0047292 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.03 using 59 PHA bins.
# Reduced chi-squared =         0.7326 for     56 degrees of freedom
# Null hypothesis probability =   9.332863e-01

Photon flux (15-150 keV)    in 0.84 sec: 0.389702 ( -0.170091  0.170678 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.21995e-08 ( -2.21995e-08  1.13921e-08 ) ergs/cm2

Band function

Time interval is from -131.584 sec. to -130.744 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.31281   ( -6.47672   2.72048 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 76.3829      ( -58.8337 -76.8557 )
Norm@50keV   : 4.95734E-03    ( -0.00493466   73.0527 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.03 using 59 PHA bins.
# Reduced chi-squared =         0.7459 for     55 degrees of freedom
# Null hypothesis probability =   9.193065e-01

Photon flux (15-150 keV)    in 0.84 sec: 0.390528 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

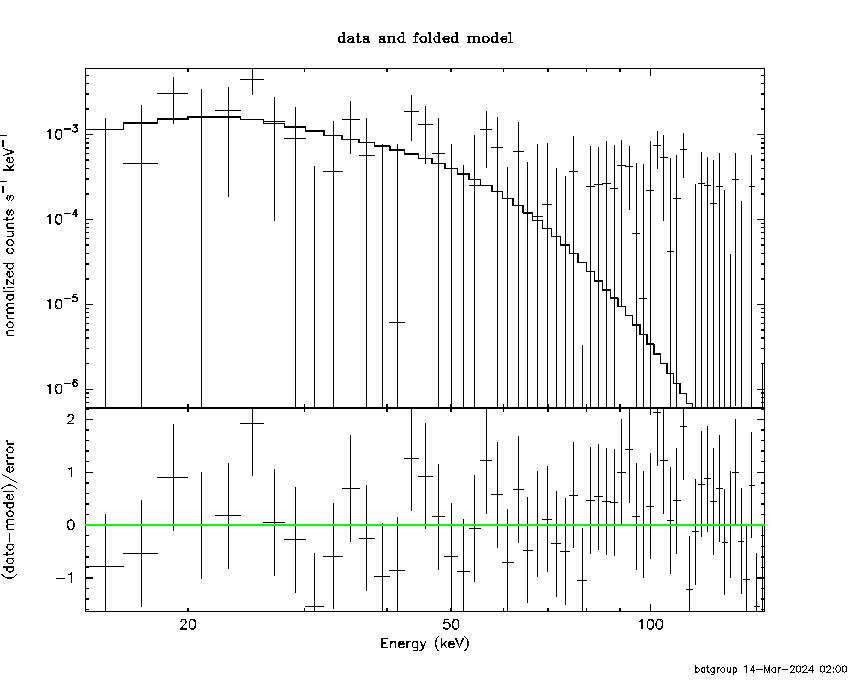

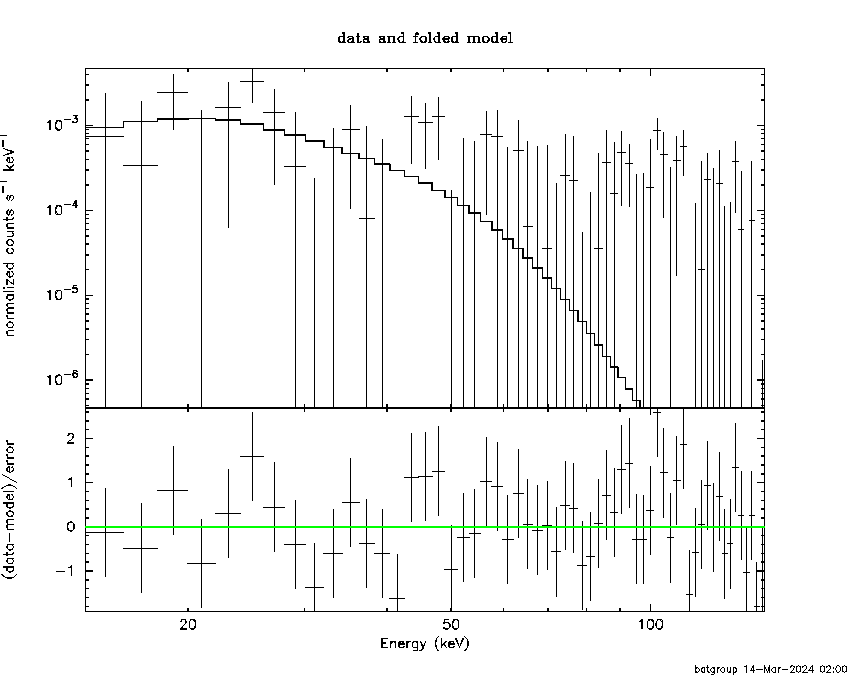

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.17169  (-3.75342  12.3615)
R^2/D10^2   : 0.257293  (-0.256423   1.69945)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.46 using 59 PHA bins.
# Reduced chi-squared =         0.7449 for     57 degrees of freedom
# Null hypothesis probability =   9.243400e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.573e-09   2.347e-09
25- 50  7.821e-09   5.195e-09
50-150  3.160e-09   2.566e-09
15-150  1.455e-08   1.043e-08

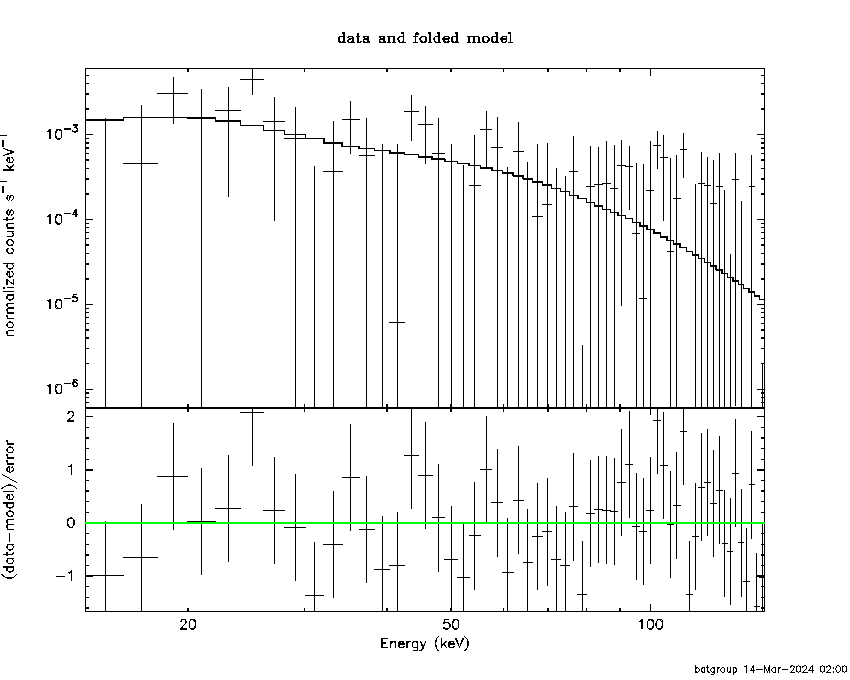

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 128.357       (-97.5122      -125.579)
Norm        : 1.65911       (-0.764233     1.6239)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.618e-09   2.325e-09
25- 50  6.547e-09   4.195e-09
50-150  1.207e-08   8.765e-09
15-150  2.223e-08   1.557e-08

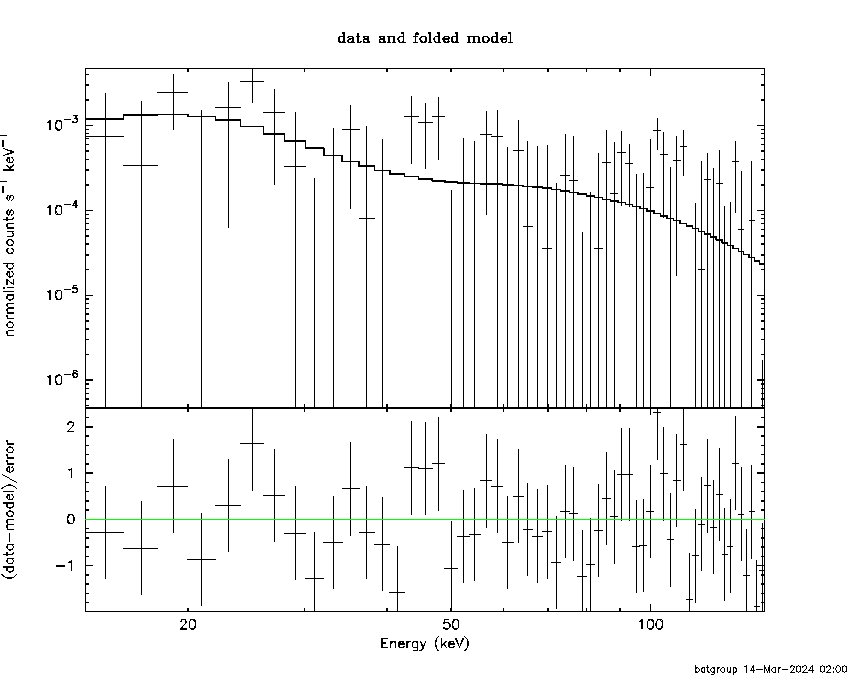

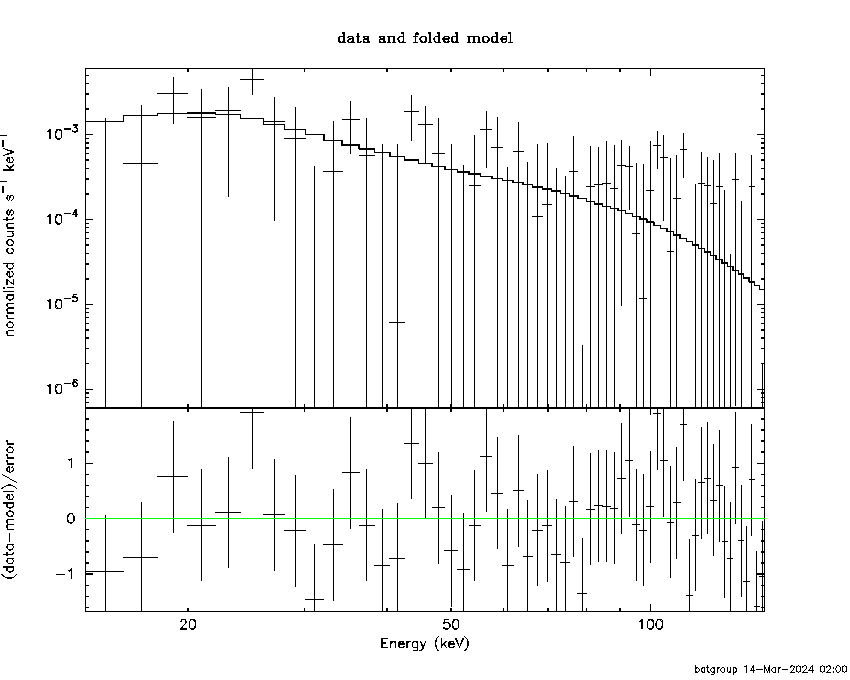

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.79915        (-4.18667      6.24645)
R1^2/D10^2  : 0.645441        (-0.651451      8.17426)
kT2 [keV]   : 31.5585        (-31.185      -31.185)
R2^2/D10^2  : 2.10880E-03    (-0.00219813   0.46422)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.170e-09   2.590e-09
25- 50  6.731e-09   4.431e-09
50-150  1.234e-08   8.320e-09
15-150  2.324e-08   1.401e-08

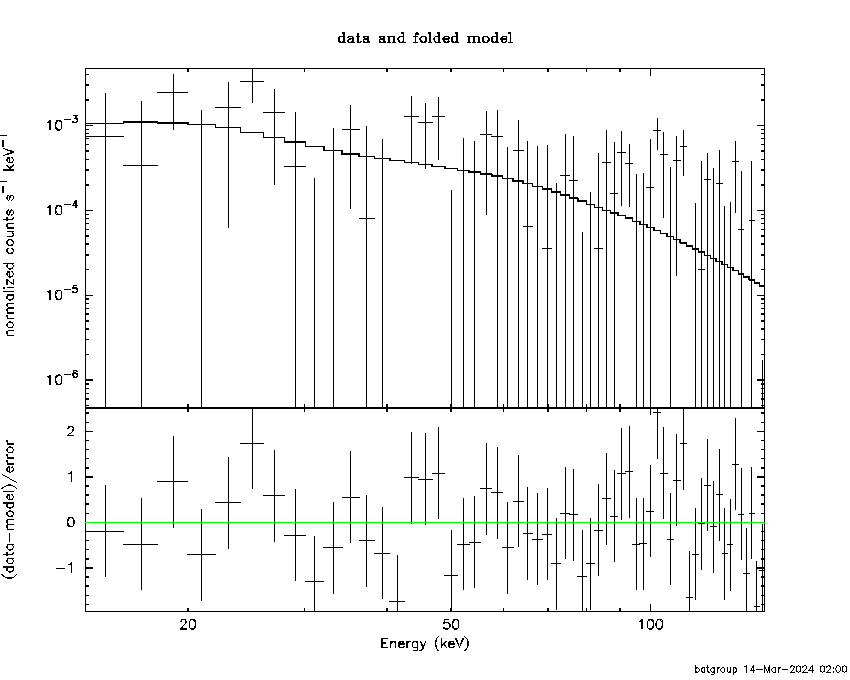

Peak spectrum fit

Power-law model

Time interval is from -131.664 sec. to -130.664 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.64958     ( -1.43458   1.62126 )
Norm@50keV  : 2.01445E-03    ( -0.00201438   0.00129966 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.45 using 59 PHA bins.
# Reduced chi-squared =         0.8325 for     57 degrees of freedom
# Null hypothesis probability =   8.122019e-01

Photon flux (15-150 keV)    in 1 sec: 0.263004 ( -0.263004  0.158057 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.87349e-08 ( -1.27544e-08  1.40131e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from -131.664 sec. to -130.664 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.03031     ( -5.13795   -2.98947 )
Epeak [keV] : 298.632      (   )
Norm@50keV  : 4.26631E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.30 using 59 PHA bins.
# Reduced chi-squared =         0.8446 for     56 degrees of freedom
# Null hypothesis probability =   7.896933e-01

Photon flux (15-150 keV)    in 1 sec: 0.263188 ( -0.158235  0.157755 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.86107e-08 ( -1.86107e-08  1.39073e-08 ) ergs/cm2

Band function

Time interval is from -131.664 sec. to -130.664 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.28960   ( 6.10336   8.2896 )
beta        : -1.64969    ( -1.62249   1.43342 )
Epeak [keV] : 148.375      ( -148.375 -148.375 )
Norm@50keV   : 0.273784    ( -0.273782   0.176644 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.45 using 59 PHA bins.
# Reduced chi-squared =         0.8628 for     55 degrees of freedom
# Null hypothesis probability =   7.551766e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.28056  (-4.10167  159.24)
R^2/D10^2   : 0.381796  (-0.375164   12.76)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.380e-09   2.312e-09
25- 50  4.990e-09   3.670e-09
50-150  9.512e-10   1.049e-09
15-150  9.321e-09   7.180e-09

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 198.969       (-199.073      -199.073)
Norm        : 1.05059       (-0.633131     3.41805)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.617e-09   1.898e-09
25- 50  5.032e-09   3.555e-09
50-150  1.103e-08   7.525e-09
15-150  1.868e-08   1.301e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.39101        (-3.55032      9.4221)
R1^2/D10^2  : 1.09190        (-1.05617      220.763)
kT2 [keV]   : 42.4860        (-43.5253      -43.5253)
R2^2/D10^2  : 8.54285E-04    (-0.000816502   0.439211)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.746e-09   2.568e-09
25- 50  4.105e-09   2.159e-09
50-150  1.374e-08   7.765e-09
15-150  2.159e-08   1.333e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73339     ( -0.690812   0.808666 )
Norm@50keV  : 2.90730E-03    ( -0.00143484   0.00135022 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.14 using 59 PHA bins.
# Reduced chi-squared =         0.7217 for     57 degrees of freedom
# Null hypothesis probability =   9.437629e-01

Photon flux (15-150 keV)    in 0.84 sec: 0.390740 ( -0.170485  0.170757 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.25568e-08 ( -1.07951e-08  1.11732e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33417     ( -5.62009   0.916169 )
Epeak [keV] : 79.2948      ( -79.8419 -79.8419 )
Norm@50keV  : 4.78904E-03    ( -0.0047292   -0.0047292 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.03 using 59 PHA bins.
# Reduced chi-squared =         0.7326 for     56 degrees of freedom
# Null hypothesis probability =   9.332863e-01

Photon flux (15-150 keV)    in 0.84 sec: 0.389702 ( -0.170091  0.170678 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.21995e-08 ( -2.21995e-08  1.13921e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.31281   ( -6.47672   2.72048 )
beta        : -10.0000    ( 10   3.55271e-15 )
Epeak [keV] : 76.3829      ( -58.8337 -76.8557 )
Norm@50keV   : 4.95734E-03    ( -0.00493466   73.0527 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.03 using 59 PHA bins.
# Reduced chi-squared =         0.7459 for     55 degrees of freedom
# Null hypothesis probability =   9.193065e-01

Photon flux (15-150 keV)    in 0.84 sec: 0.390528 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.19e-09
S(50-100 keV) = 7.45e-09

T90 vs. Hardness ratio plot

T90                                   = 0.811999917030334 sec.
Hardness ratio (energy fluence ratio) = 1.20355

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.878977
Count Ratio (50-100 keV) / (15-25 keV) = 0.339973

Mask shadow pattern

IMX = -1.699911458556629E-01, IMY = 2.951305964534986E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -219.450000
-218.000000 -181.540000
-180.000000 -131.584000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3597 -60.4962   12.7  38.9   11.2  -0.2419  -0.9    7.7	Cen X-3
186.8576 -62.8080    7.8  31.6    5.1   0.2976   1.5    6.0	GX 301-2
244.8886 -15.5153   14.2  30.4  179.9  -0.1650  -0.8    9.2	Sco X-1
255.8877 -37.8738    7.6  20.8 -125.7  -0.2950  -1.5    5.0	4U 1700-377
256.3455 -36.3253   12.8  21.7 -129.2  -0.1698  -0.9    7.3	GX 349+2
262.8456 -24.8501    0.0  32.8 -143.2  -0.4483  -2.0   10.9	GX 1+4
264.8460 -44.3222    4.5  25.6 -105.2   0.5688   2.6    8.8	4U 1735-44
268.3443  -1.5190    3.9  54.0 -159.8   1.7145   2.9    4.2	SW J1753.5-0127
270.4327 -25.1784   32.2  37.9 -135.2   0.1065   0.4   10.0	GX 5-1
270.3690 -25.7106    7.0  37.5 -134.5   0.4798   1.7    4.1	GRS 1758-258
273.9911 -14.0251   17.8  47.9 -144.0  -0.2811  -0.6    1.1	GX 17+2
276.0957 -30.4478    5.5  39.0 -123.6   0.7414   2.1   10.1	H1820-303
262.9402 -33.7666   10.2  27.7 -128.7   0.2370   1.1    4.8	GX 354-0
248.8868   1.0431    2.2  47.3  176.2   2.2277   5.3 ------	UNKNOWN
 92.9634 -79.2293    2.3  55.4  -21.9   2.9083   5.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-131.584000 -130.744000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3158 -60.6230  528.3  41.1   11.9  -0.0004  -0.0    0.0	Cen X-3
186.9172 -62.6706    7.7  33.6    6.5  -0.0198  -1.5    9.3	GX 301-2
245.0513 -15.8240    9.3  28.0 -179.0   0.0144   1.2   11.8	Sco X-1
255.9670 -37.9884    8.5  19.4 -119.8  -0.0168  -1.4    8.7	4U 1700-377
256.2562 -36.3936    5.8  20.1 -124.0   0.0248   2.0    8.8	GX 349+2
263.1399 -24.9228    7.9  31.1 -140.0   0.0199   1.5   12.8	GX 1+4
264.7183 -44.5855   34.4  24.8  -99.3  -0.0049  -0.3    8.2	4U 1735-44
268.3250  -1.3842   14.8  52.0 -158.5  -0.0252  -0.8    4.8	SW J1753.5-0127
270.1448 -24.9122   46.5  36.2 -133.0  -0.0044  -0.2   12.6	GX 5-1
270.3120 -25.7078   10.1  35.8 -131.7  -0.0204  -1.1    2.2	GRS 1758-258
274.0549 -13.9533   39.7  46.1 -142.0  -0.0071  -0.3    5.7	GX 17+2
275.9315 -30.3718    4.7  37.5 -120.7   0.0490   2.4    0.4	H1820-303
262.8155 -33.8169    8.3  26.1 -124.6   0.0182   1.4    8.7	GX 354-0
171.7991 -34.1383    2.8  46.5   49.8   0.1978   4.2 ------	UNKNOWN
234.8934  -7.9517    2.3  33.3  158.2   0.0724   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Thu Mar 14 02:01:23 EDT 2024
