batgrbproduct analysis for trigger=1219989

batgrbproduct Analysis for Trigger=1219989

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Mar 14 07:55:13 EDT 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1219989/GCN5_download_cron
======================================================================

  Trigger: 01219989      Segment: 000

  BAT Trigger Time: 732060624   [s; MET]
      Trigger Stop: 732060688   [s; MET]
               UTC: 2024-03-13T22:09:50.919040    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 85.9548043875493   Dec: 21.7672209433153  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.96
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.96

  Flight Position:   [ source = BAT ]
    RA: 85.9548043875493   Dec: 21.7672209433153  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 85.9859445844298   Dec: 21.7658668931479  [deg; J2000]
        { 05h 43m 56.6s , +21d 45' 57.1" }
         +/- 2.67687146152069 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.01283176394753 [arcmin] (formal 1-sigma fit error)
    SNR: 7.45112632122301

  Angular difference between Flight and Ground position is 1.737100 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 192 +/- 32
        Measured from: 4.00000011920929
                   to: 196.000000119209     [s; relative to TRIGTIME]
     T50: 96 +/- 16
        Measured from: 36.0000001192093
                   to: 132.000000119209     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 43.5
                   to: 44.5     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 4
                   to: 228     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     3.224919   2.843595   1.367319   0.213385
           0.108526   0.116440   0.104505   0.110390 [error]
 Peak      0.022129   0.012534   0.004473   0.005722
           0.007804   0.008590   0.007764   0.008654 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.31e-07 1.15e-06 1.04e-06 1.61e-06 3.68e-06 4.73e-06   erg/cm2
              Error 7.50e-08 5.80e-08 1.02e-07 3.25e-07 2.18e-07 4.22e-07   erg/cm2
Peak flux Power-law 1.81e-01 1.19e-01 5.09e-02 2.98e-02 3.66e-01 3.80e-01   ph/cm2/s
              Error 1.01e-01 6.55e-02 5.35e-02 5.94e-02 1.83e-01 1.99e-01   ph/cm2/s

Fluence   Cutoff-PL 9.33e-07 1.15e-06 1.03e-06 1.59e-06 3.67e-06 4.71e-06   erg/cm2
              Error 7.40e-08 5.79e-08 1.02e-07 4.69e-07 2.20e-07 5.44e-07   erg/cm2
Peak flux Cutoff-PL 1.75e-01 1.54e-01 3.10e-02 8.04e-04 3.60e-01 3.60e-01   ph/cm2/s
              Error 1.23e-01 1.23e-01 5.02e-02 4.52e-02 1.70e-01 1.70e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.154    0.114    -      -           1.76e-03 1.20e-04   51.530 57
CPL   2.362   -0.906     143.6   10.8      1.38e-03 5.21e-04   50.060 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.223    1.036    -      -           2.18e-03 1.63e-03   73.000 57
CPL  -0.080    0.000      30.0    0.0      7.42e-02 0.00e+00   71.920 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  224.000    4.000  228.000
T90   192.000    4.000  196.000
T50    96.000   36.000  132.000
Peak    1.000   43.500   44.500

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   85.9859 +21.7659 0.0258    1.3   92.8       2.4564     7.5  TRIG_01219989
------------------------------------------

Foreground time interval of the image:
  4.000  72.101 (delta_t =  68.101 [sec])
Background time interval of the image:
-60.000   4.000 (delta_t =  64.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

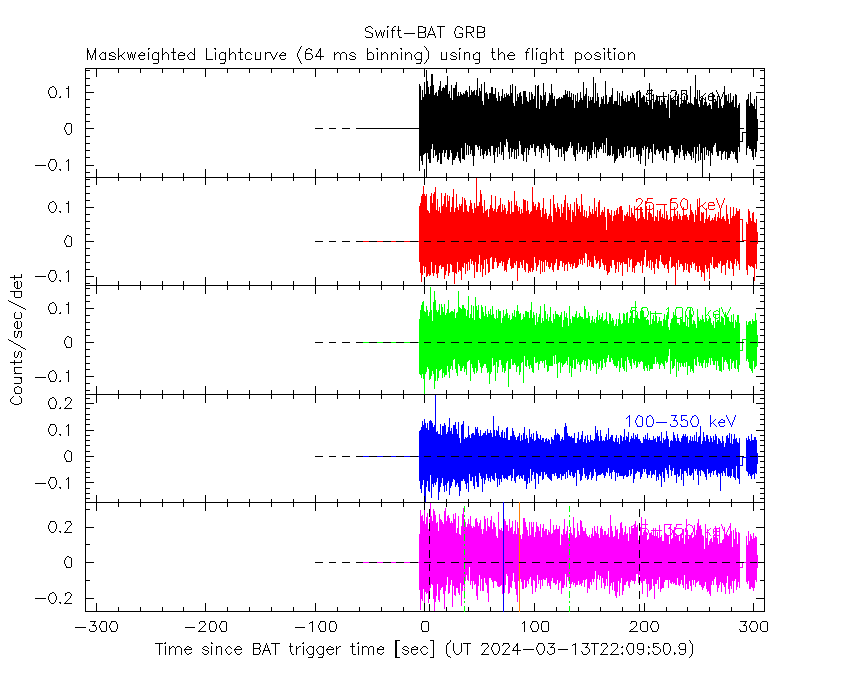

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
4.000000 222.920000
224.000000 228.000000

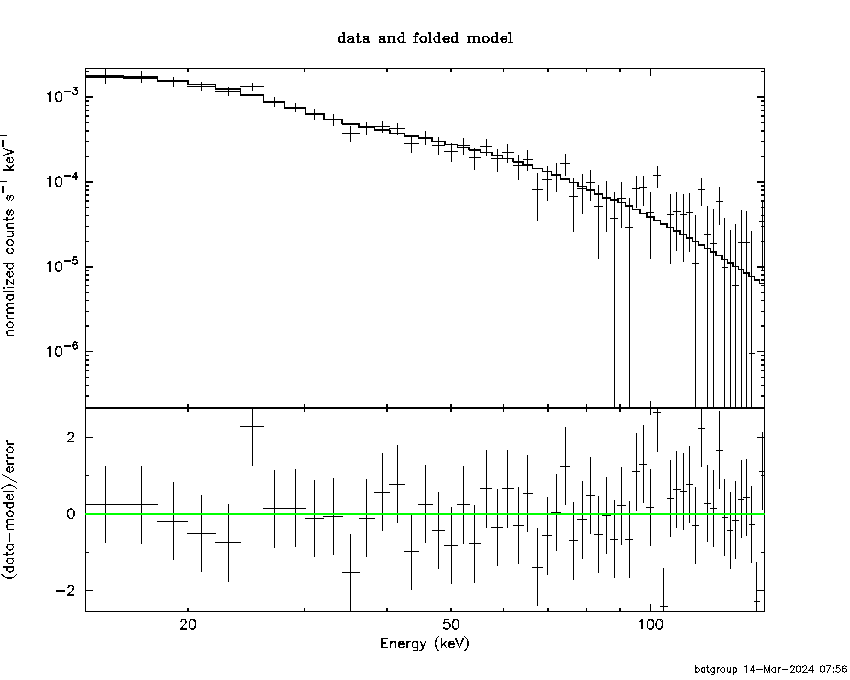

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.15363     ( -0.112866   0.116085 )
Norm@50keV  : 1.76443E-03    ( -0.000120552   0.000118766 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.53 using 59 PHA bins.
# Reduced chi-squared =         0.9041 for     57 degrees of freedom
# Null hypothesis probability =   6.795725e-01

Photon flux (15-150 keV)    in 222.9 sec: 0.285170 ( -0.0147187  0.0147629 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.67544e-06 ( -2.16794e-07  2.19826e-07 ) ergs/cm2

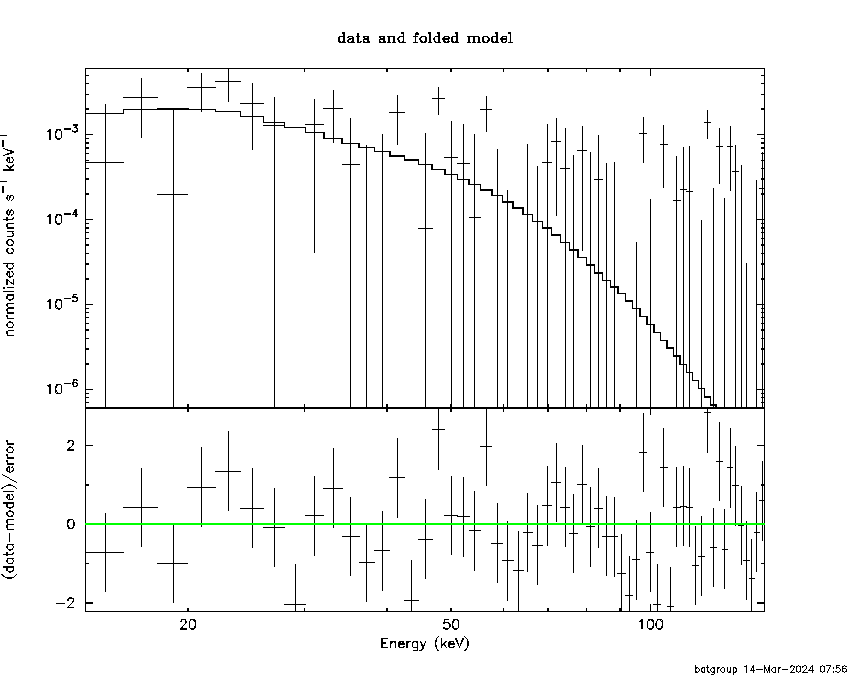

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
4.000000 222.920000
224.000000 228.000000

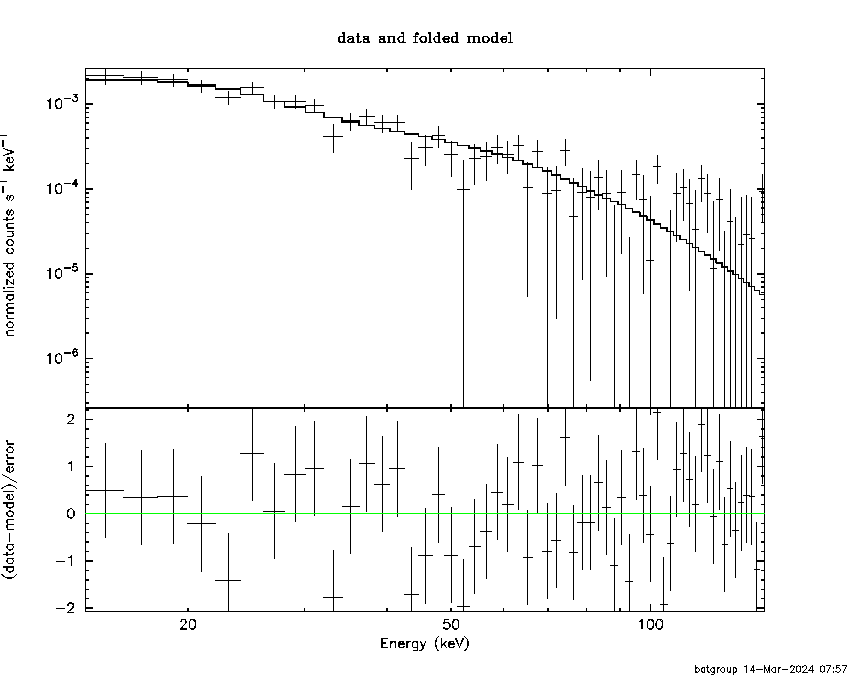

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.36152     ( -0.181165   -1.99278 )
Epeak [keV] : 143.641      ( -1.10617 20.4767 )
Norm@50keV  : 1.38286E-03    ( -0.000397939   0.000644853 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.06 using 59 PHA bins.
# Reduced chi-squared =         0.8940 for     56 degrees of freedom
# Null hypothesis probability =   6.979594e-01

Photon flux (15-150 keV)    in 222.9 sec: 0.285030 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.67136e-06 ( -2.15968e-07  2.23368e-07 ) ergs/cm2

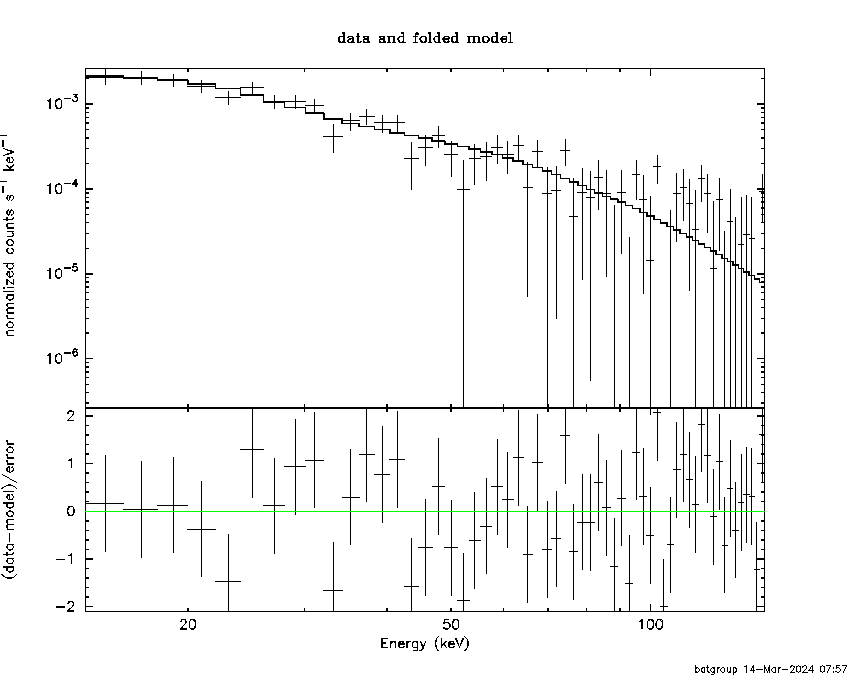

Band function

Multiple GTIs in the spectrum
tstart tstop
4.000000 222.920000
224.000000 228.000000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.62126   ( 1.62245   1.62245 )
beta        : -2.15350    ( -0.119006   0.112771 )
Epeak [keV] : 9.93672      ( -9.57699 9989.53 )
Norm@50keV   : 5.92328E-03    ( -0.00601145   0.0919356 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.53 using 59 PHA bins.
# Reduced chi-squared =         0.9370 for     55 degrees of freedom
# Null hypothesis probability =   6.079076e-01

Photon flux (15-150 keV)    in 222.9 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

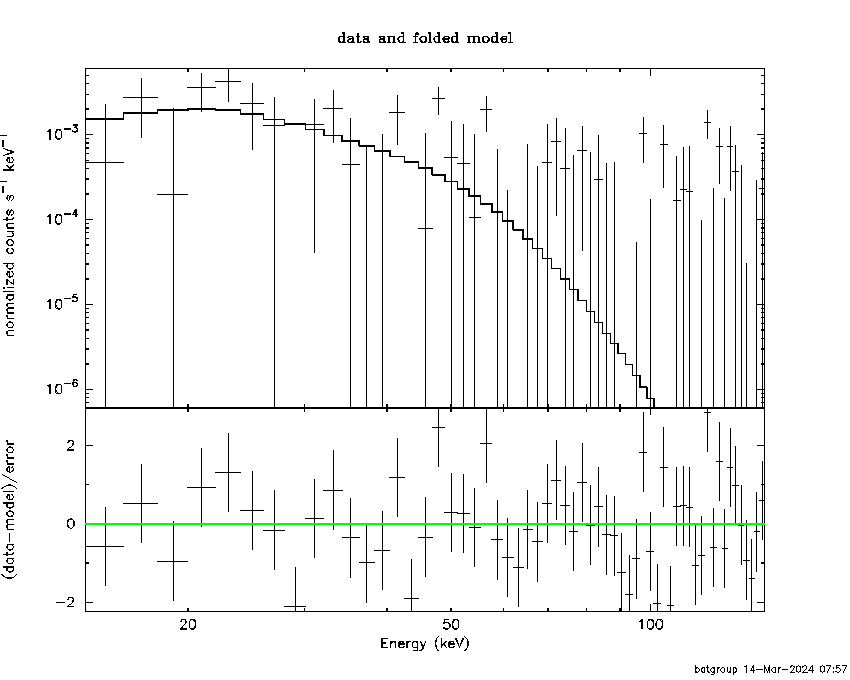

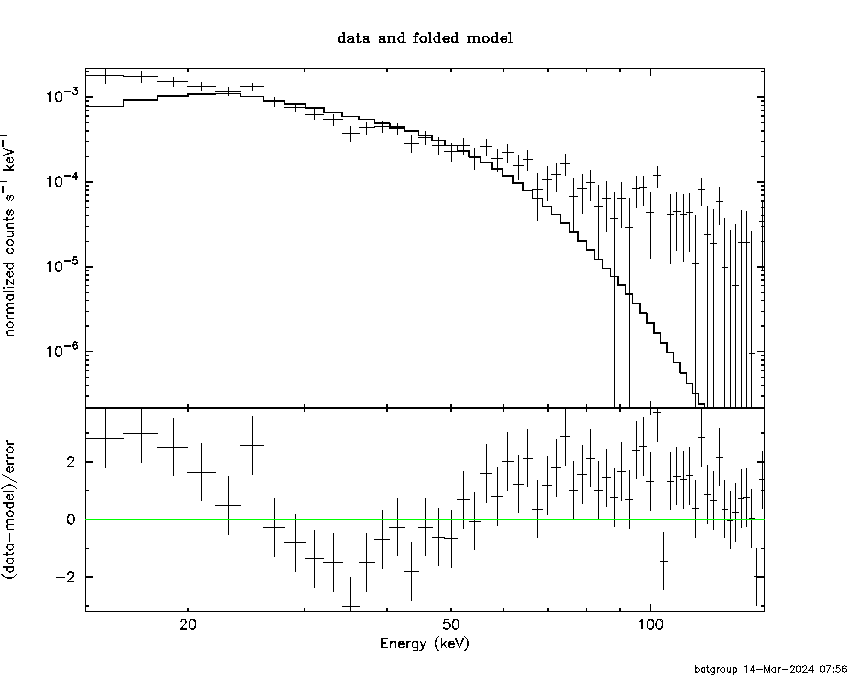

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.10381  (  )
R^2/D10^2   : 0.172590  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         154.85 using 59 PHA bins.
# Reduced chi-squared =         2.7166 for     57 degrees of freedom
# Null hypothesis probability =   5.583944e-11

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.244e-07   5.851e-08
25- 50  1.351e-06   8.258e-08
50-150  5.337e-07   8.325e-08
15-150  2.509e-06   1.527e-07

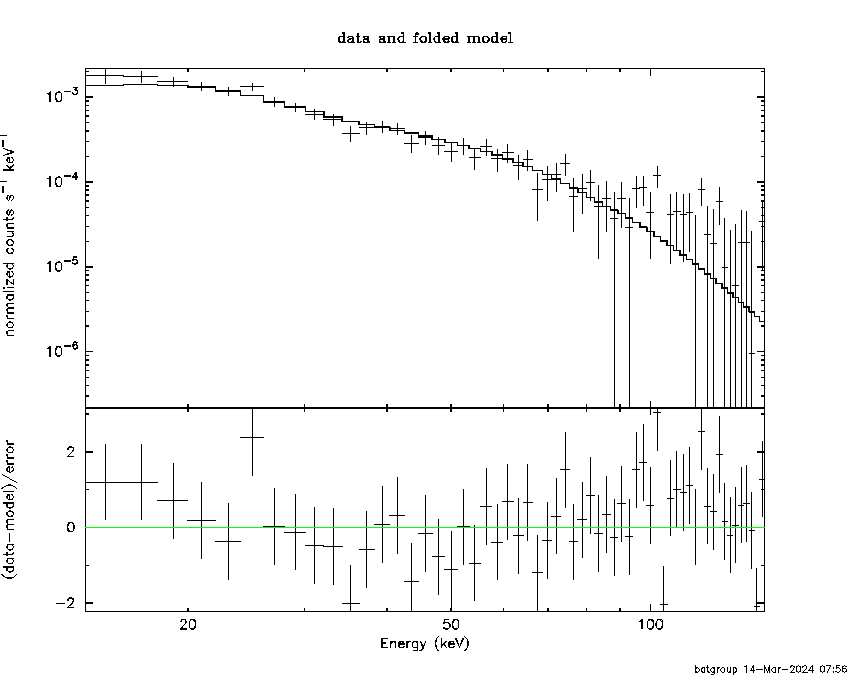

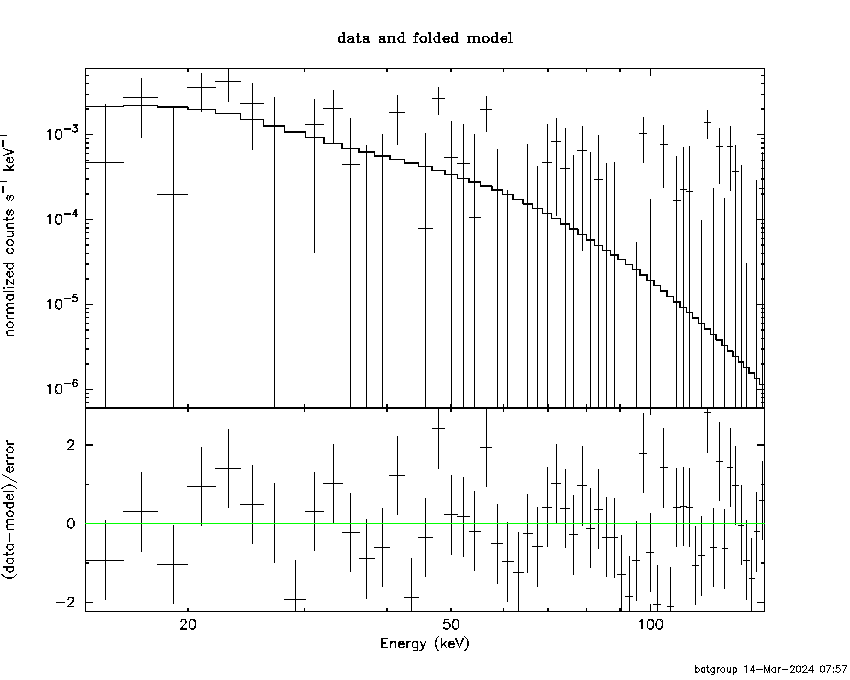

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 55.0918       (-8.72111      11.2154)
Norm        : 1.49807       (-0.152358     0.158677)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.266e-07   6.676e-08
25- 50  1.224e-06   6.709e-08
50-150  1.295e-06   1.721e-07
15-150  3.346e-06   2.017e-07

Double BB

XSPEC12>exit
 XSPEC: quit

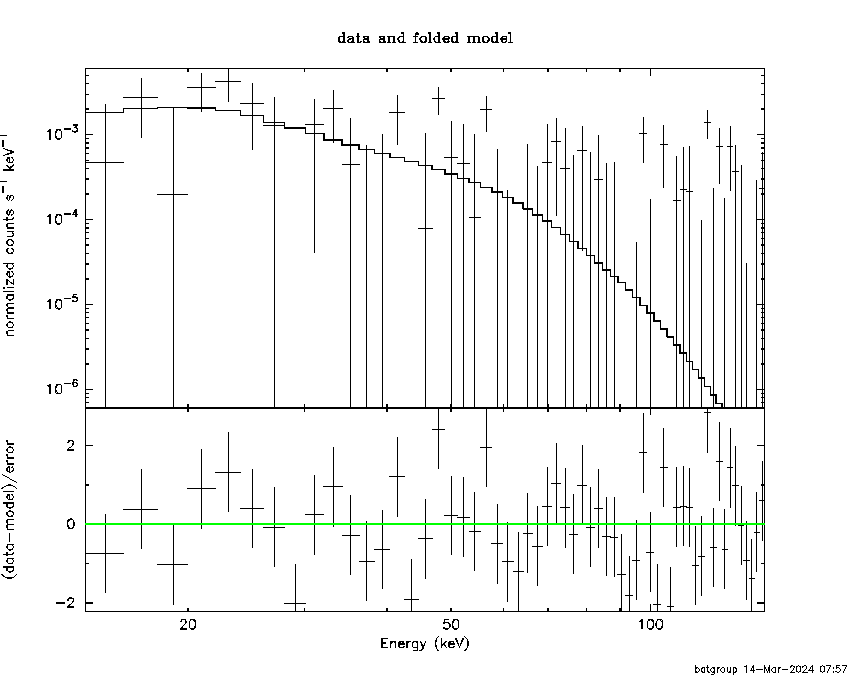

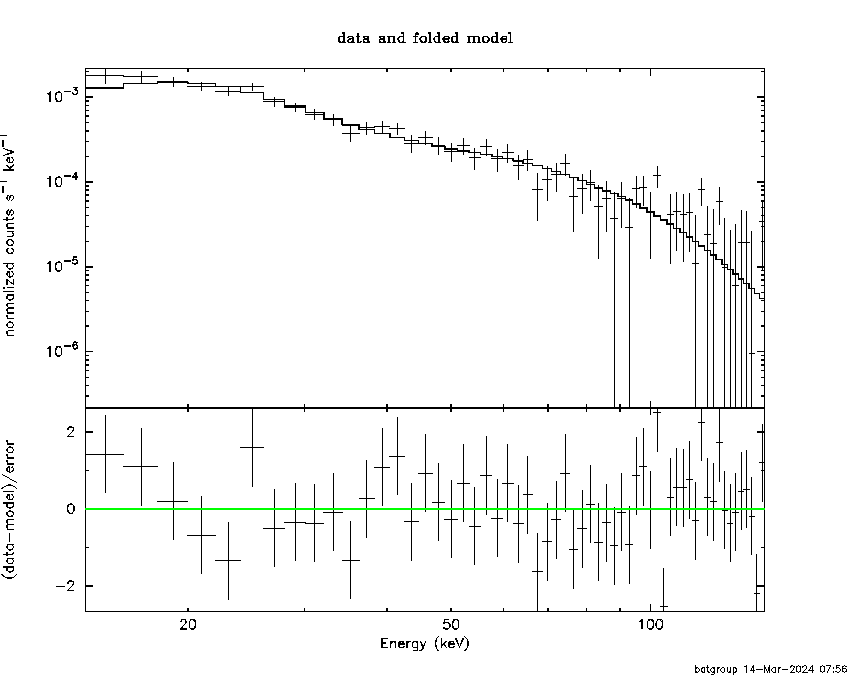

Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.63146        (-0.77791      0.815756)
R1^2/D10^2  : 0.955926        (-0.385639      0.786579)
kT2 [keV]   : 22.9835        (-4.93597      8.11323)
R2^2/D10^2  : 3.55949E-03    (-0.00223547   0.00516476)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.910e-07   1.346e-07
25- 50  1.118e-06   1.474e-07
50-150  1.675e-06   4.937e-07
15-150  3.684e-06   7.233e-07

Peak spectrum fit

Power-law model

Time interval is from   43.500 sec. to   44.500 sec.

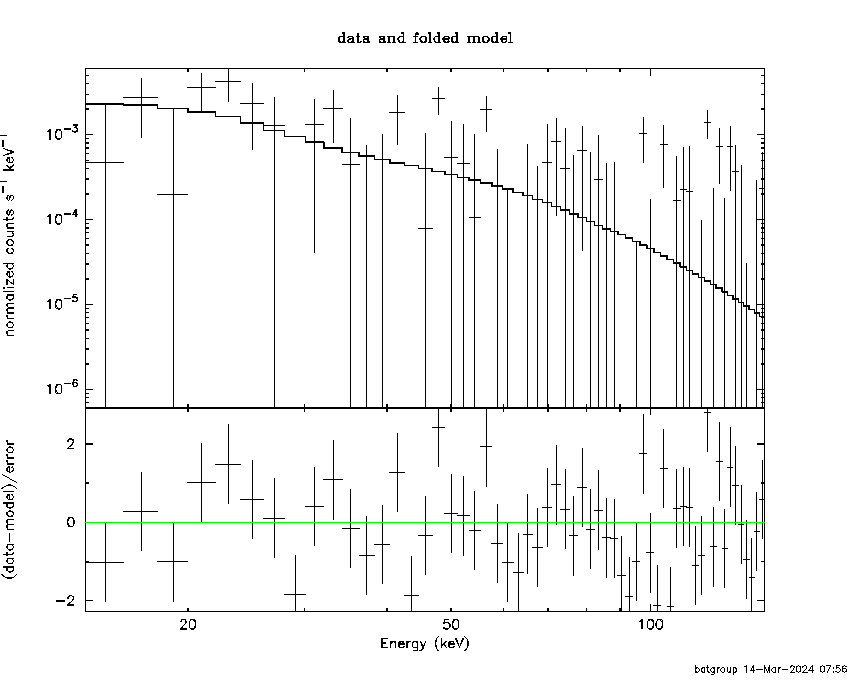

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.22259     ( -0.844091   1.22746 )
Norm@50keV  : 2.18295E-03    ( -0.00156759   0.00168623 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.00 using 59 PHA bins.
# Reduced chi-squared =          1.281 for     57 degrees of freedom
# Null hypothesis probability =   7.512121e-02

Photon flux (15-150 keV)    in 1 sec: 0.365608 ( -0.180708  0.184454 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.05568e-08 ( -1.21764e-08  1.51763e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   43.500 sec. to   44.500 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -8.04176E-02     (     )
Epeak [keV] : 30.0457      (   )
Norm@50keV  : 7.42048E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.92 using 59 PHA bins.
# Reduced chi-squared =          1.284 for     56 degrees of freedom
# Null hypothesis probability =   7.446556e-02

Photon flux (15-150 keV)    in 1 sec: 0.360495 ( -0.171262  0.169478 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.71138e-08 ( -1.06289e-08  1.49119e-08 ) ergs/cm2

Band function

Time interval is from   43.500 sec. to   44.500 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -2.97446    ( 2.99012   1.32228 )
Epeak [keV] : 23.7424      ( -23.7514 11.04 )
Norm@50keV   : 732.719    ( -331.574   7.60959e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.42 using 59 PHA bins.
# Reduced chi-squared =          1.299 for     55 degrees of freedom
# Null hypothesis probability =   6.753464e-02

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.62419  (-3.32284  5.36923)
R^2/D10^2   : 0.529327  (-0.528756   4.73397)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.356e-09   3.497e-09
25- 50  8.607e-09   6.015e-09
50-150  1.924e-09   1.703e-09
15-150  1.589e-08   1.126e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 38.0248       (-38.102      -38.102)
Norm        : 2.52294       (-1.47867     4.4004)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.692e-09   3.656e-09
25- 50  7.323e-09   4.848e-09
50-150  5.355e-09   5.335e-09
15-150  1.837e-08   1.317e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.43187        (-5.21147      -5.21147)
R1^2/D10^2  : 1.26086        (-1.37515      -1.37515)
kT2 [keV]   : 11.9734        (-11.4442      -11.4442)
R2^2/D10^2  : 4.82787E-02    (-0.0623043   4.45166)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.687e-09   5.320e-09
25- 50  7.959e-09   8.345e-09
50-150  4.156e-09   6.520e-09
15-150  1.780e-08   2.208e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.14111     ( -0.163893   0.172619 )
Norm@50keV  : 2.17096E-03    ( -0.000244293   0.000239444 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.16 using 59 PHA bins.
# Reduced chi-squared =         0.9852 for     57 degrees of freedom
# Null hypothesis probability =   5.067204e-01

Photon flux (15-150 keV)    in 68.1 sec: 0.348645 ( -0.0262818  0.026284 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.37958e-06 ( -1.33412e-07  1.37081e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.84714     (     )
Epeak [keV] : 23.6618      (   )
Norm@50keV  : 3.13028E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.46 using 59 PHA bins.
# Reduced chi-squared =          1.026 for     56 degrees of freedom
# Null hypothesis probability =   4.207915e-01

Photon flux (15-150 keV)    in 68.1 sec: 0.348539 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.37826e-06 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.57745   ( 8.57745   8.57745 )
beta        : -2.14114    ( -0.17258   0.163981 )
Epeak [keV] : 20.8155      ( -20.8155 -20.8155 )
Norm@50keV   : 0.295059    ( -0.0331973   0.0325494 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.16 using 59 PHA bins.
# Reduced chi-squared =          1.021 for     55 degrees of freedom
# Null hypothesis probability =   4.313285e-01

Photon flux (15-150 keV)    in 68.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.15e-06
S(50-100 keV) = 1.04e-06

T90 vs. Hardness ratio plot

T90                                   = 192 sec.
Hardness ratio (energy fluence ratio) = 0.904348

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.881757
Count Ratio (50-100 keV) / (15-25 keV) = 0.423986

Mask shadow pattern

IMX = -1.113819500073190E-03, IMY = -2.266029058315679E-02

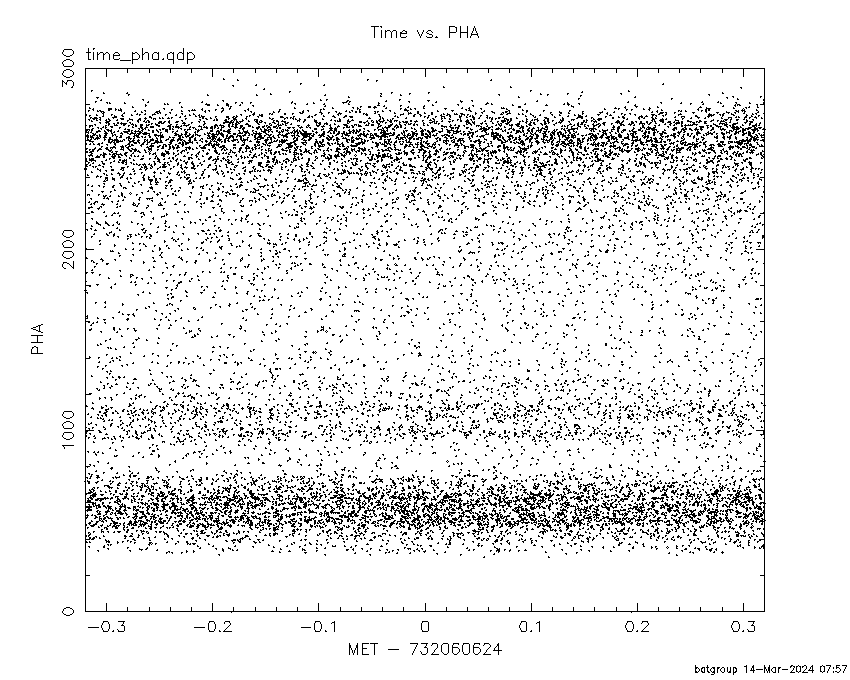

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-60.000000 4.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.7959  22.0001    6.5   0.8  -70.9   0.1842   1.8    9.1	Crab
126.8800  24.3690    3.4  38.8   80.1   1.1486   3.4 ------	UNKNOWN
111.6710  66.7309    2.8  48.1   16.3   0.9244   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
4.000000 72.100600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6551  22.0099   34.6   0.9  -72.7   0.1061   0.3    1.2	Crab
 93.7668  28.3920    2.2  10.6   52.0   1.7188   5.2 ------	UNKNOWN
 85.9860  21.7659    1.6   1.3   92.8   2.4569   7.4 ------	UNKNOWN
 66.6723  47.1094    2.6  29.2  -23.1   1.6483   4.4 ------	UNKNOWN
 73.9715 -31.2133    2.6  54.0 -166.4   4.7107   4.4 ------	UNKNOWN
 67.6910 -31.4928    2.4  55.7 -160.2   6.4207   4.8 ------	UNKNOWN
 54.9038  23.0590    2.5  27.4  -79.3   2.1845   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
86.700600 222.920000
224.000000 287.170000
293.000000 303.137200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.7790  22.0707    4.3   2.0  -79.5   1.2357   2.7    8.8	Crab
 86.1192  21.7957    0.7   0.2   84.9   7.6325  17.1 ------	UNKNOWN
 46.5934  50.8609    2.3  42.2  -34.7   3.8510   5.1 ------	UNKNOWN
 27.0887  57.4118    2.3  55.2  -32.3  12.2286   5.1 ------	UNKNOWN

Plot creation:
Thu Mar 14 07:57:38 EDT 2024
