batgrbproduct analysis for trigger=1220094

batgrbproduct Analysis for Trigger=1220094

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri Mar 15 17:35:09 EDT 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1220094/GCN5_download_cron
======================================================================

  Trigger: 01220094      Segment: 000

  BAT Trigger Time: 732149992   [s; MET]
      Trigger Stop: 732150056   [s; MET]
               UTC: 2024-03-14T22:59:18.912920    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 81.6706623208907   Dec: 21.8110006969329  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.83
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.83

  Flight Position:   [ source = BAT ]
    RA: 81.6706623208907   Dec: 21.8110006969329  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 81.5974143425867   Dec: 21.7979342225012  [deg; J2000]
        { 05h 26m 23.4s , +21d 47' 52.6" }
         +/- 2.19296896436222 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.33658231846541 [arcmin] (formal 1-sigma fit error)
    SNR: 9.90670235913362

  Angular difference between Flight and Ground position is 4.155088 arcmin

  Partial Coding Fraction: 0.2363281    [ including projection effects ]

  Duration
     T90: 308.048000097275 +/- 50.3616184249471
        Measured from: -142.023999929428
                   to: 166.024000167847     [s; relative to TRIGTIME]
     T50: 170.336000084877 +/- 41.5290595402453
        Measured from: -76.231999874115
                   to: 94.104000210762     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 75.8200000524521
                   to: 76.8200000524521     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -158.807999968529
                   to: 184.519999980927     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.513979   2.930611   1.552132   0.331161
           0.208581   0.216313   0.187570   0.166350 [error]
 Peak      0.051289   0.032672   0.022954   0.013822
           0.014675   0.014892   0.013494   0.011224 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.29e-07 1.28e-06 1.30e-06 2.40e-06 4.27e-06 5.90e-06   erg/cm2
              Error 1.22e-07 1.11e-07 1.88e-07 7.00e-07 4.30e-07 8.91e-07   erg/cm2
Peak flux Power-law 6.38e-01 2.01e-01 3.50e-02 7.07e-03 8.79e-01 8.81e-01   ph/cm2/s
              Error 2.06e-01 1.62e-01 4.34e-02 1.61e-02 3.73e-01 3.76e-01   ph/cm2/s

Fluence   Cutoff-PL 9.07e-07 1.31e-06 1.30e-06 1.65e-06 4.19e-06 5.17e-06   erg/cm2
              Error 1.02e-07 1.40e-07 1.96e-07 1.27e-06 4.83e-07 1.37e-06   erg/cm2
Peak flux Cutoff-PL 6.21e-01 2.40e-01 4.01e-02 4.90e-03 9.00e-01 8.98e-01   ph/cm2/s
              Error 3.24e-01 2.37e-01 7.06e-02 1.56e-02 3.81e-01 3.87e-01   ph/cm2/s

Fluence        Band 8.77e-07 1.34e-06 1.26e-06 2.04e-06 4.18e-06 5.53e-06   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 3.69e-01 5.57e-03 1.85e-05 6.19e-08 3.75e-01 3.75e-01   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.977    0.166    -      -           1.77e-03 1.86e-04   43.950 57
CPL   1.763    0.541      49.2   -5.7      2.33e-03 2.05e-03   43.570 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.521    2.017    -      -           2.14e-03 2.21e-03   64.500 57
CPL   1.773    0.000       6.6    0.0      2.05e-02 0.00e+00   64.460 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  343.328 -158.808  184.520
T90   308.048 -142.024  166.024
T50   170.336  -76.232   94.104
Peak    1.000   75.820   76.820

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   81.5974 +21.7979 0.0193   40.3   43.0       6.1833     9.9  TRIG_01220094
------------------------------------------

Foreground time interval of the image:
-147.499 -44.565 (delta_t = 102.934 [sec])
-10.000   2.640 (delta_t =  12.640 [sec])
  3.000   3.024 (delta_t =   0.024 [sec])
  9.000   9.130 (delta_t =   0.130 [sec])
 20.000  70.901 (delta_t =  50.901 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

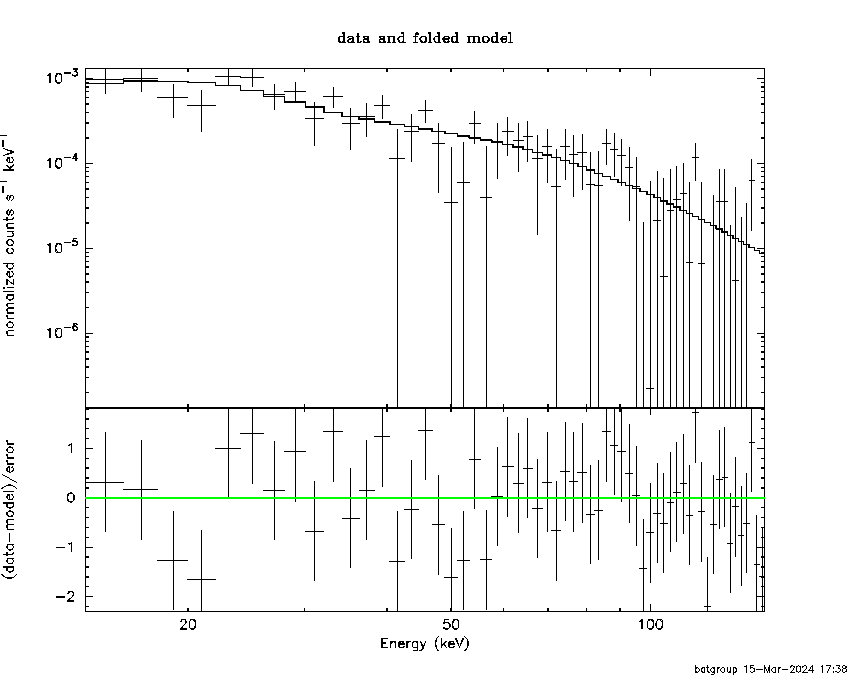

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-158.808000 -44.565500
-10.000000 2.640000
3.000000 3.023900
9.000000 9.130000
20.000000 123.960000
127.000000 127.490000
131.000000 131.480000
155.000000 184.520000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97744     ( -0.162803   0.169901 )
Norm@50keV  : 1.77312E-03    ( -0.000187542   0.000183717 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.95 using 59 PHA bins.
# Reduced chi-squared =         0.7710 for     57 degrees of freedom
# Null hypothesis probability =   8.973912e-01

Photon flux (15-150 keV)    in 261.5 sec: 0.263246 ( -0.0231883  0.0232132 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.27131e-06 ( -4.27702e-07  4.33062e-07 ) ergs/cm2

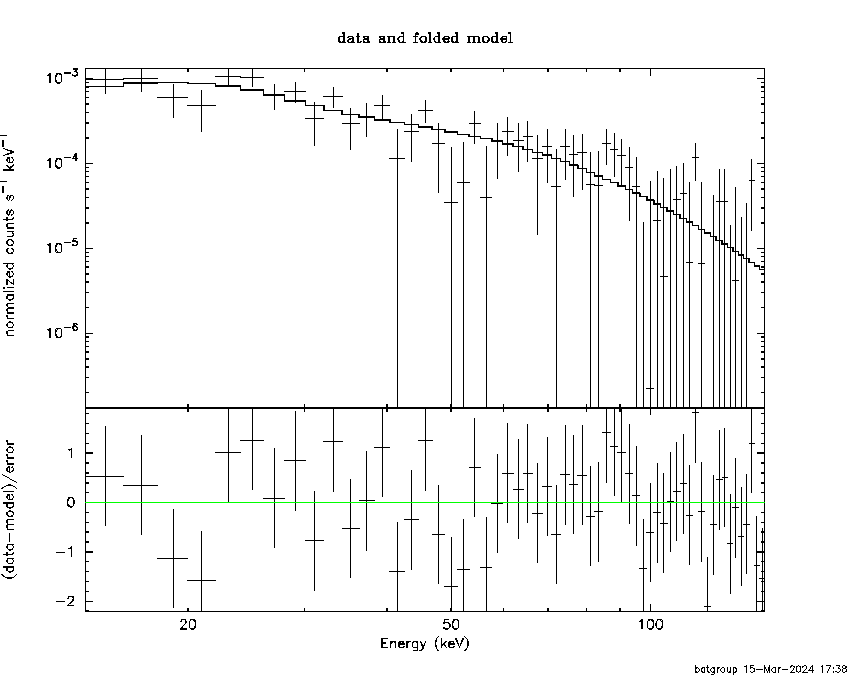

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-158.808000 -44.565500
-10.000000 2.640000
3.000000 3.023900
9.000000 9.130000
20.000000 123.960000
127.000000 127.490000
131.000000 131.480000
155.000000 184.520000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.76284     ( -0.67022   0.412492 )
Epeak [keV] : 49.2417      ( -37.8444 -49.2417 )
Norm@50keV  : 2.33027E-03    ( -0.00101163   0.00309577 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.57 using 59 PHA bins.
# Reduced chi-squared =         0.7781 for     56 degrees of freedom
# Null hypothesis probability =   8.869331e-01

Photon flux (15-150 keV)    in 261.5 sec: 0.260697 ( -0.024163  0.024157 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.19158e-06 ( -4.83121e-07  4.82598e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-158.808000 -44.565500
-10.000000 2.640000
3.000000 3.023900
9.000000 9.130000
20.000000 123.960000
127.000000 127.490000
131.000000 131.480000
155.000000 184.520000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.77597   ( -2.76225   0.687395 )
beta        : -9.37167    ( 9.37167   19.3717 )
Epeak [keV] : 50.3680      ( -31.5492 -50.3658 )
Norm@50keV   : 2.28440E-03    ( -0.00124054   0.00271728 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.57 using 59 PHA bins.
# Reduced chi-squared =         0.7922 for     55 degrees of freedom
# Null hypothesis probability =   8.666794e-01

Photon flux (15-150 keV)    in 261.5 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.17741e-06 ( 0  0 ) ergs/cm2

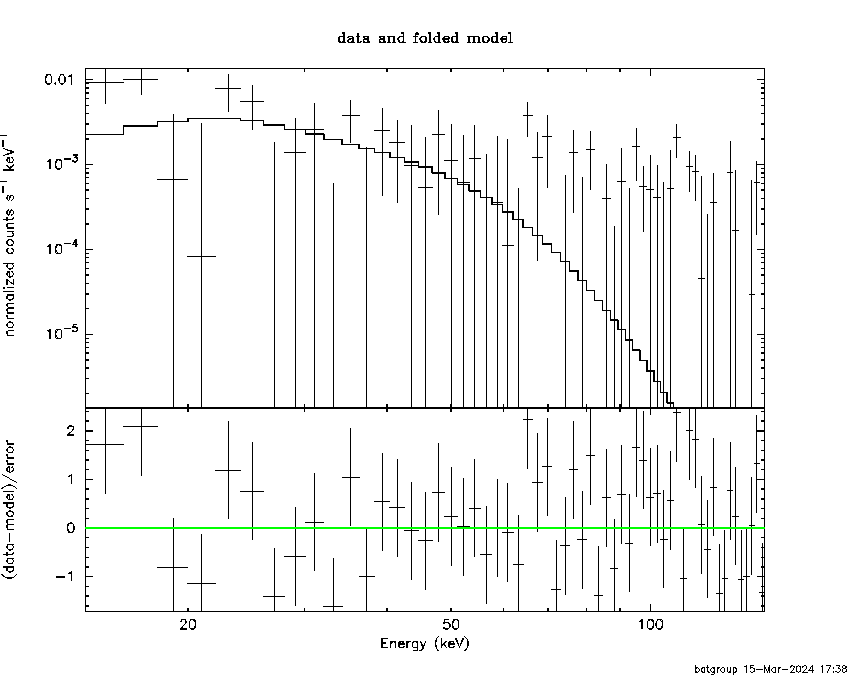

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.0462  (-1.08927  1.26214)
R^2/D10^2   : 0.117096  (-0.0426559   0.065441)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.29 using 59 PHA bins.
# Reduced chi-squared =          1.356 for     57 degrees of freedom
# Null hypothesis probability =   3.809993e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.304e-07   9.859e-08
25- 50  1.578e-06   1.672e-07
50-150  8.344e-07   1.982e-07
15-150  3.042e-06   3.164e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 73.9290       (-18.354      28.91)
Norm        : 1.25631       (-0.1712     0.206712)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.474e-07   9.675e-08
25- 50  1.368e-06   1.313e-07
50-150  1.828e-06   4.191e-07
15-150  4.043e-06   4.537e-07

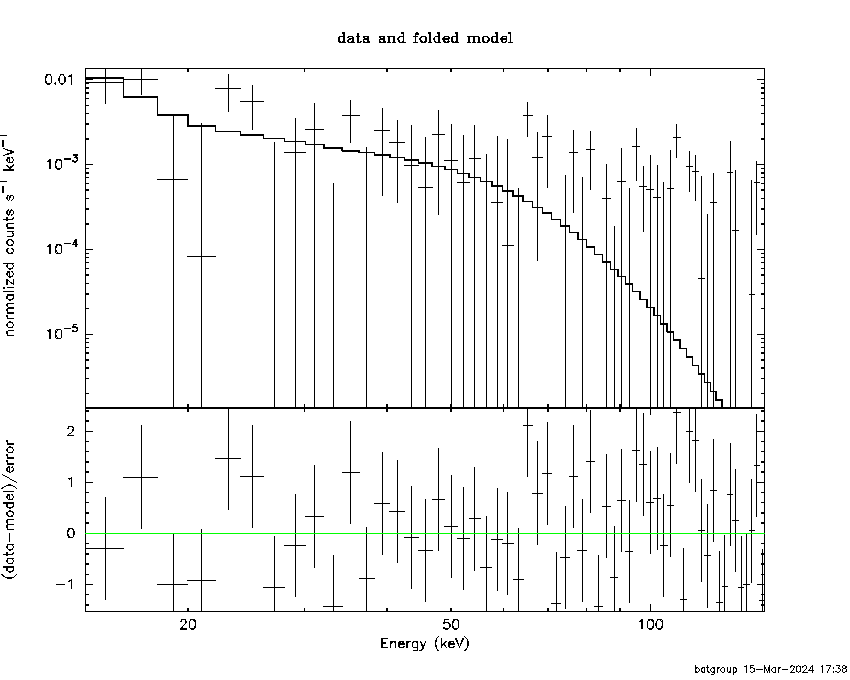

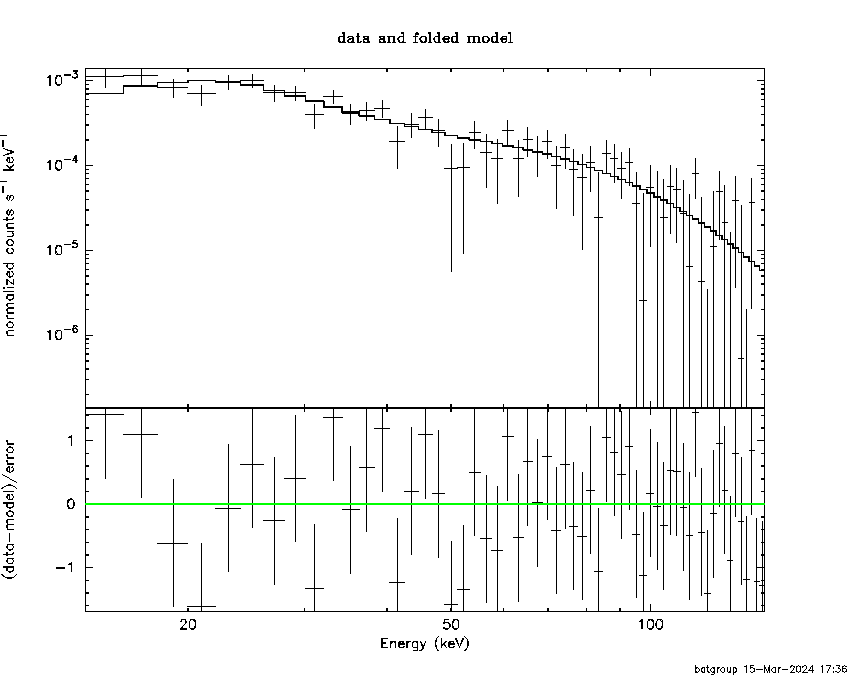

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.51670        (-1.19866      1.23456)
R1^2/D10^2  : 0.475485        (-0.221575      0.531559)
kT2 [keV]   : 24.8012        (-6.33628      11.9203)
R2^2/D10^2  : 2.63173E-03    (-0.00195357   0.00561072)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.565e-07   2.193e-07
25- 50  1.347e-06   3.730e-07
50-150  2.023e-06   1.038e-06
15-150  4.226e-06   1.482e-06

Peak spectrum fit

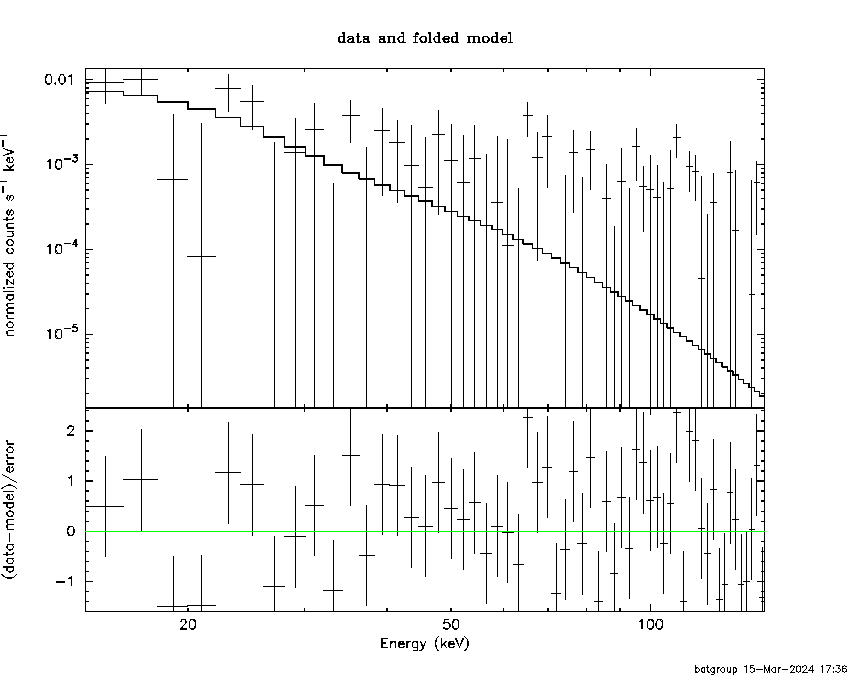

Power-law model

Time interval is from   75.820 sec. to   76.820 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.52065     ( -0.83669   3.19732 )
Norm@50keV  : 2.13725E-03    ( -0.00213725   0.00229013 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.50 using 59 PHA bins.
# Reduced chi-squared =          1.132 for     57 degrees of freedom
# Null hypothesis probability =   2.310118e-01

Photon flux (15-150 keV)    in 1 sec: 0.879011 ( -0.379246  0.367478 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.406e-08 ( -3.406e-08  1.78874e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   75.820 sec. to   76.820 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.77267     (     )
Epeak [keV] : 6.58700      (   )
Norm@50keV  : 2.05025E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.46 using 59 PHA bins.
# Reduced chi-squared =          1.151 for     56 degrees of freedom
# Null hypothesis probability =   2.048580e-01

Photon flux (15-150 keV)    in 1 sec: 0.900430 ( -0.377649  0.38344 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.65261e-08 ( -3.65261e-08  2.13266e-08 ) ergs/cm2

Band function

Time interval is from   75.820 sec. to   76.820 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.11039   ( -8.1777   -3.11039 )
beta        : -3.52069    ( -3.62224   0.836061 )
Epeak [keV] : 7.87101      ( -7.87101 9992.12 )
Norm@50keV   : 6.07938E+04    ( -60793.4   1.75582e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.50 using 59 PHA bins.
# Reduced chi-squared =          1.173 for     55 degrees of freedom
# Null hypothesis probability =   1.785323e-01

Photon flux (15-150 keV)    in 1 sec: 0.374674 ( 6.62533  -0.374674 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.13571  (-6.88527  4.74949)
R^2/D10^2   : 0.933589  (-0.88057   78056.7)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.131e-08   7.220e-09
25- 50  2.038e-08   1.304e-08
50-150  5.654e-09   4.960e-09
15-150  3.735e-08   2.355e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 23.7454       (-19.6898      20.5639)
Norm        : 9.36110       (-5.18342     323.942)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.656e-08   1.038e-08
25- 50  1.641e-08   1.100e-08
50-150  6.464e-09   6.305e-09
15-150  3.944e-08   2.801e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.52612        (-1.17603      1.73091)
R1^2/D10^2  : 1.41815E+04        (-15255.4      -15293.4)
kT2 [keV]   : 10.9250        (-4.71619      4.03345)
R2^2/D10^2  : 0.247627    (-0.20349   0.479578)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.607e-08   8.340e-09
25- 50  1.690e-08   1.177e-08
50-150  1.169e-08   9.545e-09
15-150  4.465e-08   2.548e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.95014     ( -0.231046   0.24675 )
Norm@50keV  : 1.61715E-03    ( -0.000255308   0.000248001 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.60 using 59 PHA bins.
# Reduced chi-squared =         0.8352 for     57 degrees of freedom
# Null hypothesis probability =   8.078953e-01

Photon flux (15-150 keV)    in 166.6 sec: 0.237176 ( -0.0305628  0.0305822 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.47941e-06 ( -3.71341e-07  3.78499e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.57635     ( -0.986987   0.602326 )
Epeak [keV] : 50.2335      (   )
Norm@50keV  : 2.61284E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.02 using 59 PHA bins.
# Reduced chi-squared =         0.8396 for     56 degrees of freedom
# Null hypothesis probability =   7.980888e-01

Photon flux (15-150 keV)    in 166.6 sec: 0.233960 ( -0.031328  0.031339 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.40475e-06 ( -4.03738e-07  4.12318e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.57672   ( -4.47613   1.11899 )
beta        : -10.0000    ( 10   1.06581e-14 )
Epeak [keV] : 50.2321      ( -33.3683 -50.2321 )
Norm@50keV   : 2.61110E-03    ( -0.00119515   0.00667811 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.02 using 59 PHA bins.
# Reduced chi-squared =         0.8549 for     55 degrees of freedom
# Null hypothesis probability =   7.693756e-01

Photon flux (15-150 keV)    in 166.6 sec: 0.233333 ( 6.76667  -0.029792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.4225e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.28e-06
S(50-100 keV) = 1.30e-06

T90 vs. Hardness ratio plot

T90                                   = 308.048000097275 sec.
Hardness ratio (energy fluence ratio) = 1.01562

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.16573
Count Ratio (50-100 keV) / (15-25 keV) = 0.617401

Mask shadow pattern

IMX = 6.212187403862367E-01, IMY = -5.788205646120658E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-147.499400 -44.565500
-10.000000 2.640000
3.000000 3.023900
9.000000 9.130000
20.000000 70.900590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6288  21.9516    7.7  42.0   44.3  -1.1719  -1.5    3.8	Crab
 81.5975  21.7979    1.2  40.3   43.0   6.1848   9.8 ------	UNKNOWN
 65.6942 -46.4384    2.9  46.8  154.8   3.3597   4.0 ------	UNKNOWN
 30.2095  21.1513    2.0  29.3  -45.3   2.0023   5.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
159.400600 303.126500

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.4794  21.8576    0.0   1.7   91.9   0.4133   1.6   12.7	Crab
116.3236  18.1033    3.0  32.7   93.7   1.8516   3.8 ------	UNKNOWN
116.6694  26.8757    3.1  32.2   77.3   1.8395   3.8 ------	UNKNOWN
 89.7537  12.3519    3.0  12.2  143.0   0.9499   3.8 ------	UNKNOWN
 81.8854  21.8101    0.6   0.2   97.6   5.4996  20.8 ------	UNKNOWN
 51.2380 -18.0813    2.6  49.8 -137.5   4.9055   4.5 ------	UNKNOWN

Plot creation:
Fri Mar 15 17:38:51 EDT 2024
