Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Mar 16 06:33:06 EDT 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1220155/GCN5_download_cron
======================================================================

  Trigger: 01220155      Segment: 000

  BAT Trigger Time: 732187104   [s; MET]
      Trigger Stop: 732187168   [s; MET]
               UTC: 2024-03-15T09:17:50.910380    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.736370286866   Dec: -15.7723554948106  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.94
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    12.94

  Flight Position:   [ source = BAT ]
    RA: 244.736370286866   Dec: -15.7723554948106  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.77529441217   Dec: -15.7762759489745  [deg; J2000]
        { 16h 19m 06.1s , -15d 46' 34.6" }
         +/- 1.98836173537289 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.965608053666857 [arcmin] (formal 1-sigma fit error)
    SNR: 11.3945291686319

  Angular difference between Flight and Ground position is 2.259771 arcmin

  Partial Coding Fraction: 0.859375    [ including projection effects ]

  Duration
     T90: 220.755999922752 +/- 19.3108351671568
        Measured from: -20.0359998941422
                   to: 200.72000002861     [s; relative to TRIGTIME]
     T50: 113.371999979019 +/- 12.9885130169468
        Measured from: 23.9800001382828
                   to: 137.352000117302     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 116.047999978065
                   to: 117.047999978065     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -40.5119999647141
                   to: 221.31200003624     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     6.849280   0.579172  -0.132139  -0.063166
           0.123428   0.113241   0.095834   0.084141 [error]
 Peak      0.048200   0.017706   0.002457   0.001576
           0.007703   0.006925   0.005616   0.005082 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.15e-06 2.65e-07 1.41e-08 7.86e-10 2.43e-06 2.43e-06   erg/cm2
              Error 2.09e-07 4.89e-08 6.52e-09 6.31e-10 2.10e-07 2.10e-07   erg/cm2
Peak flux Power-law 4.51e-01 1.29e-01 1.99e-02 3.52e-03 6.02e-01 6.04e-01   ph/cm2/s
              Error 1.24e-01 6.90e-02 2.65e-02 9.23e-03 1.69e-01 1.70e-01   ph/cm2/s

Fluence   Cutoff-PL 2.17e-06 1.85e-07 3.29e-10 1.08e-15 2.35e-06 2.35e-06   erg/cm2
              Error 2.24e-07 7.36e-08 3.96e-09 4.26e-11 2.26e-07 2.26e-07   erg/cm2
Peak flux Cutoff-PL 4.52e-01 1.28e-01 1.94e-02 3.36e-03 6.01e-01 6.02e-01   ph/cm2/s
              Error 1.24e-01 6.86e-02 2.64e-02 9.15e-03 1.68e-01 1.69e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.233    0.403    -      -           6.00e-05 2.27e-05   51.520 57
CPL   1.000    0.000      50.0    0.0      1.36e-03 0.00e+00  367.590 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.693    1.059    -      -           1.27e-03 1.19e-03   55.820 57
CPL   1.000    0.000      50.0    0.0      1.01e-02 0.00e+00   72.560 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  261.824  -40.512  221.312
T90   220.756  -20.036  200.720
T50   113.372   23.980  137.352
Peak    1.000  116.048  117.048

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

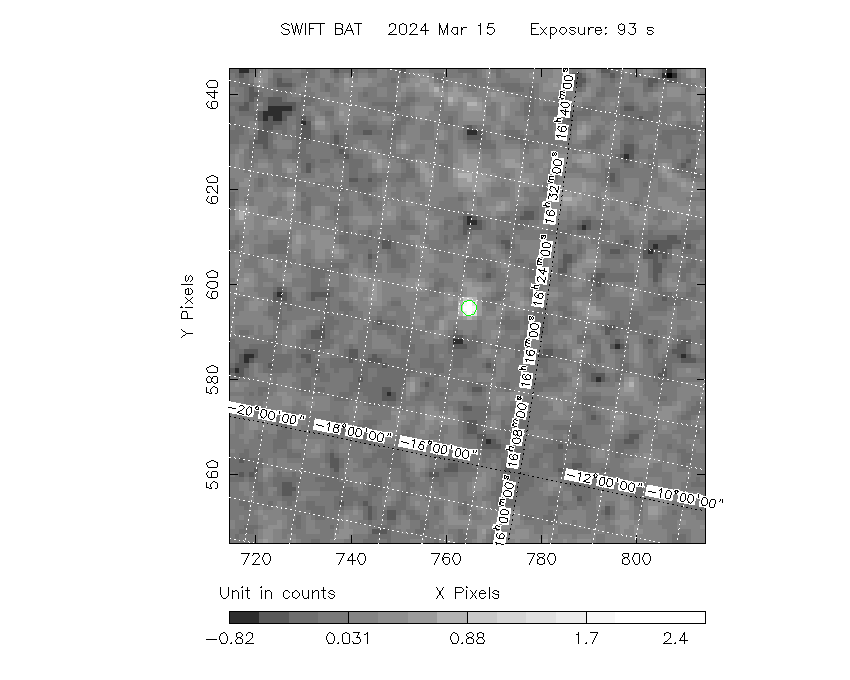

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.7753 -15.7763 0.0169   19.1  -45.9       2.5133    11.4  TRIG_01220155
------------------------------------------

Foreground time interval of the image:
-20.499  72.601 (delta_t =  93.100 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

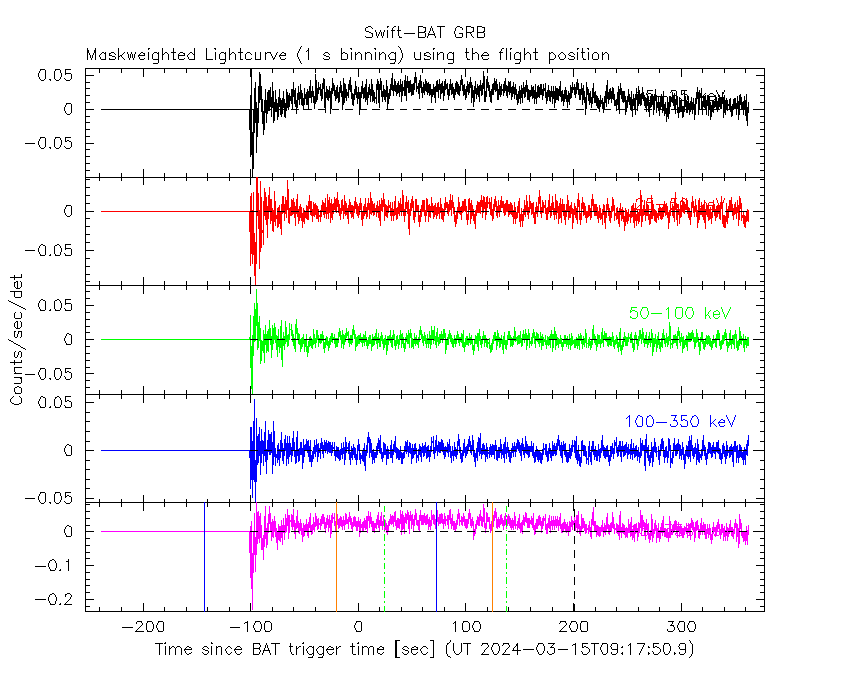

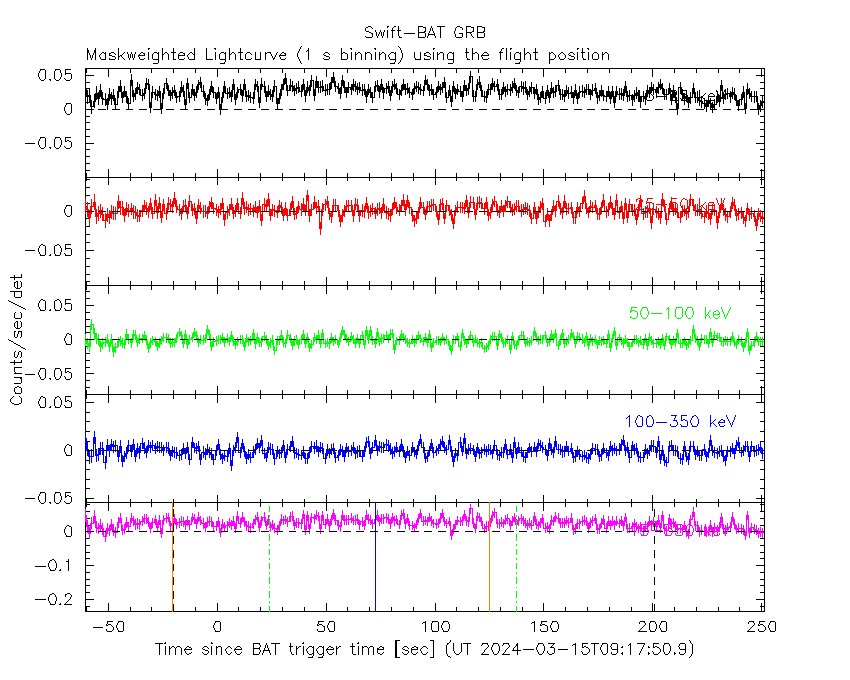

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

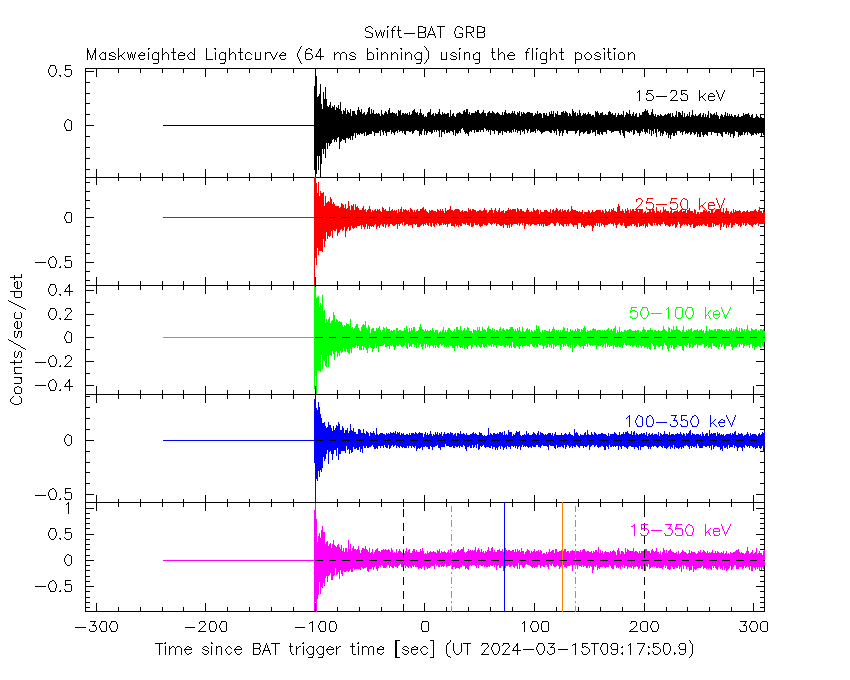

64 ms binning

Full time interval

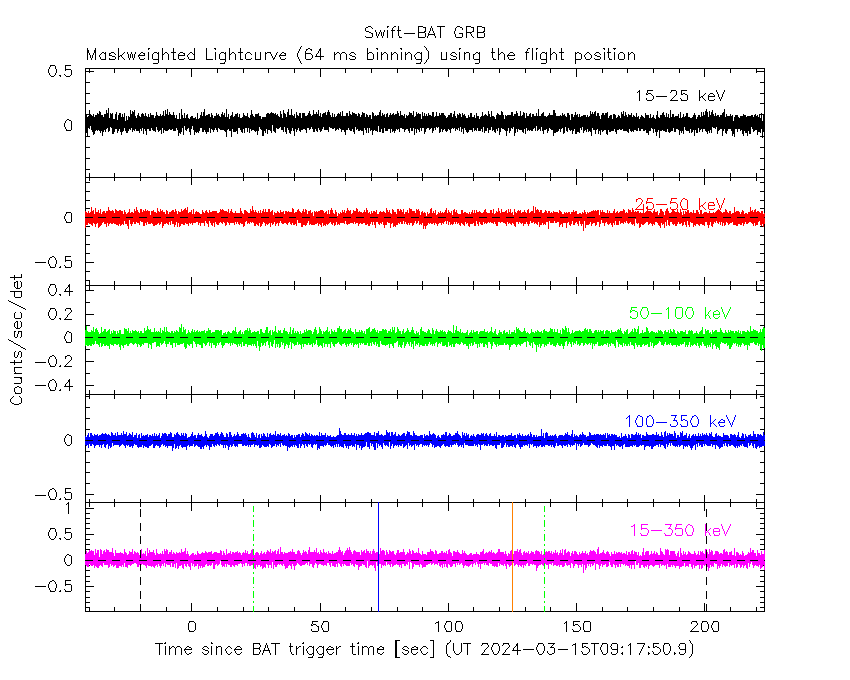

From T100_start to T100_end

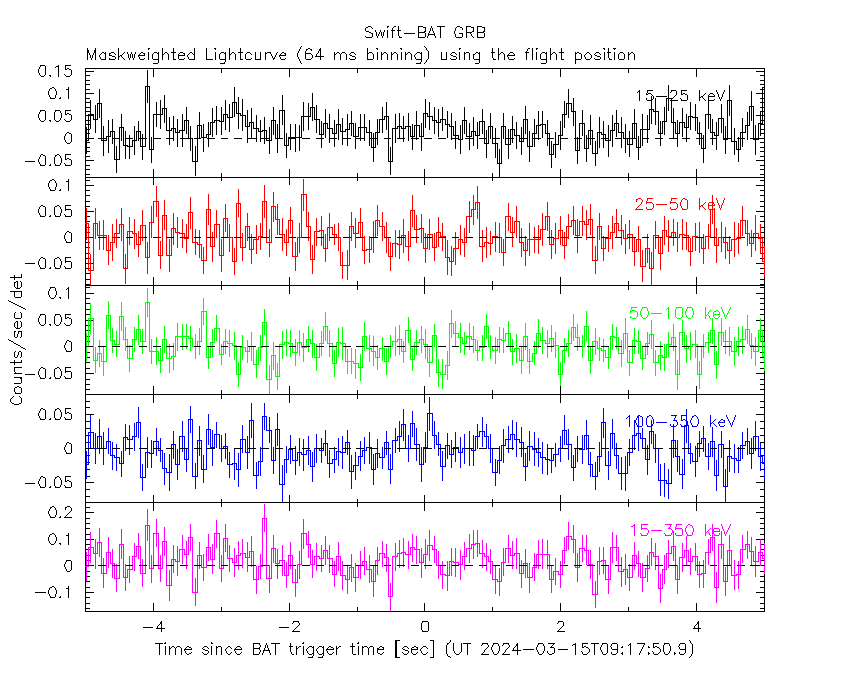

From T0-5 sec to T0+5 sec

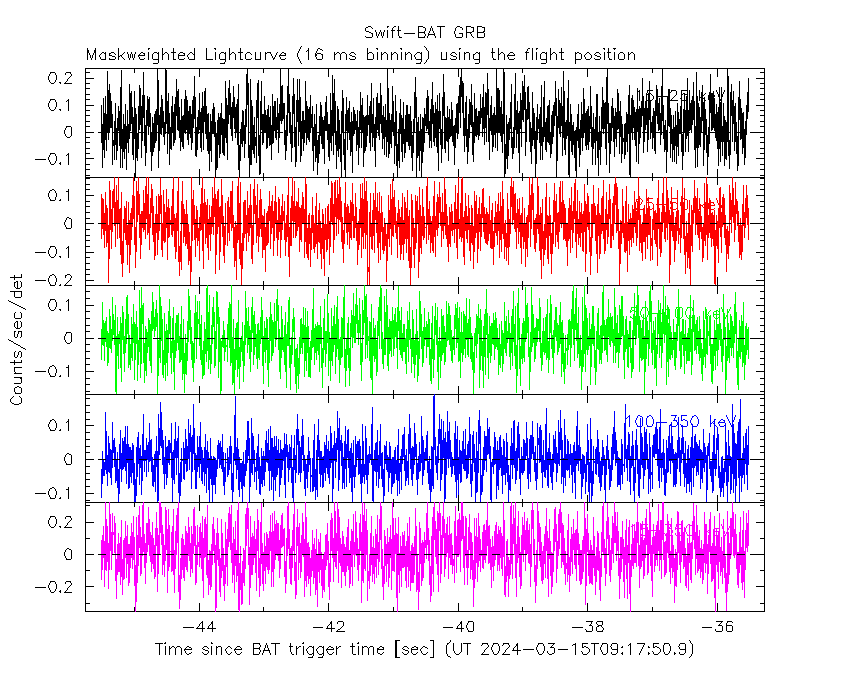

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

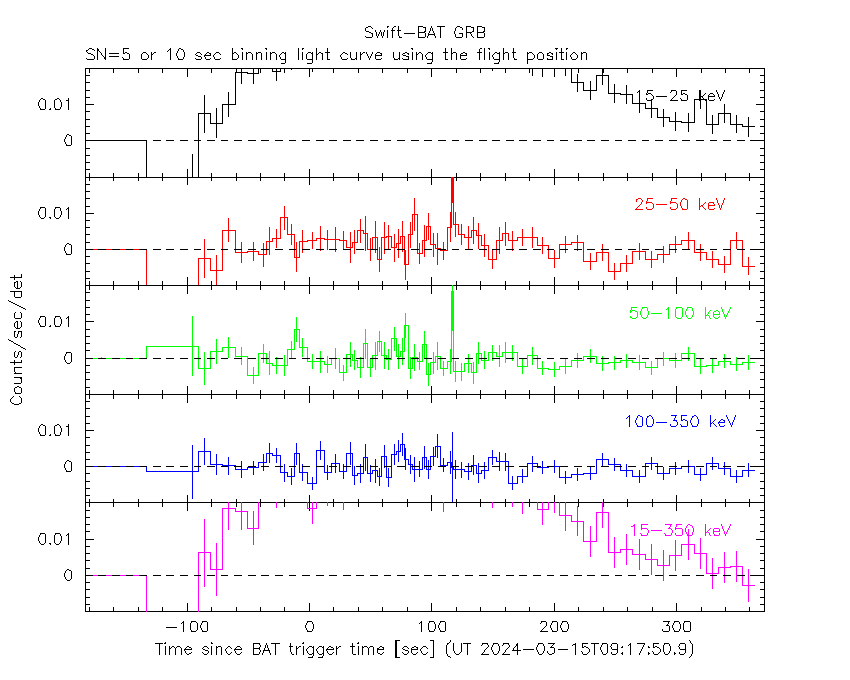

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

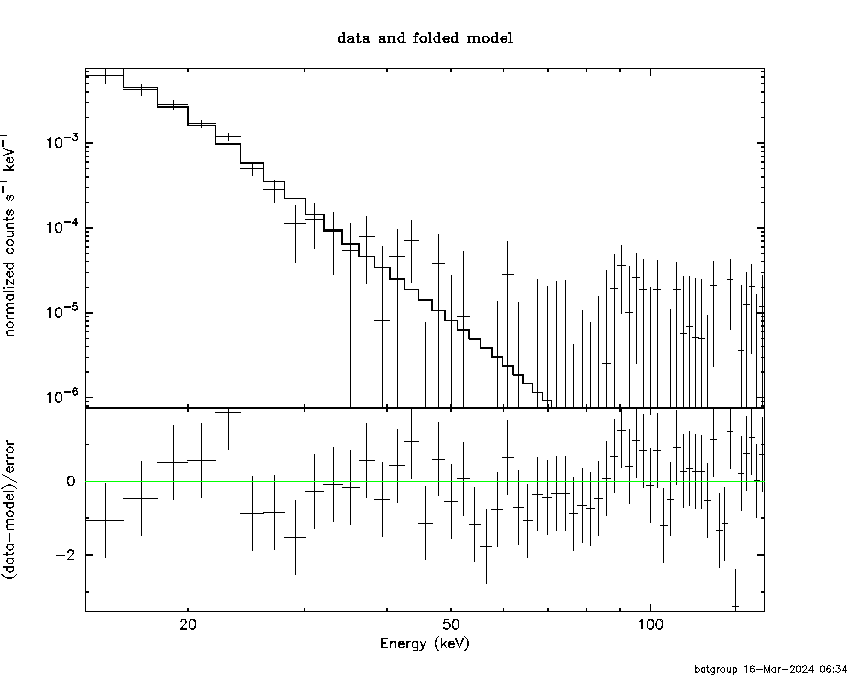

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  -40.512 sec. to  221.312 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.23316     ( -0.399479   0.406942 )
Norm@50keV  : 6.00175E-05    ( -1.92792e-05   2.61905e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.52 using 59 PHA bins.
# Reduced chi-squared =         0.9038 for     57 degrees of freedom
# Null hypothesis probability =   6.800908e-01

Photon flux (15-150 keV)    in 261.8 sec: 0.312464 ( -0.0289975  0.0291464 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.42994e-06 ( -2.09159e-07  2.09921e-07 ) ergs/cm2

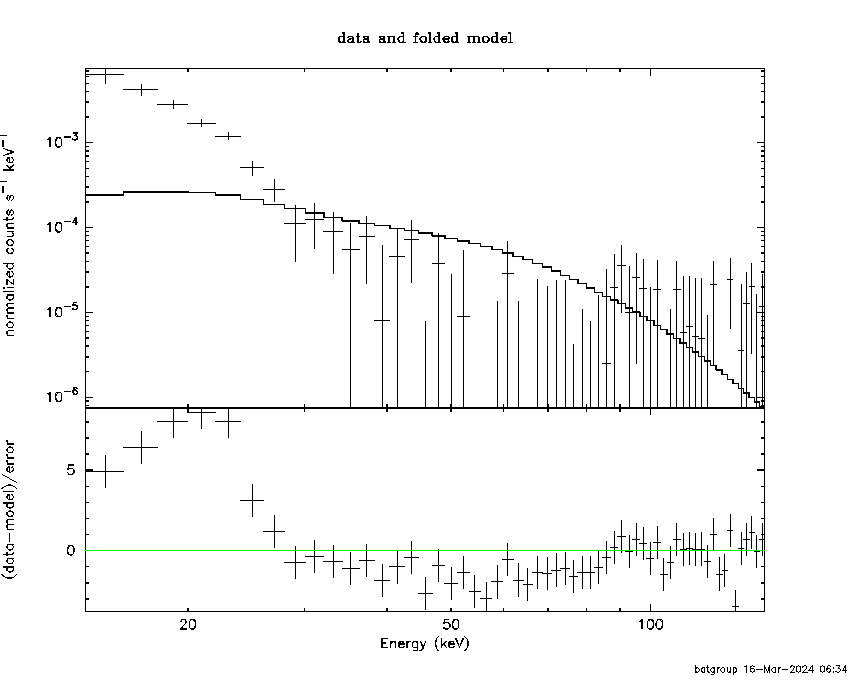

Cutoff power-law model

Time interval is from  -40.512 sec. to  221.312 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.35758E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         367.59 using 59 PHA bins.
# Reduced chi-squared =         6.5641 for     56 degrees of freedom
# Null hypothesis probability =   2.224538e-47

Photon flux (15-150 keV)    in 261.8 sec: 0.306520 ( -0.031854  0.031225 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.35465e-06 ( -2.29051e-07  2.23928e-07 ) ergs/cm2

Band function

Time interval is from  -40.512 sec. to  221.312 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.47245   ( -7.48523   4.31506 )
beta        : -7.62566    ( 7.61427   1.23602 )
Epeak [keV] : 9.08970      ( -1.10098 0.812308 )
Norm@50keV   : 165.121    ( -105.48   56418.4 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.40 using 59 PHA bins.
# Reduced chi-squared =         0.8436 for     55 degrees of freedom
# Null hypothesis probability =   7.889087e-01

Photon flux (15-150 keV)    in 261.8 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.48578  (-0.169301  0.191107)
R^2/D10^2   : 157.015  (-71.6502   128.741)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.99 using 59 PHA bins.
# Reduced chi-squared =         0.8420 for     57 degrees of freedom
# Null hypothesis probability =   7.964825e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.163e-06   4.080e-07
25- 50  1.554e-07   3.786e-08
50-150  4.642e-11   3.583e-11
15-150  2.319e-06   4.184e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.28463       (-0.426059      0.512324)
Norm        : 129.044       (-51.8165     85.7826)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.174e-06   3.665e-07
25- 50  1.896e-07   4.389e-08
50-150  4.241e-10   2.800e-10
15-150  2.364e-06   3.983e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.71824        (-5.5434      -5.5434)
R1^2/D10^2  : 9.61239E-02        (-0.117225      226.021)
kT2 [keV]   : 2.33185        (-2.31838      0.280883)
R2^2/D10^2  : 244.170    (-147.473   -254.641)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.184e-06   1.136e-06
25- 50  2.057e-07   1.093e-07
50-150  6.844e-09   7.447e-09
15-150  2.396e-06   1.267e-06

Peak spectrum fit

Power-law model

Time interval is from  116.048 sec. to  117.048 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.69270     ( -0.877056   1.24002 )
Norm@50keV  : 1.27085E-03    ( -0.000927689   0.00145334 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.82 using 59 PHA bins.
# Reduced chi-squared =         0.9793 for     57 degrees of freedom
# Null hypothesis probability =   5.194892e-01

Photon flux (15-150 keV)    in 1 sec: 0.602494 ( -0.168457  0.169652 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.26097e-08 ( -7.88103e-09  9.34072e-09 ) ergs/cm2

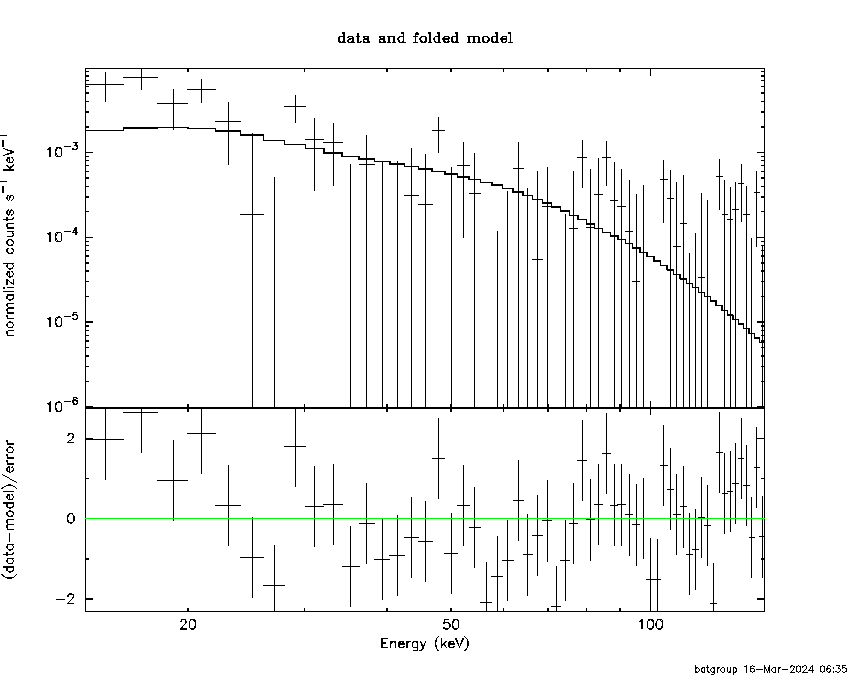

Cutoff power-law model

Time interval is from  116.048 sec. to  117.048 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.01029E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.56 using 59 PHA bins.
# Reduced chi-squared =          1.296 for     56 degrees of freedom
# Null hypothesis probability =   6.752025e-02

Photon flux (15-150 keV)    in 1 sec: 0.601116 ( -0.167602  0.168782 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.23767e-08 ( -8.0354e-09  9.2339e-09 ) ergs/cm2

Band function

Time interval is from  116.048 sec. to  117.048 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.62967   ( 1.55257   1.55257 )
beta        : -3.70363    ( 3.78973   0.966492 )
Epeak [keV] : 3.34531      ( -3.8838 146.431 )
Norm@50keV   : 7.57409E-02    ( -0.0985776   1.2878e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.81 using 59 PHA bins.
# Reduced chi-squared =          1.015 for     55 degrees of freedom
# Null hypothesis probability =   4.441107e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.62695  (-1.03507  1.50269)
R^2/D10^2   : 25.8572  (-25.8715   161.955)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.434e-08   8.185e-09
25- 50  3.879e-09   2.598e-09
50-150  2.532e-11   2.830e-11
15-150  1.824e-08   1.056e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 9.82294       (-4.40755      9.26184)
Norm        : 21.2589       (-21.2537     67.7367)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.385e-08   8.145e-09
25- 50  5.822e-09   3.780e-09
50-150  3.802e-10   3.870e-10
15-150  2.005e-08   1.163e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.71298        (-2.66878      2.23261)
R1^2/D10^2  : 108.508        (-117.974      -117.974)
kT2 [keV]   : 8.31725        (-8.1482      -8.1482)
R2^2/D10^2  : 0.233178    (-0.261015   68.4885)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.356e-08   7.560e-09
25- 50  6.676e-09   4.118e-09
50-150  1.671e-09   1.041e-09
15-150  2.191e-08   1.092e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.95628     ( -0.491679   0.514129 )
Norm@50keV  : 8.11428E-05    ( -3.25428e-05   4.79417e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.44 using 59 PHA bins.
# Reduced chi-squared =          1.008 for     57 degrees of freedom
# Null hypothesis probability =   4.586194e-01

Photon flux (15-150 keV)    in 93.1 sec: 0.319594 ( -0.0332204  0.0332703 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.95614e-07 ( -9.01346e-08  9.01352e-08 ) ergs/cm2

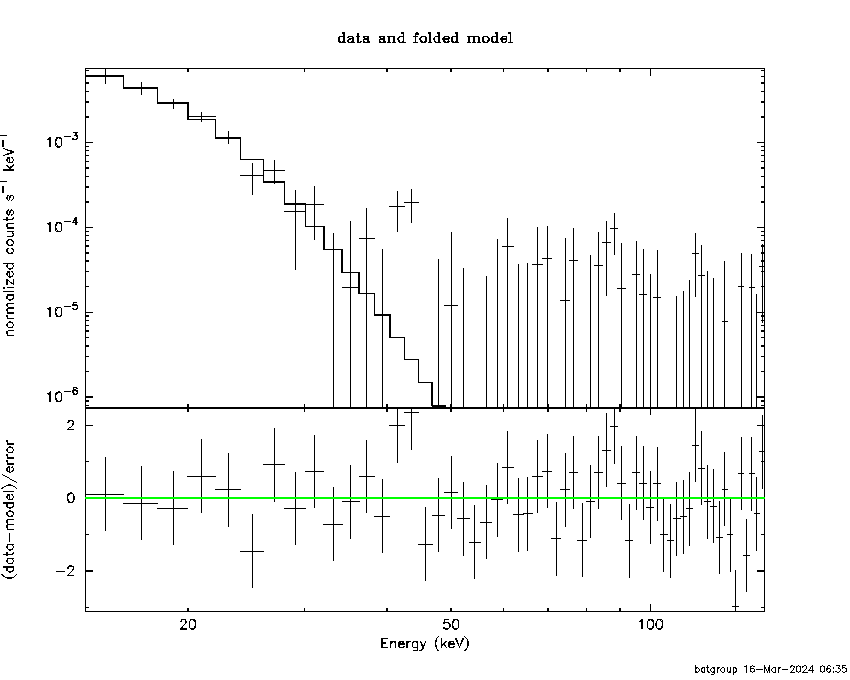

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.13638E-02     (     )
Epeak [keV] : 6.59737      (   )
Norm@50keV  : 7.17514    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.62 using 59 PHA bins.
# Reduced chi-squared =         0.9754 for     56 degrees of freedom
# Null hypothesis probability =   5.270833e-01

Photon flux (15-150 keV)    in 93.1 sec: 0.316423 ( -0.034929  0.034566 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.67888e-07 ( -9.22844e-08  9.15545e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.81616   ( 4.1771   8.81616 )
beta        : -6.01531    ( -0.46864   0.543749 )
Epeak [keV] : 417.490      ( -417.49 -417.49 )
Norm@50keV   : 1.03964E-02    ( -0.00400761   0.00698146 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.48 using 59 PHA bins.
# Reduced chi-squared =          1.045 for     55 degrees of freedom
# Null hypothesis probability =   3.833705e-01

Photon flux (15-150 keV)    in 93.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.3656e-07 ( -7.35908e-07  -7.3656e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.65e-07
S(50-100 keV) = 1.41e-08

T90 vs. Hardness ratio plot

T90                                   = 220.755999922752 sec.
Hardness ratio (energy fluence ratio) = 0.0532075

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0845595
Count Ratio (50-100 keV) / (15-25 keV) = -0.0192924

Mask shadow pattern

IMX = 2.412903893973802E-01, IMY = 2.489330140662139E-01

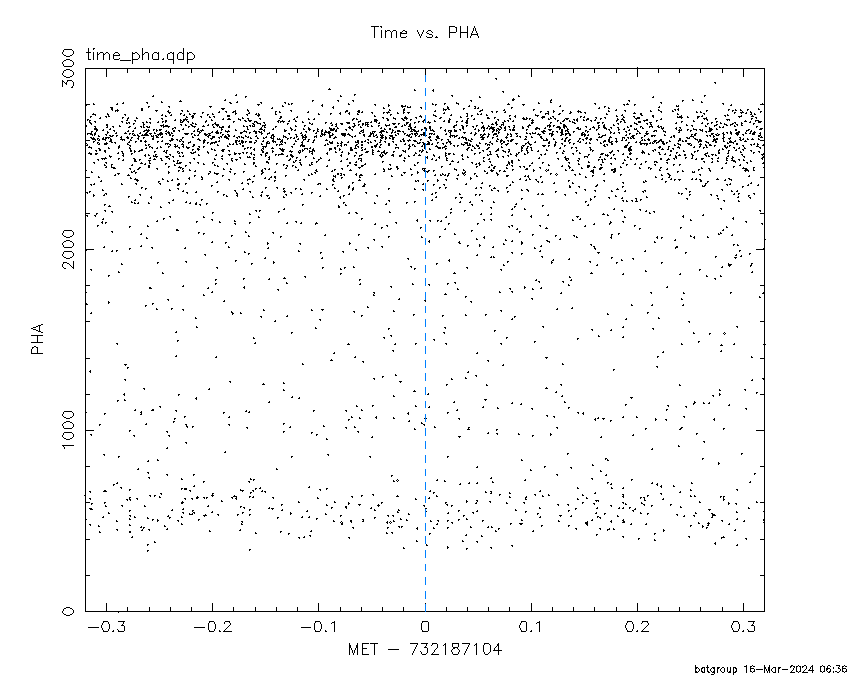

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

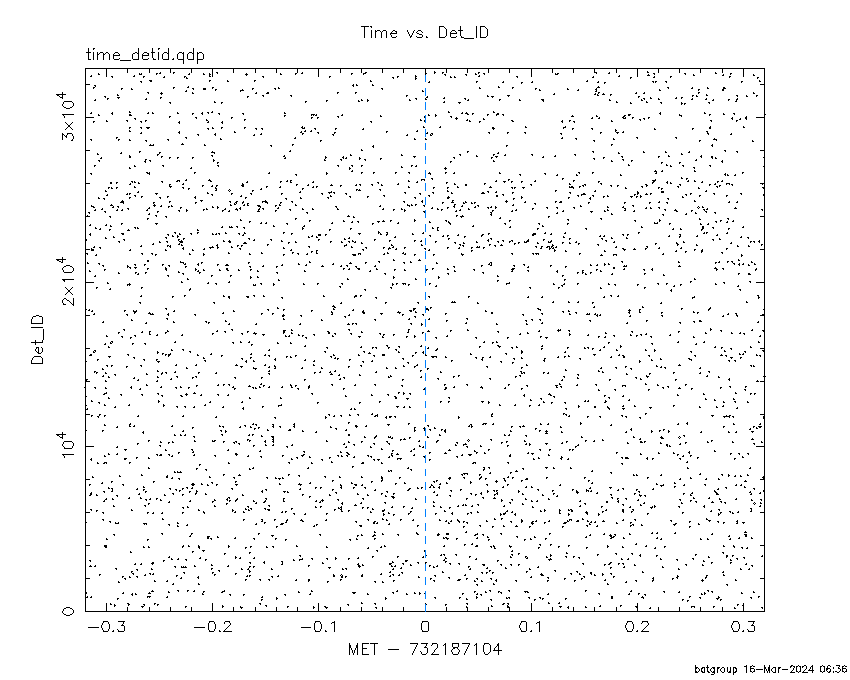

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

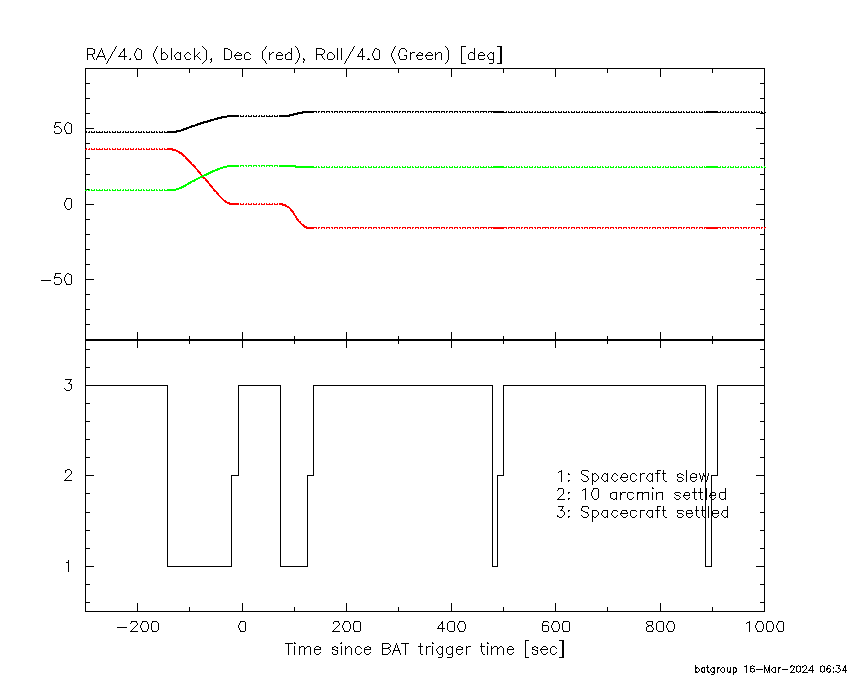

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-20.499400 72.600600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.7991 -15.7627    0.0  19.1  -46.0   2.4678  11.2   12.7	Sco X-1
254.2831  35.2506    5.6  40.3 -164.8   0.5721   2.0   10.2	Her X-1
255.8348 -37.8019    4.0  42.9  -37.3   0.9912   2.9    7.6	4U 1700-377
256.4304 -36.4372    3.6  42.0  -39.0   1.1280   3.2    0.9	GX 349+2
263.0296 -24.6168    9.4  37.5  -58.4  -0.4610  -1.2    7.8	GX 1+4
264.6288 -44.6043    3.8  52.3  -38.9  -2.8493  -3.1   10.5	4U 1735-44
268.3165  -1.5681    7.3  34.7  -98.7   0.6073   1.6    7.6	SW J1753.5-0127
270.1017 -25.2132    5.3  43.2  -63.0  -1.5170  -2.2   12.8	GX 5-1
270.2854 -25.8638    6.2  43.7  -62.3  -1.3449  -1.9    7.3	GRS 1758-258
262.9799 -33.8399   45.7  43.5  -47.5  -0.1118  -0.3    0.6	GX 354-0
192.2675 -13.4772    2.8  43.1   58.9   2.9214   4.1 ------	UNKNOWN
201.4518  -0.8354    3.7  32.2   77.4   1.1202   3.2 ------	UNKNOWN
231.4139 -47.1637    2.3  47.1   -9.2   1.6162   5.1 ------	UNKNOWN
251.5423 -54.4516    2.6  56.3  -23.7   3.7870   4.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
125.100600 363.130000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8060 -15.7577    3.8   0.1 -117.5   1.4309   3.0   12.3	Sco X-1
254.4276  35.3676    7.3  52.0 -177.6  -2.3518  -1.6    2.1	Her X-1
255.8063 -37.8637    2.3  24.1  -29.4   2.4833   4.9    8.6	4U 1700-377
256.6101 -36.4407    6.0  23.2  -32.5  -0.9536  -1.9    8.5	GX 349+2
262.8446 -24.7556    5.8  19.2  -66.9   1.0755   2.0    9.0	GX 1+4
264.8492 -44.5434    5.0  33.4  -34.1  -1.2942  -2.3    7.2	4U 1735-44
268.4644  -1.6056    5.5  27.4 -126.5  -1.1623  -2.1   10.8	SW J1753.5-0127
270.2432 -25.2182    8.2  25.6  -71.9  -0.8776  -1.4    8.6	GX 5-1
270.4123 -25.6166   26.2  25.9  -71.1  -0.3233  -0.5    9.6	GRS 1758-258
274.1015 -14.1702   12.7  28.4  -97.0  -0.6239  -0.9    9.8	GX 17+2
275.8836 -30.5056   10.8  32.0  -64.8  -0.7720  -1.1    8.6	H1820-303
285.1143 -24.8563    5.4  38.8  -77.4  -2.8719  -2.1    5.7	HT1900.1-2455
262.9592 -33.9544    9.4  24.5  -46.4  -0.6891  -1.2    7.3	GX 354-0
213.3792  16.5190    2.5  44.7  127.2  11.4253   4.6 ------	UNKNOWN
197.7922 -40.3035    2.9  47.4   41.6   5.3409   3.9 ------	UNKNOWN
255.2916 -60.4321    3.3  45.3  -15.0   2.5230   3.5 ------	UNKNOWN
280.5054  20.2228    2.8  50.3 -142.2   5.8085   4.0 ------	UNKNOWN
282.9536 -11.4373    2.3  37.4  -99.4   6.5135   5.1 ------	UNKNOWN
289.3313 -60.9925    2.6  55.2  -32.1  11.2752   4.4 ------	UNKNOWN

Plot creation:
Sat Mar 16 06:36:35 EDT 2024
