batgrbproduct analysis for trigger=1220736

batgrbproduct Analysis for Trigger=1220736

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Apr  9 10:36:16 EDT 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1220736/GCN5_download_cron
======================================================================

  Trigger: 01220736      Segment: 000

  BAT Trigger Time: 734282067.84   [s; MET]
      Trigger Stop: 734282071.936   [s; MET]
               UTC: 2024-04-08T15:13:54.606680    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 236.946777876706   Dec: -62.5340784767397  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.07
     Image Trigger?:     NO
     Rate S/N Ratio:     9.59166304662544  [ if not an image trigger ]
     Image S/N Ratio:    7.07

  Flight Position:   [ source = BAT ]
    RA: 236.946777876706   Dec: -62.5340784767397  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 236.975846139864   Dec: -62.5130345594775  [deg; J2000]
        { 15h 47m 54.2s , -62d 30' 46.9" }
         +/- 2.17235448322237 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.952816543535983 [arcmin] (formal 1-sigma fit error)
    SNR: 10.0412739615964

  Angular difference between Flight and Ground position is 1.497259 arcmin

  Partial Coding Fraction: 0.6875    [ including projection effects ]

  Duration
     T90: 23.4839998483658 +/- 5.44670758448717
        Measured from: -1.40799987316132
                   to: 22.0759999752045     [s; relative to TRIGTIME]
     T50: 11.7239998579025 +/- 4.10574321729031
        Measured from: 1.50800013542175
                   to: 13.2319999933243     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.839999914169312
                   to: 1.83999991416931     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -2.10400009155273
                   to: 24     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.647550   0.158742   0.028739   0.056993
           0.049315   0.046321   0.038898   0.033340 [error]
 Peak      0.053544   0.036351  -0.004785   0.009180
           0.010572   0.009003   0.007497   0.006355 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.16e-07 6.97e-08 1.25e-08 2.62e-09 3.00e-07 3.01e-07   erg/cm2
              Error 3.31e-08 2.60e-08 1.08e-08 4.58e-09 5.36e-08 5.46e-08   erg/cm2
Peak flux Power-law 6.54e-01 2.24e-01 4.32e-02 9.81e-03 9.27e-01 9.30e-01   ph/cm2/s
              Error 1.82e-01 8.80e-02 3.56e-02 1.59e-02 2.44e-01 2.45e-01   ph/cm2/s

Fluence   Cutoff-PL 2.16e-07 6.91e-08 1.23e-08 2.54e-09 3.00e-07 3.00e-07   erg/cm2
              Error 3.34e-08 3.04e-08 1.32e-08 4.54e-09 5.72e-08 5.81e-08   erg/cm2
Peak flux Cutoff-PL 6.40e-01 2.66e-01 1.15e-02 1.50e-05 9.17e-01 9.17e-01   ph/cm2/s
              Error 2.03e-01 1.16e-01 3.22e-02 4.97e-03 2.38e-01 2.38e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.477    0.687    -      -           3.61e-04 2.41e-04   43.850 57
CPL   1.000    0.000      50.0    0.0      4.40e-03 0.00e+00  113.490 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.371    0.749    -      -           2.54e-03 1.64e-03   54.980 57
CPL   1.000    0.000      50.0    0.0      1.44e-02 0.00e+00   72.630 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   26.104   -2.104   24.000
T90    23.484   -1.408   22.076
T50    11.724    1.508   13.232
Peak    1.000    0.840    1.840

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  236.9758 -62.5130 0.0191   31.1 -145.3       0.9090    10.0  TRIG_01220736
------------------------------------------

Foreground time interval of the image:
 -2.104  24.000 (delta_t =  26.104 [sec])
Background time interval of the image:
-239.840  -2.104 (delta_t = 237.736 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

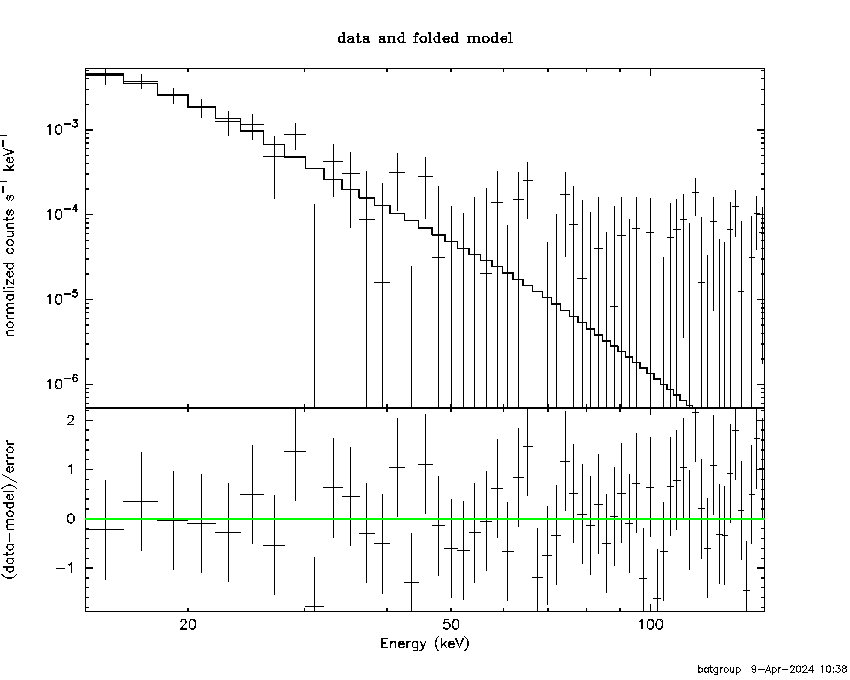

Power-law model

Time interval is from   -2.104 sec. to   24.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.47701     ( -0.633824   0.740588 )
Norm@50keV  : 3.61380E-04    ( -0.000191676   0.000290111 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.85 using 59 PHA bins.
# Reduced chi-squared =         0.7693 for     57 degrees of freedom
# Null hypothesis probability =   8.993332e-01

Photon flux (15-150 keV)    in 26.1 sec: 0.341695 ( -0.0516463  0.0517261 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.9992e-07 ( -5.20651e-08  5.5148e-08 ) ergs/cm2

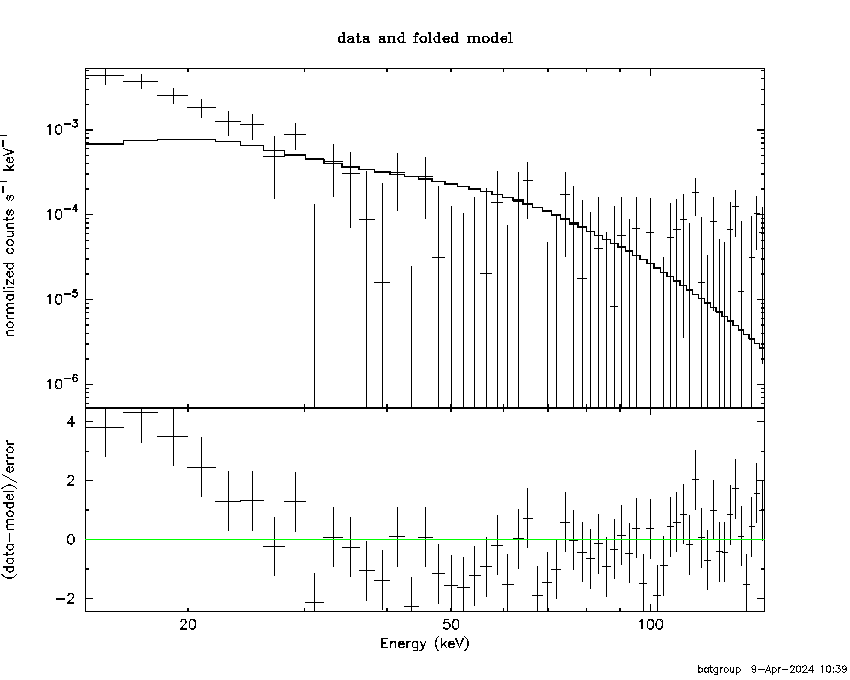

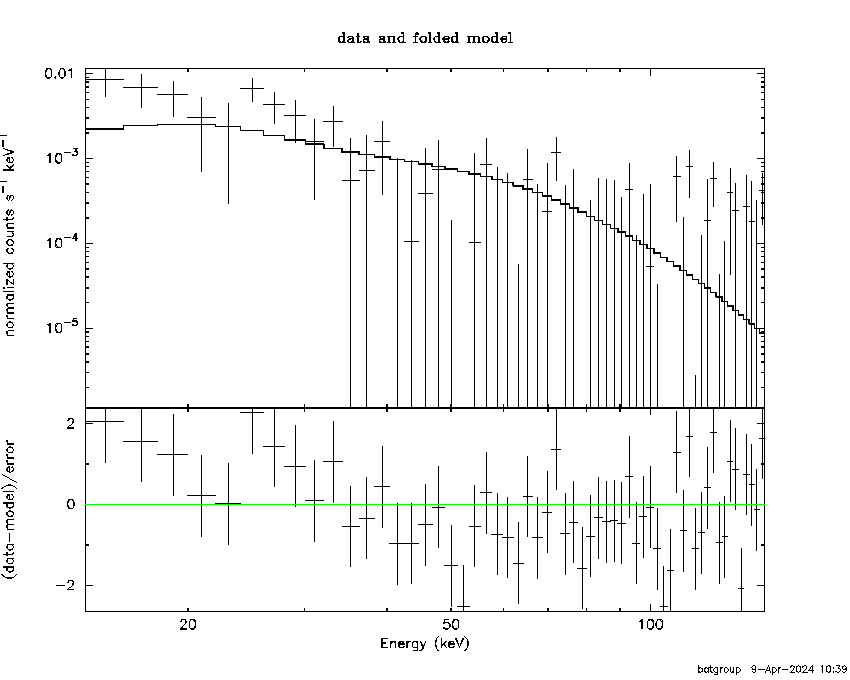

Cutoff power-law model

Time interval is from   -2.104 sec. to   24.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 4.40370E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         113.49 using 59 PHA bins.
# Reduced chi-squared =         2.0265 for     56 degrees of freedom
# Null hypothesis probability =   8.795444e-06

Photon flux (15-150 keV)    in 26.1 sec: 0.341315 ( -0.051462  0.051749 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.99581e-07 ( -5.88683e-08  5.54703e-08 ) ergs/cm2

Band function

Time interval is from   -2.104 sec. to   24.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.70582   ( 1.70068   1.70068 )
beta        : -4.54727    ( 4.53939   0.691524 )
Epeak [keV] : 1.88523      ( -1.86675 2.80937 )
Norm@50keV   : 0.103853    ( -0.11669   1.34021e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.81 using 59 PHA bins.
# Reduced chi-squared =         0.7966 for     55 degrees of freedom
# Null hypothesis probability =   8.609166e-01

Photon flux (15-150 keV)    in 26.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

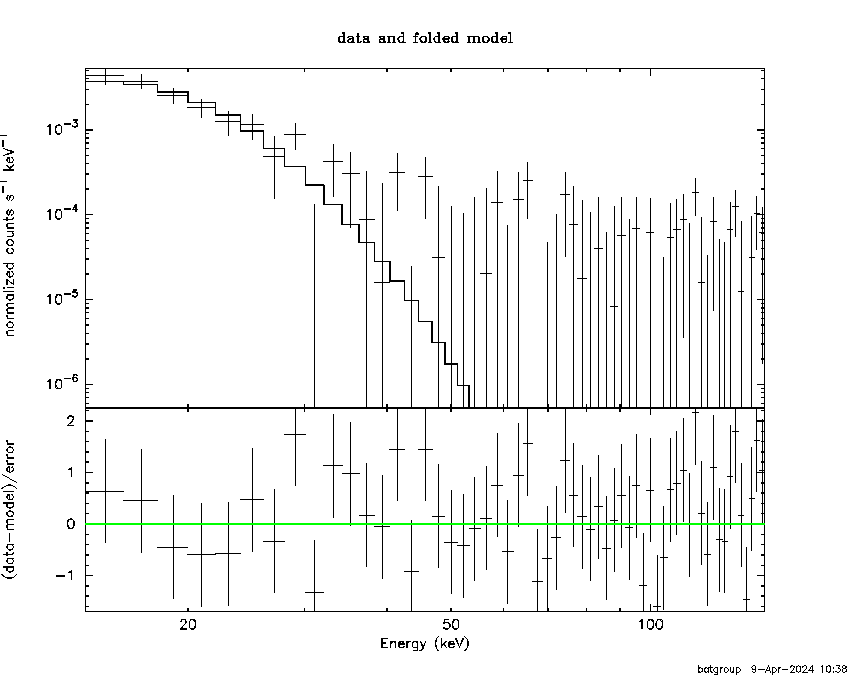

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.19310  (-0.505209  0.614776)
R^2/D10^2   : 31.5802  (-20.5392   64.6621)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.89 using 59 PHA bins.
# Reduced chi-squared =         0.8226 for     57 degrees of freedom
# Null hypothesis probability =   8.279130e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.247e-07   8.702e-08
25- 50  4.051e-08   1.975e-08
50-150  1.066e-10   1.015e-10
15-150  2.653e-07   1.086e-07

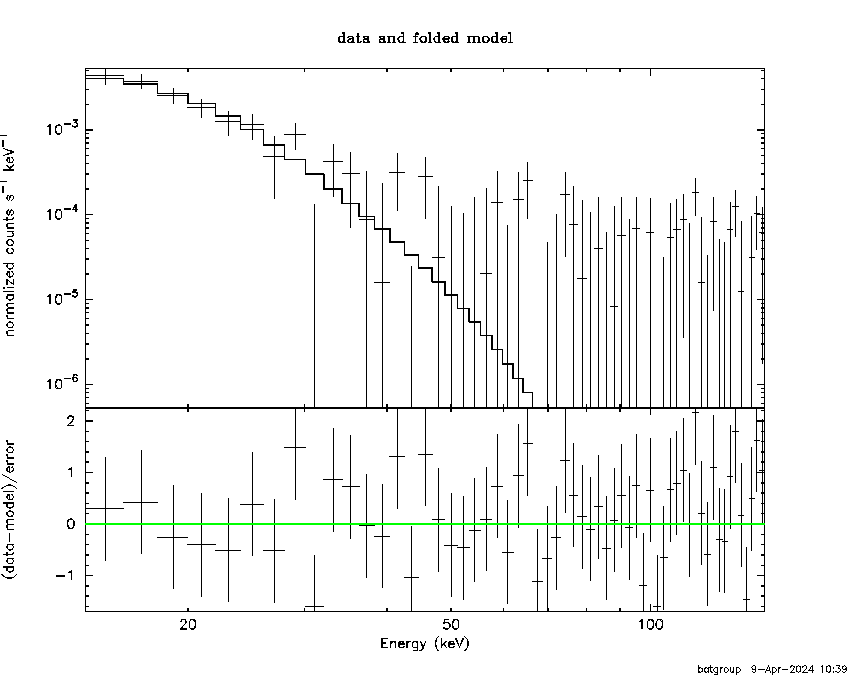

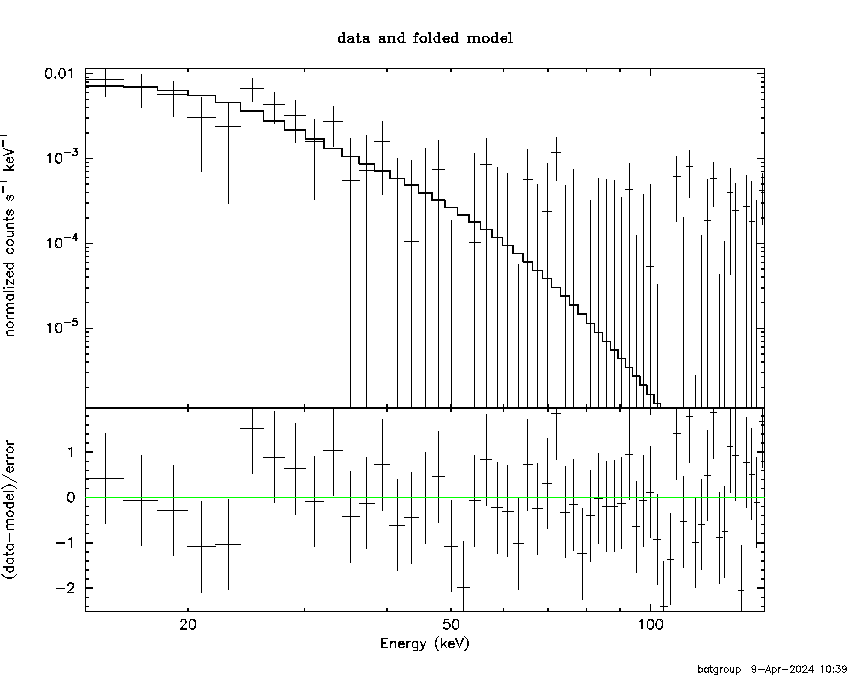

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 6.99040       (-1.73014      2.54396)
Norm        : 26.9795       (-14.4203     36.4142)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.216e-07   7.114e-08
25- 50  5.486e-08   2.607e-08
50-150  1.209e-09   1.099e-09
15-150  2.776e-07   1.012e-07

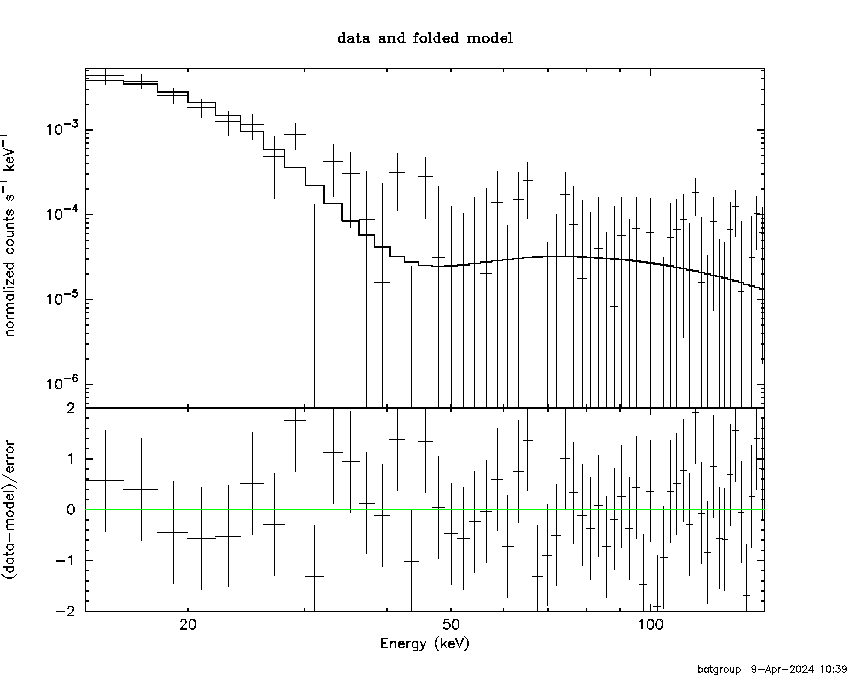

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.14180        (-0.561383      0.533951)
R1^2/D10^2  : 34.7219        (-22.924      67.7503)
kT2 [keV]   : 200.000        (-200      -200)
R2^2/D10^2  : 1.27504E-05    (-1.27421e-05   -1.27421e-05)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.232e-07   8.779e-08
25- 50  4.401e-08   2.146e-08
50-150  6.682e-08   1.418e-10
15-150  3.341e-07   1.161e-07

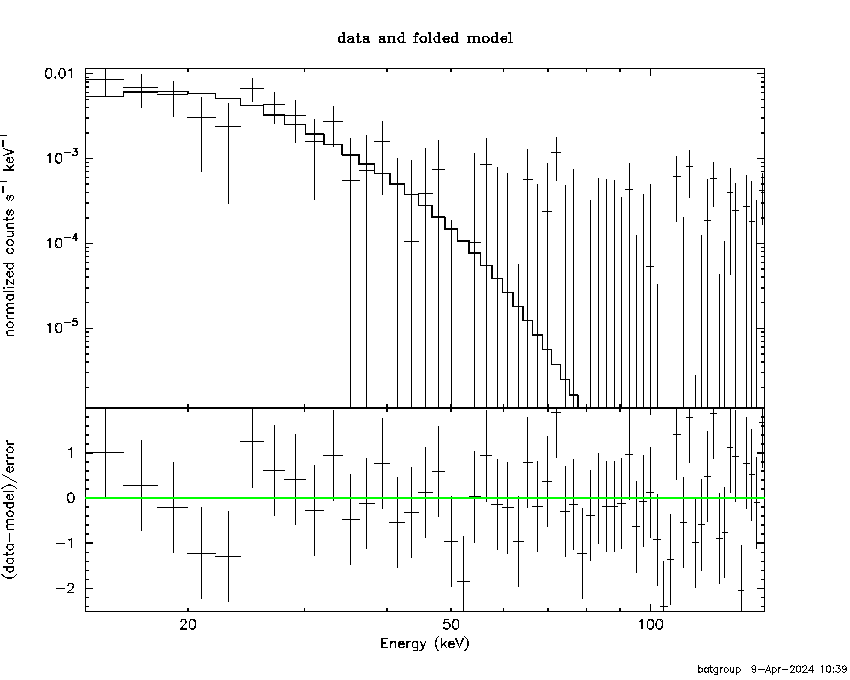

Peak spectrum fit

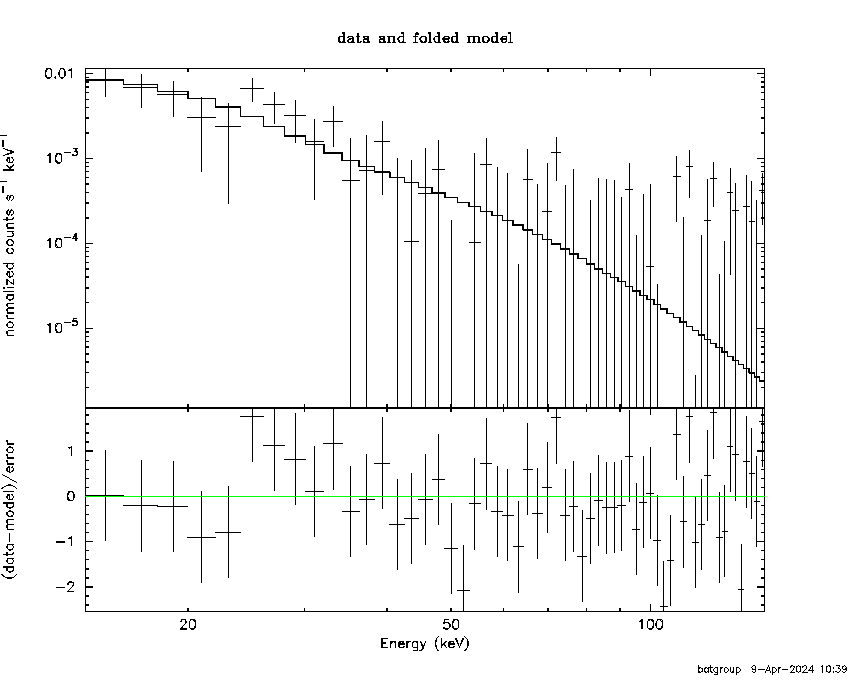

Power-law model

Time interval is from    0.840 sec. to    1.840 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.37147     ( -0.637393   0.861395 )
Norm@50keV  : 2.54045E-03    ( -0.00147505   0.00180837 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.98 using 59 PHA bins.
# Reduced chi-squared =         0.9646 for     57 degrees of freedom
# Null hypothesis probability =   5.510713e-01

Photon flux (15-150 keV)    in 1 sec: 0.926799 ( -0.243168  0.243876 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.70238e-08 ( -1.14943e-08  1.26539e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.840 sec. to    1.840 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.44227E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.63 using 59 PHA bins.
# Reduced chi-squared =          1.297 for     56 degrees of freedom
# Null hypothesis probability =   6.685832e-02

Photon flux (15-150 keV)    in 1 sec: 0.917231 ( -0.237256  0.238229 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.42135e-08 ( -9.3005e-09  1.06979e-08 ) ergs/cm2

Band function

Time interval is from    0.840 sec. to    1.840 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.203578   ( -6.14042   0.502526 )
beta        : -10.0000    ( 10   3.55271e-15 )
Epeak [keV] : 16.0815      ( -5.0344 6.19588 )
Norm@50keV   : 0.464729    ( -0.947884   3195.86 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.99 using 59 PHA bins.
# Reduced chi-squared =         0.9635 for     55 degrees of freedom
# Null hypothesis probability =   5.516382e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.18547  (-1.15264  1.35431)
R^2/D10^2   : 6.85386  (-6.85386   16.2178)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.924e-08   1.135e-08
25- 50  1.373e-08   8.505e-09
50-150  6.640e-10   6.160e-10
15-150  3.364e-08   2.007e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 14.5321       (-4.76359      10.0786)
Norm        : 17.6642       (-9.04387     21.3671)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.019e-08   2.154e-08
25- 50  1.255e-08   2.180e-08
50-150  1.827e-09   8.755e-09
15-150  3.457e-08   5.221e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.34122E-04        (35.869      -0.000134122)
R1^2/D10^2  : 14.3873        (-14.3873      -14.3873)
kT2 [keV]   : 5.18547        (-1.15264      1.35431)
R2^2/D10^2  : 6.85386    (-6.85386   16.2178)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.900e-08   3.120e-07
25- 50  1.312e-08   1.426e-06
50-150  8.462e-10   4.081e-06
15-150  3.297e-08   5.135e-06

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.47701     ( -0.633824   0.740588 )
Norm@50keV  : 3.61380E-04    ( -0.000191676   0.000290111 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.85 using 59 PHA bins.
# Reduced chi-squared =         0.7693 for     57 degrees of freedom
# Null hypothesis probability =   8.993332e-01

Photon flux (15-150 keV)    in 26.1 sec: 0.341695 ( -0.0516463  0.0517261 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.9992e-07 ( -5.20651e-08  5.5148e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 4.40370E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         113.49 using 59 PHA bins.
# Reduced chi-squared =         2.0265 for     56 degrees of freedom
# Null hypothesis probability =   8.795444e-06

Photon flux (15-150 keV)    in 26.1 sec: 0.341315 ( -0.051462  0.051749 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.99581e-07 ( -5.88683e-08  5.54703e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.70582   ( 1.70068   1.70068 )
beta        : -4.54727    ( 4.53939   0.691524 )
Epeak [keV] : 1.88523      ( -1.86675 2.46175 )
Norm@50keV   : 0.103853    ( -0.11669   1.34009e+07 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.81 using 59 PHA bins.
# Reduced chi-squared =         0.7966 for     55 degrees of freedom
# Null hypothesis probability =   8.609166e-01

Photon flux (15-150 keV)    in 26.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.97e-08
S(50-100 keV) = 1.25e-08

T90 vs. Hardness ratio plot

T90                                   = 23.4839998483658 sec.
Hardness ratio (energy fluence ratio) = 0.17934

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.245142
Count Ratio (50-100 keV) / (15-25 keV) = 0.0443811

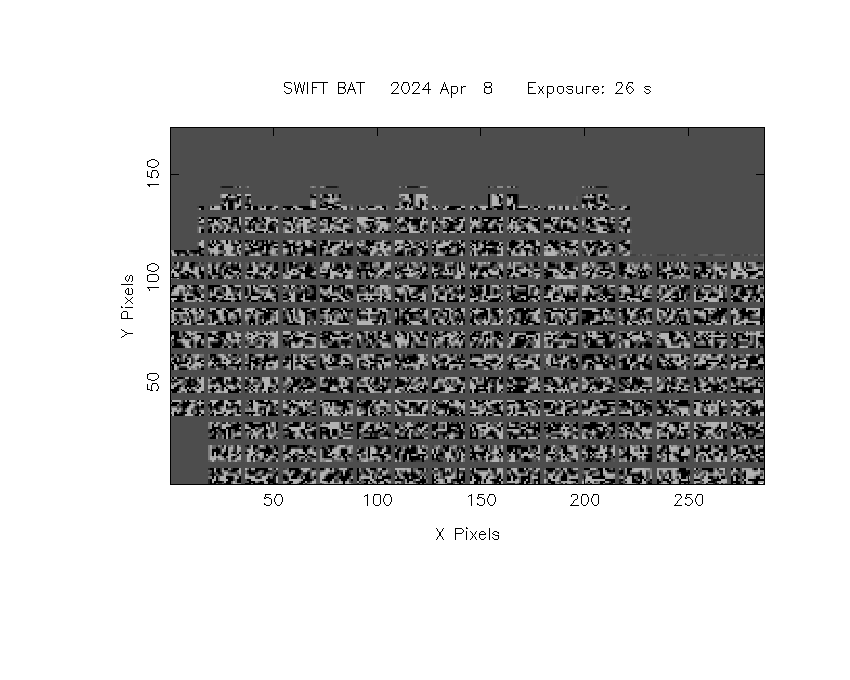

Mask shadow pattern

IMX = -4.966943705392776E-01, IMY = 3.440426617499832E-01

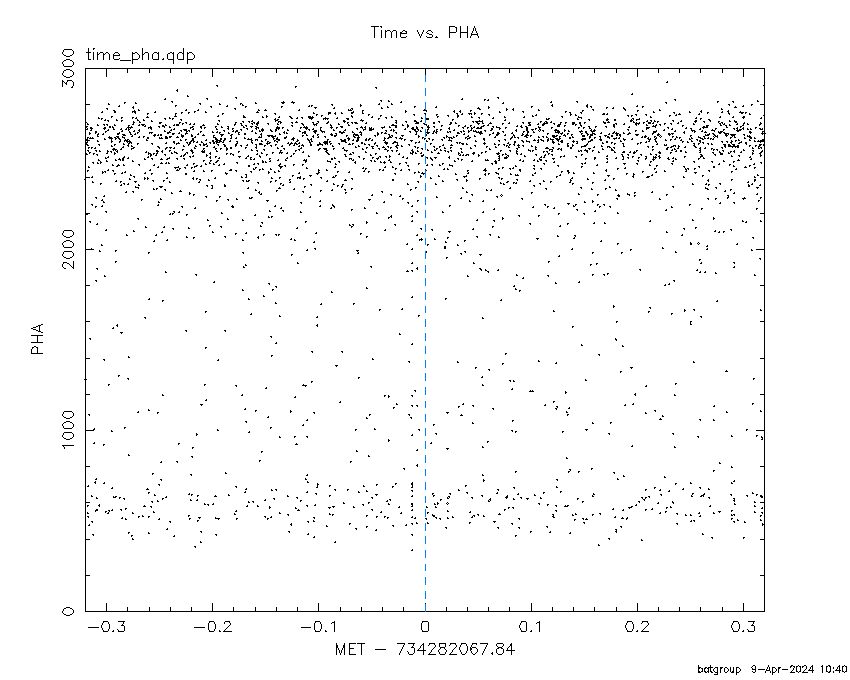

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.840000 -2.104000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5687 -40.6740    7.5  44.4  -38.9   1.4033   1.5    7.4	Vela X-1
170.5082 -60.5425    4.9  23.9  -77.9   1.2744   2.3    7.4	Cen X-3
186.4546 -62.6462   18.8  21.1  -97.2   0.3361   0.6    9.3	GX 301-2
244.9819 -15.5696    4.0  49.5  142.8   5.9916   2.9    4.2	Sco X-1
255.9976 -37.9244    1.7  45.0  175.7   6.6889   6.6    4.8	4U 1700-377
256.5494 -36.2824   12.1  46.1  173.9   1.0446   0.9   10.1	GX 349+2
264.8933 -44.4986    5.6  48.4 -172.3   2.3710   2.0    7.1	4U 1735-44
262.9911 -33.8498    7.4  51.9  174.4  -2.2364  -1.6    0.9	GX 354-0
237.9477 -23.1682    3.0  39.5  144.8   4.2326   3.9 ------	UNKNOWN
158.6475 -13.7615    3.5  43.2   10.5   2.6221   3.3 ------	UNKNOWN
171.2985 -71.6559    2.2  31.7  -95.0   3.6162   5.3 ------	UNKNOWN
127.5101 -52.9363    2.7  45.6  -57.8   8.0700   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-2.104000 24.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5821 -40.3550    4.9  44.5  -38.5  -0.3540  -2.3   12.2	Vela X-1
170.6634 -60.6312    4.2  23.9  -78.2  -0.2572  -2.8   10.2	Cen X-3
187.0822 -62.7004    0.0  21.0  -98.0  -0.0168  -0.2   12.4	GX 301-2
245.0901 -15.5322    0.0  49.6  142.9  -0.2872  -0.8    9.1	Sco X-1
256.0435 -37.8951    5.2  45.0  175.7   0.3023   2.2    4.1	4U 1700-377
256.3897 -36.5112   83.0  45.9  174.1  -0.0203  -0.1    5.7	GX 349+2
264.8807 -44.5036   20.8  48.4 -172.3  -0.0758  -0.6    6.7	4U 1735-44
263.1310 -33.8886    6.3  52.0  174.6   0.4572   1.8    7.8	GX 354-0
145.1307 -15.9994    2.4  50.8   -4.4   0.8922   4.8 ------	UNKNOWN
236.9743 -62.5134    1.1  31.1 -145.3   0.9111  10.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
120.160600 200.211900
202.160000 211.550000
216.160000 403.290000
404.160000 527.040000
528.160000 579.740000
581.160000 593.660610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3640 -60.6162    8.8  30.3   18.5   1.6478   1.3    1.5	Cen X-3
186.7283 -62.9096    6.1  22.4   21.9   2.1780   1.9    8.6	GX 301-2
244.9987 -15.6406    2.5  47.2  146.0  16.2863   4.6    1.1	Sco X-1
255.9836 -37.8461    0.7  27.3  169.6  16.0255  15.6    0.2	4U 1700-377
256.5946 -36.3415    7.4  28.9  169.5   1.7595   1.6    9.1	GX 349+2
262.9578 -24.7693   19.4  41.6  172.3  -0.9963  -0.6    3.1	GX 1+4
264.7720 -44.4301    6.8  24.2 -170.1   1.5377   1.7    1.7	4U 1735-44
270.4511 -24.9752    0.0  43.7 -178.2   1.7842   1.1   11.0	GX 5-1
270.3630 -25.9232    0.0  42.8 -177.8   0.8619   0.6   11.3	GRS 1758-258
273.9916 -14.0409  149.3  55.1 -179.1   0.2452   0.1    0.9	GX 17+2
276.0070 -30.2966  297.8  40.8 -168.2  -0.0528  -0.0    6.0	H1820-303
285.1100 -24.9443    6.4  49.2 -161.5  -4.1122  -1.8    4.3	HT1900.1-2455
262.8147 -33.8474   12.3  33.0  177.1   1.1739   0.9    8.7	GX 354-0
243.4298 -23.2780    3.1  39.5  144.8   8.0849   3.7 ------	UNKNOWN
294.0254 -51.4489    3.0  31.8 -128.0   4.9757   3.8 ------	UNKNOWN

Plot creation:
Tue Apr  9 10:40:09 EDT 2024
