Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Oct 19 15:35:14 EDT 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1221183
======================================================================

  Trigger: 01221183      Segment: 000

  BAT Trigger Time: 734542407.104   [s; MET]
      Trigger Stop: 734542409.152   [s; MET]
               UTC: 2024-04-11T15:32:53.852800    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 231.561347866817   Dec: -2.15328247773132  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.94
     Image Trigger?:     NO
     Rate S/N Ratio:     11.3578166916005  [ if not an image trigger ]
     Image S/N Ratio:    7.94

  Flight Position:   [ source = BAT ]
    RA: 231.561347866817   Dec: -2.15328247773132  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 231.562744335981   Dec: -2.17330455475162  [deg; J2000]
        { 15h 26m 15.1s , -02d 10' 23.9" }
         +/- 3.64153683129493 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.49761370978574 [arcmin] (formal 1-sigma fit error)
    SNR: 4.80046253346946

  Angular difference between Flight and Ground position is 1.204239 arcmin

  Partial Coding Fraction: 0.53125    [ including projection effects ]

  Duration
     T90: 33.2640000581741 +/- 1.44222047183285
        Measured from: 0.287999987602234
                   to: 33.5520000457764     [s; relative to TRIGTIME]
     T50: 29.824000120163 +/- 21.1709505863068
        Measured from: 1.58399999141693
                   to: 31.4080001115799     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 32.8680000305176
                   to: 33.8680000305176     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.368000030517578
                   to: 33.9200000762939     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.224902   0.322142   0.183404   0.127799
           0.060563   0.062961   0.053051   0.045138 [error]
 Peak      0.035573   0.041587   0.036791   0.011644
           0.011978   0.011664   0.010331   0.007827 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 7.92e-08 1.31e-07 1.64e-07 4.08e-07 4.87e-07 7.82e-07   erg/cm2
              Error 2.94e-08 3.00e-08 5.27e-08 2.87e-07 1.24e-07 3.29e-07   erg/cm2
Peak flux Power-law 3.36e-01 3.18e-01 2.10e-01 2.14e-01 9.52e-01 1.08e+00   ph/cm2/s
              Error 1.66e-01 1.03e-01 7.66e-02 1.56e-01 2.97e-01 3.22e-01   ph/cm2/s

Fluence   Cutoff-PL 7.17e-08 1.00e-07 1.08e-07 2.66e-07 3.50e-07 5.45e-07   erg/cm2
              Error 3.91e-08 4.32e-08 4.03e-08 1.14e-07 1.37e-07 2.51e-07   erg/cm2
Peak flux Cutoff-PL 2.95e-01 3.52e-01 2.22e-01 8.34e-02 9.27e-01 9.52e-01   ph/cm2/s
              Error 1.87e-01 1.32e-01 1.16e-01 1.34e-01 3.02e-01 3.50e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.675    0.422    -      -           1.53e-03 3.70e-04   41.500 57
CPL   1.695    0.466    9999.4   -0.0      1.52e-03 1.82e-03   41.520 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.603    0.496    -      -           7.40e-03 2.26e-03   57.760 57
CPL   0.688    2.353      68.1    0.0      2.26e-02 5.73e-01   57.170 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   34.288   -0.368   33.920
T90    33.264    0.288   33.552
T50    29.824    1.584   31.408
Peak    1.000   32.868   33.868

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  231.5627    -2.1733   0.0400    40.1461     0.0783         0.5030698      4.800 TRIG_01221183

Foreground time interval of the image:
 -0.368  27.397 (delta_t =  27.765 [sec])
Background time interval of the image:
-114.603  -0.368 (delta_t = 114.235 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

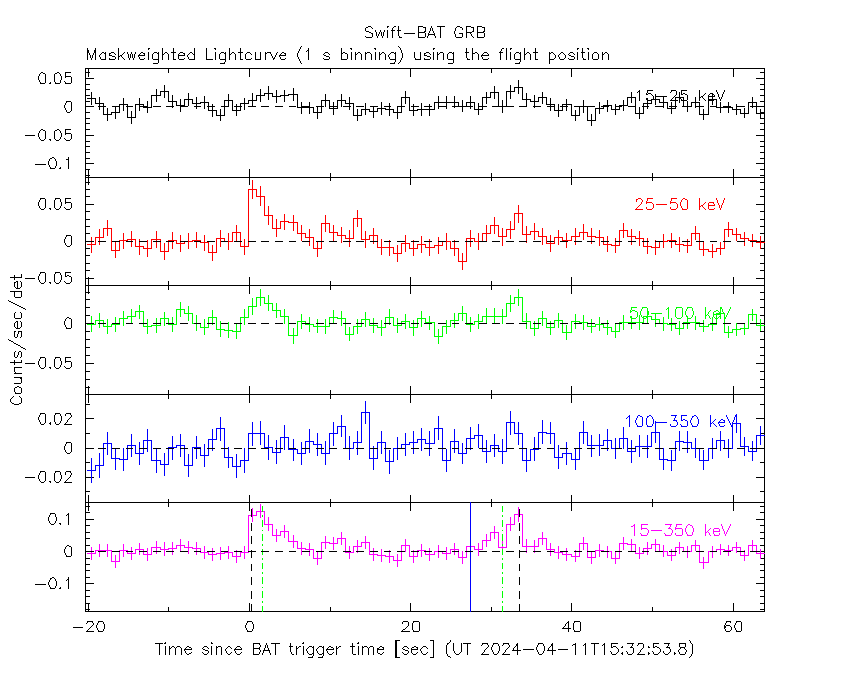

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.368 sec. to   33.920 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67542     ( -0.417198   0.427243 )
Norm@50keV  : 1.53227E-03    ( -0.000376666   0.000363158 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.50     using 59 bins.
 Reduced chi-squared = 0.72807
# Null hypothesis probability of 9.39e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 34.29 sec: 0.201794 ( -0.04627  0.046391 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.87549e-07 ( -1.23158e-07  1.25193e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.368 sec. to   33.920 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.69492     ( -0.516787   0.414632 )
Epeak [keV] : 9999.36      ( -9999.35 -9999.36 )
Norm@50keV  : 1.51642E-03    ( -0.000373949   0.00326873 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.52     using 59 bins.
 Reduced chi-squared = 0.741429
# Null hypothesis probability of 9.26e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 34.29 sec: 0.202286 ( -0.047357  0.046409 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.50331e-07 ( -1.78972e-07  9.50152e-08 ) ergs/cm2

Band function

Time interval is from   -0.368 sec. to   33.920 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.66924  (-2.33035  3.87619)
R^2/D10^2   : 0.106322  (-0.0767568   0.20003)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.61     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.46e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.857e-08   3.159e-08
25- 50  1.624e-07   6.623e-08
50-150  7.685e-08   4.682e-08
15-150  3.078e-07   1.520e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 161.228       (-103.507      -161.228)
Norm        : 0.818034       (-0.196091     0.327136)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.54     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.23e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.157e-08   4.058e-08
25- 50  1.340e-07   7.472e-08
50-150  2.723e-07   1.621e-07
15-150  4.779e-07   2.796e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.52940        (-2.06249      2.22902)
R1^2/D10^2  : 0.241226        (-0.103855      0.4714)
kT2 [keV]   : 86.7183        (-163.714      -195.05)
R2^2/D10^2  : 1.09269E-04    (-1.37601e-05   0.00119332)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   36.79     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.72e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.270e-08   5.126e-08
25- 50  1.423e-07   8.314e-08
50-150  3.096e-07   1.706e-07
15-150  5.346e-07   2.789e-07

Peak spectrum fit

Power-law model

Time interval is from   32.868 sec. to   33.868 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.60287     ( -0.493998   0.498937 )
Norm@50keV  : 7.40114E-03    ( -0.00226659   0.00224491 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.76     using 59 bins.
 Reduced chi-squared = 1.01333
# Null hypothesis probability of 4.47e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.951976 ( -0.295299  0.297704 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.92006e-08 ( -2.19464e-08  2.22886e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   32.868 sec. to   33.868 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.687966     ( -3.16176   1.54355 )
Epeak [keV] : 68.1151      ( -68.1137 -68.1137 )
Norm@50keV  : 2.26059E-02    ( -0.0226071   1.12428 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.17     using 59 bins.
 Reduced chi-squared = 1.02089
# Null hypothesis probability of 4.31e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.927039 ( -0.300572  0.303051 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.50609e-08 ( -2.36228e-08  2.41936e-08 ) ergs/cm2

Band function

Time interval is from   32.868 sec. to   33.868 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.5230  (-4.20155  6.19854)
R^2/D10^2   : 0.157973  (-0.15735   0.454724)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.84     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.08e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.119e-09   3.832e-09
25- 50  2.197e-08   1.370e-08
50-150  2.597e-08   1.669e-08
15-150  5.406e-08   3.265e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 155.108       (-100.66      -155.462)
Norm        : 3.99258       (-1.25162     1.88858)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.36     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.62e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.022e-08   6.010e-09
25- 50  1.904e-08   1.112e-08
50-150  3.811e-08   2.409e-08
15-150  6.737e-08   4.041e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.21171        (-8.21863      -8.21863)
R1^2/D10^2  : 0.668753        (-0.666602      -0.666602)
kT2 [keV]   : 27.5741        (-27.6744      -27.6744)
R2^2/D10^2  : 7.84132E-03    (-0.00772489   0.286381)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   56.73     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.10e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.290e-09   5.965e-09
25- 50  2.104e-08   1.268e-08
50-150  3.657e-08   2.269e-08
15-150  6.691e-08   3.314e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66875     ( -0.698833   0.71212 )
Norm@50keV  : 1.13214E-03    ( -0.000434326   0.000400394 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.30     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.27e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 27.76 sec: 0.148760 ( -0.0512186  0.0511857 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.91744e-07 ( -1.10999e-07  1.13939e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.28246     ( -1.50679   0.519183 )
Epeak [keV] : 104.414      (   )
Norm@50keV  : 4.98858E-04    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.50     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.26e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 27.76 sec: 0.149006 ( -0.025624  0.050884 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.88349e-07 ( -1.07821e-07  1.1315e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.31e-07
S(50-100 keV) = 1.64e-07

T90 vs. Hardness ratio plot

T90                                   = 33.2640000581741 sec.
Hardness ratio (energy fluence ratio) = 1.25191

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.43237
Count Ratio (50-100 keV) / (15-25 keV) = 0.815484

Mask shadow pattern

IMX = 8.434542707590268E-01, IMY = -1.152957767770145E-03

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-114.603400 -0.368000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
195.5788 -29.5613    3.0  32.1   77.5   1.7356   3.9 ------	UNKNOWN
200.7481 -16.2291    3.1  20.6   58.4   0.9483   3.8 ------	UNKNOWN
239.2581 -13.3309    2.1  49.7   13.6   2.9552   5.4 ------	UNKNOWN
242.4405  10.0951    2.5  51.0  -17.2   2.4280   4.6 ------	UNKNOWN
220.7686  17.4338    2.5  32.3  -35.8   1.2241   4.6 ------	UNKNOWN
166.6011  40.3002    2.1  44.2 -123.6   4.3618   5.4 ------	UNKNOWN
158.9416  40.4358    2.3  48.2 -129.5   5.5212   5.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.368000 27.396590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']

Post-slew image of 15-350 keV band

Time interval of the image:
158.596600 562.196600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9744 -15.6256    0.8  18.9  -30.4  11.4755  14.9    0.9	Sco X-1
254.3602  35.3113   36.6  43.1 -139.1  -0.4879  -0.3    5.1	Her X-1
256.0642 -37.8928    6.6  42.2  -15.8   2.0598   1.7    4.7	4U 1700-377
256.2600 -36.3588    8.5  41.1  -17.5   1.5766   1.4    9.3	GX 349+2
263.0097 -24.7863    5.2  37.8  -37.2   2.5368   2.2    2.4	GX 1+4
264.8672 -44.4022    5.8  51.5  -16.8  -3.8006  -2.0    6.0	4U 1735-44
268.3308  -1.4877    7.1  36.7  -77.1   2.6160   1.6    3.1	SW J1753.5-0127
270.2034 -24.9679    7.2  43.7  -41.8   2.4013   1.6    8.0	GX 5-1
270.1981 -25.8951   19.1  44.1  -40.6   0.9406   0.6   10.7	GRS 1758-258
273.9887 -14.0585   34.7  43.6  -58.4  -1.0415  -0.3    1.7	GX 17+2
275.9124 -30.2678    5.8  50.5  -38.2   5.4560   2.0    6.0	H1820-303
262.9609 -33.9971    7.9  43.3  -25.8  -1.8815  -1.5    9.8	GX 354-0
201.8198 -15.2651    2.6  32.1   77.5   7.1460   4.4 ------	UNKNOWN
200.3989  23.0677    2.9  39.5  144.8   7.8024   3.9 ------	UNKNOWN
253.0844 -47.4406    2.4  49.0   -5.9   6.4088   4.7 ------	UNKNOWN

Plot creation:
Sat Oct 19 18:31:53 EDT 2024
