Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Nov 16 17:37:19 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1228797
======================================================================

  Trigger: 01228797      Segment: 000

  BAT Trigger Time: 737523421.76   [s; MET]
      Trigger Stop: 737523422.784   [s; MET]
               UTC: 2024-05-16T03:36:28.304860    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 212.770476713133   Dec: -63.5049126358497  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.02
     Image Trigger?:     NO
     Rate S/N Ratio:     15.8113883008419  [ if not an image trigger ]
     Image S/N Ratio:    7.02

  Flight Position:   [ source = BAT ]
    RA: 212.770476713133   Dec: -63.5049126358497  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 212.783117894027   Dec: -63.4935184508366  [deg; J2000]
        { 14h 11m 07.9s , -63d 29' 36.7" }
         +/- 1.64449363365327 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.737380693548003 [arcmin] (formal 1-sigma fit error)
    SNR: 14.9451733346865

  Angular difference between Flight and Ground position is 0.762836 arcmin

  Partial Coding Fraction: 0.4570312    [ including projection effects ]

  Duration
     T90: 85.1199998855591 +/- 31.1484784603325
        Measured from: -3.66400003433228
                   to: 81.4559998512268     [s; relative to TRIGTIME]
     T50: 28.2879999876022 +/- 9.80286968393864
        Measured from: 1.39199995994568
                   to: 29.6799999475479     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0360000133514404
                   to: 0.96399998664856     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -4.75199997425079
                   to: 112.496000051498     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.541978   0.849380   0.865236   0.482731
           0.100470   0.092753   0.076767   0.063178 [error]
 Peak      0.018732   0.017982   0.050627   0.036445
           0.012317   0.011707   0.010138   0.008710 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.52e-07 3.73e-07 7.29e-07 3.52e-06 1.97e-06 4.77e-06   erg/cm2
              Error 3.76e-08 5.34e-08 7.06e-08 8.85e-07 1.87e-07 8.86e-07   erg/cm2
Peak flux Power-law 8.41e-02 1.71e-01 2.72e-01 9.61e-01 7.56e-01 1.49e+00   ph/cm2/s
              Error 9.95e-02 1.09e-01 8.28e-02 6.28e-01 2.66e-01 5.41e-01   ph/cm2/s

Fluence   Cutoff-PL 1.64e-07 3.76e-07 7.29e-07 3.49e-06 1.98e-06 4.56e-06   erg/cm2
              Error 3.76e-08 5.35e-08 7.07e-08 9.60e-07 1.87e-07 1.02e-06   erg/cm2
Peak flux Cutoff-PL 4.40e-02 1.45e-01 2.86e-01 9.60e-01 7.37e-01 1.46e+00   ph/cm2/s
              Error 9.61e-02 1.44e-01 1.17e-01 6.82e-01 3.09e-01 5.83e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.033    0.195    -      -           1.57e-03 1.66e-04   64.210 57
CPL   1.028    0.198    10000.0    0.0      1.58e-03 1.58e-04   64.280 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.332    0.693    -      -           6.18e-03 4.48e-03   46.810 57
CPL  -3.396   -0.039     131.4  -46.4      3.54e-02 4.81e-01   46.660 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 30.400000 sec.
T50 in the 50-300 keV band: 15.936000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  117.248   -4.752  112.496
T90    85.120   -3.664   81.456
T50    28.288    1.392   29.680
Peak    1.000   -0.036    0.964

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  212.7831   -63.4935   0.0129    43.2395    -3.3337         1.5243196     14.945 TRIG_01228797

Foreground time interval of the image:
 -4.752  15.341 (delta_t =  20.093 [sec])
Background time interval of the image:
-131.659  -4.752 (delta_t = 126.907 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

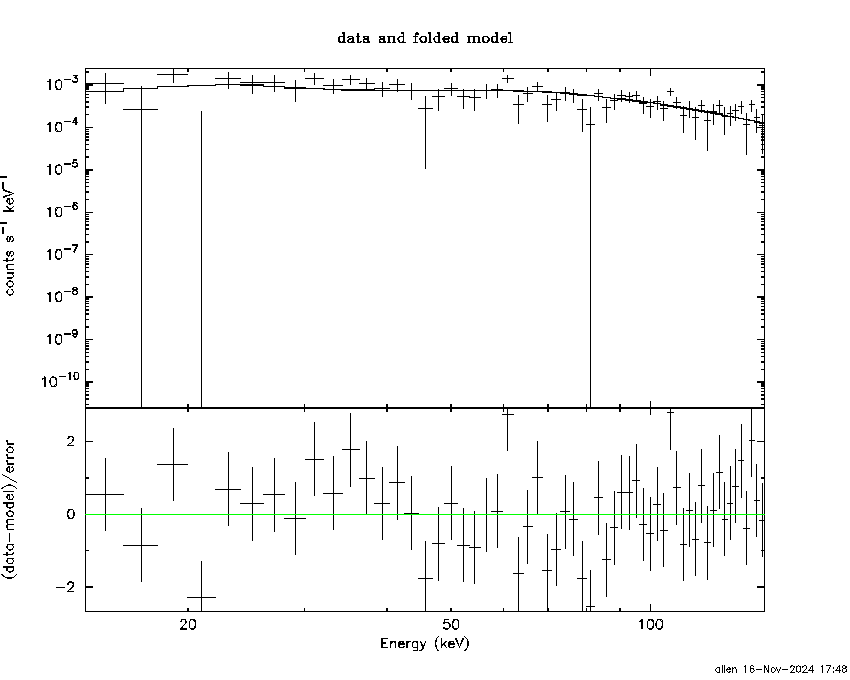

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -4.752 sec. to  112.496 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.03293     ( -0.200908   0.189686 )
Norm@50keV  : 1.57214E-03    ( -0.000168354   0.0001637 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   64.21     using 59 bins.
 Reduced chi-squared = 1.12649
# Null hypothesis probability of 2.39e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 117.2 sec: 0.181355 ( -0.020203  0.020423 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.96992e-06 ( -1.86772e-07  1.87116e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -4.752 sec. to  112.496 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02766     ( -0.216833   0.178313 )
Epeak [keV] : 1.00000E+04      ( -10000 -10000 )
Norm@50keV  : 1.58128E-03    ( -0.000168627   0.000147593 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   64.28     using 59 bins.
 Reduced chi-squared = 1.14786
# Null hypothesis probability of 2.09e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 117.2 sec: 0.181377 ( -0.02027  0.020359 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.97541e-06 ( -1.93242e-07  1.80936e-07 ) ergs/cm2

Band function

Time interval is from   -4.752 sec. to  112.496 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 27.3553  (-4.35709  5.93348)
R^2/D10^2   : 3.07793E-03  (-0.00136388   0.00224351)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  101.11     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.89e-04 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.462e-08   1.000e-08
25- 50  2.644e-07   4.952e-08
50-150  1.441e-06   2.151e-07
15-150  1.749e-06   2.344e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-18.1269      -200)
Norm        : 0.811855       (-0.0794095     0.0794095)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   91.79     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.38e-03 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.368e-07   3.662e-08
25- 50  4.556e-07   1.328e-07
50-150  9.992e-07   5.296e-07
15-150  1.692e-06   8.759e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.0157        (-2.44227      1.93614)
R1^2/D10^2  : 5.83084E-02        (-0.0300959      0.0910787)
kT2 [keV]   : 94.3419        (-47.2541      -94.3342)
R2^2/D10^2  : 1.24472E-04    (-9.181e-05   0.000452523)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.62     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.44e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.480e-07   6.758e-08
25- 50  4.148e-07   1.741e-07
50-150  1.456e-06   1.420e-06
15-150  2.019e-06   1.541e-06

Peak spectrum fit

Power-law model

Time interval is from   -0.036 sec. to    0.964 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.332172     ( -0.777687   0.608688 )
Norm@50keV  : 6.17718E-03    ( -0.00617718   0.00278931 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   46.81     using 59 bins.
 Reduced chi-squared = 0.821228
# Null hypothesis probability of 8.30e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.756256 ( -0.253011  0.278384 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.07006e-08 ( -2.41518e-08  2.41518e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.036 sec. to    0.964 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.39617     ( 3.30248   3.2254 )
Epeak [keV] : 131.412      ( -40.5575 -133.289 )
Norm@50keV  : 3.54257E-02    ( -0.0319729   0.930729 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   46.66     using 59 bins.
 Reduced chi-squared = 0.833214
# Null hypothesis probability of 8.09e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.736919 ( -0.328061  0.290101 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.3947e-10 ( -6.39439e-10  1.79458e-08 ) ergs/cm2

Band function

Time interval is from   -0.036 sec. to    0.964 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 44.3600  (-15.4143  59.0581)
R^2/D10^2   : 4.57590E-03  (-0.00457669   0.0101391)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   46.62     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.35e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.077e-09   6.835e-10
25- 50  7.560e-09   4.427e-09
50-150  8.156e-08   4.625e-08
15-150  9.019e-08   5.250e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-66.4755      -200)
Norm        : 3.66964       (-1.18987     1.18987)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   59.37     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.89e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.156e-09   5.695e-09
25- 50  1.761e-08   1.101e-08
50-150  3.863e-08   2.395e-08
15-150  6.540e-08   3.931e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.84376        (-3.75959      7.39815)
R1^2/D10^2  : 8.36358        (-8.60735      273.019)
kT2 [keV]   : 49.0903        (-18.1516      96.0224)
R2^2/D10^2  : 3.49400E-03    (-0.00352569   0.00473331)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.43     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.45e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.183e-09   5.290e-09
25- 50  8.722e-09   4.351e-09
50-150  8.055e-08   4.597e-08
15-150  9.645e-08   5.125e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.677061     ( -0.206073   0.190027 )
Norm@50keV  : 4.92929E-03    ( -0.000612489   0.000585566 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   69.73     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.20e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 20.09 sec: 0.570873 ( -0.06215  0.0631341 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.22145e-06 ( -1.05586e-07  1.05591e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.677915     ( -0.227414   0.182399 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 4.98741E-03    ( -0.000633319   0.00109696 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   69.84     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.01e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 20.09 sec: 0.575415 ( -0.067402  0.058758 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.22218e-06 ( -1.05818e-07  1.05446e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.73e-07
S(50-100 keV) = 7.29e-07

T90 vs. Hardness ratio plot

T90                                   = 85.1199998855591 sec.
Hardness ratio (energy fluence ratio) = 1.95442

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.56719
Count Ratio (50-100 keV) / (15-25 keV) = 1.59644

Mask shadow pattern

IMX = 9.387684073228436E-01, IMY = 5.468377136323409E-02

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-131.659400 -4.752000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.8055 -62.7831   19.8  54.4    1.4  -0.3802  -0.6    4.2	GX 301-2
244.9694 -15.6456    0.7  18.9  108.9   4.7752  17.7    0.7	Sco X-1
256.0295 -37.8432    1.5   7.3  -20.9   1.8758   8.0    2.0	4U 1700-377
256.2970 -36.3818    3.8   5.8  -20.3   0.7065   3.0    7.1	GX 349+2
263.0224 -24.6859    3.4   7.7 -170.5   0.7465   3.4    3.7	GX 1+4
264.9079 -44.5448    4.9  15.0  -51.1   0.5197   2.4    9.1	4U 1735-44
268.3675  -1.4530  152.4  30.9  170.7  -0.0225  -0.1    0.0	SW J1753.5-0127
270.1614 -25.1911    3.6  12.4 -143.8   0.7622   3.4    9.5	GX 5-1
270.3583 -25.6164    3.7  12.3 -141.6   0.8028   3.6    8.2	GRS 1758-258
274.0218 -14.0795    2.1  22.4 -164.7   1.3055   5.5    2.8	GX 17+2
276.0207 -30.3456    4.9  15.9 -117.0   0.5445   2.3    5.1	H1820-303
284.9076 -24.7954    3.5  24.8 -127.6   0.8149   3.3   10.3	HT1900.1-2455
288.9355  11.0415    0.0  51.4 -169.9   0.5813   0.9    9.9	GRS 1915+105
262.9994 -33.8247    5.7   5.6  -84.4   0.4431   2.0    0.8	GX 354-0

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-4.752000 15.340590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.5802 -62.6851    7.2  54.5    1.6  -0.3821  -1.6    5.5	GX 301-2
245.0679 -15.5256    8.6  19.0  109.3   0.0907   1.3    8.6	Sco X-1
255.8227 -37.7704    3.4   7.3  -19.5   0.1934   3.4    8.9	4U 1700-377
256.6321 -36.3437   15.6   5.8  -22.9   0.0427   0.7   10.6	GX 349+2
263.0269 -24.7788  208.0   7.6 -170.0   0.0031   0.1    2.2	GX 1+4
264.8950 -44.3401   40.1  14.9  -51.4  -0.0182  -0.3    9.3	4U 1735-44
268.3260  -1.3338    2.6  31.0  170.5  -0.3058  -4.4    7.6	SW J1753.5-0127
270.1120 -25.0660    3.4  12.4 -144.4  -0.2001  -3.4    9.4	GX 5-1
270.2713 -25.8395    6.2  12.1 -140.8   0.1089   1.9    6.0	GRS 1758-258
274.1961 -13.9589    0.0  22.6 -164.5  -0.0772  -1.2   12.0	GX 17+2
276.1435 -30.2868    0.0  16.0 -117.2  -0.0610  -0.9   12.3	H1820-303
285.1947 -24.9305   16.8  25.0 -127.0  -0.0498  -0.7    8.7	HT1900.1-2455
288.7976  10.9461   39.6  51.3 -170.0   0.0439   0.3    0.1	GRS 1915+105
263.0102 -34.0126    9.4   5.7  -82.9   0.0740   1.2   10.7	GX 354-0
223.1226 -58.9937    2.1  36.7   -1.4   0.4277   5.5 ------	UNKNOWN
212.7831 -63.4935    0.8  43.2   -3.3   1.5245  14.9 ------	UNKNOWN
260.5267 -82.4603    3.0  51.8  -31.2   0.7660   3.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
128.940610 962.281100

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5404 -40.5476   26.4  48.9  -37.9   0.2401   0.4    0.7	Vela X-1
170.3206 -60.6208  113.9  19.7  -38.3  -0.0186  -0.1    0.2	Cen X-3
186.2052 -62.7485    0.0  11.9  -35.6   0.5394   3.3   12.5	GX 301-2
255.8365 -37.8913    4.2  36.2  128.6   1.0251   2.8    7.6	4U 1700-377
256.3467 -36.2859    5.9  37.8  127.8   0.8266   2.0    9.3	GX 349+2
264.5826 -44.5466    7.0  34.5  144.5  -0.5023  -1.6    9.0	4U 1735-44
263.0042 -33.8071   46.9  42.7  133.2   0.1521   0.2    1.8	GX 354-0
176.6652 -26.6411    2.4  43.6   13.1   1.4553   4.9 ------	UNKNOWN
305.6220 -42.3450    2.3  54.1  177.1   3.3350   5.1 ------	UNKNOWN
177.8898 -39.0481    2.7  32.0    5.9   0.9216   4.3 ------	UNKNOWN
140.8923 -39.7646    2.3  47.2  -32.8   2.0095   4.9 ------	UNKNOWN
130.3136 -49.9885    2.2  43.7  -49.9   2.3358   5.3 ------	UNKNOWN

Plot creation:
Sat Nov 16 17:48:15 EST 2024
