TDRSS scaled map for 1245636
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 30 Jul 24 07:53:21 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1245636, Seg_Num: 0
GRB_RA: 37.829d {+02h 31m 19s} (J2000),
38.285d {+02h 33m 08s} (current),
36.908d {+02h 27m 38s} (1950)
GRB_DEC: +59.074d {+59d 04' 27"} (J2000),
+59.182d {+59d 10' 55"} (current),
+58.853d {+58d 51' 10"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=1494 [image_cnts]
TRIGGER_DUR: 64.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 20521 TJD; 212 DOY; 24/07/30
GRB_TIME: 28326.09 SOD {07:52:06.09} UT
GRB_PHI: -99.78 [deg]
GRB_THETA: 8.92 [deg]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 7.74 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 -2 +0 +1 -24 +0
SUN_POSTN: 130.06d {+08h 40m 15s} +18.35d {+18d 21' 15"}
SUN_DIST: 75.21 [deg] Sun_angle= 6.1 [hr] (West of Sun)
MOON_POSTN: 63.12d {+04h 12m 28s} +25.51d {+25d 30' 46"}
MOON_DIST: 37.86 [deg]
MOON_ILLUM: 26 [%]
GAL_COORDS: 135.47, -1.35 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 57.22, 41.43 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 306.85,12.91 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 30 Jul 24 08:03:47 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1245636, Seg_Num: 0
POINT_RA: 24.127d {+01h 36m 30s} (J2000)
POINT_DEC: +54.237d {+54d 14' 12"} (J2000)
MAP_DATE: 20521 TJD; 212 DOY; 24/07/30
MAP_TIME: 28326.09 SOD {07:52:06.09} UT
TRIGGER_DUR: 64.000 [sec]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 7.74 [sigma]
MAP_URL: sw01245636000msbsm.fits
SUN_POSTN: 130.07d {+08h 40m 16s} +18.35d {+18d 21' 09"}
MOON_POSTN: 63.22d {+04h 12m 53s} +25.54d {+25d 32' 06"}
MOON_ILLUM: 26 [%]
GAL_COORDS: 129.55, -8.05 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 45.46, 40.50 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

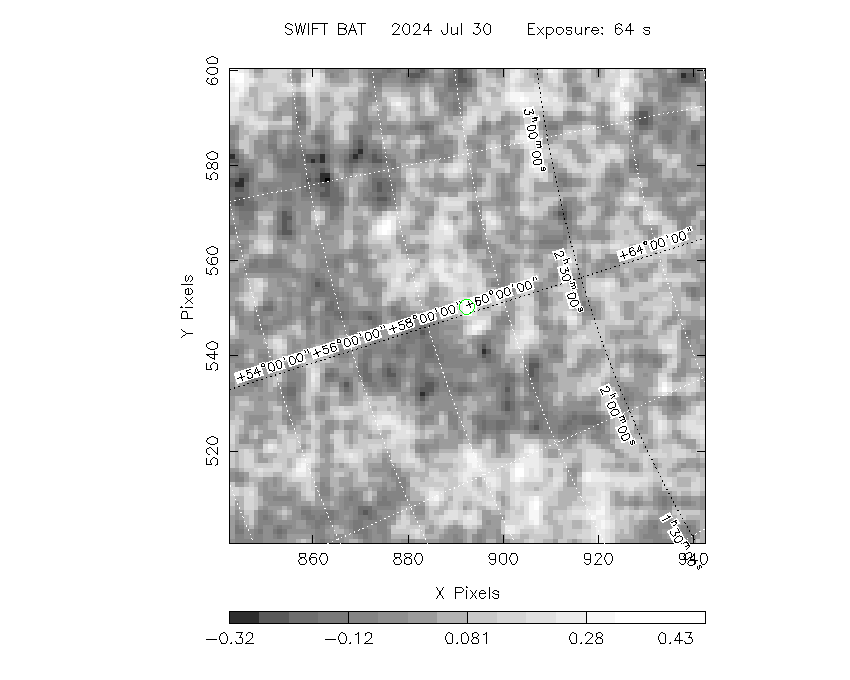

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (37.829, +59.074).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 37.829 +59.074 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 10.5 154.1 -0.0420 -0.4 0.0 V709 Cas
19.5112 65.2916 0.0 11.3 -161.3 0.0080 0.1 0.0 4U 0114+65
52.8001 43.9046 0.0 21.2 -44.1 0.1346 1.2 0.0 GK Per
53.7495 53.1732 0.0 17.4 -70.1 0.0582 0.5 0.0 V0332+53
58.8458 31.0497 0.0 33.9 -32.5 0.0697 0.5 0.0 X Per
93.9015 71.0375 0.0 33.6 -118.0 0.0985 0.6 0.0 Mkn 3
166.6979 72.5686 0.0 50.6 -137.8 -0.2450 -0.5 0.0 NGC 3516
308.1103 40.9526 0.0 50.3 136.4 -0.4202 -0.4 0.0 Cyg X-3
314.6979 41.7770 0.0 46.1 132.8 -0.1119 -0.2 0.0 GRO J2058+42
321.1638 50.9739 0.0 37.1 140.2 -0.0249 -0.1 0.0 IGR J21247+5058
323.4320 51.1236 0.0 35.8 139.2 -0.3670 -2.3 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 41.7 120.7 -0.3431 -0.7 0.0 Cyg X-2
331.9808 54.5197 0.0 29.7 140.8 -0.2527 -2.0 0.0 4U 2206+54
350.9671 42.1830 0.0 24.9 103.3 -0.1477 -1.0 0.0 1ES 2321+419
310.7222 39.0400 3.1 50.2 132.8 3.8123 3.8 ------ UNKNOWN
310.6547 51.9598 4.1 42.1 146.9 0.6253 2.8 ------ UNKNOWN
29.7283 48.1785 3.5 7.0 -3.7 0.3055 3.3 ------ UNKNOWN
51.4634 26.8094 3.9 34.0 -18.6 0.3308 3.0 ------ UNKNOWN
220.4361 79.3866 3.8 46.0 -155.5 0.5785 3.0 ------ UNKNOWN
140.7721 80.5845 2.8 40.8 -138.5 0.7161 4.1 ------ UNKNOWN
73.9932 44.3037 3.8 33.2 -65.0 0.5097 3.0 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
308.1103 40.9526 0.0 50.3 136.4 -0.4202 -0.4 0.0 Cyg X-3
326.1717 38.3217 0.0 41.7 120.7 -0.3431 -0.7 0.0 Cyg X-2
310.7222 39.0400 3.1 50.2 132.8 3.8123 3.8 ------ UNKNOWN
310.6547 51.9598 4.1 42.1 146.9 0.6253 2.8 ------ UNKNOWN
29.7283 48.1785 3.5 7.0 -3.7 0.3055 3.3 ------ UNKNOWN
51.4634 26.8094 3.9 34.0 -18.6 0.3308 3.0 ------ UNKNOWN
220.4361 79.3866 3.8 46.0 -155.5 0.5784 3.0 ------ UNKNOWN
140.7721 80.5845 2.8 40.8 -138.5 0.7161 4.1 ------ UNKNOWN
73.9932 44.3037 3.8 33.2 -65.0 0.5097 3.0 ------ UNKNOWN
Search for UNKNOWN source R.A. = 29.7283 Dec. = +48.1785 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 51.4634 Dec. = +26.8094 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 73.9932 Dec. = +44.3037 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 140.7721 Dec. = +80.5845 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 220.4361 Dec. = +79.3866 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 310.6547 Dec. = +51.9598 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 310.7222 Dec. = +39.0400 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1245636/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Tue Jul 30 04:05:17 EDT 2024
