TDRSS lightcurve for Trigger=1246989
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 05 Aug 24 14:39:47 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1246989, Seg_Num: 0
GRB_RA: 254.239d {+16h 56m 57s} (J2000),
254.511d {+16h 58m 03s} (current),
253.687d {+16h 54m 45s} (1950)
GRB_DEC: +18.323d {+18d 19' 24"} (J2000),
+18.286d {+18d 17' 11"} (current),
+18.400d {+18d 24' 01"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3136 [cnts] Image_Peak=156 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 149 E_range: 25-100 keV
BKG_INTEN: 19455 [cnts]
BKG_TIME: 52118.06 SOD {14:28:38.06} UT
BKG_DUR: 8 [sec]
GRB_DATE: 20527 TJD; 218 DOY; 24/08/05
GRB_TIME: 52134.12 SOD {14:28:54.12} UT
GRB_PHI: 30.82 [deg]
GRB_THETA: 19.81 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 10.90 [sigma]
IMAGE_SIGNIF: 7.47 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +2 -2 +0 +0 +33 +0
SUN_POSTN: 136.13d {+09h 04m 31s} +16.72d {+16d 43' 16"}
SUN_DIST: 110.00 [deg] Sun_angle= -7.9 [hr] (East of Sun)
MOON_POSTN: 149.97d {+09h 59m 53s} +15.74d {+15d 44' 22"}
MOON_DIST: 98.30 [deg]
MOON_ILLUM: 1 [%]
GAL_COORDS: 37.90, 33.23 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 250.12, 40.68 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This Notice was delayed by more than 60 sec past the end of the trigger integration interval;
COMMENTS: probably due to it occurring during a Malindi downlink session.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 12.54,-1.02 [deg].
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 05 Aug 24 14:49:52 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 1246989, Seg_Num: 0
GRB_RA: 254.239d {+16h 56m 57s} (J2000),
254.511d {+16h 58m 03s} (current),
253.687d {+16h 54m 45s} (1950)
GRB_DEC: +18.323d {+18d 19' 24"} (J2000),
+18.286d {+18d 17' 11"} (current),
+18.400d {+18d 24' 01"} (1950)
GRB_DATE: 20527 TJD; 218 DOY; 24/08/05
GRB_TIME: 52134.12 SOD {14:28:54.12} UT
TRIGGER_INDEX: 149
GRB_PHI: 30.82 [deg]
GRB_THETA: 19.81 [deg]
DELTA_TIME: -5.00 [sec]
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 10.90 [sigma]
IMAGE_SIGNIF: 7.47 [sigma]
LC_URL: sw01246989000msb.lc
GCN template for BAT paragraph
Click here!
At 14:28:54 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 240805 ***A*** (trigger=1246989). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 254.239, +18.323 which is
RA(J2000) = 16h 56m 57s
Dec(J2000) = +18d 19' 24"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~2830 counts/sec (15-350 keV), at ~16 sec after the trigger.
Test version of draft template
Initial TDRSS lightcurve and spacecraft attitude plot
TDRSS lightcurve from T0-30 to T0+50 (zoom in)
TDRSS light curve from T0-1 to T0+2 (More zoom in)
1.6s binned TDRSS light curve
Tilan's background subtracted TDRSS light curves

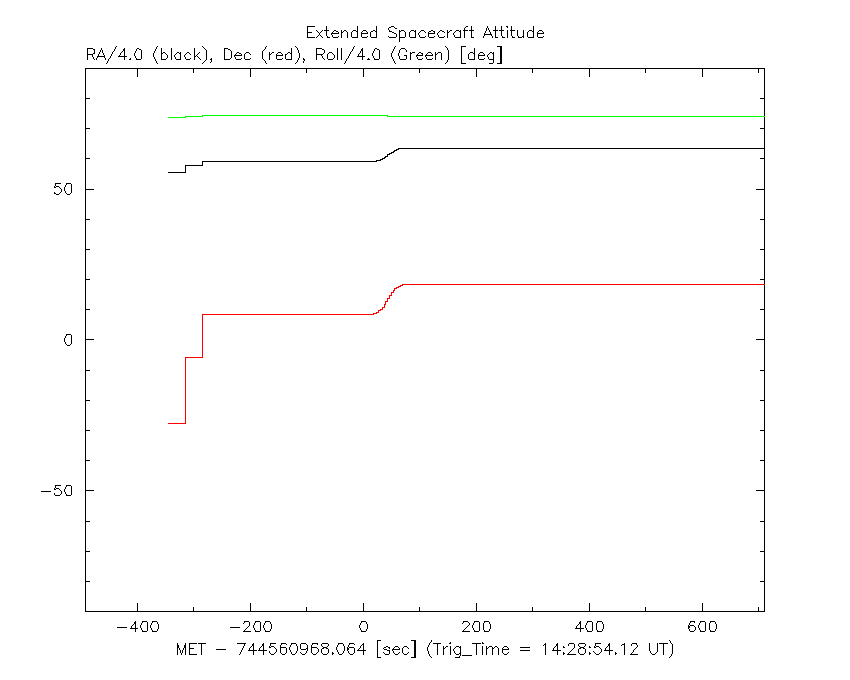

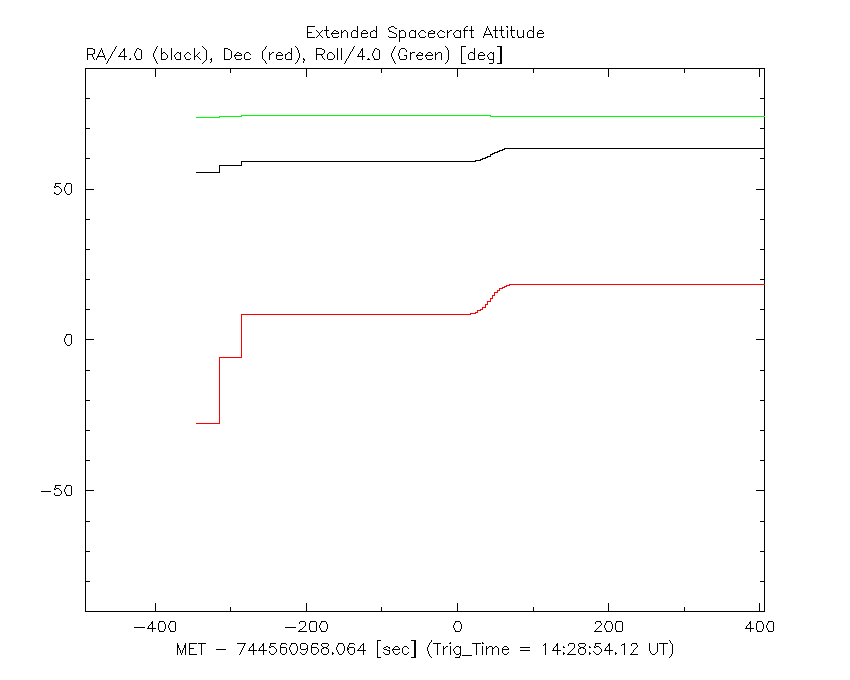

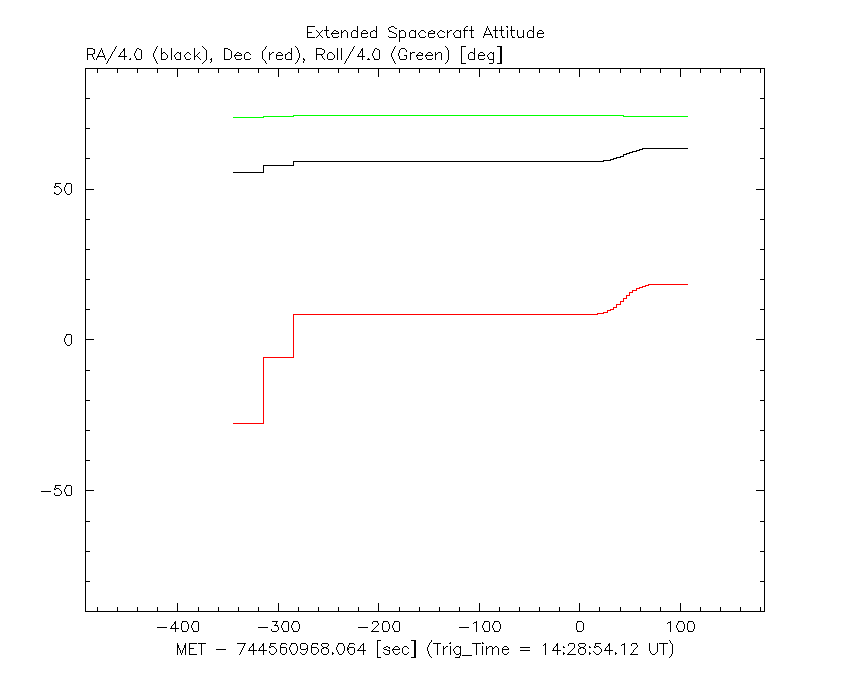

Extended TDRSS light curve and spacecraft attitude plot(s)
Extended TDRSS lc No.1
Extended TDRSS lc No.2
Extended TDRSS lc No.3
Extended TDRSS lc No.4
TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 62.976 s +/- 2.89772 s
Estimated T50 duration: 27.648 s +/- 4.096 s
Estimated Peak Interval: MET 744561012.60799992 +/- 0.500000 s
Estimated background rate 1: 5018.077 near MET 744560956.032000 s
Estimated background rate 2: 4908.168 near MET 744561110.912000 s
Estimated total duration: 99.84 s (for data selection)
(from MET 744560968.064000 to MET 744561067.904000)
Estimated total fluence: 66039.606284 count
Created GTI with 24 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 254.239 18.323 0.083
No match
Search for this GRB position to the source locations in BAT transient monitor (search radius within 12 arcmin)
python compare_catalog.py 254.239 18.323
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2024 8 5 14 283.461794 42.093342
Obj: 2024 8 5 14 194.197997 -31.515752
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2024 8 5 14 259.122949 14.580607
Obj: 2024 8 5 14 154.789012 -36.051648
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2024 8 5 14 256.492751 9.999751
Obj: 2024 8 5 14 149.084377 -32.208253
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2024 8 5 14 238.357100 -26.786240
Obj: 2024 8 5 14 116.230760 -15.036993
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2024 8 5 14 11.026701 -75.215793
Obj: 2024 8 5 14 122.887855 14.969619
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2024 8 5 14 156.804709 -35.618075
Obj: 2024 8 5 14 77.635965 49.346114
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2024 8 5 14 39.944824 74.786387
Obj: 2024 8 5 14 245.111674 -6.356718
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2024 8 5 14 227.299009 27.311176
Obj: 2024 8 5 14 301.198399 -69.248112
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger1246989/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
