TDRSS scaled map for 1252402
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 04 Sep 24 16:05:13 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1252402, Seg_Num: 0
GRB_RA: 136.440d {+09h 05m 46s} (J2000),
136.700d {+09h 06m 48s} (current),
135.913d {+09h 03m 39s} (1950)
GRB_DEC: -30.506d {-30d 30' 22"} (J2000),
-30.606d {-30d 36' 21"} (current),
-30.306d {-30d 18' 19"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 19893 [cnts] Image_Peak=580 [image_cnts]
TRIGGER_DUR: 8.192 [sec]
TRIGGER_INDEX: 334 E_range: 25-100 keV
BKG_INTEN: 136122 [cnts]
BKG_TIME: 57765.88 SOD {16:02:45.88} UT
BKG_DUR: 64 [sec]
GRB_DATE: 20557 TJD; 248 DOY; 24/09/04
GRB_TIME: 57859.32 SOD {16:04:19.32} UT
GRB_PHI: -155.11 [deg]
GRB_THETA: 15.83 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 14.42 [sigma]
IMAGE_SIGNIF: 10.20 [sigma]
MERIT_PARAMS: +1 +0 +0 +3 +2 +0 -100 +0 -69 +0
SUN_POSTN: 163.97d {+10h 55m 52s} +6.83d {+06d 49' 34"}
SUN_DIST: 45.64 [deg] Sun_angle= 1.8 [hr] (West of Sun)
MOON_POSTN: 180.22d {+12h 00m 52s} +0.51d {+00d 30' 49"}
MOON_DIST: 51.72 [deg]
MOON_ILLUM: 2 [%]
GAL_COORDS: 255.92, 11.11 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 151.23,-44.58 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 288.93,-1.23 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 04 Sep 24 16:14:25 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1252402, Seg_Num: 0
POINT_RA: 147.805d {+09h 51m 13s} (J2000)
POINT_DEC: -43.514d {-43d 30' 51"} (J2000)
MAP_DATE: 20557 TJD; 248 DOY; 24/09/04
MAP_TIME: 57859.32 SOD {16:04:19.32} UT
TRIGGER_DUR: 8.192 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 14.42 [sigma]
IMAGE_SIGNIF: 10.20 [sigma]
MAP_URL: sw01252402000msbsm.fits
SUN_POSTN: 163.97d {+10h 55m 54s} +6.82d {+06d 49' 26"}
MOON_POSTN: 180.28d {+12h 01m 08s} +0.48d {+00d 28' 38"}
MOON_ILLUM: 2 [%]
GAL_COORDS: 271.70, 8.16 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 172.52,-51.76 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

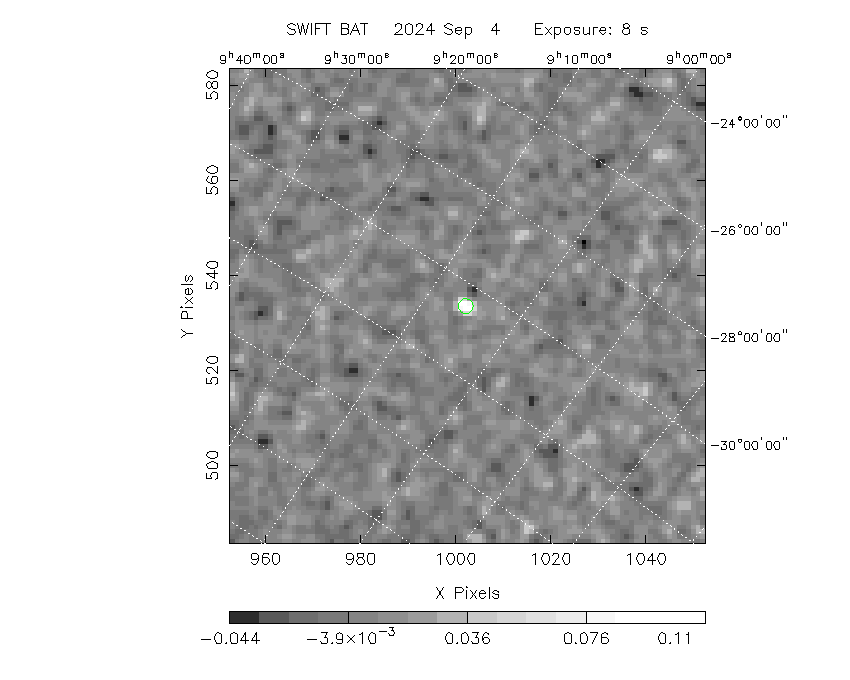

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (136.440, -30.506).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 136.440 -30.506 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.1921 -66.3675 0.0 40.9 97.0 -0.1425 -1.4 0.0 LMC X-4
128.8361 -45.1764 0.0 13.6 139.8 -0.0071 -0.6 0.0 PSR B0833-45
135.5286 -40.5547 0.0 9.6 167.2 -0.0056 -0.5 0.0 Vela X-1
141.1092 -55.2067 0.0 12.5 81.4 -0.0160 -1.3 0.0 4U 0919-54
146.4116 -31.1911 0.0 12.4 -122.2 0.0118 0.9 0.0 NGC 2997
146.9173 -30.9489 0.0 12.6 -120.1 0.0065 0.5 0.0 MCG -5-23-016
152.4417 -58.2933 0.0 15.0 54.0 -0.0256 -2.1 0.0 GRO J1008-57
170.3158 -60.6230 0.0 21.8 33.0 -0.0068 -0.5 0.0 Cen X-3
172.6417 -62.9308 0.0 24.1 35.5 -0.0086 -0.6 0.0 IGR J11305-6256
174.7572 -37.7386 0.0 21.1 -33.2 -0.0138 -1.1 0.0 NGC 3783
176.8692 -61.9539 0.0 25.1 30.8 0.0274 1.9 0.0 1E 1145.1-6141
177.0001 -62.2069 0.0 25.3 31.2 -0.0092 -0.6 0.0 4U 1145-61
177.1387 -67.7500 0.0 28.7 40.7 -0.0118 -0.7 0.0 EXO 0748-676
186.6567 -62.7703 0.0 29.5 27.7 0.0259 1.6 0.0 GX 301-2
188.9026 -39.9093 0.0 30.6 -19.0 0.0074 0.5 0.0 NGC 4507
195.6985 -63.8358 0.0 33.6 27.2 0.0212 1.2 0.0 PSR B1259-63
196.3645 -49.4682 0.0 33.3 1.0 -0.0333 -2.2 0.0 NGC 4945
201.3651 -43.0191 0.0 38.3 -8.2 0.0224 1.3 0.0 Cen A
201.6504 -62.1361 0.0 36.0 23.5 0.0309 1.6 0.0 4U 1323-619
207.3302 -30.3094 0.0 48.3 -21.6 -0.0003 -0.0 0.0 IC 4329A
213.2913 -65.3390 0.0 41.3 28.3 -0.0316 -1.1 0.0 Cir Galaxy
228.4837 -59.1356 0.0 49.4 21.6 -0.0564 -1.2 0.0 PSR B1509-58
231.2913 -65.3390 0.0 48.7 29.9 -0.0453 -0.9 0.0 Circinus AGN
235.5971 -52.3861 0.0 55.8 15.9 0.0560 0.5 0.0 H 1538-522
136.4421 -30.5110 1.1 15.8 -155.1 0.1263 10.4 ------ UNKNOWN
113.7697 -0.0496 2.5 53.0 -161.1 0.1638 4.7 ------ UNKNOWN
160.5981 -17.5915 2.7 28.1 -90.0 0.0780 4.2 ------ UNKNOWN
144.7310 2.9407 2.5 46.5 -120.8 0.4089 4.5 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.5286 -40.5547 0.0 9.6 167.2 -0.0056 -0.5 0.0 Vela X-1
170.3158 -60.6230 0.0 21.8 33.0 -0.0068 -0.5 0.0 Cen X-3
186.6567 -62.7703 0.0 29.5 27.7 0.0259 1.6 0.0 GX 301-2
136.4421 -30.5110 1.1 15.8 -155.1 0.1263 10.4 ------ UNKNOWN
113.7697 -0.0496 2.5 53.0 -161.1 0.1638 4.7 ------ UNKNOWN
160.5981 -17.5915 2.7 28.1 -90.0 0.0780 4.2 ------ UNKNOWN
144.7310 2.9407 2.5 46.5 -120.8 0.4089 4.5 ------ UNKNOWN
Search for UNKNOWN source R.A. = 113.7697 Dec. = -0.0496 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 136.4421 Dec. = -30.5110 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 144.7310 Dec. = +2.9407 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 160.5981 Dec. = -17.5915 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1252402/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Wed Sep 4 12:16:09 EDT 2024
