TDRSS scaled map for 1252695
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 05 Sep 24 18:26:22 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1252695, Seg_Num: 0
GRB_RA: 345.799d {+23h 03m 12s} (J2000),
346.092d {+23h 04m 22s} (current),
345.208d {+23h 00m 50s} (1950)
GRB_DEC: +35.495d {+35d 29' 42"} (J2000),
+35.628d {+35d 37' 42"} (current),
+35.226d {+35d 13' 32"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 2923 [cnts] Image_Peak=104 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 155 E_range: 50-350 keV
BKG_INTEN: 12856 [cnts]
BKG_TIME: 66349.87 SOD {18:25:49.87} UT
BKG_DUR: 8 [sec]
GRB_DATE: 20558 TJD; 249 DOY; 24/09/05
GRB_TIME: 66363.63 SOD {18:26:03.63} UT
GRB_PHI: 128.75 [deg]
GRB_THETA: 37.68 [deg]
SOLN_STATUS: 0x83
RATE_SIGNIF: 29.37 [sigma]
IMAGE_SIGNIF: 6.52 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +3 -4 +0 +0 +74 +0
SUN_POSTN: 164.96d {+10h 59m 50s} +6.42d {+06d 25' 06"}
SUN_DIST: 137.94 [deg] Sun_angle= 11.9 [hr] (West of Sun)
MOON_POSTN: 191.69d {+12h 46m 45s} -5.70d {-05d 41' 54"}
MOON_DIST: 141.93 [deg]
MOON_ILLUM: 6 [%]
GAL_COORDS: 99.32,-22.37 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 3.46, 37.75 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: Since the IMAGE_SIGNIF is less than 7 sigma, this is a questionable detection.
COMMENTS: This trigger occurred at longitude,latitude = 157.14,20.37 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 05 Sep 24 18:36:07 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1252695, Seg_Num: 0
POINT_RA: 34.129d {+02h 16m 31s} (J2000)
POINT_DEC: +51.413d {+51d 24' 46"} (J2000)
MAP_DATE: 20558 TJD; 249 DOY; 24/09/05
MAP_TIME: 66363.63 SOD {18:26:03.63} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x83
RATE_SIGNIF: 29.37 [sigma]
IMAGE_SIGNIF: 6.52 [sigma]
MAP_URL: sw01252695000msbsm.fits
SUN_POSTN: 164.96d {+10h 59m 51s} +6.42d {+06d 24' 57"}
MOON_POSTN: 191.76d {+12h 47m 02s} -5.74d {-05d 44' 10"}
MOON_ILLUM: 6 [%]
GAL_COORDS: 136.18, -9.26 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 50.75, 35.31 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

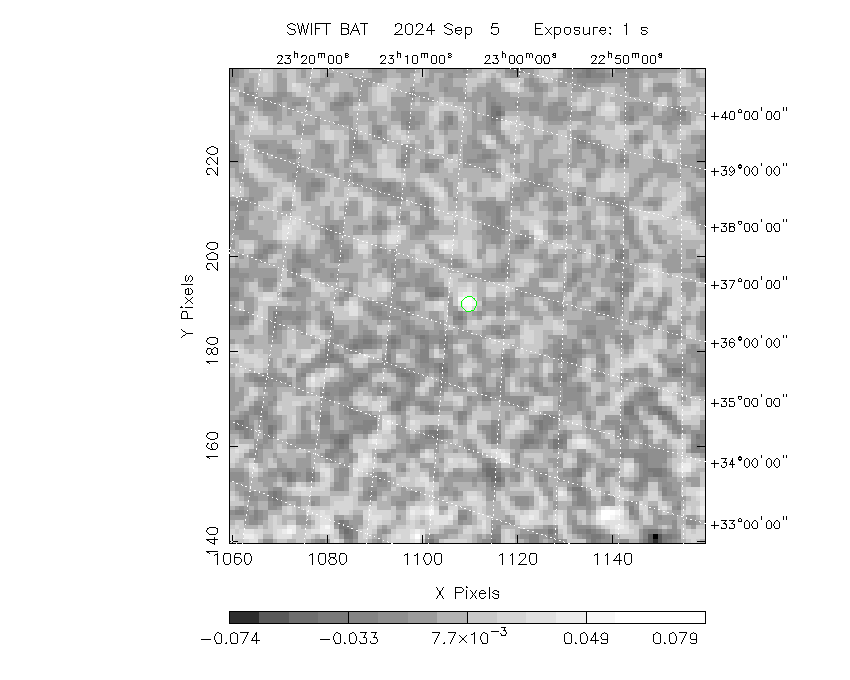

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (345.799, +35.495).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 345.799 +35.495 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 17.1 172.4 -0.0084 -1.6 0.0 V709 Cas
19.5112 65.2916 0.0 15.8 -158.4 0.0092 2.0 0.0 4U 0114+65
52.8001 43.9046 0.0 14.6 -21.9 0.0022 0.5 0.0 GK Per
53.7495 53.1732 0.0 12.1 -61.6 -0.0043 -0.9 0.0 V0332+53
58.8458 31.0497 0.0 27.3 -6.9 0.0014 0.3 0.0 X Per
83.6332 22.0145 0.0 48.0 -27.0 -0.0097 -1.0 0.0 Crab
93.9015 71.0375 0.0 32.7 -104.3 -0.0105 -1.2 0.0 Mkn 3
314.6979 41.7770 0.0 52.7 157.3 -0.0152 -0.5 0.0 GRO J2058+42
321.1638 50.9739 0.0 43.8 164.0 0.0095 0.9 0.0 IGR J21247+5058
323.4320 51.1236 0.0 42.5 163.1 -0.0131 -1.3 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 48.1 146.6 -0.0467 -2.2 0.0 Cyg X-2
331.9808 54.5197 0.0 36.3 164.4 0.0061 0.8 0.0 4U 2206+54
350.9671 42.1830 0.0 30.5 134.1 -0.0012 -0.1 0.0 1ES 2321+419
352.5723 22.5806 3.3 43.0 108.3 0.1685 3.5 ------ UNKNOWN
345.8383 35.5446 1.5 37.6 128.8 0.1006 7.6 ------ UNKNOWN
63.4161 75.8733 2.6 27.0 -120.3 0.0267 4.5 ------ UNKNOWN
208.0586 81.3728 2.5 47.2 -134.3 0.0745 4.6 ------ UNKNOWN
98.2414 29.7745 2.2 51.3 -46.5 0.1824 5.3 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.6332 22.0145 0.0 48.0 -27.0 -0.0097 -1.0 0.0 Crab
326.1717 38.3217 0.0 48.1 146.6 -0.0467 -2.2 0.0 Cyg X-2
352.5723 22.5806 3.3 43.0 108.3 0.1685 3.5 ------ UNKNOWN
345.8383 35.5446 1.5 37.6 128.8 0.1006 7.6 ------ UNKNOWN
63.4161 75.8733 2.6 27.0 -120.3 0.0267 4.5 ------ UNKNOWN
208.0586 81.3728 2.5 47.2 -134.3 0.0745 4.6 ------ UNKNOWN
98.2414 29.7745 2.2 51.3 -46.5 0.1824 5.3 ------ UNKNOWN
Search for UNKNOWN source R.A. = 63.4161 Dec. = +75.8733 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 98.2414 Dec. = +29.7745 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 208.0586 Dec. = +81.3728 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 345.8383 Dec. = +35.5446 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 352.5723 Dec. = +22.5806 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1252695/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Thu Sep 5 14:37:09 EDT 2024
