Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Wed Dec 18 16:33:00 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1262764
======================================================================

  Trigger: 01262764      Segment: 000

  BAT Trigger Time: 751675386.432   [s; MET]
      Trigger Stop: 751675387.456   [s; MET]
               UTC: 2024-10-26T22:42:32.007860    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 293.423540289295   Dec: 57.9803069280196  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.81
     Image Trigger?:     NO
     Rate S/N Ratio:     35.8608421540822  [ if not an image trigger ]
     Image S/N Ratio:    6.81

  Flight Position:   [ source = BAT ]
    RA: 293.423540289295   Dec: 57.9803069280196  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 293.424517175427   Dec: 57.9957792754803  [deg; J2000]
        { 19h 33m 41.9s , +57d 59' 44.8" }
         +/- 1.25397164489979 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.479555264729935 [arcmin] (formal 1-sigma fit error)
    SNR: 22.0144255214821

  Angular difference between Flight and Ground position is 0.928861 arcmin

  Partial Coding Fraction: 0.1796875    [ including projection effects ]

  Duration
     T90: 24.9760000705719 +/- 5.81496004563543
        Measured from: -0.600000023841858
                   to: 24.37600004673     [s; relative to TRIGTIME]
     T50: 9.08800005912781 +/- 1.85937619165206
        Measured from: 1.12799990177155
                   to: 10.2159999608994     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.29200005531311
                   to: 0.70799994468689     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -1.30400002002716
                   to: 30.9839999675751     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.930467   1.379490   1.152250   0.226351
           0.085073   0.090383   0.077562   0.061687 [error]
 Peak      0.106505   0.151066   0.180247   0.044710
           0.017070   0.019642   0.019375   0.014673 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.49e-07 6.20e-07 8.46e-07 2.38e-06 2.45e-06 4.20e-06   erg/cm2
              Error 4.28e-08 4.68e-08 7.60e-08 4.54e-07 1.86e-07 5.11e-07   erg/cm2
Peak flux Power-law 1.19e+00 1.29e+00 9.99e-01 1.26e+00 3.96e+00 4.75e+00   ph/cm2/s
              Error 2.67e-01 1.79e-01 1.48e-01 3.87e-01 5.04e-01 5.99e-01   ph/cm2/s

Fluence   Cutoff-PL 3.15e-07 6.55e-07 8.85e-07 1.15e-06 2.37e-06 3.01e-06   erg/cm2
              Error 5.17e-08 5.63e-08 8.62e-08 7.36e-07 1.99e-07 7.49e-07   erg/cm2
Peak flux Cutoff-PL 1.18e+00 1.30e+00 1.01e+00 1.27e+00 3.96e+00 4.69e+00   ph/cm2/s
              Error 2.69e-01 1.91e-01 1.68e-01 4.70e-01 5.04e-01 7.56e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.555    0.120    -      -           8.05e-03 5.75e-04   55.570 57
CPL   0.991    0.514      92.7  114.2      1.52e-02 9.36e-03   51.560 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.373    0.211    -      -           3.27e-02 4.05e-03   45.620 57
CPL   1.370    0.984    9991.7    0.0      3.28e-02 3.55e-02   45.620 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 11.456000 sec.
T50 in the 50-300 keV band: 4.736000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   32.288   -1.304   30.984
T90    24.976   -0.600   24.376
T50     9.088    1.128   10.216
Peak    1.000   -0.292    0.708

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  293.4245    57.9958   0.0088    41.1878    43.9055         3.2879857     22.014 TRIG_01262764

Foreground time interval of the image:
 -1.304  15.269 (delta_t =  16.573 [sec])
Background time interval of the image:
-239.432  -1.304 (delta_t = 238.128 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -1.304 sec. to   30.984 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55530     ( -0.119848   0.120571 )
Norm@50keV  : 8.05350E-03    ( -0.000575437   0.000574305 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.57     using 59 bins.
 Reduced chi-squared = 0.974912
# Null hypothesis probability of 5.29e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 32.29 sec: 1.02113 ( -0.075333  0.0755 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.44663e-06 ( -1.85643e-07  1.86475e-07 ) ergs/cm2

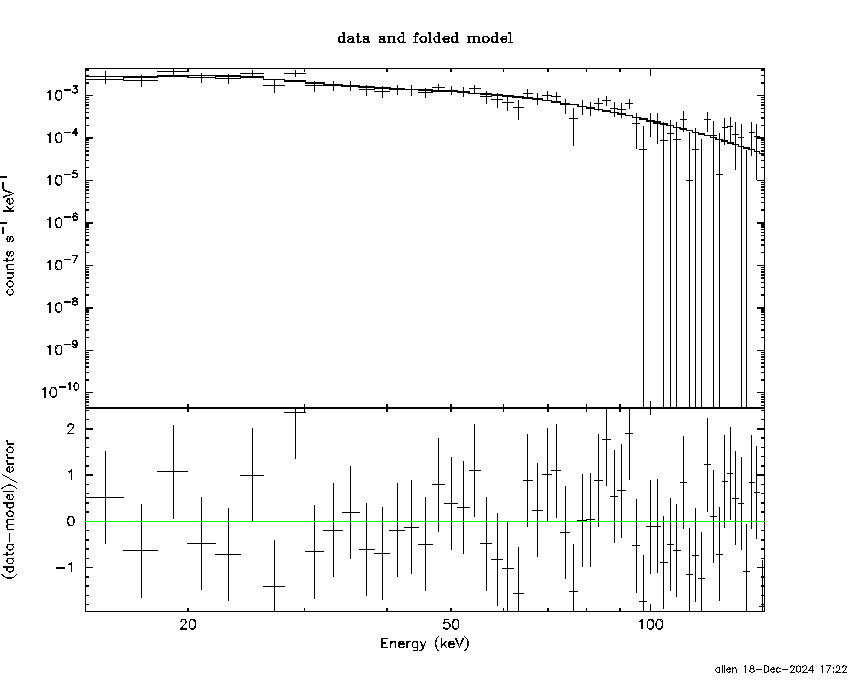

Cutoff power-law model

Time interval is from   -1.304 sec. to   30.984 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.990803     ( -0.543441   0.484919 )
Epeak [keV] : 92.6594      ( -23.2979 205.093 )
Norm@50keV  : 1.52430E-02    ( -0.00630931   0.0124168 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.56     using 59 bins.
 Reduced chi-squared = 0.920714
# Null hypothesis probability of 6.43e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 32.29 sec: 0.995257 ( -0.078542  0.078653 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.37022e-06 ( -1.98474e-07  1.98572e-07 ) ergs/cm2

Band function

Time interval is from   -1.304 sec. to   30.984 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.5022  (-1.28808  1.42061)
R^2/D10^2   : 0.102843  (-0.0278391   0.037656)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   88.52     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.72e-03 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.661e-07   2.147e-08
25- 50  6.799e-07   7.572e-08
50-150  1.128e-06   1.522e-07
15-150  1.974e-06   1.716e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.017       (-57.5794      -199.057)
Norm        : 4.17147       (-0.291457     0.327108)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   52.40     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.48e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.355e-07   2.963e-08
25- 50  6.452e-07   8.331e-08
50-150  1.414e-06   4.488e-07
15-150  2.395e-06   5.614e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.33630        (-1.68411      2.08139)
R1^2/D10^2  : 1.33574        (-0.809476      2.66169)
kT2 [keV]   : 22.3590        (-3.47421      6.03438)
R2^2/D10^2  : 2.29182E-02    (-0.013951   0.0126372)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.54     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.07e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.158e-07   1.380e-07
25- 50  6.404e-07   1.888e-07
50-150  1.387e-06   4.261e-07
15-150  2.343e-06   6.950e-07

Peak spectrum fit

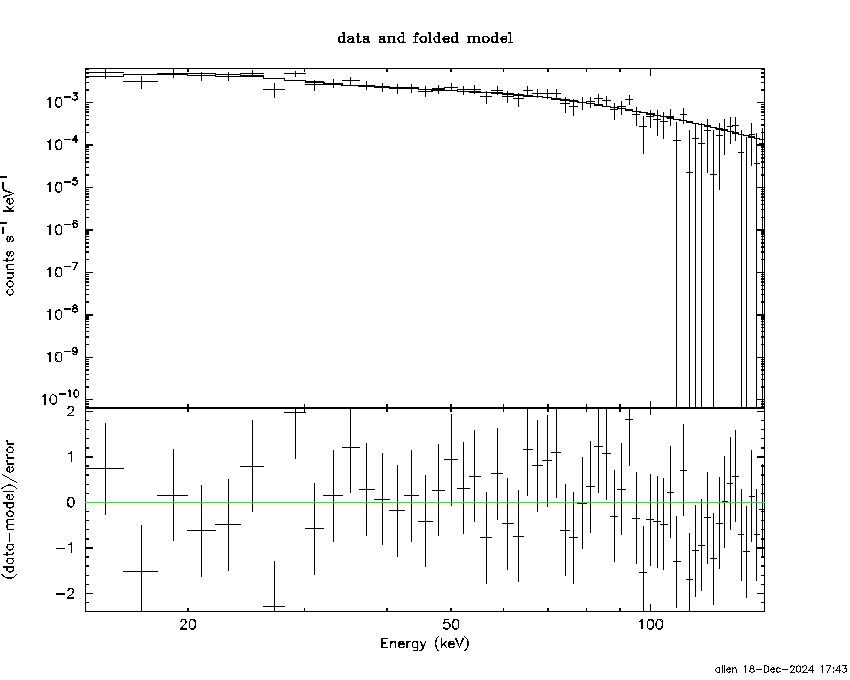

Power-law model

Time interval is from   -0.292 sec. to    0.708 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.37332     ( -0.209622   0.212514 )
Norm@50keV  : 3.27189E-02    ( -0.00405559   0.00404904 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.62     using 59 bins.
 Reduced chi-squared = 0.800351
# Null hypothesis probability of 8.60e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 3.96115 ( -0.50366  0.50475 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.17965e-07 ( -4.31819e-08  4.3345e-08 ) ergs/cm2

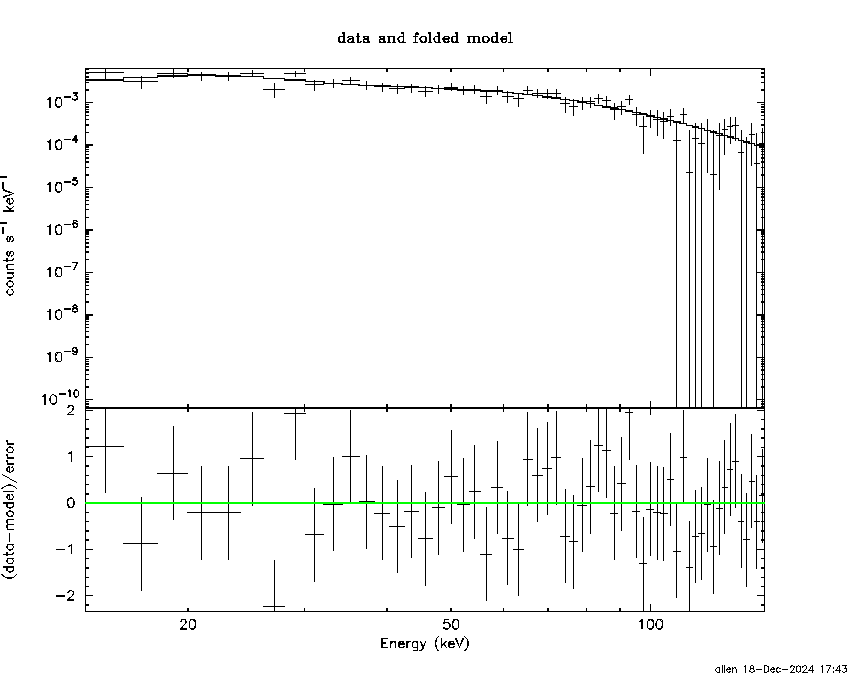

Cutoff power-law model

Time interval is from   -0.292 sec. to    0.708 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.36975     ( -0.752833   1.21432 )
Epeak [keV] : 9991.73      ( -9979.55 -9979.55 )
Norm@50keV  : 3.28460E-02    ( -0.0244364   0.0464706 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.62     using 59 bins.
 Reduced chi-squared = 0.814643
# Null hypothesis probability of 8.38e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 3.95576 ( -0.51164  0.49687 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.17614e-07 ( -4.3791e-08  4.14815e-08 ) ergs/cm2

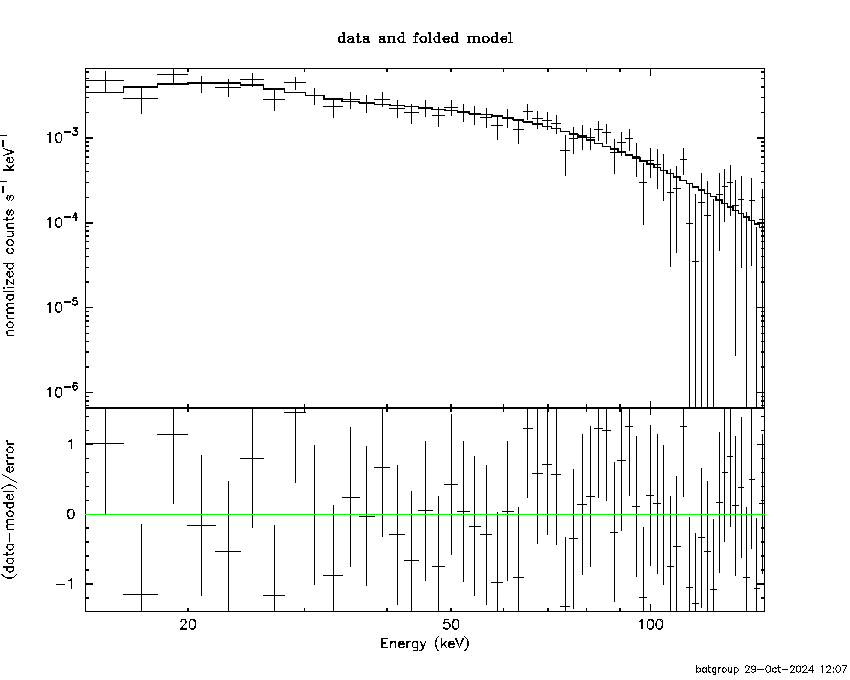

Band function

Time interval is from   -0.292 sec. to    0.708 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 19.1156  (-2.96634  3.49085)
R^2/D10^2   : 0.205089  (-0.0882568   0.155314)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   65.17     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.14e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.470e-08   3.560e-09
25- 50  7.099e-08   1.451e-08
50-150  1.909e-07   3.830e-08
15-150  2.766e-07   5.160e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-48.6816      -200)
Norm        : 16.4214       (-2.03916     2.03916)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.50     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.81e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.089e-08   2.325e-08
25- 50  7.866e-08   4.212e-08
50-150  1.725e-07   9.525e-08
15-150  2.921e-07   1.611e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.46910        (-1.56405      2.13183)
R1^2/D10^2  : 9.61770        (-6.88924      29.3361)
kT2 [keV]   : 26.7683        (-5.28071      8.96432)
R2^2/D10^2  : 5.77972E-02    (-0.0357691   0.0656619)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.99     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.80e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.998e-08   2.092e-08
25- 50  6.741e-08   2.913e-08
50-150  2.149e-07   1.135e-07
15-150  3.223e-07   9.635e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42794     ( -0.109189   0.109145 )
Norm@50keV  : 1.35112E-02    ( -0.000867086   0.00086689 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.49     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.86e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 16.57 sec: 1.65615 ( -0.112245  0.11253 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.1513e-06 ( -1.47453e-07  1.47865e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.868286     ( -0.492765   0.444562 )
Epeak [keV] : 109.748      ( -28.4084 189.053 )
Norm@50keV  : 2.47898E-02    ( -0.00929433   0.0167296 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   39.77     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.50e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 16.57 sec: 1.61350 ( -0.117  0.11731 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.09553e-06 ( -1.56288e-07  1.55857e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.20e-07
S(50-100 keV) = 8.46e-07

T90 vs. Hardness ratio plot

T90                                   = 24.9760000705719 sec.
Hardness ratio (energy fluence ratio) = 1.36452

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.48258
Count Ratio (50-100 keV) / (15-25 keV) = 1.23836

Mask shadow pattern

IMX = 6.304651909874337E-01, IMY = -6.068264940130329E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

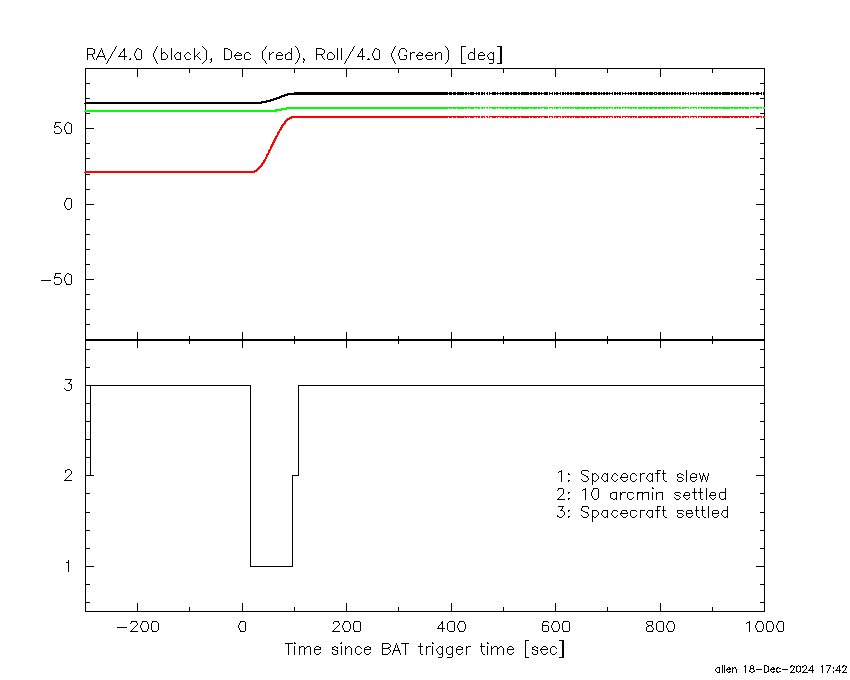

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.432000 -1.304000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9733 -15.6284    1.8  43.1 -123.7   6.8004   6.5    0.8	Sco X-1
254.3954  35.1394    0.0  18.1  -13.7  -0.4463  -1.4   12.6	Her X-1
262.9935 -24.7395    7.5  46.3 -150.8   0.9613   1.5    0.9	GX 1+4
268.4214  -1.4883    4.6  22.8 -158.6   0.7606   2.5    3.9	SW J1753.5-0127
270.2802 -25.0840   27.0  46.5 -159.9   0.3069   0.4    0.4	GX 5-1
270.3084 -25.7472   43.9  47.1 -159.9   0.1979   0.3    0.4	GRS 1758-258
273.9235 -13.9075    8.5  35.7 -167.1   0.5394   1.4    9.1	GX 17+2
275.9483 -30.4184    5.5  52.3 -165.7  -1.9432  -2.1    3.3	H1820-303
285.1383 -24.8872   92.5  49.2 -177.7   0.1036   0.1    5.9	HT1900.1-2455
288.8062  11.1020    4.9  22.7  136.7  -0.8814  -2.4    9.4	GRS 1915+105
299.5921  35.2025    0.7  31.2   80.0   9.2942  15.8    0.1	Cyg X-1
308.3209  40.8258    0.0  39.5   74.3   1.9637   1.4   12.2	Cyg X-3
262.8678 -33.8569   18.0  55.3 -151.8  -0.9596  -0.6    6.2	GX 354-0
276.9096  40.5264    3.3  20.8   43.6   1.1801   3.5 ------	UNKNOWN
270.5634   7.5128    3.1  14.1 -168.7   1.0728   3.8 ------	UNKNOWN
238.1696  47.5408    2.7  35.4  -11.6   1.6725   4.3 ------	UNKNOWN
279.8446 -29.3584    3.1  52.0 -170.1   3.4226   3.7 ------	UNKNOWN
277.4714 -25.7415    2.4  48.0 -168.6   3.2085   4.8 ------	UNKNOWN
233.6866  36.3475    2.1  33.1  -32.1   2.2655   5.5 ------	UNKNOWN
233.0136  11.7468    2.3  34.4  -77.1   2.8978   5.0 ------	UNKNOWN
218.5082  20.8075    3.5  45.6  -57.8   5.1826   3.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-1.304000 15.268610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0203 -15.6993   22.2  43.1 -123.8   0.0712   0.5    4.3	Sco X-1
254.3025  35.3518   82.1  18.3  -13.4  -0.0066  -0.1    7.6	Her X-1
263.0156 -24.7527 1100.5  46.3 -150.8  -0.0010  -0.0    0.6	GX 1+4
268.4357  -1.2656    0.0  22.6 -158.7   0.0649   1.3   11.9	SW J1753.5-0127
270.2244 -25.0464   12.4  46.4 -159.8  -0.0805  -0.9    3.8	GX 5-1
270.4294 -25.7211    7.4  47.1 -160.0   0.1370   1.6    7.0	GRS 1758-258
273.8467 -14.0003   25.2  35.8 -166.9  -0.0294  -0.5    9.5	GX 17+2
275.9530 -30.2360    2.7  52.1 -165.7  -0.5177  -4.3    8.0	H1820-303
284.9206 -24.9288    7.9  49.2 -177.5   0.1554   1.5    6.3	HT1900.1-2455
288.6213  11.0370    0.0  22.6  137.1   0.1443   2.4   11.8	GRS 1915+105
299.5104  35.1511   73.3  31.1   80.0   0.0154   0.2    5.0	Cyg X-1
308.1686  41.0694    6.5  39.4   73.9   0.3933   1.8    7.5	Cyg X-3
263.0791 -33.8443    6.2  55.3 -152.0  -0.3689  -1.9    4.5	GX 354-0
293.4245  57.9958    0.5  41.2   43.9   3.2878  22.0 ------	UNKNOWN
225.9721  50.5900    2.3  43.7  -14.2   0.4016   5.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
96.868590 962.620100

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6674  35.3827   12.6  34.1 -100.4   1.9345   0.9   10.5	Her X-1
288.9506  10.8748   20.9  47.2 -160.0  -1.5564  -0.6    9.9	GRS 1915+105
299.5948  35.1989    0.4  23.2 -178.8  36.4609  31.6    0.3	Cyg X-1
308.2140  40.9730    2.1  19.4  158.7   5.9863   5.5    4.9	Cyg X-3
326.0162  38.1956   19.1  28.9  132.9   1.0524   0.6   10.5	Cyg X-2
152.3982  78.7384    4.5  41.3    3.3   4.1783   2.6 ------	UNKNOWN
296.7408   6.0470    2.7  52.0 -170.2  14.6164   4.3 ------	UNKNOWN
296.5343   3.5140    2.7  54.5 -169.8  15.3242   4.3 ------	UNKNOWN
179.7511  67.6037    3.3  45.3  -15.4   6.4023   3.5 ------	UNKNOWN
220.8581  65.6862    2.3  33.1  -32.1   7.3288   5.1 ------	UNKNOWN

Plot creation:
Wed Dec 18 17:43:30 EST 2024
