Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Wed Dec 18 16:31:04 EST 2024
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1263718
======================================================================

  Trigger: 01263718      Segment: 000

  BAT Trigger Time: 751960117.568   [s; MET]
      Trigger Stop: 751960118.08   [s; MET]
               UTC: 2024-10-30T05:48:03.124380    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 343.032953716989   Dec: 80.4389595800238  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.9
     Image Trigger?:     NO
     Rate S/N Ratio:     15.1327459504216  [ if not an image trigger ]
     Image S/N Ratio:    8.9

  Flight Position:   [ source = BAT ]
    RA: 343.032953716989   Dec: 80.4389595800238  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 343.218442091515   Dec: 80.4391555675872  [deg; J2000]
        { 22h 52m 52.4s , +80d 26' 21.0" }
         +/- 1.12188034924964 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.408884900296224 [arcmin] (formal 1-sigma fit error)
    SNR: 25.8087029180083

  Angular difference between Flight and Ground position is 1.848576 arcmin

  Partial Coding Fraction: 0.8046875    [ including projection effects ]

  Duration
     T90: 173.431999921799 +/- 5.19071791518489
        Measured from: 18.3880000114441
                   to: 191.819999933243     [s; relative to TRIGTIME]
     T50: 45.9240000247955 +/- 1.00024000888708
        Measured from: 115.991999983788
                   to: 161.916000008583     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 147.452000021935
                   to: 148.452000021935     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.931999921798706
                   to: 276.496000051498     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    14.525832  17.360098  12.045477   2.671493
           0.108514   0.114482   0.099046   0.078781 [error]
 Peak      0.325341   0.527808   0.502297   0.156018
           0.010342   0.012611   0.012725   0.008789 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.22e-06 7.07e-06 9.02e-06 2.31e-05 2.67e-05 4.33e-05   erg/cm2
              Error 1.35e-07 1.30e-07 1.35e-07 8.37e-07 3.63e-07 8.58e-07   erg/cm2
Peak flux Power-law 2.98e+00 3.64e+00 3.23e+00 4.94e+00 1.16e+01 1.48e+01   ph/cm2/s
              Error 1.72e-01 1.25e-01 1.03e-01 3.48e-01 3.36e-01 4.38e-01   ph/cm2/s

Fluence   Cutoff-PL 4.13e-06 7.07e-06 9.07e-06 2.16e-05 2.66e-05 4.19e-05   erg/cm2
              Error 1.76e-07 1.31e-07 1.65e-07 1.90e-06 4.02e-07 2.16e-06   erg/cm2
Peak flux Cutoff-PL 2.89e+00 3.66e+00 3.27e+00 4.38e+00 1.15e+01 1.42e+01   ph/cm2/s
              Error 2.20e-01 1.30e-01 1.23e-01 7.61e-01 3.56e-01 8.54e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.649    0.027    -      -           1.03e-02 1.45e-04   33.480 57
CPL   1.588    0.096     410.2   -0.0      1.09e-02 9.78e-04   32.560 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.174    0.051    -      -           9.89e-02 2.76e-03   36.990 57
CPL   1.060    0.175     472.5    0.0      1.11e-01 1.92e-02   35.970 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 173.248000 sec.
T50 in the 50-300 keV band: 39.232000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  277.428   -0.932  276.496
T90   173.432   18.388  191.820
T50    45.924  115.992  161.916
Peak    1.000  147.452  148.452

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  343.2184    80.4392   0.0074    17.5328   -66.3106         1.2367011     25.809 TRIG_01263718

Foreground time interval of the image:
 -0.932  10.333 (delta_t =  11.265 [sec])
Background time interval of the image:
-267.568  -0.932 (delta_t = 266.636 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

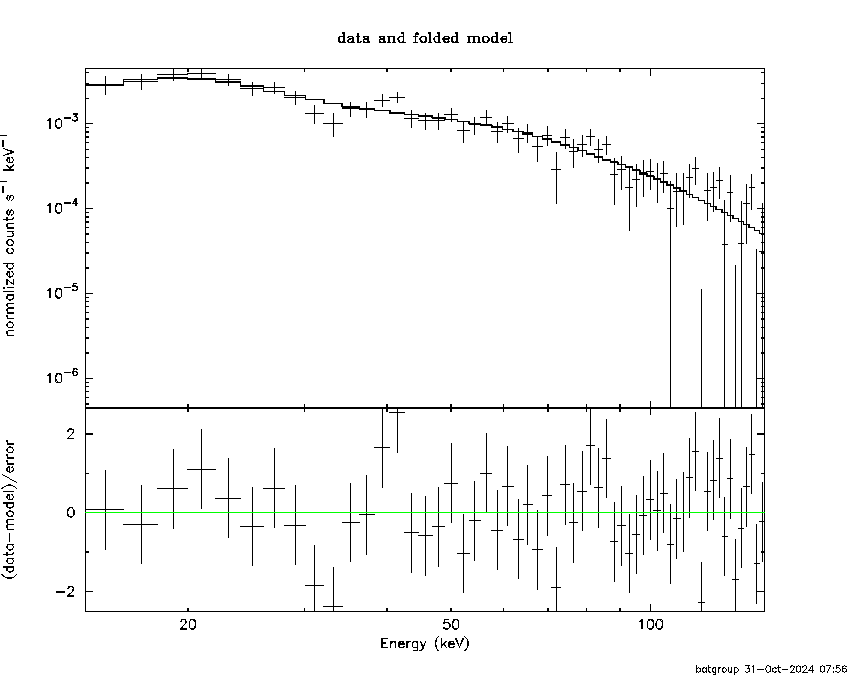

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.932 sec. to  276.496 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.64886     ( -0.0272164   0.0271686 )
Norm@50keV  : 1.03318E-02    ( -0.000145203   0.000145014 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   33.48     using 59 bins.
 Reduced chi-squared = 0.587368
# Null hypothesis probability of 9.95e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 277.4 sec: 1.34862 ( -0.02476  0.0249 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.66622e-05 ( -3.63386e-07  3.63452e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.932 sec. to  276.496 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.58780     ( -0.110561   0.0822262 )
Epeak [keV] : 410.240      ( -410.158 -410.208 )
Norm@50keV  : 1.09440E-02    ( -0.000785628   0.00117009 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   32.56     using 59 bins.
 Reduced chi-squared = 0.581429
# Null hypothesis probability of 9.95e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 277.4 sec: 1.33891 ( -0.0297  0.02998 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.65611e-05 ( -4.02416e-07  4.01137e-07 ) ergs/cm2

Band function

Time interval is from   -0.932 sec. to  276.496 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.2327  (  )
R^2/D10^2   : 6.79519E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                 1221.71     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.83e-218 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.249e-06   4.022e-08
25- 50  5.833e-06   1.304e-07
50-150  1.412e-05   3.121e-07
15-150  2.121e-05   3.024e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 197.639       (-14.9825      -197.631)
Norm        : 5.27981       (-0.0784151     0.0996548)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   54.46     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.71e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.643e-06   6.658e-08
25- 50  7.007e-06   1.221e-07
50-150  1.537e-05   2.927e-07
15-150  2.601e-05   4.688e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.53852        (-0.384318      0.399579)
R1^2/D10^2  : 1.11293        (-0.195091      0.247393)
kT2 [keV]   : 28.5813        (-1.25452      1.42422)
R2^2/D10^2  : 1.11112E-02    (-0.00182905   0.00203673)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.47     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.21e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.430e-06   1.900e-07
25- 50  7.213e-06   1.900e-07
50-150  1.542e-05   3.481e-07
15-150  2.606e-05   4.674e-07

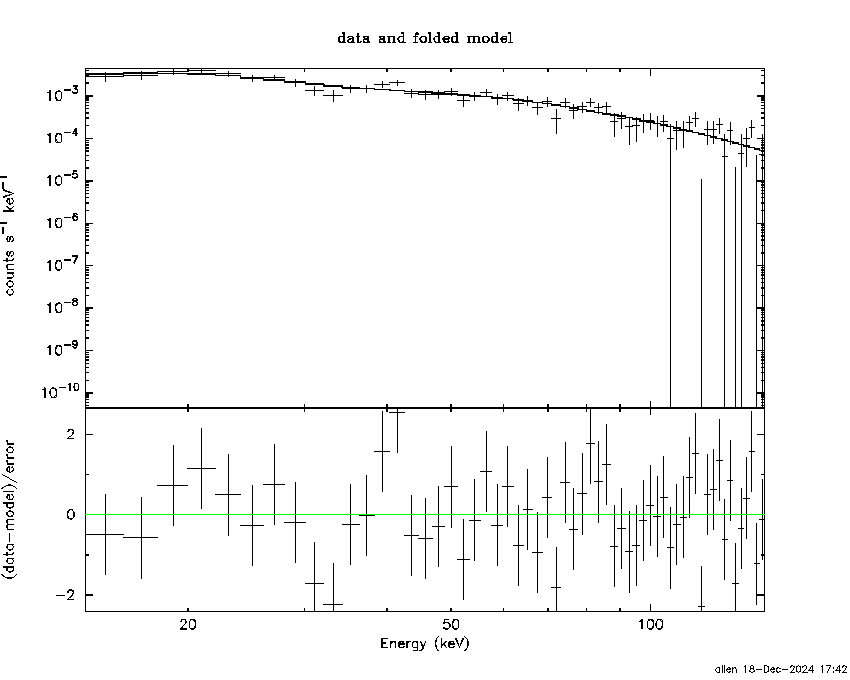

Peak spectrum fit

Power-law model

Time interval is from  147.452 sec. to  148.452 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.17356     ( -0.0513394   0.0512699 )
Norm@50keV  : 9.89448E-02    ( -0.00276192   0.00276142 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   36.99     using 59 bins.
 Reduced chi-squared = 0.648947
# Null hypothesis probability of 9.82e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 11.5728 ( -0.3363  0.3366 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.0116e-06 ( -3.11849e-08  3.12456e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  147.452 sec. to  148.452 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.05993     ( -0.199282   0.149886 )
Epeak [keV] : 472.468      ( -472.469 -472.469 )
Norm@50keV  : 0.111206    ( -0.0139607   0.0244851 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   35.97     using 59 bins.
 Reduced chi-squared = 0.642321
# Null hypothesis probability of 9.83e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 11.5010 ( -0.356  0.3563 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.00543e-06 ( -3.30635e-08  3.2911e-08 ) ergs/cm2

Band function

Time interval is from  147.452 sec. to  148.452 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 19.9437  (  )
R^2/D10^2   : 0.533810  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  288.56     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.12e-32 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.098e-08   2.325e-09
25- 50  2.037e-07   8.100e-09
50-150  6.005e-07   2.790e-08
15-150  8.452e-07   2.915e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 48.1029       (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  194.34     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.91e-17 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.198e-07   3.350e-09
25- 50  2.304e-07   6.350e-09
50-150  5.053e-07   1.485e-08
15-150  8.555e-07   2.485e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.42452        (-0.927944      1.00807)
R1^2/D10^2  : 5.20966        (-1.50243      2.34354)
kT2 [keV]   : 34.8733        (-3.71857      5.1828)
R2^2/D10^2  : 7.47097E-02    (-0.0262681   0.0332765)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   37.02     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.70e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.219e-08   7.860e-09
25- 50  2.166e-07   1.505e-08
50-150  7.129e-07   6.325e-08
15-150  1.012e-06   6.845e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52903     ( -0.106045   0.106677 )
Norm@50keV  : 7.05004E-03    ( -0.000417254   0.000415663 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.26     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.29e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 11.26 sec: 0.887171 ( -0.0524488  0.0525502 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.49634e-07 ( -4.85435e-08  4.88354e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52540     ( -0.358072   0.107898 )
Epeak [keV] : 9933.56      ( -9998.88 -9998.88 )
Norm@50keV  : 7.07575E-03    ( -0.00151857   0.00348104 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.26     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.92e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 11.26 sec: 0.887091 ( -0.027371  0.052261 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.46906e-07 ( -4.98097e-08  5.23027e-08 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.07e-06
S(50-100 keV) = 9.02e-06

T90 vs. Hardness ratio plot

T90                                   = 173.431999921799 sec.
Hardness ratio (energy fluence ratio) = 1.27581

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.19512
Count Ratio (50-100 keV) / (15-25 keV) = 0.829245

Mask shadow pattern

IMX = 1.269330432213816E-01, IMY = 2.893066313359380E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

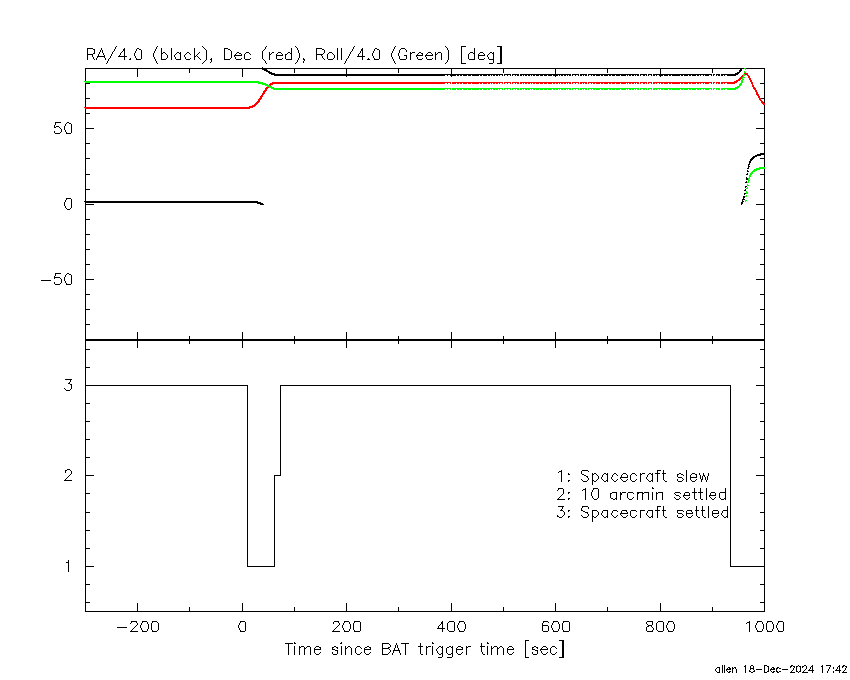

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-267.568000 -0.932000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5932  35.1971    1.4  48.7 -146.7   8.2391   8.0    0.3	Cyg X-1
307.9422  41.0560   16.9  40.2 -149.9   0.4258   0.7    9.8	Cyg X-3
326.0236  38.3640    4.6  34.9 -171.5   1.2393   2.5    7.4	Cyg X-2
 23.5824  32.5725    2.9  33.3   99.0   2.5902   4.1 ------	UNKNOWN
 77.8453  62.6360    2.7  30.4    5.6   1.9947   4.2 ------	UNKNOWN
260.7996  66.0201    2.8  39.3  -92.0   6.5040   4.2 ------	UNKNOWN
286.0358  43.0241    2.8  48.1 -129.2   7.7560   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.932000 10.332600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.7418  35.1307    6.4  48.7 -146.9  -0.1932  -1.8    8.6	Cyg X-1
307.9435  40.9978   12.3  40.3 -149.9   0.0625   0.9    8.0	Cyg X-3
326.3389  38.3215    5.6  34.9 -171.9   0.1038   2.1    7.9	Cyg X-2
 83.4865  48.5496    2.5  42.4   19.3   0.3326   4.7 ------	UNKNOWN
343.2185  80.4391    0.4  17.5  -66.3   1.2365  25.8 ------	UNKNOWN
313.6625  54.9500    2.1  27.3 -138.2   0.2547   5.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
61.932600 934.932600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.6170  35.1882    1.6  48.2 -166.7  21.2273   7.1    1.5	Cyg X-1
308.0945  40.9868    4.0  41.5 -174.8   6.0998   2.9    2.2	Cyg X-3
326.2735  38.4258   83.7  42.5  164.0   0.3880   0.1    7.9	Cyg X-2
 61.0207  79.2330    2.6  12.8   20.1   4.5941   4.3 ------	UNKNOWN
343.1523  80.4568    0.3   0.0   -4.7  41.5995  33.8 ------	UNKNOWN
189.7828  53.0659    2.9  45.6  -57.8  23.3994   3.9 ------	UNKNOWN

Plot creation:
Wed Dec 18 17:42:52 EST 2024
