TDRSS scaled map for 1263840
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 30 Oct 24 18:34:51 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1263840, Seg_Num: 0
GRB_RA: 50.788d {+03h 23m 09s} (J2000),
51.180d {+03h 24m 43s} (current),
50.001d {+03h 20m 00s} (1950)
GRB_DEC: +34.432d {+34d 25' 57"} (J2000),
+34.520d {+34d 31' 10"} (current),
+34.255d {+34d 15' 18"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 6508 [cnts] Image_Peak=225 [image_cnts]
TRIGGER_DUR: 2.048 [sec]
TRIGGER_INDEX: 263 E_range: 25-100 keV
BKG_INTEN: 53618 [cnts]
BKG_TIME: 66829.55 SOD {18:33:49.55} UT
BKG_DUR: 24 [sec]
GRB_DATE: 20613 TJD; 304 DOY; 24/10/30
GRB_TIME: 66860.91 SOD {18:34:20.91} UT
GRB_PHI: 70.70 [deg]
GRB_THETA: 38.70 [deg]
SOLN_STATUS: 0x20000003
RATE_SIGNIF: 28.31 [sigma]
IMAGE_SIGNIF: 9.43 [sigma]
MERIT_PARAMS: +1 +0 +0 +1 +2 +0 +0 +0 +90 +0
SUN_POSTN: 215.47d {+14h 21m 53s} -14.12d {-14d 07' 08"}
SUN_DIST: 155.15 [deg] Sun_angle= 11.0 [hr] (West of Sun)
MOON_POSTN: 196.92d {+13h 07m 41s} -8.32d {-08d 19' 23"}
MOON_DIST: 139.10 [deg]
MOON_ILLUM: 3 [%]
GAL_COORDS: 155.30,-18.73 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 57.27, 15.34 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 114.22,11.73 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is temporally(0.0<100sec) coincident with the FERMI_GBM event (trignum=752006065).
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 30 Oct 24 18:46:43 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1263840, Seg_Num: 0
POINT_RA: 5.078d {+00h 20m 19s} (J2000)
POINT_DEC: +59.261d {+59d 15' 40"} (J2000)
MAP_DATE: 20613 TJD; 304 DOY; 24/10/30
MAP_TIME: 66860.91 SOD {18:34:20.91} UT
TRIGGER_DUR: 2.048 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 28.31 [sigma]
IMAGE_SIGNIF: 9.43 [sigma]
MAP_URL: sw01263840000msbsm.fits
SUN_POSTN: 215.48d {+14h 21m 55s} -14.12d {-14d 07' 18"}
MOON_POSTN: 197.01d {+13h 08m 02s} -8.37d {-08d 22' 05"}
MOON_ILLUM: 3 [%]
GAL_COORDS: 118.96, -3.37 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 36.98, 50.41 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

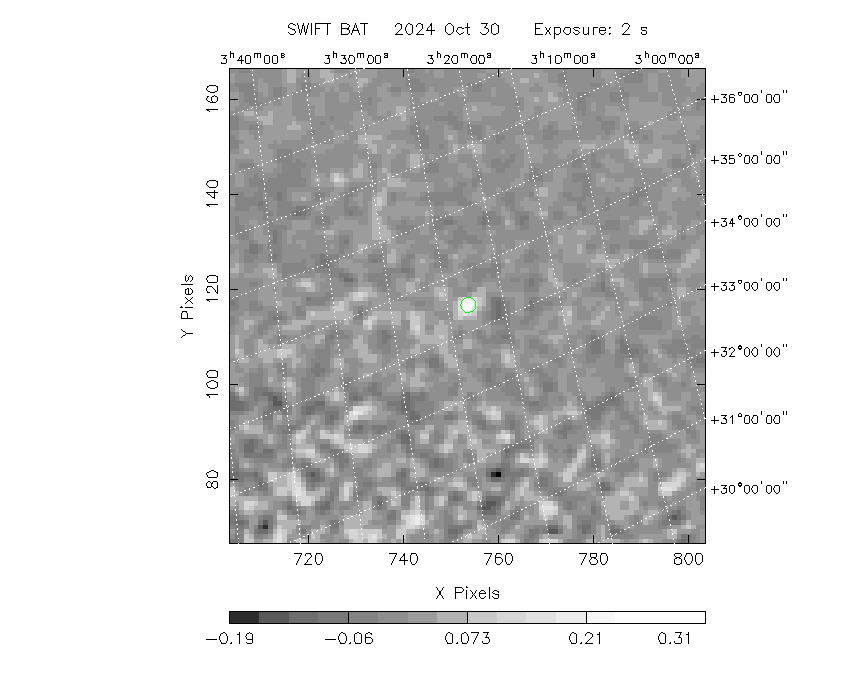

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (50.788, +34.432).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 50.788 +34.432 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 1.1 49.5 0.0119 1.7 0.0 V709 Cas
19.5112 65.2916 0.0 9.0 3.3 0.0008 0.1 0.0 4U 0114+65
52.8001 43.9046 0.0 32.5 58.1 -0.0261 -1.8 0.0 GK Per
53.7495 53.1732 0.0 27.1 42.8 0.0004 0.0 0.0 V0332+53
93.9015 71.0375 0.0 35.3 -4.3 0.0026 0.3 0.0 Mkn 3
166.6979 72.5686 0.0 47.6 -31.2 0.0182 1.2 0.0 NGC 3516
299.5903 35.2016 0.0 48.0 -128.3 0.0741 1.7 0.0 Cyg X-1
299.8682 40.7339 0.0 43.7 -123.5 -0.0055 -0.3 0.0 Cyg A
308.0633 37.6375 0.0 41.8 -133.6 0.0030 0.2 0.0 EXO 2030+375
308.1103 40.9526 0.0 39.3 -130.3 0.0001 0.0 0.0 Cyg X-3
314.6979 41.7770 0.0 35.4 -135.3 -0.0081 -0.9 0.0 GRO J2058+42
321.1638 50.9739 0.0 25.9 -127.6 -0.0026 -0.3 0.0 IGR J21247+5058
322.4930 12.1674 0.0 56.7 -166.2 -0.0284 -1.1 0.0 4U 2129+12
323.4320 51.1236 0.0 24.7 -129.3 -0.0147 -2.0 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 32.3 -151.4 0.0005 0.1 0.0 Cyg X-2
331.9808 54.5197 0.0 18.5 -128.9 -0.0111 -1.5 0.0 4U 2206+54
343.4906 16.1482 0.0 45.9 170.9 -0.0400 -2.7 0.0 3C 454.3
350.9671 42.1830 0.0 19.2 174.8 0.0125 1.7 0.0 1ES 2321+419
50.7902 34.4242 1.2 38.7 70.7 0.3317 9.9 ------ UNKNOWN
96.1556 42.0896 2.3 55.3 25.9 0.5492 5.1 ------ UNKNOWN
304.7828 47.2257 2.3 36.6 -120.3 0.0588 4.9 ------ UNKNOWN
249.6797 67.7804 1.9 44.5 -67.7 0.2789 6.2 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
299.5903 35.2016 0.0 48.0 -128.3 0.0741 1.7 0.0 Cyg X-1
308.1103 40.9526 0.0 39.3 -130.3 0.0001 0.0 0.0 Cyg X-3
326.1717 38.3217 0.0 32.3 -151.4 0.0005 0.1 0.0 Cyg X-2
50.7902 34.4242 1.2 38.7 70.7 0.3317 9.9 ------ UNKNOWN
96.1556 42.0896 2.3 55.3 25.9 0.5492 5.1 ------ UNKNOWN
304.7828 47.2257 2.3 36.6 -120.3 0.0588 4.9 ------ UNKNOWN
249.6797 67.7804 1.9 44.5 -67.7 0.2789 6.2 ------ UNKNOWN
Search for UNKNOWN source R.A. = 50.7902 Dec. = +34.4242 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 96.1556 Dec. = +42.0896 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 249.6797 Dec. = +67.7804 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 304.7828 Dec. = +47.2257 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1263840/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Wed Oct 30 14:47:09 EDT 2024
