TDRSS scaled map for 1277428
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 29 Dec 24 01:36:43 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1277428, Seg_Num: 0
GRB_RA: 274.149d {+18h 16m 36s} (J2000),
273.961d {+18h 15m 51s} (current),
274.524d {+18h 18m 06s} (1950)
GRB_DEC: +74.714d {+74d 42' 50"} (J2000),
+74.724d {+74d 43' 25"} (current),
+74.693d {+74d 41' 34"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3530 [cnts] Image_Peak=338 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 147 E_range: 25-100 keV
BKG_INTEN: 15403 [cnts]
BKG_TIME: 5757.20 SOD {01:35:57.20} UT
BKG_DUR: 8 [sec]
GRB_DATE: 20673 TJD; 364 DOY; 24/12/29
GRB_TIME: 5775.95 SOD {01:36:15.95} UT
GRB_PHI: 69.22 [deg]
GRB_THETA: 30.00 [deg]
SOLN_STATUS: 0x20000003
RATE_SIGNIF: 39.72 [sigma]
IMAGE_SIGNIF: 15.88 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +2 +4 +0 +0 +13 +0
SUN_POSTN: 278.52d {+18h 34m 05s} -23.20d {-23d 12' 14"}
SUN_DIST: 97.97 [deg] Sun_angle= 0.3 [hr] (West of Sun)
MOON_POSTN: 253.73d {+16h 54m 56s} -27.40d {-27d 23' 56"}
MOON_DIST: 102.97 [deg]
MOON_ILLUM: 4 [%]
GAL_COORDS: 105.70, 28.38 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 82.37, 81.74 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 132.29,12.99 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is temporally(1.0<100sec) coincident with the FERMI_GBM event (trignum=757128981).
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 29 Dec 24 01:45:51 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1277428, Seg_Num: 0
POINT_RA: 297.788d {+19h 51m 09s} (J2000)
POINT_DEC: +46.494d {+46d 29' 39"} (J2000)
MAP_DATE: 20673 TJD; 364 DOY; 24/12/29
MAP_TIME: 5775.95 SOD {01:36:15.95} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 39.72 [sigma]
IMAGE_SIGNIF: 15.88 [sigma]
MAP_URL: sw01277428000msbsm.fits
SUN_POSTN: 278.53d {+18h 34m 06s} -23.20d {-23d 12' 13"}
MOON_POSTN: 253.82d {+16h 55m 18s} -27.41d {-27d 24' 36"}
MOON_ILLUM: 4 [%]
GAL_COORDS: 80.45, 9.96 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 319.90, 65.19 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

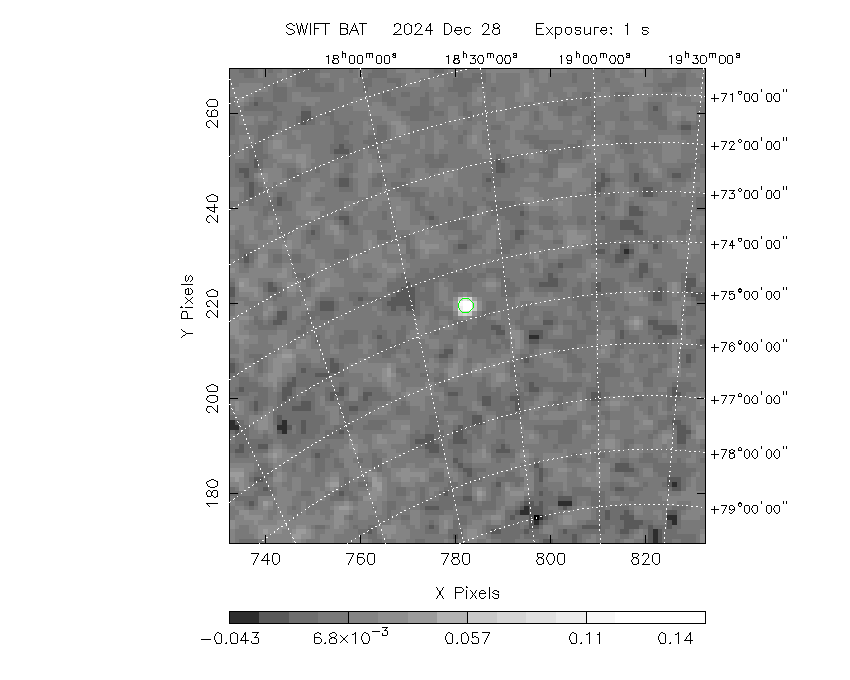

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (274.149, +74.714).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 274.149 +74.714 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 41.7 127.4 -0.0539 -2.5 0.0 V709 Cas
254.4576 35.3425 0.0 34.1 -11.9 0.0010 0.2 0.0 Her X-1
278.7590 32.6973 0.0 20.0 -45.4 -0.0051 -0.9 0.0 3C 382
287.4138 9.8292 0.0 37.7 -81.7 0.0099 0.8 0.0 4U 1907+09
287.7208 7.6667 0.0 39.8 -82.9 -0.0023 -0.1 0.0 4U 1909+07
287.9565 4.9827 0.0 42.4 -84.0 -0.0221 -0.7 0.0 SS 433
288.5083 9.8883 0.0 37.4 -83.5 0.0013 0.1 0.0 IGR J19140+0951
288.7983 10.9456 0.0 36.4 -83.6 0.0144 1.4 0.0 GRS 1915+105
297.3771 30.2067 0.0 16.3 -97.4 -0.0059 -1.1 0.0 KS 1947+300
298.9292 32.1000 0.0 14.4 -102.5 0.0081 1.5 0.0 4U 1954+31
299.5903 35.2016 0.0 11.4 -106.1 -0.0075 -1.4 0.0 Cyg X-1
299.8682 40.7339 0.0 6.0 -114.1 -0.0073 -1.4 0.0 Cyg A
308.0633 37.6375 0.0 11.7 -142.9 -0.0108 -2.2 0.0 EXO 2030+375
308.1103 40.9526 0.0 9.3 -155.7 -0.0115 -2.3 0.0 Cyg X-3
314.6979 41.7770 0.0 13.0 -173.4 -0.0083 -1.6 0.0 GRO J2058+42
321.1638 50.9739 0.0 16.0 146.6 -0.0026 -0.5 0.0 IGR J21247+5058
322.4929 12.1674 0.0 40.2 -137.9 -0.0022 -0.2 0.0 4U 2129+12
323.4320 51.1236 0.0 17.4 146.6 -0.0006 -0.1 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 22.4 -177.4 -0.0132 -2.4 0.0 Cyg X-2
331.9808 54.5197 0.0 22.9 138.4 0.0000 0.0 0.0 4U 2206+54
343.4906 16.1482 0.0 48.4 -165.4 0.0021 0.2 0.0 3C 454.3
350.9671 42.1830 0.0 37.6 158.1 0.0058 0.6 0.0 1ES 2321+419
274.1650 74.7178 0.7 30.0 69.2 0.1766 17.5 ------ UNKNOWN
4.7187 23.1872 2.0 57.8 170.7 0.4693 5.8 ------ UNKNOWN
309.1251 25.3602 2.2 23.0 -125.7 0.0284 5.3 ------ UNKNOWN
265.2145 6.8874 1.9 48.5 -53.0 0.1857 6.1 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4576 35.3425 0.0 34.1 -11.9 0.0010 0.2 0.0 Her X-1
288.7983 10.9456 0.0 36.4 -83.6 0.0144 1.4 0.0 GRS 1915+105
299.5903 35.2016 0.0 11.4 -106.1 -0.0075 -1.4 0.0 Cyg X-1
308.1103 40.9526 0.0 9.3 -155.7 -0.0115 -2.3 0.0 Cyg X-3
326.1717 38.3217 0.0 22.4 -177.4 -0.0132 -2.4 0.0 Cyg X-2
274.1650 74.7178 0.7 30.0 69.2 0.1766 17.5 ------ UNKNOWN
4.7187 23.1872 2.0 57.8 170.7 0.4693 5.8 ------ UNKNOWN
309.1251 25.3602 2.2 23.0 -125.7 0.0284 5.3 ------ UNKNOWN
265.2145 6.8874 1.9 48.5 -53.0 0.1857 6.1 ------ UNKNOWN
Search for UNKNOWN source R.A. = 4.7187 Dec. = +23.1872 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 265.2145 Dec. = +6.8874 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 274.1650 Dec. = +74.7178 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 309.1251 Dec. = +25.3602 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1277428/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sat Dec 28 20:46:09 EST 2024
