TDRSS scaled map for 1280056
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 08 Jan 25 10:23:43 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1280056, Seg_Num: 0
GRB_RA: 201.297d {+13h 25m 11s} (J2000),
201.594d {+13h 26m 22s} (current),
200.705d {+13h 22m 49s} (1950)
GRB_DEC: +25.613d {+25d 36' 46"} (J2000),
+25.483d {+25d 28' 59"} (current),
+25.873d {+25d 52' 21"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 9913 [cnts] Image_Peak=311 [image_cnts]
TRIGGER_DUR: 4.096 [sec]
TRIGGER_INDEX: 298 E_range: 25-100 keV
BKG_INTEN: 83911 [cnts]
BKG_TIME: 37333.14 SOD {10:22:13.14} UT
BKG_DUR: 40 [sec]
GRB_DATE: 20683 TJD; 8 DOY; 25/01/08
GRB_TIME: 37386.19 SOD {10:23:06.19} UT
GRB_PHI: -151.94 [deg]
GRB_THETA: 25.30 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 10.86 [sigma]
IMAGE_SIGNIF: 8.13 [sigma]
MERIT_PARAMS: +1 +0 +0 +2 +2 -2 +0 +0 +14 +0
SUN_POSTN: 289.92d {+19h 19m 40s} -22.17d {-22d 10' 21"}
SUN_DIST: 97.93 [deg] Sun_angle= 5.9 [hr] (West of Sun)
MOON_POSTN: 33.88d {+02h 15m 31s} +16.86d {+16d 51' 41"}
MOON_DIST: 136.00 [deg]
MOON_ILLUM: 66 [%]
GAL_COORDS: 23.49, 82.29 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 188.70, 31.80 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 237.34,0.25 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 08 Jan 25 10:33:22 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1280056, Seg_Num: 0
POINT_RA: 183.325d {+12h 13m 18s} (J2000)
POINT_DEC: +7.018d {+07d 01' 04"} (J2000)
MAP_DATE: 20683 TJD; 8 DOY; 25/01/08
MAP_TIME: 37386.19 SOD {10:23:06.19} UT
TRIGGER_DUR: 4.096 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 10.86 [sigma]
IMAGE_SIGNIF: 8.13 [sigma]
MAP_URL: sw01280056000msbsm.fits
SUN_POSTN: 289.93d {+19h 19m 42s} -22.17d {-22d 10' 17"}
MOON_POSTN: 33.97d {+02h 15m 53s} +16.90d {+16d 53' 57"}
MOON_ILLUM: 66 [%]
GAL_COORDS: 276.97, 67.95 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 180.24, 7.76 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

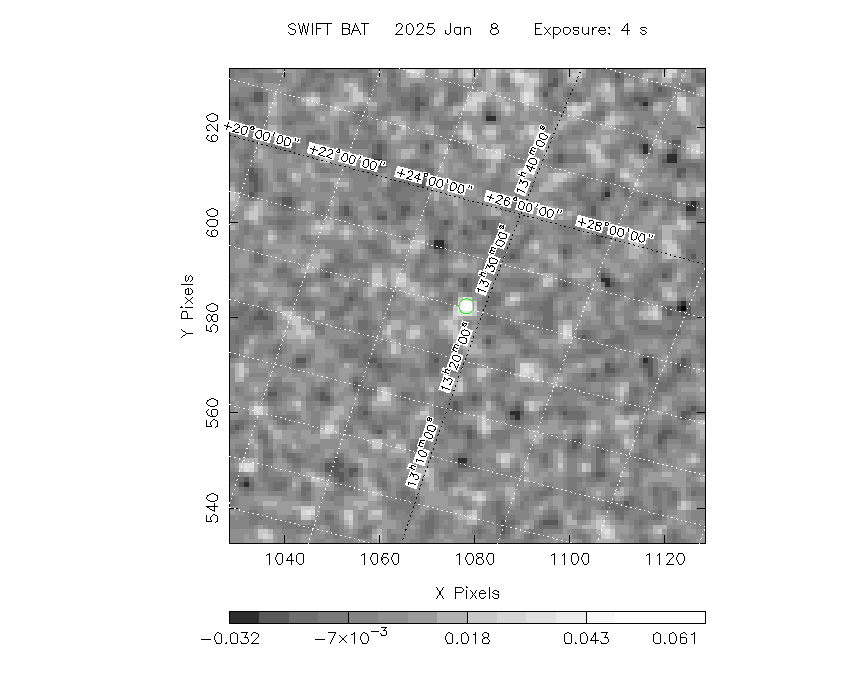

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (201.297, +25.613).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 201.297 +25.613 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
146.4116 -31.1911 0.0 52.0 28.1 -0.0096 -0.2 0.0 NGC 2997
146.9173 -30.9489 0.0 51.5 28.0 -0.0438 -1.0 0.0 MCG -5-23-016
169.5454 48.0369 0.0 42.7 153.8 -0.0043 -0.3 0.0 XTE J1118+480
174.7572 -37.7386 0.0 45.5 -3.1 -0.0043 -0.3 0.0 NGC 3783
182.6357 39.4057 0.0 32.4 166.4 0.0107 1.0 0.0 NGC 4151
186.4448 12.6621 0.0 6.4 -164.3 -0.0026 -0.3 0.0 NGC 4388
187.2779 2.0524 0.0 6.3 -51.3 -0.0034 -0.4 0.0 3C 273
188.9026 -39.9093 0.0 47.2 -18.4 0.0047 0.3 0.0 NGC 4507
196.3645 -49.4682 0.0 57.6 -22.6 0.0342 0.8 0.0 NGC 4945
201.3651 -43.0191 0.0 52.6 -29.1 0.0392 1.3 0.0 Cen A
207.3302 -30.3094 0.0 43.8 -43.0 0.0064 0.3 0.0 IC 4329A
213.3119 -3.2075 0.0 31.6 -84.7 -0.0144 -0.9 0.0 NGC 5506
201.2719 25.6136 1.4 25.3 -152.0 0.0778 8.4 ------ UNKNOWN
183.7189 -50.5562 2.7 57.6 -12.9 0.1736 4.2 ------ UNKNOWN
214.7068 31.7279 2.9 38.3 -146.9 0.0546 4.0 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
201.2719 25.6136 1.4 25.3 -152.0 0.0778 8.4 ------ UNKNOWN
183.7189 -50.5562 2.7 57.6 -12.9 0.1736 4.2 ------ UNKNOWN
214.7068 31.7279 2.9 38.3 -146.9 0.0546 4.0 ------ UNKNOWN
Search for UNKNOWN source R.A. = 183.7189 Dec. = -50.5562 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 201.2719 Dec. = +25.6136 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 214.7068 Dec. = +31.7279 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1280056/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Wed Jan 8 05:34:11 EST 2025
