TDRSS scaled map for 1287821
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 07 Feb 25 01:16:21 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1287821, Seg_Num: 0
GRB_RA: 16.115d {+01h 04m 28s} (J2000),
16.428d {+01h 05m 43s} (current),
15.491d {+01h 01m 58s} (1950)
GRB_DEC: -12.159d {-12d 09' 30"} (J2000),
-12.025d {-12d 01' 27"} (current),
-12.427d {-12d 25' 35"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3739 [cnts] Image_Peak=345 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 146 E_range: 25-100 keV
BKG_INTEN: 16181 [cnts]
BKG_TIME: 4548.96 SOD {01:15:48.96} UT
BKG_DUR: 8 [sec]
GRB_DATE: 20713 TJD; 38 DOY; 25/02/07
GRB_TIME: 4567.33 SOD {01:16:07.33} UT
GRB_PHI: -171.20 [deg]
GRB_THETA: 35.41 [deg]
SOLN_STATUS: 0x20000003
RATE_SIGNIF: 34.52 [sigma]
IMAGE_SIGNIF: 14.23 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +2 +3 +0 +0 -59 +0
SUN_POSTN: 320.95d {+21h 23m 47s} -15.28d {-15d 16' 33"}
SUN_DIST: 53.88 [deg] Sun_angle= -3.7 [hr] (East of Sun)
MOON_POSTN: 68.32d {+04h 33m 17s} +26.96d {+26d 57' 31"}
MOON_DIST: 63.67 [deg]
MOON_ILLUM: 69 [%]
GAL_COORDS: 135.09,-74.72 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 9.97,-17.53 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 246.80,18.23 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is temporally(4.0<100sec) coincident with the FERMI_GBM event (trignum=760583768).
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 07 Feb 25 01:26:49 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1287821, Seg_Num: 0
POINT_RA: 1.554d {+00h 06m 13s} (J2000)
POINT_DEC: +20.218d {+20d 13' 06"} (J2000)
MAP_DATE: 20713 TJD; 38 DOY; 25/02/07
MAP_TIME: 4567.33 SOD {01:16:07.33} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 34.52 [sigma]
IMAGE_SIGNIF: 14.23 [sigma]
MAP_URL: sw01287821000msbsm.fits
SUN_POSTN: 320.95d {+21h 23m 49s} -15.27d {-15d 16' 25"}
MOON_POSTN: 68.43d {+04h 33m 43s} +26.98d {+26d 58' 34"}
MOON_ILLUM: 69 [%]
GAL_COORDS: 108.73,-41.40 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 9.73, 17.88 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

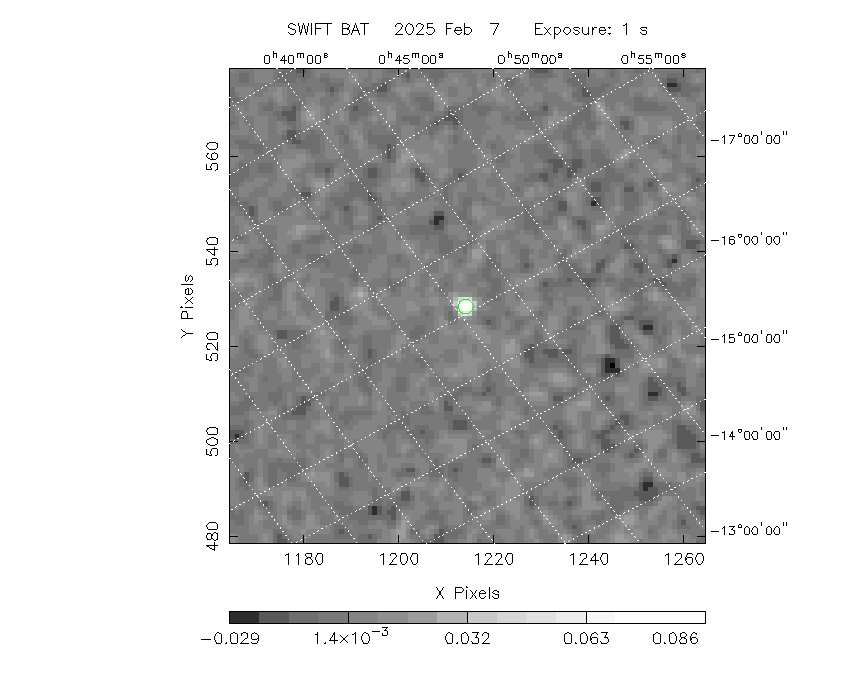

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (16.115, -12.159).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 16.115 -12.159 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 39.3 38.5 -0.0005 -0.0 0.0 V709 Cas
19.5112 65.2916 0.0 46.6 44.1 -0.0118 -0.5 0.0 4U 0114+65
297.3771 30.2067 0.0 58.2 -32.4 0.0587 1.3 0.0 KS 1947+300
298.9292 32.1000 0.0 56.7 -30.3 0.0127 0.4 0.0 4U 1954+31
299.5903 35.2016 0.0 56.0 -26.6 -0.0249 -1.1 0.0 Cyg X-1
299.8682 40.7339 0.0 55.7 -19.9 -0.0307 -1.6 0.0 Cyg A
308.0633 37.6375 0.0 49.2 -23.3 0.0094 0.7 0.0 EXO 2030+375
308.1103 40.9526 0.0 49.6 -19.0 0.0102 0.8 0.0 Cyg X-3
314.6979 41.7770 0.0 44.9 -16.6 0.0018 0.2 0.0 GRO J2058+42
321.1638 50.9739 0.0 44.1 -2.0 -0.0152 -1.6 0.0 IGR J21247+5058
322.4929 12.1674 0.0 38.3 -62.1 -0.0002 -0.0 0.0 4U 2129+12
323.4320 51.1236 0.0 42.9 -0.8 -0.0238 -2.6 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 35.4 -17.6 0.0063 1.0 0.0 Cyg X-2
331.9808 54.5197 0.0 41.0 8.0 0.0084 0.9 0.0 4U 2206+54
343.4906 16.1482 0.0 17.6 -66.5 -0.0008 -0.1 0.0 3C 454.3
350.9671 42.1830 0.0 23.7 14.1 -0.0038 -0.7 0.0 1ES 2321+419
24.3537 69.1432 2.4 50.9 44.2 0.2362 4.7 ------ UNKNOWN
32.9435 14.1829 2.2 30.5 130.3 0.0425 5.2 ------ UNKNOWN
317.9217 68.7517 2.5 55.4 16.2 0.1483 4.6 ------ UNKNOWN
16.1000 -12.1663 0.8 35.4 -171.2 0.0997 14.1 ------ UNKNOWN
6.2789 -1.4336 3.2 22.2 -158.7 0.0193 3.6 386.4 UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
299.5903 35.2016 0.0 56.0 -26.6 -0.0249 -1.1 0.0 Cyg X-1
308.1103 40.9526 0.0 49.6 -19.0 0.0102 0.8 0.0 Cyg X-3
326.1717 38.3217 0.0 35.4 -17.6 0.0063 1.0 0.0 Cyg X-2
24.3537 69.1432 2.4 50.9 44.2 0.2362 4.7 ------ UNKNOWN
32.9435 14.1829 2.2 30.5 130.3 0.0425 5.2 ------ UNKNOWN
317.9217 68.7517 2.5 55.4 16.2 0.1483 4.6 ------ UNKNOWN
16.1000 -12.1663 0.8 35.4 -171.2 0.0997 14.1 ------ UNKNOWN
6.2789 -1.4336 3.2 22.2 -158.7 0.0193 3.6 386.4 UNKNOWN
Search for UNKNOWN source R.A. = 6.2789 Dec. = -1.4336 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 16.1000 Dec. = -12.1663 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 24.3537 Dec. = +69.1432 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 32.9435 Dec. = +14.1829 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 317.9217 Dec. = +68.7517 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map

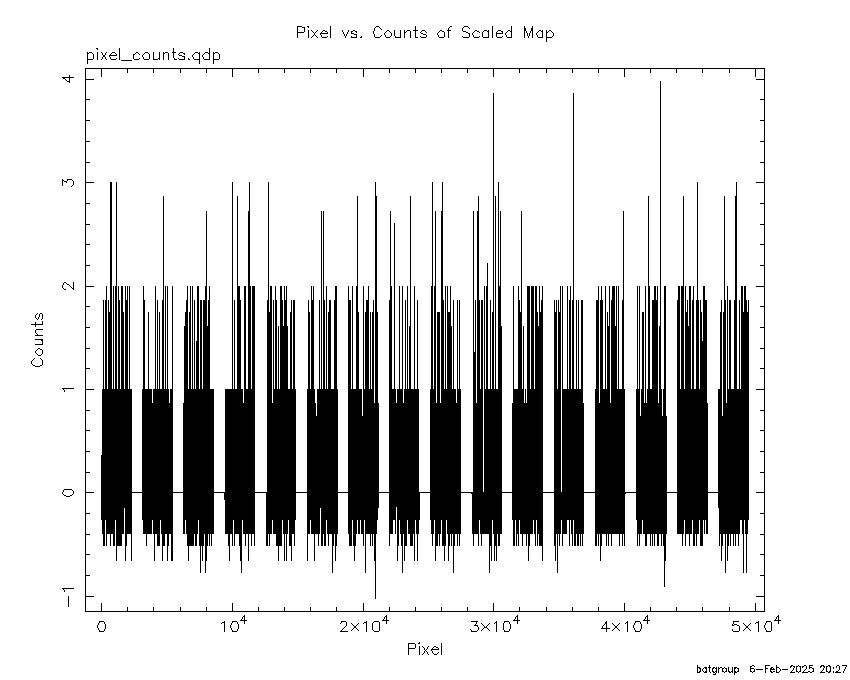

Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1287821/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Thu Feb 6 20:27:09 EST 2025
