batgrbproduct analysis for trigger=1293340

batgrbproduct Analysis for Trigger=1293340

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri Jun 20 16:41:09 EDT 2025
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1293340
======================================================================

  Trigger: 01293340      Segment: 000

  BAT Trigger Time: 762971443.904   [s; MET]
      Trigger Stop: 762971444.928   [s; MET]
               UTC: 2025-03-06T16:30:08.708060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 354.730006688864   Dec: -47.9933965939604  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    22.45
     Image Trigger?:     NO
     Rate S/N Ratio:     169.911741795557  [ if not an image trigger ]
     Image S/N Ratio:    22.45

  Flight Position:   [ source = BAT ]
    RA: 354.730006688864   Dec: -47.9933965939604  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 354.723686410546   Dec: -47.997904147996  [deg; J2000]
        { 23h 38m 53.7s , -47d 59' 52.5" }
         +/- 1.05766283910682 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.4018028334579 [arcmin] (formal 1-sigma fit error)
    SNR: 28.0760883500723

  Angular difference between Flight and Ground position is 0.370867 arcmin

  Partial Coding Fraction: 0.1308594    [ including projection effects ]

  Duration
     T90: 11.3919998407364 +/- 2.43956721808354
        Measured from: -0.351999998092651
                   to: 11.0399998426437     [s; relative to TRIGTIME]
     T50: 4.03199994564056 +/- 0.202385803424389
        Measured from: 0.543999910354614
                   to: 4.57599985599518     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.139999985694885
                   to: 1.13999998569489     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -1.50400006771088
                   to: 19.039999961853     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.593375   4.166283   4.351832   1.228617
           0.107333   0.125078   0.120219   0.087399 [error]
 Peak      0.684280   1.313726   1.633130   0.543210
           0.040481   0.055536   0.062002   0.041693 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.05e-06 2.10e-06 3.25e-06 1.10e-05 9.04e-06 1.74e-05   erg/cm2
              Error 6.65e-08 7.98e-08 1.17e-07 8.84e-07 2.99e-07 9.46e-07   erg/cm2
Peak flux Power-law 8.77e+00 1.11e+01 1.02e+01 1.65e+01 3.57e+01 4.65e+01   ph/cm2/s
              Error 7.18e-01 5.72e-01 4.75e-01 1.56e+00 1.58e+00 2.09e+00   ph/cm2/s

Fluence   Cutoff-PL 9.24e-07 2.16e-06 3.43e-06 6.43e-06 8.91e-06 1.29e-05   erg/cm2
              Error 8.66e-08 8.74e-08 1.50e-07 1.58e-06 3.10e-07 1.58e-06   erg/cm2
Peak flux Cutoff-PL 7.29e+00 1.16e+01 1.13e+01 9.35e+00 3.51e+01 3.95e+01   ph/cm2/s
              Error 9.07e-01 6.39e-01 6.58e-01 2.17e+00 1.60e+00 2.66e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.371    0.055    -      -           4.53e-02 1.45e-03   78.100 57
CPL   0.881    0.244     133.7   47.2      7.42e-02 1.80e-02   65.070 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.119    0.068    -      -           3.07e-01 1.32e-02   66.530 57
CPL   0.412    0.317     132.2   39.6      6.30e-01 2.01e-01   49.780 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 8.000000 sec.
T50 in the 50-300 keV band: 3.776000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   20.544   -1.504   19.040
T90    11.392   -0.352   11.040
T50     4.032    0.544    4.576
Peak    1.000    0.140    1.140

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  354.7237   -47.9979   0.0068    49.6157   -37.1660        13.1305290     28.076 TRIG_01293340

Foreground time interval of the image:
 -1.504  19.040 (delta_t =  20.544 [sec])
Background time interval of the image:
-239.904  -1.504 (delta_t = 238.400 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

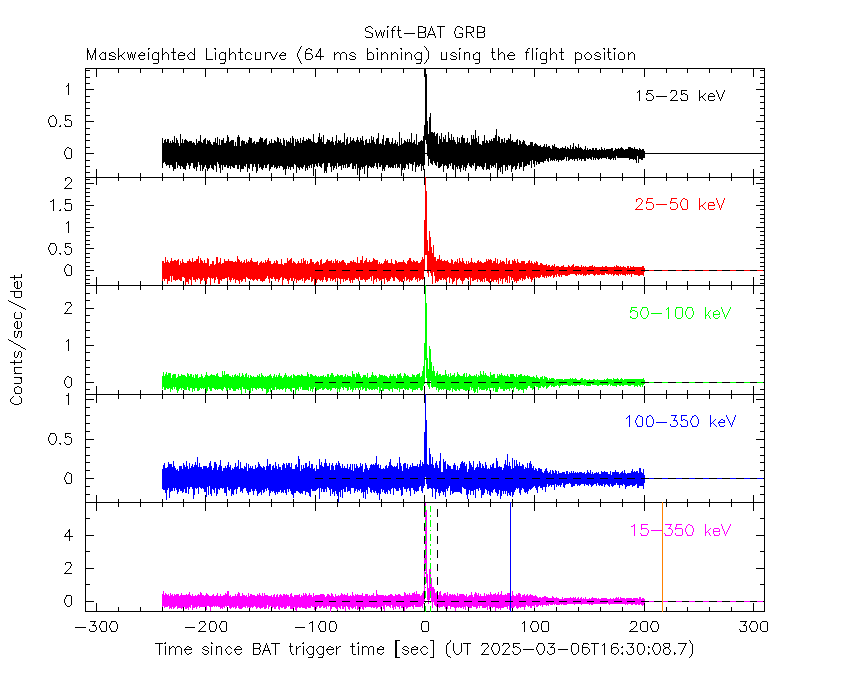

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

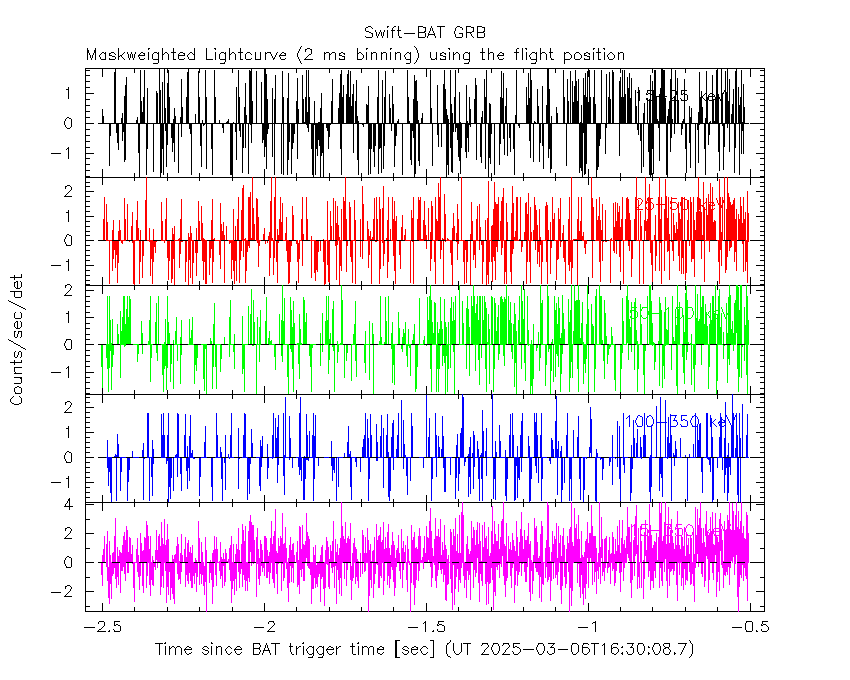

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

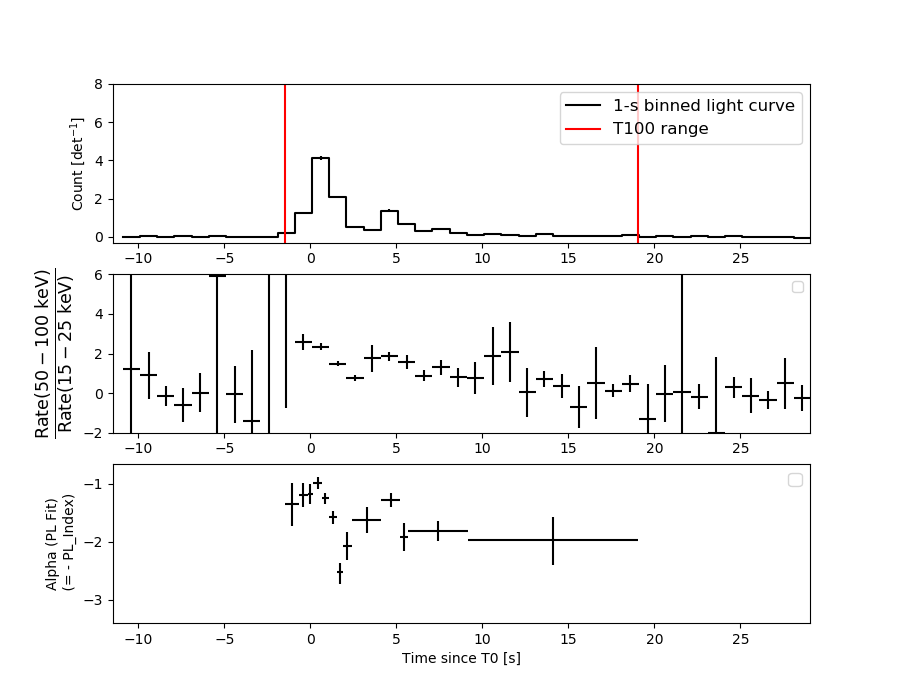

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -1.504 sec. to   19.040 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.37096     ( -0.0550559   0.054978 )
Norm@50keV  : 4.52742E-02    ( -0.00145307   0.00145263 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   78.10     using 59 bins.
 Reduced chi-squared = 1.37018
# Null hypothesis probability of 3.33e-02 with 57 degrees of freedom

Photon flux (15-150 keV)    in 20.54 sec: 5.47840 ( -0.19299  0.19346 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.04171e-06 ( -2.99112e-07  2.99444e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -1.504 sec. to   19.040 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.880589     ( -0.250096   0.237276 )
Epeak [keV] : 133.662      ( -26.2399 68.1682 )
Norm@50keV  : 7.42107E-02    ( -0.0154282   0.0205461 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   65.07     using 59 bins.
 Reduced chi-squared = 1.16196
# Null hypothesis probability of 1.90e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 20.54 sec: 5.33324 ( -0.20303  0.2038 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.90575e-06 ( -3.10267e-07  3.09778e-07 ) ergs/cm2

Band function

Time interval is from   -1.504 sec. to   19.040 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.9597  (  )
R^2/D10^2   : 0.291533  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  214.99     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.51e-20 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.234e-07   2.824e-08
25- 50  2.034e-06   8.986e-08
50-150  5.370e-06   2.465e-07
15-150  7.827e-06   2.968e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-5.12916      -200)
Norm        : 23.2307       (-0.746549     0.746549)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  110.94     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.49e-05 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.189e-06   4.026e-08
25- 50  2.286e-06   8.319e-08
50-150  5.014e-06   1.808e-07
15-150  8.489e-06   2.824e-07

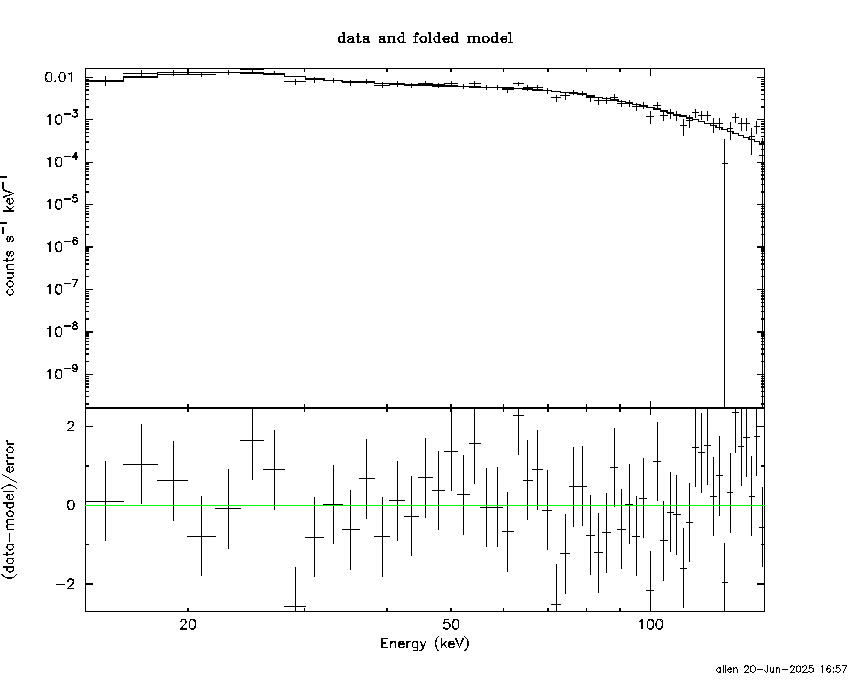

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.76915        (-1.14914      1.49537)
R1^2/D10^2  : 4.88510        (-2.34508      4.88556)
kT2 [keV]   : 25.5012        (-2.11316      3.14207)
R2^2/D10^2  : 9.01727E-02    (-0.0325644   0.0352928)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   73.52     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.84e-02 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.194e-07   1.547e-07
25- 50  2.100e-06   1.808e-07
50-150  5.837e-06   3.985e-07
15-150  8.856e-06   6.008e-07

Peak spectrum fit

Power-law model

Time interval is from    0.140 sec. to    1.140 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.11857     ( -0.0685676   0.0683421 )
Norm@50keV  : 0.306865    ( -0.0131936   0.0131869 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   66.53     using 59 bins.
 Reduced chi-squared = 1.16719
# Null hypothesis probability of 1.82e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 35.6609 ( -1.5818  1.5831 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.18992e-06 ( -1.45882e-07  1.4611e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.140 sec. to    1.140 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.411558     ( -0.327103   0.305933 )
Epeak [keV] : 132.236      ( -24.2649 54.9763 )
Norm@50keV  : 0.630308    ( -0.164456   0.238011 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.78     using 59 bins.
 Reduced chi-squared = 0.888929
# Null hypothesis probability of 7.08e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 35.0752 ( -1.5977  1.6001 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.15748e-06 ( -1.50504e-07  1.50173e-07 ) ergs/cm2

Band function

Time interval is from    0.140 sec. to    1.140 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.9503  (-1.03676  1.10228)
R^2/D10^2   : 1.53287  (-0.237369   0.276232)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  110.48     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.81e-05 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.272e-07   1.040e-08
25- 50  6.531e-07   3.925e-08
50-150  2.136e-06   1.425e-07
15-150  2.916e-06   1.455e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 147.346       (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  169.45     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.30e-13 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.669e-07   1.755e-08
25- 50  7.058e-07   3.280e-08
50-150  1.548e-06   7.250e-08
15-150  2.621e-06   1.255e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.31714        (-2.08538      2.81859)
R1^2/D10^2  : 12.6879        (-6.68433      18.6077)
kT2 [keV]   : 28.6635        (-3.48027      7.03061)
R2^2/D10^2  : 0.461286    (-0.258526   0.287482)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.85     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.96e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.241e-07   5.175e-08
25- 50  6.739e-07   1.109e-07
50-150  2.267e-06   2.955e-07
15-150  3.165e-06   4.385e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.37096     ( -0.0550559   0.054978 )
Norm@50keV  : 4.52742E-02    ( -0.00145307   0.00145263 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   78.10     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.33e-02 with 57 degrees of freedom

Photon flux (15-150 keV)    in 20.54 sec: 5.47831 ( -0.192969  0.193449 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.04062e-06 ( -2.99114e-07  2.99292e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.880589     ( -0.250096   0.237276 )
Epeak [keV] : 133.662      ( -26.2399 68.1682 )
Norm@50keV  : 7.42107E-02    ( -0.0154282   0.0205461 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   65.07     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.90e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 20.54 sec: 5.33280 ( -0.20296  0.20373 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.90953e-06 ( -3.11058e-07  3.09764e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.10e-06
S(50-100 keV) = 3.25e-06

T90 vs. Hardness ratio plot

T90                                   = 11.3919998407364 sec.
Hardness ratio (energy fluence ratio) = 1.54762

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.60651
Count Ratio (50-100 keV) / (15-25 keV) = 1.67806

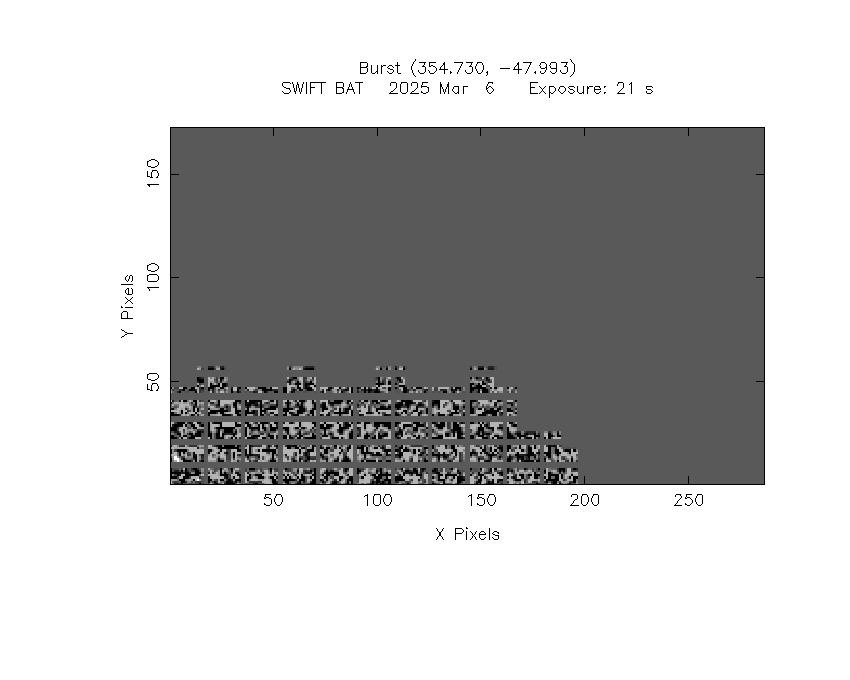

Mask shadow pattern

IMX = 9.368618633999752E-01, IMY = 7.102416133076762E-01

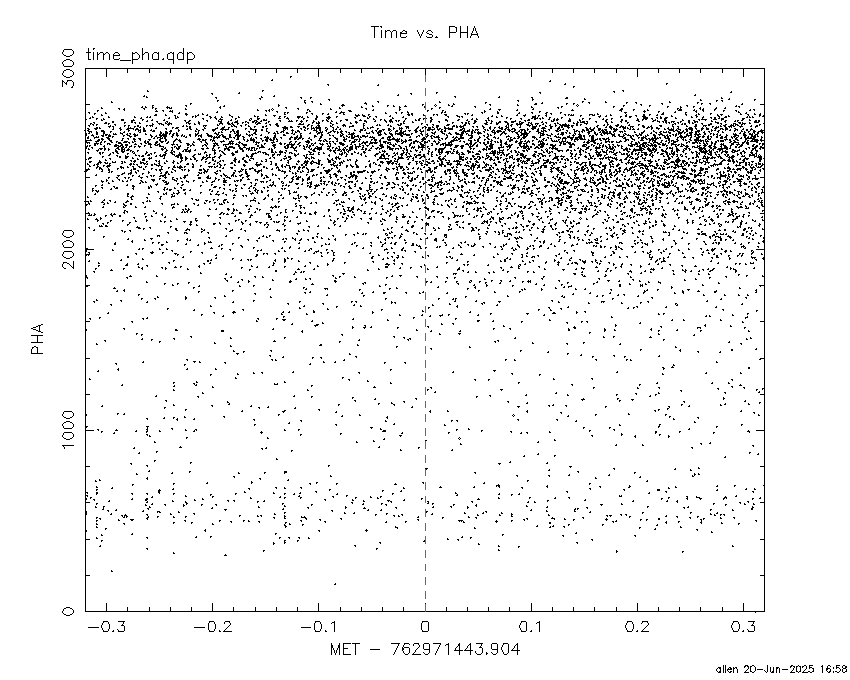

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.904000 -1.504000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
256.1333 -37.7795    3.7  41.1   65.7   5.8389   3.1    8.0	4U 1700-377
256.2787 -36.2994   14.2  40.8   67.9  -1.4091  -0.8   10.6	GX 349+2
262.8376 -24.7835   10.7  34.8   86.5   0.9849   1.1    9.6	GX 1+4
264.6120 -44.5573    3.6  37.0   52.5   2.4618   3.2    8.5	4U 1735-44
268.5005  -1.5354   12.9  37.7  127.1  -0.9757  -0.9    9.4	SW J1753.5-0127
270.2279 -25.1728   11.0  28.1   86.3   0.6899   1.1    6.4	GX 5-1
270.3577 -25.6859   11.6  28.0   85.2   0.6948   1.1    4.5	GRS 1758-258
273.9463 -13.9277    5.1  26.9  111.8   1.3034   2.2    7.4	GX 17+2
275.8887 -30.3636    4.0  23.6   73.1   1.4192   2.9    1.9	H1820-303
284.8658 -24.7794    0.0  14.8   85.7  -0.0400  -0.1   12.6	HT1900.1-2455
288.7885  11.0166    6.0  35.5  167.4   0.9705   1.9    4.3	GRS 1915+105
299.6223  35.2151    3.5  57.6 -173.1   6.1671   3.3    1.8	Cyg X-1
263.1437 -33.7674   10.8  34.9   70.7  -1.0057  -1.1    8.7	GX 354-0
265.9443 -29.7994    3.7  32.1   77.3   2.2798   3.1 ------	UNKNOWN
263.1122 -57.8086    2.0  44.6   35.7   4.3793   5.7 ------	UNKNOWN
277.0884 -19.0394    3.2  22.4  102.3   1.8068   3.7 ------	UNKNOWN
292.4025 -72.3023    3.3  50.1   11.4   2.3154   3.5 ------	UNKNOWN
340.7245 -27.3154    2.3  36.4  -65.9   3.7455   5.1 ------	UNKNOWN
334.2474   7.4550    2.7  44.3 -120.5   6.5454   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-1.504000 19.040000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
255.8152 -37.7809    4.1  41.4   65.8   0.7339   2.8    9.0	4U 1700-377
256.5056 -36.3281    6.0  40.6   67.8  -0.4886  -1.9    6.6	GX 349+2
263.1066 -24.7425   19.5  34.5   86.6   0.0852   0.6    5.3	GX 1+4
264.7824 -44.3591    5.2  36.8   52.7  -0.2857  -2.2    5.7	4U 1735-44
268.4692  -1.3366    4.2  37.9  127.4  -0.4287  -2.7    9.2	SW J1753.5-0127
270.3401 -25.0930   63.2  28.0   86.4  -0.0188  -0.2    3.1	GX 5-1
270.2610 -25.7407   57.2  28.0   85.1   0.0211   0.2    2.2	GRS 1758-258
274.1268 -14.1690    5.1  26.6  111.5   0.2087   2.3   10.6	GX 17+2
275.8776 -30.5026    4.8  23.7   72.8   0.2130   2.4    8.5	H1820-303
284.9581 -25.0674    3.8  14.8   84.6  -0.2592  -3.1    9.8	HT1900.1-2455
288.7367  10.7851    6.9  35.3  167.2   0.1757   1.7   10.3	GRS 1915+105
299.5487  35.2768    7.8  57.7 -173.2   0.5205   1.5    5.0	Cyg X-1
263.1665 -33.8432    5.4  34.9   70.6  -0.2889  -2.1    8.9	GX 354-0
297.0983 -54.9909    2.3  32.7   12.0   0.5750   5.1 ------	UNKNOWN
317.7232  28.8233    3.2  53.8 -153.5   1.0845   3.6 ------	UNKNOWN
354.7237 -47.9979    0.4  49.6  -37.2  13.1304  28.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Fri Jun 20 16:58:07 EDT 2025
