batgrbproduct analysis for trigger=1323295

batgrbproduct Analysis for Trigger=1323295

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Mar  1 06:33:23 EST 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1323295
======================================================================

  Trigger: 01323295      Segment: 000

  BAT Trigger Time: 771382961.6   [s; MET]
      Trigger Stop: 771382965.696   [s; MET]
               UTC: 2025-06-12T01:02:05.829480    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 250.903128202456   Dec: -38.9020184895632  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.22
     Image Trigger?:     NO
     Rate S/N Ratio:     10.5356537528527  [ if not an image trigger ]
     Image S/N Ratio:    9.22

  Flight Position:   [ source = BAT ]
    RA: 250.903128202456   Dec: -38.9020184895632  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 250.873283203958   Dec: -38.9483144026152  [deg; J2000]
        { 16h 43m 29.6s , -38d 56' 53.9" }
         +/- 4.34086993374728 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.5074252453182 [arcmin] (formal 1-sigma fit error)
    SNR: 3.73503278508233

  Angular difference between Flight and Ground position is 3.107518 arcmin

  Partial Coding Fraction: 0.640625    [ including projection effects ]

  Duration
     T90: 274.171999931335 +/- 66.542690220624
        Measured from: 0.927999973297119
                   to: 275.099999904633     [s; relative to TRIGTIME]
     T50: 113.536000013351 +/- 87.8133127066389
        Measured from: 4.84799993038177
                   to: 118.383999943733     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.623999953269958
                   to: 1.62399995326996     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.575999975204468
                   to: 291.519999980927     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.028534   0.802187   0.249436   0.141425
           0.137377   0.127392   0.103988   0.086999 [error]
 Peak      0.038727   0.043537   0.017661   0.003237
           0.008636   0.008318   0.006447   0.005129 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.42e-07 3.33e-07 2.27e-07 2.42e-07 9.99e-07 1.14e-06   erg/cm2
              Error 7.47e-08 6.67e-08 9.76e-08 2.02e-07 2.18e-07 3.35e-07   erg/cm2
Peak flux Power-law 4.00e-01 2.83e-01 1.33e-01 8.71e-02 8.58e-01 9.03e-01   ph/cm2/s
              Error 1.23e-01 6.68e-02 5.01e-02 6.05e-02 2.01e-01 2.12e-01   ph/cm2/s

Fluence   Cutoff-PL 3.39e-07 2.60e-07 1.41e-07 1.39e-07 7.95e-07 8.79e-07   erg/cm2
              Error 7.62e-08 1.27e-07 1.42e-07 2.67e-07 3.61e-07 5.30e-07   erg/cm2
Peak flux Cutoff-PL 3.28e-01 3.70e-01 1.18e-01 6.63e-03 8.21e-01 8.22e-01   ph/cm2/s
              Error 1.42e-01 1.03e-01 9.29e-02 2.99e-02 2.01e-01 2.02e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.554    0.434    -      -           3.37e-04 1.05e-04   67.170 57
CPL   3.038    0.096     327.3   13.6      1.96e-04 1.80e-04   66.400 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.096    0.404    -      -           5.46e-03 1.62e-03   48.640 57
CPL  -0.328    3.051      38.0   10.0      1.49e-01 2.44e+01   44.400 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  292.096   -0.576  291.520
T90   274.172    0.928  275.100
T50   113.536    4.848  118.384
Peak    1.000    0.624    1.624

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  250.8733   -38.9483   0.0513    25.1977   141.5428         1.1548856      3.735 TRIG_01323295

Foreground time interval of the image:
 -0.576 260.301 (delta_t = 260.877 [sec])
Background time interval of the image:
-239.600  -0.576 (delta_t = 239.024 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

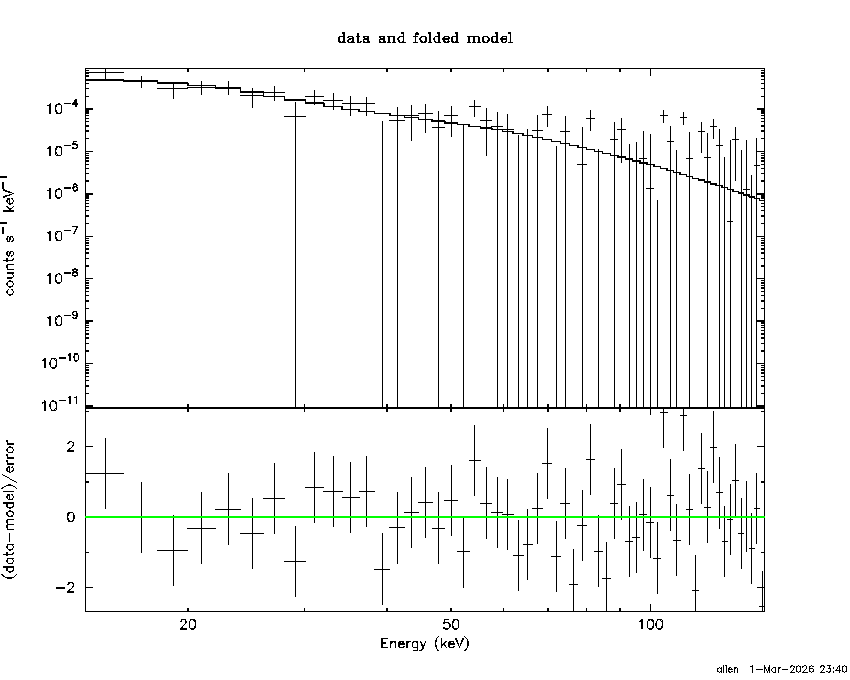

Power-law model

Time interval is from   -0.576 sec. to  291.520 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.55353     ( -0.393251   0.474421 )
Norm@50keV  : 3.36541E-04    ( -0.000106598   0.000102878 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   67.17     using 59 bins.
 Reduced chi-squared = 1.17842
# Null hypothesis probability of 1.68e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 292.1 sec: 6.83526E-02 ( -0.0114096  0.0114077 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.98094e-07 ( -2.11951e-07  2.23682e-07 ) ergs/cm2

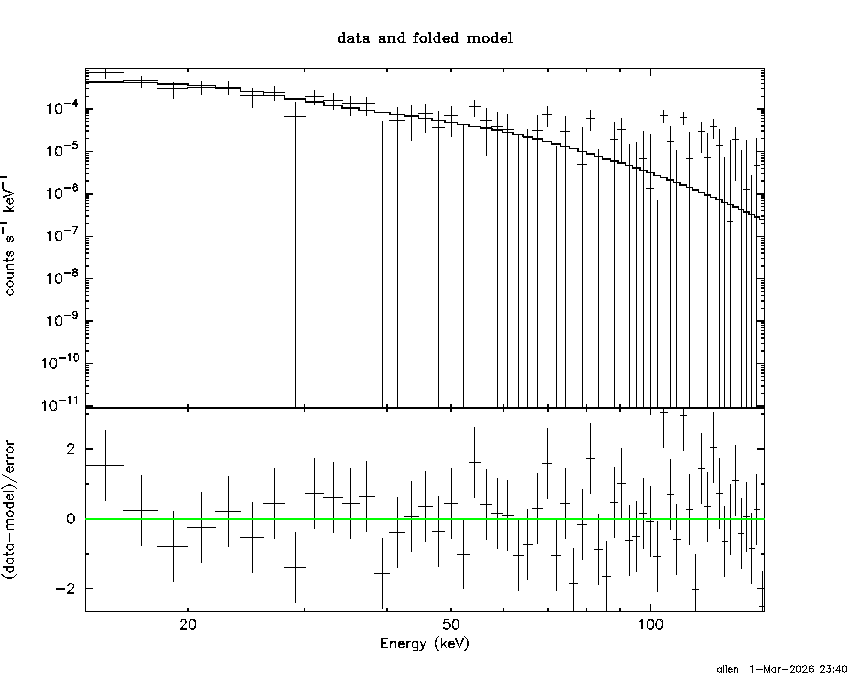

Cutoff power-law model

Time interval is from   -0.576 sec. to  291.520 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.03814     ( -0.176368   0.0163784 )
Epeak [keV] : 327.304      ( -0.362703 26.9192 )
Norm@50keV  : 1.96250E-04    ( -0.000133677   0.000225966 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   66.40     using 59 bins.
 Reduced chi-squared = 1.18571
# Null hypothesis probability of 1.61e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 292.1 sec: 6.65822E-02 ( -0.0111234  0.0112717 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.93198e-07 ( -3.12068e-07  4.09264e-07 ) ergs/cm2

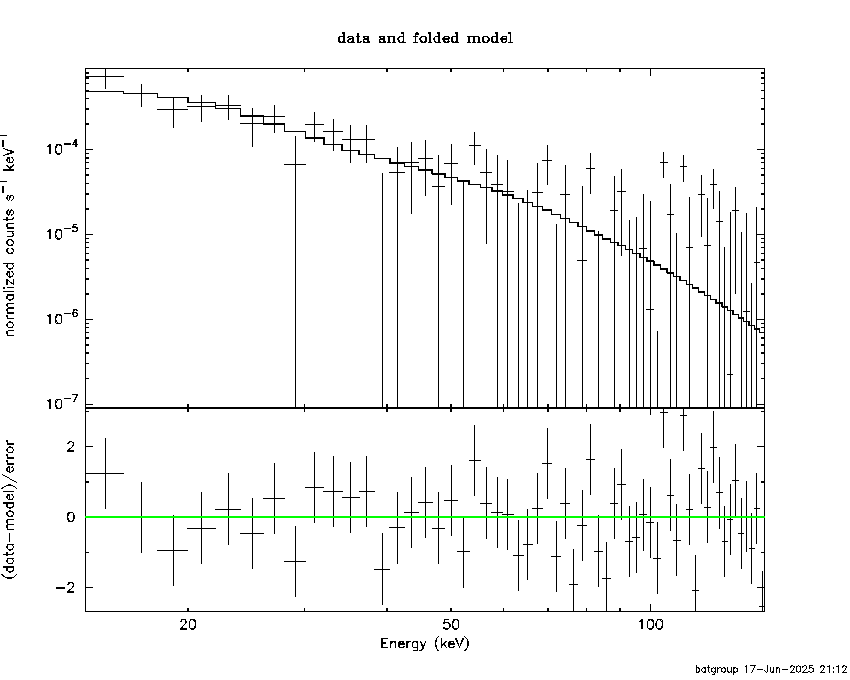

Band function

Time interval is from   -0.576 sec. to  291.520 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

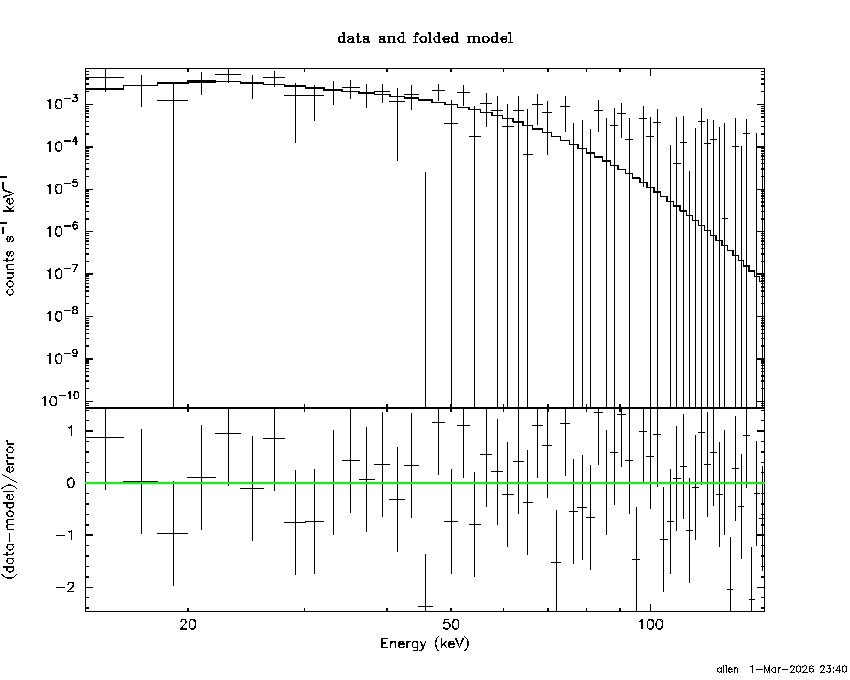

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.15529  (-1.54973  1.81493)
R^2/D10^2   : 0.110524  (-0.0667631   0.20069)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   78.83     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.94e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.715e-07   9.731e-08
25- 50  3.878e-07   1.382e-07
50-150  6.953e-08   3.921e-08
15-150  7.288e-07   2.256e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 31.7299       (-11.9606      22.1175)
Norm        : 0.510967       (-0.171985     0.311306)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   70.06     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.15e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.123e-07   7.698e-08
25- 50  3.678e-07   8.966e-08
50-150  2.165e-07   1.197e-07
15-150  8.965e-07   2.404e-07

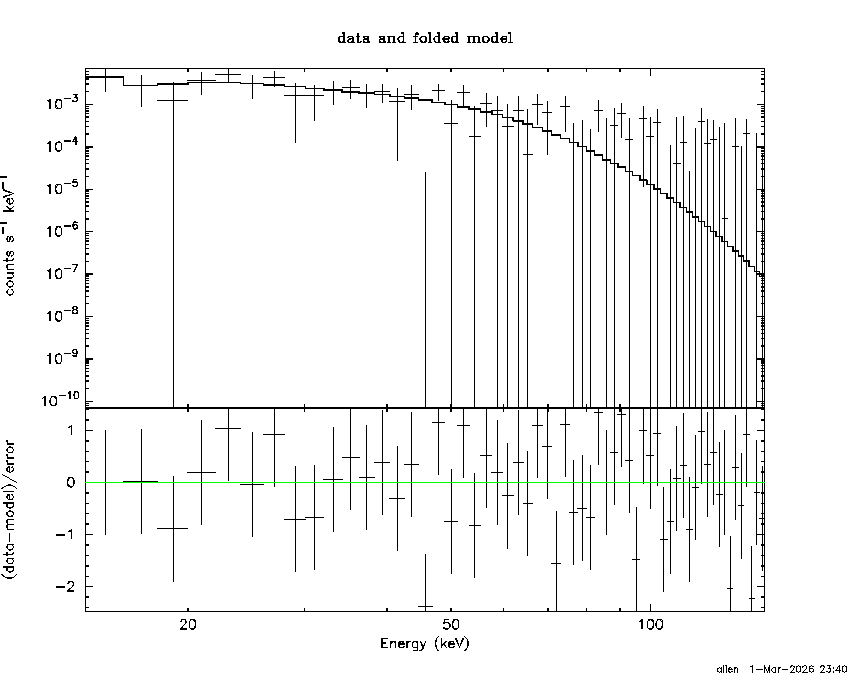

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.07583        (-1.17334      2.01927)
R1^2/D10^2  : 51.3399        (-53.0141      347990)
kT2 [keV]   : 10.1123        (-2.66951      6.21719)
R2^2/D10^2  : 2.25938E-02    (-0.0166942   0.0528351)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   66.66     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.35e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.281e-07   1.655e-07
25- 50  3.546e-07   2.037e-07
50-150  1.878e-07   1.307e-07
15-150  8.705e-07   4.504e-07

Peak spectrum fit

Power-law model

Time interval is from    0.624 sec. to    1.624 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.09556     ( -0.37794   0.429837 )
Norm@50keV  : 5.46319E-03    ( -0.00164226   0.00159547 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.64     using 59 bins.
 Reduced chi-squared = 0.853333
# Null hypothesis probability of 7.77e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.857706 ( -0.200809  0.200894 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.07388e-08 ( -1.36391e-08  1.41784e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.624 sec. to    1.624 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.327913     ( -3.9856   2.1171 )
Epeak [keV] : 38.0122      ( -5.30479 14.6894 )
Norm@50keV  : 0.148819    ( -0.165805   48.6149 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.40     using 59 bins.
 Reduced chi-squared = 0.792857
# Null hypothesis probability of 8.68e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.821215 ( -0.200636  0.202135 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.42456e-08 ( -1.2049e-08  1.40962e-08 ) ergs/cm2

Band function

Time interval is from    0.624 sec. to    1.624 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.62063  (-1.92346  2.42043)
R^2/D10^2   : 0.502140  (-0.296377   0.689489)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.81     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.79e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.330e-09   4.104e-09
25- 50  2.194e-08   9.783e-09
50-150  1.023e-08   6.124e-09
15-150  4.150e-08   1.546e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 53.4941       (-21.9957      52.0762)
Norm        : 4.84815       (-1.51887     2.23011)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.96     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.52e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.203e-08   4.057e-09
25- 50  1.768e-08   6.877e-09
50-150  1.827e-08   1.120e-08
15-150  4.798e-08   1.882e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.569122        (-7.14203      -7.14203)
R1^2/D10^2  : 6.68668E+09        (-7.04546e+09      -7.04546e+09)
kT2 [keV]   : 9.86918        (-2.00388      2.55069)
R2^2/D10^2  : 0.447391    (-0.269079   0.583582)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   43.99     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.56e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.027e-08   1.078e-08
25- 50  2.063e-08   3.663e-08
50-150  1.358e-08   2.393e-08
15-150  4.448e-08   5.820e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.62285     ( -0.406538   0.4932 )
Norm@50keV  : 3.28592E-04    ( -0.000109934   0.000108204 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   70.16     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.13e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 260.9 sec: 6.97314E-02 ( -0.0120163  0.0120169 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.88795e-07 ( -1.94551e-07  2.06721e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.97818     ( -1.39758   0.018047 )
Epeak [keV] : 1.27377      ( -0.667643 25.4002 )
Norm@50keV  : 8.13283E-04    ( -0.000804806   0.000497063 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   71.01     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.54e-02 with 56 degrees of freedom

Photon flux (15-150 keV)    in 260.9 sec: 6.97009E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.83653e-07 ( -2.03888e-07  2.12226e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.33e-07
S(50-100 keV) = 2.27e-07

T90 vs. Hardness ratio plot

T90                                   = 274.171999931335 sec.
Hardness ratio (energy fluence ratio) = 0.681682

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.779932
Count Ratio (50-100 keV) / (15-25 keV) = 0.242516

Mask shadow pattern

IMX = -3.684481368256700E-01, IMY = -2.926280507614518E-01

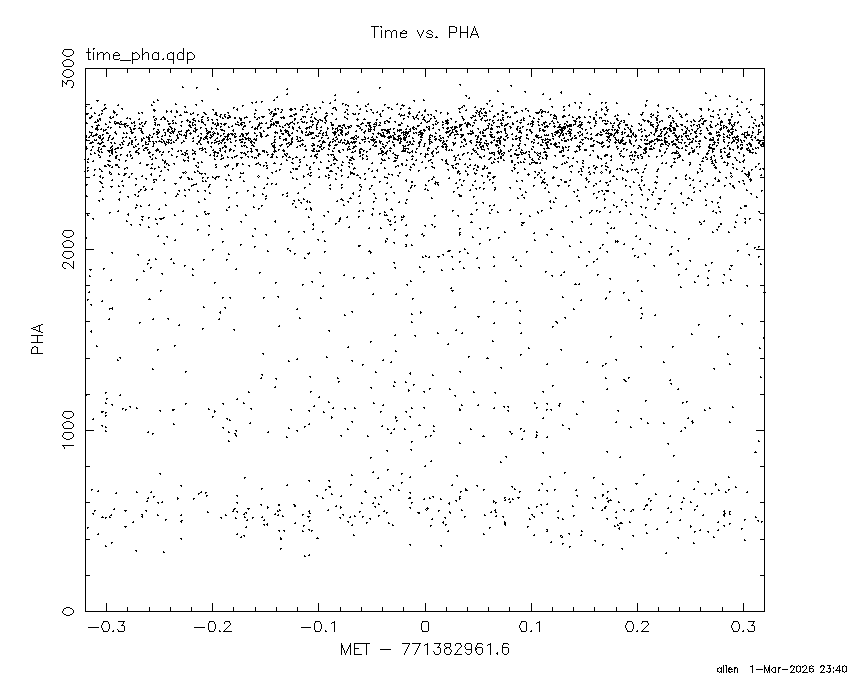

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.600000 -0.576000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2643 -60.5798    6.5  50.3 -134.1   3.4049   1.8    3.0	Cen X-3
186.3694 -62.8371    3.3  44.6 -141.6  -2.5031  -3.5    8.8	GX 301-2
244.9914 -15.6252    0.6  21.4   79.1   8.4795  19.3    1.1	Sco X-1
255.8894 -37.9362    7.2  28.6  136.6  -0.9055  -1.6    7.2	4U 1700-377
256.4004 -36.2713   27.2  28.6  133.0  -0.2571  -0.4    9.3	GX 349+2
263.1687 -24.7053   11.8  34.4  110.7   0.8853   1.0    9.0	GX 1+4
264.6172 -44.3409    8.8  36.7  144.7  -1.0389  -1.3    8.5	4U 1735-44
270.2490 -25.2673   12.1  40.6  113.6  -1.8992  -1.0   11.4	GX 5-1
270.1482 -25.7048   10.0  40.4  114.3   2.3854   1.2    8.7	GRS 1758-258
263.0463 -33.9698   14.8  33.7  127.2  -0.6445  -0.8    8.6	GX 354-0
181.4980  -8.3749    3.0  44.9  -60.2   7.9111   3.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.576000 260.300590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2820 -60.6658    9.0  50.3 -134.2   1.6192   1.3    2.8	Cen X-3
186.8984 -62.9641    0.0  44.5 -141.9  -0.6965  -1.4   13.4	GX 301-2
245.0015 -15.6421    3.9  21.4   79.2   0.9937   3.0    1.3	Sco X-1
255.8748 -37.8401   11.0  28.5  136.4   0.4044   1.1    5.3	4U 1700-377
256.5070 -36.5544   10.0  28.7  133.6  -0.4536  -1.2    8.6	GX 349+2
263.0265 -24.8186    6.4  34.3  110.9  -0.9542  -1.8    4.5	GX 1+4
264.7304 -44.4348    8.5  36.8  144.8   0.6438   1.4    1.1	4U 1735-44
270.1084 -25.0587    3.5  40.5  113.3   3.6213   3.3    9.6	GX 5-1
270.2519 -25.7607    4.1  40.5  114.4  -3.0291  -2.8    2.9	GRS 1758-258
262.9527 -33.6858    6.8  33.6  126.7  -0.8235  -1.7    9.1	GX 354-0
175.9234 -44.1546    2.1  43.2 -113.2   5.6552   5.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
424.300600 859.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9906 -15.6533    0.5  20.2  134.2  17.5518  23.9    1.0	Sco X-1
254.2971  35.3506  106.5  34.1  -81.0   0.1334   0.1    7.9	Her X-1
256.1292 -37.9768    5.1  39.3  101.7   5.3235   2.3   10.4	4U 1700-377
256.3919 -36.3875   21.4  37.7  101.3   0.9186   0.5    3.0	GX 349+2
263.1890 -24.8608    0.0  27.1   87.5   0.4321   0.4   12.0	GX 1+4
268.3579  -1.4153 1019.4  12.5   24.3  -0.0070  -0.0    2.3	SW J1753.5-0127
270.2047 -24.9454   28.0  29.6   75.2   0.5542   0.4    9.1	GX 5-1
270.2831 -25.6439    8.2  30.2   75.7  -2.0042  -1.4    6.0	GRS 1758-258
274.0763 -13.9295    8.7  23.4   52.9   1.1180   1.3    7.6	GX 17+2
275.7970 -30.4357    3.5  36.9   72.8   7.3103   3.3    7.8	H1820-303
284.9329 -25.1072   59.3  38.4   57.1  -0.3494  -0.2   12.5	HT1900.1-2455
288.8310  10.9131   11.6  33.9   -6.1   0.8394   1.0    2.7	GRS 1915+105
299.5670  35.2161    1.8  52.7  -33.4  15.0598   6.4    1.4	Cyg X-1
262.8450 -33.8108   12.5  35.7   92.1   1.6324   0.9    7.3	GX 354-0
218.6324   1.9069    2.4  37.5 -166.9   4.3060   4.8 ------	UNKNOWN
214.2898   3.8865    2.7  41.9 -164.0   4.5822   4.4 ------	UNKNOWN
205.5601  21.4115    2.5  53.2 -142.3  16.4609   4.6 ------	UNKNOWN
273.6292  43.3824    3.3  44.9  -60.3  13.3797   3.5 ------	UNKNOWN
236.0752  38.5044    2.6  41.5 -102.2  14.1708   4.4 ------	UNKNOWN

Plot creation:
Sun Mar  1 23:40:56 EST 2026
