batgrbproduct analysis for trigger=1327910

batgrbproduct Analysis for Trigger=1327910

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Mar  1 05:39:29 EST 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1327910
======================================================================

  Trigger: 01327910      Segment: 000

  BAT Trigger Time: 772560332.352   [s; MET]
      Trigger Stop: 772560334.4   [s; MET]
               UTC: 2025-06-25T16:04:56.501080    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 261.518500071886   Dec: 22.2652037501118  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.92
     Image Trigger?:     NO
     Rate S/N Ratio:     24  [ if not an image trigger ]
     Image S/N Ratio:    7.92

  Flight Position:   [ source = BAT ]
    RA: 261.518500071886   Dec: 22.2652037501118  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 261.512415406794   Dec: 22.2063625960077  [deg; J2000]
        { 17h 26m 03.0s , +22d 12' 22.9" }
         +/- 3.11408845947511 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.35299556962305 [arcmin] (formal 1-sigma fit error)
    SNR: 6.00288311423833

  Angular difference between Flight and Ground position is 3.546605 arcmin

  Partial Coding Fraction: 0.6875    [ including projection effects ]

  Duration
     T90: 49.6640000343323 +/- 42.9177930920612
        Measured from: 0.215999960899353
                   to: 49.8799999952316     [s; relative to TRIGTIME]
     T50: 11.1520000696182 +/- 59.2965682528307
        Measured from: 1.35199999809265
                   to: 12.5040000677109     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 1.067999958992
                   to: 2.067999958992     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.103999972343445
                   to: 75.7039999961853     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.086926   0.210322   0.287891   0.218646
           0.060277   0.061085   0.052352   0.045939 [error]
 Peak      0.029189   0.047349   0.067006   0.015070
           0.007996   0.008441   0.008266   0.006778 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.99e-08 8.92e-08 2.18e-07 1.48e-06 5.91e-07 1.82e-06   erg/cm2
              Error 1.70e-08 3.06e-08 4.81e-08 8.36e-07 1.32e-07 8.38e-07   erg/cm2
Peak flux Power-law 2.75e-01 3.77e-01 3.83e-01 7.05e-01 1.26e+00 1.74e+00   ph/cm2/s
              Error 8.67e-02 7.38e-02 6.35e-02 2.49e-01 2.02e-01 2.96e-01   ph/cm2/s

Fluence   Cutoff-PL 2.46e-08 9.15e-08 2.34e-07 7.20e-07 5.75e-07 1.07e-06   erg/cm2
              Error 2.17e-08 3.37e-08 6.70e-08 1.17e-06 1.56e-07 1.10e-06   erg/cm2
Peak flux Cutoff-PL 2.18e-01 3.91e-01 4.22e-01 3.51e-01 1.22e+00 1.38e+00   ph/cm2/s
              Error 1.07e-01 8.26e-02 8.24e-02 3.15e-01 2.08e-01 4.01e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.713    0.438    -      -           6.44e-04 1.68e-04   80.170 57
CPL   0.071    2.161     185.5    0.0      1.18e-03 2.75e-02   79.930 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.980    0.263    -      -           1.10e-02 1.73e-03   50.070 57
CPL   0.138    1.162     129.5  -41.1      2.55e-02 3.96e-02   48.190 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 36.352000 sec.
T50 in the 50-300 keV band: 21.248000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   75.600    0.104   75.704
T90    49.664    0.216   49.880
T50    11.152    1.352   12.504
Peak    1.000    1.068    2.068

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  261.5124    22.2064   0.0320    28.6191    26.0171         0.5274645      6.003 TRIG_01327910

Foreground time interval of the image:
  0.104  33.949 (delta_t =  33.845 [sec])
Background time interval of the image:
-239.352   0.104 (delta_t = 239.456 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

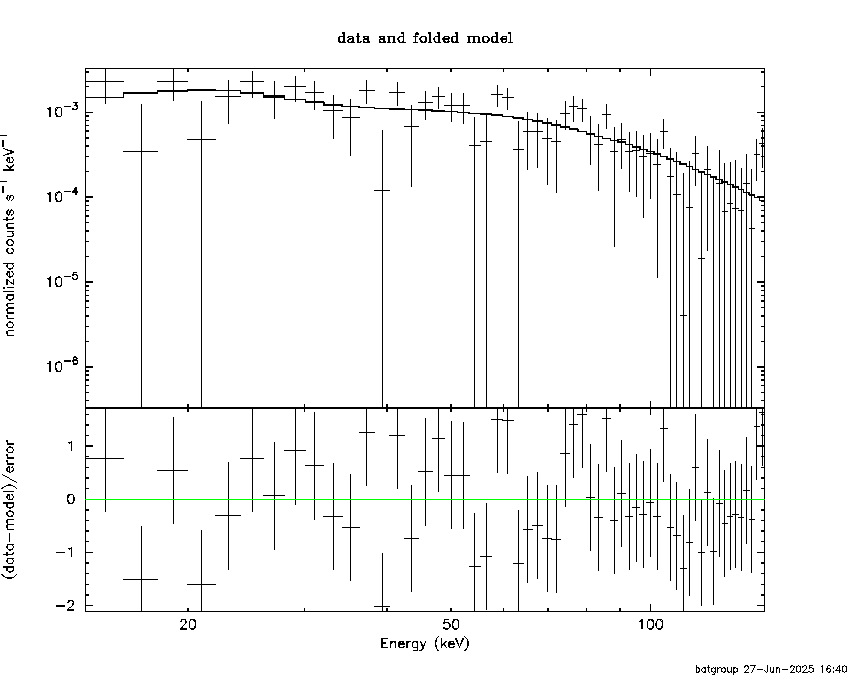

Power-law model

Time interval is from    0.104 sec. to   75.704 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.713123     ( -0.472112   0.404097 )
Norm@50keV  : 6.44321E-04    ( -0.00017327   0.000163498 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   80.17     using 59 bins.
 Reduced chi-squared = 1.40649
# Null hypothesis probability of 2.32e-02 with 57 degrees of freedom

Photon flux (15-150 keV)    in 75.6 sec: 7.44019E-02 ( -0.0179178  0.018309 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.91142e-07 ( -1.32302e-07  1.32663e-07 ) ergs/cm2

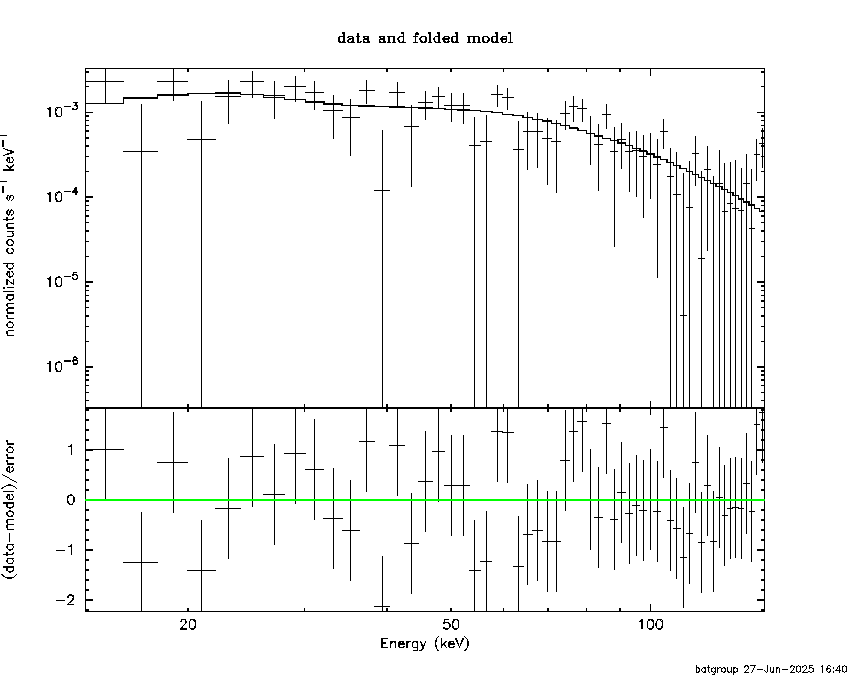

Cutoff power-law model

Time interval is from    0.104 sec. to   75.704 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 7.06569E-02     ( -4.39161   -0.0705993 )
Epeak [keV] : 185.508      ( -185.489 -185.489 )
Norm@50keV  : 1.17578E-03    ( -0.000682744   0.054396 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   79.93     using 59 bins.
 Reduced chi-squared = 1.42732
# Null hypothesis probability of 1.96e-02 with 56 degrees of freedom

Photon flux (15-150 keV)    in 75.6 sec: 7.24091E-02 ( -0.0201819  0.0194671 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.75681e-07 ( -1.69741e-07  1.41951e-07 ) ergs/cm2

Band function

Time interval is from    0.104 sec. to   75.704 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 25.6489  (-6.41994  12.3564)
R^2/D10^2   : 1.78855E-03  (-0.0012197   0.00265252)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   80.68     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.12e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.524e-08   8.693e-09
25- 50  8.759e-08   3.899e-08
50-150  4.255e-07   2.175e-07
15-150  5.284e-07   2.664e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-54.6404      -200)
Norm        : 0.314548       (-0.0773106     0.0773106)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   91.96     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.30e-03 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.928e-08   3.551e-08
25- 50  1.140e-07   6.804e-08
50-150  2.501e-07   1.442e-07
15-150  4.234e-07   2.544e-07

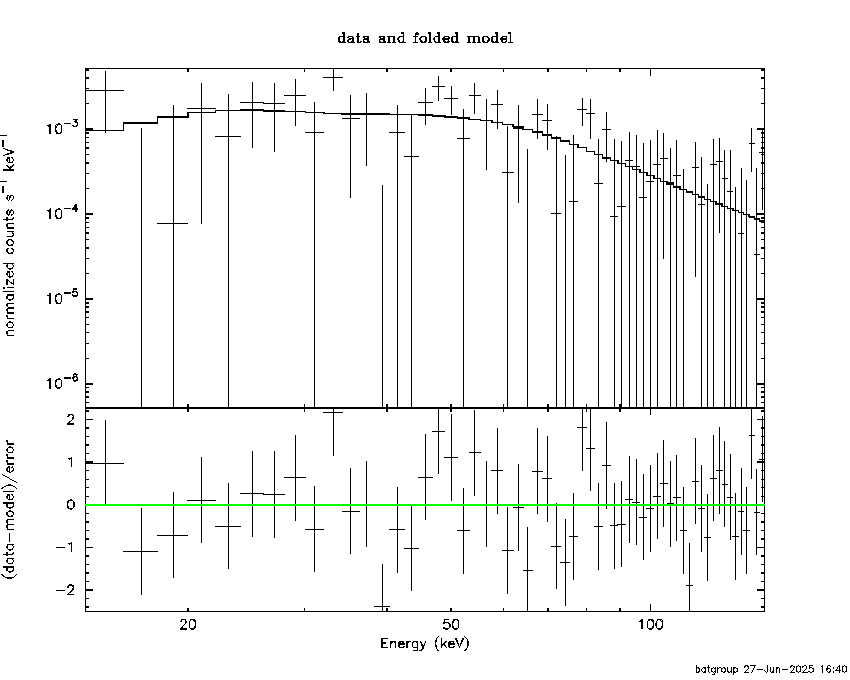

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 200.000        (-200      -200)
R1^2/D10^2  : 1.30203E-05        (-1.30172e-05      -1.30172e-05)
kT2 [keV]   : 17.3398        (-4.10829      11.3256)
R2^2/D10^2  : 4.25946E-03    (-0.00286572   0.00934556)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   78.13     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.19e-02 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.921e-08   1.198e-08
25- 50  9.548e-08   6.766e-08
50-150  4.485e-07   2.679e-07
15-150  5.632e-07   3.730e-07

Peak spectrum fit

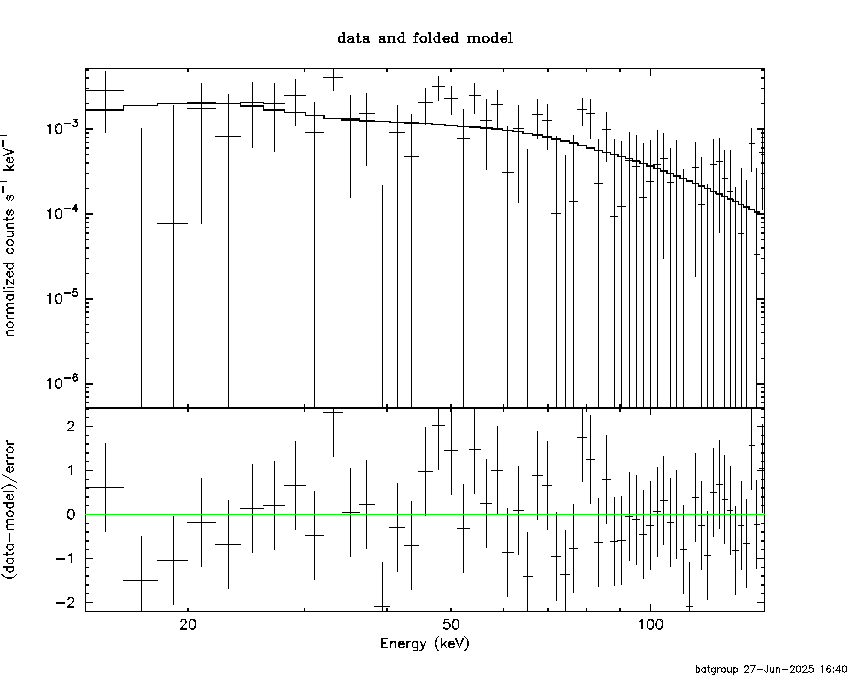

Power-law model

Time interval is from    1.068 sec. to    2.068 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.980327     ( -0.268787   0.257869 )
Norm@50keV  : 1.09633E-02    ( -0.00172993   0.0017208 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   50.07     using 59 bins.
 Reduced chi-squared = 0.878421
# Null hypothesis probability of 7.31e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.26099 ( -0.20112  0.20191 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.19402e-07 ( -1.98706e-08  2.00132e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    1.068 sec. to    2.068 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.138394     ( -1.3781   0.946304 )
Epeak [keV] : 129.503      ( -47.2323 -129.507 )
Norm@50keV  : 2.54782E-02    ( -0.015399   0.0637219 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.19     using 59 bins.
 Reduced chi-squared = 0.860536
# Null hypothesis probability of 7.62e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.22188 ( -0.20759  0.20785 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.15542e-07 ( -2.09117e-08  2.08786e-08 ) ergs/cm2

Band function

Time interval is from    1.068 sec. to    2.068 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.7654  (-3.9599  5.2238)
R^2/D10^2   : 4.18228E-02  (-0.0198647   0.0347613)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.17     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.93e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.948e-09   1.203e-09
25- 50  2.129e-08   5.520e-09
50-150  8.246e-08   2.695e-08
15-150  1.077e-07   2.730e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-39.2527      -200)
Norm        : 5.11394       (-0.835505     0.835505)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   62.08     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.00e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.274e-08   7.345e-09
25- 50  2.451e-08   1.404e-08
50-150  5.375e-08   3.034e-08
15-150  9.100e-08   5.230e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.60737        (-2.95061      6.25585)
R1^2/D10^2  : 0.825193        (-0.76425      5.32851)
kT2 [keV]   : 27.8233        (-6.40618      15.7293)
R2^2/D10^2  : 2.02438E-02    (-0.0159454   0.0175715)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   46.77     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.77e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.994e-09   4.730e-09
25- 50  2.195e-08   1.174e-08
50-150  8.682e-08   4.884e-08
15-150  1.168e-07   6.049e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.741218     ( -0.35827   0.324385 )
Norm@50keV  : 1.31021E-03    ( -0.000271206   0.00026044 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   71.18     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.80e-02 with 57 degrees of freedom

Photon flux (15-150 keV)    in 33.84 sec: 0.151012 ( -0.0287351  0.0292495 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.31376e-07 ( -9.40894e-08  9.43595e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.490549     ( -5.14536   1.47989 )
Epeak [keV] : 136.674      ( -54.6293 -136.279 )
Norm@50keV  : 3.59953E-03    ( -0.00362513   0.133957 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   70.19     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.62e-02 with 56 degrees of freedom

Photon flux (15-150 keV)    in 33.84 sec: 0.140575 ( -0.038222  0.034171 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.12713e-07 ( -1.18498e-07  1.01831e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.92e-08
S(50-100 keV) = 2.18e-07

T90 vs. Hardness ratio plot

T90                                   = 49.6640000343323 sec.
Hardness ratio (energy fluence ratio) = 2.44395

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.41955
Count Ratio (50-100 keV) / (15-25 keV) = 3.31191

Mask shadow pattern

IMX = 4.903568645737041E-01, IMY = -2.393438297018125E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.352000 0.104000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9882 -15.6492    1.3  35.9  107.5   7.7667   8.8    0.7	Sco X-1
254.6809  35.3269    5.8  27.2   -4.9  -0.7971  -2.0   11.0	Her X-1
268.2613  -1.5096   12.7  41.0   64.2  -1.4374  -0.9    7.3	SW J1753.5-0127
203.7717 -27.3754    2.2  52.4  161.5   6.6619   5.1 ------	UNKNOWN
273.7252  33.5951    2.6  41.0    8.9   2.3941   4.5 ------	UNKNOWN
211.9291   1.4838    3.5  25.1 -177.9   1.2121   3.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.104000 33.948600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9174 -15.7576    9.5  36.0  107.7   0.1970   1.2    7.9	Sco X-1
254.5044  35.3483    4.7  27.1   -5.2   0.1801   2.4    2.3	Her X-1
268.4707  -1.3880    2.8  41.2   63.9  -1.1571  -4.1    7.3	SW J1753.5-0127
261.6026  -5.8024    2.5  37.9   75.7   0.8976   4.6 ------	UNKNOWN
288.0040  23.2565    2.7  53.0   24.0   1.7858   4.3 ------	UNKNOWN
261.5124  22.2064    1.9  28.6   26.0   0.5275   6.0 ------	UNKNOWN
203.4537 -12.0065    2.1  40.5  175.0   0.5842   5.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
102.748590 962.737400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0011 -15.6458    2.2  41.2  131.3  22.8228   5.4    1.3	Sco X-1
254.4762  35.3664    4.7  14.5  -96.9  -3.3647  -2.5    1.7	Her X-1
268.4550  -1.5842    6.9  24.8   90.1  -3.3218  -1.7    9.5	SW J1753.5-0127
274.0887 -14.1126    5.4  38.4   86.9   9.1983   2.1    6.6	GX 17+2
288.9511  10.8889    6.5  28.6   35.7  -3.0933  -1.8    9.6	GRS 1915+105
299.5875  35.1887    0.5  35.5  -13.1  35.3758  21.6    0.8	Cyg X-1
308.1276  40.9765    3.5  43.2  -20.0   6.4618   3.3    1.6	Cyg X-3
326.2244  38.4000    5.8  56.9  -15.5   7.0252   2.0    5.3	Cyg X-2
292.5762  -7.4764    3.2  42.5   57.6  15.9575   3.7 ------	UNKNOWN
315.0394  27.1640    3.5  48.5   -0.5   6.4481   3.2 ------	UNKNOWN
291.5727  44.2611    2.6  33.1  -32.2   6.8720   4.5 ------	UNKNOWN
283.4345  64.7488    3.9  44.9  -60.2  20.8443   3.0 ------	UNKNOWN

Plot creation:
Sun Mar  1 23:38:11 EST 2026
