batgrbproduct analysis for trigger=1329888

batgrbproduct Analysis for Trigger=1329888

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri Jul  4 01:34:20 EDT 2025
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1329888/GCN5_download_cron
======================================================================

  Trigger: 01329888      Segment: 000

  BAT Trigger Time: 773183239.168   [s; MET]
      Trigger Stop: 773183240.192   [s; MET]
               UTC: 2025-07-02T21:06:43.274520    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 212.93254740976   Dec: 16.69933155287  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.51
     Image Trigger?:     NO
     Rate S/N Ratio:     16.3401346383682  [ if not an image trigger ]
     Image S/N Ratio:    8.51

  Flight Position:   [ source = BAT ]
    RA: 212.93254740976   Dec: 16.69933155287  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 212.941953352214   Dec: 16.7390575886437  [deg; J2000]
        { 14h 11m 46.1s , +16d 44' 20.6" }
         +/- 1.01593621190449 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.391198927844732 [arcmin] (formal 1-sigma fit error)
    SNR: 29.7378234805418

  Angular difference between Flight and Ground position is 2.444076 arcmin

  Partial Coding Fraction: 0.8125    [ including projection effects ]

  Duration
     T90: 63.675999879837 +/- 12.5011675166856
        Measured from: -11.9559998512268
                   to: 51.7200000286102     [s; relative to TRIGTIME]
     T50: 33.2680000066757 +/- 1.15644276579835
        Measured from: 5.42800009250641
                   to: 38.6960000991821     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 37.3519999980927
                   to: 38.3519999980927     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -29.1280000209808
                   to: 76.444000005722     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.106447   2.782808   2.100033   0.660199
           0.067433   0.071208   0.061725   0.051629 [error]
 Peak      0.130916   0.225655   0.207524   0.086717
           0.008566   0.010253   0.010160   0.007884 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 6.43e-07 1.19e-06 1.70e-06 5.12e-06 4.84e-06 8.65e-06   erg/cm2
              Error 4.05e-08 4.23e-08 6.50e-08 4.60e-07 1.57e-07 4.91e-07   erg/cm2
Peak flux Power-law 1.30e+00 1.59e+00 1.42e+00 2.18e+00 5.07e+00 6.49e+00   ph/cm2/s
              Error 1.27e-01 9.33e-02 8.25e-02 2.73e-01 2.58e-01 3.50e-01   ph/cm2/s

Fluence   Cutoff-PL 6.39e-07 1.20e-06 1.69e-06 5.07e-06 4.83e-06 8.27e-06   erg/cm2
              Error 3.05e-08 4.17e-08 6.56e-08 3.42e-07 1.59e-07 3.94e-07   erg/cm2
Peak flux Cutoff-PL 1.26e+00 1.61e+00 1.44e+00 1.87e+00 5.04e+00 6.18e+00   ph/cm2/s
              Error 1.18e-01 1.00e-01 9.78e-02 5.16e-01 2.67e-01 4.81e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.487    0.060    -      -           4.82e-03 1.47e-04   52.670 57
CPL   1.482    0.061    9999.2    0.0      4.83e-03 2.78e-04   52.770 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.168    0.088    -      -           4.33e-02 2.15e-03   47.250 57
CPL   1.029    0.272     359.3  -74.3      5.03e-02 1.54e-02   46.950 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 60.672000 sec.
T50 in the 50-300 keV band: 31.616000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  105.572  -29.128   76.444
T90    63.676  -11.956   51.720
T50    33.268    5.428   38.696
Peak    1.000   37.352   38.352

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  212.9420 +16.7391 0.0065   26.7 -148.5       2.8311    29.7  TRIG_01329888
------------------------------------------

Foreground time interval of the image:
-29.128  12.733 (delta_t =  41.861 [sec])
Background time interval of the image:
-179.267 -29.128 (delta_t = 150.139 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

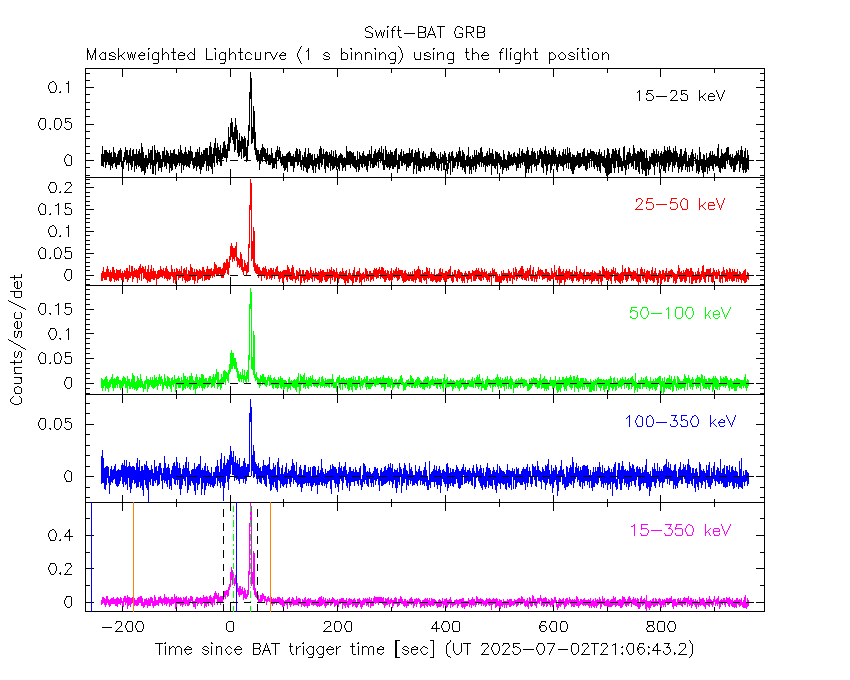

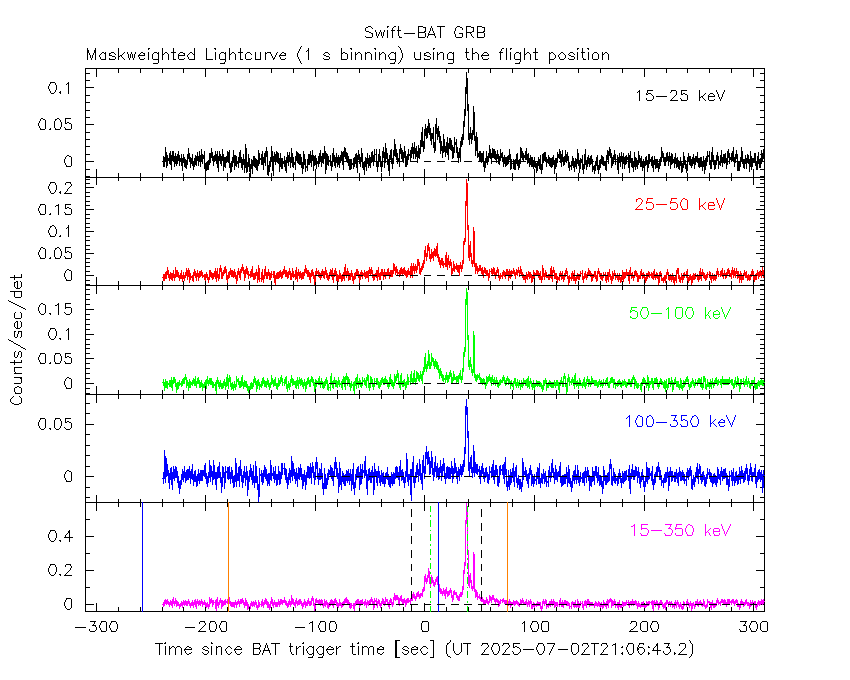

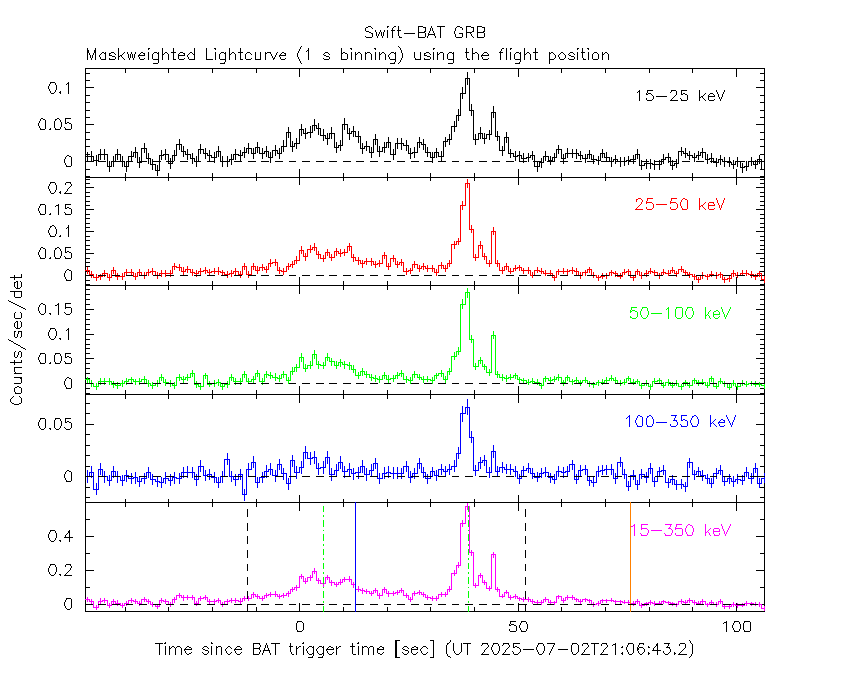

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

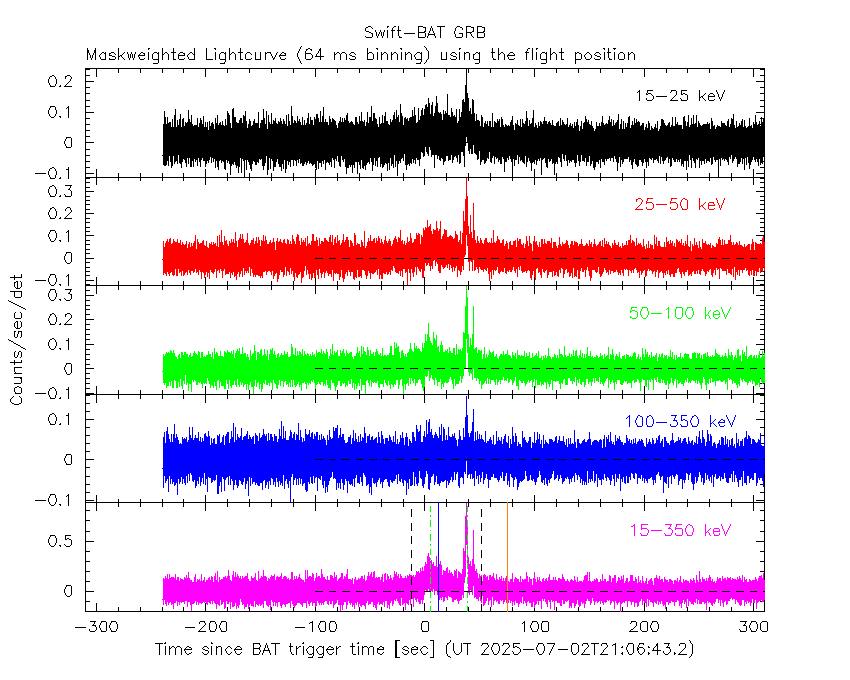

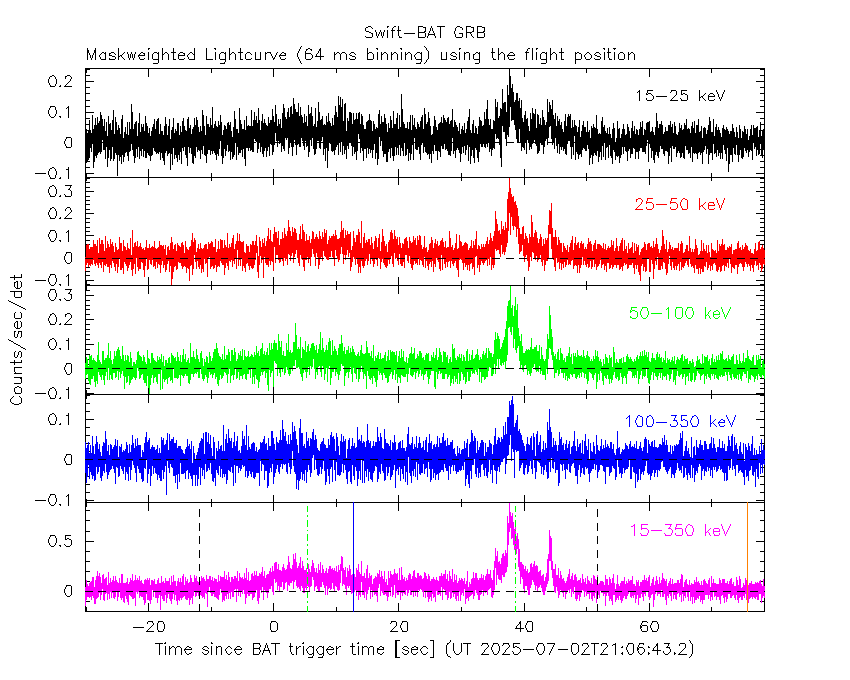

64 ms binning

Full time interval

From T100_start to T100_end

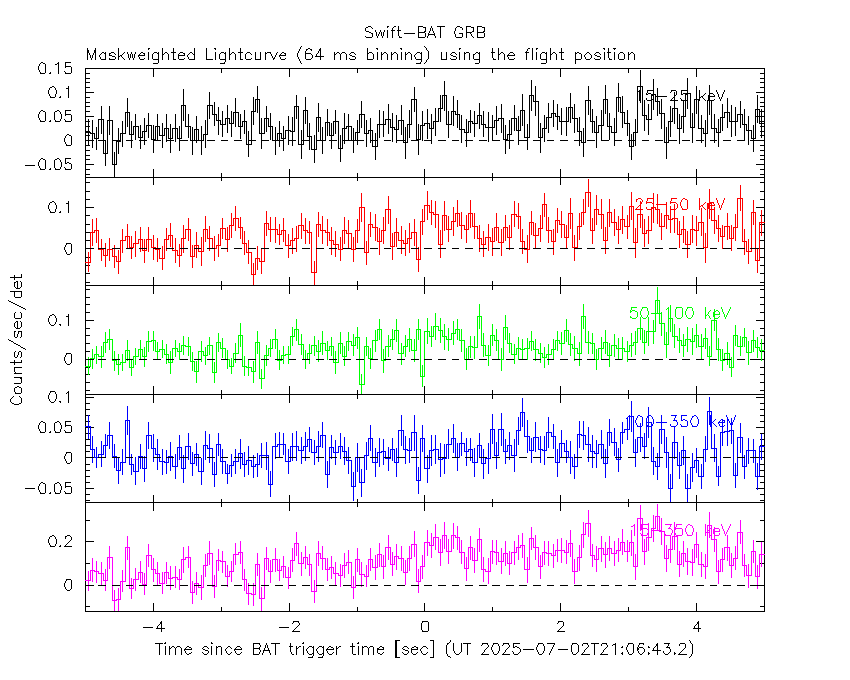

From T0-5 sec to T0+5 sec

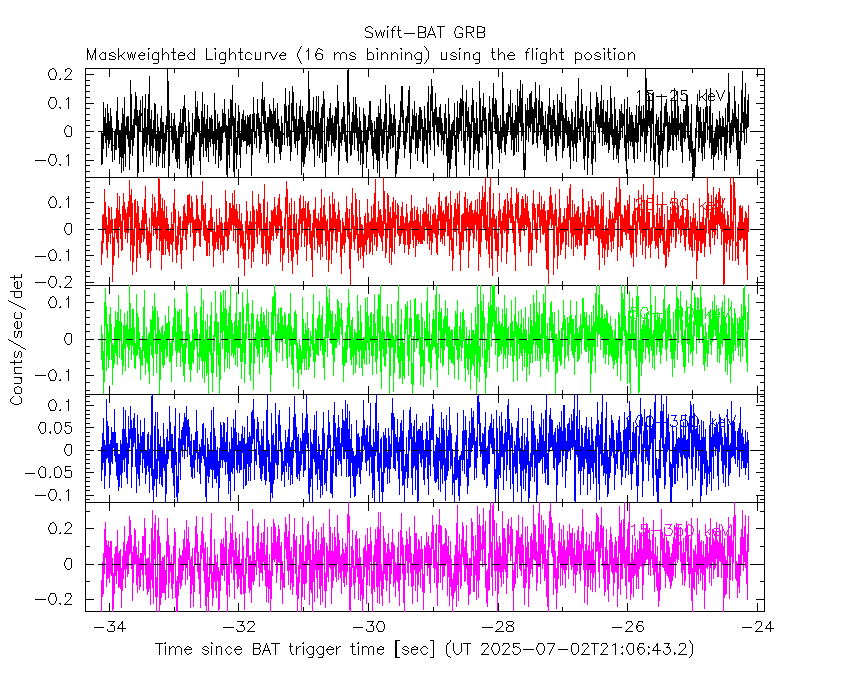

16 ms binning

From T100_start-5 s to T100_start+5 s

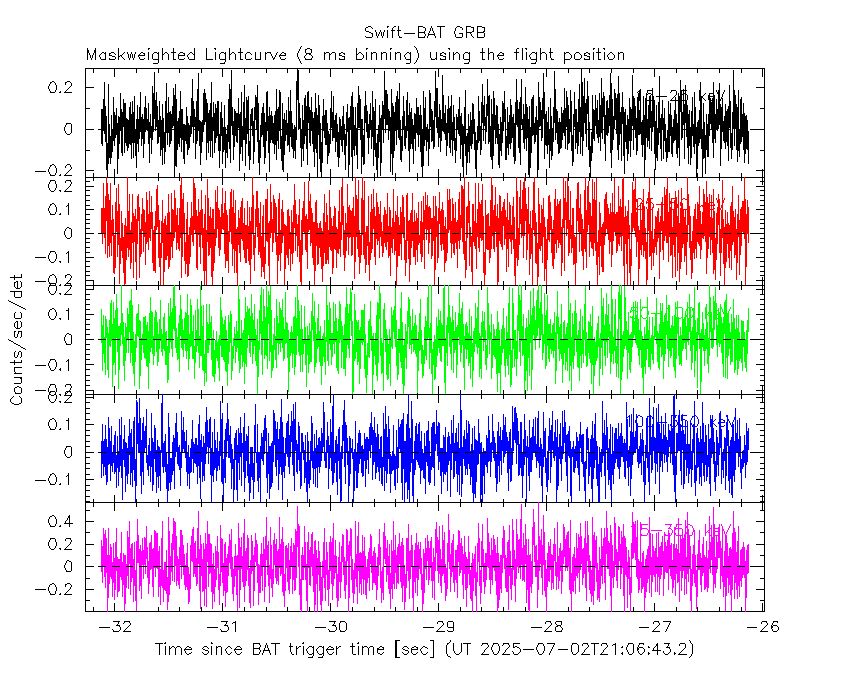

8 ms binning

From T100_start-3 s to T100_start+3 s

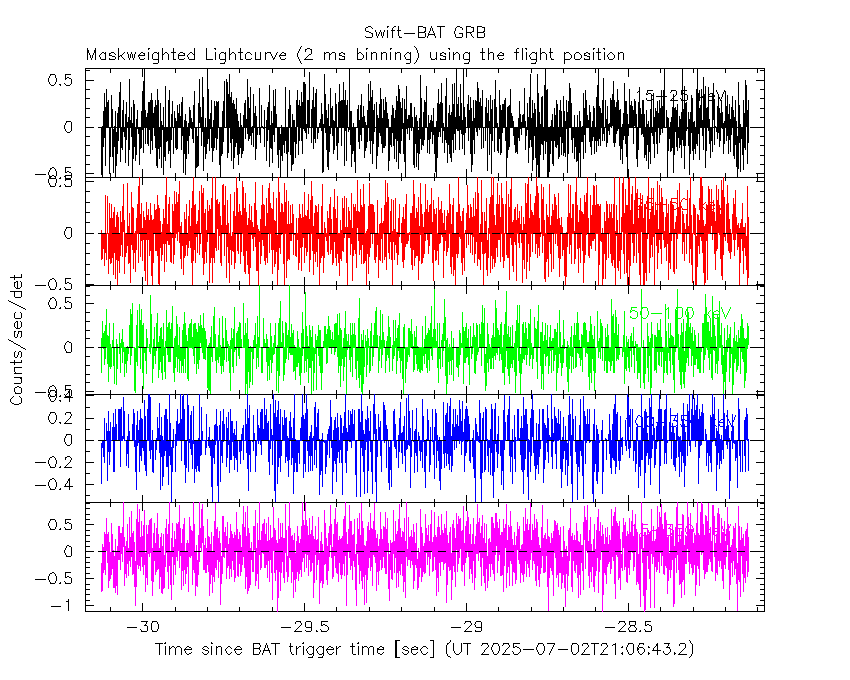

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

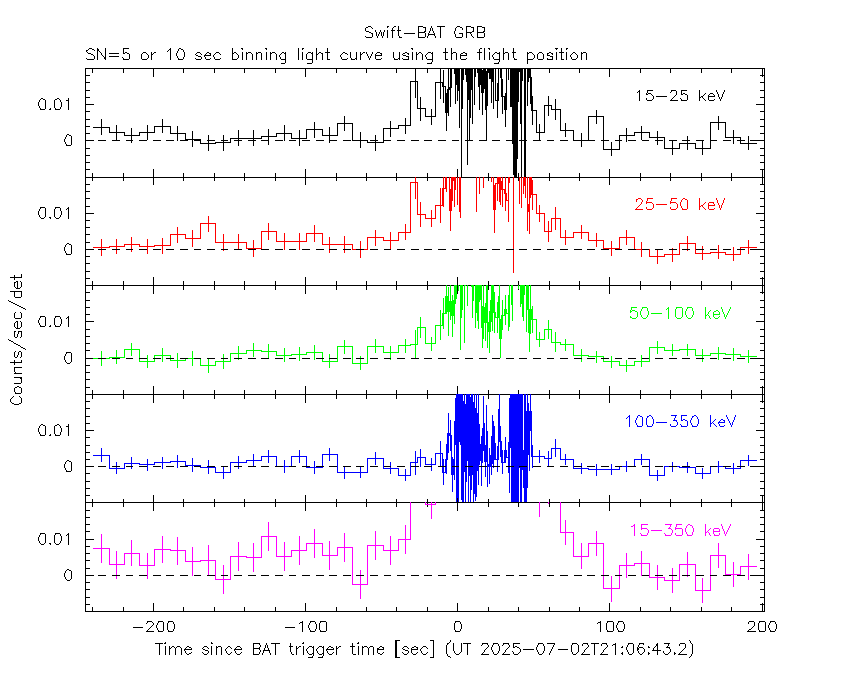

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

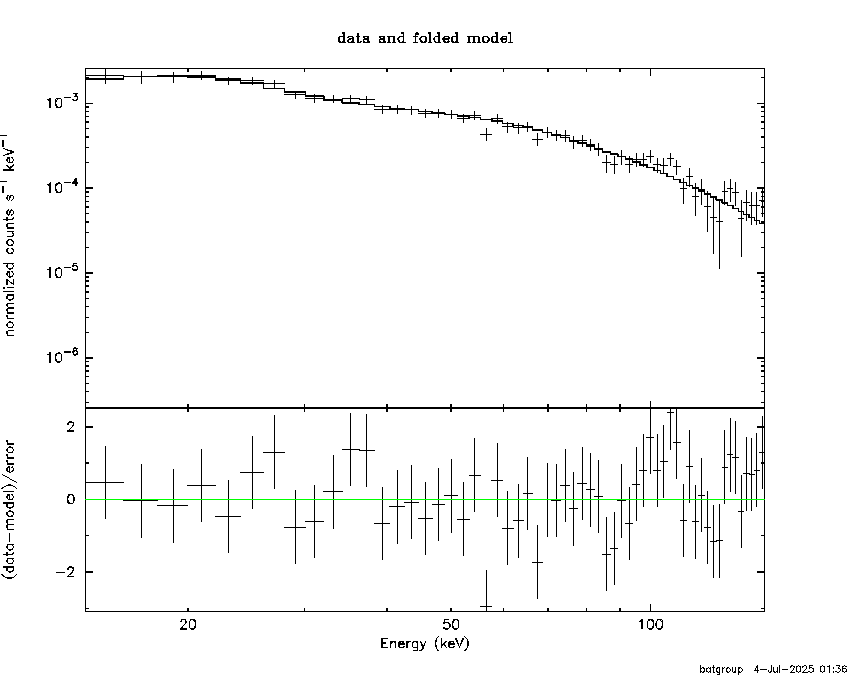

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  -29.128 sec. to   76.444 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.48706     ( -0.0603559   0.0603157 )
Norm@50keV  : 4.82423E-03    ( -0.000146557   0.00014654 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.67 using 59 PHA bins.
# Reduced chi-squared =         0.9241 for     57 degrees of freedom
# Null hypothesis probability =   6.380620e-01

Photon flux (15-150 keV)    in 105.6 sec: 0.600181 ( -0.0201704  0.0203076 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.84319e-06 ( -1.56626e-07  1.57237e-07 ) ergs/cm2

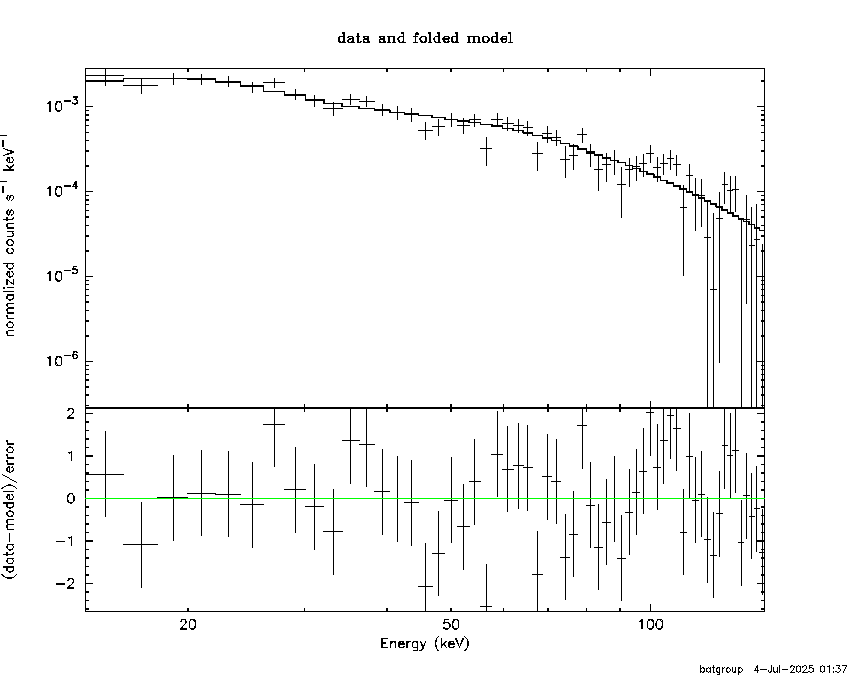

Cutoff power-law model

Time interval is from  -29.128 sec. to   76.444 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.48182     ( -0.0605888   0.0608439 )
Epeak [keV] : 9999.24      ( -9999.36 -9999.36 )
Norm@50keV  : 4.83422E-03    ( -0.000146768   0.000410107 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.77 using 59 PHA bins.
# Reduced chi-squared =         0.9423 for     56 degrees of freedom
# Null hypothesis probability =   5.978761e-01

Photon flux (15-150 keV)    in 105.6 sec: 0.600851 ( -0.02131  0.019385 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.83465e-06 ( -1.49857e-07  1.67883e-07 ) ergs/cm2

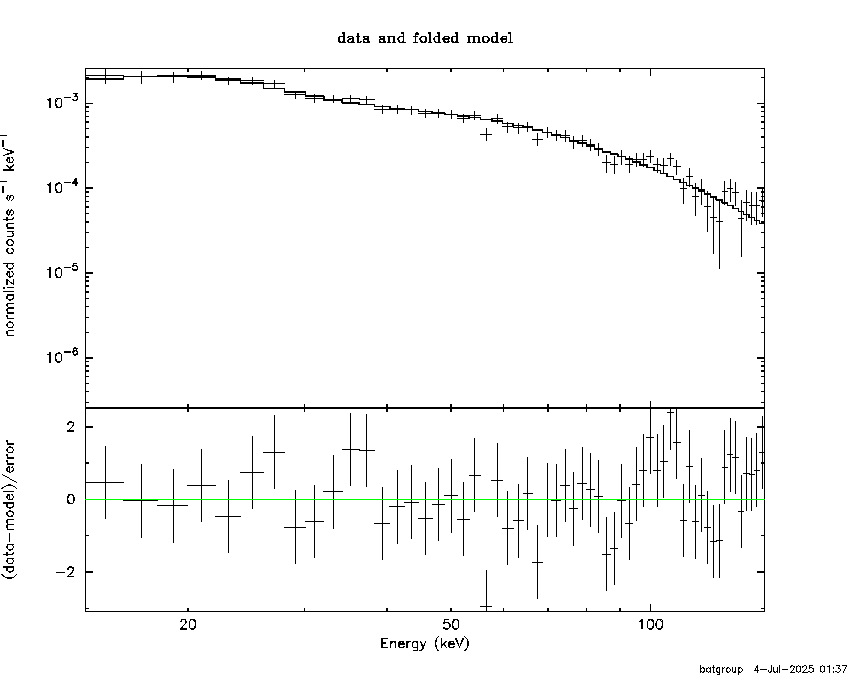

Band function

Time interval is from  -29.128 sec. to   76.444 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.20690   ( 1.2069   1.2069 )
beta        : -1.48705    ( -0.0603274   0.0603551 )
Epeak [keV] : 30.0207      ( -30.0197 -30.0197 )
Norm@50keV   : 9.85752E-03    ( -0.00372122   10.9448 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.67 using 59 PHA bins.
# Reduced chi-squared =         0.9577 for     55 degrees of freedom
# Null hypothesis probability =   5.641170e-01

Photon flux (15-150 keV)    in 105.6 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

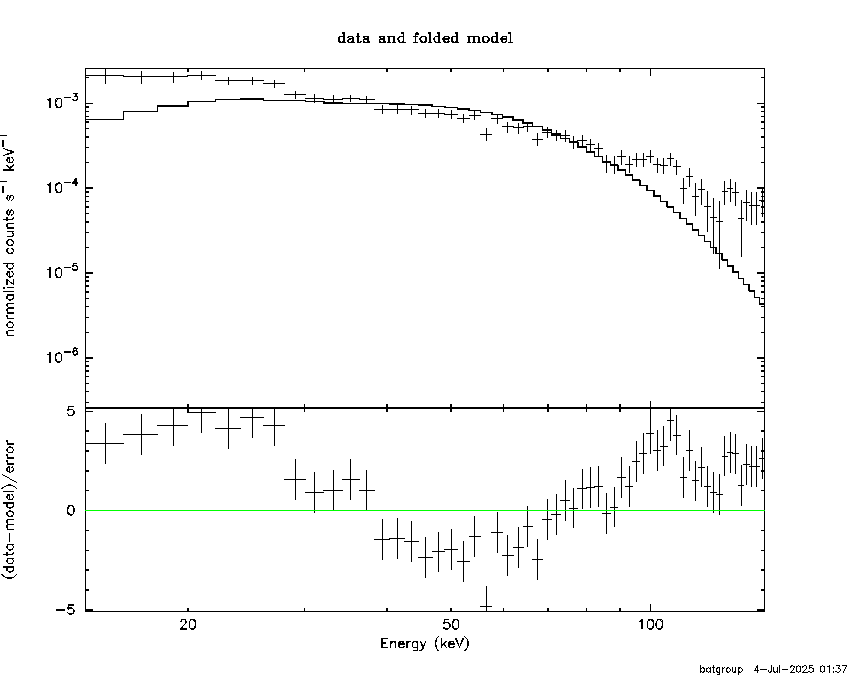

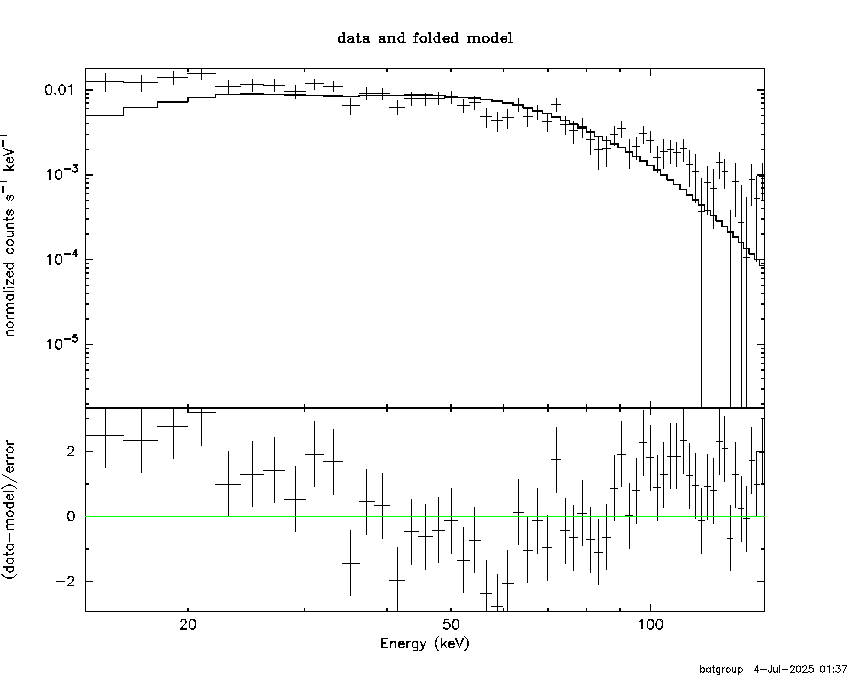

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.6957  (  )
R^2/D10^2   : 4.43527E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         364.48 using 59 PHA bins.
# Reduced chi-squared =         6.3945 for     57 degrees of freedom
# Null hypothesis probability =   2.152968e-46

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.672e-07   1.721e-08
25- 50  1.165e-06   5.386e-08
50-150  2.305e-06   1.183e-07
15-150  3.737e-06   1.331e-07

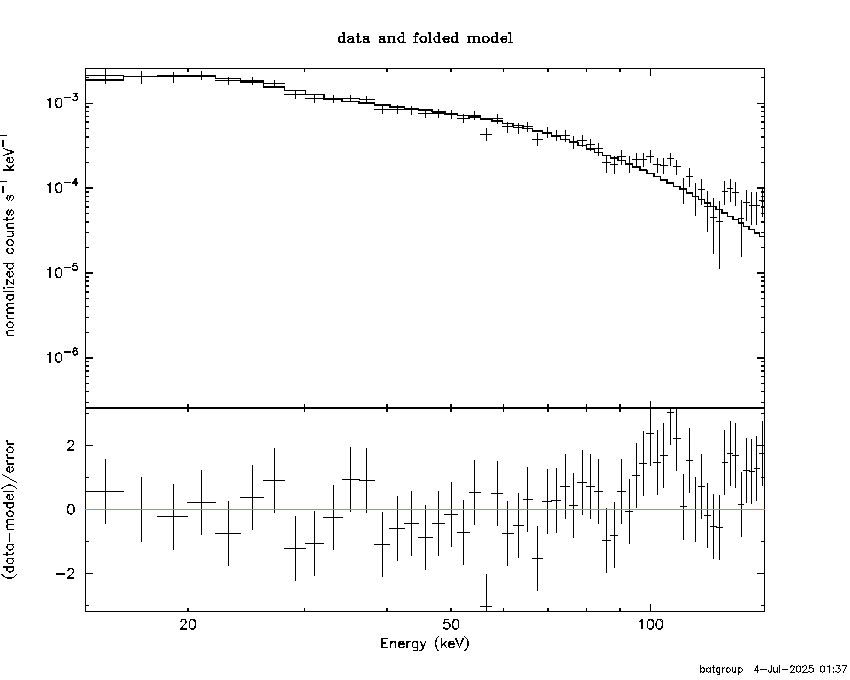

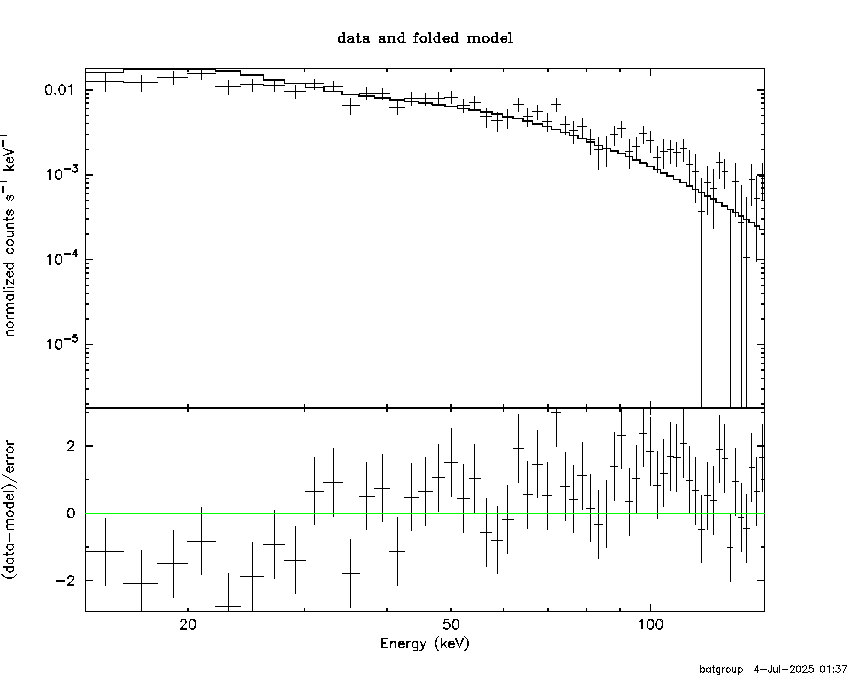

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-9.55522      -200)
Norm        : 2.45846       (-0.0748999     0.0748999)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.466e-07   2.402e-08
25- 50  1.244e-06   4.382e-08
50-150  2.728e-06   9.662e-08
15-150  4.619e-06   1.573e-07

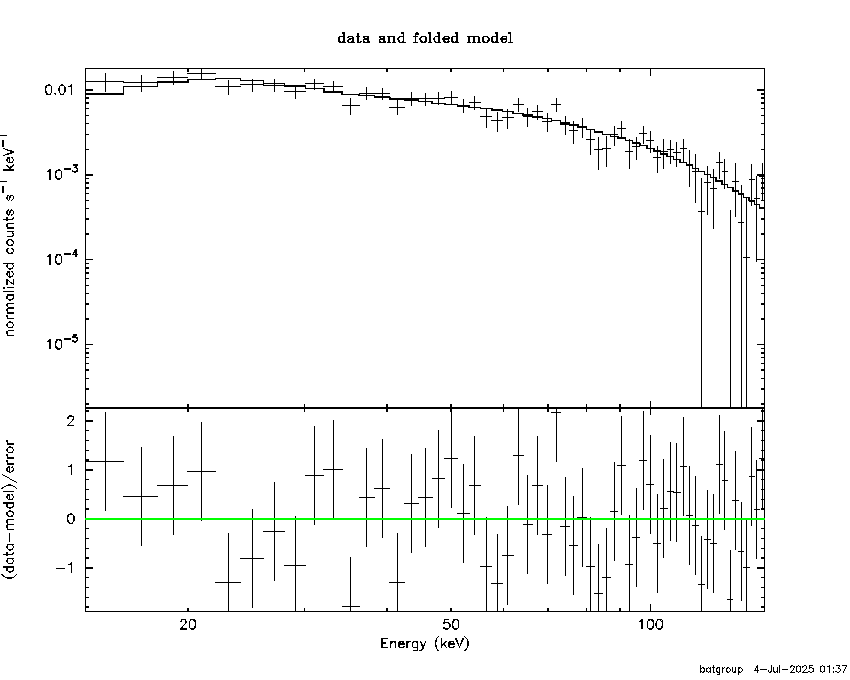

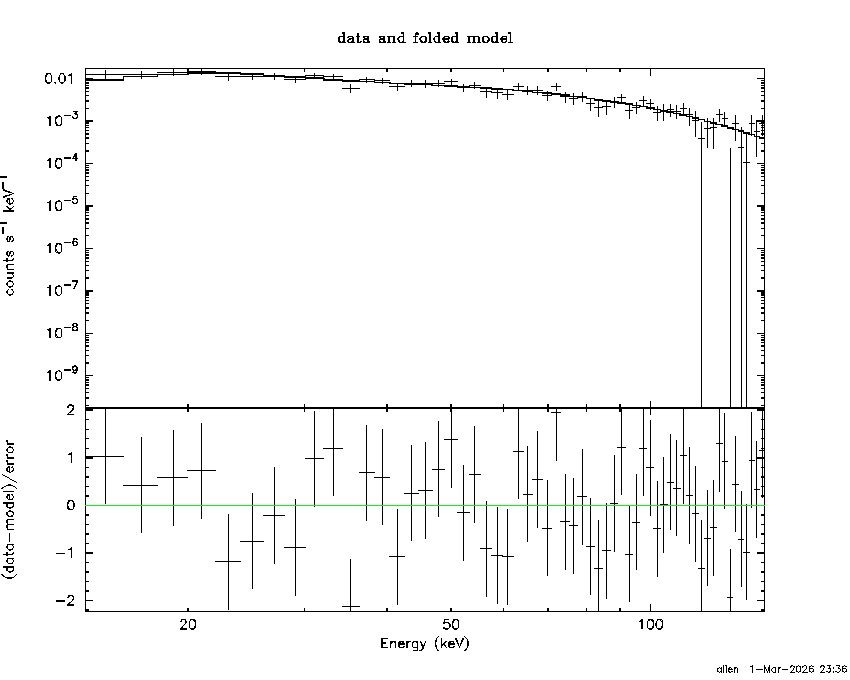

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.82004        (-0.727734      0.769246)
R1^2/D10^2  : 0.457963        (-0.125731      0.188667)
kT2 [keV]   : 35.8265        (-4.63716      6.66172)
R2^2/D10^2  : 2.81296E-03    (-0.00112123   0.00156722)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.787e-07   4.873e-08
25- 50  1.234e-06   7.392e-08
50-150  3.116e-06   3.311e-07
15-150  4.928e-06   3.955e-07

Peak spectrum fit

Power-law model

Time interval is from   37.352 sec. to   38.352 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.16825     ( -0.0885574   0.0882774 )
Norm@50keV  : 4.33479E-02    ( -0.00215462   0.00215461 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.25 using 59 PHA bins.
# Reduced chi-squared =         0.8290 for     57 degrees of freedom
# Null hypothesis probability =   8.179473e-01

Photon flux (15-150 keV)    in 1 sec: 5.06658 ( -0.257743  0.257961 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.43824e-07 ( -2.48916e-08  2.49907e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   37.352 sec. to   38.352 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02911     ( -0.364842   0.17857 )
Epeak [keV] : 359.318      ( -247.417 -395.976 )
Norm@50keV  : 5.03046E-02    ( -0.00845889   0.0223943 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.95 using 59 PHA bins.
# Reduced chi-squared =         0.8383 for     56 degrees of freedom
# Null hypothesis probability =   8.002342e-01

Photon flux (15-150 keV)    in 1 sec: 5.03756 ( -0.26712  0.26689 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.4066e-07 ( -2.654e-08  2.5416e-08 ) ergs/cm2

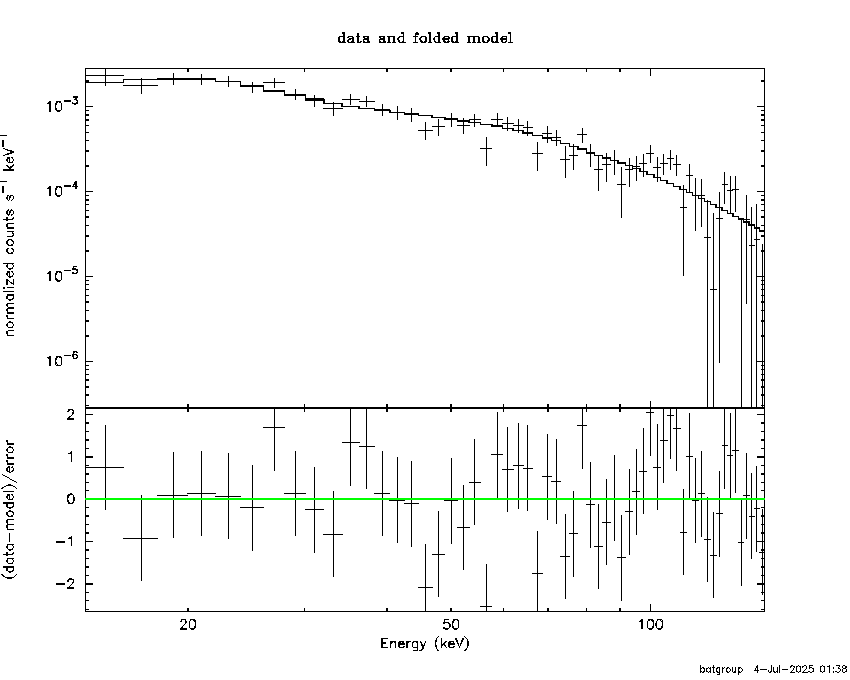

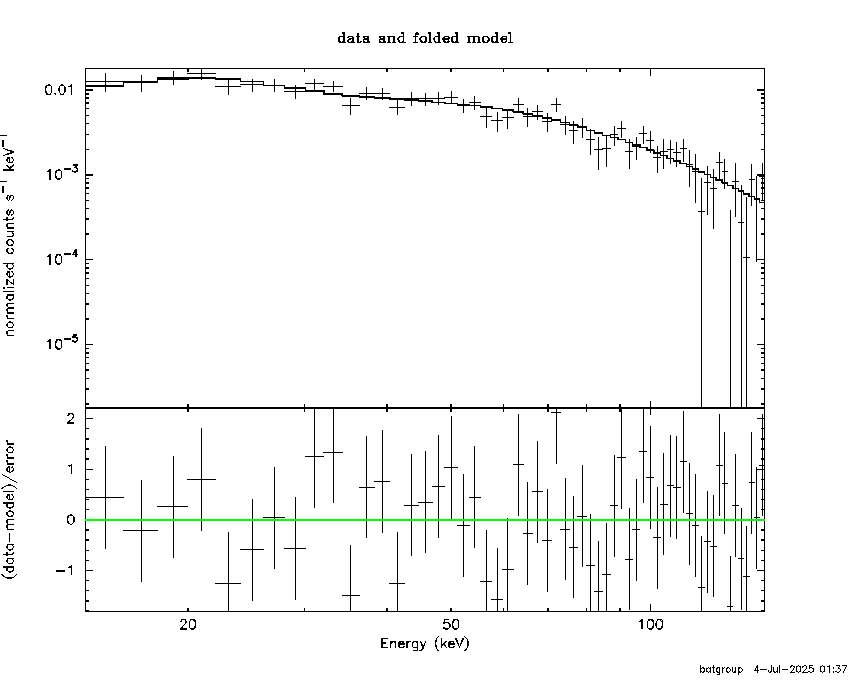

Band function

Time interval is from   37.352 sec. to   38.352 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.762052   ( 0.77081   0.77081 )
beta        : -1.24461    ( 1.24415   0.148411 )
Epeak [keV] : 127.271      ( -130.332 748.573 )
Norm@50keV   : 7.27737E-02    ( -0.0320543   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.36 using 59 PHA bins.
# Reduced chi-squared =         0.8428 for     55 degrees of freedom
# Null hypothesis probability =   7.902474e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 19.1959  (  )
R^2/D10^2   : 0.268101  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.935e-08   2.075e-09
25- 50  9.372e-08   6.445e-09
50-150  2.543e-07   2.280e-08
15-150  3.674e-07   2.185e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-7.94816      -200)
Norm        : 20.7565       (-1.05668     1.05668)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.167e-08   2.830e-09
25- 50  9.940e-08   5.590e-09
50-150  2.180e-07   1.380e-08
15-150  3.691e-07   2.585e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.77917        (-1.71074      1.89197)
R1^2/D10^2  : 2.06310        (-0.868819      1.9119)
kT2 [keV]   : 36.0901        (-7.2149      14.8517)
R2^2/D10^2  : 2.89211E-02    (-0.0182944   0.0311745)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.577e-08   7.000e-09
25- 50  9.694e-08   1.494e-08
50-150  3.107e-07   8.850e-08
15-150  4.435e-07   1.033e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55548     ( -0.0916192   0.0918821 )
Norm@50keV  : 4.69517E-03    ( -0.000232504   0.000231463 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.15 using 59 PHA bins.
# Reduced chi-squared =          1.090 for     57 degrees of freedom
# Null hypothesis probability =   2.977057e-01

Photon flux (15-150 keV)    in 41.86 sec: 0.595327 ( -0.030064  0.0301797 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.84881e-06 ( -9.90621e-08  9.95293e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55132     ( -0.103849   0.0927994 )
Epeak [keV] : 9999.17      ( -9999.36 -9999.36 )
Norm@50keV  : 4.70577E-03    ( -0.000226605   0.0011392 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.18 using 59 PHA bins.
# Reduced chi-squared =          1.110 for     56 degrees of freedom
# Null hypothesis probability =   2.656166e-01

Photon flux (15-150 keV)    in 41.86 sec: 0.595430 ( -0.030428  0.029831 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.84684e-06 ( -9.41097e-08  9.91412e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.11456   ( 1.10502   1.10502 )
beta        : -1.56848    ( -0.132074   0.102383 )
Epeak [keV] : 54.1283      ( -53.5481 -53.5481 )
Norm@50keV   : 9.68495E-03    ( -0.0056174   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.01 using 59 PHA bins.
# Reduced chi-squared =          1.127 for     55 degrees of freedom
# Null hypothesis probability =   2.404263e-01

Photon flux (15-150 keV)    in 41.86 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.19e-06
S(50-100 keV) = 1.70e-06

T90 vs. Hardness ratio plot

T90                                   = 63.675999879837 sec.
Hardness ratio (energy fluence ratio) = 1.42857

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.32109
Count Ratio (50-100 keV) / (15-25 keV) = 0.996955

Mask shadow pattern

IMX = -4.284334623581584E-01, IMY = 2.620637968839162E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-179.267370 -29.128000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9673 -15.6570    2.0  41.9  128.8   4.7015   5.7    1.2	Sco X-1
254.4951  35.2964   25.1  15.6    5.9   0.1029   0.5    3.3	Her X-1
268.4556  -1.3748    6.2  38.8   86.5  -1.7397  -1.9    7.0	SW J1753.5-0127
299.5884  35.1655    1.5  51.5   20.6   6.5509   7.9    2.2	Cyg X-1
234.3406 -13.1796    2.1  39.5  144.7   2.9061   5.6 ------	UNKNOWN
219.1475 -19.7794    2.4  49.9  162.0   3.7409   4.7 ------	UNKNOWN
187.6179  20.2102    2.9  48.1 -129.2   5.3833   4.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-29.128000 12.732600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1710 -15.6162   14.6  41.9  128.5   0.2161   0.8   11.2	Sco X-1
254.6180  35.4189    9.6  15.8    5.7  -0.0956  -1.2    9.1	Her X-1
268.3147  -1.5100    3.6  38.8   86.8  -1.0674  -3.2    4.7	SW J1753.5-0127
299.4685  35.1353    6.6  51.4   20.7  -0.6764  -1.7    7.2	Cyg X-1
292.9327  46.4499    2.5  46.4    5.6   0.8176   4.7 ------	UNKNOWN
212.9420  16.7391    0.4  26.7 -148.5   2.8311  29.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
75.732600 514.232610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4959  35.3891    7.4  41.3   26.7   1.4243   1.6    3.4	Her X-1
230.0142 -17.4681    2.4  38.1  124.7   6.5889   4.7 ------	UNKNOWN
204.0074 -31.6670    2.2  49.1  161.8   9.4538   5.3 ------	UNKNOWN
214.9167   4.2526    3.0  12.6  142.6   2.0502   3.9 ------	UNKNOWN
179.0563 -19.2862    2.9  49.0 -164.1   5.8220   4.0 ------	UNKNOWN
176.7977 -15.0642    2.8  47.8 -158.0   5.4439   4.2 ------	UNKNOWN

Plot creation:
Fri Jul  4 01:38:23 EDT 2025
