batgrbproduct analysis for trigger=1330958

batgrbproduct Analysis for Trigger=1330958

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Jul  7 11:05:26 EDT 2025
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1330958/GCN5_download_cron
======================================================================

  Trigger: 01330958      Segment: 000

  BAT Trigger Time: 773509746.88   [s; MET]
      Trigger Stop: 773509755.072   [s; MET]
               UTC: 2025-07-06T15:48:30.964200    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 284.007496618123   Dec: 32.2870690698247  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.16
     Image Trigger?:     NO
     Rate S/N Ratio:     11.4891252930761  [ if not an image trigger ]
     Image S/N Ratio:    8.16

  Flight Position:   [ source = BAT ]
    RA: 284.007496618123   Dec: 32.2870690698247  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 284.011433725708   Dec: 32.3268946184961  [deg; J2000]
        { 18h 56m 02.7s , +32d 19' 36.8" }
         +/- 1.66662737108326 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.6990879190588 [arcmin] (formal 1-sigma fit error)
    SNR: 14.662439153018

  Angular difference between Flight and Ground position is 2.397860 arcmin

  Partial Coding Fraction: 0.265625    [ including projection effects ]

  Duration
     T90: 31.8919999599457 +/- 7.22764152062382
        Measured from: 1.07200014591217
                   to: 32.9640001058578     [s; relative to TRIGTIME]
     T50: 16.1479998826981 +/- 4.35373870554184
        Measured from: 6.41200017929077
                   to: 22.5600000619888     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 1.932000041008
                   to: 2.932000041008     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0959999561309814
                   to: 40.0880000591278     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.495102   0.800195   0.815323   0.224324
           0.081188   0.084906   0.072852   0.057698 [error]
 Peak      0.011010   0.047896   0.075631   0.025137
           0.012667   0.013989   0.012859   0.009686 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.81e-07 3.66e-07 5.76e-07 2.01e-06 1.60e-06 3.13e-06   erg/cm2
              Error 3.41e-08 4.28e-08 6.91e-08 5.16e-07 1.76e-07 5.62e-07   erg/cm2
Peak flux Power-law 2.46e-01 3.63e-01 4.00e-01 8.30e-01 1.26e+00 1.84e+00   ph/cm2/s
              Error 1.30e-01 1.23e-01 9.49e-02 3.95e-01 3.28e-01 4.56e-01   ph/cm2/s

Fluence   Cutoff-PL 1.47e-07 3.98e-07 6.29e-07 6.57e-07 1.53e-06 1.83e-06   erg/cm2
              Error 4.14e-08 5.21e-08 8.35e-08 5.66e-07 1.88e-07 5.81e-07   erg/cm2
Peak flux Cutoff-PL 1.48e-01 3.76e-01 4.86e-01 2.89e-01 1.20e+00 1.30e+00   ph/cm2/s
              Error 1.63e-01 1.50e-01 1.40e-01 5.14e-01 3.37e-01 5.87e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.344    0.169    -      -           4.15e-03 4.29e-04   59.120 57
CPL   0.346    0.829      88.6   59.9      1.24e-02 1.32e-02   53.710 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.860    0.397    -      -           1.10e-02 2.89e-03   51.320 57
CPL  -0.791    2.855     103.4  -34.1      5.28e-02 7.78e-01   49.240 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 24.960000 sec.
T50 in the 50-300 keV band: 9.600000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   40.184   -0.096   40.088
T90    31.892    1.072   32.964
T50    16.148    6.412   22.560
Peak    1.000    1.932    2.932

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

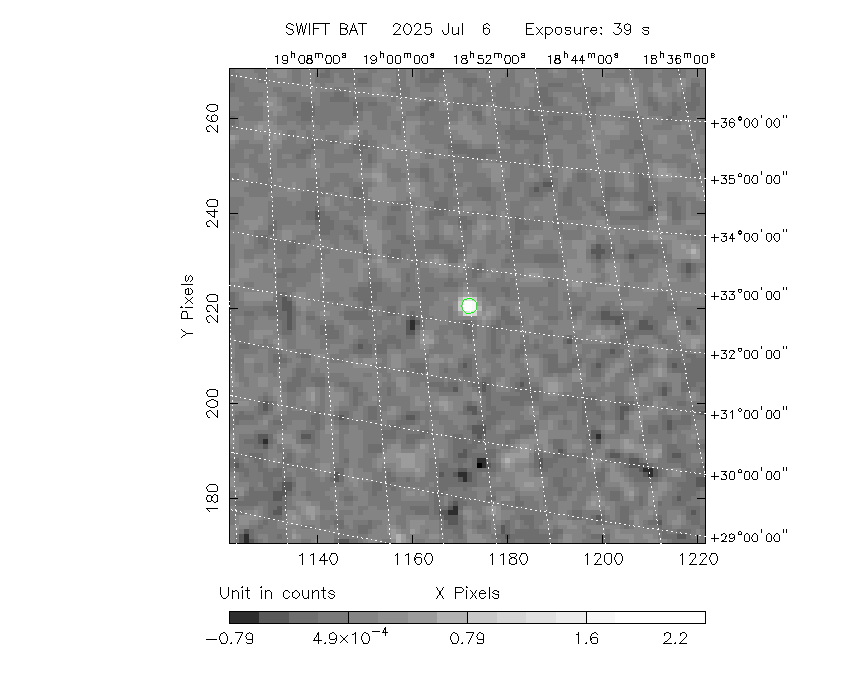

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  284.0114 +32.3269 0.0131   39.2  138.8       2.5386    14.7  TRIG_01330958
------------------------------------------

Foreground time interval of the image:
 -0.096  27.400 (delta_t =  27.496 [sec])
 28.120  40.088 (delta_t =  11.968 [sec])
Background time interval of the image:
-239.880  -0.096 (delta_t = 239.784 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

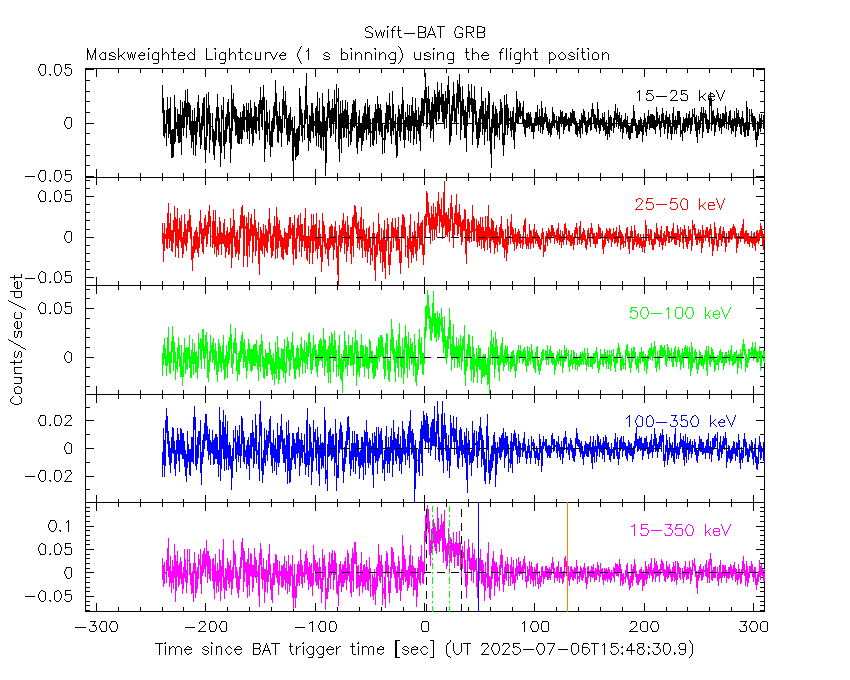

1 s binning

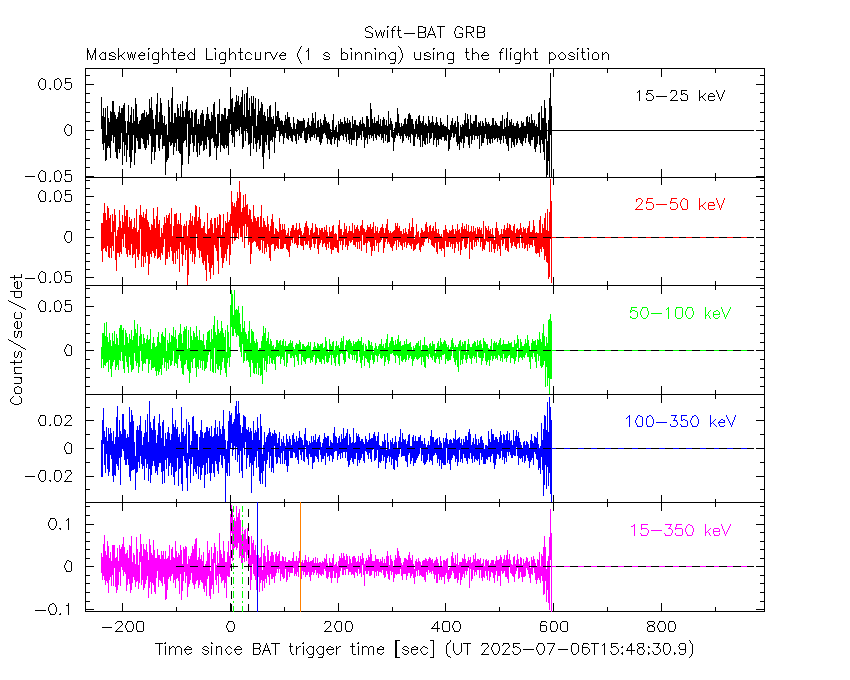

From T0-310 s to T0+310 s

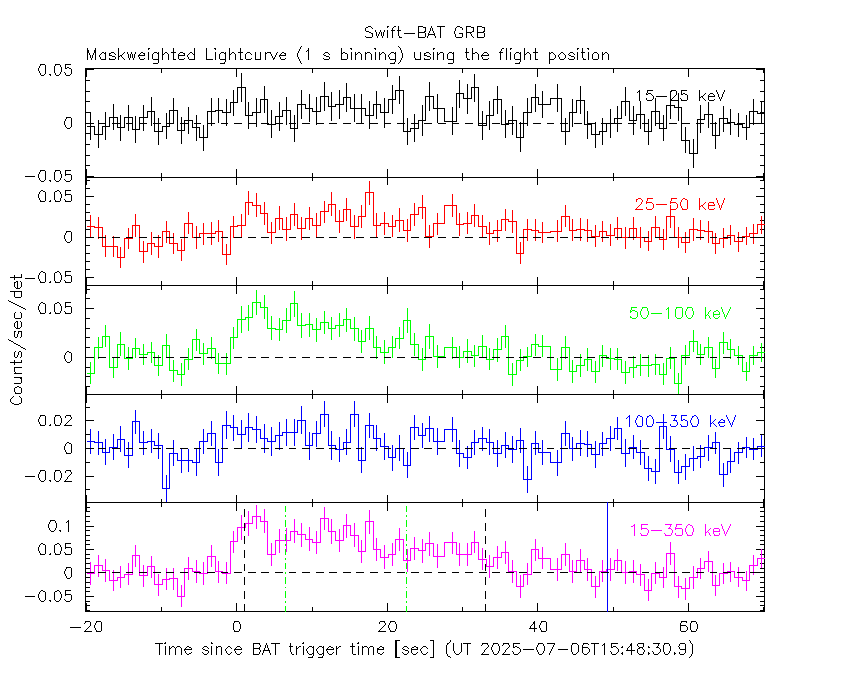

From T100_start - 20 s to T100_end + 30 s

Full time interval

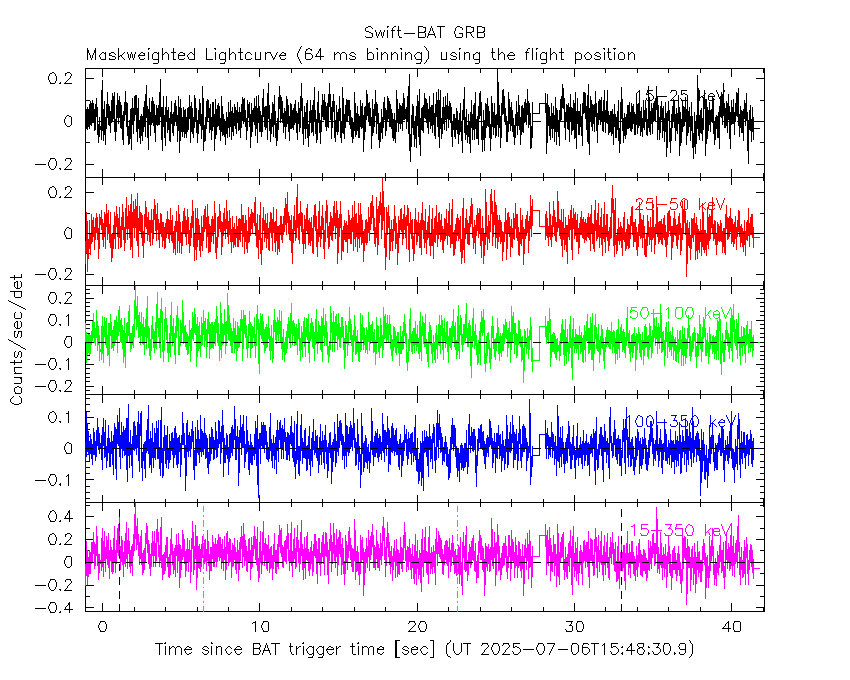

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

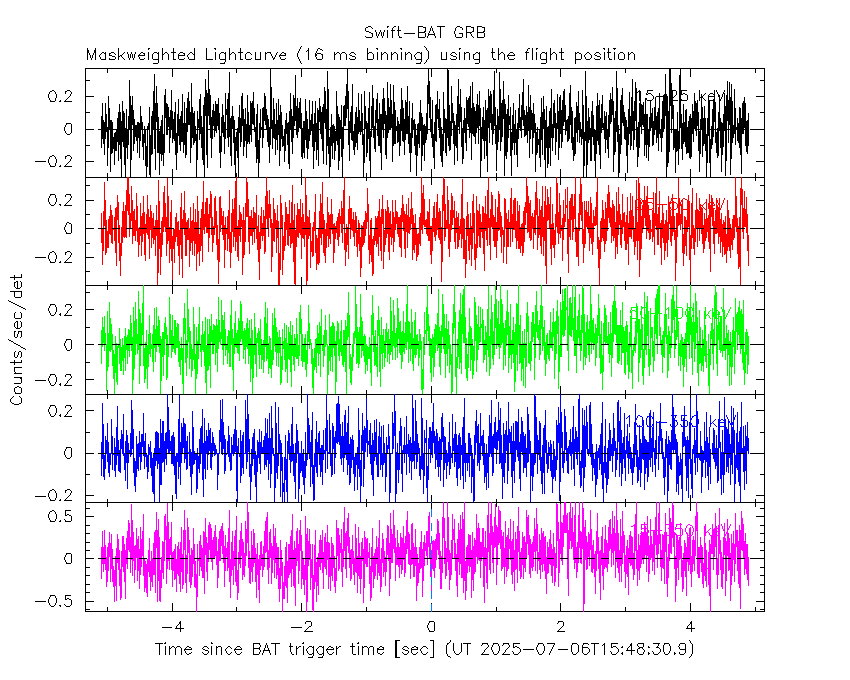

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

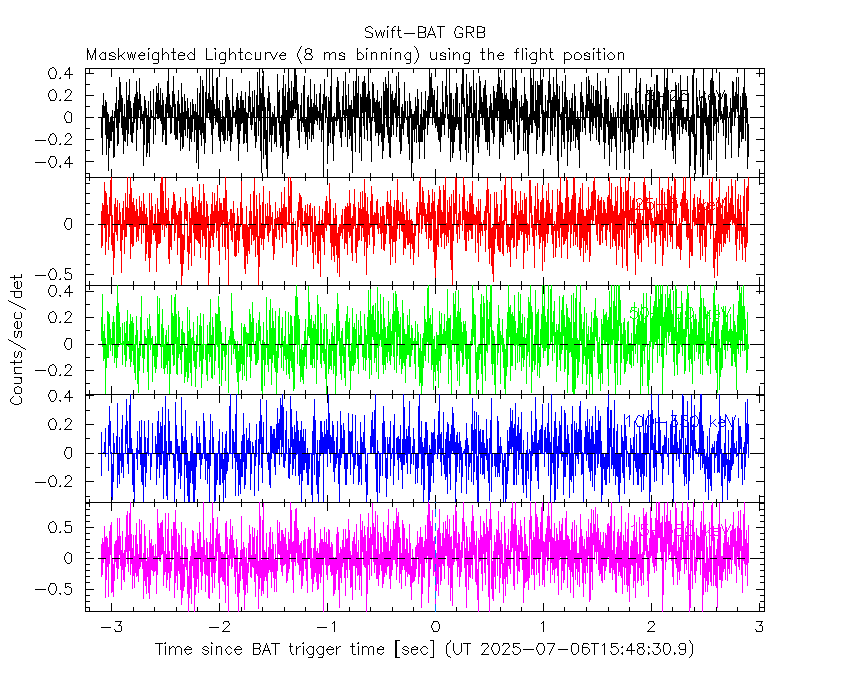

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

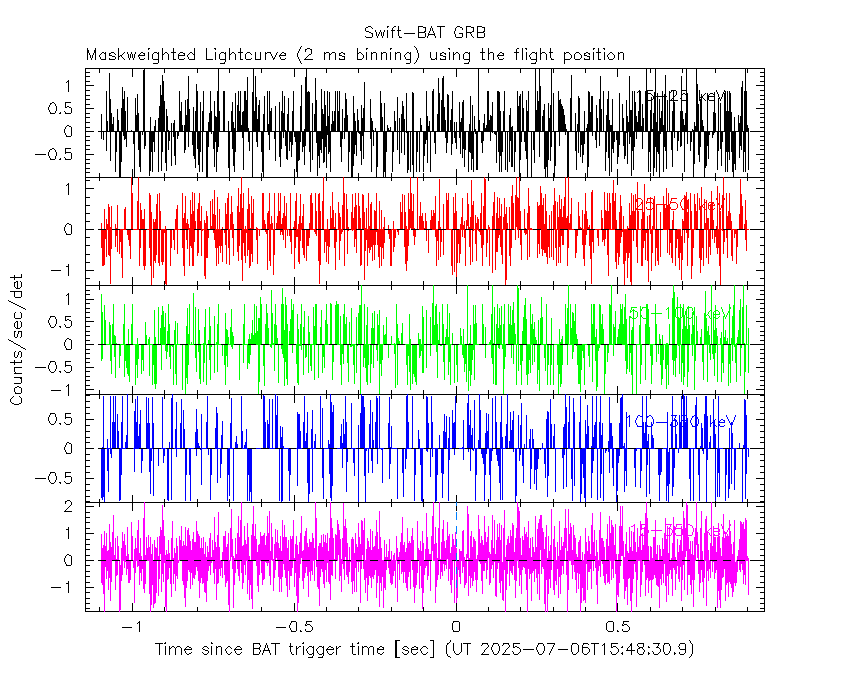

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

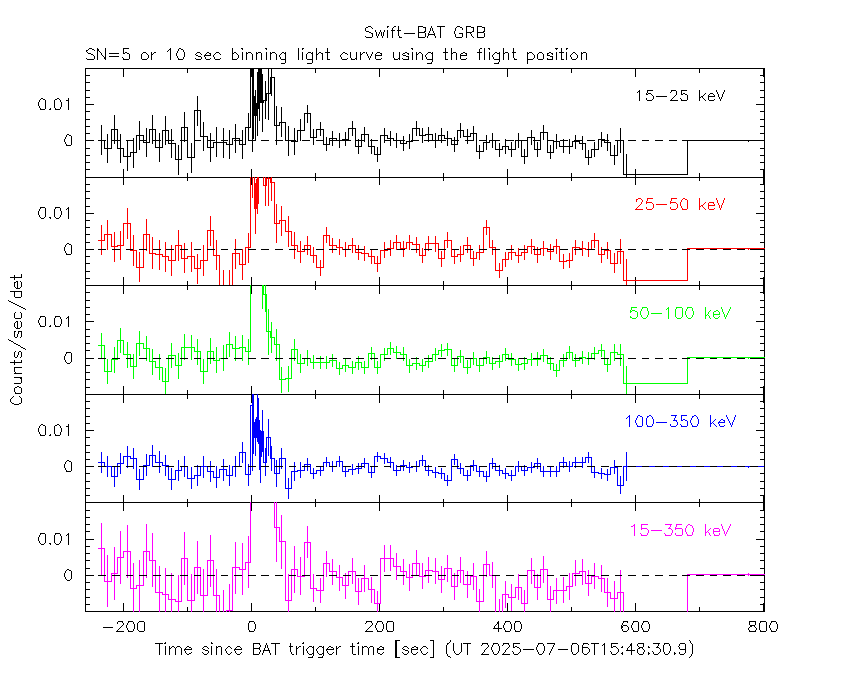

SN=5 or 10 sec. binning (whichever binning is satisfied first)

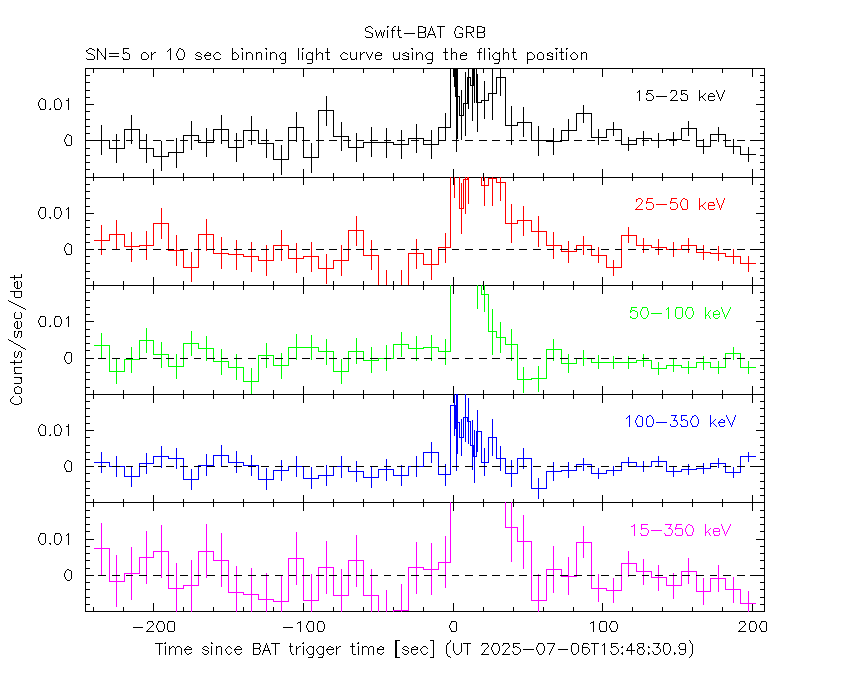

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

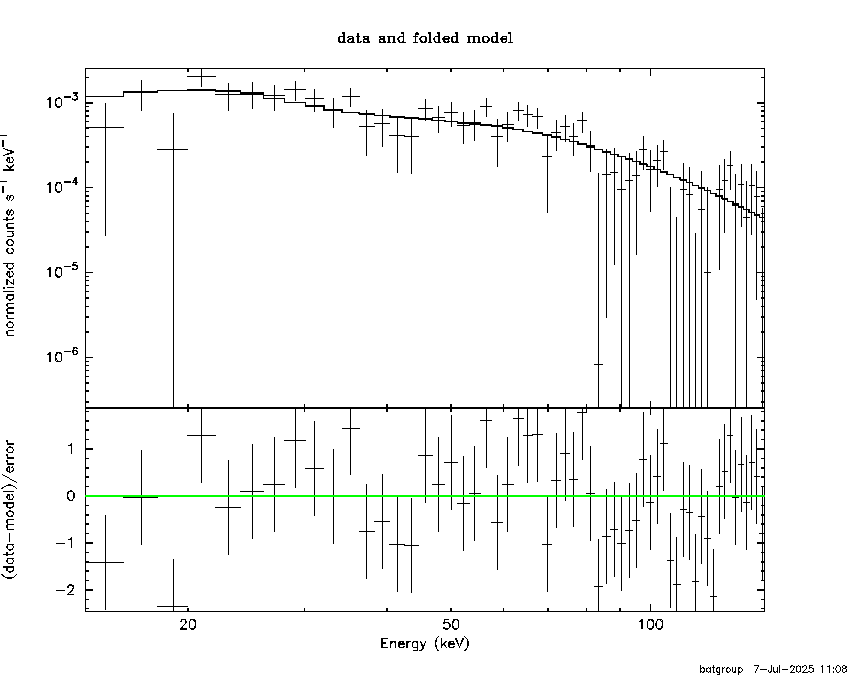

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-0.096000 27.400000
28.120000 40.088000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34438     ( -0.169755   0.167442 )
Norm@50keV  : 4.15214E-03    ( -0.000428818   0.000428811 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.12 using 59 PHA bins.
# Reduced chi-squared =          1.037 for     57 degrees of freedom
# Null hypothesis probability =   3.978653e-01

Photon flux (15-150 keV)    in 39.46 sec: 0.499641 ( -0.0544128  0.0546141 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.60225e-06 ( -1.75256e-07  1.75978e-07 ) ergs/cm2

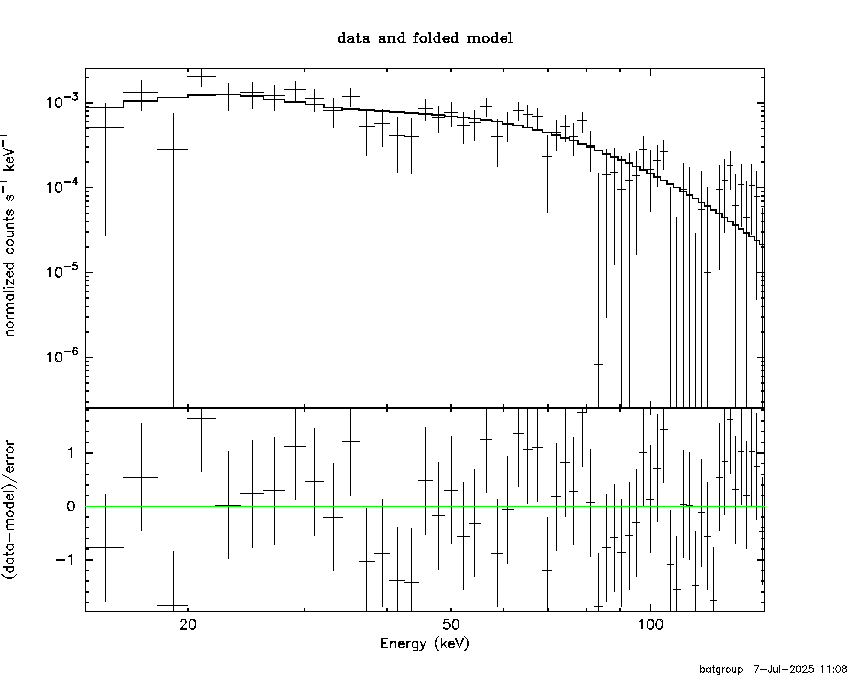

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-0.096000 27.400000
28.120000 40.088000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.345899     ( -0.908775   0.75015 )
Epeak [keV] : 88.6200      ( -20.1431 99.6311 )
Norm@50keV  : 1.23976E-02    ( -0.0068358   0.0195706 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.71 using 59 PHA bins.
# Reduced chi-squared =         0.9591 for     56 degrees of freedom
# Null hypothesis probability =   5.620006e-01

Photon flux (15-150 keV)    in 39.46 sec: 0.480514 ( -0.056594  0.056626 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.52523e-06 ( -1.87344e-07  1.8779e-07 ) ergs/cm2

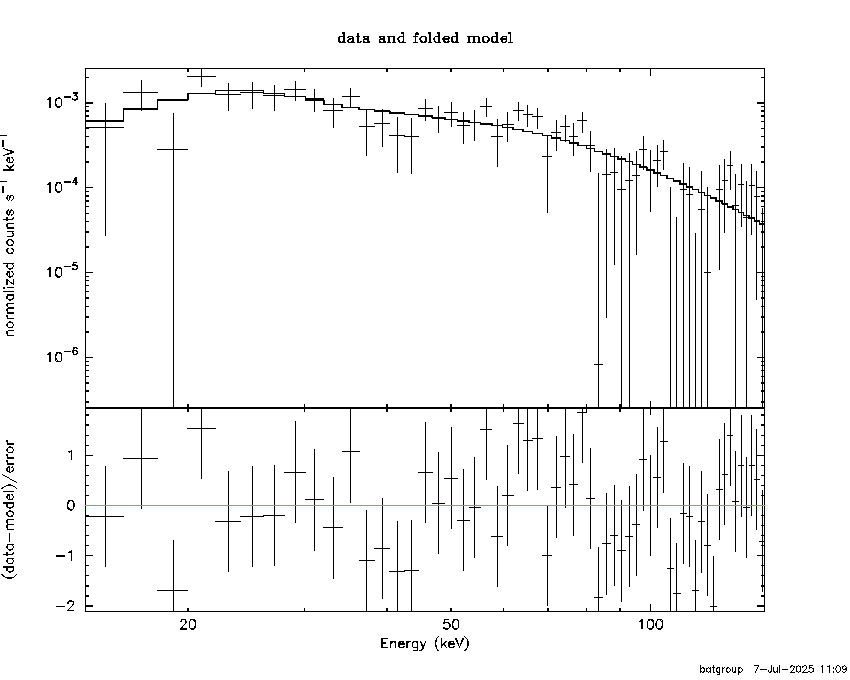

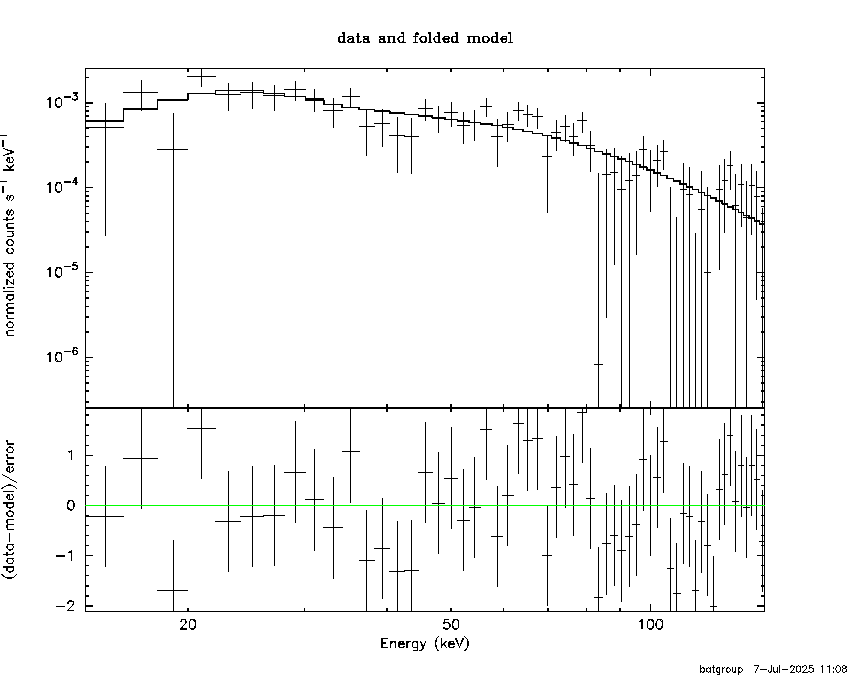

Band function

Multiple GTIs in the spectrum
tstart tstop
-0.096000 27.400000
28.120000 40.088000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.84571   ( -13.5884   -4.84571 )
beta        : -1.54826    ( -0.231441   0.21713 )
Epeak [keV] : 32.0389      ( -8.10456 5.90322 )
Norm@50keV   : 71.1775    ( -7.27757   440.493 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.02 using 59 PHA bins.
# Reduced chi-squared =         0.9822 for     55 degrees of freedom
# Null hypothesis probability =   5.121075e-01

Photon flux (15-150 keV)    in 39.46 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

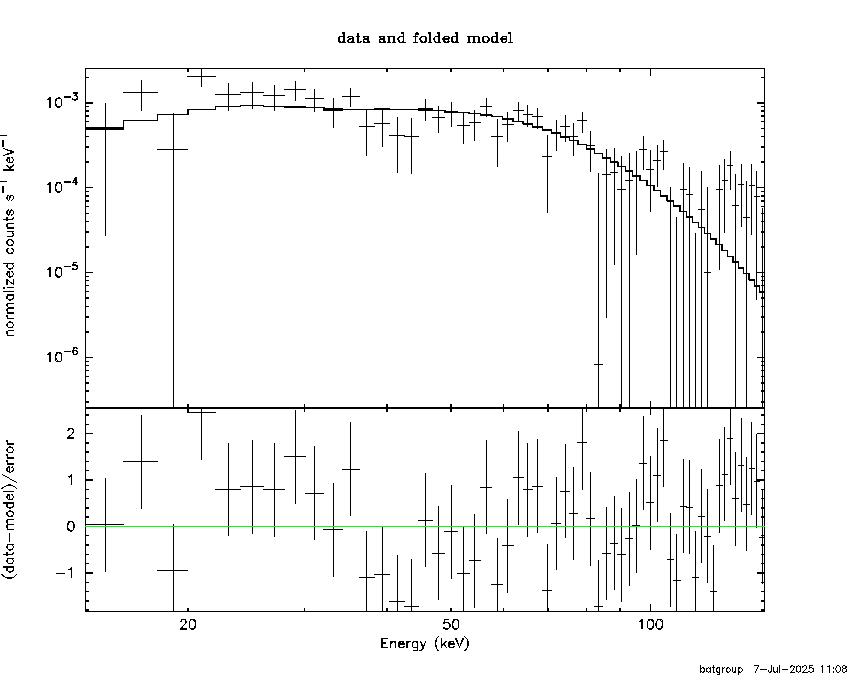

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.4702  (-1.92335  2.23748)
R^2/D10^2   : 3.59824E-02  (-0.0124272   0.0181817)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.35 using 59 PHA bins.
# Reduced chi-squared =          1.094 for     57 degrees of freedom
# Null hypothesis probability =   2.917466e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.757e-08   1.805e-08
25- 50  3.959e-07   6.442e-08
50-150  8.699e-07   1.687e-07
15-150  1.353e-06   1.784e-07

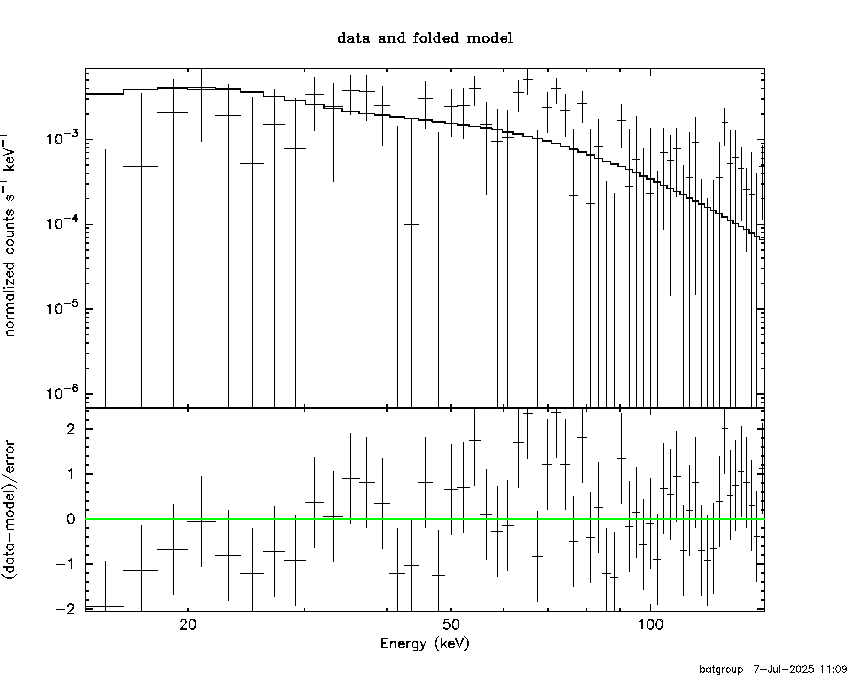

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-37.88      -200)
Norm        : 2.11009       (-0.218706     0.218706)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.074e-07   3.113e-08
25- 50  3.989e-07   1.254e-07
50-150  8.750e-07   4.258e-07
15-150  1.481e-06   6.950e-07

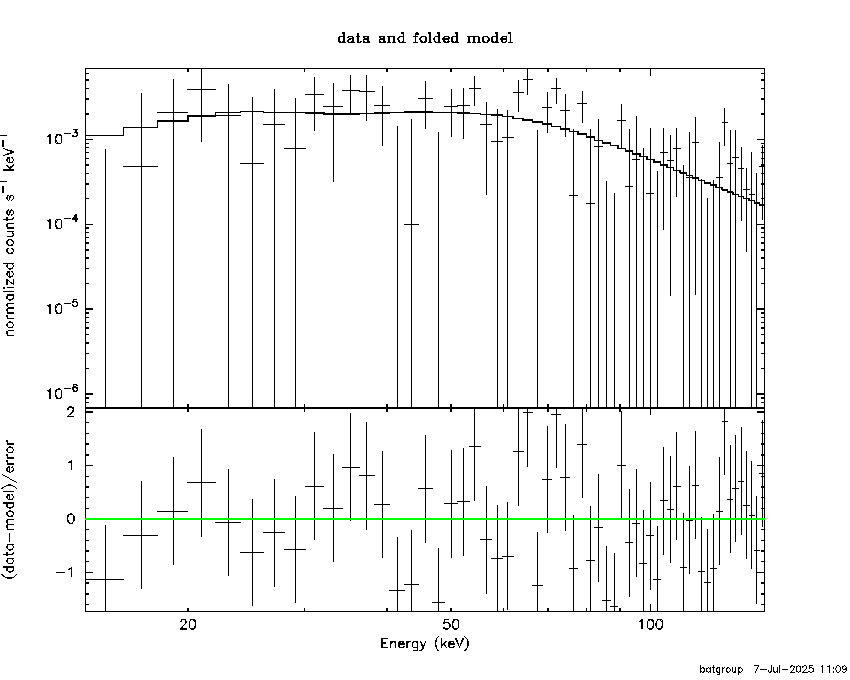

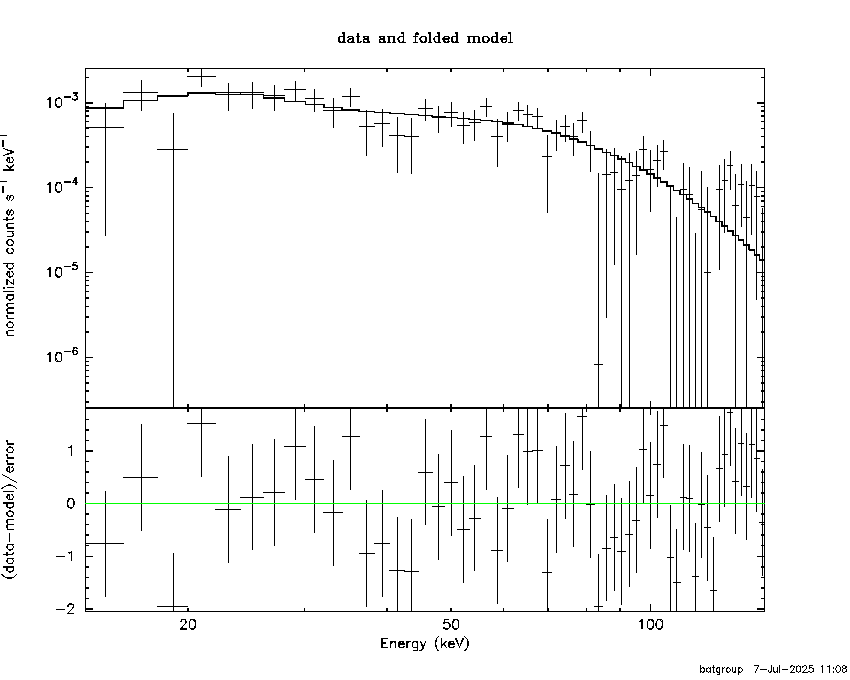

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.63009        (-2.38846      5.08033)
R1^2/D10^2  : 0.403157        (-0.318754      1.59558)
kT2 [keV]   : 22.1220        (-3.91676      12.8018)
R2^2/D10^2  : 1.37081E-02    (-0.011617   0.0153364)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.547e-07   8.446e-08
25- 50  3.894e-07   1.902e-07
50-150  9.656e-07   5.028e-07
15-150  1.510e-06   6.461e-07

Peak spectrum fit

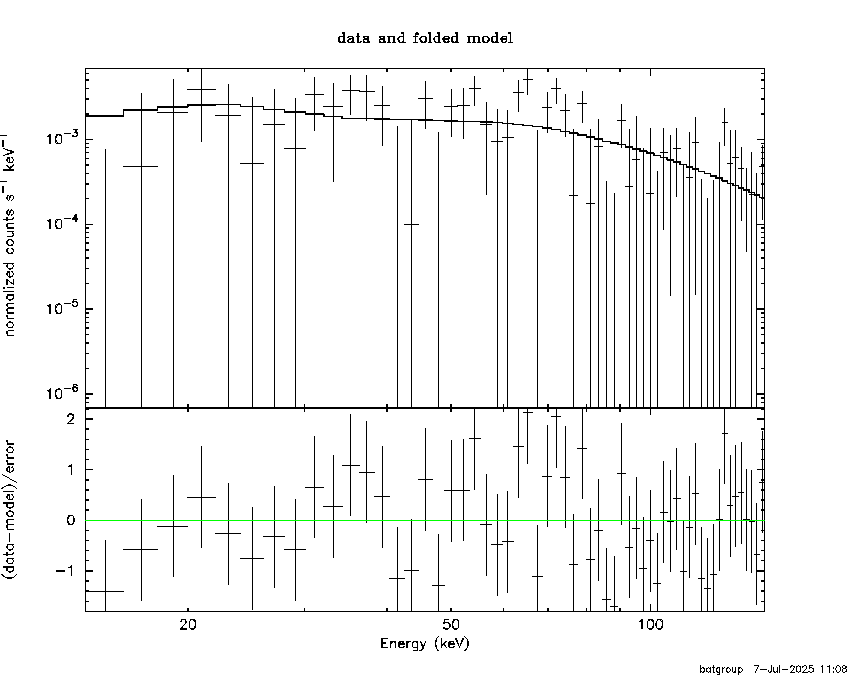

Power-law model

Time interval is from    1.932 sec. to    2.932 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.859894     ( -0.419824   0.374506 )
Norm@50keV  : 1.09999E-02    ( -0.00293989   0.00284905 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.32 using 59 PHA bins.
# Reduced chi-squared =         0.9003 for     57 degrees of freedom
# Null hypothesis probability =   6.872776e-01

Photon flux (15-150 keV)    in 1 sec: 1.26247 ( -0.325229  0.331591 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.25419e-07 ( -3.00077e-08  3.00704e-08 ) ergs/cm2

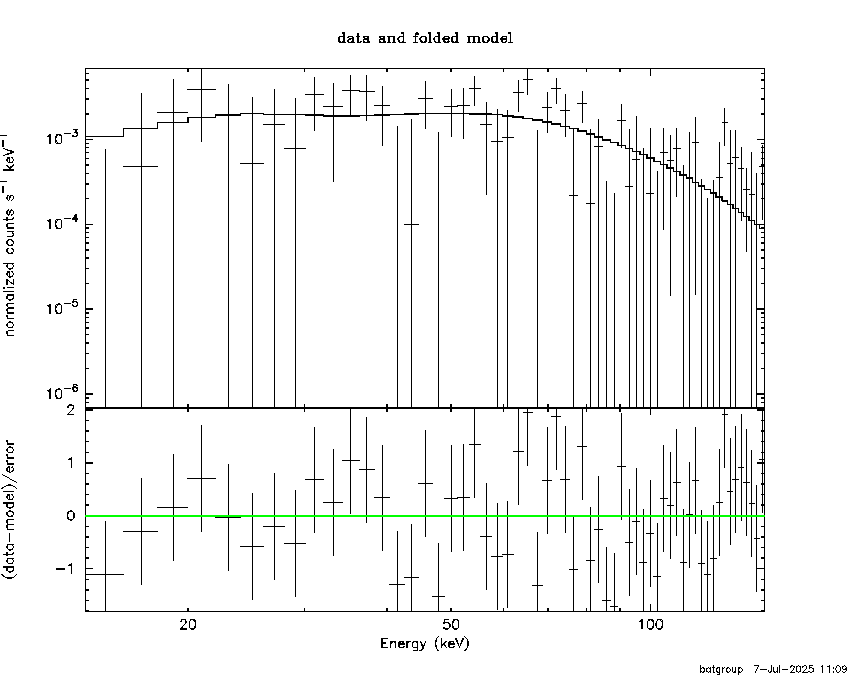

Cutoff power-law model

Time interval is from    1.932 sec. to    2.932 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.791245     ( -3.92414   1.78684 )
Epeak [keV] : 103.359      ( -35.1728 -103.36 )
Norm@50keV  : 5.27797E-02    ( -0.0527771   1.50389 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.24 using 59 PHA bins.
# Reduced chi-squared =         0.8794 for     56 degrees of freedom
# Null hypothesis probability =   7.264971e-01

Photon flux (15-150 keV)    in 1 sec: 1.20323 ( -0.336308  0.33866 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.20506e-07 ( -3.46803e-08  3.2332e-08 ) ergs/cm2

Band function

Time interval is from    1.932 sec. to    2.932 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.65492   ( -3.25888   -1.37336 )
beta        : -1.82063    ( 1.76968   1.04712 )
Epeak [keV] : 83.1689      ( -57.0995 82.992 )
Norm@50keV   : 0.130716    ( -0.133657   11.4759 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.40 using 59 PHA bins.
# Reduced chi-squared =         0.8800 for     55 degrees of freedom
# Null hypothesis probability =   7.230540e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.19643e-07 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.5994  (-5.62735  9.0652)
R^2/D10^2   : 3.98432E-02  (-0.0254967   0.0562008)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.971e-09   2.059e-09
25- 50  2.185e-08   9.191e-09
50-150  9.079e-08   4.027e-08
15-150  1.166e-07   5.808e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-59.2395      -200)
Norm        : 5.35234       (-1.39454     1.39454)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.334e-08   8.125e-09
25- 50  2.566e-08   1.518e-08
50-150  5.629e-08   3.456e-08
15-150  9.529e-08   5.710e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 18.4911        (-18.4915      10.9258)
R1^2/D10^2  : 6.99408E-02        (-0.0700005      -0.0700005)
kT2 [keV]   : 195.452        (-196.126      -196.126)
R2^2/D10^2  : 1.37631E-04    (-0.000135515   0.0752406)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34438     ( -0.169755   0.167442 )
Norm@50keV  : 4.15214E-03    ( -0.000428818   0.000428811 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.12 using 59 PHA bins.
# Reduced chi-squared =          1.037 for     57 degrees of freedom
# Null hypothesis probability =   3.978653e-01

Photon flux (15-150 keV)    in 39.46 sec: 0.499641 ( -0.0544128  0.0546141 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.60225e-06 ( -1.75256e-07  1.75978e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.345899     ( -0.908775   0.75015 )
Epeak [keV] : 88.6200      ( -20.1431 99.6311 )
Norm@50keV  : 1.23976E-02    ( -0.0068358   0.0195706 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.71 using 59 PHA bins.
# Reduced chi-squared =         0.9591 for     56 degrees of freedom
# Null hypothesis probability =   5.620006e-01

Photon flux (15-150 keV)    in 39.46 sec: 0.480514 ( -0.056594  0.056626 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.52523e-06 ( -1.87344e-07  1.8779e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.84571   ( -13.7767   -4.84571 )
beta        : -1.54826    ( -0.231441   0.21713 )
Epeak [keV] : 32.0389      ( -8.10456 5.90322 )
Norm@50keV   : 71.1775    ( -7.27757   440.493 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.02 using 59 PHA bins.
# Reduced chi-squared =         0.9822 for     55 degrees of freedom
# Null hypothesis probability =   5.121075e-01

Photon flux (15-150 keV)    in 39.46 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.66e-07
S(50-100 keV) = 5.76e-07

T90 vs. Hardness ratio plot

T90                                   = 31.8919999599457 sec.
Hardness ratio (energy fluence ratio) = 1.57377

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.61622
Count Ratio (50-100 keV) / (15-25 keV) = 1.64678

Mask shadow pattern

IMX = -6.140125512282825E-01, IMY = -5.380918370859334E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.880000 -0.096000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5661  35.1879    0.6  27.5  127.3   8.9674  18.0    1.4	Cyg X-1
307.9842  40.9194    3.6  18.8  128.3   1.1878   3.2    6.1	Cyg X-3
326.3968  38.3803   34.1  11.8   78.0   0.1182   0.3   11.2	Cyg X-2
285.7679  23.0760    2.7  44.6  127.2   7.2347   4.3 ------	UNKNOWN
342.2183  33.1584    3.3  18.0   27.4   1.1582   3.5 ------	UNKNOWN
240.5340  60.6845    2.6  49.1 -164.0   4.1145   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.096000 27.400000
28.120000 40.088000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5853  35.2332    9.6  27.5  127.4   0.1243   1.2    1.9	Cyg X-1
308.1918  40.9745    5.0  18.6  128.2   0.1977   2.3    3.9	Cyg X-3
326.0141  38.2193  122.5  12.0   79.1   0.0076   0.1    9.6	Cyg X-2
284.0114  32.3269    0.8  39.2  138.8   2.5387  14.7 ------	UNKNOWN
339.9481  45.8920    2.6   6.5   -3.1   0.3151   4.5 ------	UNKNOWN
 33.0049  46.7857    2.3  39.7  -54.0   0.7788   5.0 ------	UNKNOWN
 39.6253  42.3874    2.1  46.0  -51.9   1.5351   5.3 ------	UNKNOWN
 38.2700  27.5402    1.8  54.4  -35.8   2.5078   6.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
129.720600 508.120590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4402  35.3892    3.7  24.7 -162.0   1.6921   3.1    2.9	Her X-1
268.2701  -1.5991    0.0  37.0  119.3   0.5893   0.4   10.6	SW J1753.5-0127
288.8033  10.9479   49.1  21.8   79.8   0.1603   0.2    0.3	GRS 1915+105
299.5818  35.1884    0.5  13.3  -14.3  13.0376  23.9    0.9	Cyg X-1
308.1318  40.9818    2.3  21.1  -28.6   2.5980   4.9    2.0	Cyg X-3
326.3337  38.3998   12.7  34.7  -19.7   0.6319   0.9    9.0	Cyg X-2
283.9980  49.6364    3.3  17.3  -87.5   2.0255   3.5 ------	UNKNOWN
220.7158  31.4129    2.6  52.9 -160.3   7.1195   4.4 ------	UNKNOWN
298.4934  65.6147    2.3  34.5  -76.9   5.0348   5.0 ------	UNKNOWN

Plot creation:
Mon Jul  7 11:10:01 EDT 2025
