batgrbproduct Analysis for Trigger=1336720

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Mar  1 04:22:06 EST 2026
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1336720
======================================================================

  Trigger: 01336720      Segment: 000

  BAT Trigger Time: 775101132.48   [s; MET]
      Trigger Stop: 775101133.504   [s; MET]
               UTC: 2025-07-25T01:51:36.455620    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 35.3851107700018   Dec: -82.7843363759161  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    22.11
     Image Trigger?:     NO
     Rate S/N Ratio:     130.502873531582  [ if not an image trigger ]
     Image S/N Ratio:    22.11

  Flight Position:   [ source = BAT ]
    RA: 35.3851107700018   Dec: -82.7843363759161  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 35.4579262036378   Dec: -82.7864341057872  [deg; J2000]
        { 02h 21m 49.9s , -82d 47' 11.2" }
         +/- 0.788729168909074 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.265524462655534 [arcmin] (formal 1-sigma fit error)
    SNR: 42.6937432371089

  Angular difference between Flight and Ground position is 0.562928 arcmin

  Partial Coding Fraction: 0.34375    [ including projection effects ]

  Duration
     T90: 9.58399999141693 +/- 0.245405755220697
        Measured from: -0.656000018119812
                   to: 8.92799997329712     [s; relative to TRIGTIME]
     T50: 3.18799996376038 +/- 0.143108374017273
        Measured from: 0.444000005722046
                   to: 3.63199996948242     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.059999942779541
                   to: 1.05999994277954     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -1.7720000743866
                   to: 9.50399994850159     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.338476   2.419610   2.490649   0.755333
           0.046873   0.055414   0.053260   0.036020 [error]
 Peak      0.271813   0.559058   0.577913   0.185353
           0.017827   0.023091   0.023124   0.015022 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.52e-07 1.03e-06 1.85e-06 7.87e-06 5.04e-06 1.12e-05   erg/cm2
              Error 2.44e-08 3.30e-08 5.16e-08 5.06e-07 1.34e-07 5.28e-07   erg/cm2
Peak flux Power-law 8.29e-04 1.24e-02 1.09e-01 1.24e+01 4.81e-01 1.22e+01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence   Cutoff-PL 4.09e-07 1.04e-06 1.93e-06 5.27e-06 4.97e-06 8.65e-06   erg/cm2
              Error 3.18e-08 3.51e-08 6.54e-08 1.09e-06 1.39e-07 1.08e-06   erg/cm2
Peak flux Cutoff-PL 2.71e+00 3.97e+00 3.83e+00 4.06e+00 1.24e+01 1.46e+01   ph/cm2/s
              Error 3.30e-01 2.28e-01 2.30e-01 1.17e+00 5.83e-01 1.29e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.153    0.045    -      -           4.34e-02 1.13e-03   49.220 57
CPL   0.804    0.189     206.1  103.7      6.10e-02 1.10e-02   38.520 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.089    0.074    -      -           1.08e-01 4.79e-03   63.380 57
CPL   0.673    0.318     182.6  186.2      1.67e-01 5.50e-02   57.900 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 9.536000 sec.
T50 in the 50-300 keV band: 2.944000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   11.276   -1.772    9.504
T90     9.584   -0.656    8.928
T50     3.188    0.444    3.632
Peak    1.000    0.060    1.060

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

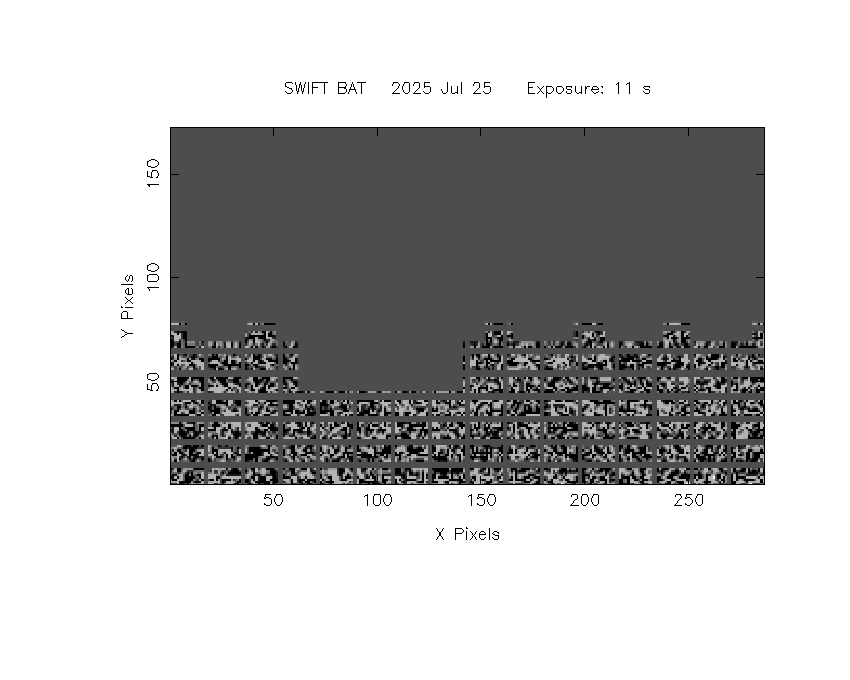

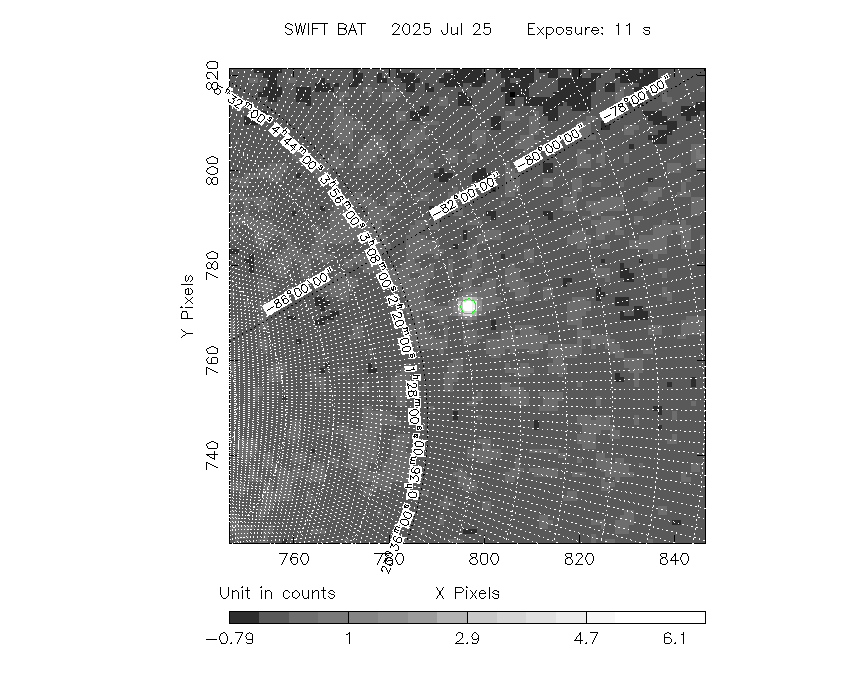

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   35.4579   -82.7864   0.0045    32.7578   -74.2849         7.2483917     42.694 TRIG_01336720

Foreground time interval of the image:
 -1.772   9.504 (delta_t =  11.276 [sec])
Background time interval of the image:
-85.179  -1.772 (delta_t =  83.407 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

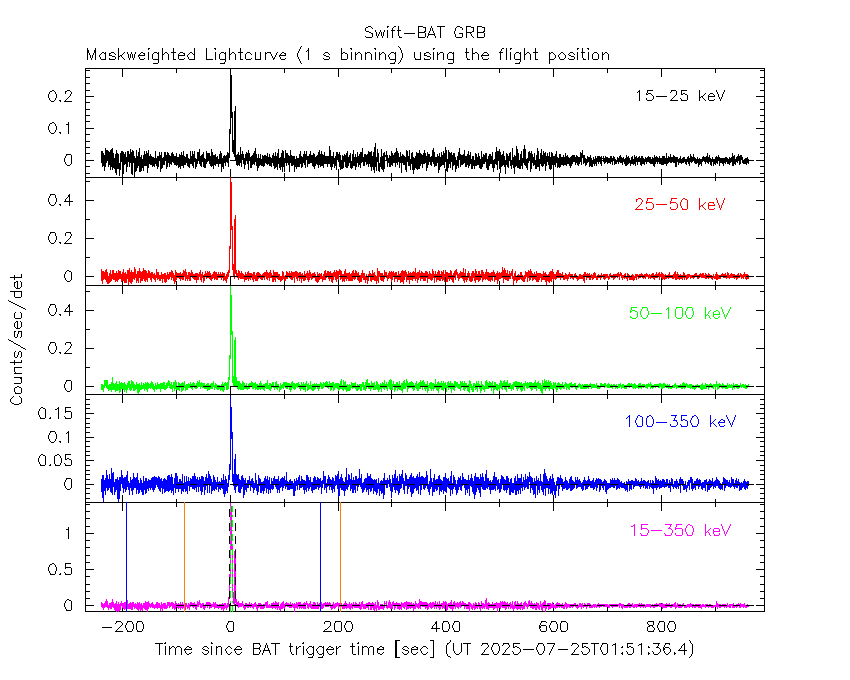

1 s binning

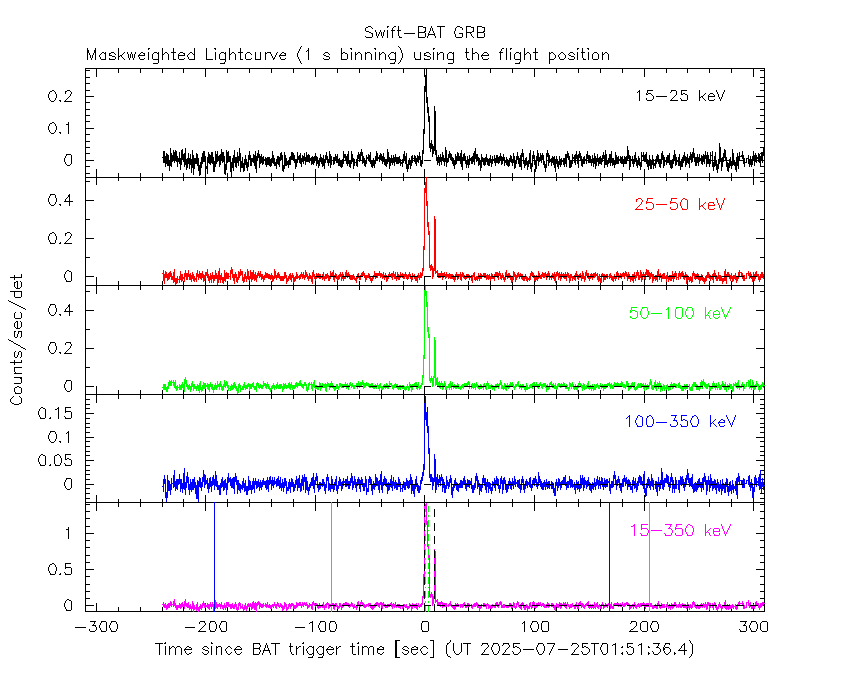

From T0-310 s to T0+310 s

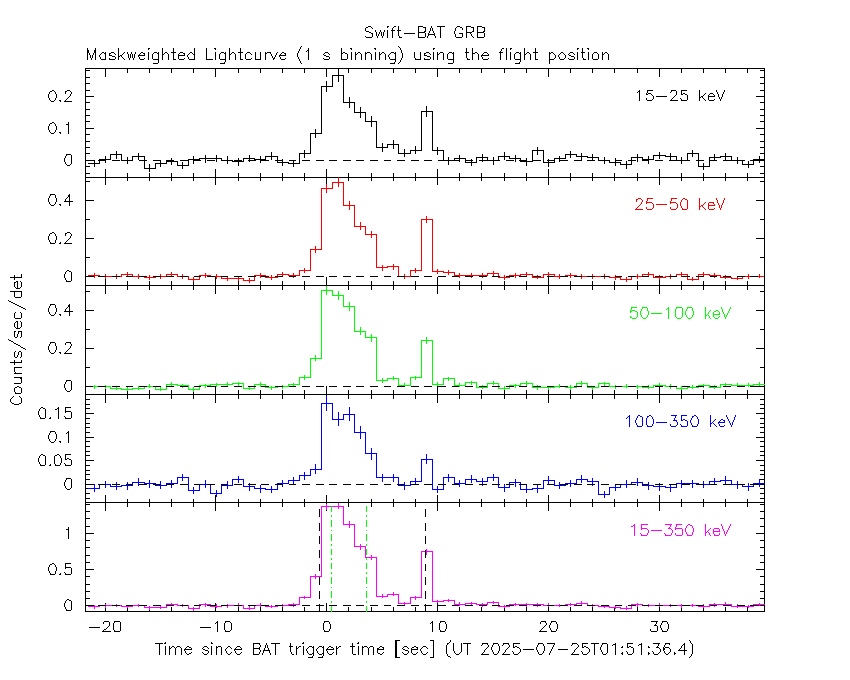

From T100_start - 20 s to T100_end + 30 s

Full time interval

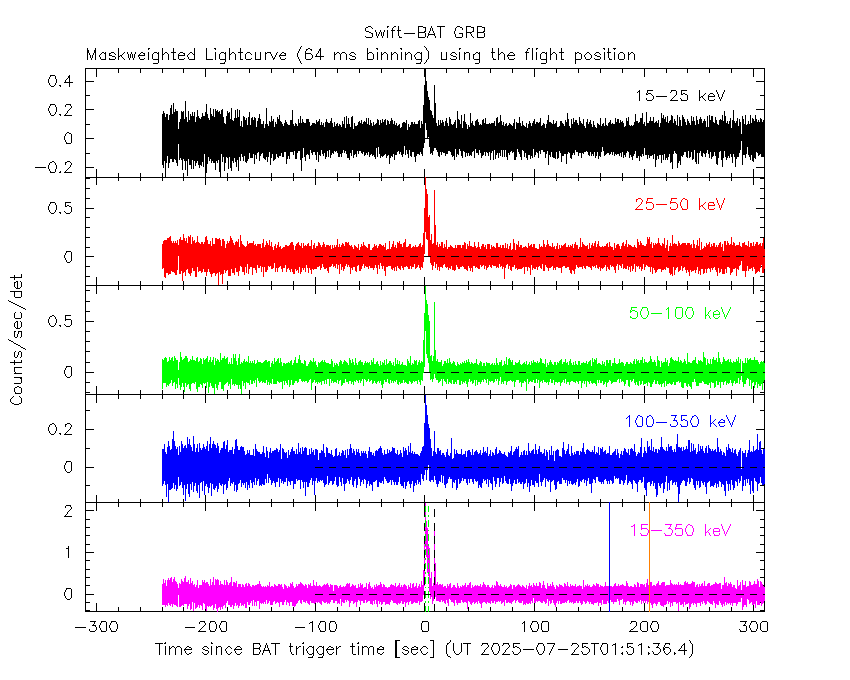

64 ms binning

Full time interval

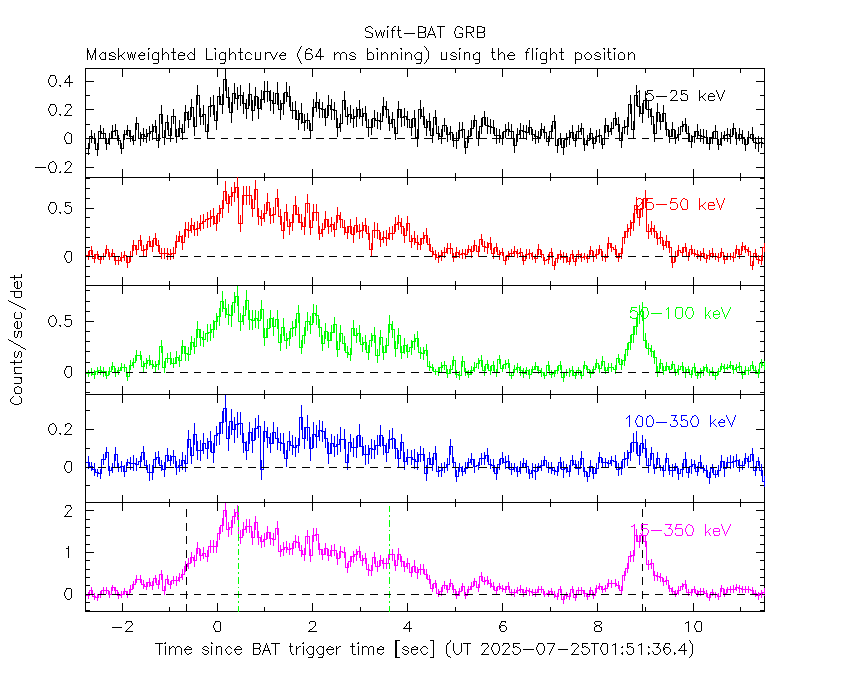

From T100_start to T100_end

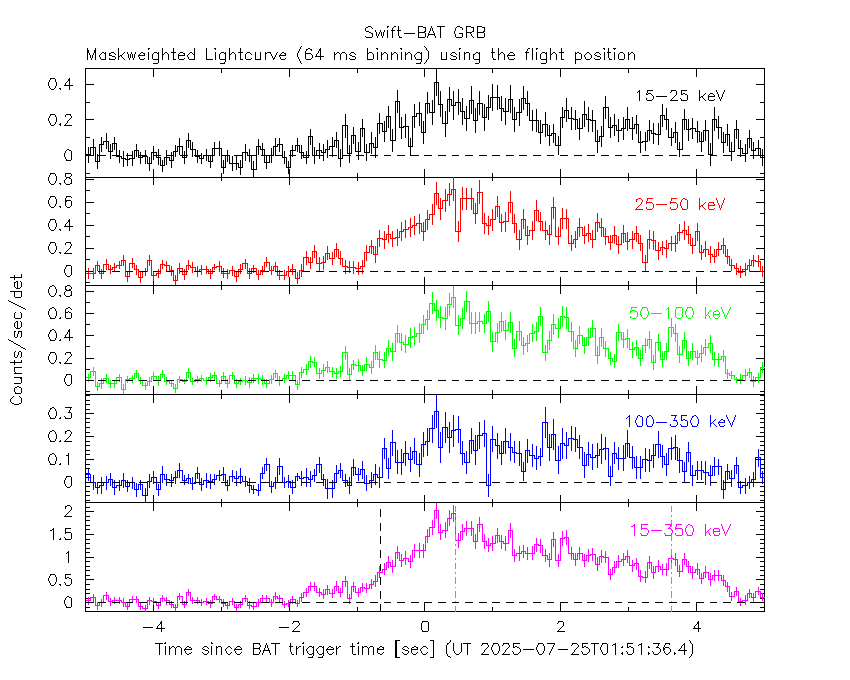

From T0-5 sec to T0+5 sec

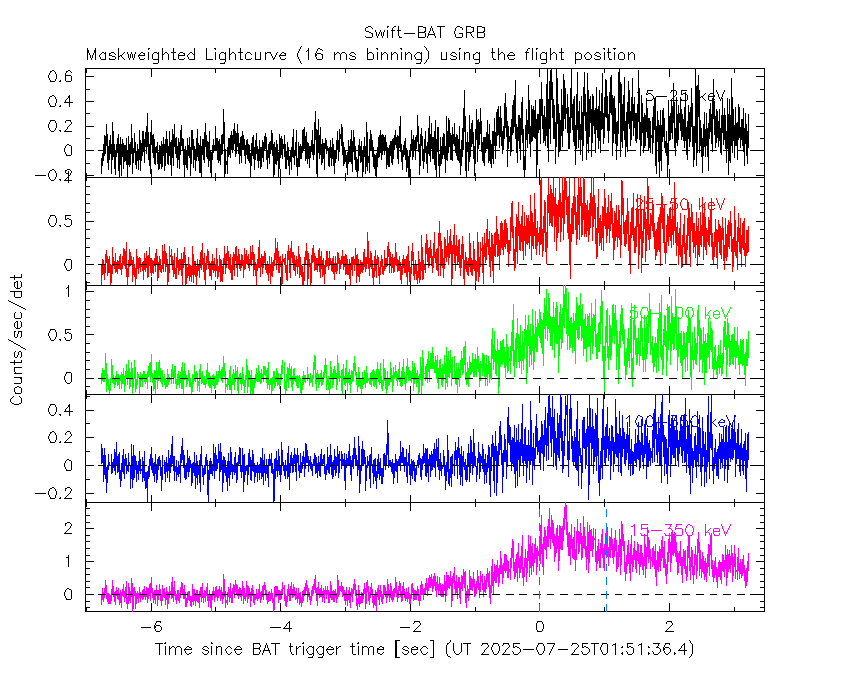

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

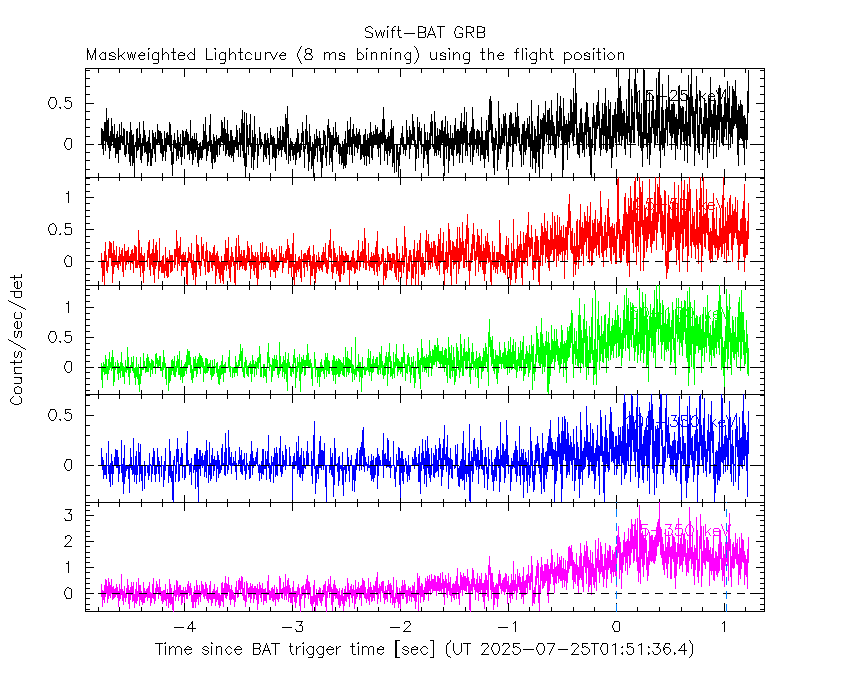

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

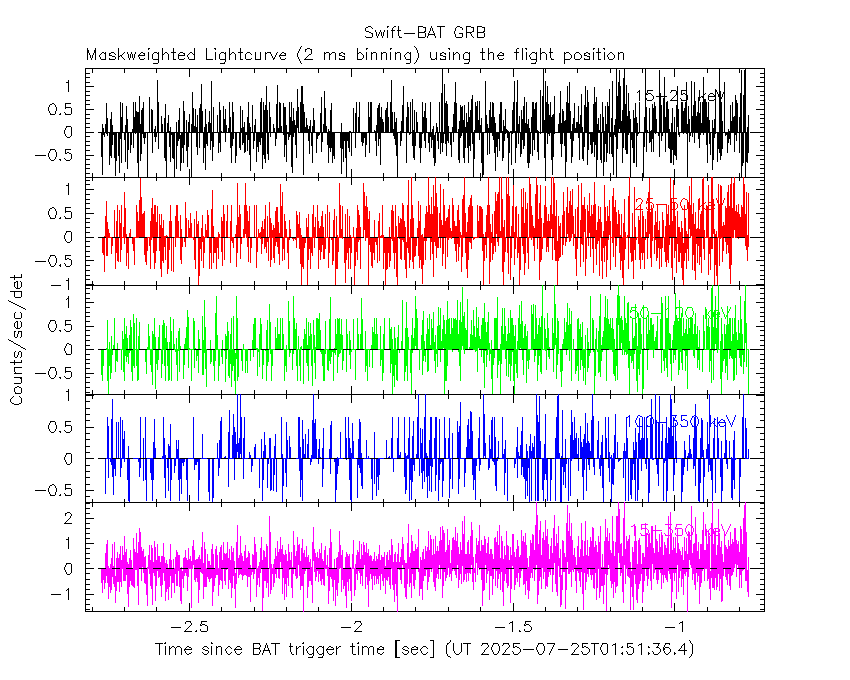

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

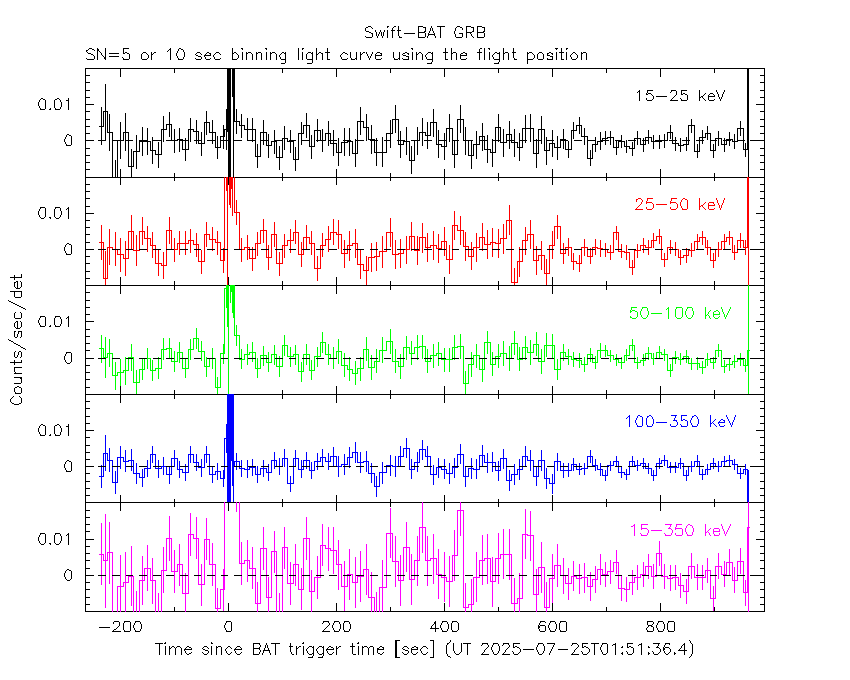

SN=5 or 10 sec. binning (whichever binning is satisfied first)

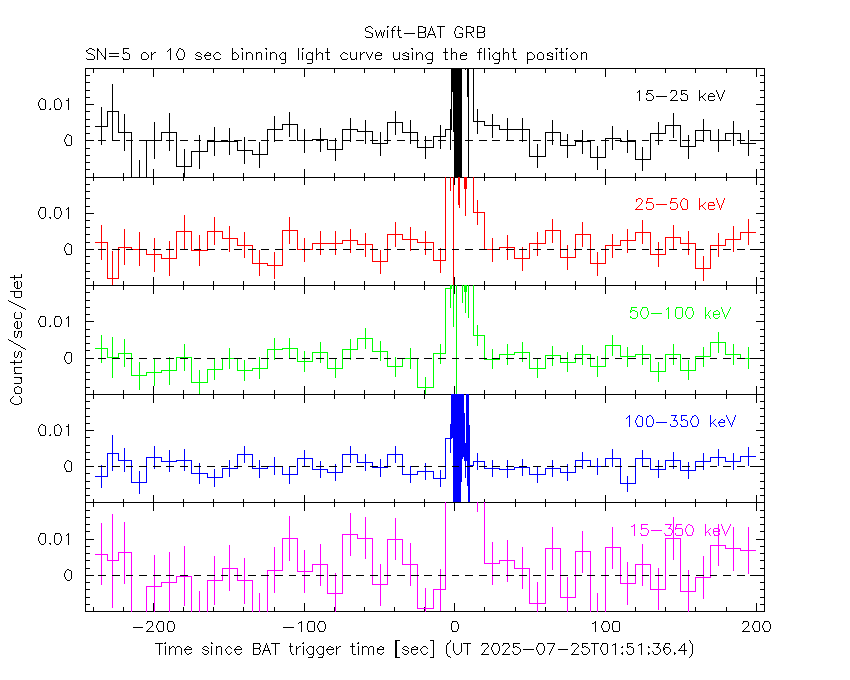

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

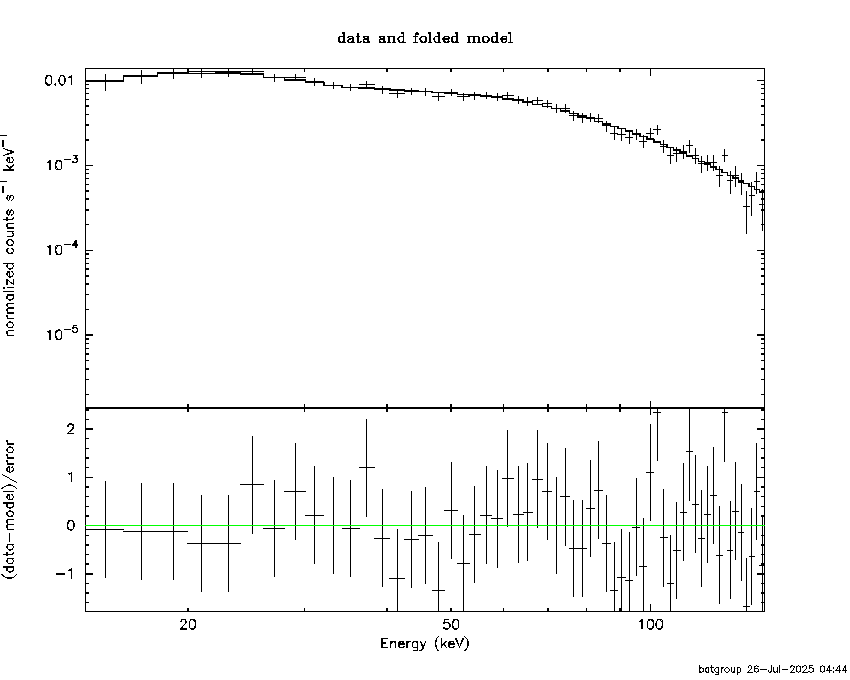

Time averaged spectrum fit using the average DRM

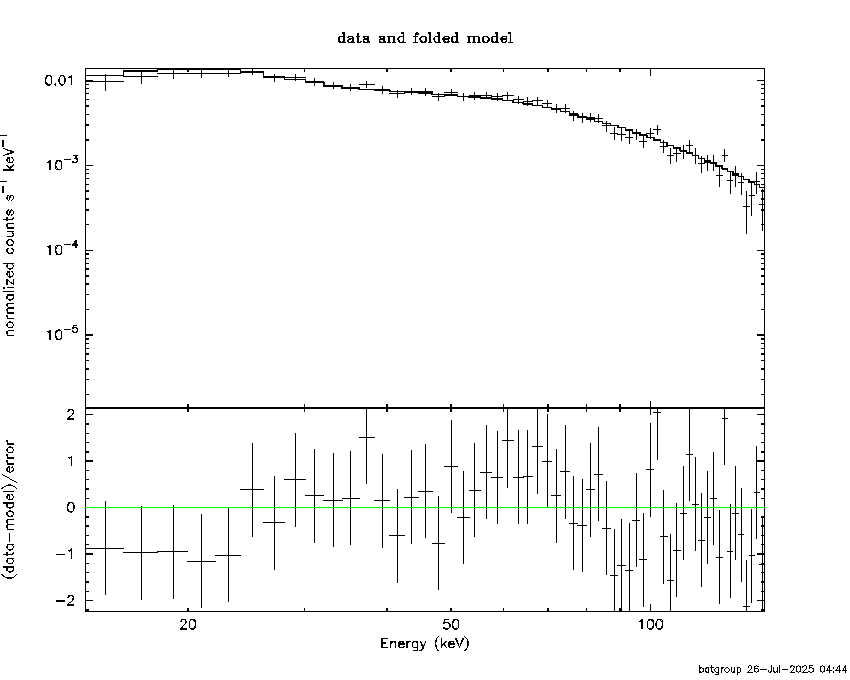

Power-law model

Time interval is from   -1.772 sec. to    9.504 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.15265     ( -0.0453289   0.0451195 )
Norm@50keV  : 4.34047E-02    ( -0.00112614   0.00112484 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.22     using 59 bins.
 Reduced chi-squared = 0.863509
# Null hypothesis probability of 7.58e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 11.28 sec: 5.06347 ( -0.1396  0.13987 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.03673e-06 ( -1.33879e-07  1.33962e-07 ) ergs/cm2

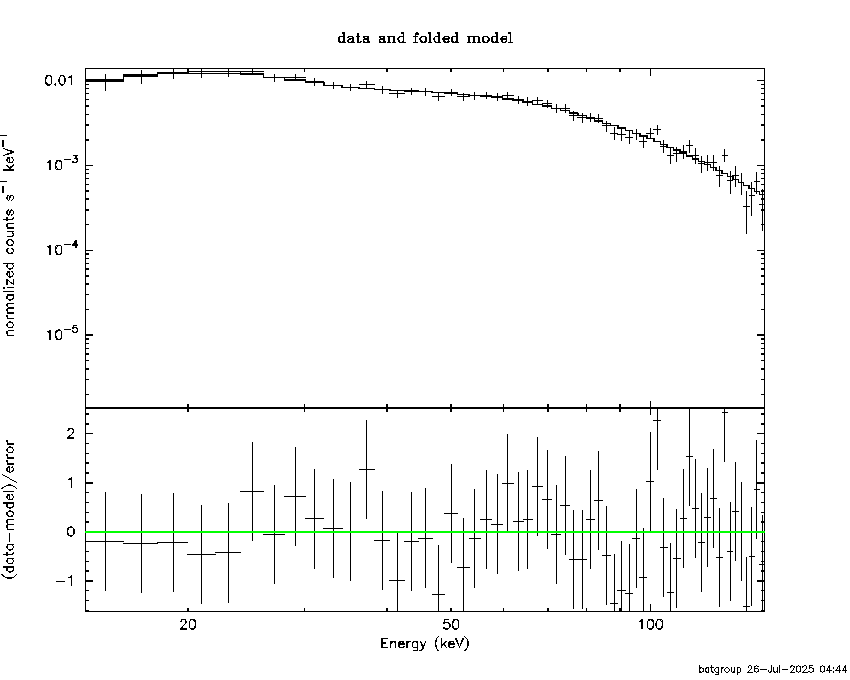

Cutoff power-law model

Time interval is from   -1.772 sec. to    9.504 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.804206     ( -0.192661   0.184759 )
Epeak [keV] : 206.108      ( -51.9635 155.505 )
Norm@50keV  : 6.10282E-02    ( -0.00985535   0.0122218 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   38.52     using 59 bins.
 Reduced chi-squared = 0.687857
# Null hypothesis probability of 9.64e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 11.28 sec: 4.97186 ( -0.14652  0.1469 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.97873e-06 ( -1.38803e-07  1.38664e-07 ) ergs/cm2

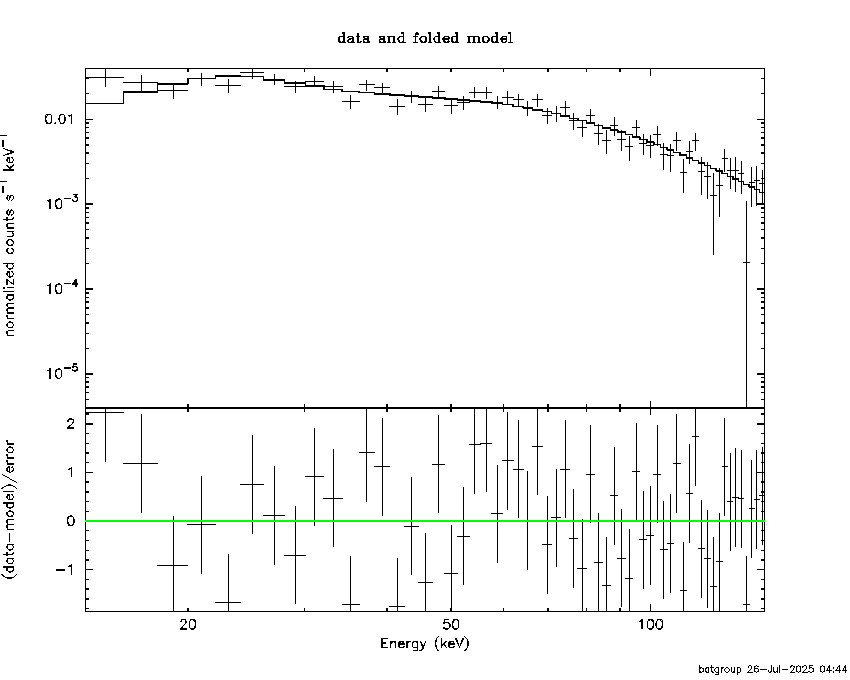

Band function

Time interval is from   -1.772 sec. to    9.504 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

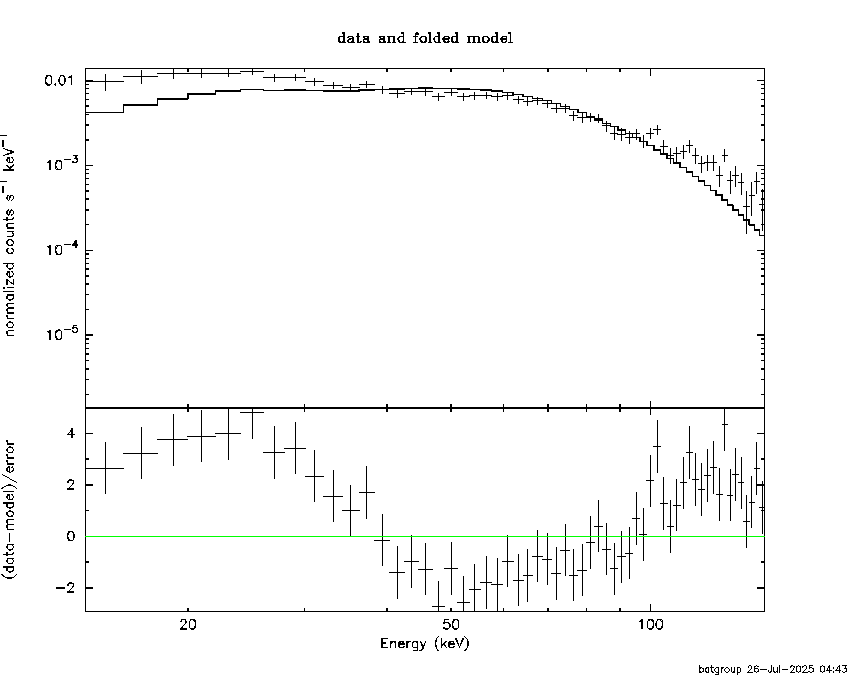

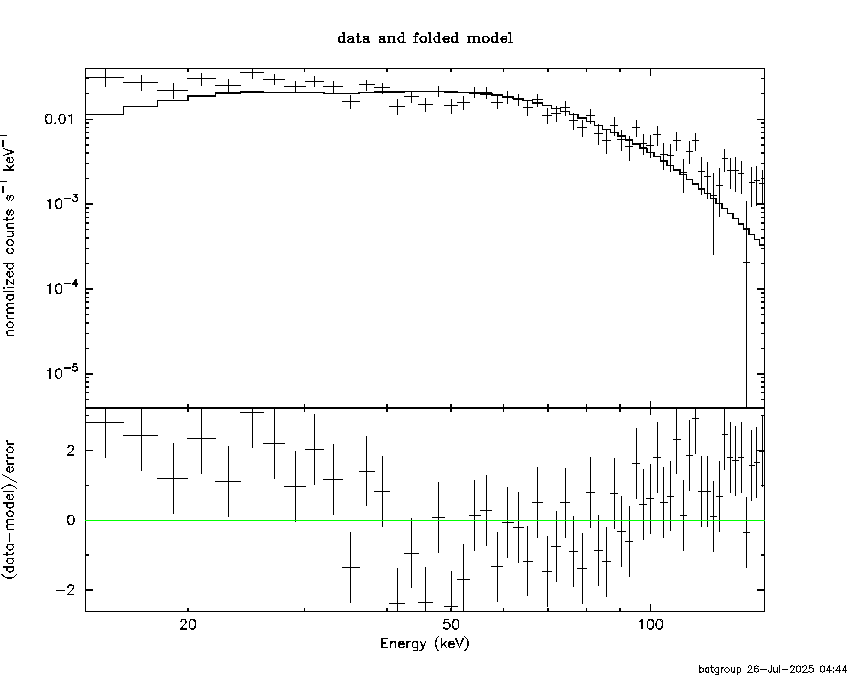

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.4856  (  )
R^2/D10^2   : 0.188172  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  267.89     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.55e-29 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.833e-07   9.701e-09
25- 50  9.555e-07   3.649e-08
50-150  3.293e-06   1.354e-07
15-150  4.431e-06   1.241e-07

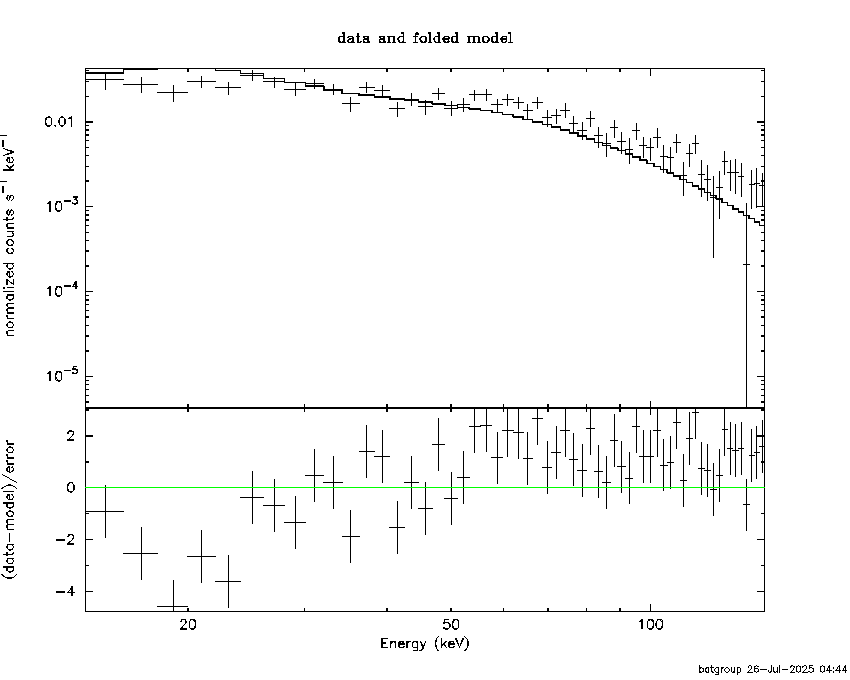

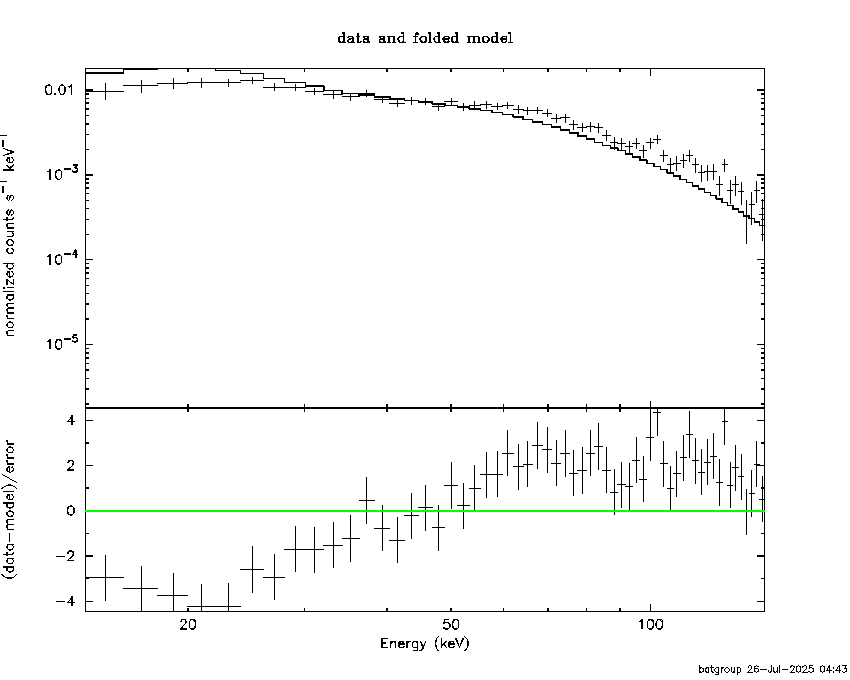

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 21.6690       (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  281.59     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.88e-31 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.086e-07   1.698e-08
25- 50  1.171e-06   3.271e-08
50-150  2.568e-06   7.276e-08
15-150  4.347e-06   1.167e-07

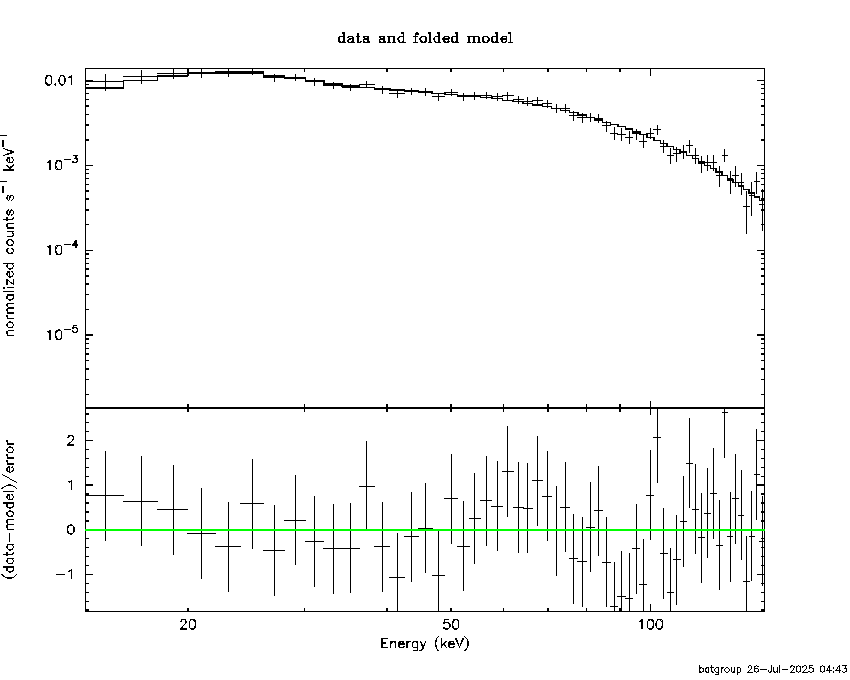

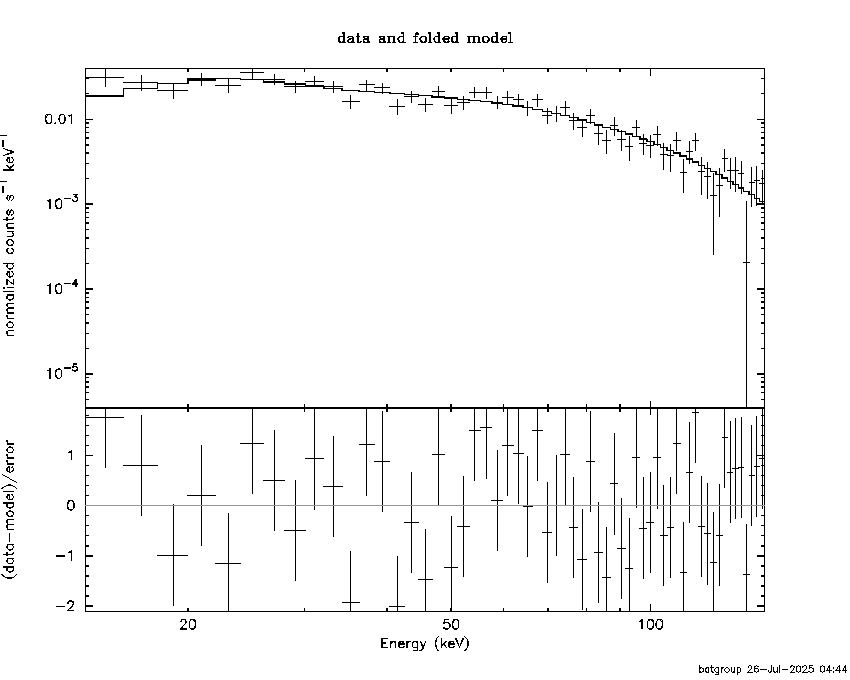

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.62491        (-1.08398      1.22584)
R1^2/D10^2  : 1.90855        (-0.611605      0.995748)
kT2 [keV]   : 32.5885        (-2.98904      4.25548)
R2^2/D10^2  : 4.08674E-02    (-0.0139999   0.0163545)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   43.25     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.74e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.772e-07   3.937e-08
25- 50  1.068e-06   6.689e-08
50-150  3.551e-06   2.233e-07
15-150  4.996e-06   2.820e-07

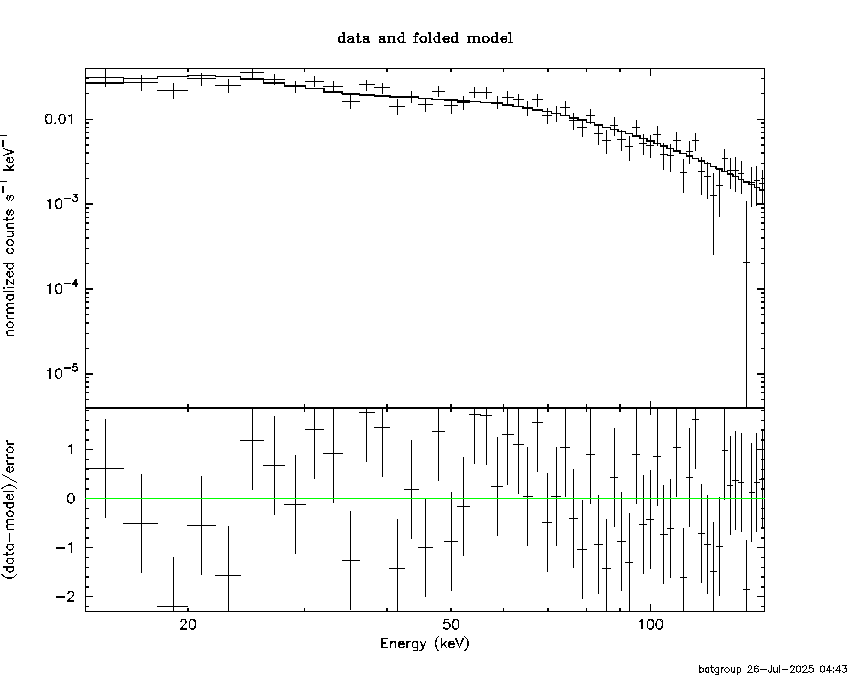

Peak spectrum fit

Power-law model

Time interval is from    0.060 sec. to    1.060 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.08912     ( -0.0746295   0.0741858 )
Norm@50keV  : 0.108137    ( -0.00479295   0.00479048 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   63.38     using 59 bins.
 Reduced chi-squared = 1.11193
# Null hypothesis probability of 2.62e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.480977 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.13467e-06 ( -5.45053e-08  5.46261e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.060 sec. to    1.060 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.672728     ( -0.328531   0.306495 )
Epeak [keV] : 182.552      ( -56.1376 316.352 )
Norm@50keV  : 0.166766    ( -0.0445557   0.0655 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.90     using 59 bins.
 Reduced chi-squared = 1.03393
# Null hypothesis probability of 4.05e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 12.3669 ( -0.5824  0.5828 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.11836e-06 ( -5.69333e-08  5.66728e-08 ) ergs/cm2

Band function

Time interval is from    0.060 sec. to    1.060 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.6617  (  )
R^2/D10^2   : 0.548484  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  131.25     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.67e-08 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.454e-08   4.035e-09
25- 50  2.266e-07   1.435e-08
50-150  7.200e-07   5.220e-08
15-150  9.912e-07   5.340e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 51.3696       (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  164.63     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.19e-12 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.279e-07   6.200e-09
25- 50  2.461e-07   1.260e-08
50-150  5.397e-07   2.830e-08
15-150  9.136e-07   4.375e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.75168        (-2.23294      2.64891)
R1^2/D10^2  : 3.29747        (-1.43756      3.43465)
kT2 [keV]   : 35.4718        (-6.99081      18.5493)
R2^2/D10^2  : 7.71722E-02    (-0.0557774   0.0883671)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   60.39     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.87e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.691e-08   1.518e-08
25- 50  2.413e-07   3.690e-08
50-150  8.047e-07   2.084e-07
15-150  1.123e-06   2.254e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.15265     ( -0.0453289   0.0451195 )
Norm@50keV  : 4.34047E-02    ( -0.00112614   0.00112484 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.22     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.58e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 11.28 sec: 5.06347 ( -0.139578  0.139836 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.03619e-06 ( -1.3385e-07  1.33929e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.804206     ( -0.192661   0.184759 )
Epeak [keV] : 206.108      ( -51.9636 155.505 )
Norm@50keV  : 6.10281E-02    ( -0.00985532   0.0122218 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   38.52     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.64e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 11.28 sec: 4.97158 ( -0.14647  0.14705 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.98102e-06 ( -1.39195e-07  1.38665e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.03e-06
S(50-100 keV) = 1.85e-06

T90 vs. Hardness ratio plot

T90                                   = 9.58399999141693 sec.
Hardness ratio (energy fluence ratio) = 1.79612

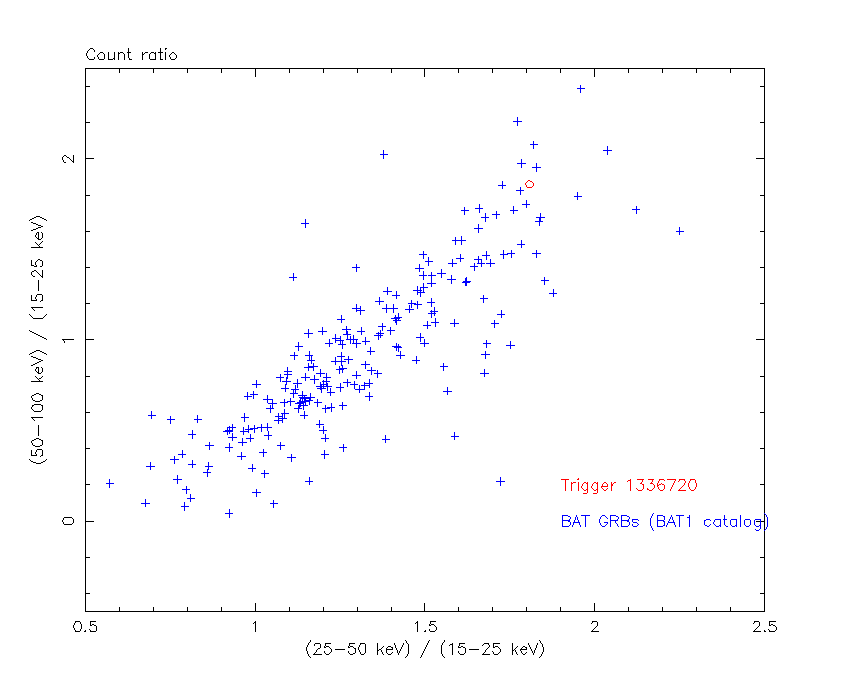

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.80774
Count Ratio (50-100 keV) / (15-25 keV) = 1.86081

Mask shadow pattern

IMX = 1.742709268112860E-01, IMY = 6.193628922500809E-01

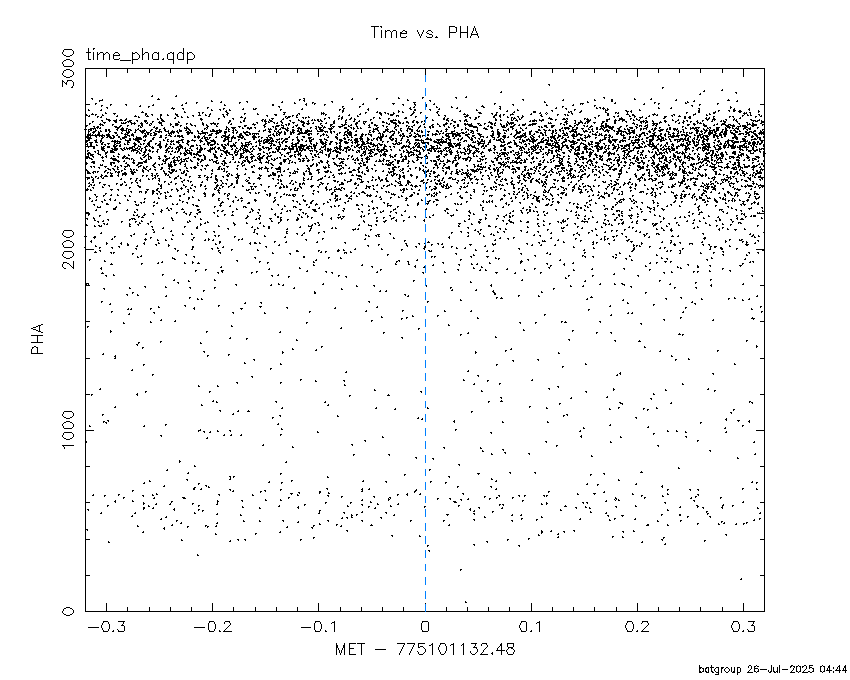

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

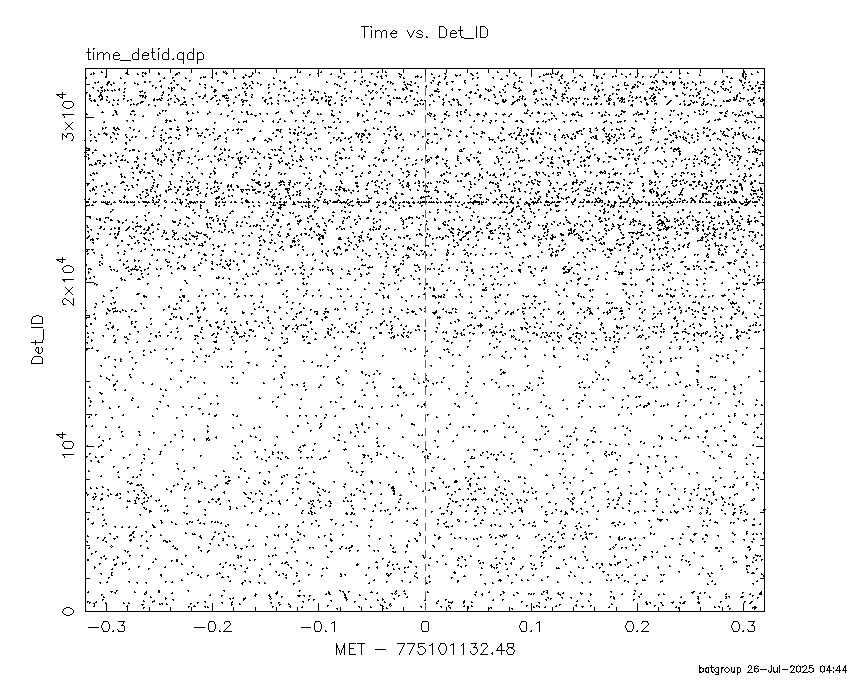

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

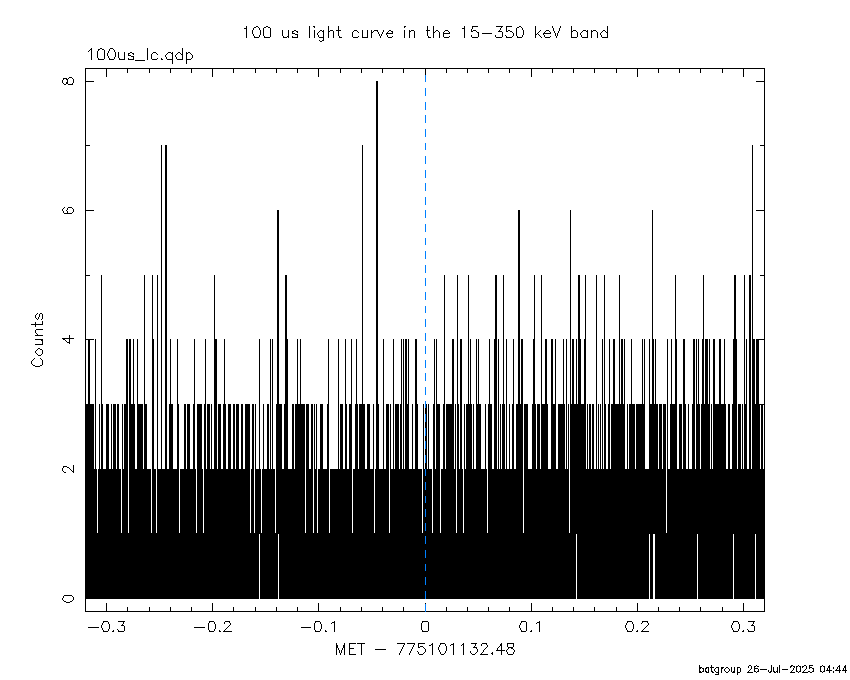

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-85.179400 -1.772000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
255.9565 -37.8754    6.7  43.8   26.9   0.5283   1.7    2.4	4U 1700-377
256.6263 -36.3674   40.6  44.6   29.0  -0.0867  -0.3    9.8	GX 349+2
264.7453 -44.3197   11.6  34.6   26.5   0.2082   1.0    7.8	4U 1735-44
270.4869 -25.5927    0.0  45.5   51.6   1.0659   1.8   13.4	GRS 1758-258
276.0613 -30.3357    3.8  38.7   53.6   1.0237   3.0    7.3	H1820-303
284.9903 -24.8264   13.0  39.3   68.9   0.4689   0.9    6.2	HT1900.1-2455
262.8614 -33.7262   26.4  43.1   37.0   0.1399   0.4    9.1	GX 354-0
  0.4253 -21.4657    4.1  47.2  179.1   0.9134   2.9 ------	UNKNOWN
 10.6005 -21.8004    2.7  52.0 -170.2   1.7551   4.3 ------	UNKNOWN
206.4128 -55.7606    2.1  54.7  -21.0   2.6662   5.5 ------	UNKNOWN
 46.8424 -81.2270    2.3  34.5  -76.8   1.3175   5.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-1.772000 9.504000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
255.9802 -37.8648   64.7  43.8   26.9  -0.0262  -0.2    1.3	4U 1700-377
256.5316 -36.4137   12.0  44.6   28.8  -0.1424  -1.0    4.7	GX 349+2
264.9342 -44.3392   33.0  34.5   26.6   0.0349   0.3   10.6	4U 1735-44
270.1955 -25.8419   26.8  45.4   51.1   0.1054   0.4    8.3	GRS 1758-258
276.0276 -30.2203  213.0  38.9   53.7   0.0076   0.1   10.3	H1820-303
285.0231 -24.9863    4.7  39.1   68.8   0.4502   2.5    4.0	HT1900.1-2455
262.8978 -33.7048  636.9  43.1   37.0  -0.0025  -0.0    9.0	GX 354-0
334.1989 -11.5199    2.8  46.8  141.9   0.8058   4.1 ------	UNKNOWN
227.0116 -56.5510    2.5  46.0  -11.2   0.5756   4.6 ------	UNKNOWN
 35.4579 -82.7864    0.3  32.8  -74.3   7.2480  42.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
205.220600 588.020600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
255.9943 -37.7403    5.5  50.4   20.5   2.2025   2.1    6.2	4U 1700-377
256.4337 -36.3238    5.9  51.0   22.2   2.3766   1.9    6.0	GX 349+2
264.6964 -44.3461    3.7  41.3   18.0   2.5759   3.1    6.5	4U 1735-44
276.0942 -30.2838    3.7  42.4   43.1  -3.8880  -3.1   10.1	H1820-303
285.1761 -25.0264   19.2  40.5   57.4   0.9114   0.6    9.9	HT1900.1-2455
262.8781 -33.9485    6.2  48.5   28.9   1.9939   1.9    8.8	GX 354-0
  4.5282 -14.1958    4.1  47.2  179.1   3.3569   2.8 ------	UNKNOWN
232.2270 -57.1338    2.9  51.9  -11.6   4.2470   3.9 ------	UNKNOWN
 25.3744 -75.7536    2.9  34.4  -76.9   3.6564   4.1 ------	UNKNOWN

Plot creation:
Sun Mar  1 23:35:16 EST 2026
