Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte
Pre-slew 15-350 keV image (Event data; bkg subtracted)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
24.1430 -81.4018 0.0100 35.2 3.0 4.0387 19.2 TRIG_01339848
------------------------------------------
Foreground time interval of the image:
-61.712 -49.010 (delta_t = 12.702 [sec])
-47.960 36.252 (delta_t = 84.212 [sec])
Background time interval of the image:
-158.859 -61.712 (delta_t = 97.147 [sec])
Lightcurves
Notes:
- 1) All plots contain as much data as has been downloaded to date.
- 2) The mask-weighted light curves are using the flight position.
- 3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 6) Time of each bin is in the middle of the bin.

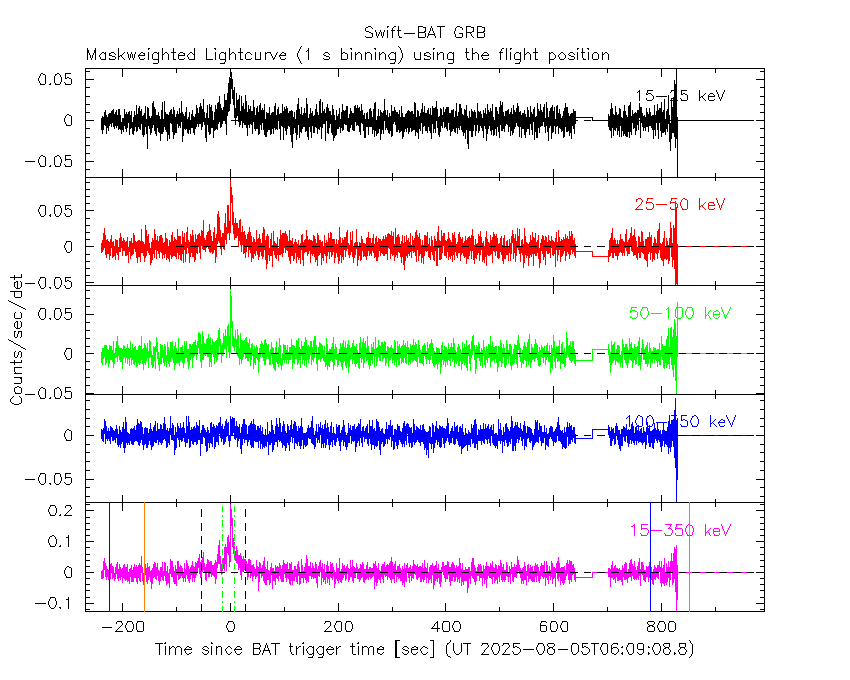

1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval
64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
- 4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.
Time averaged spectrum fit using the pre-slew DRM

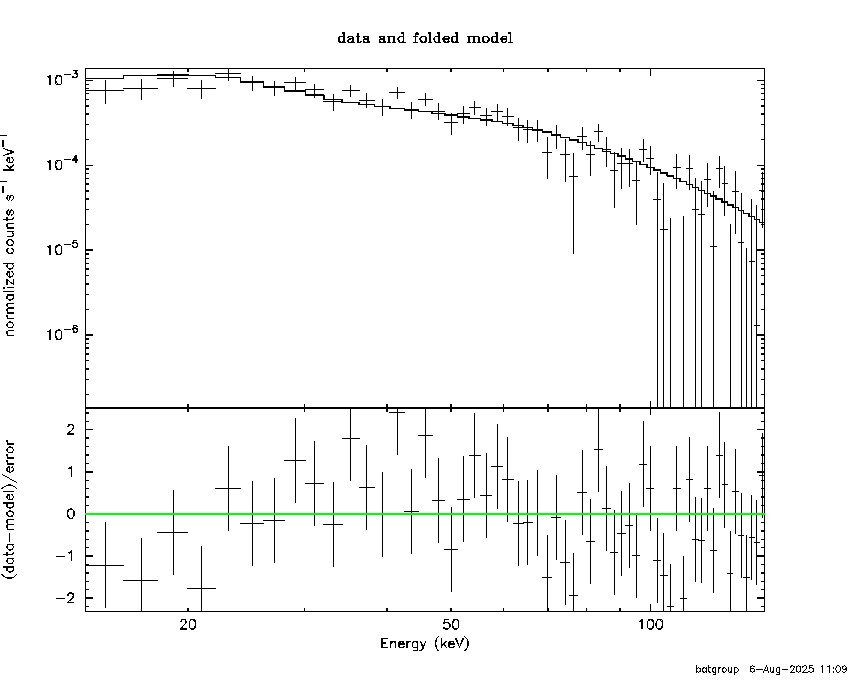

Power-law model
Multiple GTIs in the spectrum
tstart tstop
-61.712000 -49.010000
-47.960000 36.252000
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.57694 ( -0.103206 0.103757 )
Norm@50keV : 2.62267E-03 ( -0.000167254 0.00016682 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 66.04 using 59 PHA bins.
# Reduced chi-squared = 1.159 for 57 degrees of freedom
# Null hypothesis probability = 1.929216e-01
Photon flux (15-150 keV) in 96.91 sec: 0.334662 ( -0.0214495 0.0214815 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.38393e-06 ( -1.6189e-07 1.62647e-07 ) ergs/cm2
Cutoff power-law model
Multiple GTIs in the spectrum
tstart tstop
-61.712000 -49.010000
-47.960000 36.252000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.572150 ( -0.557316 0.491329 )
Epeak [keV] : 68.6369 ( -10.017 21.8204 )
Norm@50keV : 8.68649E-03 ( -0.00379362 0.00803255 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 52.41 using 59 PHA bins.
# Reduced chi-squared = 0.9359 for 56 degrees of freedom
# Null hypothesis probability = 6.115988e-01
Photon flux (15-150 keV) in 96.91 sec: 0.321269 ( -0.022403 0.02241 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.21532e-06 ( -1.8001e-07 1.81667e-07 ) ergs/cm2
Band function
Multiple GTIs in the spectrum
tstart tstop
-61.712000 -49.010000
-47.960000 36.252000
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -6.77494E-03 ( -0.784598 2.90761 )
beta : -2.13154 ( -2.02065 0.340216 )
Epeak [keV] : 54.5687 ( -17.6732 20.7348 )
Norm@50keV : 1.92670E-02 ( -0.0239439 1.87952 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 49.75 using 59 PHA bins.
# Reduced chi-squared = 0.9045 for 55 degrees of freedom
# Null hypothesis probability = 6.749711e-01
Photon flux (15-150 keV) in 96.91 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 2.25277e-06 ( -2.25209e-06 -1.794e-07 ) ergs/cm2

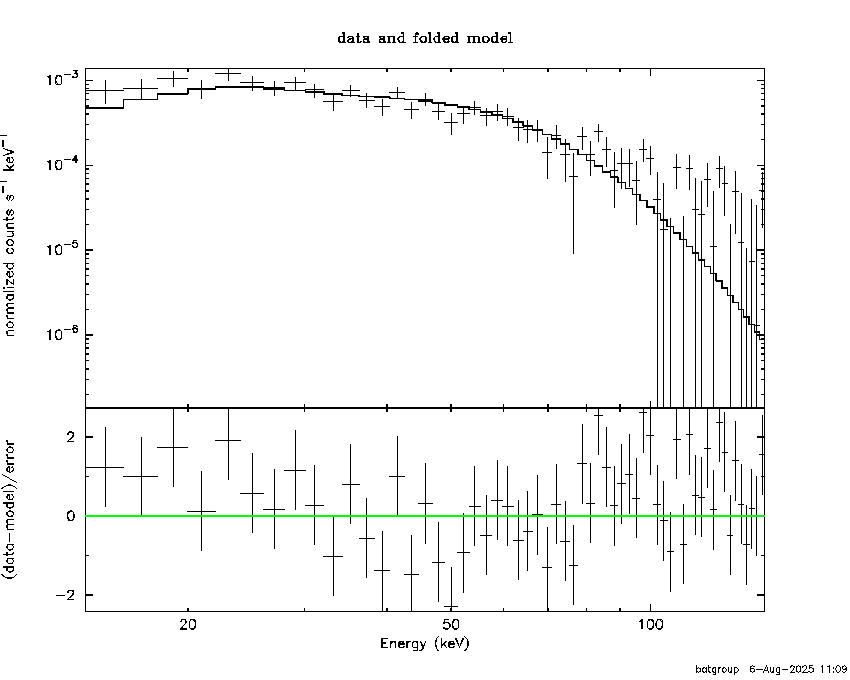

Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 13.8684 (-0.940734 1.02636)
R^2/D10^2 : 5.07512E-02 (-0.0116903 0.014869)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 79.98 using 59 PHA bins.
# Reduced chi-squared = 1.403 for 57 degrees of freedom
# Null hypothesis probability = 2.400818e-02
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.000e-07 2.369e-08
25- 50 7.368e-07 6.052e-08
50-150 9.286e-07 1.321e-07
15-150 1.865e-06 1.366e-07

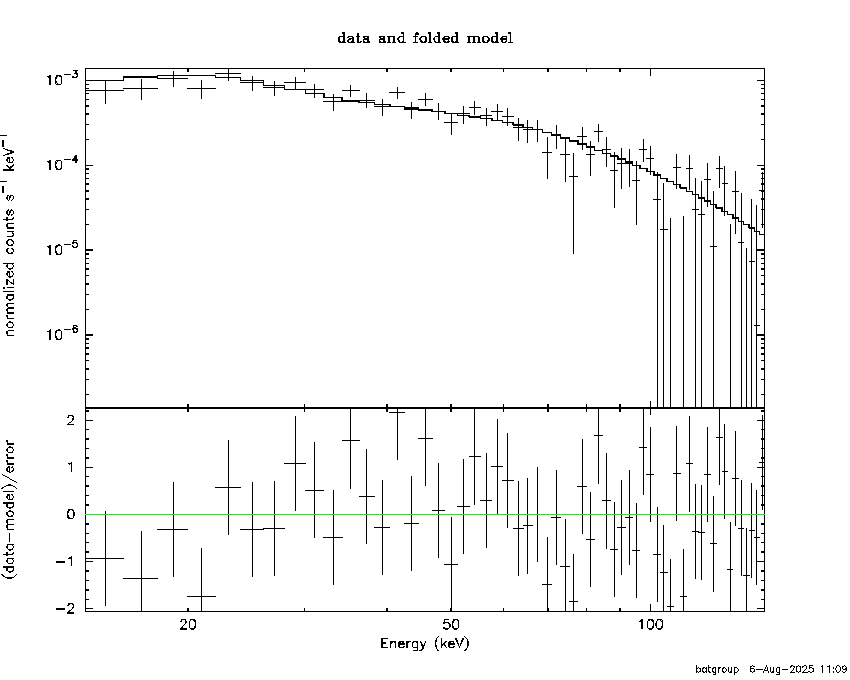

Thermal bremsstrahlung (OTTB)
XSPEC12>exit
XSPEC: quit
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 170.908 (-43.5803 -170.906)
Norm : 1.38419 (-0.0944421 0.10342)
------------------------------------------------------------
Reduced chi-squared =
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 3.402e-07 2.951e-08
25- 50 6.421e-07 9.371e-08
50-150 1.334e-06 5.572e-07
15-150 2.316e-06 6.658e-07

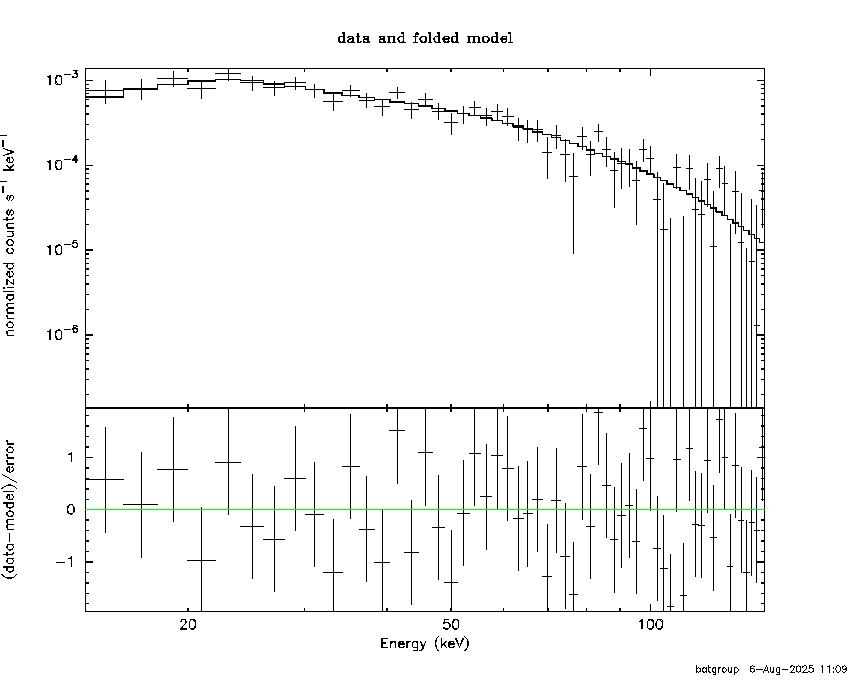

Double BB
XSPEC12>exit
XSPEC: quit
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 9.50459 (-2.15353 1.82355)
R1^2/D10^2 : 0.139365 (-0.0542125 0.130238)
kT2 [keV] : 29.9670 (-9.57351 37.8021)
R2^2/D10^2 : 1.90793E-03 (-0.00172635 0.0071367)
------------------------------------------------------------
Reduced chi-squared =
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.697e-07 5.684e-08
25- 50 7.232e-07 1.575e-07
50-150 1.270e-06 5.240e-07
15-150 2.263e-06 6.575e-07
Peak spectrum fit

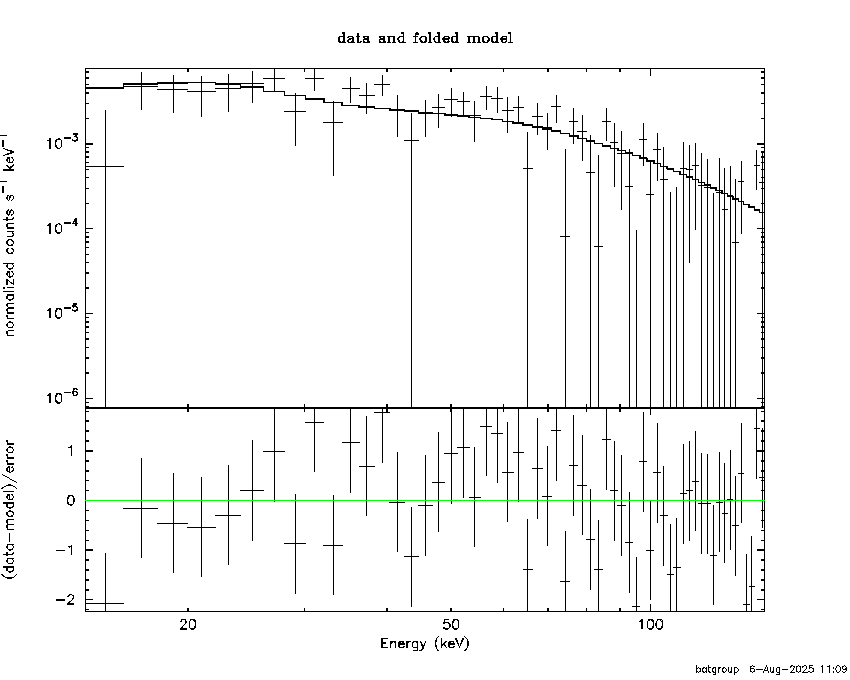

Power-law model
Time interval is from 0.464 sec. to 1.464 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.34742 ( -0.197581 0.195745 )
Norm@50keV : 1.45849E-02 ( -0.00188557 0.00188481 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 58.60 using 59 PHA bins.
# Reduced chi-squared = 1.028 for 57 degrees of freedom
# Null hypothesis probability = 4.163951e-01
Photon flux (15-150 keV) in 1 sec: 1.75616 ( -0.233656 0.234226 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.42532e-07 ( -1.97117e-08 1.98247e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from 0.464 sec. to 1.464 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: -0.320570 ( -1.33632 1.01868 )
Epeak [keV] : 70.7560 ( -12.9493 34.6318 )
Norm@50keV : 9.86357E-02 ( -0.0986366 0.333104 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 49.70 using 59 PHA bins.
# Reduced chi-squared = 0.8875 for 56 degrees of freedom
# Null hypothesis probability = 7.107609e-01
Photon flux (15-150 keV) in 1 sec: 1.68181 ( -0.2402 0.24025 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.31086e-07 ( -2.0793e-08 2.1328e-08 ) ergs/cm2
Band function
Time interval is from 0.464 sec. to 1.464 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : 0.566256 ( -1.24553 -0.637655 )
beta : -2.49818 ( 2.488 0.916098 )
Epeak [keV] : 65.5859 ( -25.8803 29.5016 )
Norm@50keV : 0.136965 ( -0.15075 56.858 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 49.19 using 59 PHA bins.
# Reduced chi-squared = 0.8943 for 55 degrees of freedom
# Null hypothesis probability = 6.953346e-01
Photon flux (15-150 keV) in 1 sec: 1.64314 ( 5.35686 -0.24006 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.3293e-07 ( -1.32923e-07 -2.0981e-08 ) ergs/cm2

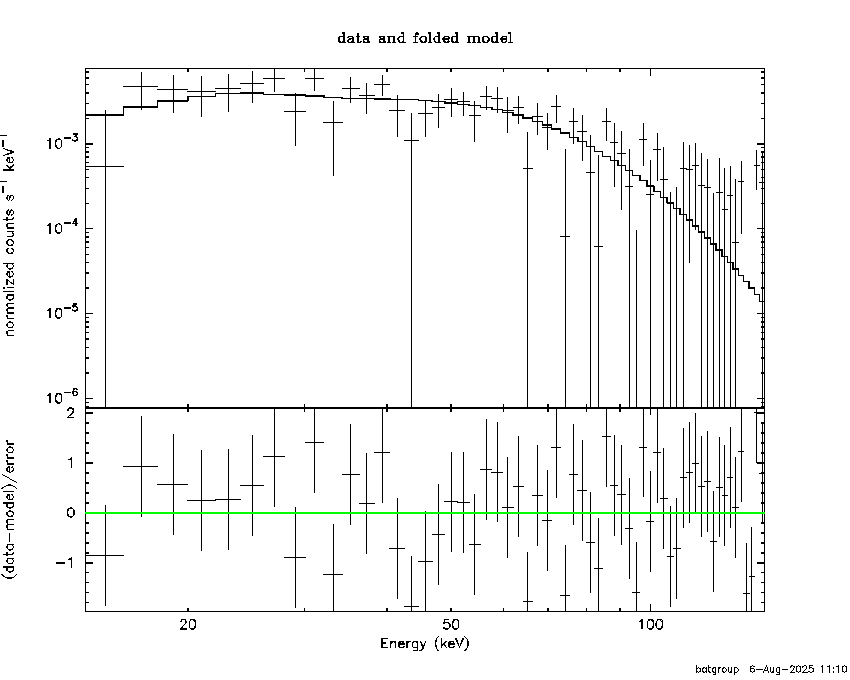

Single BB
XSPEC: quit
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 16.1436 (-1.99514 2.37588)
R^2/D10^2 : 0.173109 (-0.0669488 0.102497)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
Reduced chi-squared =
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 9.309e-09 2.379e-09
25- 50 3.947e-08 7.810e-09
50-150 7.215e-08 1.705e-08
15-150 1.209e-07 2.179e-08

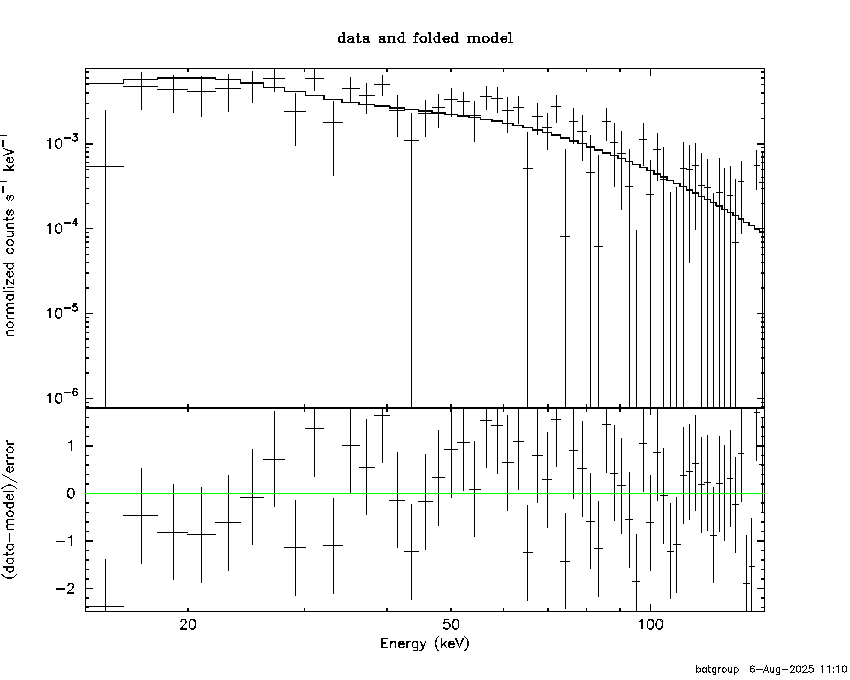

Thermal bremsstrahlung (OTTB)
XSPEC12>exit
XSPEC: quit
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 200.000 (-52.7661 -200)
Norm : 7.39437 (-0.954146 0.954146)
------------------------------------------------------------
Reduced chi-squared =
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.842e-08 1.043e-08
25- 50 3.543e-08 1.974e-08
50-150 7.771e-08 4.298e-08
15-150 1.316e-07 7.300e-08

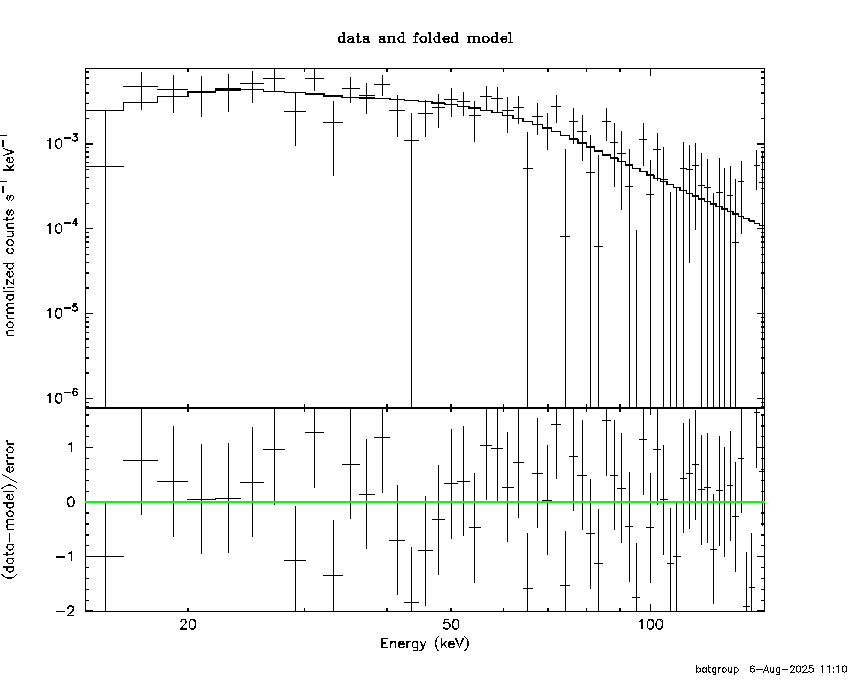

Double BB
XSPEC12>exit
XSPEC: quit
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 80.8568 (-82.4719 -82.4719)
R1^2/D10^2 : 4.77611E-04 (-0.000440458 0.186237)
kT2 [keV] : 13.9483 (-13.982 3.09457)
R2^2/D10^2 : 0.253585 (-0.252012 0.242952)
------------------------------------------------------------
Reduced chi-squared =
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.162e-08 7.330e-09
25- 50 3.955e-08 2.644e-08
50-150 8.085e-08 4.721e-08
15-150 1.320e-07 7.315e-08

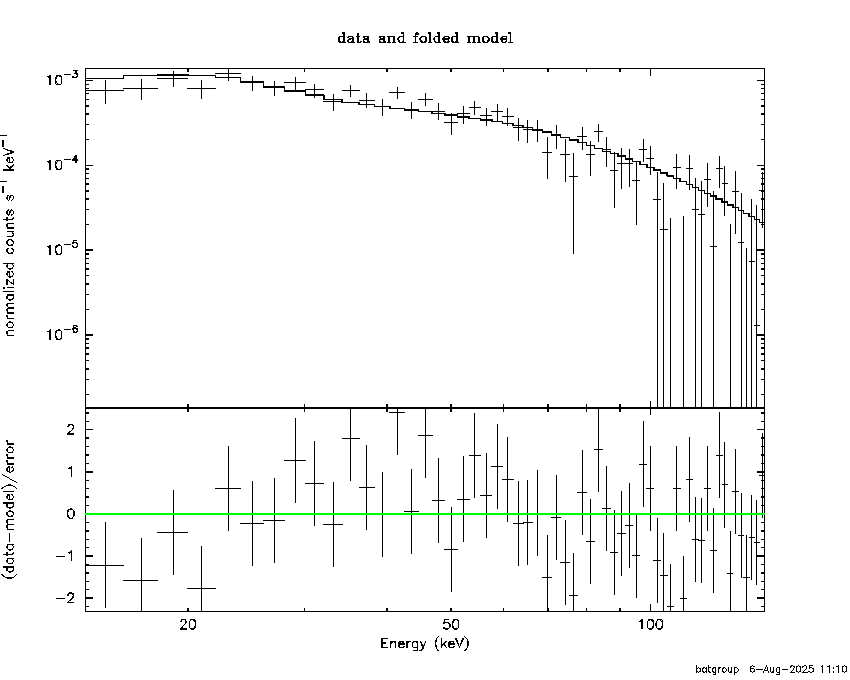

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.57694 ( -0.103206 0.103757 )
Norm@50keV : 2.62267E-03 ( -0.000167254 0.00016682 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 66.04 using 59 PHA bins.
# Reduced chi-squared = 1.159 for 57 degrees of freedom
# Null hypothesis probability = 1.929216e-01
Photon flux (15-150 keV) in 96.91 sec: 0.334662 ( -0.0214495 0.0214815 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.38393e-06 ( -1.6189e-07 1.62647e-07 ) ergs/cm2

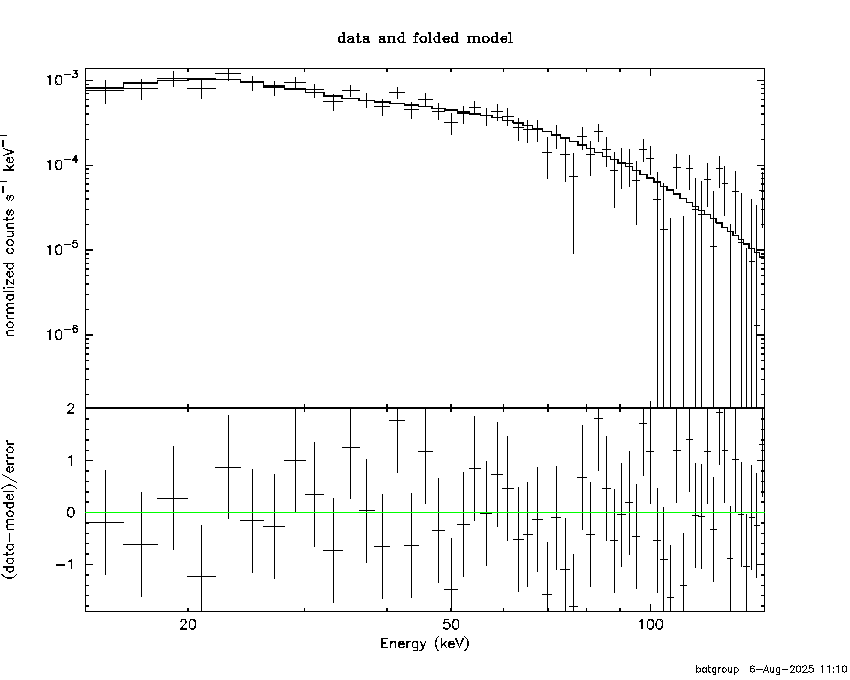

Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.572150 ( -0.557316 0.491329 )
Epeak [keV] : 68.6369 ( -10.017 21.8204 )
Norm@50keV : 8.68649E-03 ( -0.00379362 0.00803255 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 52.41 using 59 PHA bins.
# Reduced chi-squared = 0.9359 for 56 degrees of freedom
# Null hypothesis probability = 6.115988e-01
Photon flux (15-150 keV) in 96.91 sec: 0.321269 ( -0.022403 0.02241 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.21532e-06 ( -1.8001e-07 1.81667e-07 ) ergs/cm2

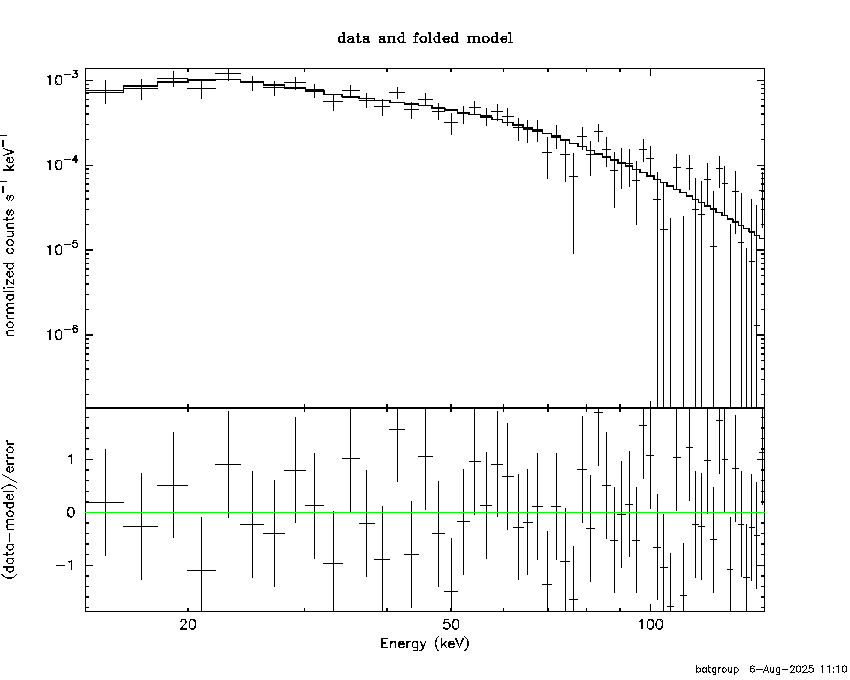

Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -6.77494E-03 ( -0.784598 2.90761 )
beta : -2.13154 ( -2.02065 0.340216 )
Epeak [keV] : 54.5687 ( -17.6732 20.7348 )
Norm@50keV : 1.92670E-02 ( -0.0239439 1.87952 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 49.75 using 59 PHA bins.
# Reduced chi-squared = 0.9045 for 55 degrees of freedom
# Null hypothesis probability = 6.749711e-01
Photon flux (15-150 keV) in 96.91 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 2.25277e-06 ( -2.25209e-06 -1.794e-07 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 6.12e-07
S(50-100 keV) = 8.20e-07

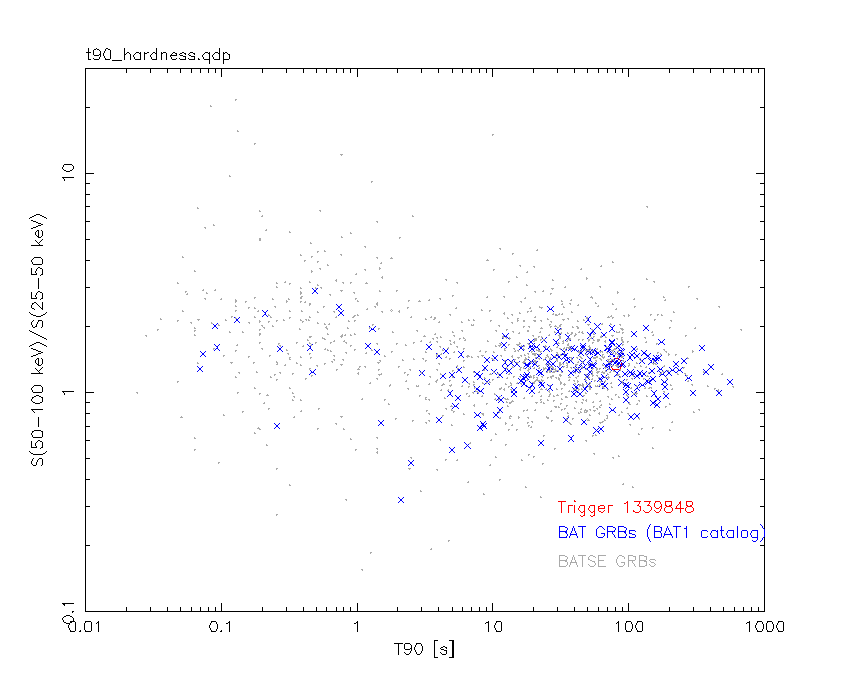

T90 vs. Hardness ratio plot
T90 = 80.4559999704361 sec.
Hardness ratio (energy fluence ratio) = 1.33987
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 1.6391
Count Ratio (50-100 keV) / (15-25 keV) = 1.1232
Mask shadow pattern
IMX = 7.046740904065001E-01, IMY = -3.678521915488984E-02

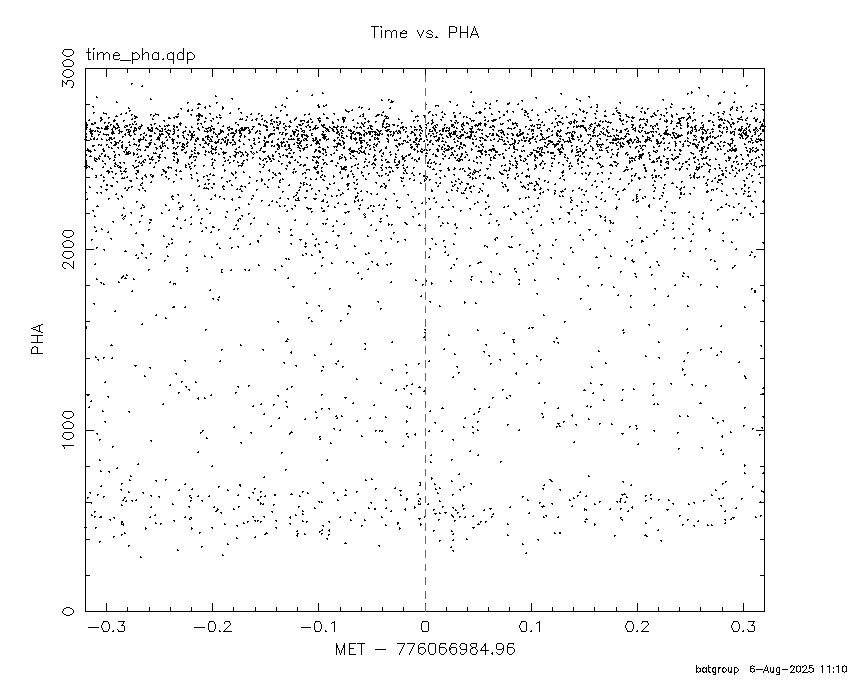

TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

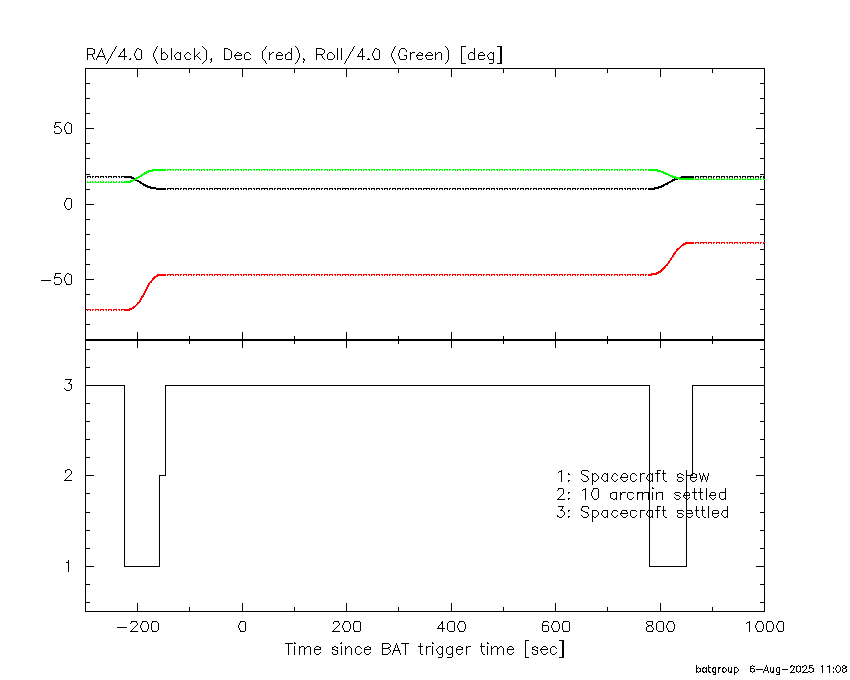

Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-158.859380 -61.712000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
292.8887 -81.6613 2.4 46.5 9.7 1.4905 4.8 ------ UNKNOWN
88.2474 -82.7456 2.8 38.8 -9.8 0.9544 4.1 ------ UNKNOWN
76.2349 -7.6949 2.6 49.3 -132.1 3.4795 4.5 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-61.712000 -49.010000
-47.960000 36.252000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
24.1428 -81.4018 0.6 35.2 3.0 4.0377 19.2 ------ UNKNOWN
99.6783 -41.9098 2.0 41.4 -75.6 3.6175 5.8 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
851.440590 962.069200
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.6203 22.0113 1.6 48.7 -142.5 3.6645 7.3 0.7 Crab
135.6705 -40.5037 5.1 53.3 -32.8 1.6668 2.3 7.2 Vela X-1
38.8872 -40.8857 3.2 32.2 77.6 1.4006 3.6 ------ UNKNOWN
61.2953 -70.1346 1.9 45.0 30.1 2.5380 5.9 ------ UNKNOWN
63.6198 -2.4116 2.8 25.0 -178.5 0.7467 4.0 ------ UNKNOWN
Plot creation:
Wed Aug 6 11:10:51 EDT 2025
